Epoch Battery 12V 460Ah V2 Elite Series - Heated, Bluetooth & Victron Comms LiFePO4 (C12460A)
Epoch Battery 12V 460Ah V2 Elite Series - Heated, Bluetooth & Victron Comms LiFePO4 (C12460A)
Regular price
$2,199.99
Regular price
Sale price
$2,199.99
Unit price
per
Shipping calculated at checkout.
Epoch Battery 12V 460Ah V2 Elite Series
SKU: C12460A
FREE Shipping
LOWEST PRICES GUARANTEED
Description:
- LiFePO4 Chemistry
- UL60691 Certified Internal Fuse
- UL1642, UL1973, U9540A Certified Cells
- IEC 62619:2017, RoHS, CE Certified Cells
- Group 8D Size (20.9" x 8.7" x 12.1") L x W x H
- 460Ah Capacity
- 230A Max Continuous Discharge (500A 30s Discharge)
- 230A Max Continuous Charge (400A 5s Charge)
- IP67 Rated, Dust and WATERPROOF
- HEATED - Internal heating for below 0C charging

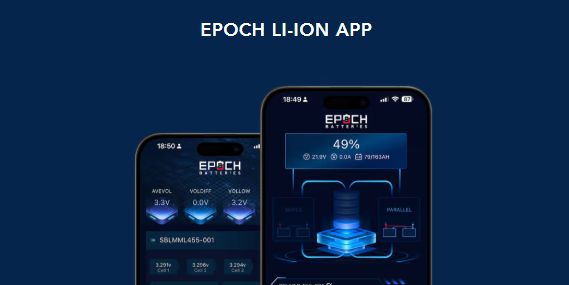

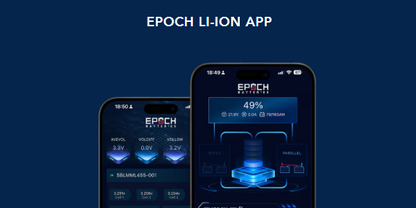

- BLUETOOTH - iOS and Android Apps
- VICTRON Communications - Parallel up to 16 together on 1 system

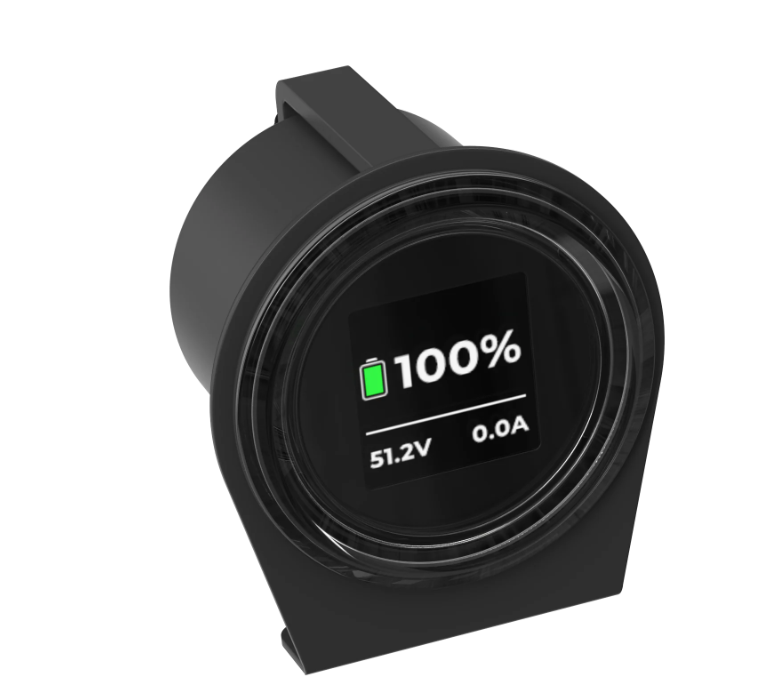

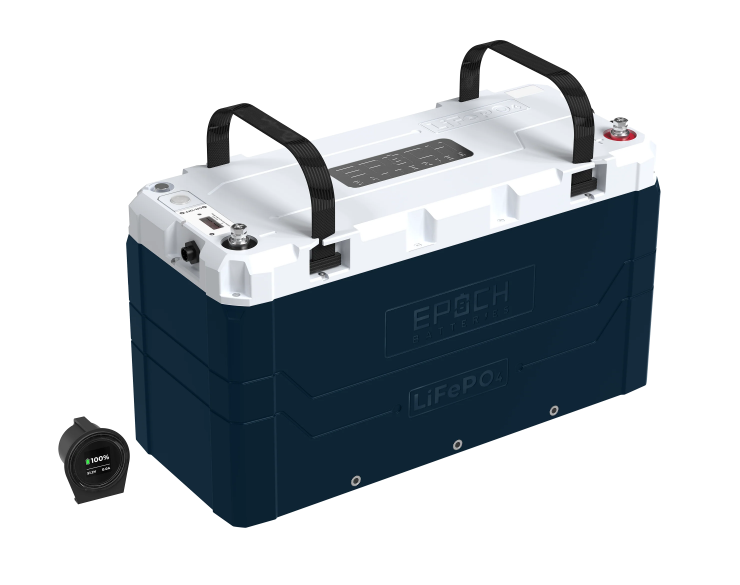

- External Power Button & Battery Gauge INCLUDED
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- 3500+ Cycle life & Maintenance-free
- Weight: 97 lbs
- 11 Year Manufacturer Warranty
Configuration
- Cell Configuration: 4S2P
- Chemistry: LiFePO4
Current
- Ah Capacity: 460Ah
- Max Continuous Discharge Amps: 230A
- Max Charge Current Amps: 230A
- Max Discharge Peak Current Amps: 500A (30 Seconds) , 1300A (1 Second)
- Series | Parallel: Max (4) in Series OR Max (16) in Parallel - 4S1P or 1S16P
Voltage
- Voltage: 12.8V
- Max Charge Voltage: 14.6V
- Operating Voltage Range: 10.0 - 14.6V
Temperature
- Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
- Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
- Storage Temp: 0°C (32°F) / 35°C (95°F)
Dimensions: Length: 20.75 (inches), Width: 8.5 (inches), Height: 12 (inches)
For Use with Victron Communications, Alternator Charging, or Solar Charging:
Bulk/Absorption Voltage: 14.4V
Absorption Time: 15–30 minutes
Float Voltage: 13.6V
Equalization: Disabled
Temperature Compensation: Disabled
Charge Rate: 0.2–0.5C (92–230A)
Safety Certifications:
UL1642, UL1973, U9540A, IEC62619 :2017, RoHS, CE
Batteries employed in non-Victron systems should utilize the following settings:
- Absorption voltage of 14.2V with an absorption time of a minimum of 15 minutes per battery.
- Float voltage of 13.5V
- Equalization off
- No temperature compensation
- To use the V2 Elite with Victron systems. Set up the battery comm harness and gauge as follows:
- Plug with waterproof bung plugged into master blue port.
- RJ45 cable out of master black port and into slave1 blue port.
- RJ45 cable out of slave1 black port and into slave blue port and so on to daisy chain up to 16 batteries in parallel.
- Set dips as per manual.
- Plug in grey RJ45 plug into the Cerbo or Ekrano GX BMS CAN port or if you have the new Cerbo Mk2 plug grey plug inot VE-CAN1 or VE-CAN 2 and change the VE can port speed to 500 KBPS LV.
- To confirm proper reporting, go to the GX/touch screen and confirm the Epoch battery shows up on the device list. Click on the battery line, go to Details. Check to see the number of modules online is equal to the number of batteries installed. Check that the number of AH is equal to the number of AH installed.
- In the GX device/touch screen turn on DVCC, set controlling BMS to Epoch, set battery monitor to Epoch.
- The system should say External Control on the GX touch screen Inverter tile when charging (but not while inverting). The system will automatically cycle to 14.2V with an absorption time of a minimum of roughly 15 minutes per battery followed by 13.5V float voltage.
- It is recommended to manually program the Multiplus, Quattro and all other charge source to these same parameters in case of CAN communication loss.
IP Rating
IP67
Experience worry-free adventures with our robust IP67 protection. Your battery is completely sealed against dust and can be safely immersed in water up to 1 meter deep for 30 minutes. Whether you're caught in heavy rain or crossing streams, this military-grade protection ensures your power stays reliable.
