Product Description

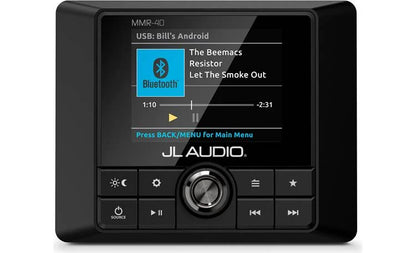

MMR-40 Full-Function Wired NMEA 2000® Network Controller for MediaMaster® (MMR-40) (010-03129-00)
The MMR-40 is an NMEA 2000® Network Controller engineered to add full-function, auxiliary control to MediaMaster® source units.
Outfitted with an NMEA 2000® Micro-C connector, the MMR-40 connects to a host MediaMaster® source unit in two ways:
- Direct interface with a vessel's NMEA 2000® network using applicable NMEA 2000® cables and connectors (not included)
- Direct connection of one MMR-40 with one host MediaMaster® source unit using MMC-PN2K powered network cables (sold separately) to simulate an isolated, stand-alone NMEA 2000® network

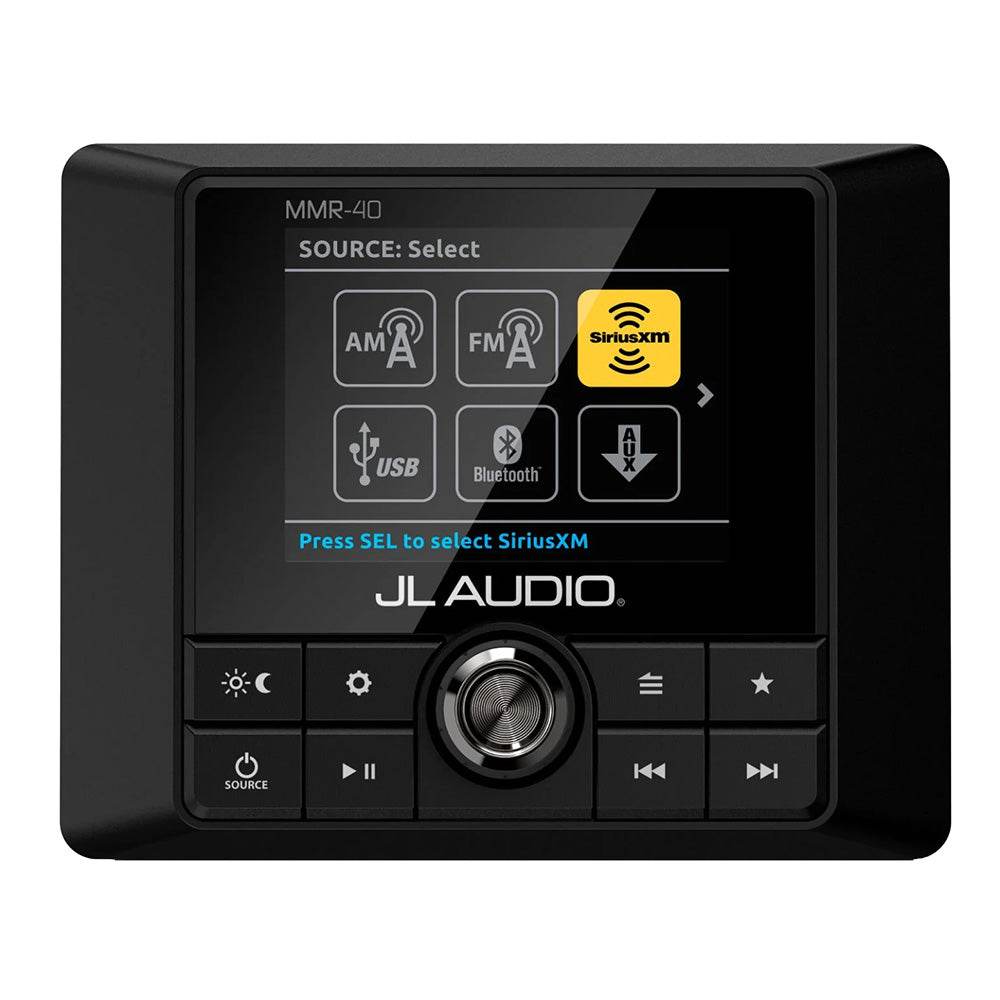

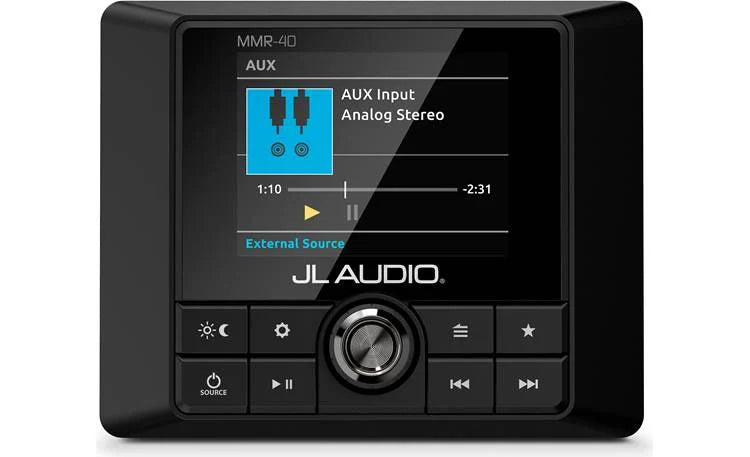

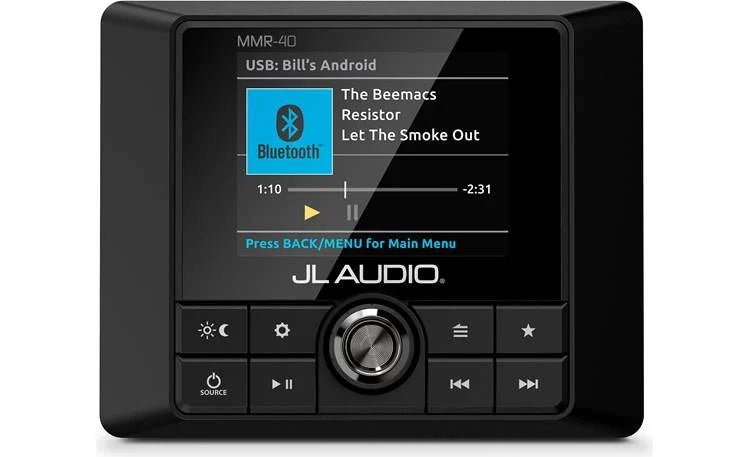

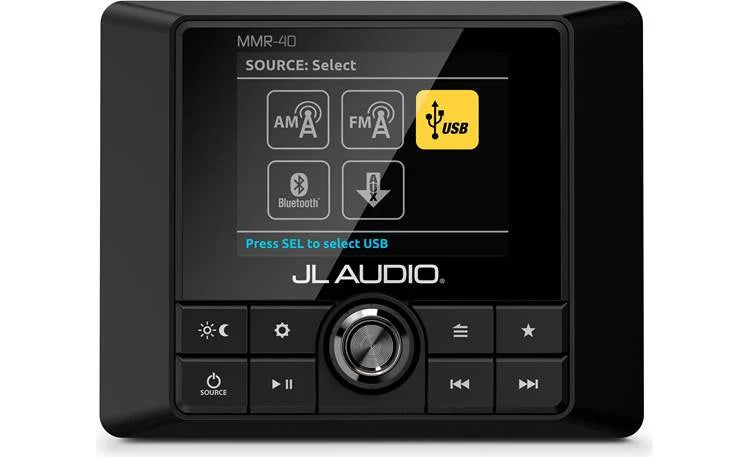

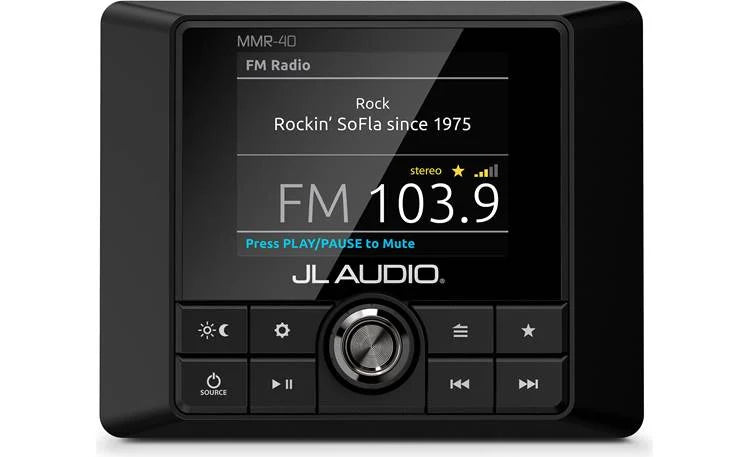

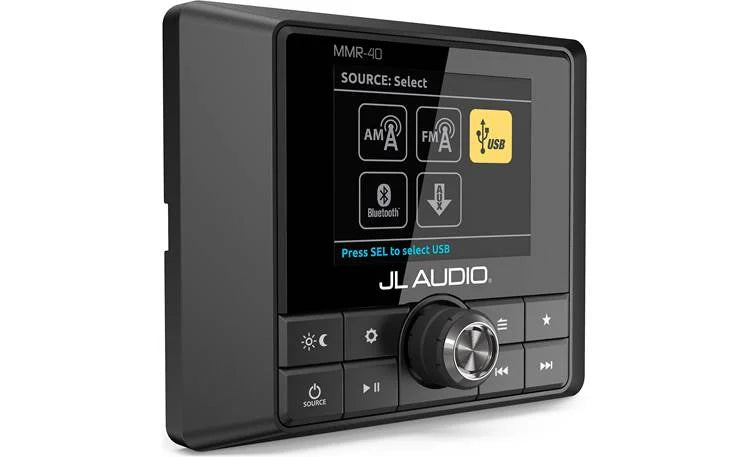

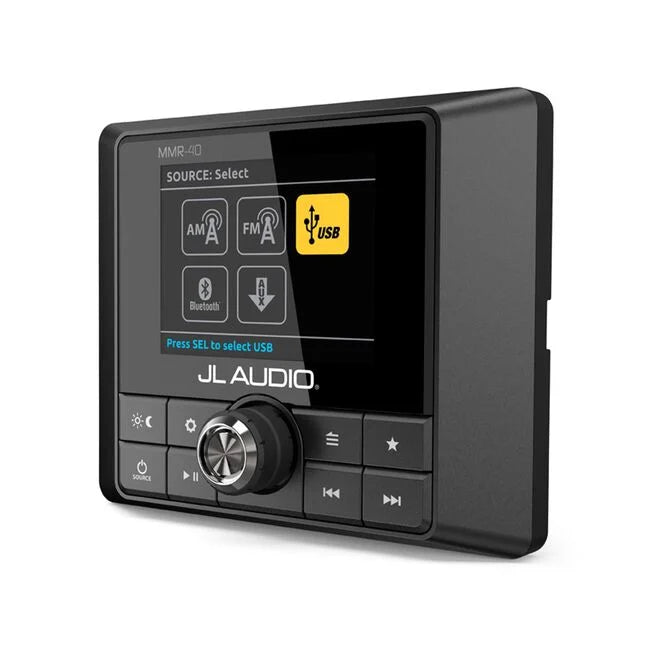

Once connected, the MMR-40 automatically recognizes the host MediaMaster® source unit and will then mirror all host source unit controls and screen info onto the MMR-40's full-color, 2.8-inch LCD, resulting in a complete MediaMaster® user experience.
The MMR-40 is equipped with an independent display theme and lighting controls for maximum mounting location flexibility, regardless of the settings on the host source unit. Engineered for real-world marine (and many outdoor) applications, its weatherproof (IP66-rated) chassis is built to withstand the harshest environments.
The MMR-40 includes the following features:
- NMEA 2000® Certified (LEN 4)
- Easy-to-read, high-brightness, 2.8-inch full-color LCD with large backlit controls
- Independent day/night display themes and lighting controls
- IP66 rated for real marine duty
- Protective Sun Cover included

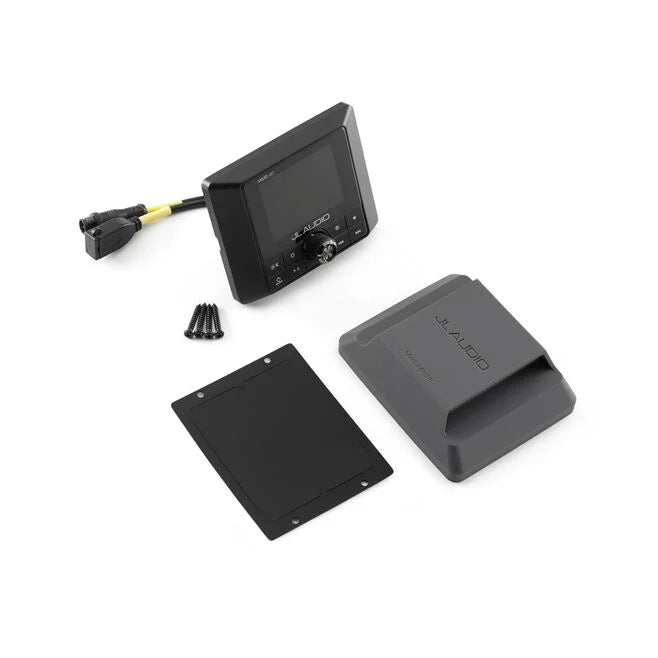

What's in the box:
- NMEA 2000 remote controller
- Trim-ring (pre-installed)
- Ferrite core
- Protective sun cover
- Gasket
- 4 Screws
- Cardboard template
- User Manual
Compatibility: The MMR-40 is a NMEA 2000 network remote controller designed to add full-function, auxiliary control to MediaMaster source units (including the MM105, MM100S BE, MM50, and MM80-HR - all sold separately). The MMR-40 can be connected to a Media Master source unit through an established NMEA 2000 network (NMEA2000 cables and connectors sold separately), or a "closed" network using JL Audio's Powered Network Cable (13699928, sold separately).
- NMEA 2000 Network: The JL Audio MMR-40 is NMEA 2000 Certified (LEN 4). It will Interface directly with vessel networks using applicable NMEA 2000 cables and connectors (sold separately - see Accessories Tab).
- Powered Network Cable : JL Audio's Powered Network Cable (010-13859-00, sold separately) is designed to simulate an isolated, stand-alone NMEA 2000 network for connection of one MMR-40 controller to one MediaMaster source unit. This JL Audio Powered Network Cable only supports a maximum of two NMEA 2000 devices (the MediaMaster souce unit and one MMR-40 controller). For systems with additional NMEA 2000 devices, a genuine NMEA 200 network must be assembled, which does not support the JL Audio Power Network Cable.
Note: The MMR-40 is not a stand-alone receiver and does not function without a connected MediaMaster® source unit. All remote control functionality of the MMR-40 is solely derived from the host source unit. Functionality of the MMR-40 requires connection to a NMEA 2000® network or use of MMC-PN2K powered network cables (sold separately).
(MMR40) (0100312900)
