Product Description

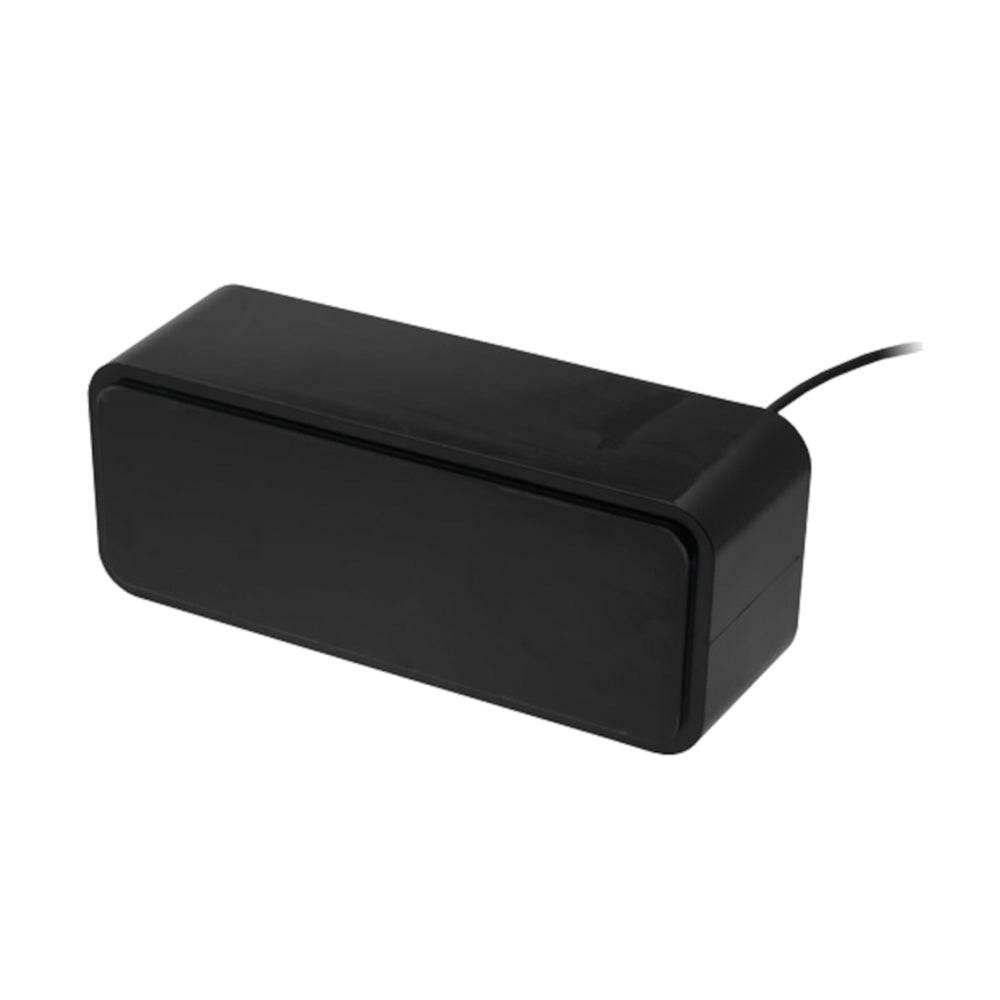

CM599LH 1-3kW Pocket Mounted Transducer - No Connector

Having the right tool for the job makes the job easier and gives better results. The right tool for covering deep-water haunts of swordfish, tuna, and other species is a 2 to 3 kW, low and high-frequency transducer. The Chirp-ready CM599LH gives the deep-water performance of the low frequency down to 3000 m (10000') plus the incredible resolution that the high-frequency band delivers.

The CM599LH is packed with a twenty-four-element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8° to 4°, beamwidth.

Features:

  • Depth and fast-response water-temperature sensing
  • 2 to 3 kW of power for exceptional deep-water performance
  • Low frequency: 28 to 60 kHz
  • 23° to 9° port-starboard beamwidth
  • 11° to 5° fore-aft beamwidth
  • Maximum depth to 3048 m (10000')
  • High frequency: 130 to 210 kHz
  • 8° to 4° beamwidth
  • Maximum depth to 457 m (1500')
  • 112 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
  • Resin housing with curved-edge design for wet-box installation
  • Can be installed in a cavity or welded tank
  • Also available as thru-hull external (R509LH) and in-hull (R599LH) mounts
  • Patented Xducer ID® technology

Specifications:

  • Frequency Band: Low-High
  • Functions: Depth, Temperature
  • Material: Urethane
  • Mounting Style: Tank, Cavity, Pocket/Keel Mount
  • Connector: Bare Wire
  • Display Connector: 0
  • Hull Material: Fiberglass or metal
  • Max Vessel LOA: 8 m (25') and above
  • High Frequency: 130-210 kHz
  • Common Use: Fishing, Commercial Fishing
  • Max Deadrise Angle: Any
  • Tilted Element: No
  • Low Frequency Beamwidth: 11°x23°-5°x9°
  • Low Frequency: 28-60 kHz
  • High Frequency Beamwidth: 8°-4°
  • Max Deadrise: Accommodates any deadrise angle based on custom installation
  • Power Rating: 2-3 kW
  • Single or Dual Frequency: CHIRP-Ready Dual-Band
  • Country of Origin: USA
  • Cable-Length: 15 m (49')
  • Weight: 14.2 kg (31.2 lb.)
  • Max Depth: Low frequency- 3048 m (10000'), High frequency- 457 m (1500')
