B&G 30/30HV Display for H5000 Triton

30/30HV Display Pack for Triton & H5000 (000-11089-001)

Bring clarity and precision to your marine instrumentation with the BG 30/30HV Display Pack — designed for use with the Triton and H5000 instrument systems. Whether you’re installing at a pedestal, mast, or cockpit, this high-performance display delivers critical data in high contrast, with rugged durability and ultra-low power draw.

Description

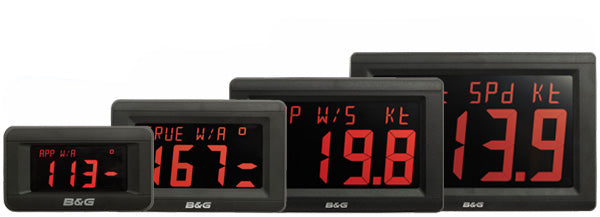

The 30/30HV is part of B&G’s HVision line, combining glass-bonded LCD construction with “white on black” inverse display to achieve outstanding contrast and zero condensation. It supports 14 configurable display pages, allowing you to cycle through data like True Wind Angle (TWA), Course Over Ground (COG), Speed Over Ground (SOG), and more — all tailored to your preferred layout. This pack is ideal for yachts in the 30–60 ft range (and often specified for 50–90 ft vessels in many listings).

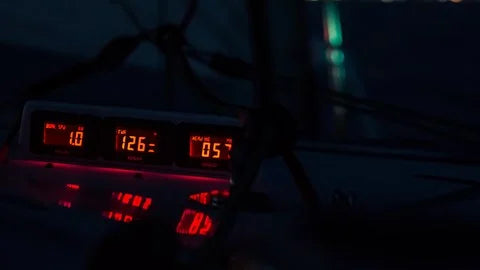

Whether mounted at the mast or near trimming stations, it offers dynamic viewing from multiple angles, even in bright conditions.

Features & Capabilities

• Race-proven HVision display technology for crisp, ultra-clear instrument readouts
• High-contrast, inverse “white on black” LCD design ensures readability in sunlight
• Large digit height (63 mm) gives clear visibility at a glance
• Supports 14 configurable pages, so you can view the data you want (TWA, COG, SOG, etc.)
• Compatible and configurable via Triton or H5000 instrument systems
• Zero condensation, thanks to bonded glass construction
• Extremely low power consumption (typical and maximum specs)
• Single network cable supporting both data and power (NMEA 2000 Micro-C port) connectivity
• Durable, lightweight alloy housing suited for marine environments
• Red or white backlighting for night visibility
• Waterproof rating of IP67 ensures protection in harsh conditions
• Operating temperature range from –10 °C to +55 °C (14 °F to 131 °F)
• Compass safe distance: 200 mm (about 7.9 in)

Features:

• HVision display technology

• Optimal data clarity both day and night

• Addresses the data display requirements of large yachts

• Ideal for yachts of 70ft and above

• Bonded LCD

• Rapid Update

• Maximum Clarity

• Easy to Use

• B&G Precision

• Durable

• Lightweight

• LED Backlighting

What's in the box:

• 30/30 HV Sun Cover
• 30/30 HV Bezel (black)

Specifications:

• Shape: Rectangular
• Instrument Function: Multifunction

Brochure (pdf)
