BG Triton 10/10 HV

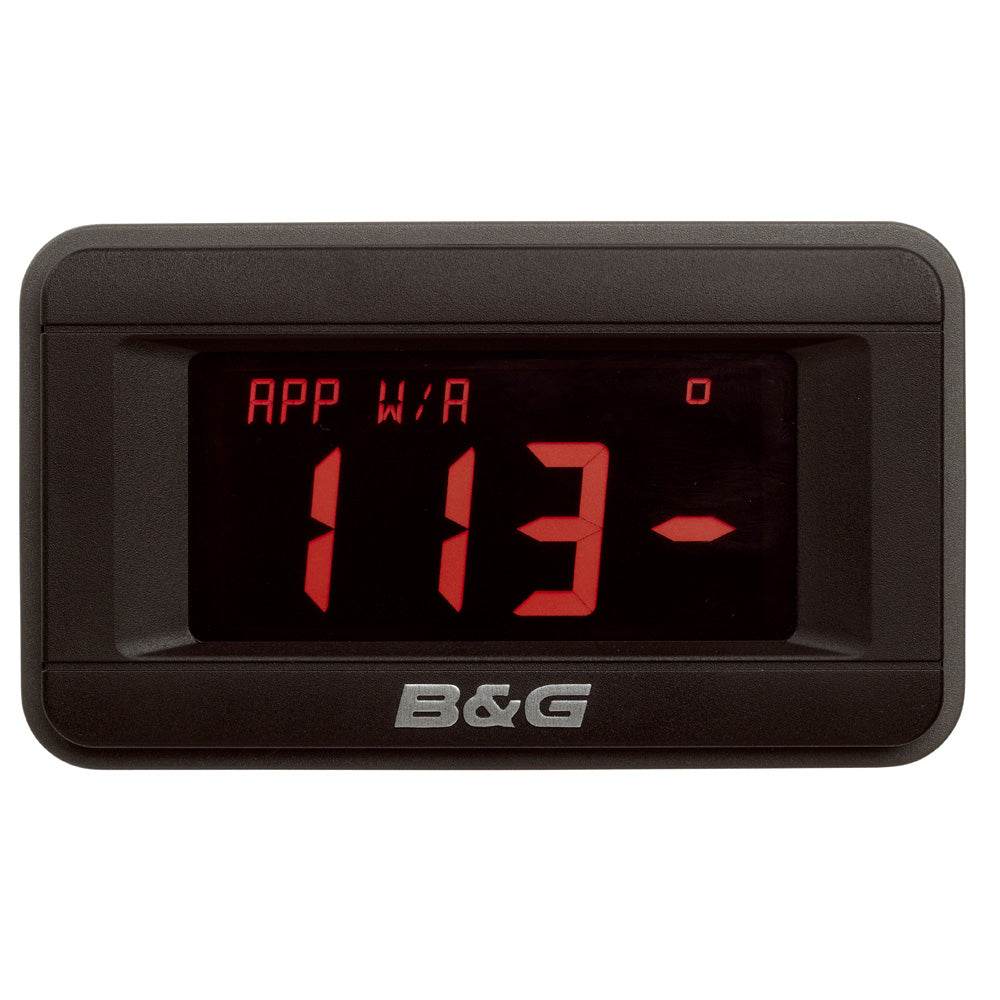

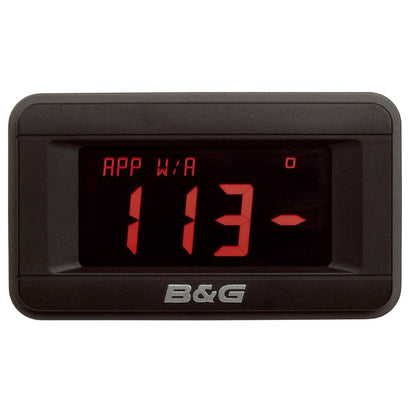

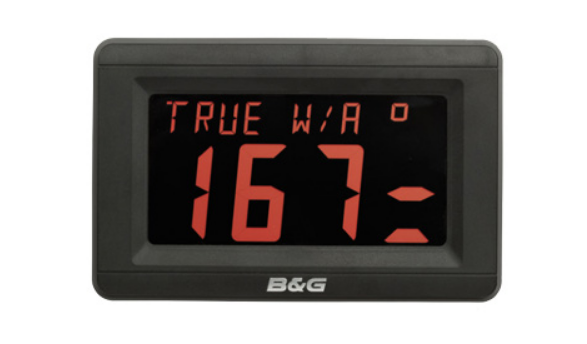

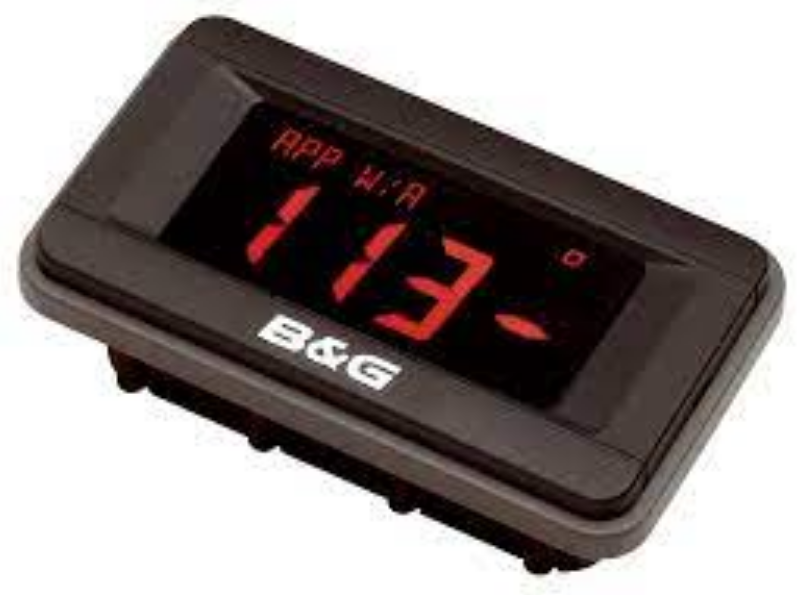

Triton 10/10 HV (000-11087-001) — High-Contrast Sailing Instrument Display

Elevate your onboard instrumentation with the B&G Triton 10/10 HV, a compact, high-performance marine display engineered for sailboats, racing, and precision navigation. This versatile, rugged NMEA 2000-compatible display integrates seamlessly with H5000 or Triton instrument systems, giving you critical numerical data exactly where you need it — at the mast, pedestal, or trimming station.

Key Features & Capabilities

• Race-proven H-Vision display technology: Delivers superior clarity with zero condensation and outstanding contrast, even in bright sunlight or harsh marine conditions.
• Optically bonded, inverse “white on black” LCD: Enhances readability and reduces glare for fast, accurate data reading.
• 14 configurable display pages: Customize your display to show True Wind Angle, Course Over Ground (COG), Speed Over Ground (SOG), heading, heel, trim, and more.
• Red or white night lighting: Choose the display backlight color to match your night-vision needs.
• Extremely low power consumption: Designed to draw minimal wattage (typical ~0.5 W) to conserve onboard systems.
• Single cable for power + data: Uses a single NMEA 2000 network cable (Micro-C, 2 LEN) for both data and power.
• Waterproof and rugged design (IP67): Built to withstand salt, spray, humidity, and harsh environments.
• Flush mounting, compact form factor (114 × 66 × 55 mm, ~0.3 kg): Fits easily into pedestals or instrument pods, ideal for dedicated “number panels.”
• Broad compatibility and integration: Works natively with B&G H5000 systems and Triton instrument networks; configurable via Triton or H5000 controllers.
• Multi-language support and global compliance: IEC/EN 60945 approval, with available languages including English, German, Spanish, French, and Italian.
• Wide operating temperature range: –10 °C to +55 °C (+14 °F to +131 °F), humidity up to 95% RH.

Why Choose the Triton 10/10 HV?

With its razor-sharp display, minimal condensation, and compact build, the Triton 10/10 HV is purpose-built for focus stations such as pedestal tops, trimming positions, and mast displays. It gives you numbers where you need them, with a design that complements performance sailing systems. Whether you’re optimizing boat tuning, analyzing wind angles, or monitoring speed and heading, this unit brings clarity and speed to your decision-making.

Features:

• Ultimate clarity in a compact display

• Providing numbers where they're needed

• Ideal for focus areas such as pedestals and trimming positions

• Bonded Glass display

• Large, red digit LED display

• Easy to use

• Expandable

• B&G Precision

What's in the box:

• 10/10 HV Bezel (black)
• 10/10 HV Sun Cover

Specifications:

• Screen Size: 4-1/2"
• Shape: Rectangular
• Instrument Function: Multifunction

Quick Guide (pdf)
