B&G Triton 20/20 HV

Triton 20/20 HV (000-11088-001)

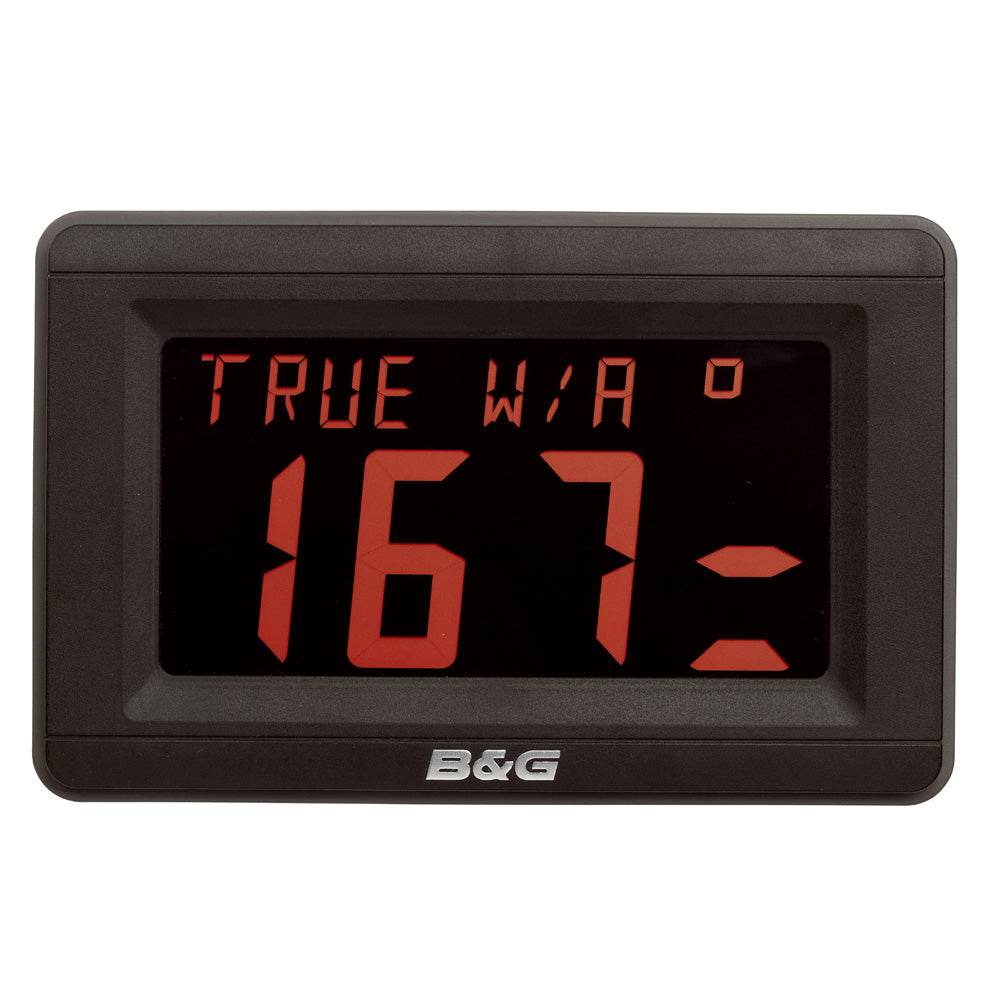

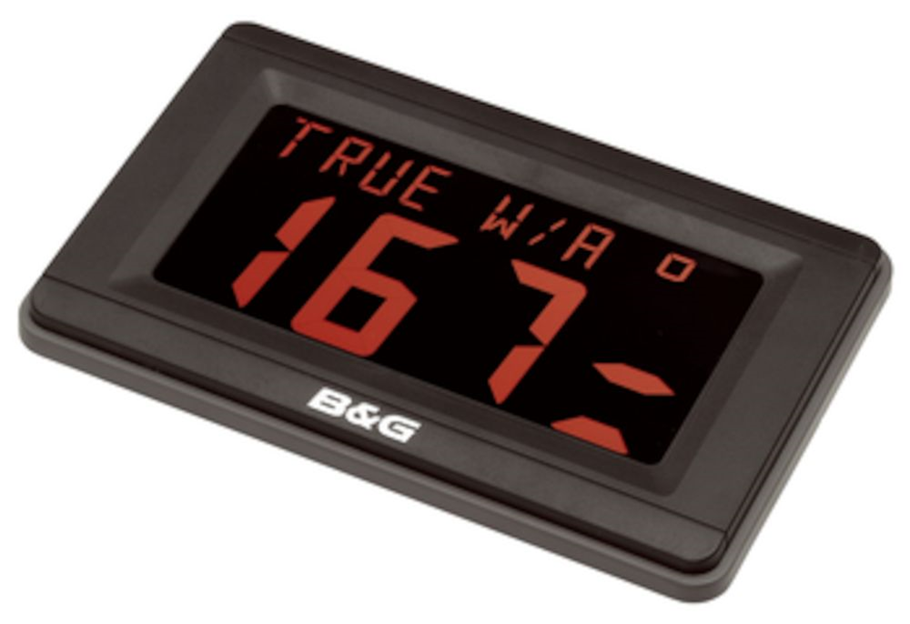

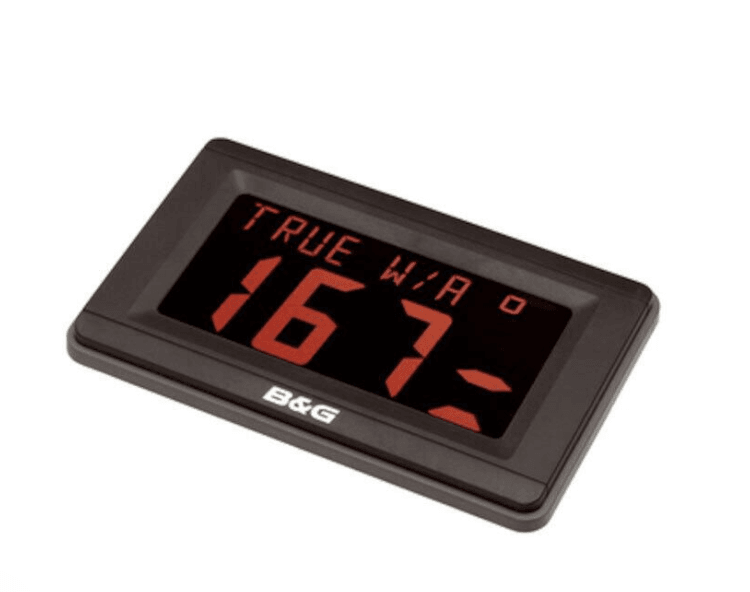

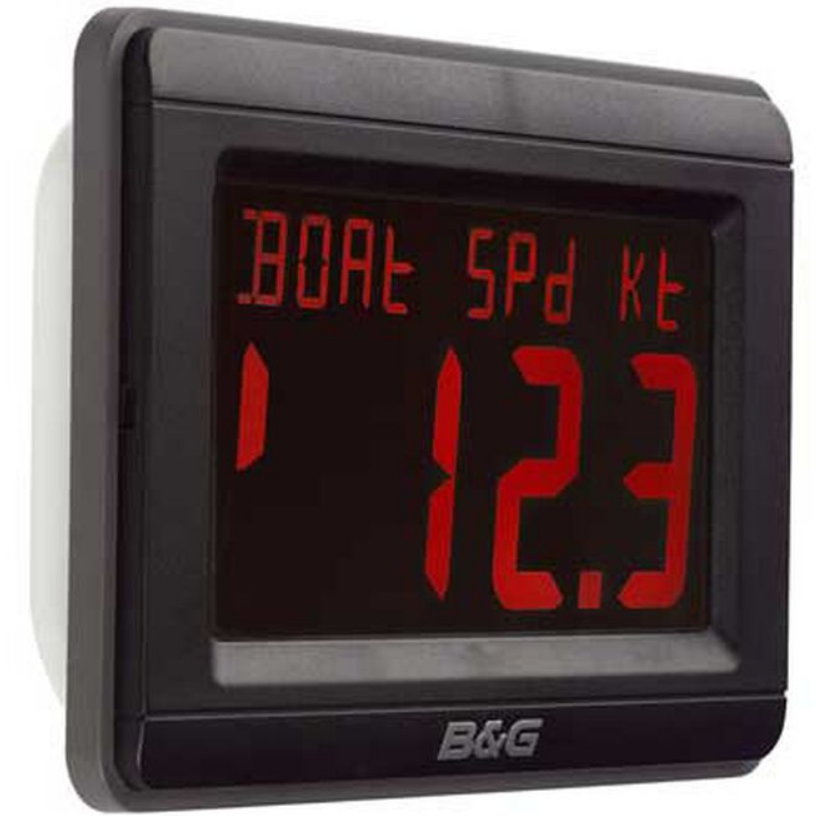

The Lowrance 20/20HV Display Pack (Triton/H5000), also known as the B&G Triton 20/20 HV, is a rugged, high-contrast mast/cockpit display designed for serious sailors and marine electronics systems. With HVision bonded display technology and seamless integration into B&G/Triton instrument networks, it provides critical sailing data in a compact, ultra-clear form.

Key Features & Capabilities

• Race-proven H-Vision display technology for superior readability and clarity, even under bright sunlight
• High-contrast optically bonded LCD that minimizes internal reflections and ensures zero condensation, improving legibility in all conditions
• Inverse “white on black” display mode plus red or white night lighting options for low-light readability
• Lightweight yet durable alloy construction built to marine standards — ideal for mast mounting or pedestal repeaters
• Extremely low power consumption (typical ~0.5 W, max ~0.8 W) to preserve onboard power budgets
• Single NMEA 2000 Micro-C port (2 LEN), enabling data and power delivery over one cable
• Rugged environmental tolerance: IP67 waterproof rating, operating temperature range –10 to +55 °C, humidity up to 95% RH
• Flush mounting design (dimensions ~ 178 × 114 × 50 mm) and compact footprint (≈ 7" × 4.5") for sleek integration
• Supports up to 14 configurable pages or display layouts showing metrics like True Wind Angle, COG, SOG, VMG, and more
• Seamless compatibility and configuration via H5000 or Triton instrument networks, making system expansion and setup intuitive

Why Choose the Triton 20/20 HV?

The Triton 20/20 HV is purpose-built for sailors who demand clarity, reliability, and flexibility in their instrument displays. Its bonded glass design and H-Vision display ensure exceptional contrast and zero fogging, even in harsh marine environments. With minimal power draw and single-cable connectivity, it's ideal for installations with limited wiring complexity. Whether used as a mast repeater or a cockpit display, it delivers critical navigation and sail data with clarity and precision, fully backed by B&G’s instrument ecosystem.
Features:

• Mast and cockpit repeater

• Extremely clear display for maximum visibility of key information

• Ideal for focus areas such as pedestals and trimming positions

• Bonded LCD

• Rapid Update

• Maximum clarity

• Lightweight

• 'White on Black' display

• Incredibly durable

• Ocean Proven

Specifications:

• Dimensions: 7 x 4.5 x 2.2" (178 x 114 x 50 mm)
• Waterproof rating: IP67
• Weight: 0.9 kg (1.9 lbs)
• Power consumption max: 0.8W
• Power consumption typical: 0.5W
• NMEA 2000 connectivity: 1 x NMEA2000 Micro-C port, 2 LEN

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
