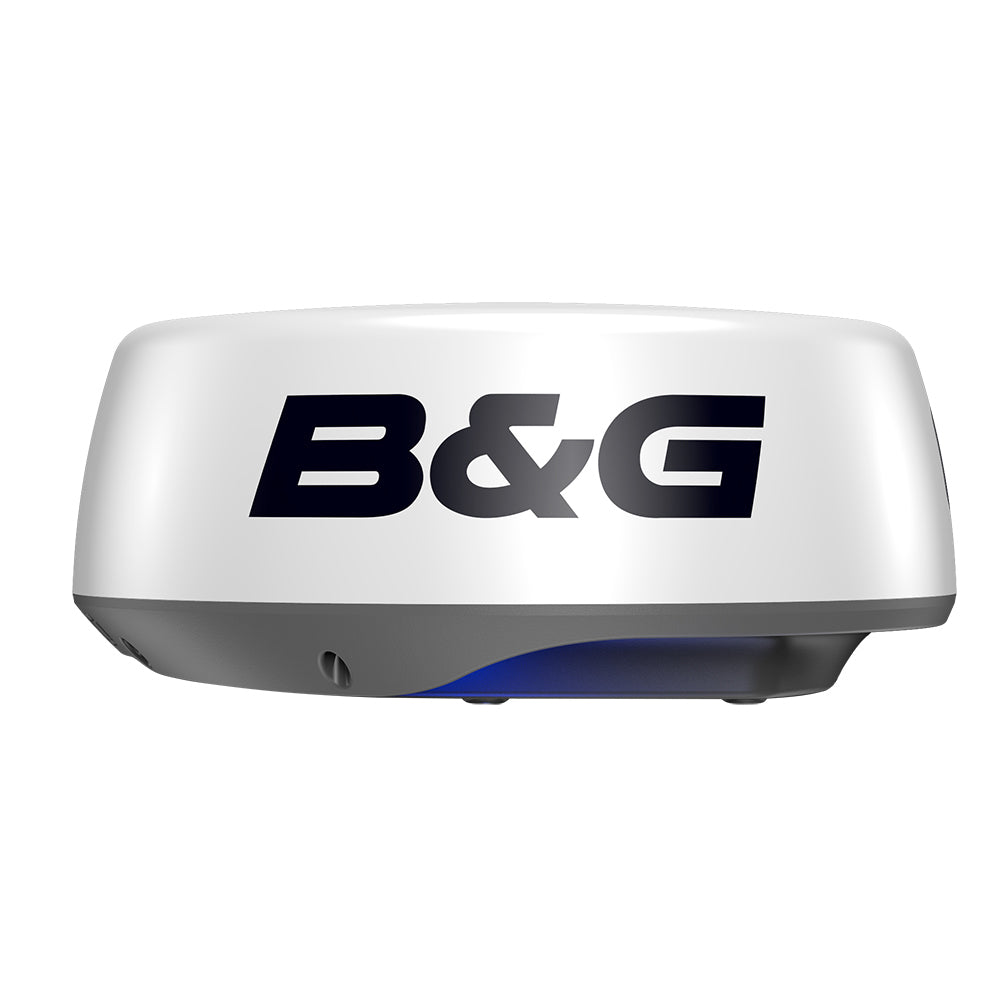

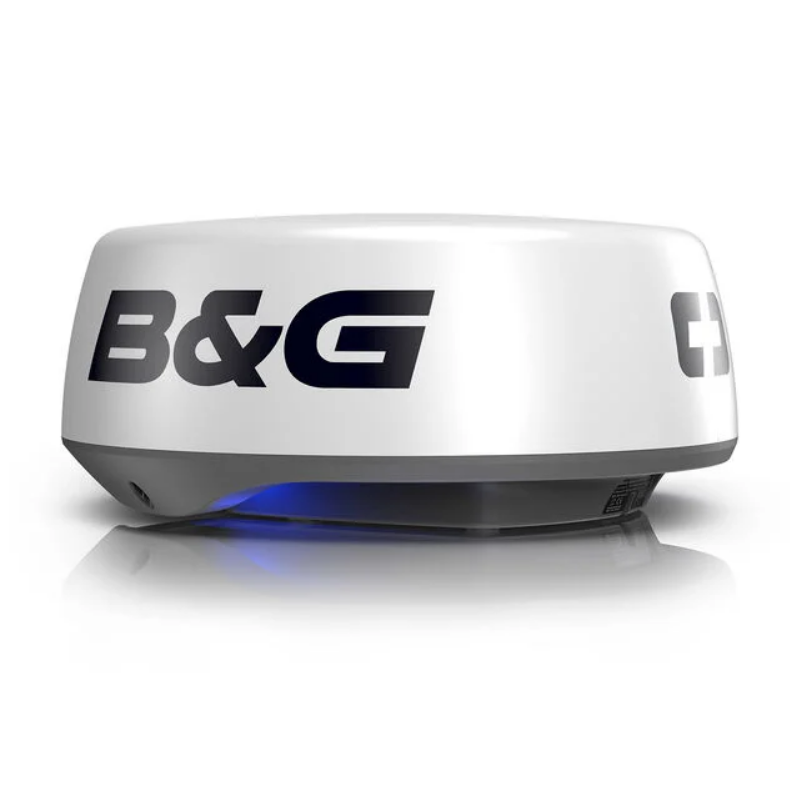

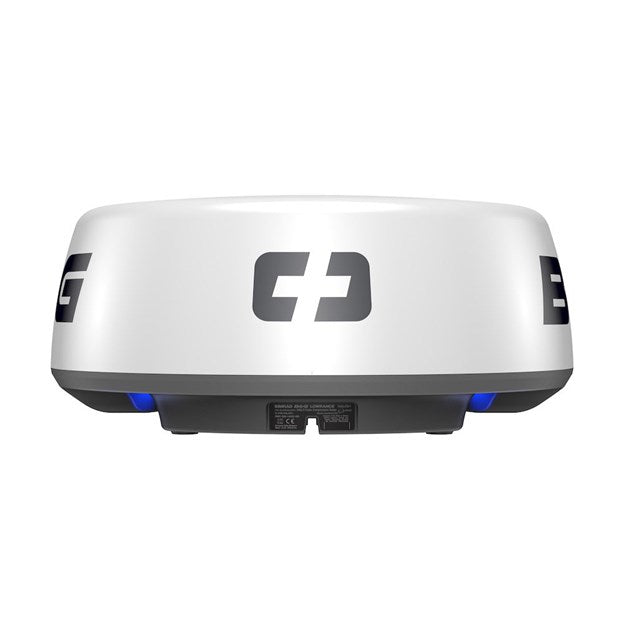

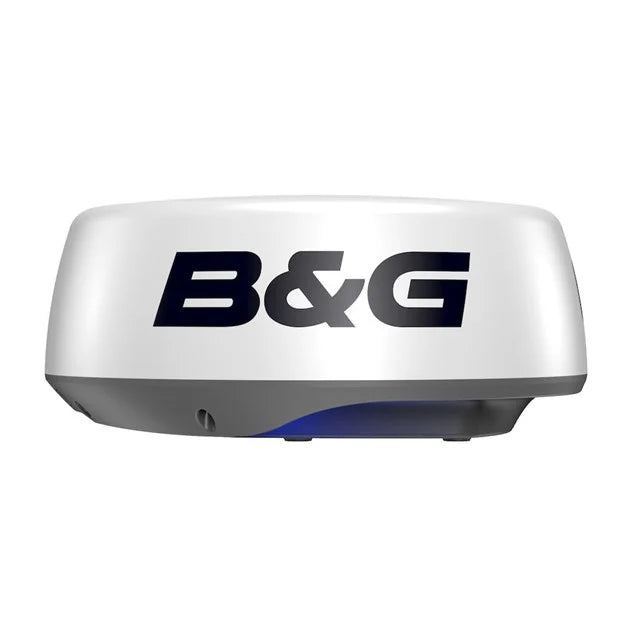

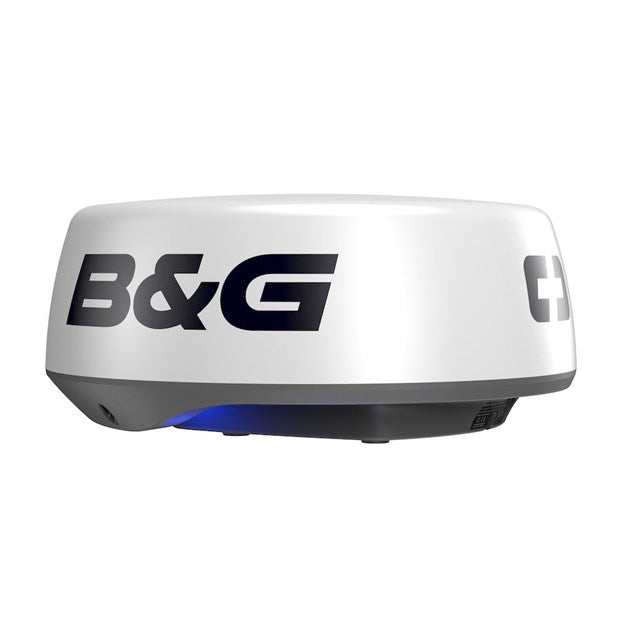

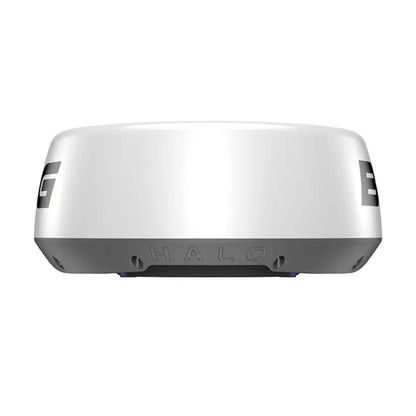

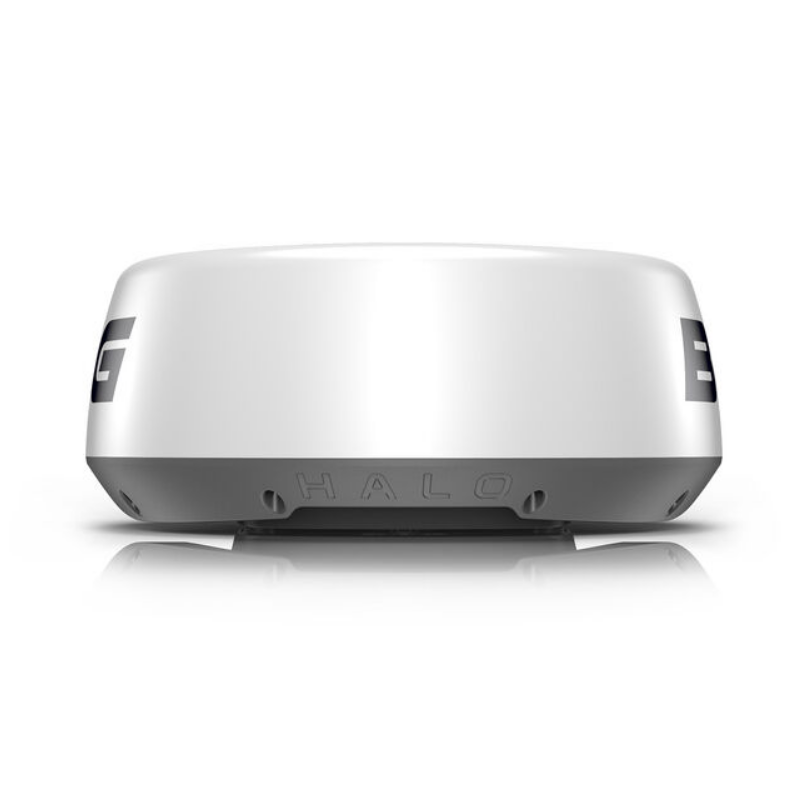

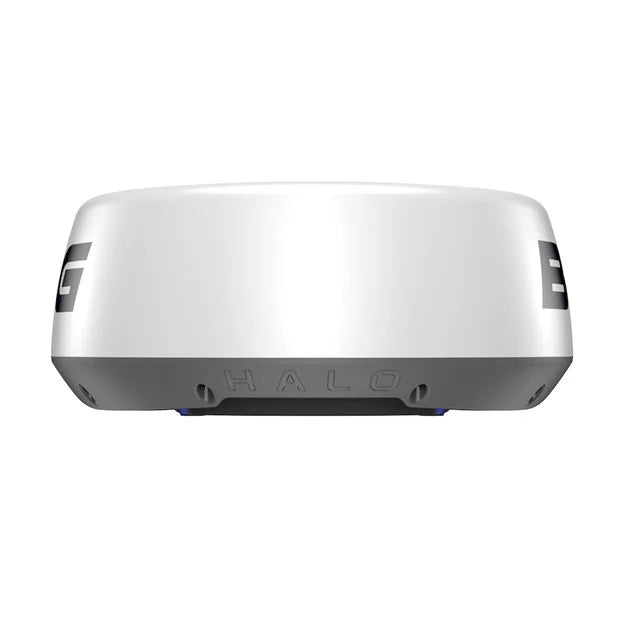

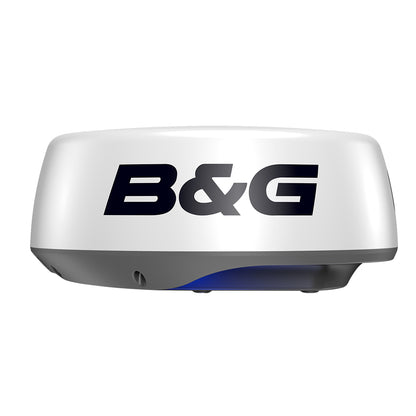

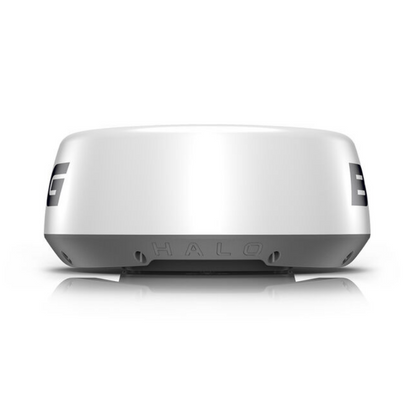

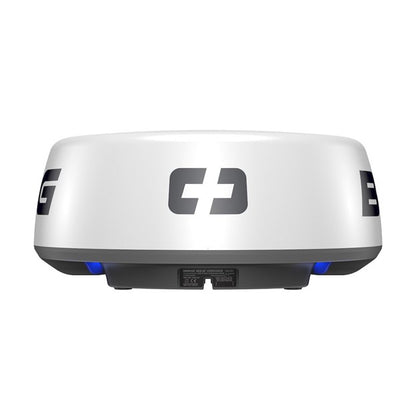

B&G HALO20+ 20" Radar Dome

Part Number: 000-14539-001

Upgrade your marine navigation and collision avoidance with the B&G HALO20+ 20" Doppler Radar Dome, engineered for real-time situational awareness and advanced target tracking on coastal and offshore waters. Compact yet powerful, this radar delivers dual-range coverage, ultra-fast 60 RPM rotation, and industry-leading VelocityTrack™ Doppler technology.

Key Features & Benefits:

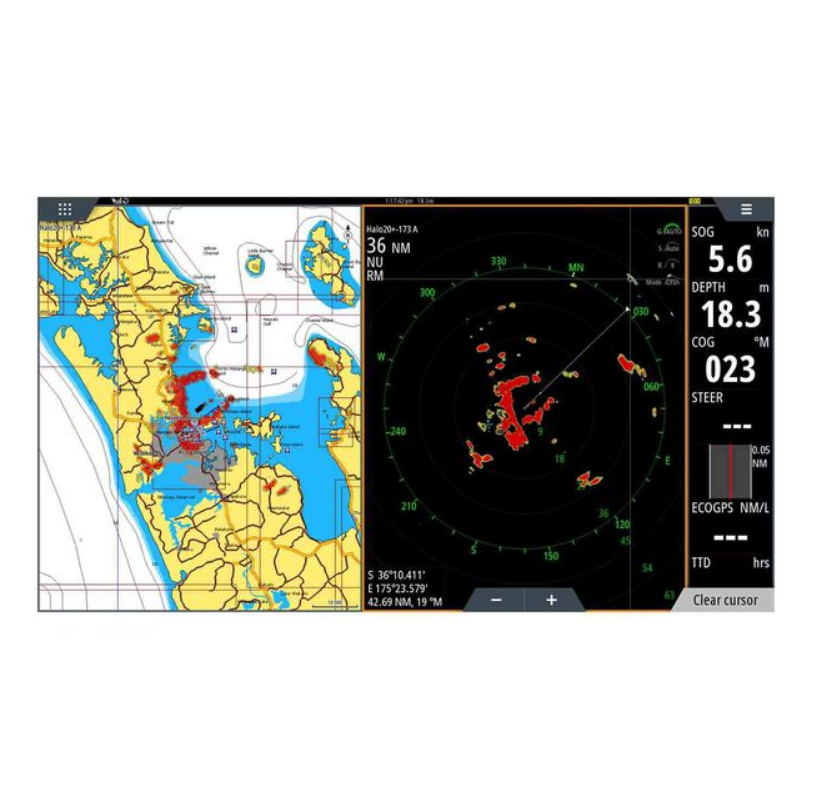

• See Near and Far with Dual Range: Monitor short and long-range targets simultaneously for navigation, collision avoidance, and weather monitoring up to 36 nautical miles.
• Ultra-Fast 60 RPM Sweep: Provides almost real-time 360° radar updates at close range (up to 1.5 NM), essential for fast-moving targets in crowded waterways.

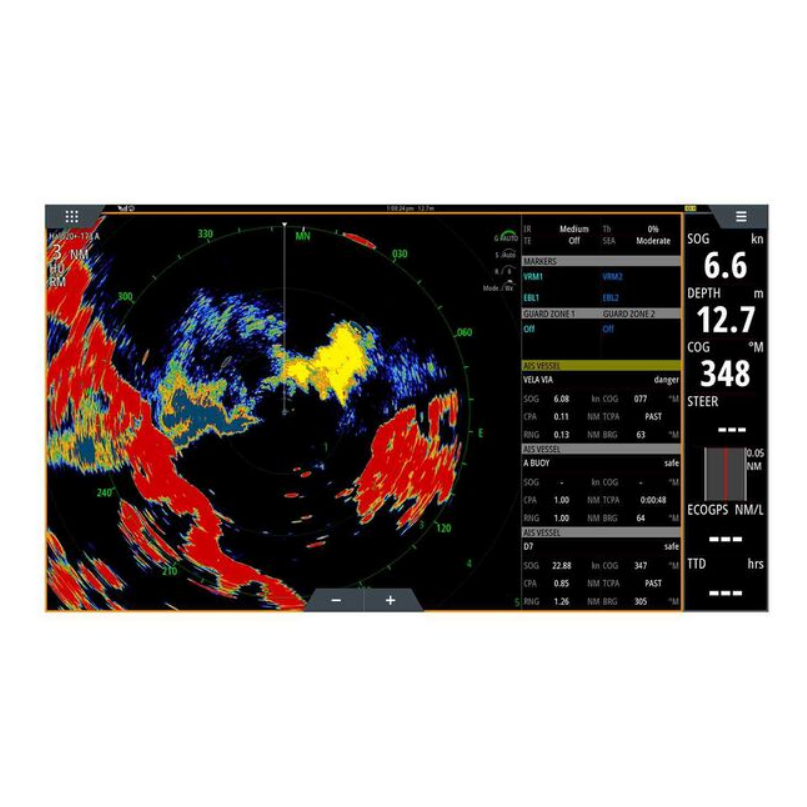

• VelocityTrack™ Doppler Technology: Instantly detects if targets are moving toward or away from your boat, with intuitive color-coded hazard alerts for increased safety.
• Advanced Pulse Compression & Beam Sharpening: Ensures accurate detection of both small and distant targets with no compromise in range.
• Multiple Radar Modes: Includes Harbour, Offshore, Weather, Bird, Dual Range, North Up, Course Up, Relative Motion, and True Motion for every boating scenario.
• MARPA Target Tracking: Track up to 10 targets (20 in dual range) for enhanced situational awareness.
• Ready Instantly: Wakes from low-power standby mode in seconds for immediate coverage, even if fully powered down.
• Compact 20" Dome: Ideal for a wide variety of coastal and bay boats without compromising performance.
• Durable & Weatherproof: Rated IPX6 waterproof, designed to handle winds up to 100 knots and operating temperatures from -25°C to +55°C (-13°F to +130°F).
• Low Power Consumption: Typical 20W, maximum 29W. Compatible with 12V or 24V systems.

Specifications:

• Max Range: 36 NM
• Min Range: 50 m / 200 ft
• Beam Width: 4.9° H nominal, 2.5° H high x 25° V
• Diameter x Height: 510 mm x 223 mm (20" x 8.8")
• Weight: 5.9 kg (13 lbs) without cable
• Supply Voltage: 10.5–31.2V DC
• Recommended Fuse: 5A
• Operating Humidity: 95% RH at 35°C
• Compliance: FCC, CE, RCM, Industry Canada, IEC60945, IEC60950

In the Box:

• B&G HALO20 Radar Dome (20")
• 20 Meter HALO Dome Cable
• Ethernet Adapter Cable (RJ45 to 5-Pin, 1.5m)
• Waterproof Boot Seal

Why Choose HALO20+ Radar?

Perfect for mariners seeking top-tier collision avoidance, weather tracking, and target monitoring in one compact radar dome. The combination of VelocityTrack™, Dual Range, and ultra-fast pulse compression makes this a must-have for serious coastal and offshore boaters.
