BG Nemesis 12 Sailing Display

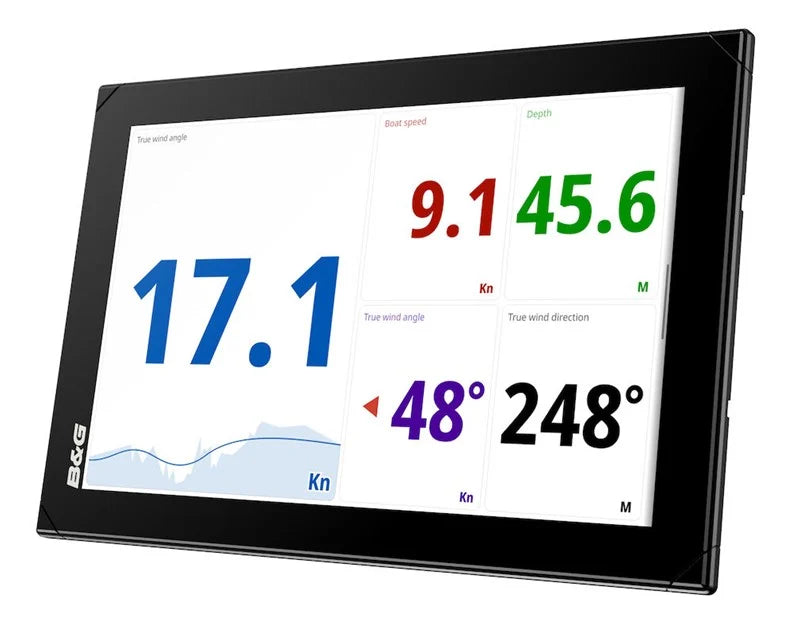

Nemesis™ 12 Sailing Display (000-15612-001)

Elevate your sailing instrumentation with the B&G Nemesis 12 — a high-performance, intelligent display engineered for racers and cruisers alike. With a vivid 12″ touchscreen, wide viewing angles, and total customizability, this display ensures your most critical sailing data is always visible, wherever you are aboard.

Key Features & Capabilities

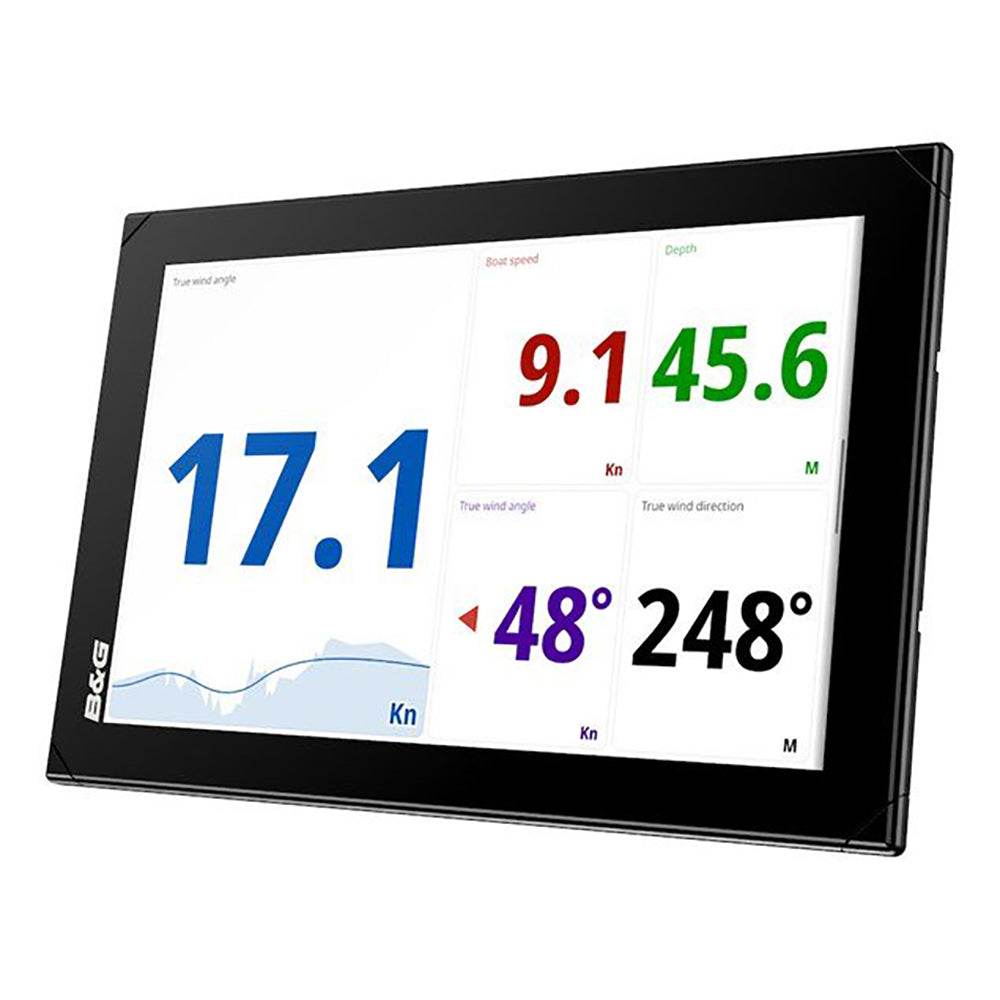

• Ultra-bright 12″ IPS SolarMAX™ HD touchscreen with 1280 × 800 resolution and peak brightness ~1,500 nits for excellent visibility even in direct sunlight
• Wide viewing angles (≈ 80° top/bottom, 80° left/right) and polarization-friendly display, so you can read it even when wearing polarized sunglasses

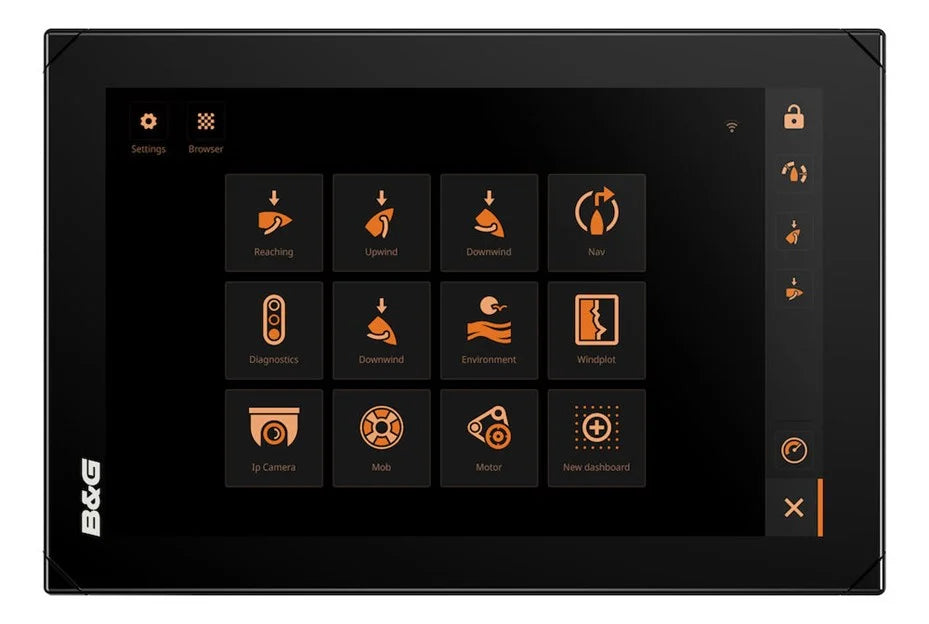

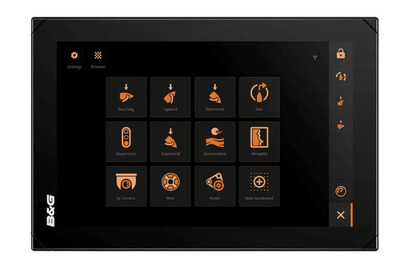

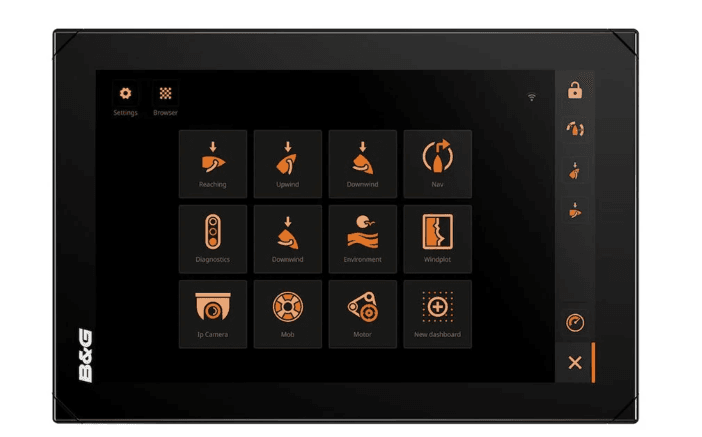

• Fully customizable interface: choose from pre-set dashboards or build your own layouts using the drag-and-drop editor

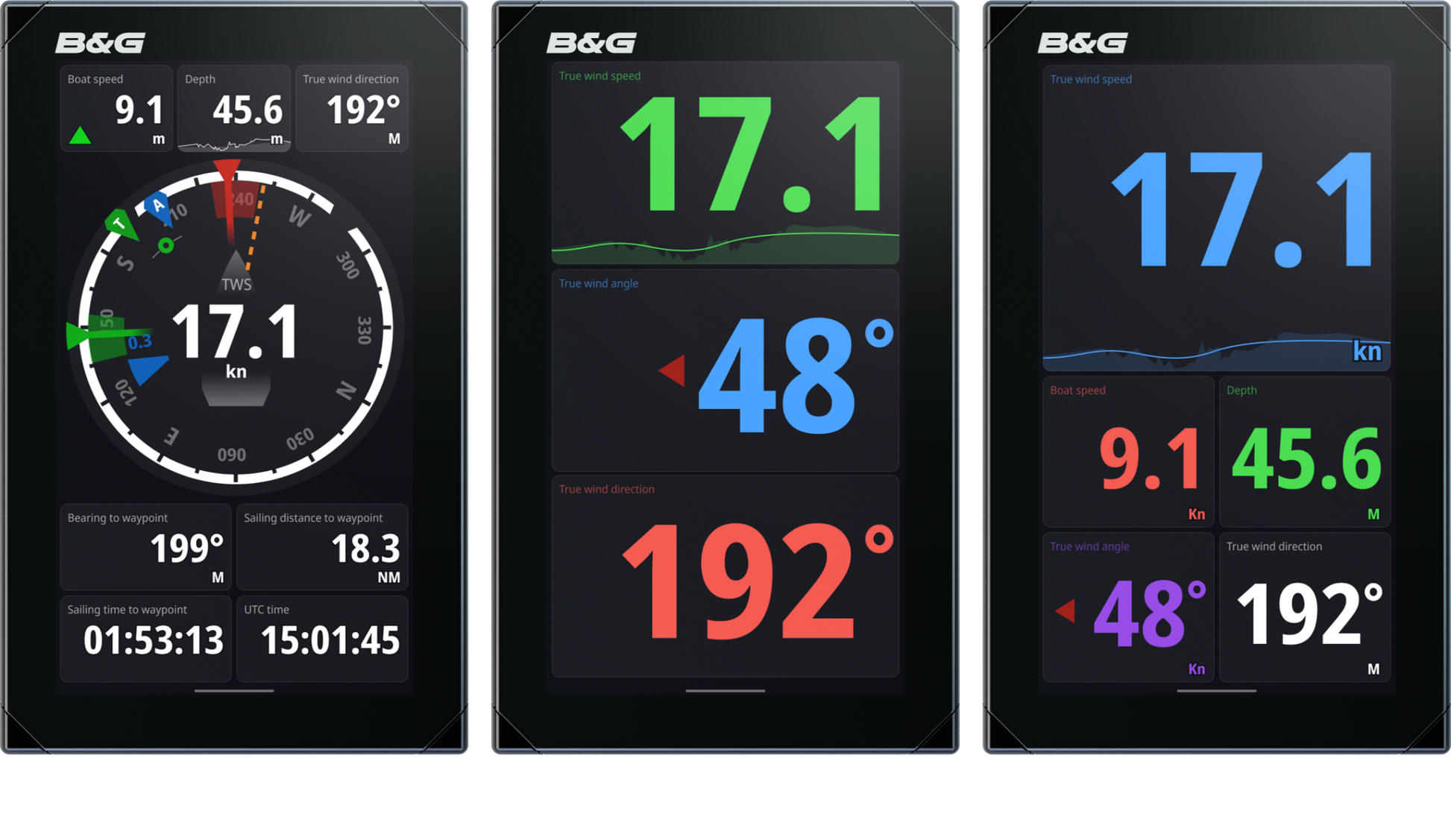

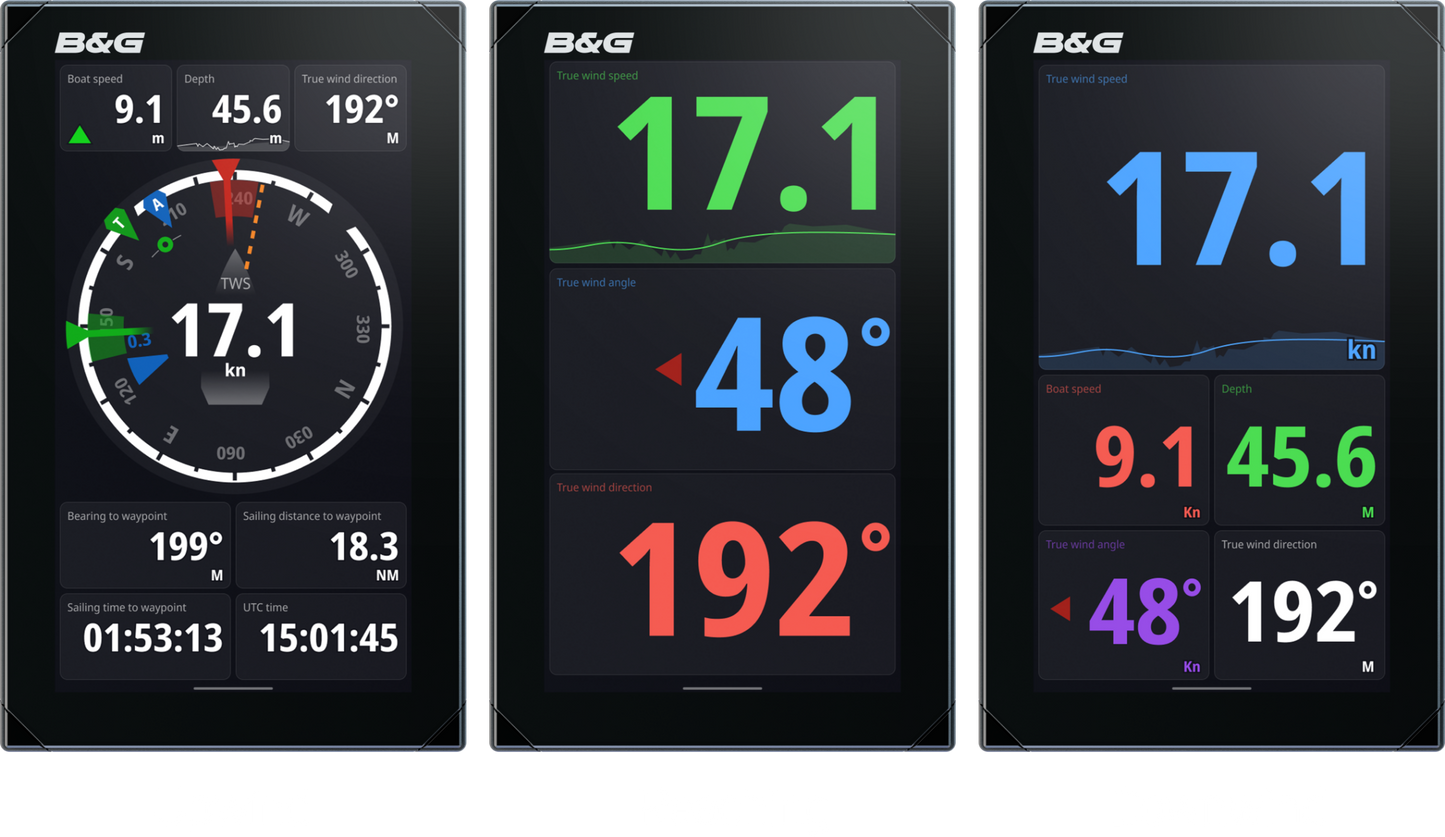

• Contextual “point of sail” dashboards automatically adapt what data you see when you’re upwind, reaching, downwind, pre-start, or motoring

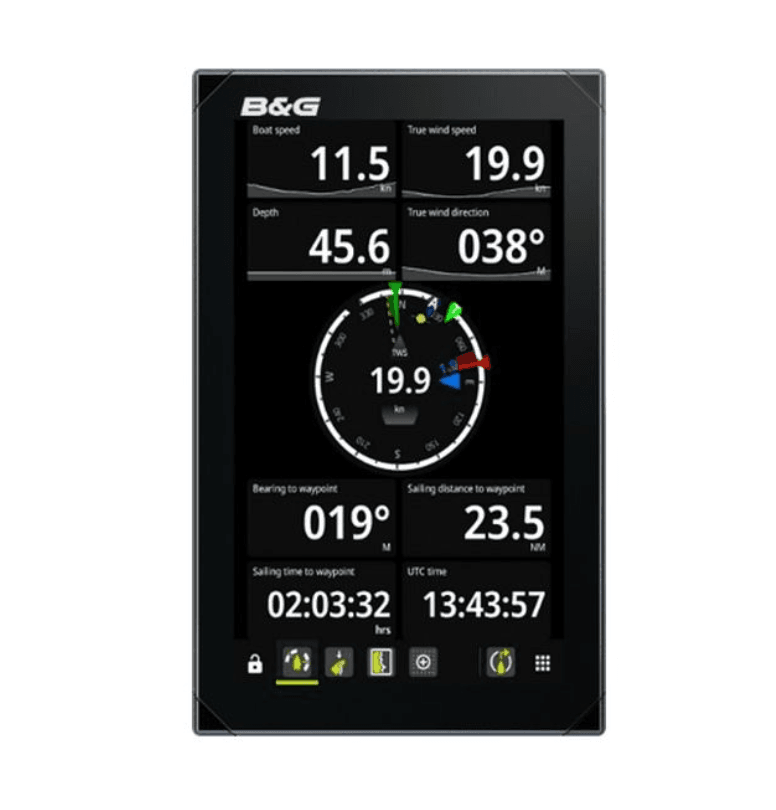

• Support for multiple data types: graphical gauges, SailSteer™, tank levels, digital displays, IP camera feeds, histograms, and images

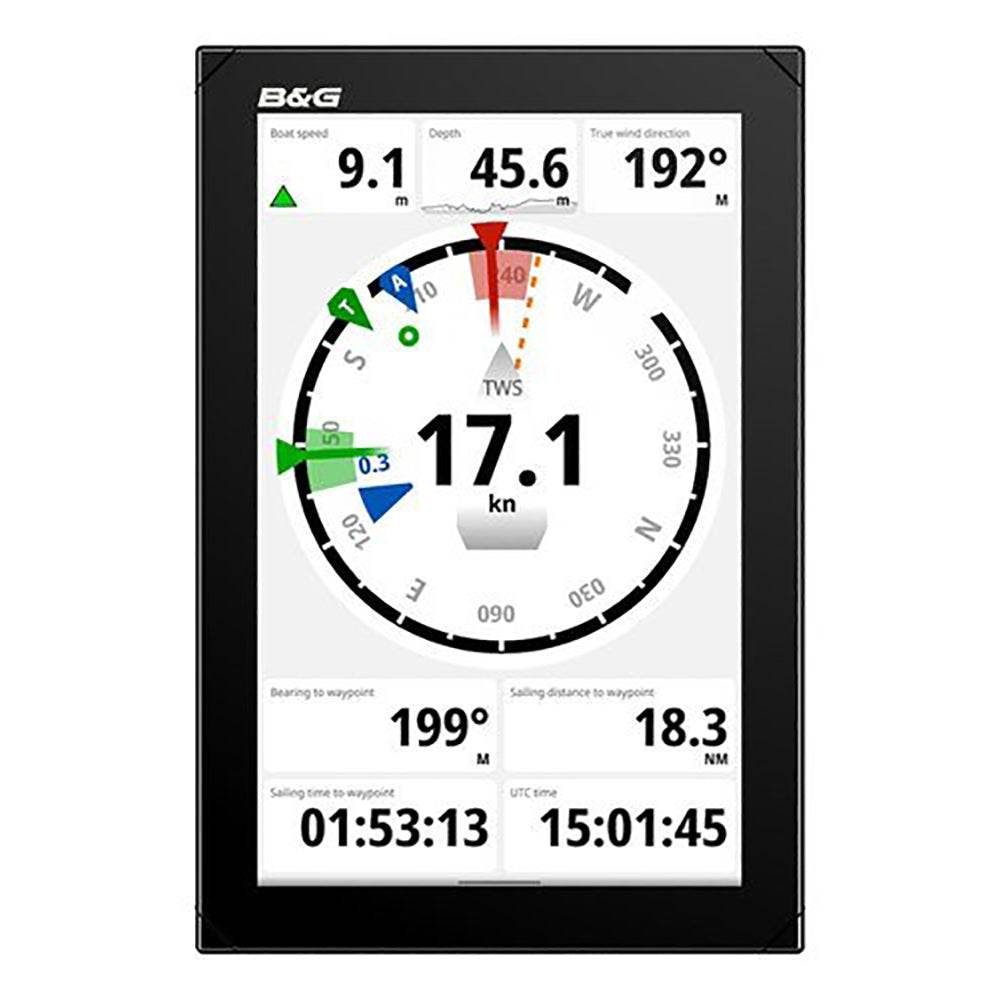

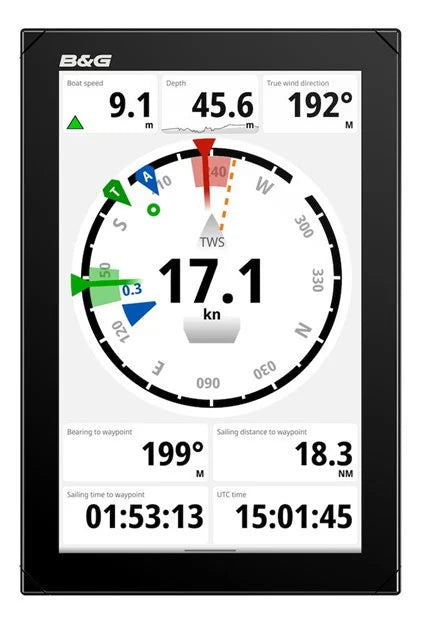

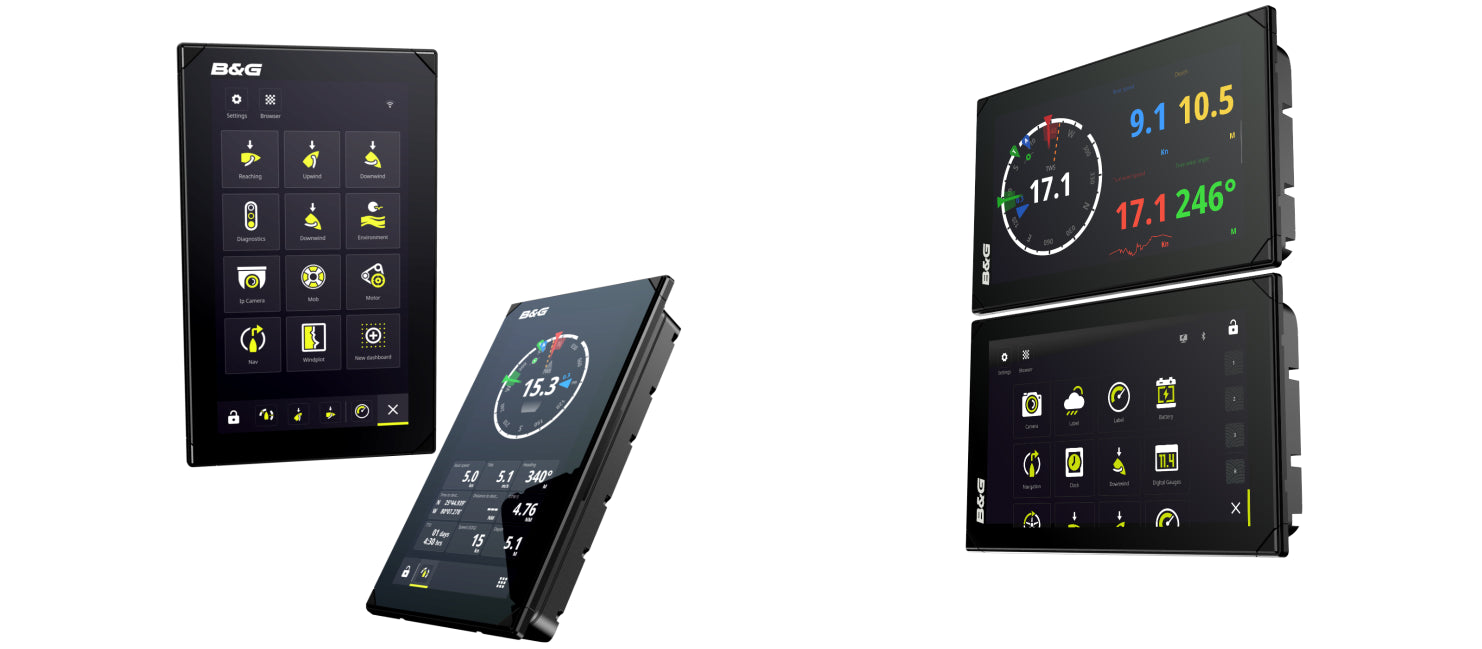

• Dual mounting flexibility: install in portrait or landscape orientation
• Expandable with multiple screens via the Nemesis Hub, giving you seamless integration across the boat

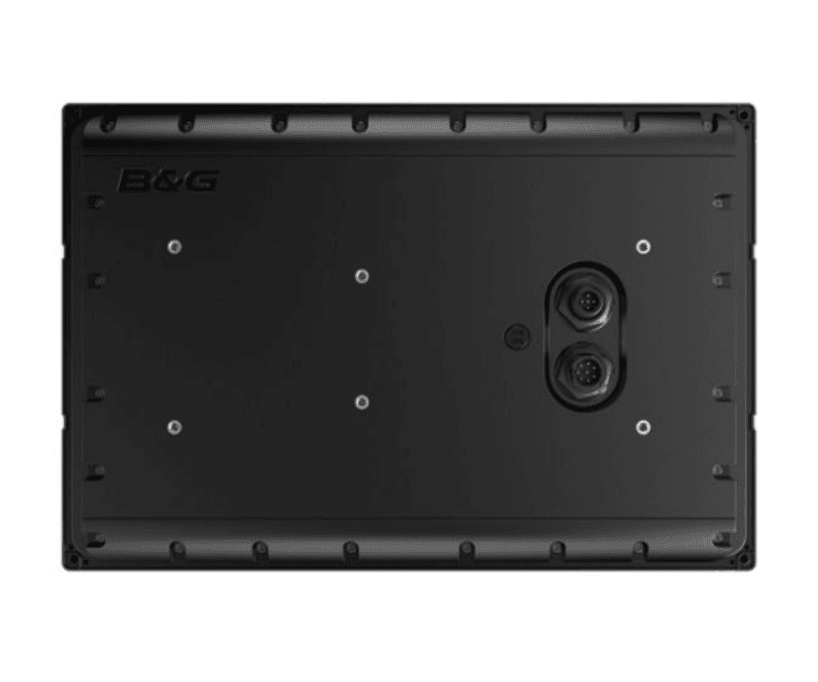

• Versatile connectivity: 100 Mbit Ethernet, NMEA 2000 interface, and support for Wi-Fi (802.11 b/g)
• Power-efficient design: maximum consumption ~19 W (10–32 V DC supply)
• Rugged, marine-ready construction: rated IP67 for protection against dust and water, and built to operate in a wide temperature range
• Dimensions: 310 × 208 × 72 mm (approx. 12.2″ × 8.2″ × 2.8″)
• Backed by B&G’s legacy in marine electronics and a 2-year warranty (check your region for specifics)

Why Choose Nemesis 12?

Whether mounted on the mast or in the cockpit, the Nemesis 12 gives you unparalleled visibility, responsiveness, and flexibility to display exactly what you need, when you need it. It’s built to seamlessly integrate into your instrument network and to deliver reliable data in all conditions. If you demand real-time, trusted sailing analytics at your fingertips, this flagship display is designed for you.

Nemesis™ 12 is the perfect solution for displaying all the crucial sailing data you need either on the mast, in the cockpit or at the helm station; as a single or as multiple screens via the Nemesis Hub. The super bright touch screen, with adjustable data sizes, palettes and backlight provides outstanding visibility, from wherever you are on the boat and in all conditions. The Nemesis display is also completely customizable; choose from pre-set templates, set up automatic point of sail dashboards or entirely create your own - you can view your trusted sailing data and unique software from your network the way you want to, ensuring you get the most accurate data right in front of you, all the time.

Features:

• Pre-set dashboards or easy to use drag & drop editor for full customization
• Wide choice of digital data displays including graphical gauges, SailSteer™, tank levels, IP camera views, histograms and images
• Context modes: Upwind, Reaching, Downwind, Pre-start, Motoring
• Bright touch screen, with super-wide viewing angles

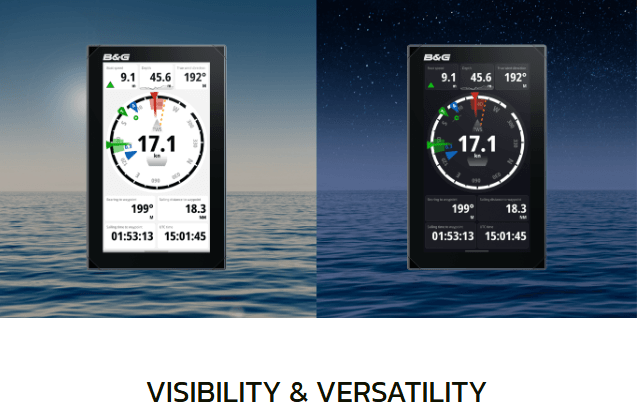

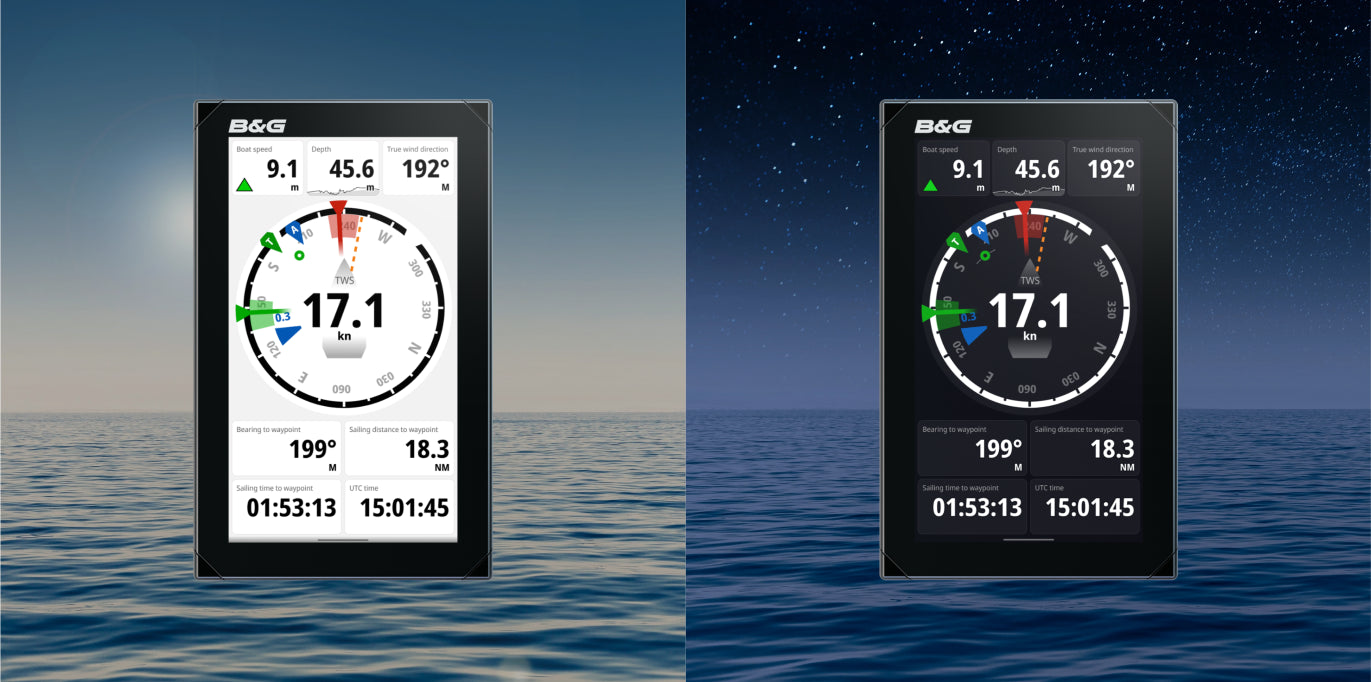

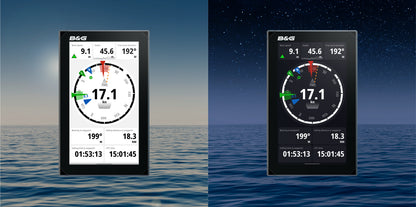

• Adjustable palettes and backlight for optimal view in all conditions
• Mount in portrait and landscape
• Connect multiple screens via the Nemesis Hub
• Ethernet and/or NMEA2000

Specifications

What's in the Box:

• Nemesis™ 12 Display
• Suncover
