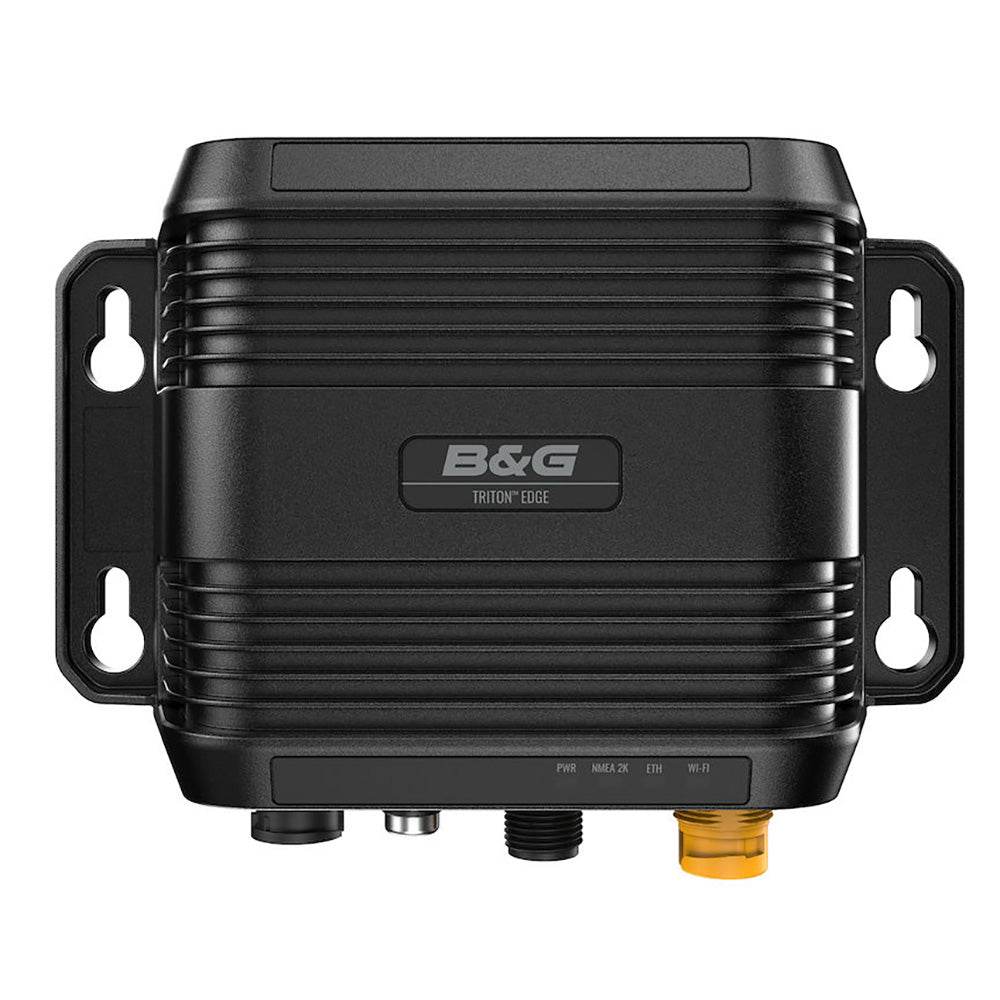

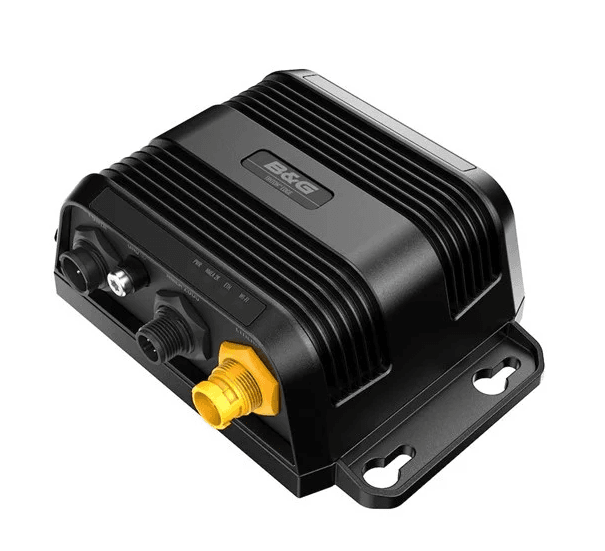

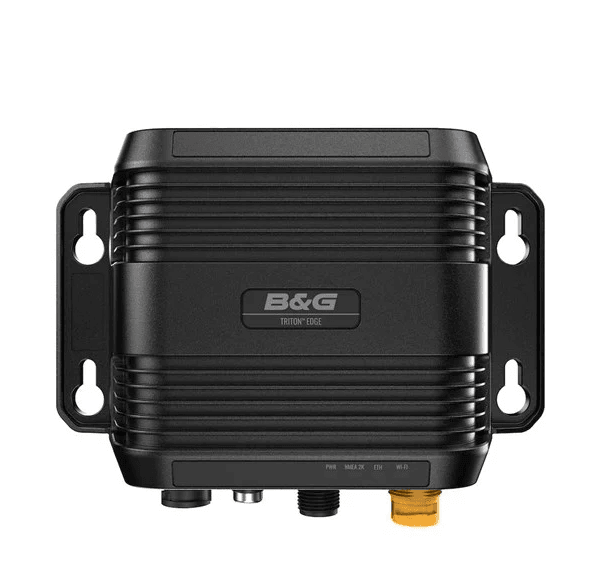

BG Triton Edge Sailing Processor

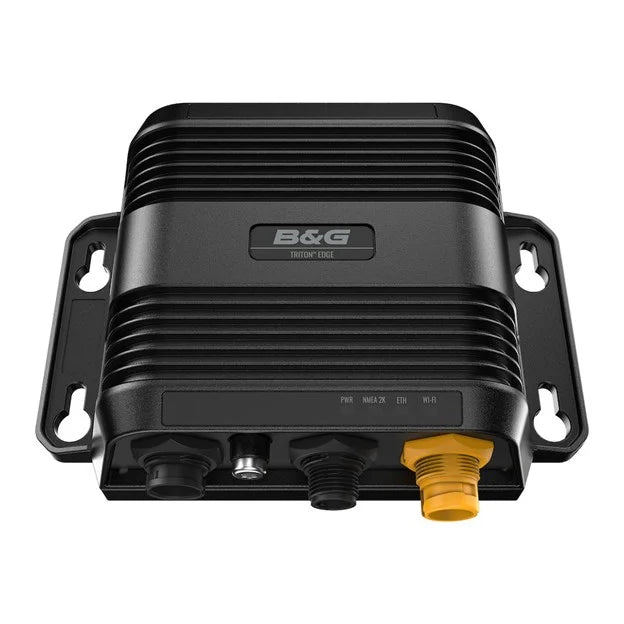

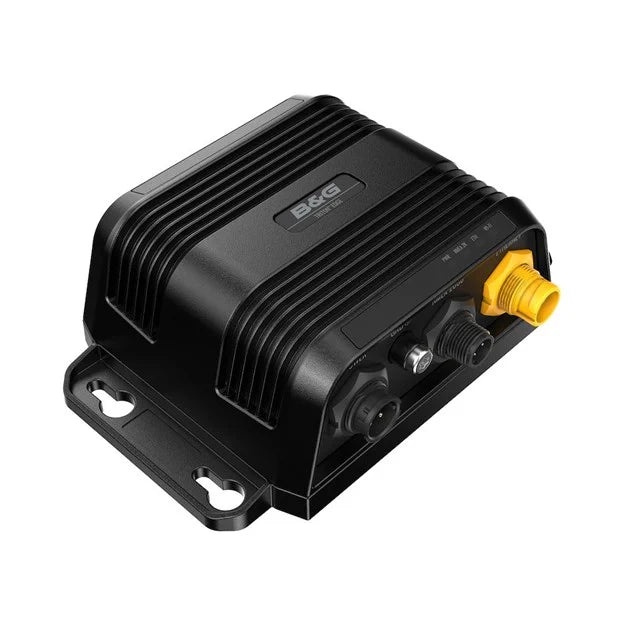

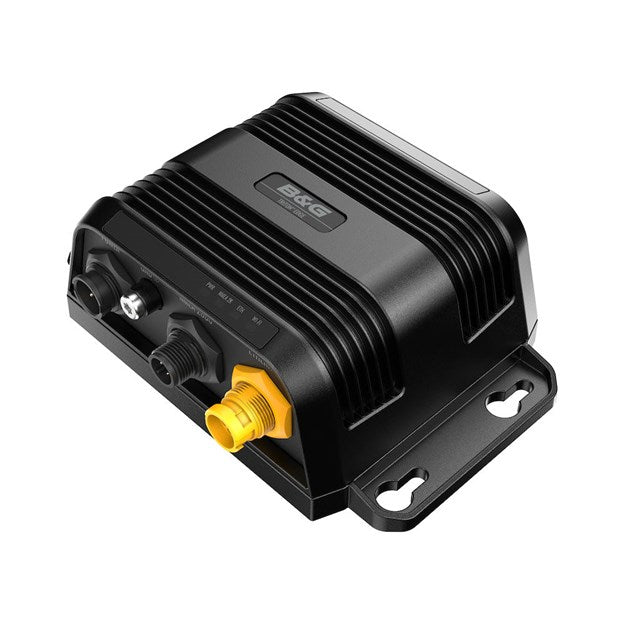

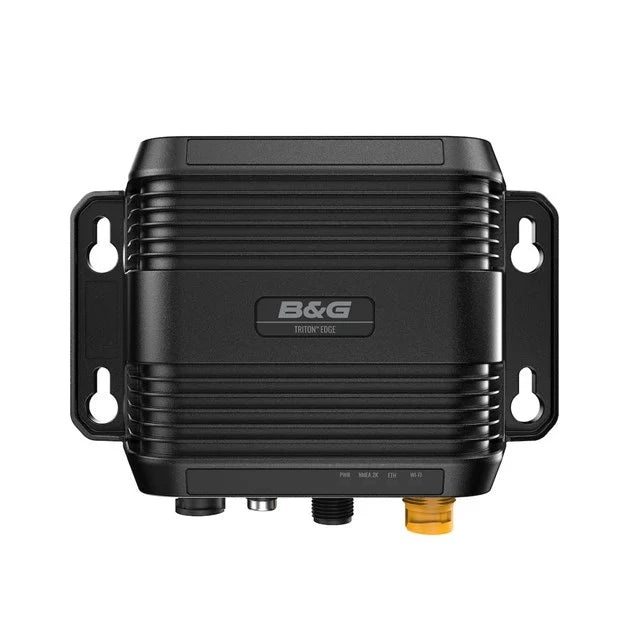

Triton™ Edge Sailing Processor (000-15134-001)

Key Features & Capabilities

• Ultra-fast microprocessor engine powering all core instrument and sailing computations
• Enhanced sailing data including advanced Start Line calculations, true wind data with autocalibration, and boat speed calibration and correction
• Wind correction accounting for heel and trim angles for greater accuracy under sail
• Support for polar tables for calculating Target Boat Speed and Target Wind across varying conditions
• Wi-Fi connectivity for data upload, cloud syncing, and remote access via B&G Companion App

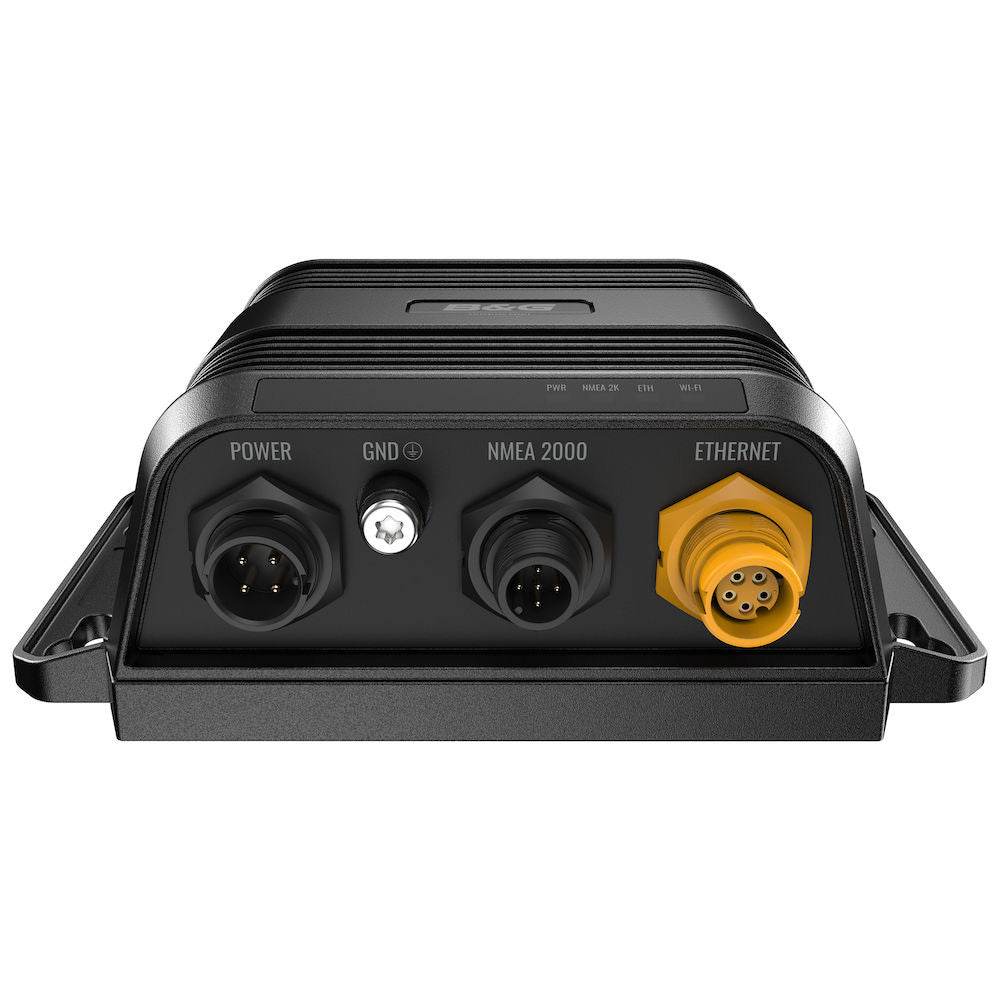

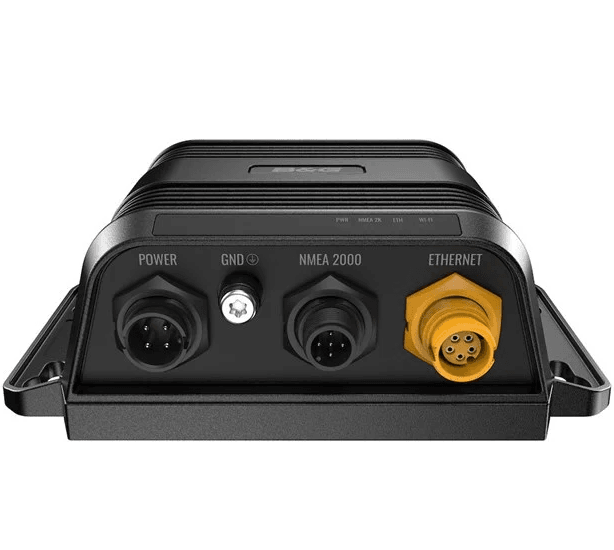

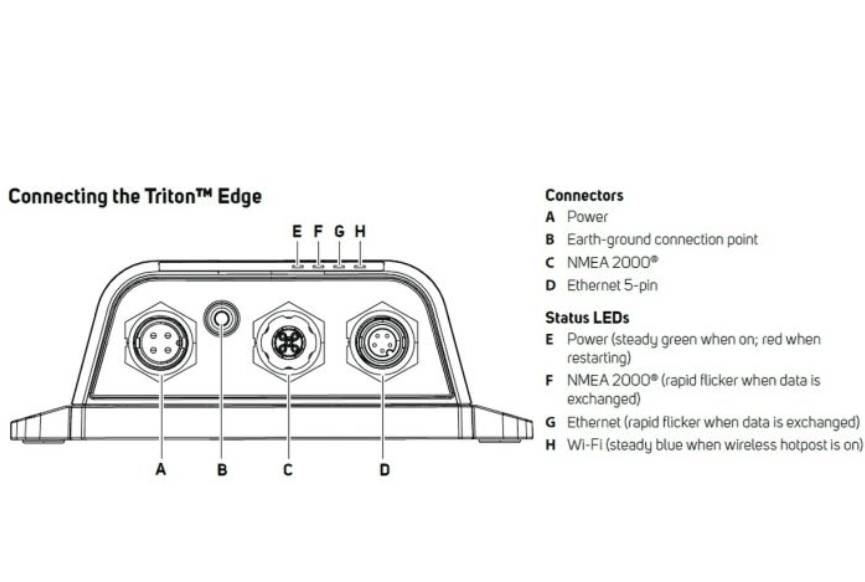

• Ethernet and NMEA 2000 interfaces for seamless integration with Triton, Nemesis, Vulcan, Zeus, and other B&G systems
• Webserver-based control and configuration for easy setup, diagnostics, backup/restore, and system commissioning via browser
• Compatible with both 12 V and 24 V power systems
• Rugged marine-grade design meeting IEC/EN 60945 compliance, with operating temperatures from –15 °C to +55 °C (5 °F to 131 °F)
• Compact footprint (approx. 152 × 98 × 53 mm) and lightweight form factor (~0.26 kg)

Upgrade the intelligence of your sailing electronics with the B&G Triton Edge Sailing Processor (000-15134-001). This powerful sailing processor serves as the “brains” of your instrumentation system, delivering advanced, high-accuracy sailing data to your B&G displays and chartplotters. Designed for both cruising and club racing systems, Triton Edge enhances your decision-making on the water with refined wind, speed, and calibration algorithms — all accessible via Wi-Fi, Ethernet, and web interface.

Why Choose the Triton Edge?

Harness superior navigational insight without unnecessary complexity. The Triton Edge Sailing Processor refines raw sensor data into actionable sailing metrics, improving autopilot performance and enhancing decision support during starts, upwind legs, and maneuvering. It bridges traditional marine electronics with modern connectivity, enabling data review, replay, configuration, and diagnostics from your smartphone or laptop.

Whether you're building a new instrument suite or upgrading your existing B&G system, the Triton Edge 000-15134-001 delivers intelligent performance, precision, and flexibility.

Triton™ Edge Sailing Processor delivers an enhanced suite of sailing data such as advanced Start line calculations, advanced true wind data, and autocalibration, boat speed calibration and correction, wind correction for heel/trim, improving the accuracy of your autopilot and sailing information. Wi-Fi and Ethernet allow for expanded integration with Triton 2 and Nemesis™ displays, and Vulcan and Zeus™ Chartplotters, whilst integration with the B & G App also enables the ability to review or replay your sailing data, and web-browser-based control allows for easy set-up and commissioning, improving the accuracy and calibration of sailing data, as well as the ability to backup, restore and advanced diagnostics.

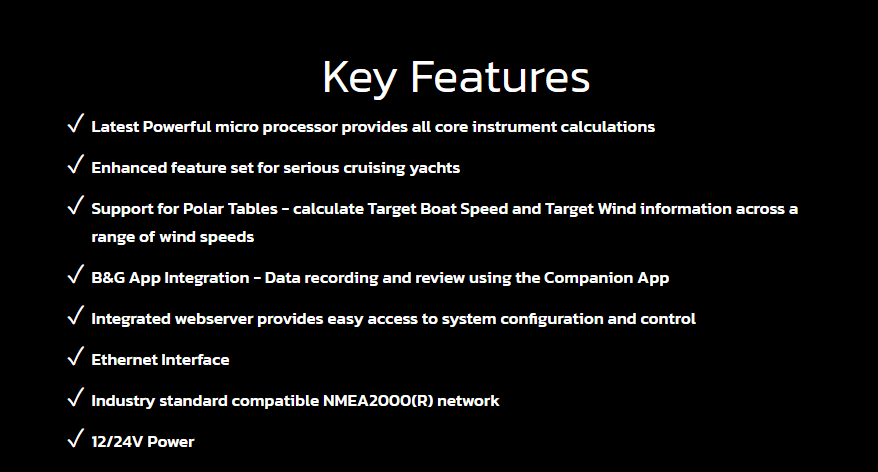

Features:

• The latest powerful microprocessor provides all core instrument calculations
• Enhanced feature set for serious cruising yachts
• B & G App Integration - Data recording and review using the Companion App
• An integrated web server provides easy access to system configuration and control
• Ethernet Interface
• Industry-standard compatible NMEA2000(R) network
• 12/24V Power

Specifications

What's in the Box:

• Triton Edge Processor
• 4-Pin Power Cable
• N2K T-Joiner
• N2K Cable - 0.6m (2ft)
