BG Triton² Speed/Depth/Wind System Pack

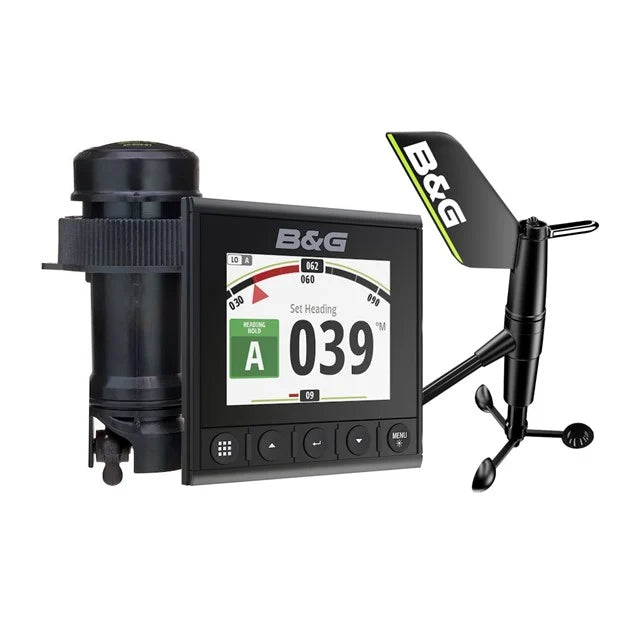

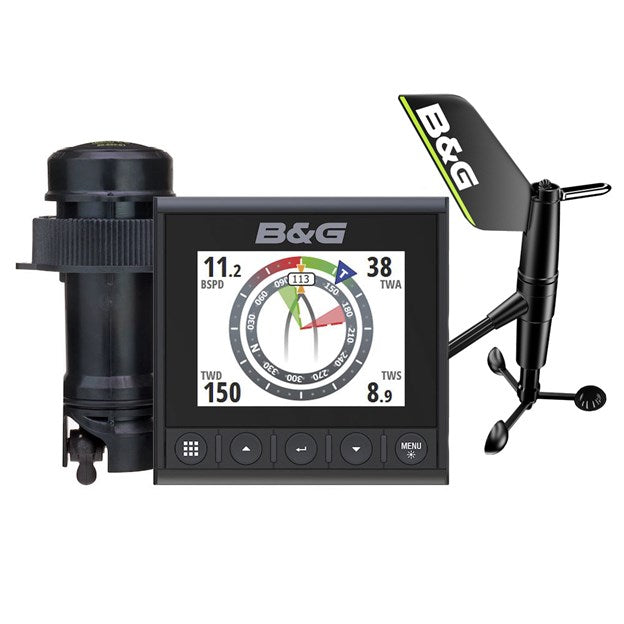

Triton2 Speed, Depth, Wind System Pack - Wired Wind Pack (000-14955-002)

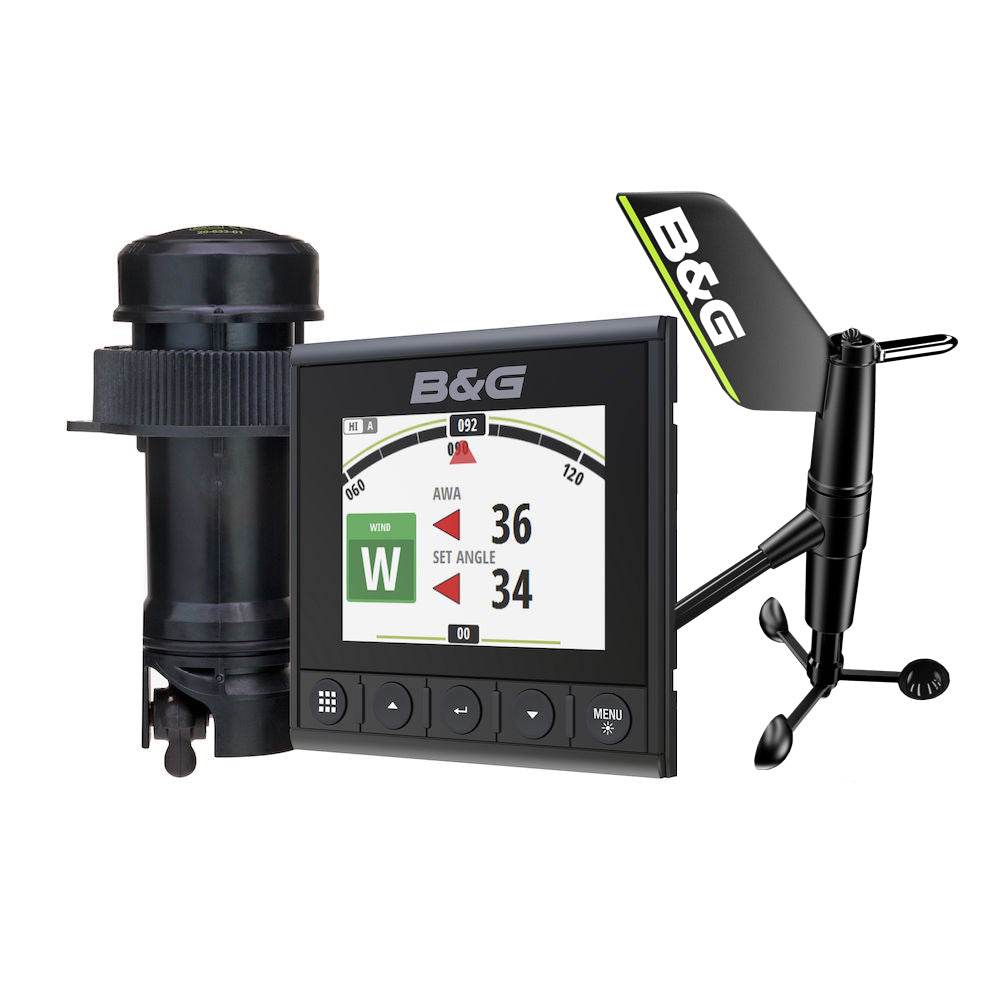

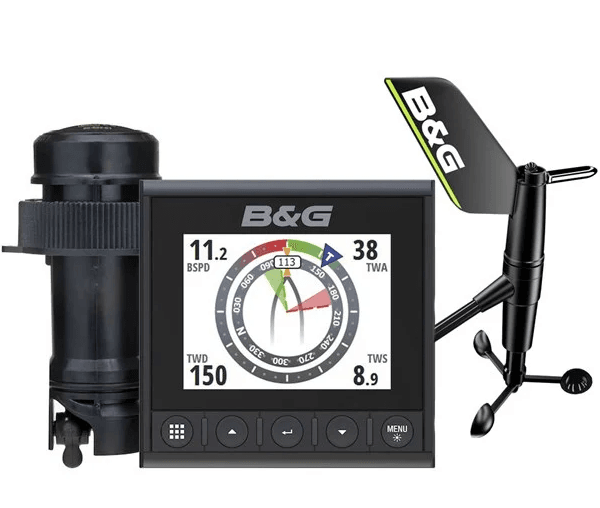

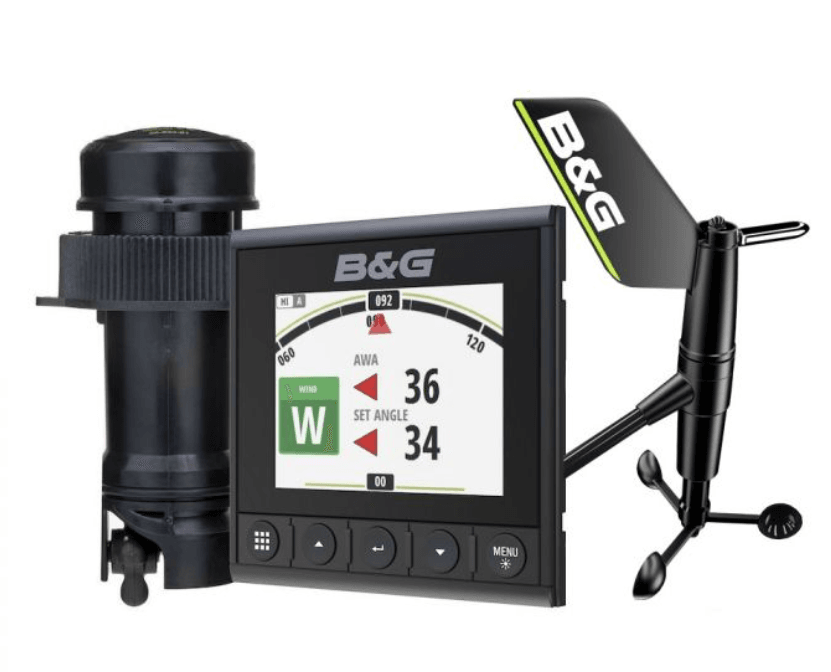

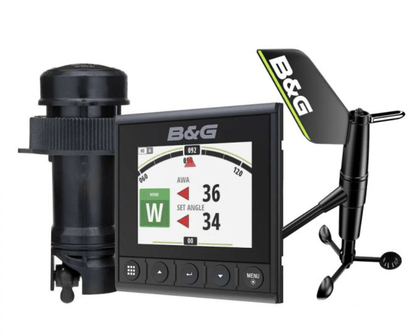

Sail smarter with the Triton² Speed/Depth/Wired Wind pack. Perfect for cruisers and club racers, Triton² shows you the instrument data you need, where you need it, with a Smart Triducer for speed and depth data and a WS310 wired wind sensor for accurate wind data.

Take your sailing instruments to the next level with the B&G Triton2 System Pack (Wired) (00014955002). Designed for cruisers and club racers alike, this all-in-one wired instrument system delivers critical boat data with clarity, integration, and precision — right where you need it.

Key Features & Capabilities

• All-in-One Sailing Instrument System — Displays speed, depth, water temperature, wind speed, wind angle, heading, autopilot status and more in a single, unified interface.
• 4.1-inch Optically Bonded Full-Color Display — The display is optically bonded (no fogging or condensation) and built with transflective LCD technology for excellent visibility in bright sunlight or low light.
• Low Power Consumption, Slim Profile — Designed to draw minimal power and mounted only ~8 mm above the surface, the unit blends seamlessly with your helm.
• NMEA 2000 Certified Integration — Easily network the system into your boat’s electronics backbone, allowing for expansion, autopilot control, chartplotter display, AIS overlays, and more.
• Includes DST810 Smart™ Multi-Sensor Transducer — This tri-sensor transducer gives you speed-through-water, depth, and temperature in one unit. The sensor delivers up to 5 Hz speed data and supports heel, trim, and calibration features.
• WS310 Wired Wind Sensor — Provides accurate wind data with angle accuracy <1° and speed accuracy <0.2 kt or 5%. Slim, aerodynamic design tested in wind tunnels ensures reliable performance.
• Sail-Specific Features — Features like SailSteer and WindPlot are built for sailors, showing laylines, true wind, and boat speed overlayed on the display.
• Easy to Install & Use — Front-mount or bulkhead installation is simple. The interface uses soft-touch waterproof buttons and an intuitive menu layout.

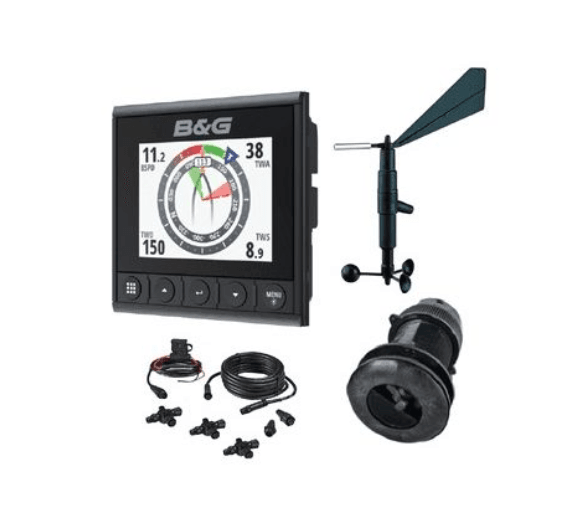

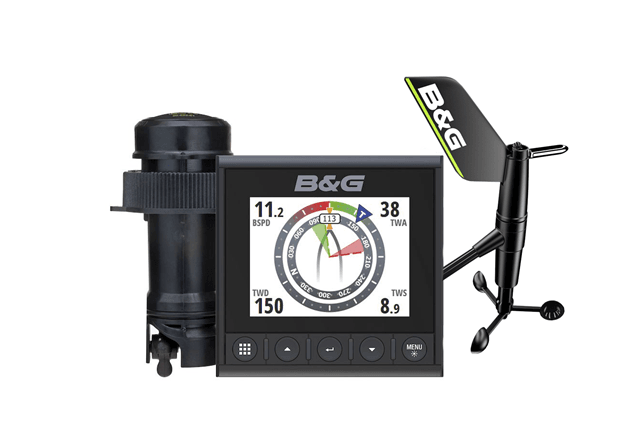

What’s Included in the Box:

• Triton2 display(s)
• DST810 multi-sensor transducer (speed / depth / temperature)
• WS310 wired wind sensor
• Wind interface and 20 m mast cable
• NMEA2000 backbone starter kit
• Mounting hardware and connectors

Why Choose This Pack?

If you’re building or upgrading your marine electronics suite, this Triton2 wired wind pack gives you a complete, high-performance instrument setup in one package. With its full-color, high-contrast display, built-in sailing features, and full integration with NMEA 2000, this system is ideal for performance-conscious sailors who want precise data and smooth expandability.

The clearest, multi-purpose sailing instrument with dedicated sailing features.

Features:

• Optically bonded 4.1-inch color display
• Transflective LCD technology for optimum sunlight viewing
• Unique sailing features including SailSteer and WindPlot
• Display wind, speed, depth, heading, autopilot status, and much more
• Easy to use, easy to install
• Low power consumption

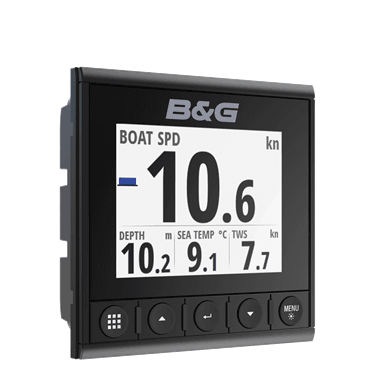

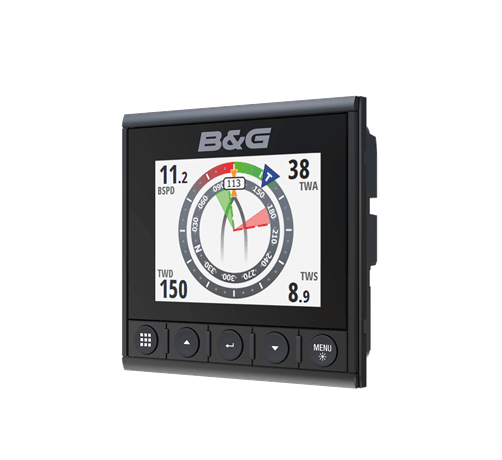

The full-color Triton² Display provides sailors with a clear visual representation of key instrument data including Speed, Depth, Wind, Heading, AIS targets, GPS data, and more.

An Optically Bonded display means absolutely zero condensation or fogging, while transflective LCD technology provides exceptional contrast and visibility – day or night – while consuming less power than traditional backlight-only displays.

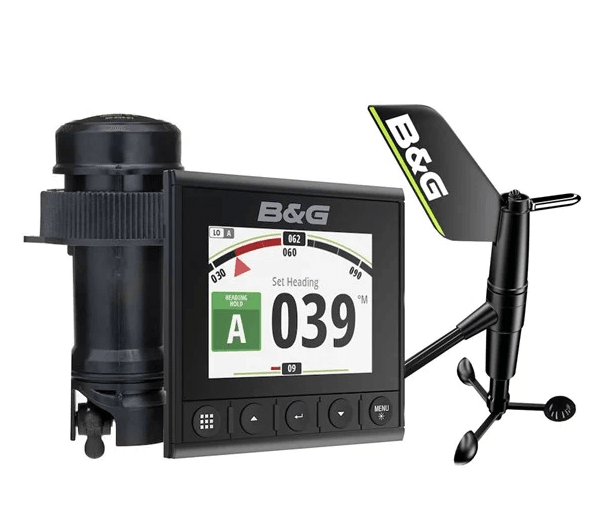

The flexible, NMEA 2000® certified, Triton² Display can be integrated into a wider navigation system and also be combined with a Triton² Pilot keypad and NAC autopilot computer to create a complete autopilot control system, featuring B & G sail-specific autopilot steering algorithms.

Specifications:

• Dimensions: 118 x 115 x 36 mm (4.6 x 4.5 x 1.4")
• Weight: 0.32 kg (0.7 lbs)
• Color: Black
• Display Size: 4.1" (diagonal). 4:3 Aspect ratio
• Display Type: Transflective TFT-LCD, bonded. White LED backlight
• Display Resolution: 320 x 240 pixels
• Illumination: White for day mode. Red, green, blue, or white for night mode
