B&G Vulcan 7R 7" Multifunction Sailing Chartplotter Fishfinder

Vulcan 7 R 7-inch Chartplotter/Fishfinder Display (000-14082-001)

Introducing the B&G  Vulcan 7R  Chartplotter/Fishfinder (00014082001), the premium yet affordable 7-inch sailing chartplotter and fishfinder designed to deliver advanced navigation, racing insights and seamless system integration for cruisers and club racers alike. Built by sailing-electronics leader B&G, this display unit makes sophisticated features accessible and intuitive.

Key Features & Capabilities:

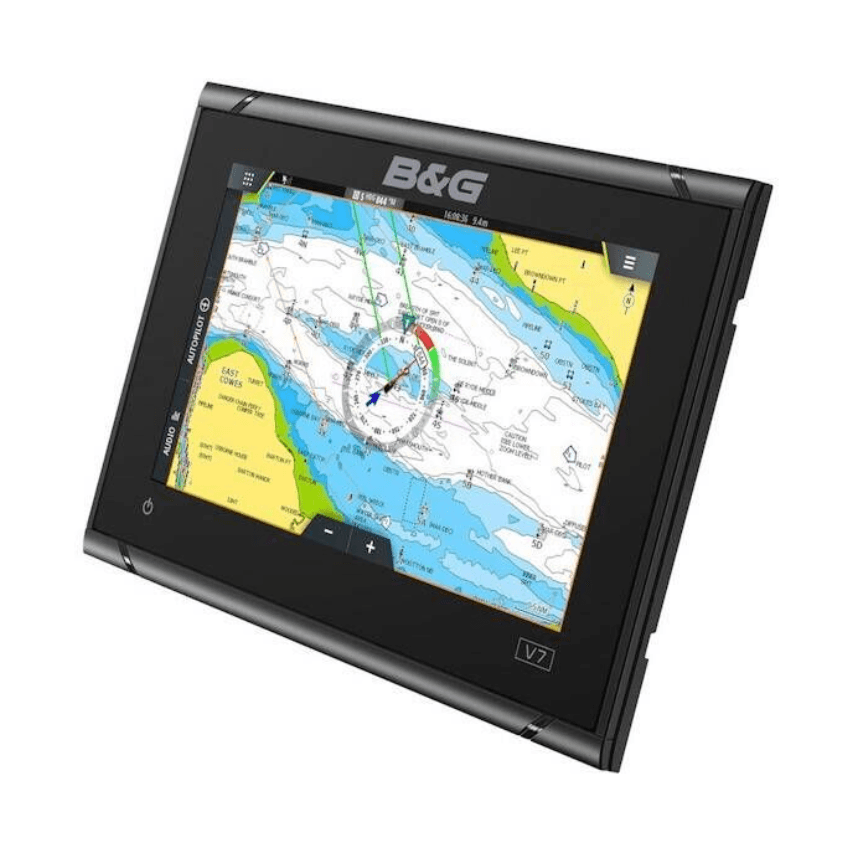

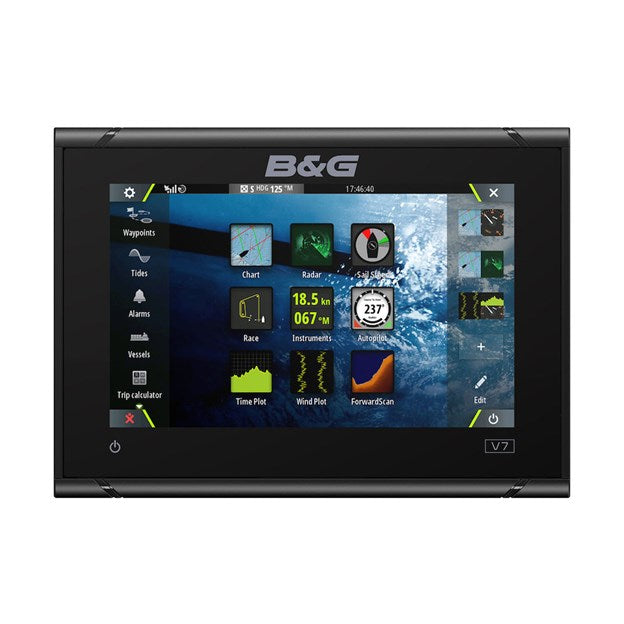

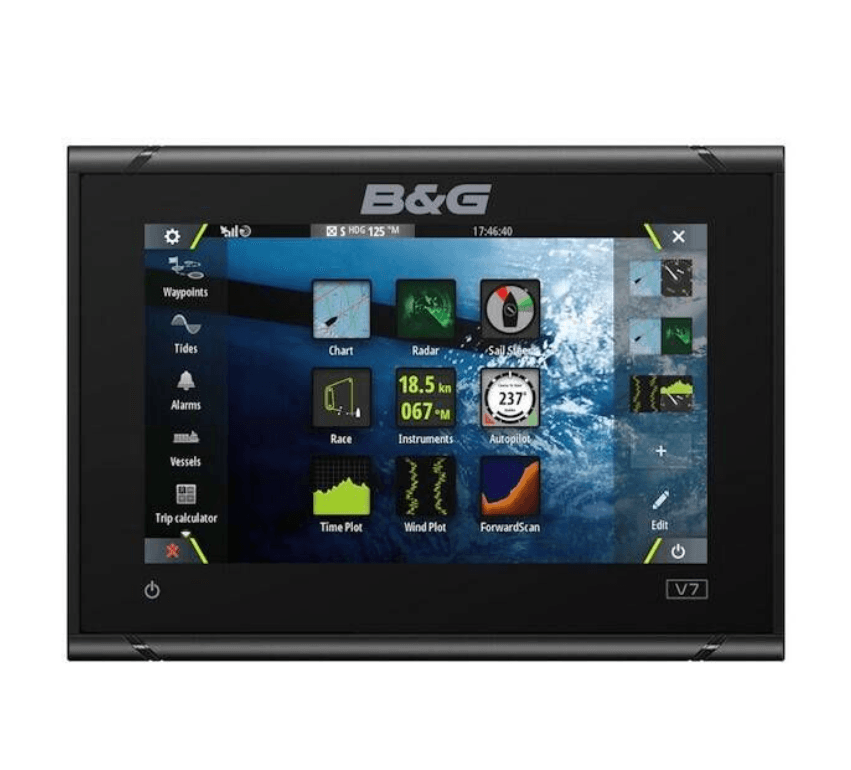

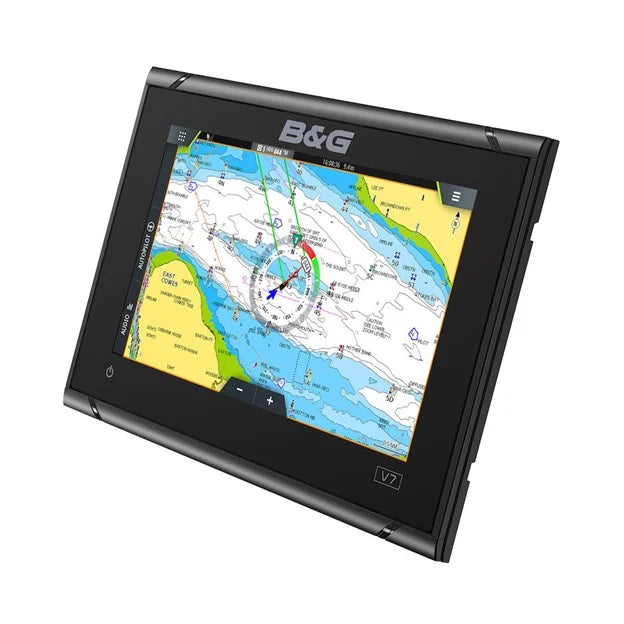

• 7″ wide-format high-visibility multi-touch display with pinch-to-zoom and swipe controls for fast, tablet-style operation even in spray or bright sun.
• Built-in high-accuracy 10 Hz GPS updates your position up to 10 times per second for smooth movement tracking and precise course mapping.
• Fully integrated Wi-Fi connectivity—access online routing, weather (e.g., via PredictWind) and remote display mirroring to a compatible tablet or smartphone for a dual-station setup.
• Dedicated sailing modes:

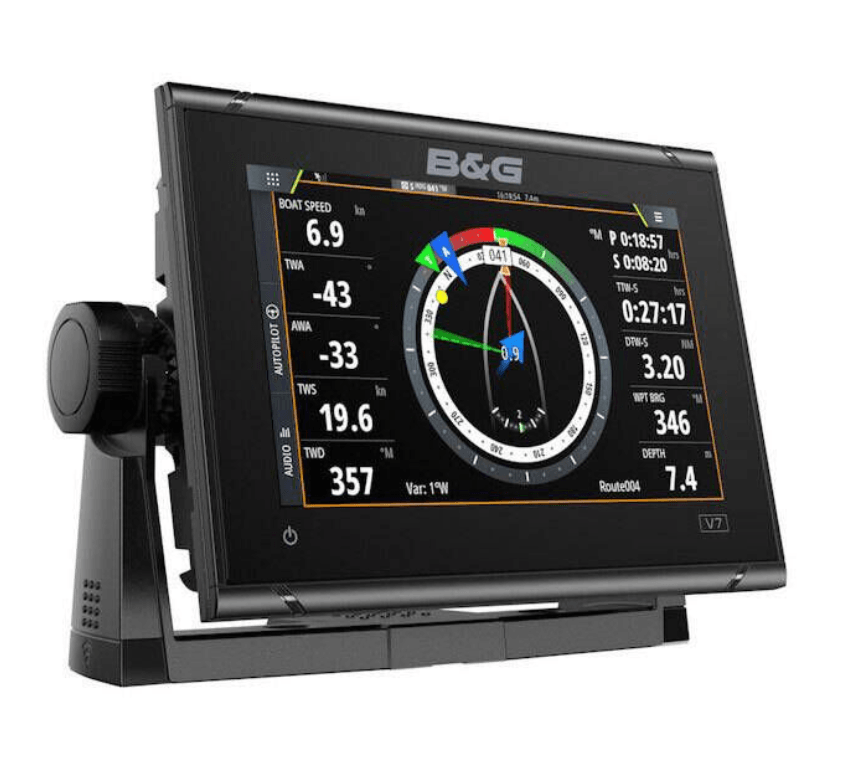

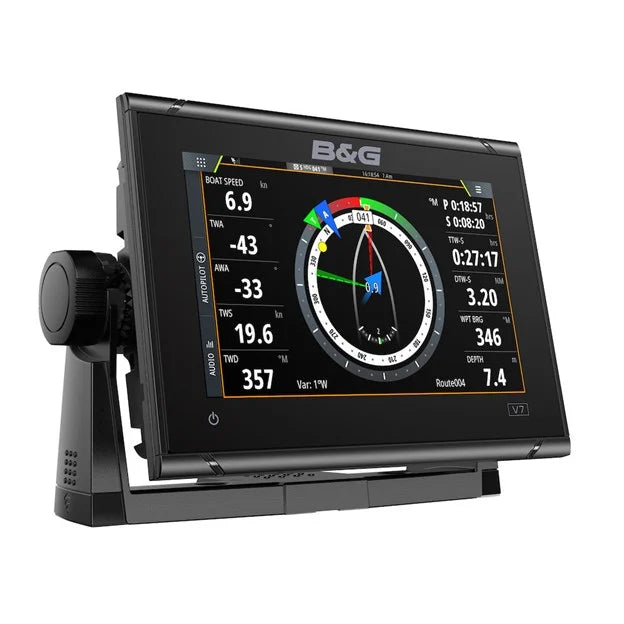

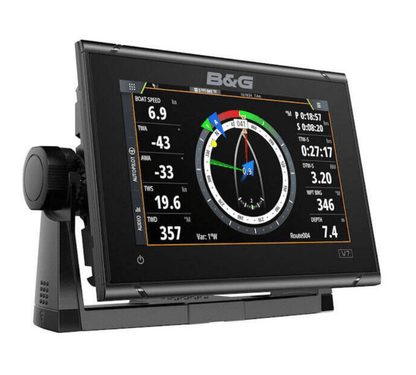

  • SailSteer®: All key data in one view—boat speed, wind, tide, heading, laylines, wind-shift sectors.
  • RacePanel®: Designed for club racers—start line timer, distance-to-line, time-to-start and race data in a single clear display.
  • SailingTime: Calculates ETA by accounting for tacks, wind and tide—not simply straight-line distance.
  • Laylines overlay on your chart to guide efficient windward tacks and improve upwind performance.
• Chart support and advanced routing:

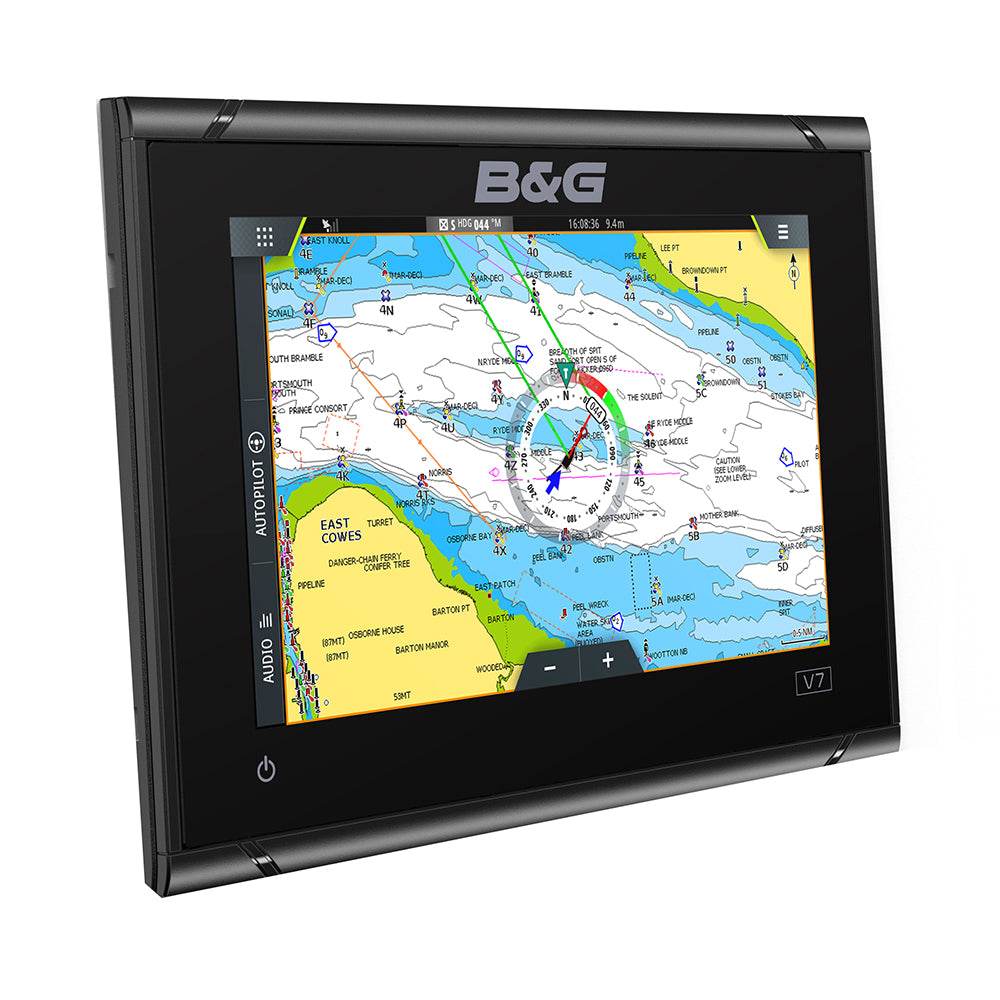

  • Compatible with C-MAP® (MAX-N, MAX-N+), Navionics® (Gold, NAV+ Platinum+) and NV Digital (Raster US Charts)—flexible chart brand support.
  • C-MAP® Easy Routing and Navionics Dock-to-Dock Autorouting automatically plot the safest, fastest course based on your boat’s draft, beam and height.
  • C-MAP Navigation Palette enhances readability of near-shore hazards, ledges, drop-offs and navaids.
• Seamless integration via industry standard NMEA 2000®: Connect instruments, autopilot, broadband radar, ForwardScan™ and more—scalable from a basic system to a full sailing suite.

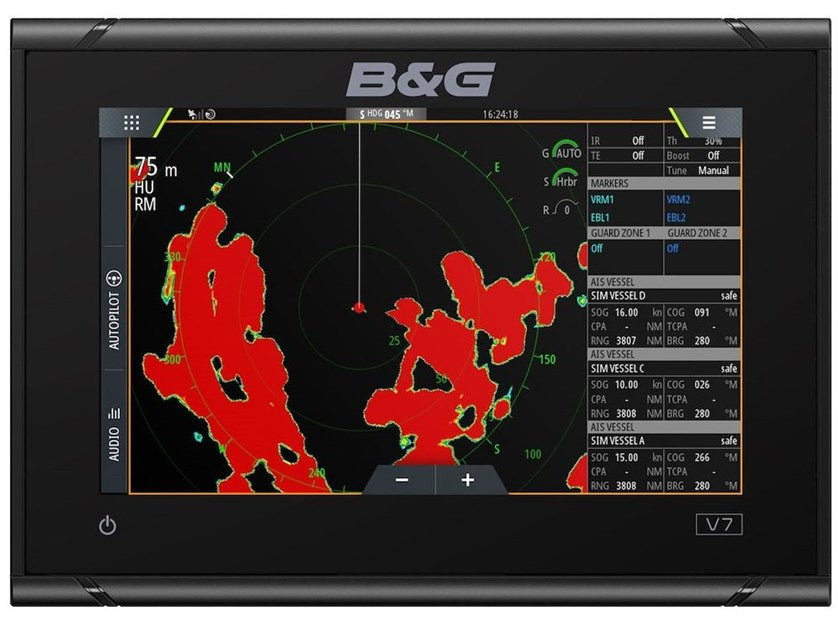

• Radar and sonar-ready: Compatible with Broadband Radar™ and ForwardScan™ for radar target tracking and depth imaging ahead of the keel.
• Low-profile, marine-friendly design: Flush-mount option (only ~8 mm from surface) or quick bracket mounting horizontally, vertically or overhead—perfect for a modern ‘glass helm’.
• Robust marine build: High brightness (1,200 nits), wide viewing angles, waterproof rating IPX6/7, power usage approx. 12 W typical for efficient 12 V systems.

Why This Unit Stands Out:
For sailing-focused boaters who want more than just a chartplotter, the Vulcan 7R delivers sailing-specific features previously reserved for high-end systems—such as SailSteer, RacePanel and full NMEA 2000® support—at a realistic price point.

The intuitive interface, strong chart compatibility and built-in Wi-Fi make installation and day-to-day use straightforward. Whether you’re cruising coastal waters, racing at club level or simply upgrading your helm station, this display brings modern navigation and performance monitoring into one package.

Technical Specifications:

• Screen size: 7″ diagonal – 800 × 480 resolution.
• Brightness: 1,200 nits, viewing angle ~80° top/bottom & left/right.
• Weight: approx. 1.32 kg (2.91 lbs) without bracket.
• Power consumption: ~12 W typical (max up to ~20 W) at 12 V (10–17 V input range).

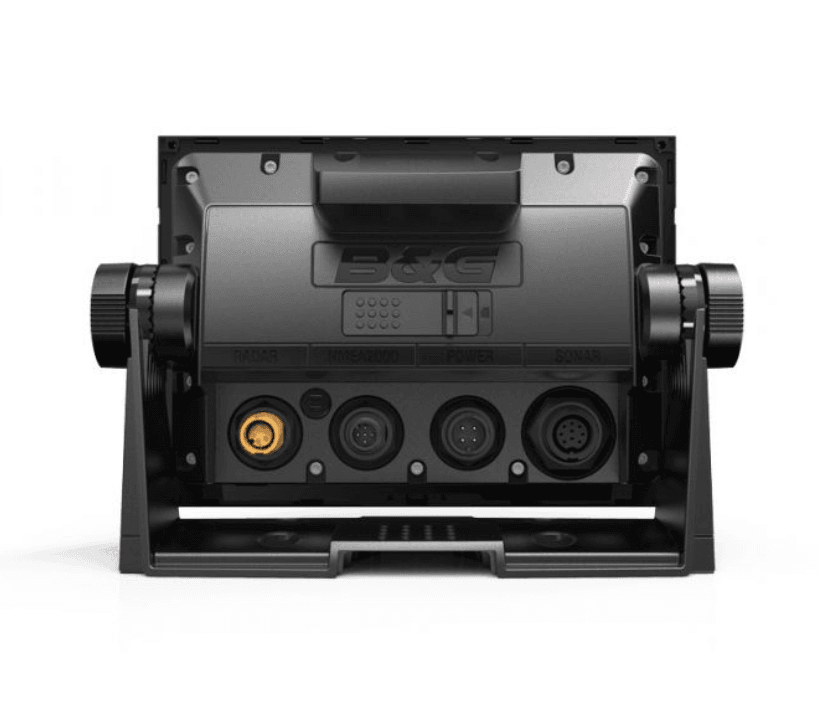

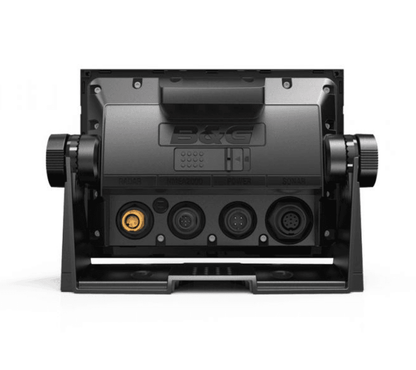

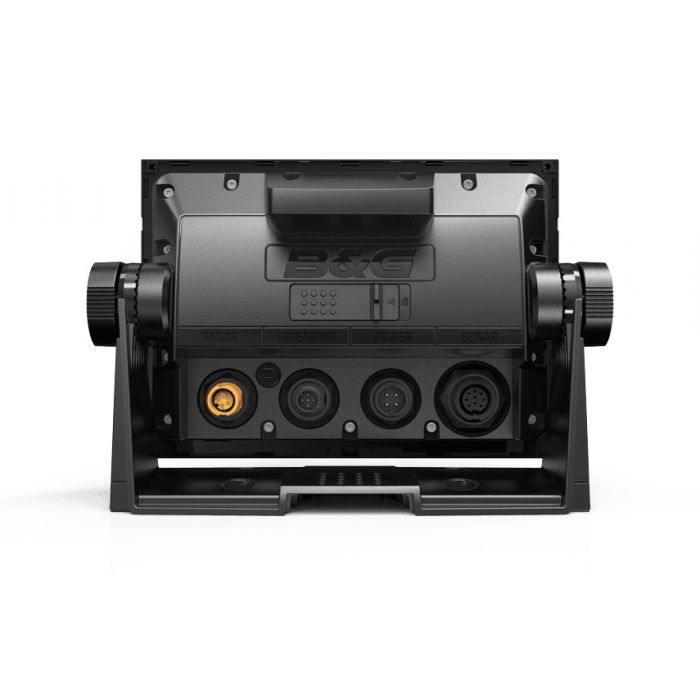

• Connectivity: Internal Wi-Fi, internal Bluetooth, 10 Hz GPS, Ethernet port (100 Mb/s) for radar/sirius.
• Box contains: Vulcan 7R display, sun cover, mounting bracket & knobs, dash mount kit, bezel.
• Transducer is not included; chart bundle optional and sold separately.

Ideal Use Cases:

• Coastal cruisers who want reliable chartplotting, waypoint planning and route tracking.
• Club racing skippers looking for dedicated sailing dashboards, laylines, start-line data and wind/tide integration.
• Sailors seeking a modular navigation platform—start with this unit and expand into autopilot, radar and depth imaging when needed.
• Boaters upgrading older glass-helm or hybrid systems looking for modern multi-touch interface, Wi-Fi connectivity and current chart compatibility.

Installation & Tips:

• For best performance, flush-mount the display at helm height with minimal glare; bracket mount is ideal for retrofit.
• Use NMEA 2000® backbone to connect instruments (speed, wind, depth) so SailSteer and RacePanel features receive real-time data for maximum benefit.
• Add a ForwardScan™ transducer if anchoring or navigating poorly charted areas—see seabed ahead of the bow.
• Use Wi-Fi to update charts and firmware via marina hotspot or mobile tether—keeping your navigation system current.
• Choose a compatible chart card (C-MAP MAX-N+ or Navionics Platinum) to unlock advanced routing features like Dock-to-Dock Auto routing.

The B&G Vulcan 7R Chart plotter/Fish finder Display offers an unbeatable blend of sailing-specific navigation features, modern connectivity and system integration at a value-driven price.

With a crisp 7″ multi-touch display, built-in Wi-Fi and GPS, and full support for racing dashboards and instrument networks, this unit is built for the sailor who demands performance, adaptability and simplicity. Whether you’re charting new waters, starting a race or upgrading your helm, the Vulcan 7R is your smart navigation companion.
