Product Description

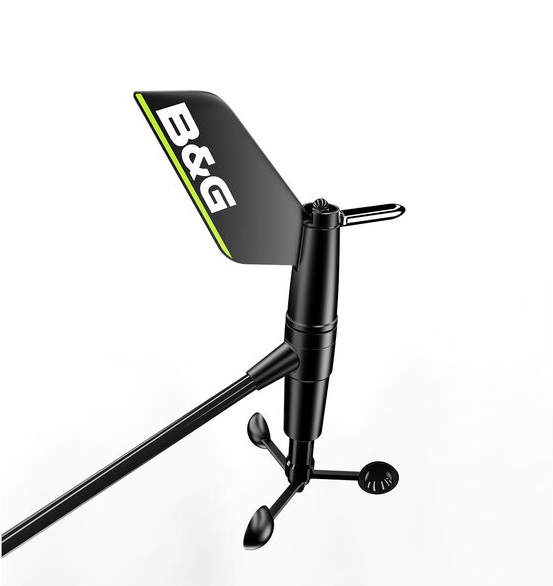

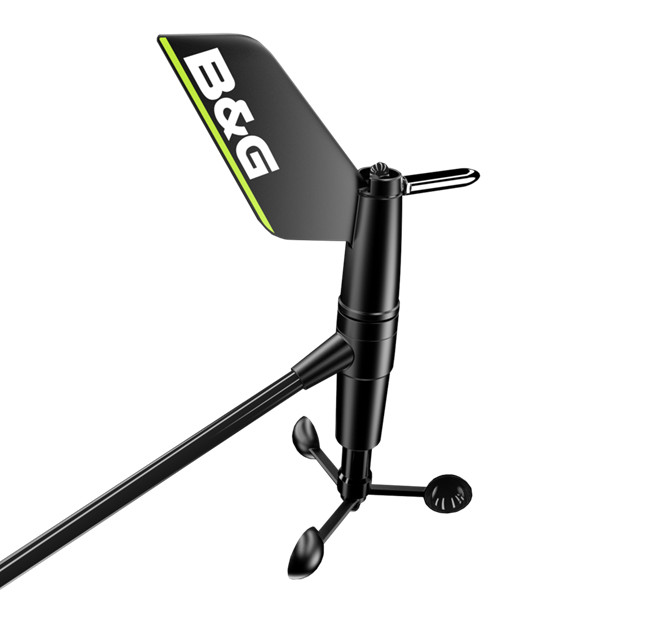

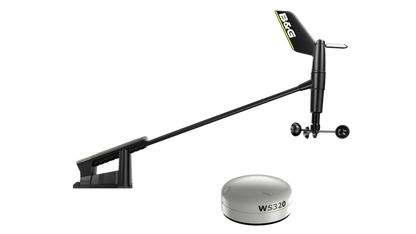

WS320 Wireless Wind Sensor (000-14383-001)
A wireless wind sensor from B&G, designed for cruising and club racing sailors. The WS320 wireless wind sensor pack offers a high performance solution, with exceptional data accuracy and improved aerodynamics, which is easy to install and includes all the parts you need.
The WS320 wireless wind sensor is the perfect solution for any sailor looking to get accurate and fast wind data to their instruments, which is easy to install without a cable through the mast.

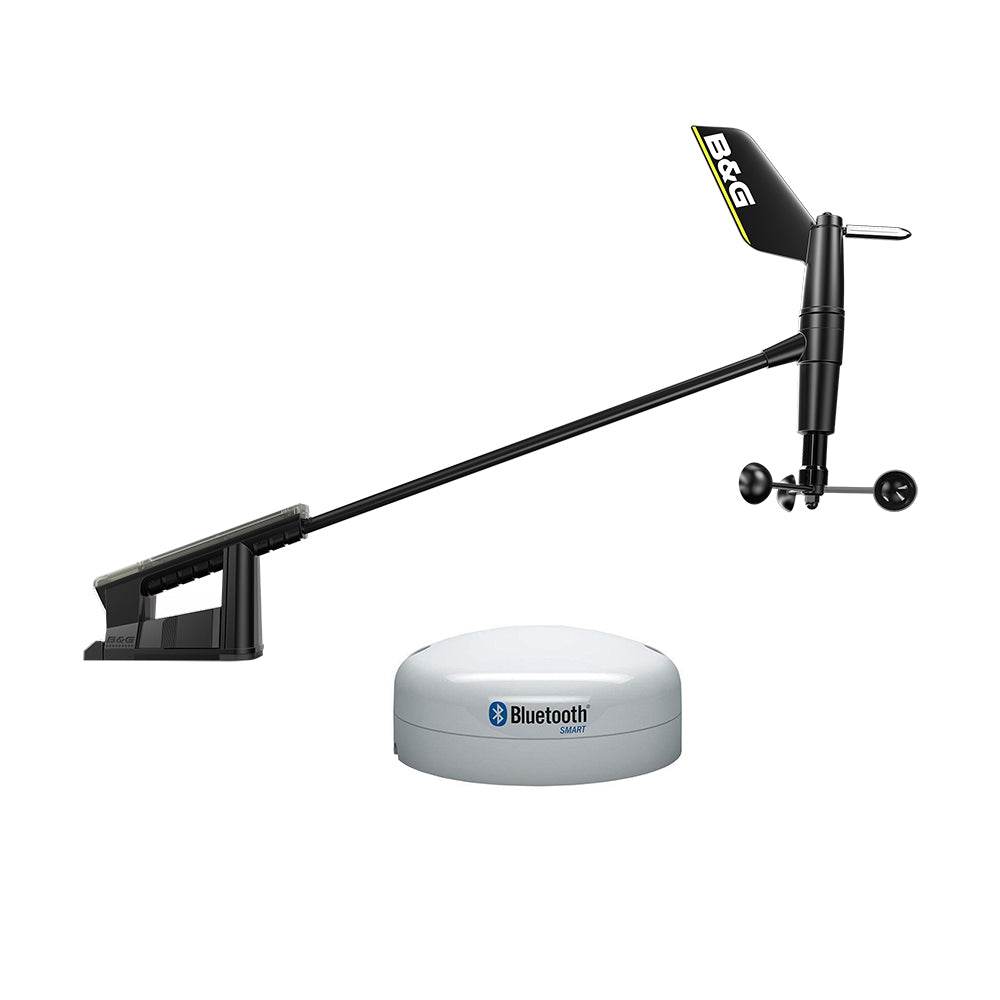

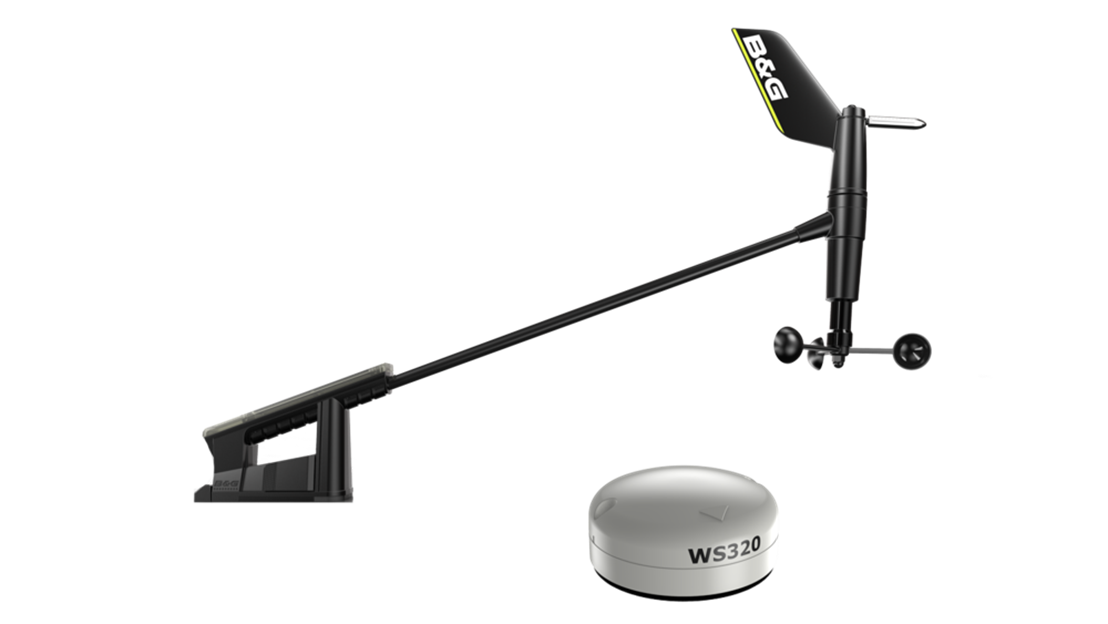

Includes:

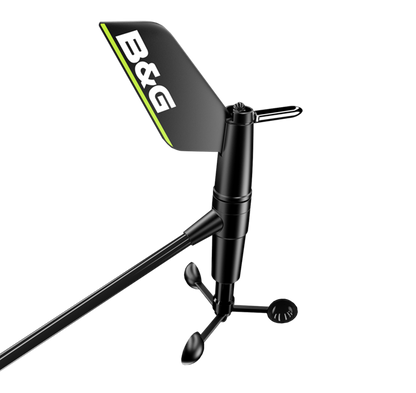

- WS320 Wireless Wind Sensor

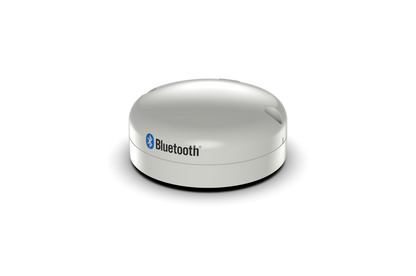

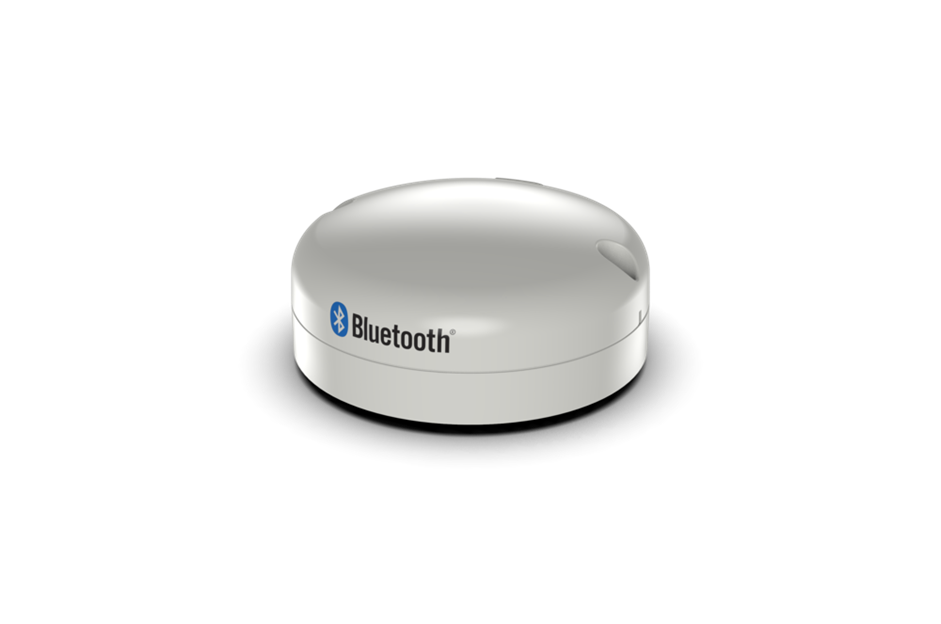

- WS320 Wireless interface (Bluetooth)
- Rechargeable battery

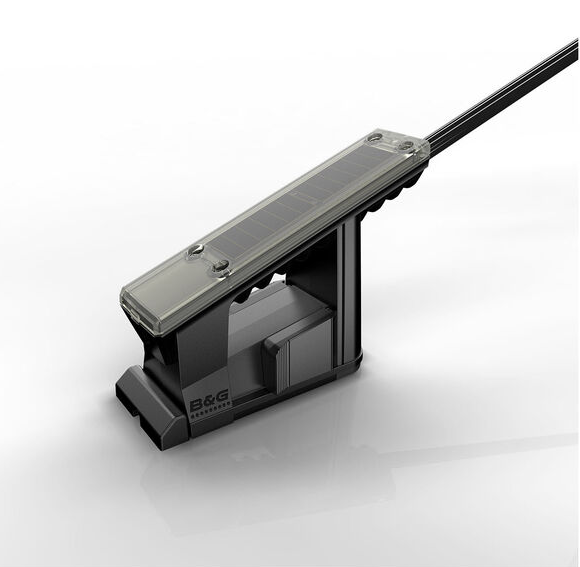

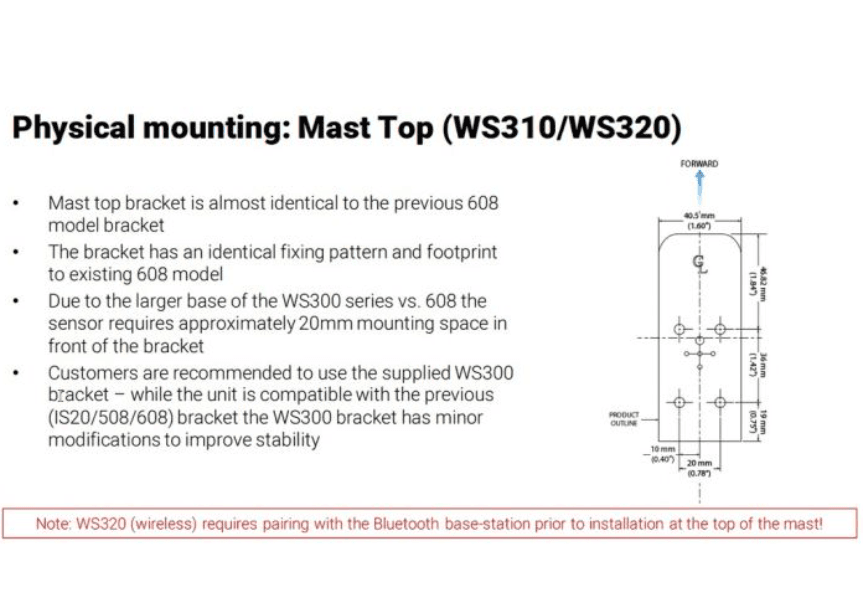

- Masthead bracket
- NMEA 2000 drop cable
- Micro-C T joiner
- Fixings kit (Includes pole mount for interface)
High Performance: Designed to provide highly accurate wind data in all conditions at all points of sail and heel. WS320 has been benchmarked against multiple different sensors in over 500 individual wind tunnel tests.
No Compromise Wireless: Easy to install and light-weight, ideal for smaller boats – without compromising performance for wireless convenience. WS320 has the same accuracy (both wind angle and wind speed) as the wired version, while outputting wind at a super smooth 5 times every second.
Reliability: As the most exposed sensor on a yacht, the wind sensor – critical for instruments and autopilot steering – must meet an exceptionally high standard. In addition to B&G’s extreme testing program, the WS320 sensors have been subject to combined field tests of over 200,000 hours.
Features:
- Easy installation

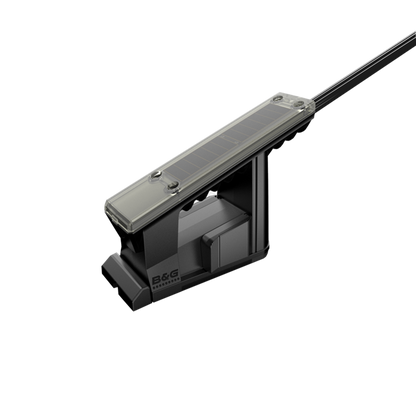

- Smart rechargeable power management
- Superior data accuracy and aerodynamics
- Sensor quality and reliability
Specifications
| WS320 | |
| Weight | 0.32 kg (0.7 lbs) |
| Waterproof | IPx6 and IPx7 |
| Temperature | -25°C to 65°C |

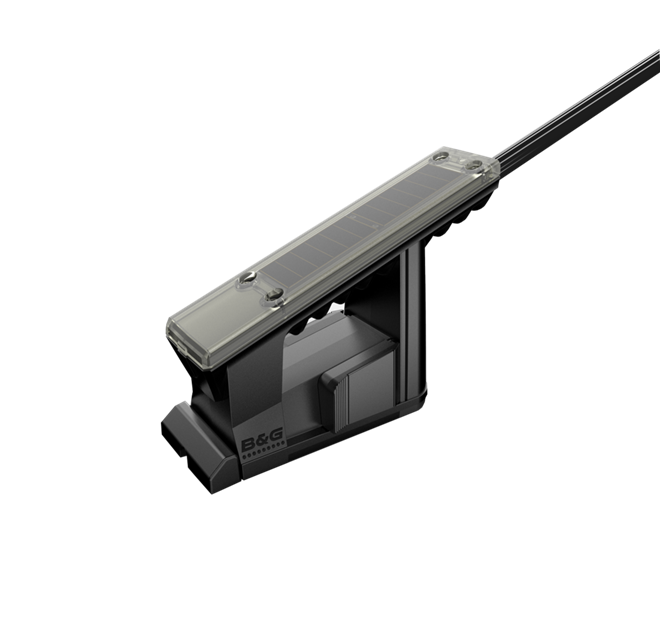

| Power usage | Solar powered |
| Wind speed resolution | 0.05 m/sec (0.1 Knots) |
| Wind speed accuracy | +/- 0.1 m/sec (0.2 kt) from 1 - 40 m/sec (2 - 80 kt) |
| Wind speed range | 0.25 - 50 m/sec (0.5 - 97 knots) |
| Wind angle resolution | 0.1° |
| Wind angle accuray | +/- 0.5° |
| Wireless connectivity | <=30m (98 ft) |
| Data output | Apparent wind speed and angle at 5 Hz |
| Base station | |
| Dimensions | 90 mm, H 38 mm ( 3.54" H 1.50") |
| Power supply and interface | 9-16 V DC via Micro-C network |
| Power consumption | 1.2 W (<100 mA at 12 V DC) |
| Network Load | 2 LEN (100 mA) |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 66°C, 95% RH, 18 hours |
| Environmental protection | IPx7 |
| Connection | Micro-C cable |
