Part Number: 000-15409-002

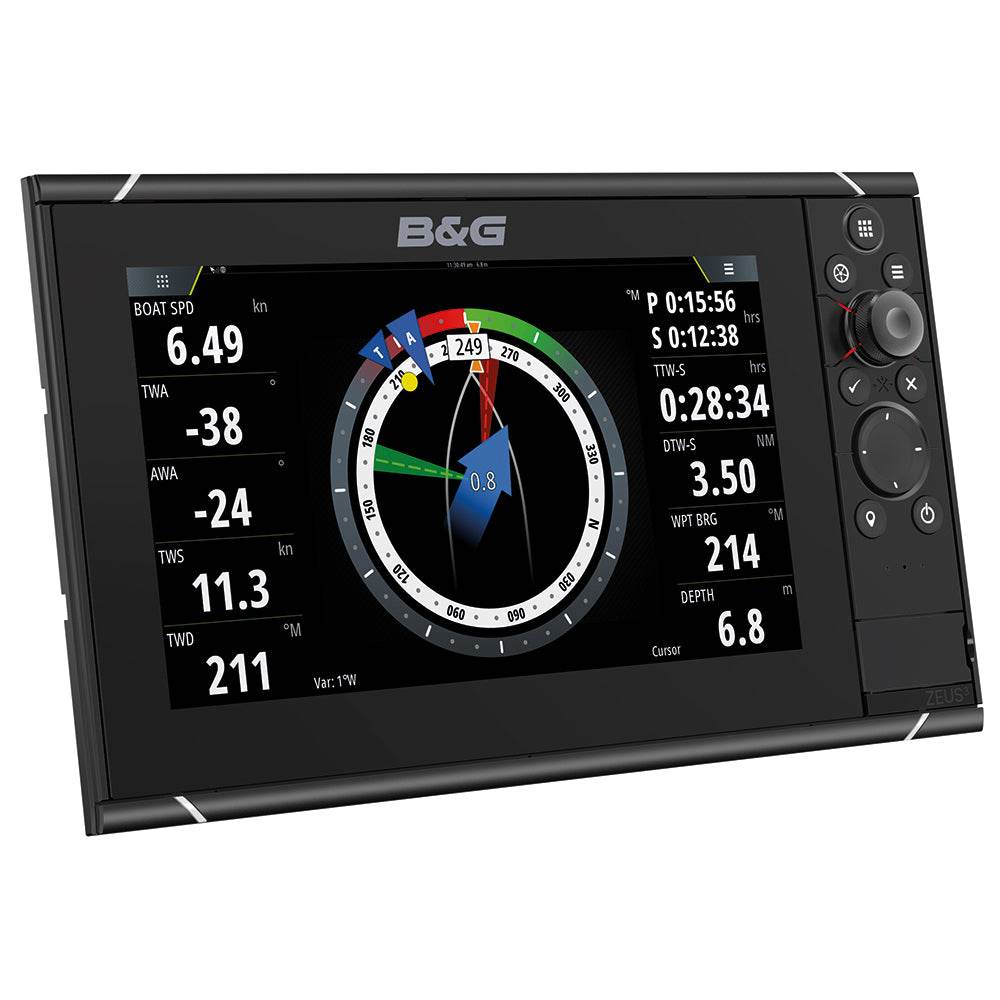

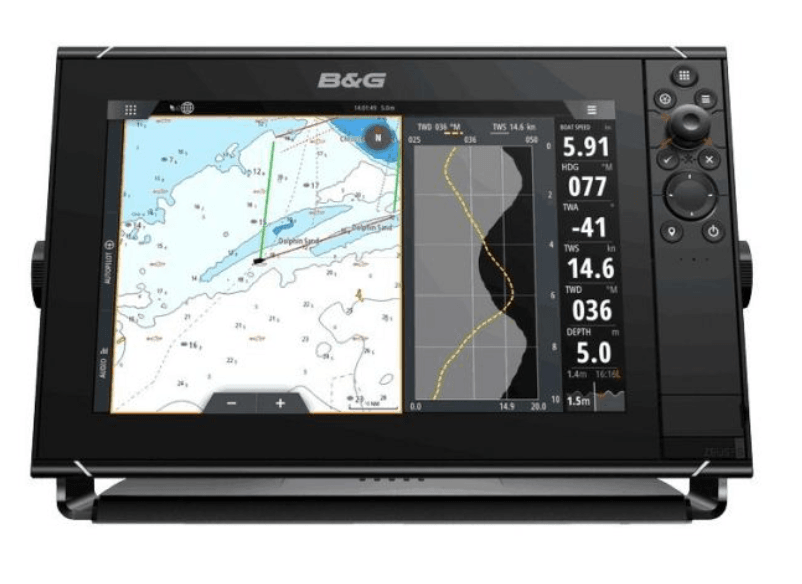

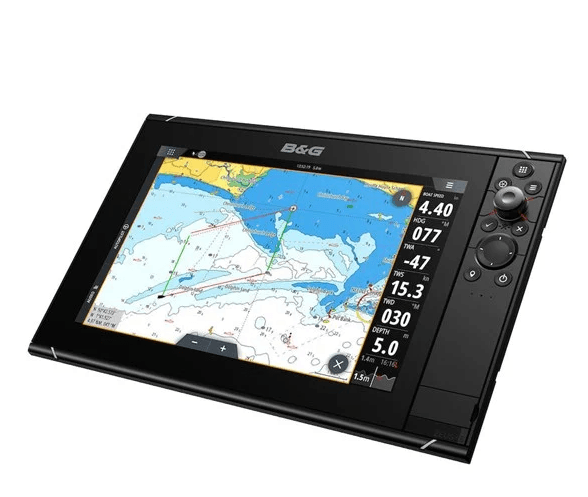

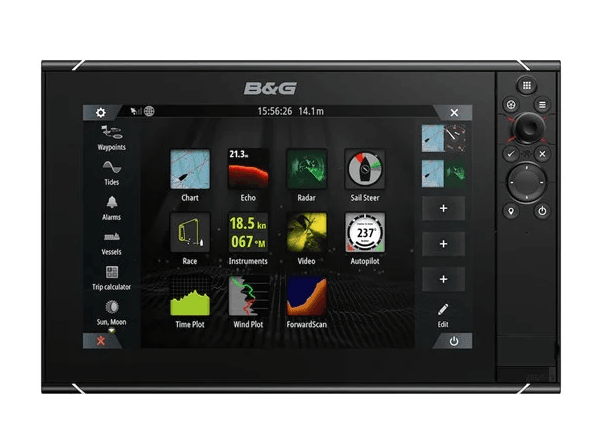

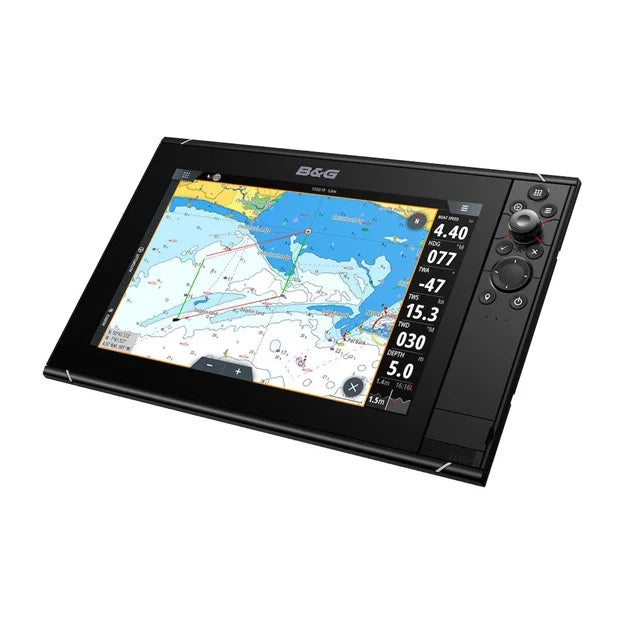

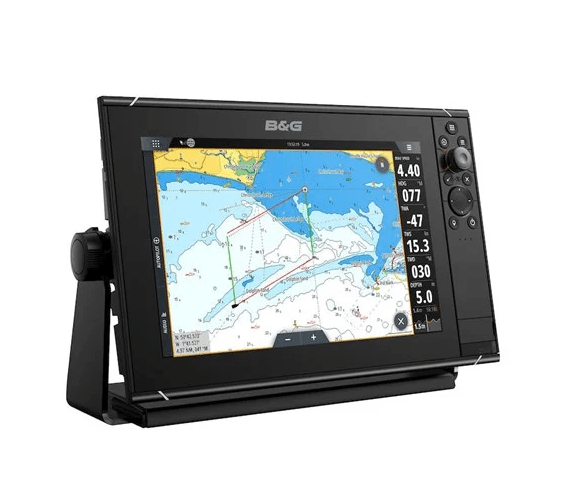

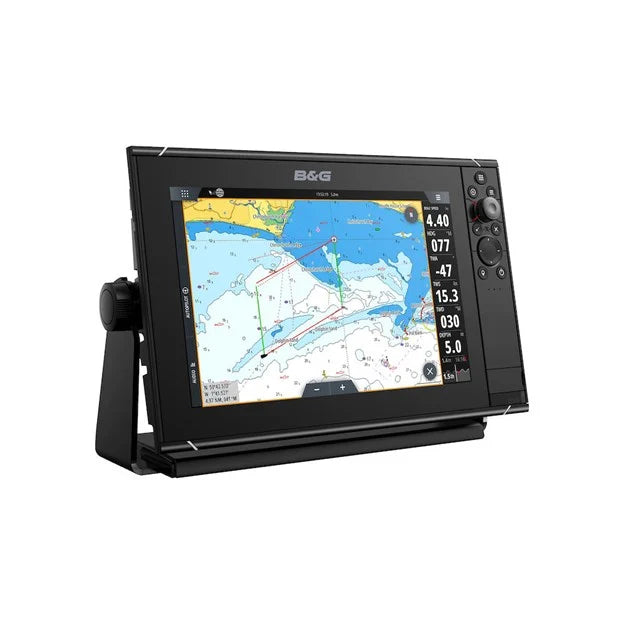

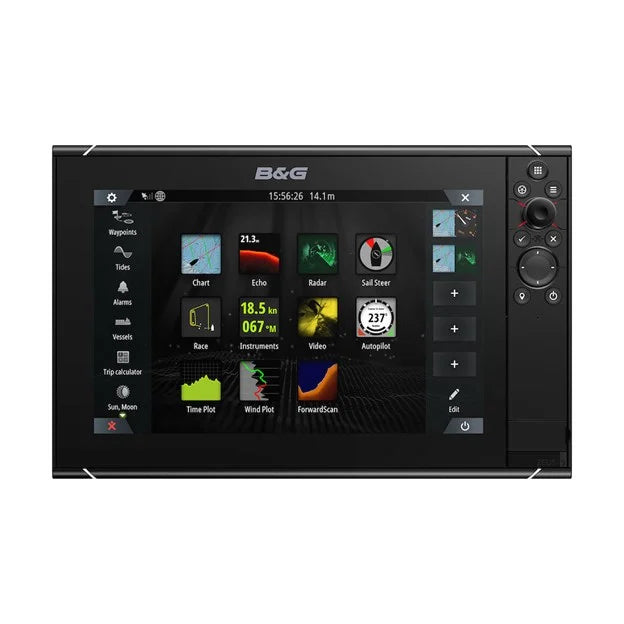

The B&G Zeus S 12” Multi-Function Display is a high-performance sailing chartplotter designed for offshore sailors who demand speed, clarity, and total system integration. Powered by an advanced processor and featuring a SolarMAX™ HD IPS display , Zeus S delivers exceptional visibility, fast chart redraws, and seamless control of navigation, sailing instruments, sonar, radar, and autopilot systems — even in harsh marine conditions.
Preloaded with C-MAP® US Enhanced charts and built for full network expansion, this 12-inch glass-dash MFD is engineered for bluewater cruising, racing, and performance sailing.
Key Features & Performance Benefits 12” SolarMAX™ HD IPS Display High-visibility, optically bonded TFT display with 1200 nits brightness for excellent readability in direct sunlight and wide viewing angles (80° all directions).
High-Performance Processing Advanced processor delivers significantly faster chart redraws, smoother transitions, and improved responsiveness compared to previous generations.
C-MAP® US Enhanced Charts – Preloaded Coastal and inland U.S. coverage included out of the box. Supports additional chart formats including Navionics® , C-MAP MAX-N / MAX-N+ , NV Digital , and Insight charts.
Dual-Control Interface Full multi-touch touchscreen combined with a dedicated keypad and rotary controls for precise operation in rough seas, wet conditions, or while wearing gloves.
Built-In 10 Hz High-Sensitivity GPS Fast, accurate position updates with support for WAAS, EGNOS, MSAS, GLONASS , delivering up to 3 m (9.8 ft) horizontal accuracy.
Advanced Sonar & Forward-Looking Capability
Integrated echo-sounder functions with support for CHIRP, SideScan, and ForwardScan™ when paired with compatible transducers.
Supports up to 1 kW RMS sonar output
Depth capability exceeding 3,000 ft (tested with B175L)
Full Sailing System Integration Seamlessly integrates with B&G sailing instruments , wind sensors, autopilots, radar, AIS, and network sonar modules for complete offshore performance.
Built-In Wi-Fi & Bluetooth Enables software updates, wireless data syncing, and screen mirroring to compatible mobile devices when connected to the internet.
Low-Profile Glass-Dash Design Modern, flush-mount styling for clean helm installations on sailboats and performance vessels.
Connectivity & Networking
Ethernet: 1x 5-pin connector
NMEA 2000: 1x Micro-C port (1 LEN)
NMEA 0183:
1x TX / 1x RX (shared baud rate)
Supported baud rates: 4800, 9600, 19200, 38400
Video Input: Composite (RCA) via optional cable
Wi-Fi: Internal
Bluetooth: Internal
Sonar Specifications
Frequencies:
Ports: (2) 9-pin Xsonic sonar ports
Compatibility:
Navigation & Waypoint Capacity
Waypoints: 6,000
Routes: 500 (up to 100 points per route)
Tracks: 50 (up to 12,000 points per track)
Environmental & Power
Waterproof Rating: IPX6 & IPX7
Operating Temp: -15°C to +55°C (5°F to 131°F)
Shock & Vibration: 100,000 cycles @ 20G
Supply Voltage: 10 – 31.2 V DC
Display & Storage
Screen Size: 12 inches
Resolution: High-definition SolarMAX HD IPS
Internal Storage: 16 GB
External Storage:
(2) MicroSD slots (up to 32 GB each, larger supported when formatted NTFS)
Dimensions
13.84” W x 8.87” H x 3.82” D
What’s Included
B&G Zeus S 12” Multi-Function Display
Preloaded C-MAP® US Enhanced Charts
Power / data cabling
Mounting hardware
Installation documentation
Warranty
Covered by a manufacturer limited warranty (see B&G/Navico warranty terms for full details).
