Part Number: 000-15562-002

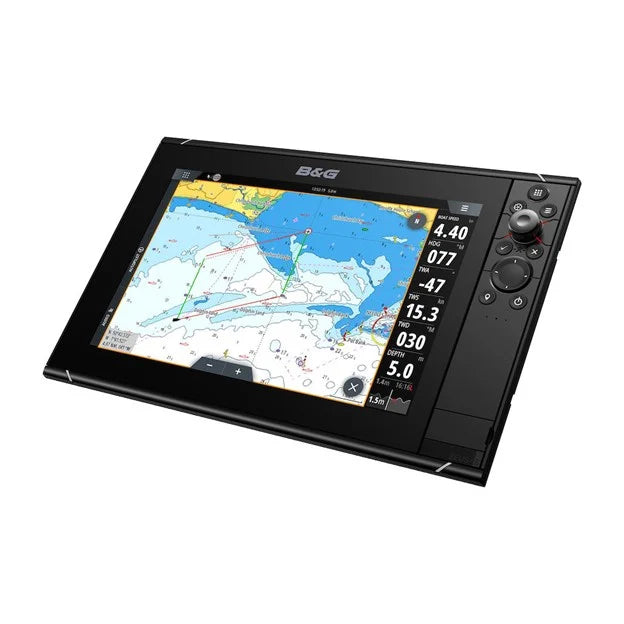

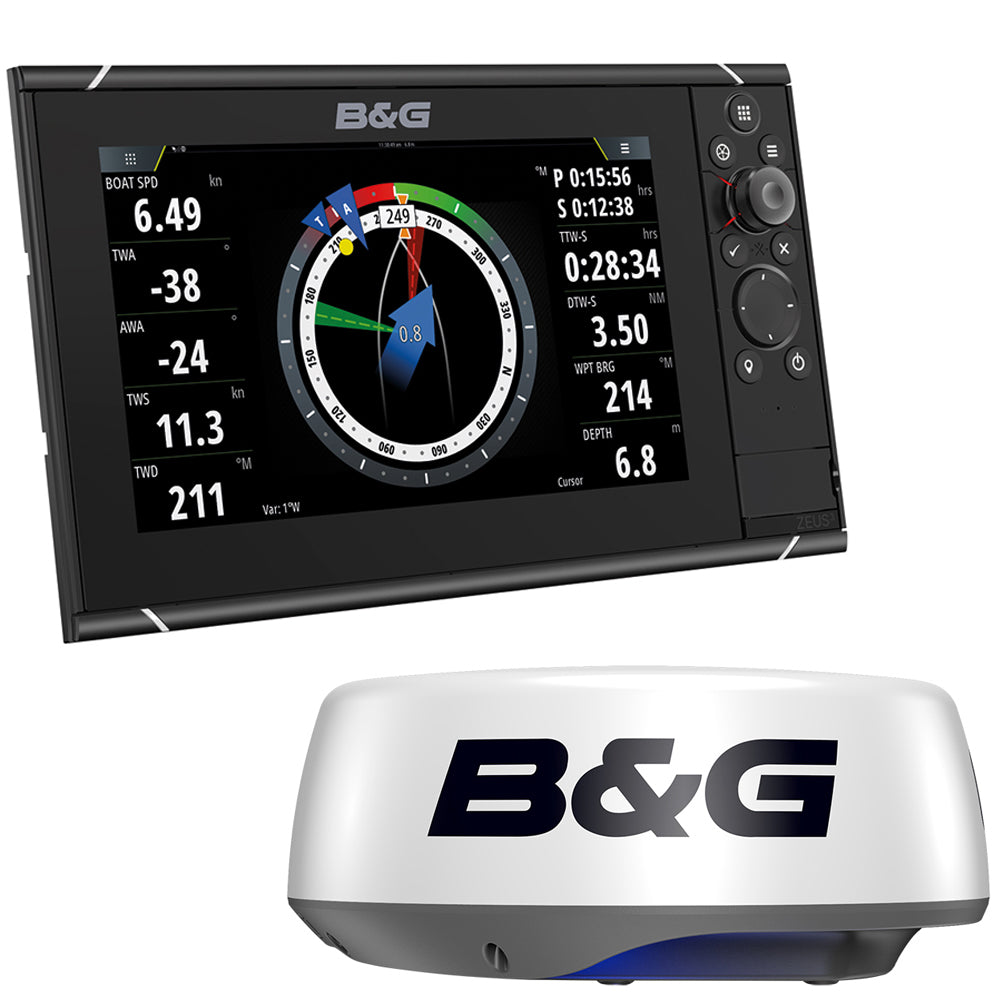

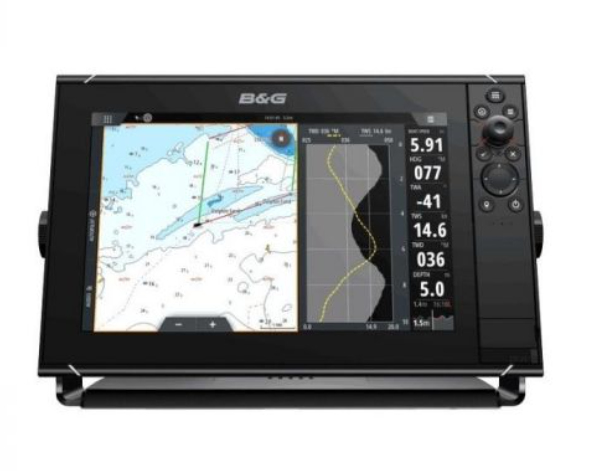

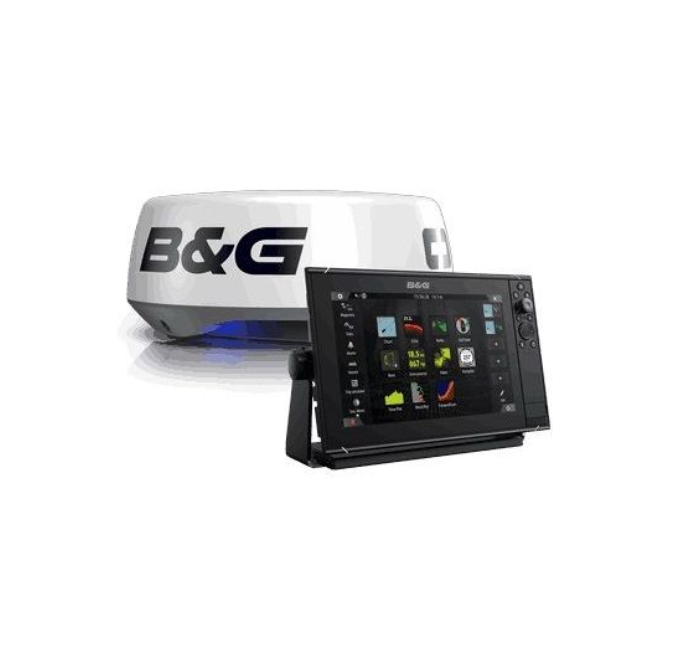

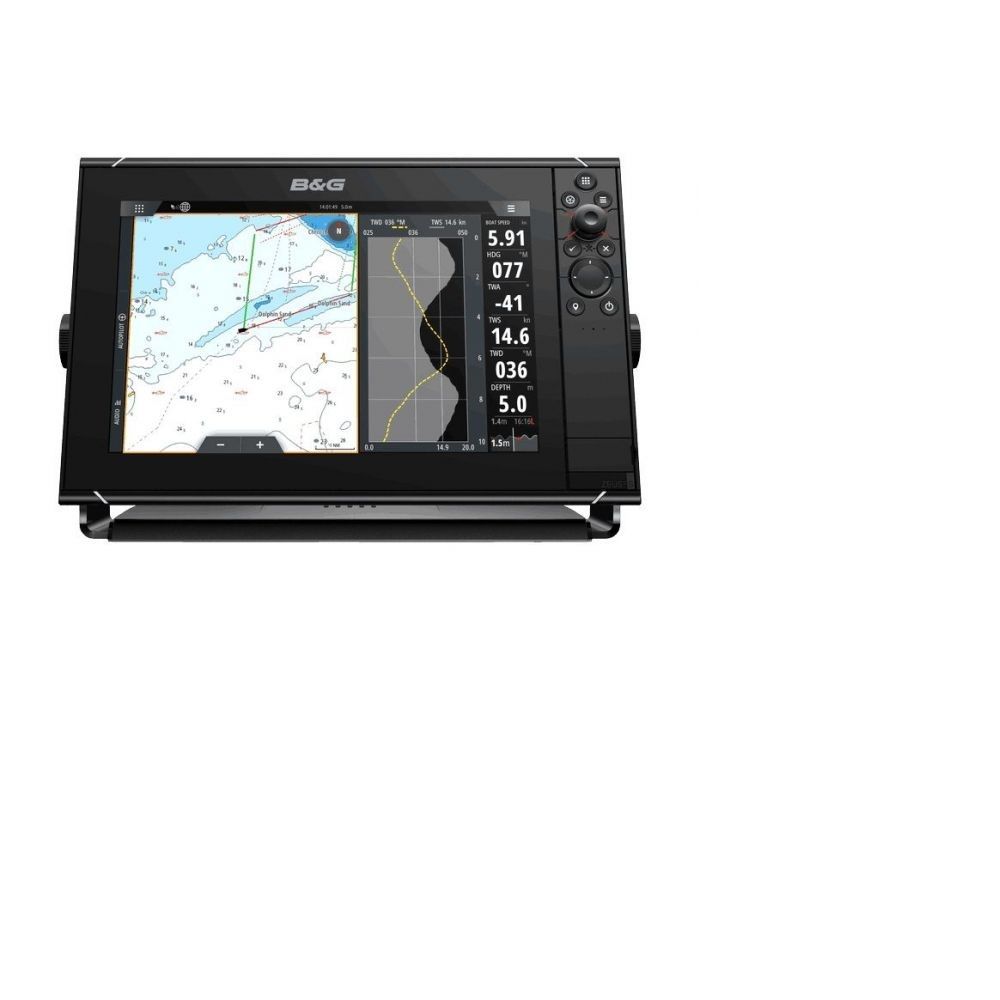

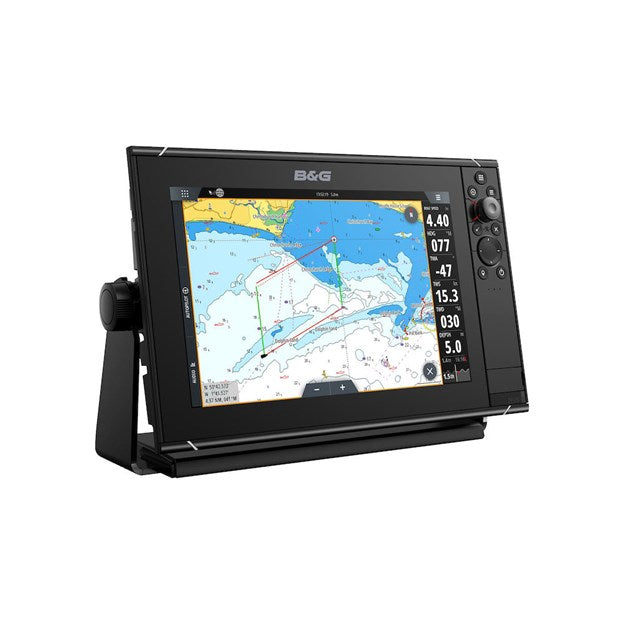

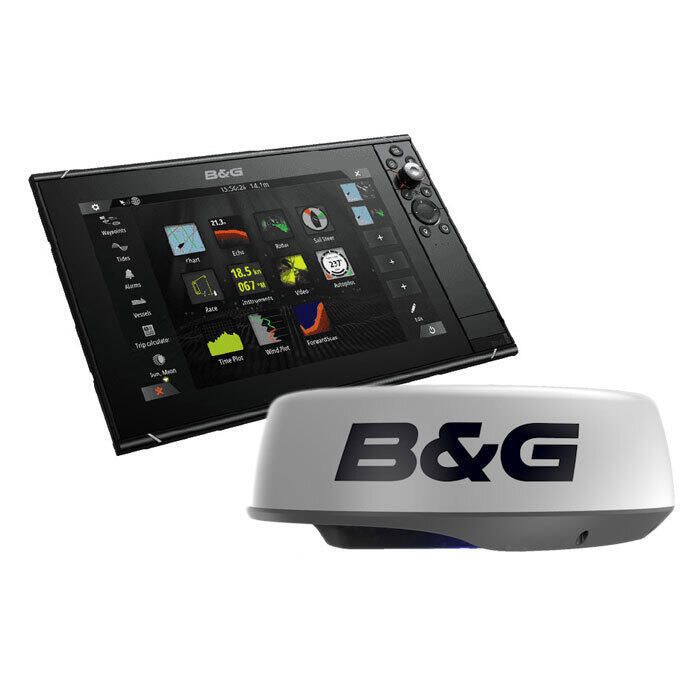

The B&G Zeus S 12” Sailing Chartplotter with HALO20+ Radar is a premium navigation and radar solution built specifically for serious sailors and offshore cruisers who demand speed, clarity, and seamless system integration. Powered by B&G’s advanced iMX8 processor , Zeus S delivers twice the performance of previous generations, ensuring smooth chart redraws, faster response times, and reliable operation in demanding sea conditions.
Paired with the HALO20+ pulse compression radar , this combo provides exceptional short- and mid-range target detection, automatic clutter suppression, and fast updates for confident navigation in all visibility conditions.
Key Features & Capabilities
12” SolarMAX™ HD IPS Display
1200 nits brightness for excellent sunlight readability
Optically bonded TFT display with wide 80° viewing angles
High-resolution touchscreen with full keypad control for precision input in rough seas

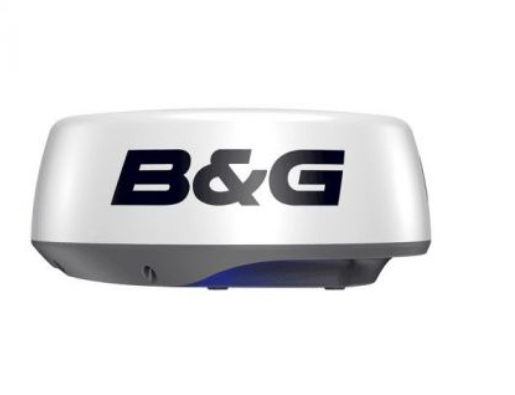

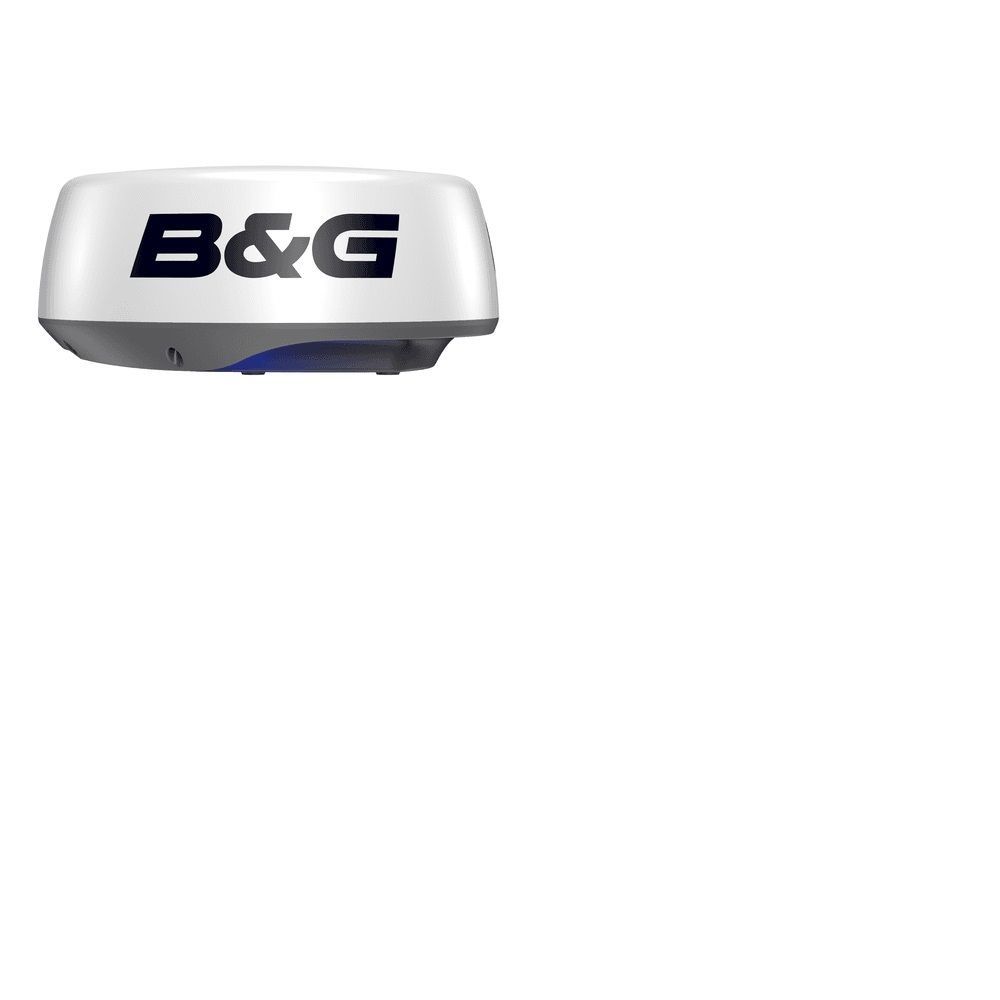

HALO20+ Radar Included
Pulse compression technology for clear target separation
Instant-on operation with no magnetron warm-up
Excellent short- and medium-range performance for coastal and offshore sailing
Preloaded C-MAP US Enhanced Charts
Coastal and inland coverage included out of the box
Supports Insight, Navionics (Gold, NAV+ Platinum+), and C-MAP MAX N / MAX N+
High-Performance Processing
iMX8 processor delivers faster chart loading, smoother zooming, and improved multitasking
Advanced Sailing Integration
Fully integrates with B&G sailing instruments and sensors
Direct B&G autopilot control from the display
Supports advanced sailing functions when connected to compatible network modules
Built-In GPS & Networking
Internal high-sensitivity 10 Hz GPS with WAAS, EGNOS, MSAS, and GLONASS
Ethernet, NMEA 2000, and NMEA 0183 connectivity for full system expansion
Built-in Wi-Fi and Bluetooth for updates and mobile device integration
Advanced Sonar Capabilities
Dual Xsonic sonar ports
Supports CHIRP, SideScan, DownScan, ForwardScan™, and TotalScan (with compatible transducers)
Up to 3000+ ft depth capability when paired with appropriate transducers
Compatible with SonarHub, BSM-2, and BSM-3 network sounders
Glass Dash Design
Low-profile, modern styling for flush-mount helm installations
Screen mirroring supported with compatible mobile devices
What’s Included in the Box
B&G Zeus S 12” Chartplotter Display
HALO20+ Radar Dome
C-MAP US Enhanced Preloaded Charts
Power Cable
Mounting Hardware
Documentation & Installation Guide
(Transducers and optional networking cables sold separately)
Technical Specifications
Display Size: 12 inches
Display Resolution: High-resolution SolarMAX HD IPS
Brightness: 1200 nits
Waterproof Rating: IPX6 & IPX7
Operating Temperature: -15°C to +55°C (5°F to 131°F)
Power Input: 10 – 31.2 V DC
Internal Storage: 16 GB
External Storage: Dual MicroSD slots (up to 32 GB each, larger with NTFS)
Dimensions: 13.84" x 8.87" x 3.82"
Warranty
Manufacturer Warranty: 2-Year Limited Warranty (B&G standard coverage)
