Product Description

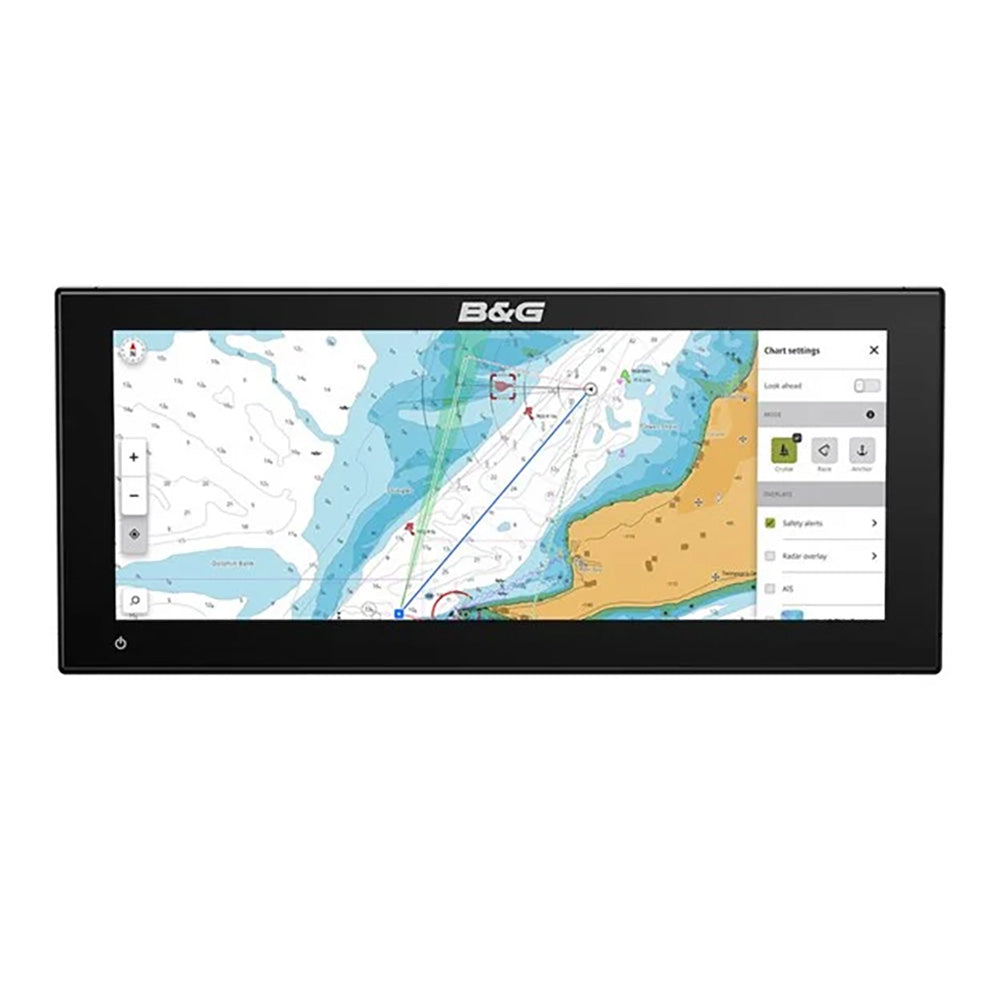

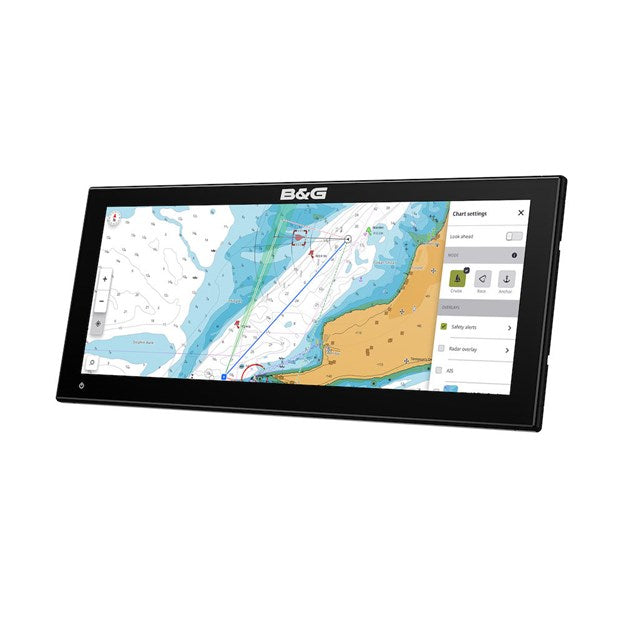

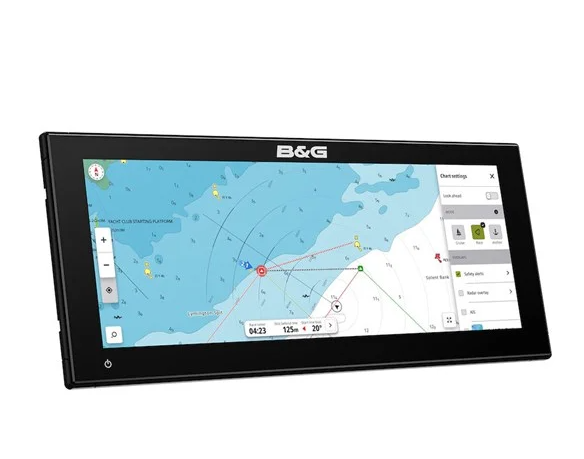

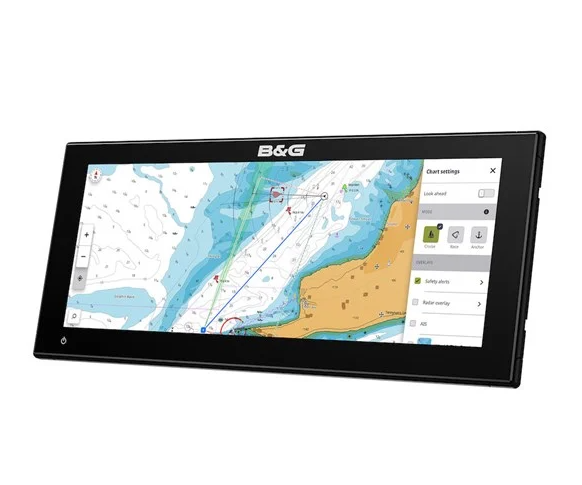

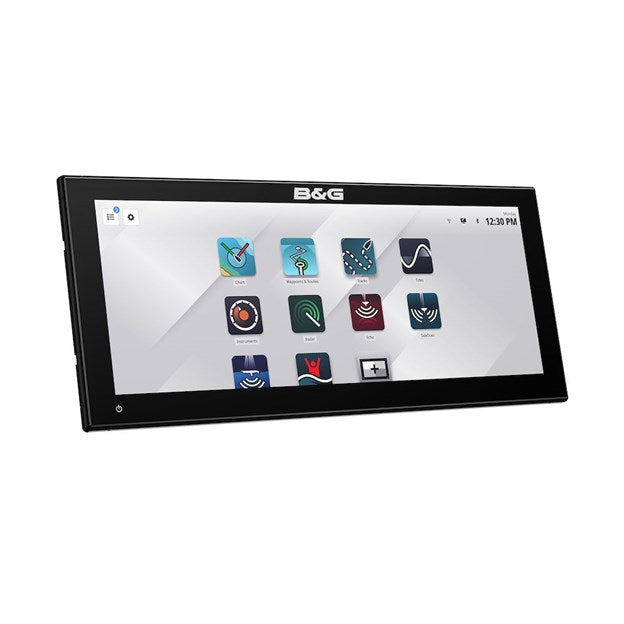

Zeus® S 12-inch 3012UW Ultrawide Chartplotter Combo - No Transducer (000-16355-001)
Elevate your instincts with the ultrawide display. Zeus® S Ultrawide delivers the most streamlined and immersive sailing experience yet. See the award-winning sailing features as they were meant to be seen – uninterrupted by bezels or dead space. And explore C-MAP® DISCOVER® X and REVEAL® X charts like never before.
Take your sailing navigation to the next level with the Zeus® S 12" 3012UW Ultrawide Combo – No Transducer (00016355001). Engineered for serious sailors and boating enthusiasts, this ultrawide chartplotter brings unparalleled situational awareness, seamless integration, and clean display real estate — all without distraction from bezels or dead zones. Whether racing, cruising, or anchoring, the Zeus® S ultrawide delivers powerful tools and features that keep you in command of your voyage.
Key Features & Capabilities
High-Definition Ultrawide Display
- 12" SolarMAX™ IPS ultrawide touchscreen with exceptional readability, even when wearing polarized sunglasses
- Wide viewing angles (85° in all directions) for excellent visibility from multiple positions
- Brightness exceeding 1,200 nits ensures strong contrast in direct sunlight
Intuitive Sailing Modes & Dashboards

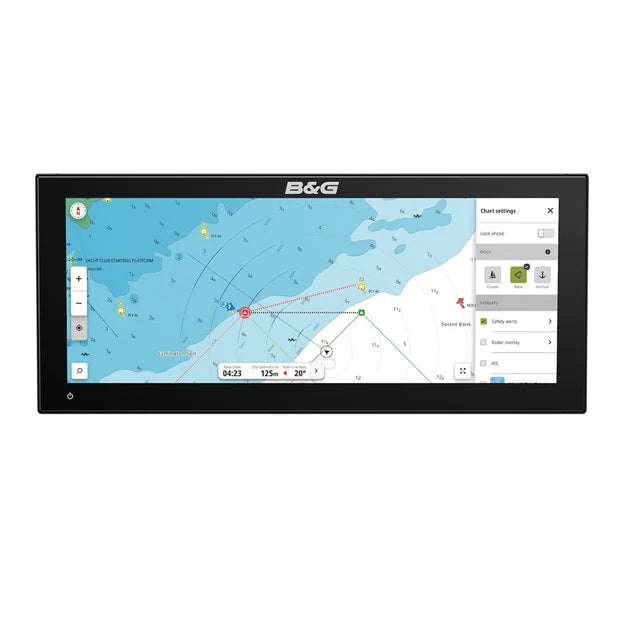

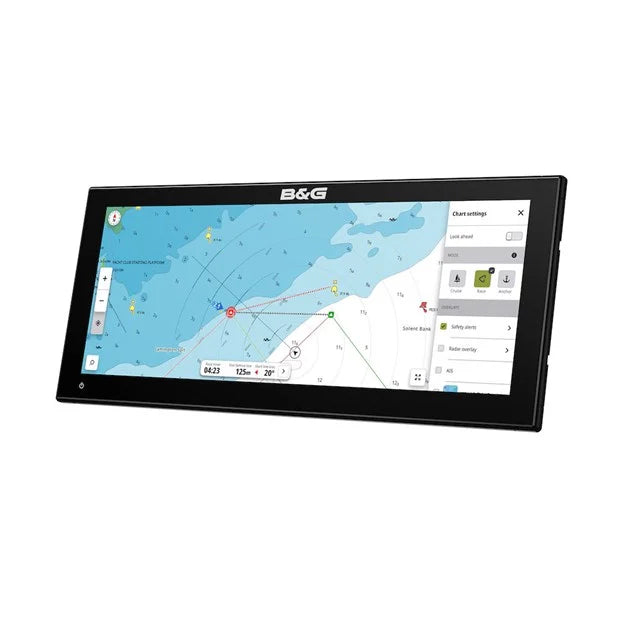

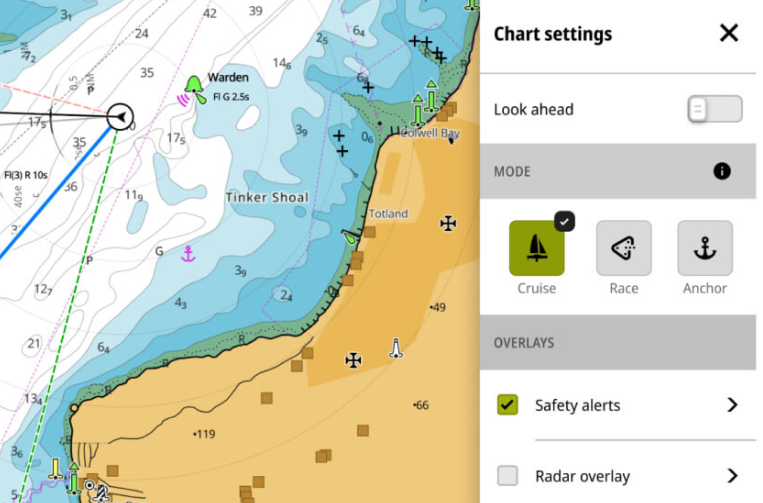

- Preconfigured modes for Cruising, Racing, and Anchoring allow instant switching to relevant tools and displays
- Features such as SailSteer™, LayLines, Race Routes, and StartLine let you plan, steer, and execute with confidence
Advanced Charting with C-MAP® X-Gen
- Supports both C-MAP® DISCOVER X and REVEAL X chart types, giving access to high-detail terrain, satellite imagery, and more

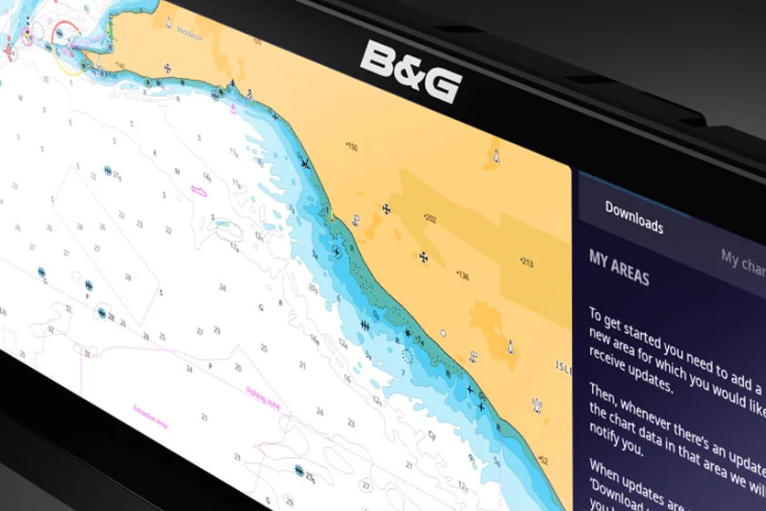

- X-Chart Manager built in—download updates and upgrade chart segments directly, without needing a PC
- Safety Alerts warn you of shallow water, hazards, buoys, or obstacles detected on charts
Seamless Network & System Integration
- Built-in Wi-Fi, Ethernet, and NMEA 2000 connectivity enables seamless interconnection with onboard instruments, sensors, autopilots, and radars
- Compatible with HALO® radars, Triton® / Nemesis® sailing instruments, wind sensors, autopilot cores, and digital switching systems
- IP camera support builds full-boat visibility into your system
Robust GPS & Sonar Support
- Internal 10 Hz GPS (WASS, MSAS, EGNOS, GLONASS support) with horizontal accuracy ~3 m
- Sonar-ready via 9-pin Xsonic port (if paired with compatible sonar module) supporting CHIRP, 50/200 kHz, HDI, and side/forward imaging modules
Durable, Marine-Grade Design
- Rugged build with IPx6 / IPx7 waterproof rating for harsh environments
- Operating temperature range from –15 °C to +55 °C ensures reliable performance in extreme conditions
- Meets vibration and shock standards (100,000 cycles at 20 G) for offshore reliability
Ease of Use & Setup

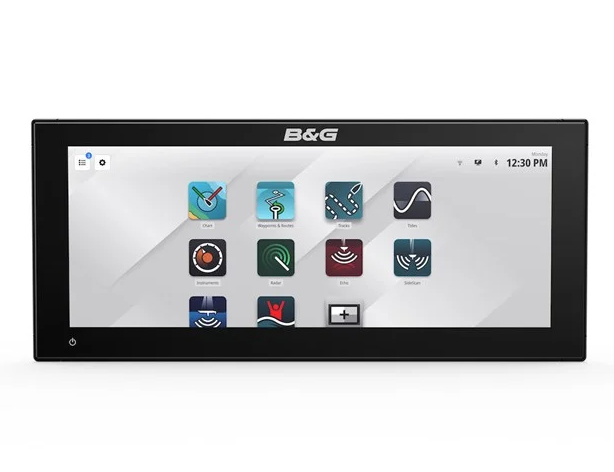

- Multi-touch interface and intuitive menus make navigation and control straightforward even under motion
- Setup Wizard helps get your system running quickly
- Comes with a suncover and mounting hardware (bracket mount, flush, or panel options)
Warranty & Support
- Backed by 2-year manufacturer warranty
- Official support and firmware updates from B&G / Navico ecosystem
Features:
- High-definition SolarMAX™ IPS Ultrawide touchscreen, viewable from all angles, even with polarized glasses
- Separate modes for Cruising, Racing and Anchoring
- Award-winning sailing features like SailSteer™, LayLines, Race Routes, and StartLine
- Compatible with C-MAP® DISCOVER® X and REVEAL® X charts
- C-MAP®-powered Safety Alerts
- Full integration with HALO® radars, B & G® Sailing Processors, Autopilots, Triton® 2, Nemesis® instruments, wind sensors and more...
- B & G ® App integration with 12 months premium subscription when registering a C-MAP® X Chart.
- Wi-Fi, Ethernet & NMEA 2000® networking
- IP video camera support
- Set up Wizard to get you up and running quickly
Specifications
| Display | |
| Size and Type | 12" SolarMax IPS Ultrawide Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses |
| Resolution | 1920 x 720 px |
| Viewing Angles | 85° (top, bottom, left, and right) |
| Screen Brightness | >1000 nits |
| Backlight Color | White |
| Power | |
| Supply Voltage | 12 V DC (10 - 17 V DC min - max) |
| Power Consumption max | 19.8 W (1434 mA at 13.8 V) |
| Protection | Reverse polarity and over voltage (Max 18V) |
| Recommended Fuse Rating | 3A |
| Physical | |
| Dimensions W x H x D with bracket | H: 157.9 mm (6.22") D:96.5 mm (3.80")Weight |
| Dimensions W x H x D without bracket | W: 337.0 mm (13.30") x H: 147.9 mm (5.82") x D: 88.5 mm (3.48") |
| Weight | 1.5 kg (3.3 lbs) |
| Mounting Type | Rear mount (bracket supplied), Bracket mount (bracket optional) |
| Compass Safe Distance | 50 cm (1.7 ft) |
| Environmental | |
| Operating Temperature Range | -15°C to 55°C (5°F to 131°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Waterproof rating | IPx6 and IPx7 |
| Humidity | IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) |
| Shock Vibration | 100,000 cycles of 20 G |

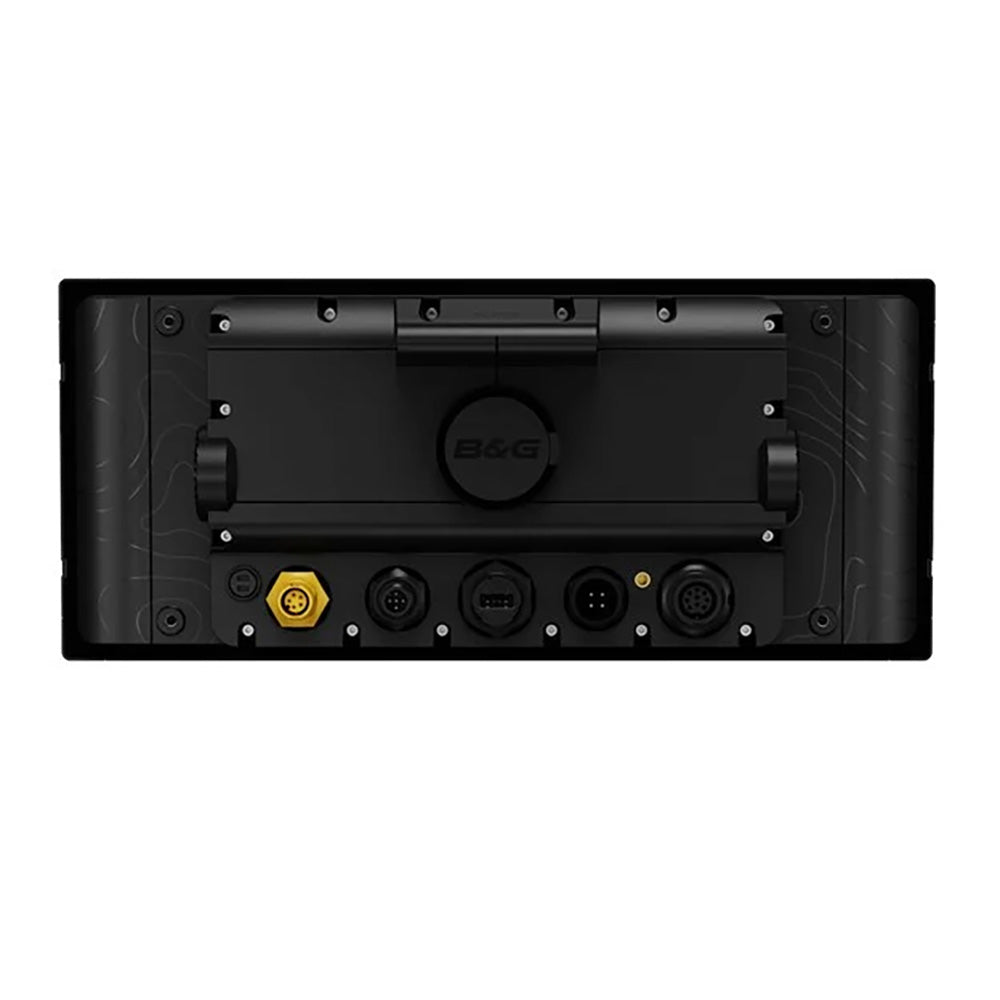

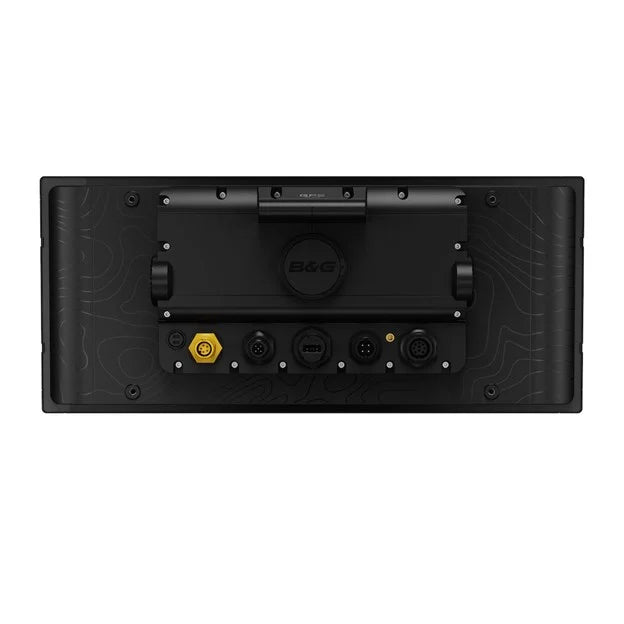

| Interface and connections | |
| Interface | Multi-touch screen |
| Sonar Compatibility | One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 KHz, SideScan & DownScan upto 800 KHz, Network sonar modules S3100, S5100. |
| Ethernet | 1 port (5-pin connector) Radar Compatibility: Halo Dome radars, Halo open array radars, 3G/4G, HD Radars |
| Weather | Sirius XM (USA Only) |
| USB | 1 port (USB A) Output: 5 V DC, 1.5 A |
| External Storage | 1 MicroSD slot, 1 port (USB A) |
| NMEA 2000 | 1 x NMEA 2000 Micro-C port, 1 LEN |
| NMEA 0183 | No |
| GPS | Internal, 10Hz, WASS, MSAS, EGNOS |
| GPS Correction | 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS |
| GPS Position Accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| GPS Receiver Channels | 32 Channels |
| GPS Update rate | 10Hz |
| J1939 | No |
| WiFi | IEEE 802.11b/g/n |
| Bluetooth | Bluetooth 4.0 with support for Bluetooth Classic |
| Charts Supported | C-MAP Discover X, C-MAP Reveal X. Third party charts (contact venor for NEON compatible charts) |
| AIS | Receive AIS data over NMEA 2000 |
| Digital Switching | C-Zone |
| Warranty | |
| Warranty Period | 2 Years |
What's in the Box:
- Zeus® S 3012 Ultrawide Display
- M-NA-T-200-D-MS: DISCOVER X - NORTH AMERICA
- Zeus® S Ultrawide-12 Suncover
- Fuse and Fuse Holder (Not for sale)
- NSX 3012UW, ZeusS Rear mount kit
