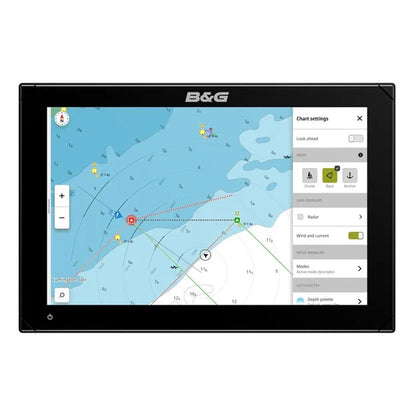

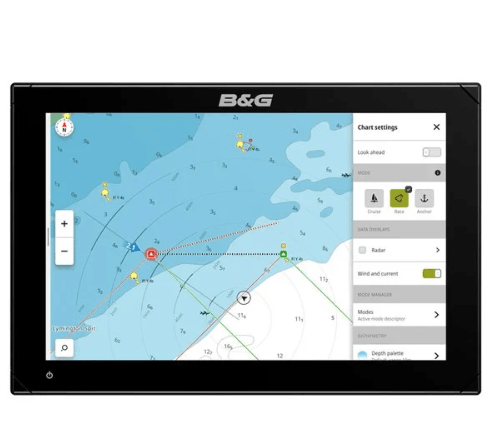

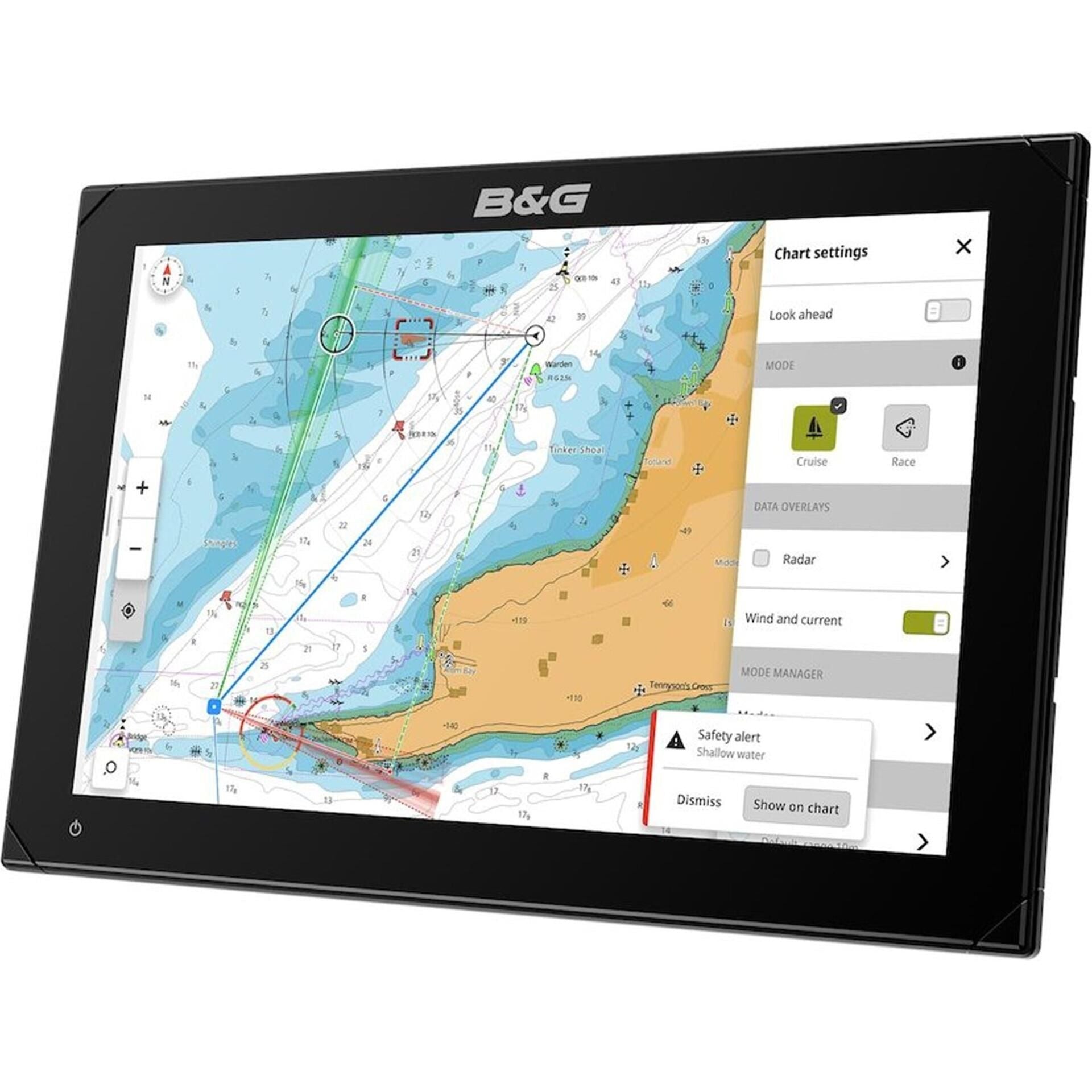

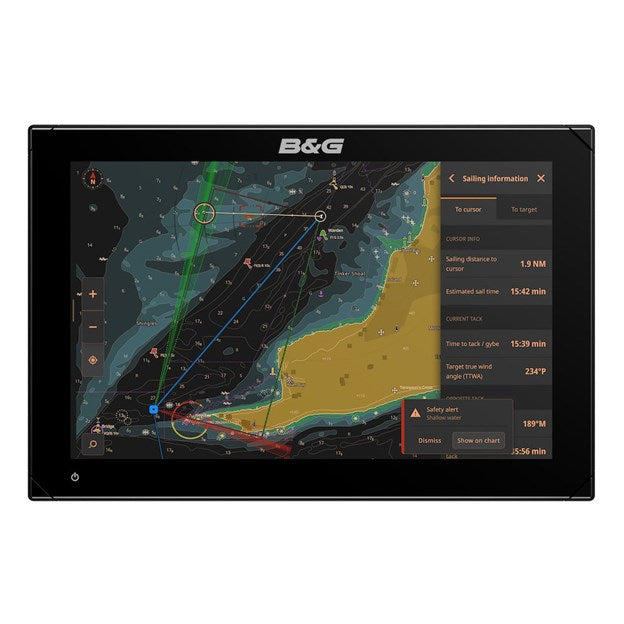

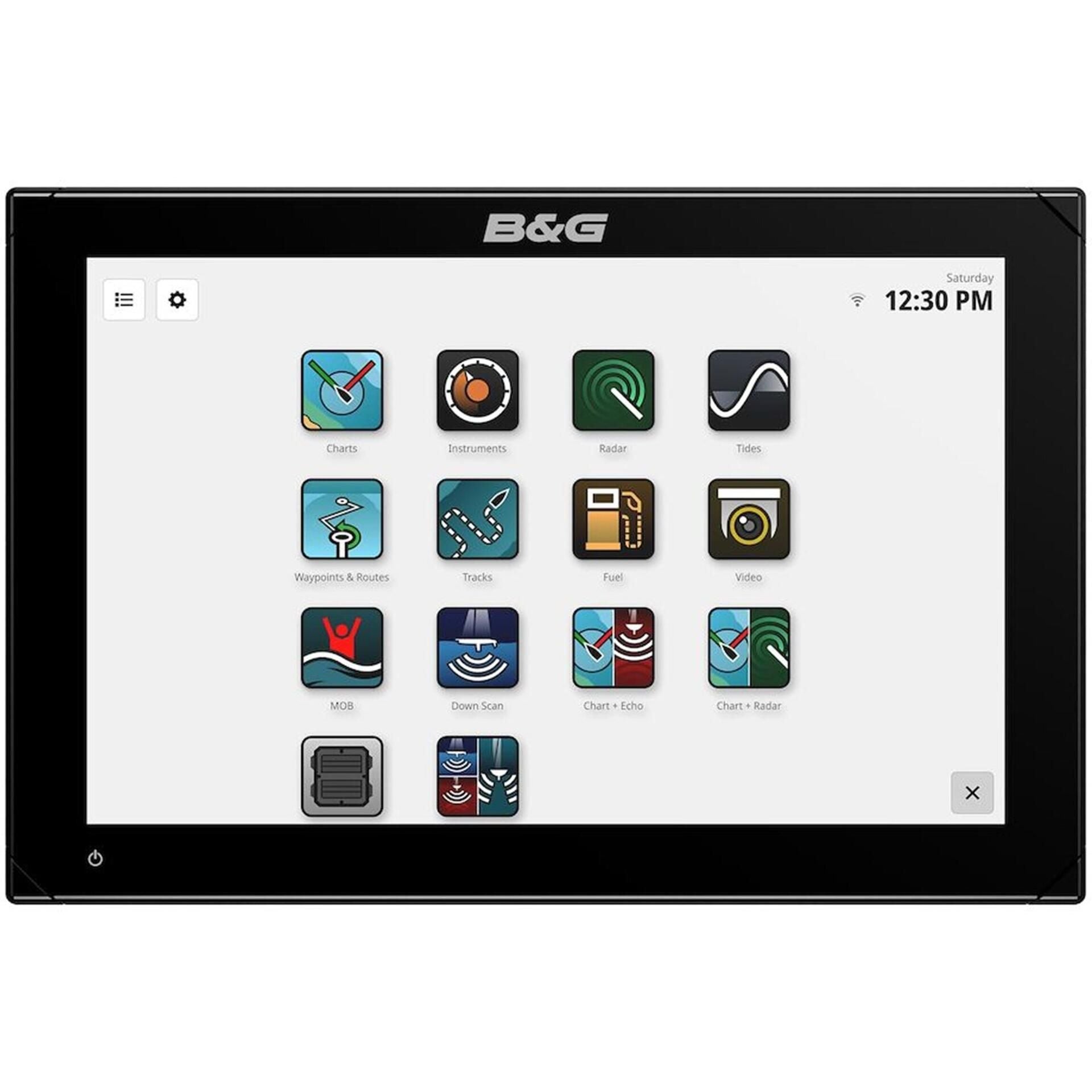

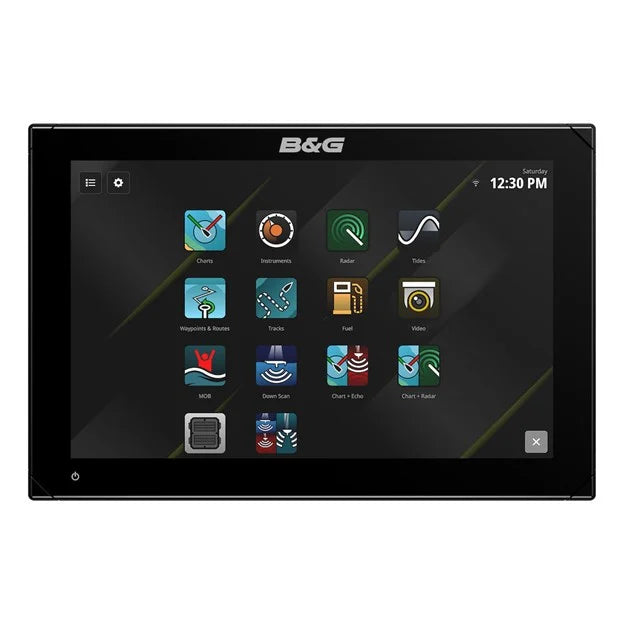

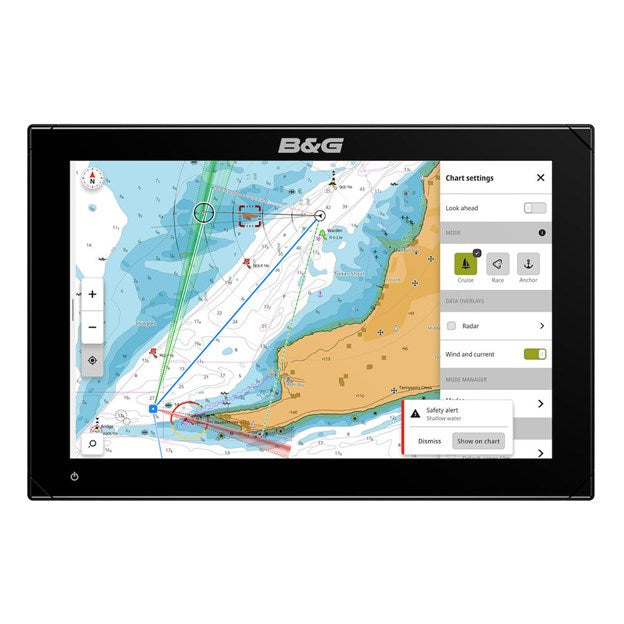

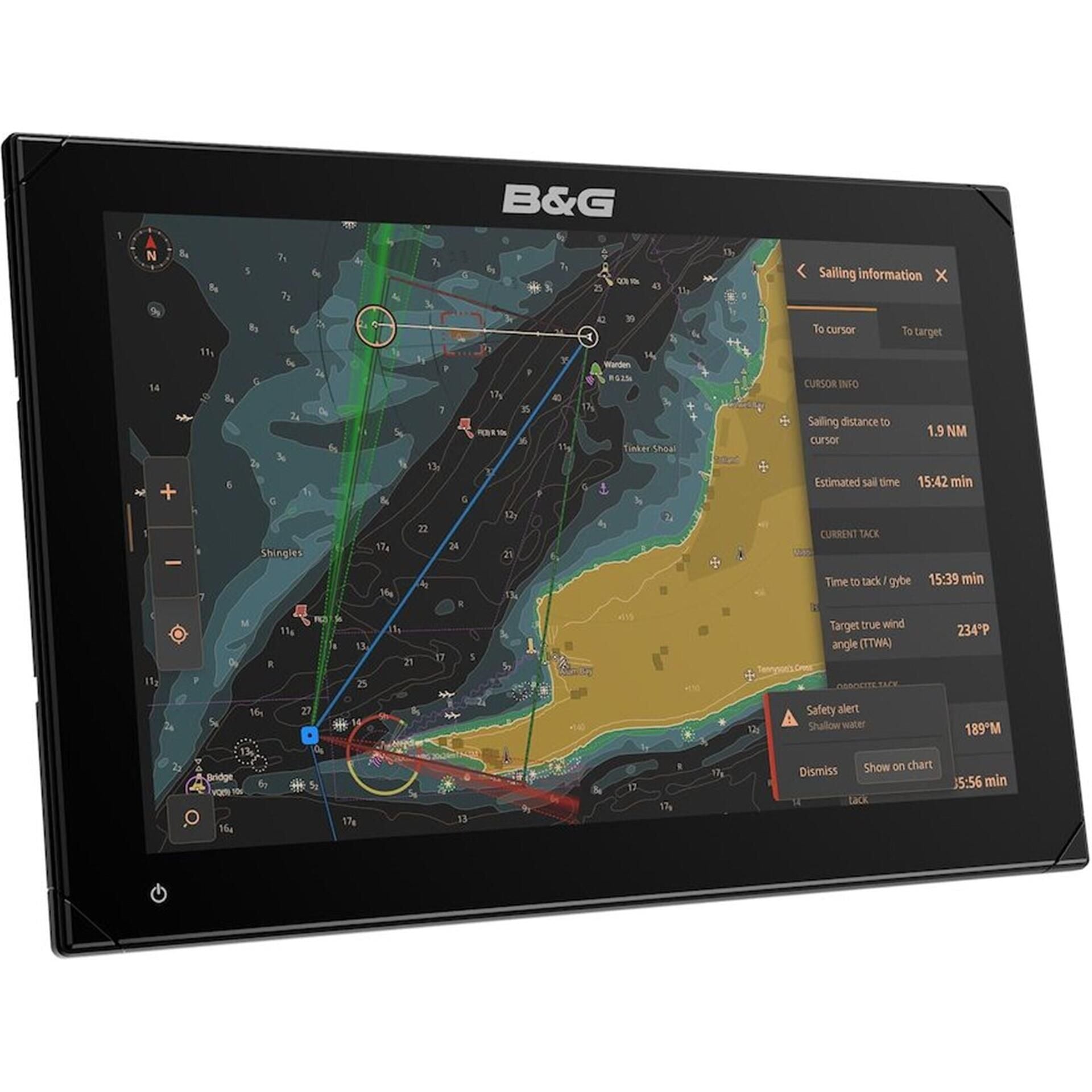

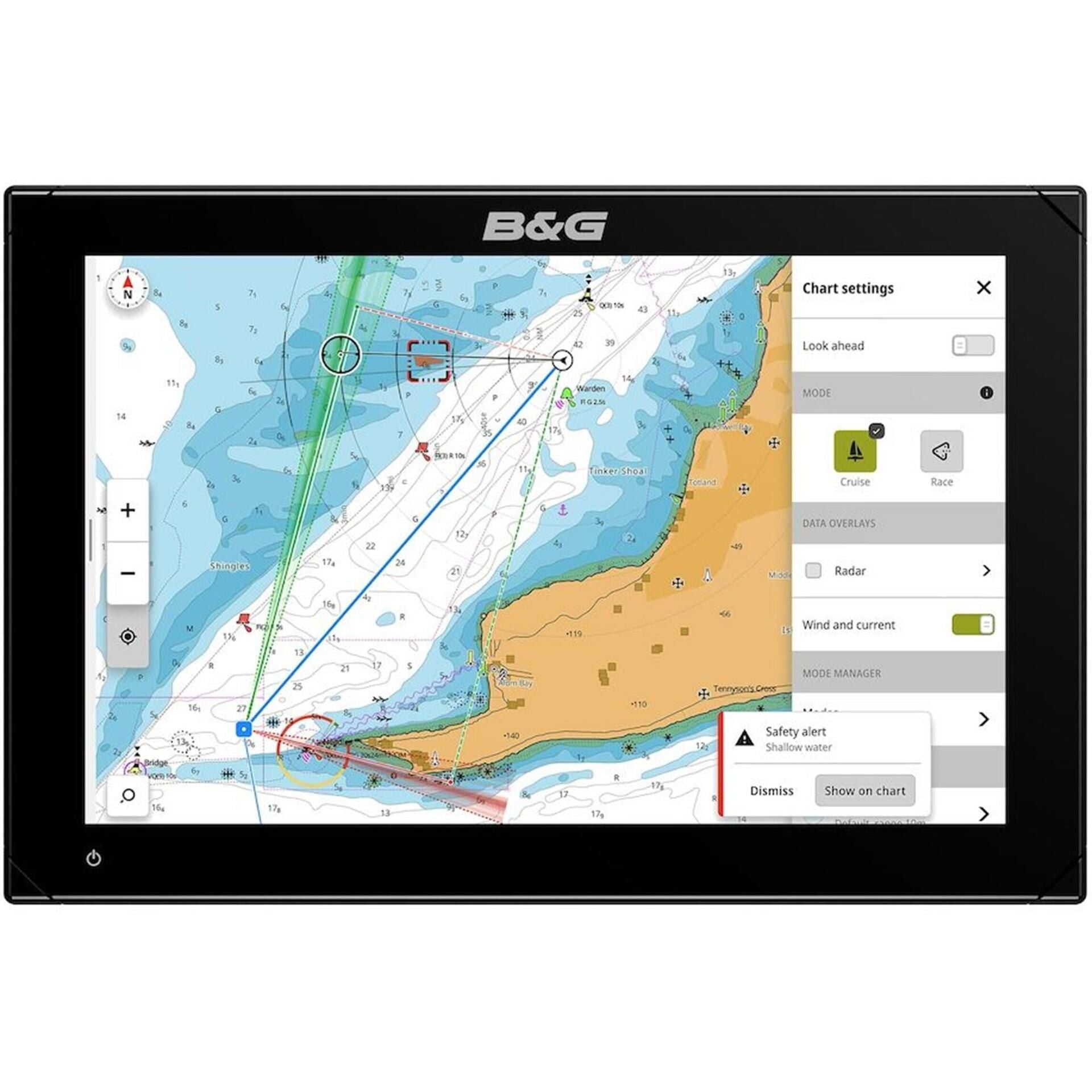

BG Zeus™ S 12 Multifunction Display with C-MAP Charts

Zeus® S 12 Chartplotter / Fishfinder (Without Transducer) (000-15224-001)

Discover the power and precision of the Zeus S 12 — a high-end chartplotter/fishfinder unit optimized for sailors, cruisers, racers, and multihull enthusiasts. This model is sold without a transducer, making it perfect for users who want to choose the exact sonar solution that fits their vessel and needs.

Whether you’re navigating coastal passages or racing offshore, the Zeus S 12 combines a sleek user interface with advanced networking, charting, and sonar capabilities to put essential data at your fingertips.

Key Features & Capabilities

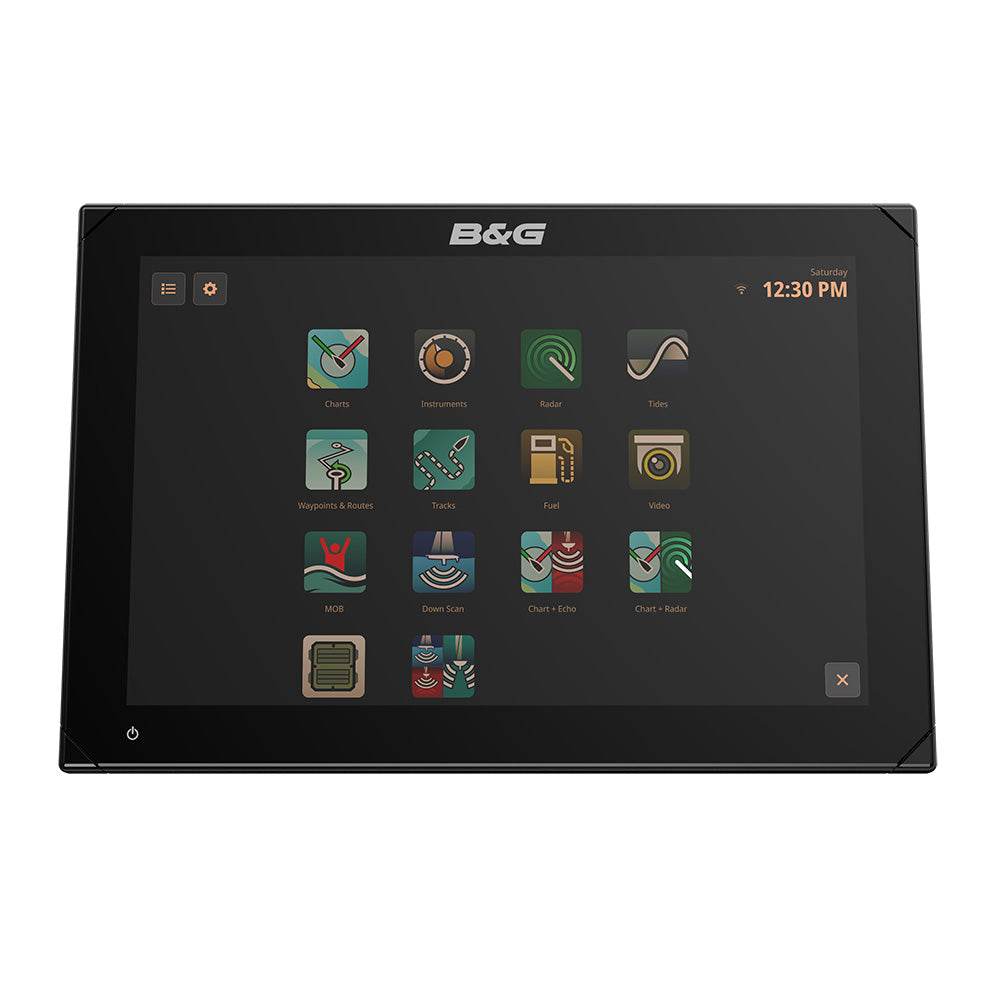

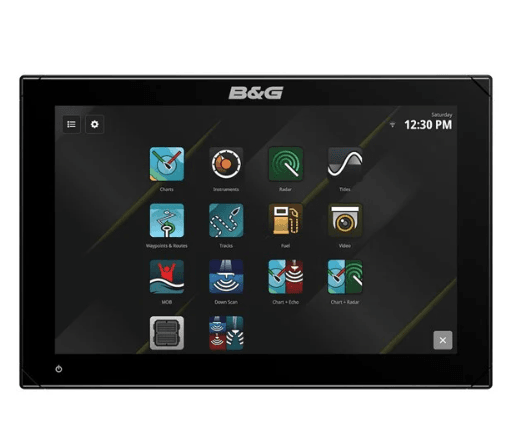

• Ultra-bright 12″ SolarMAX IPS touchscreen display (1280 × 800) with excellent sunlight readability, even when wearing polarized sunglasses
• Screen brightness exceeding 1,200 nits and wide viewing angles (85° in all directions)
• Internal 10 Hz GPS / GNSS receiver with multi-constellation support (GLONASS, Galileo, Beidou, QZSS) for fast, accurate positioning

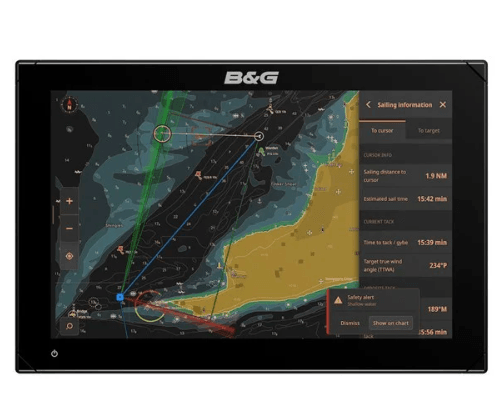

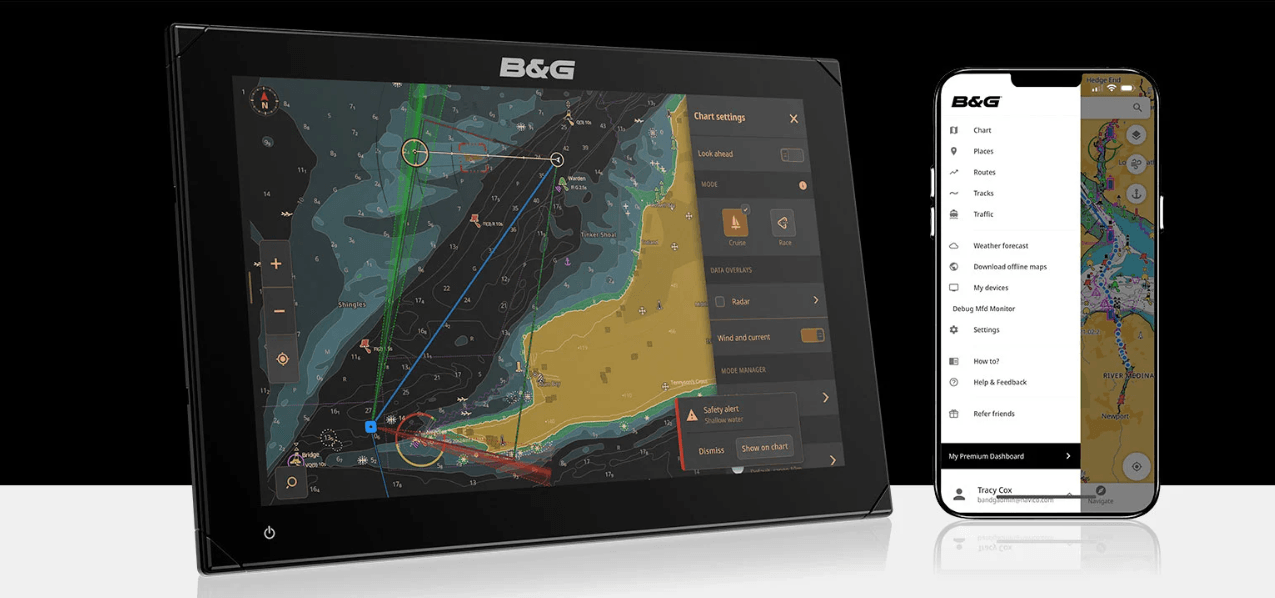

• Supports C-MAP® Discover X / Reveal X cartography, with integrated features like autorouting, tides & currents, chart inspector, safety alerts, and a clean modern look

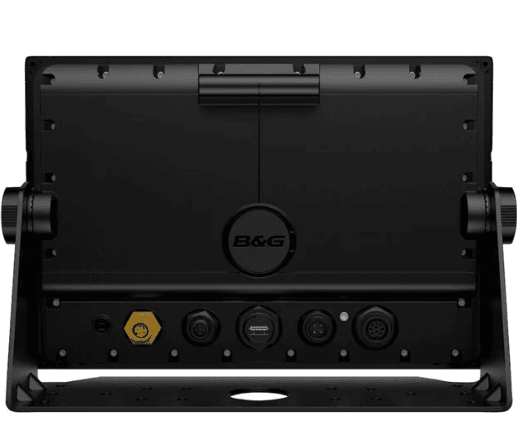

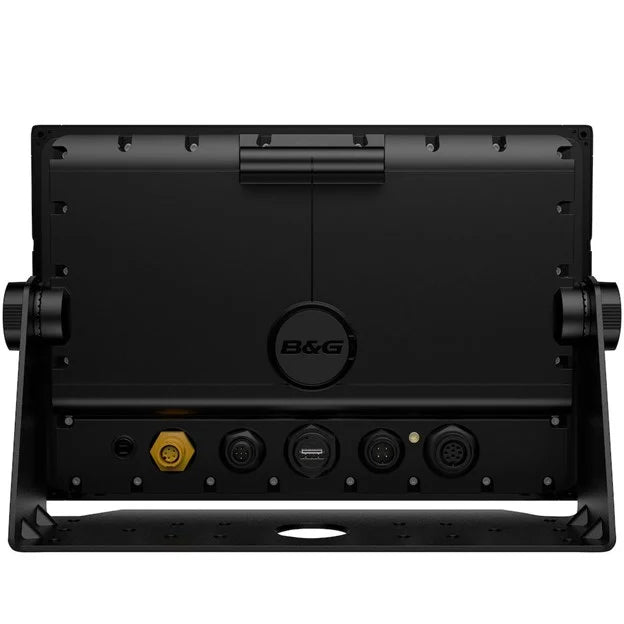

• Network-ready with Ethernet (100 Mbps), NMEA 2000® Micro-C port, WiFi (802.11 b/g/n), and Bluetooth 4.0 for wireless connectivity and over-the-air software updates
• Expandable sonar options — supports CHIRP / single-frequency sonar, HDI, StructureScan, Active Imaging, and TotalScan (requires compatible transducer)
• Built-in AIS data reception via NMEA 2000®, enabling advanced vessel tracking and collision awareness
• Sailing-focused features:

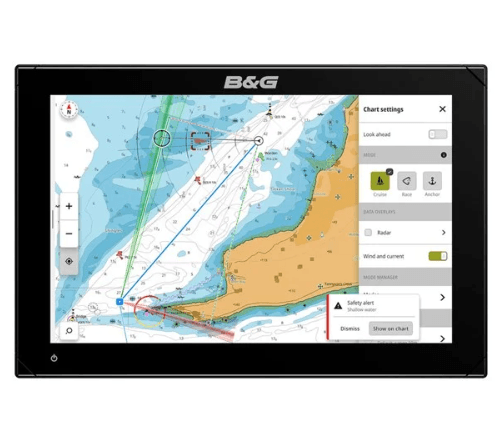

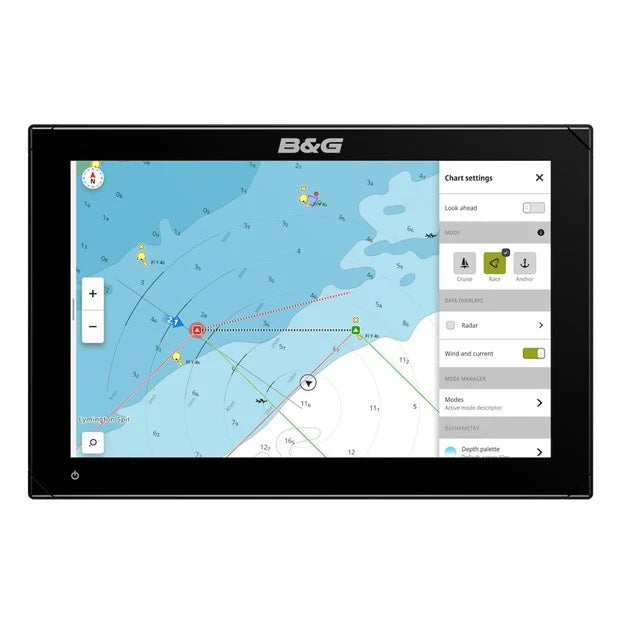

  • Switchable Cruise / Race modes to show only the most relevant data for each context • Advanced race tools: Start line overlay, race timer, wind laylines, and GPS offset start
  • Integrated SailSteer™ gauge, dashboard editor, and intuitive dashboards tailored for sail data
• Rugged, marine-grade durability: IPx6 / IPx7 waterproof rating, built to withstand harsh marine conditions
• Power design optimized for marine environments: runs on 12 V DC (range 10–17 V), with a maximum power consumption of ~29.7 W (≈2,150 mA at 13.8 V)
• Compact in size:
  • With bracket: ~319.5 mm × 215.1 mm × 86.0 mm (12.58″ × 8.46″ × 3.38″)
  • Weight: ~2.2 kg (4.9 lb)
• Multi-mount flexibility: bracket, panel, or flush mount options supported
• Easy setup and interface: includes a Setup Wizard, context-aware tooltips, and consistent charting experience across web, app, and onboard units

Because this unit is sold without a transducer, you have full flexibility to pair it with the sonar technology that best suits your vessel: shallow-water CHIRP, deep-water transceivers, imaging combinations, and more. Just add a compatible transducer and integrate with your onboard network to unlock full sonar functionality.

Features:

• 12V power supply - 4 pins with yellow ignition
• Latest industrial-spec Quad-core microprocessors
• NMEA2000 compliant interface (Micro-C)
• Ethernet, 100mbps, waterproof
• Dual Wi-Fi (802.11g) for Over The Air software upgrades and B & G App support
• Waterproof Micro SD card slot
• IP67 Environmental rating
• USB Port Zeus s 9 and 12 only
• Sonar- CHIRP/Single Frequency, StructureScan, ActiveImaging, and Totalscan support
• Internal GPS with sail-specific filtering and 10Hz position updates. GLONASS, Galileo, Beidou, and QZSS constellation support for highly-accurate positioning worldwide
• 12" Ultra-bright IPS SolarMax HD display
• Touch screen for quick and simlple operation. Includes touch-lock feature

Compatible with the latest CMAP® Discover TM X and Reveal TM X cartography providing up-to-date charting detail with a clean and modern look.

What's In The Box?

• Zeus S display unit
• Panel mounting kit
• Sun Cover
• Corner clips
• Power Cable (2.0m)
• Fuse holder and fuse
• Installation guide and quick star documentation
• Mounting U bracket

Specifications:

• Cartography Brand: C-Map Reveal X
• Screen Size: 12"
• Touchscreen: Yes
• Transducer Included: No
