Part Number: 000-15216-001

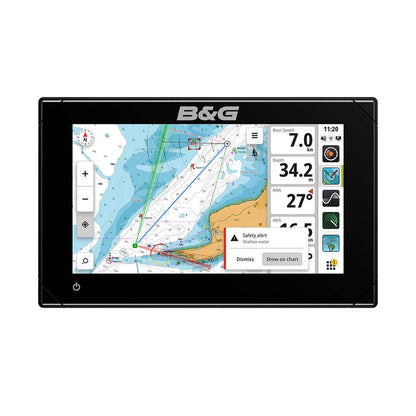

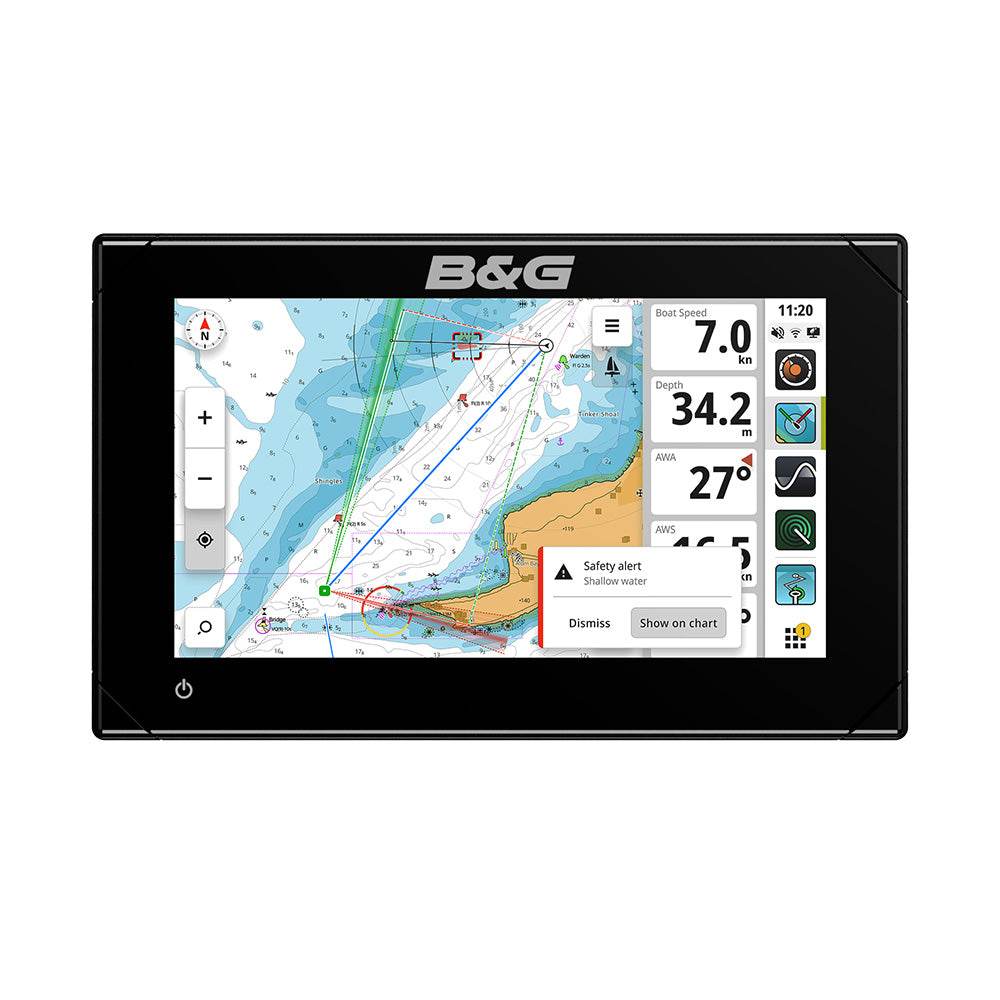

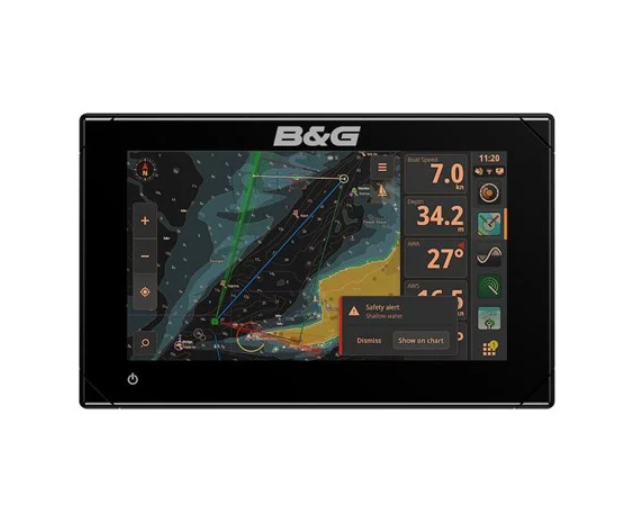

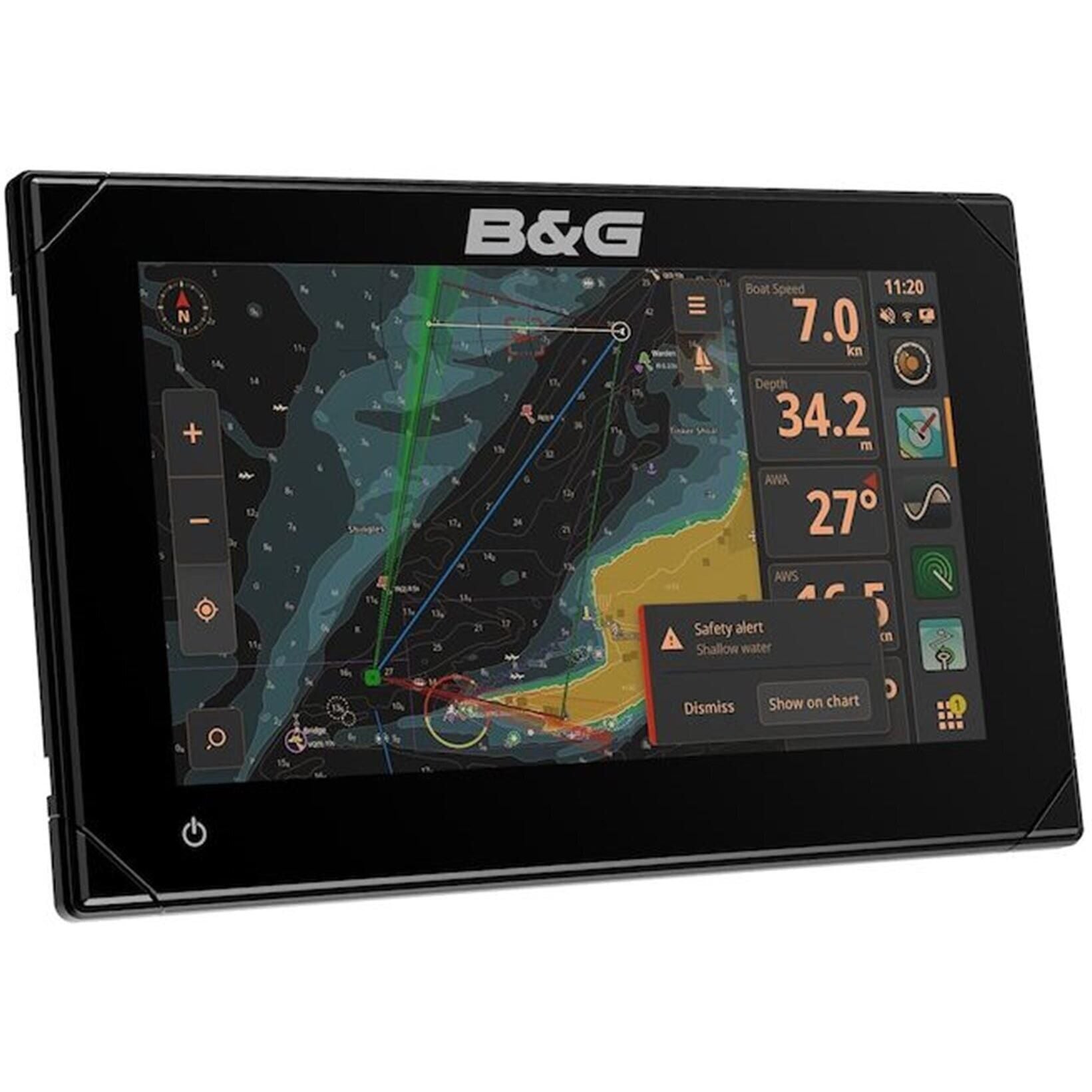

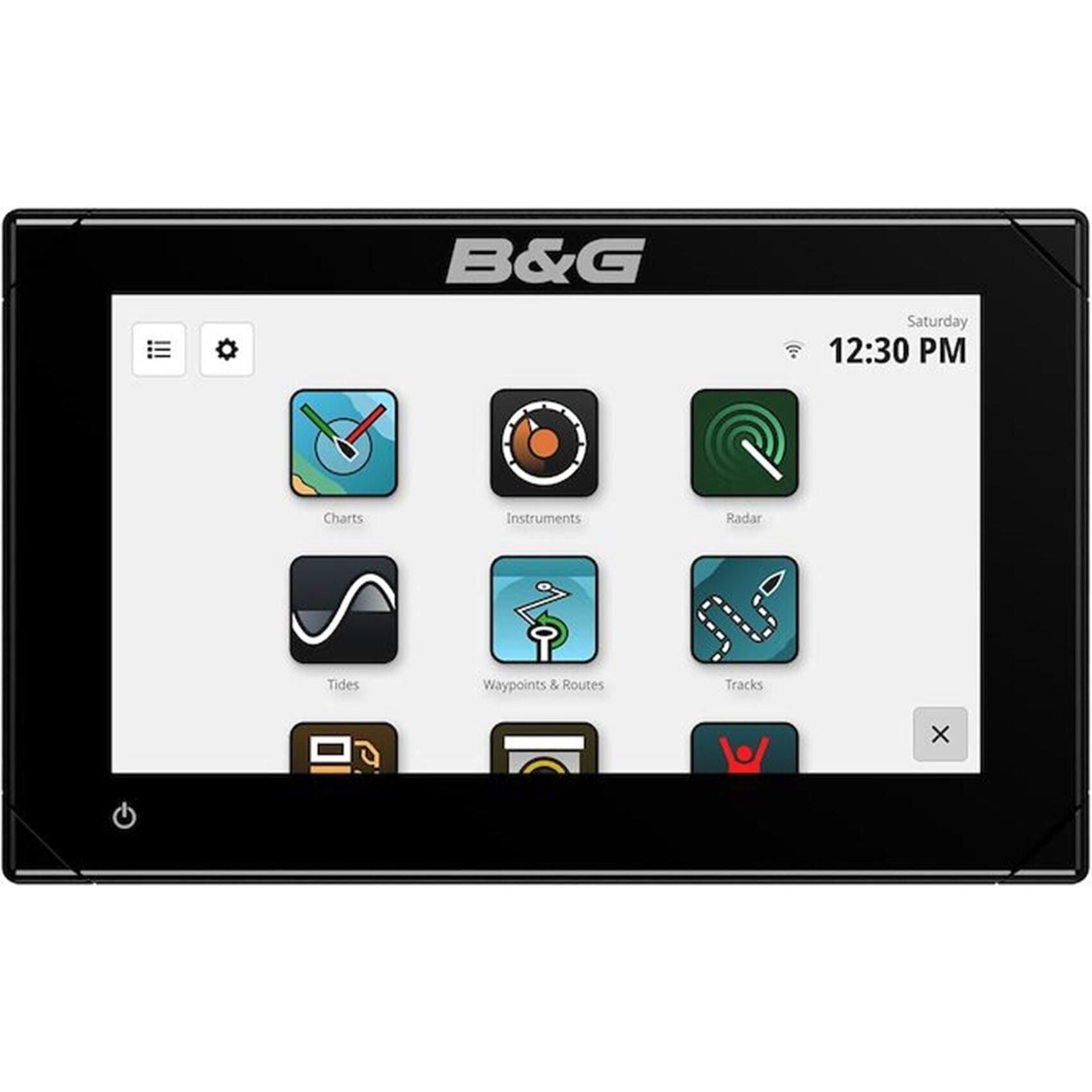

The Zeus S is B&G’s most intuitive chartplotter designed specifically for sailing. Built around dedicated Sailing Modes , it delivers the right data at the right time with preset dashboards tailored to your activity—whether you’re cruising or racing. Enhanced sailing tools and precise C-MAP® charting work together to provide confident, safe, and effortless navigation on the water.

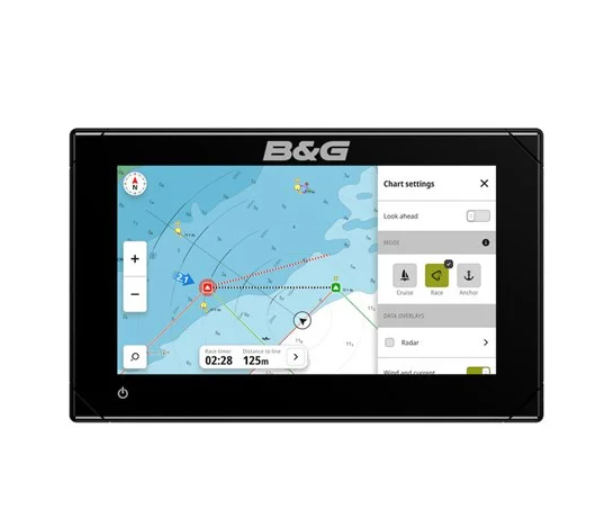

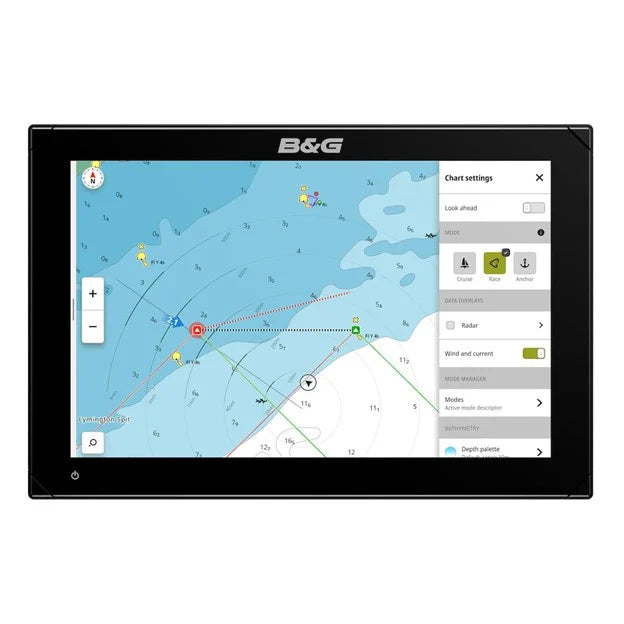

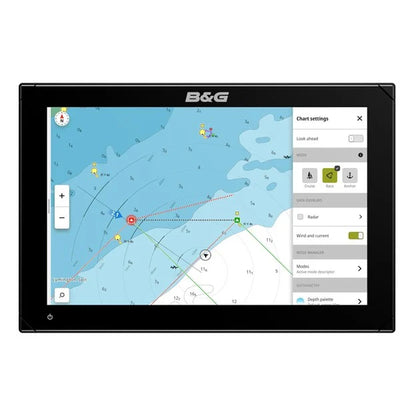

Smart Sailing Modes Quickly select a Sailing Mode based on your situation to display only the most relevant data for cruising or racing, reducing clutter and improving decision-making underway.

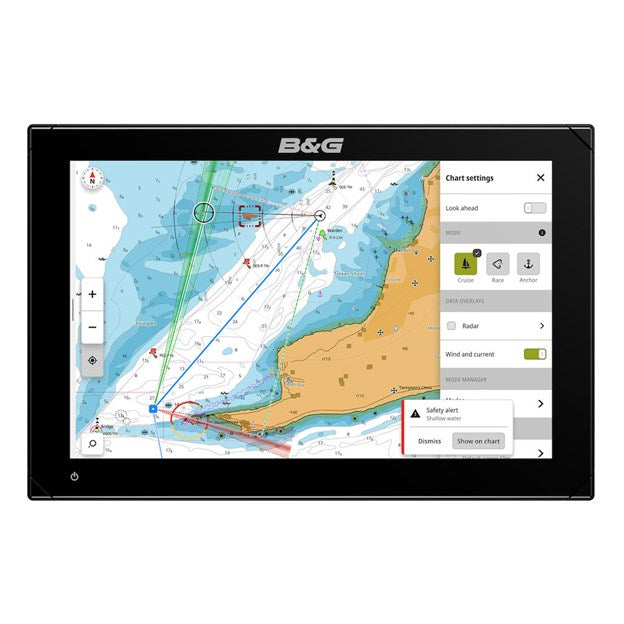

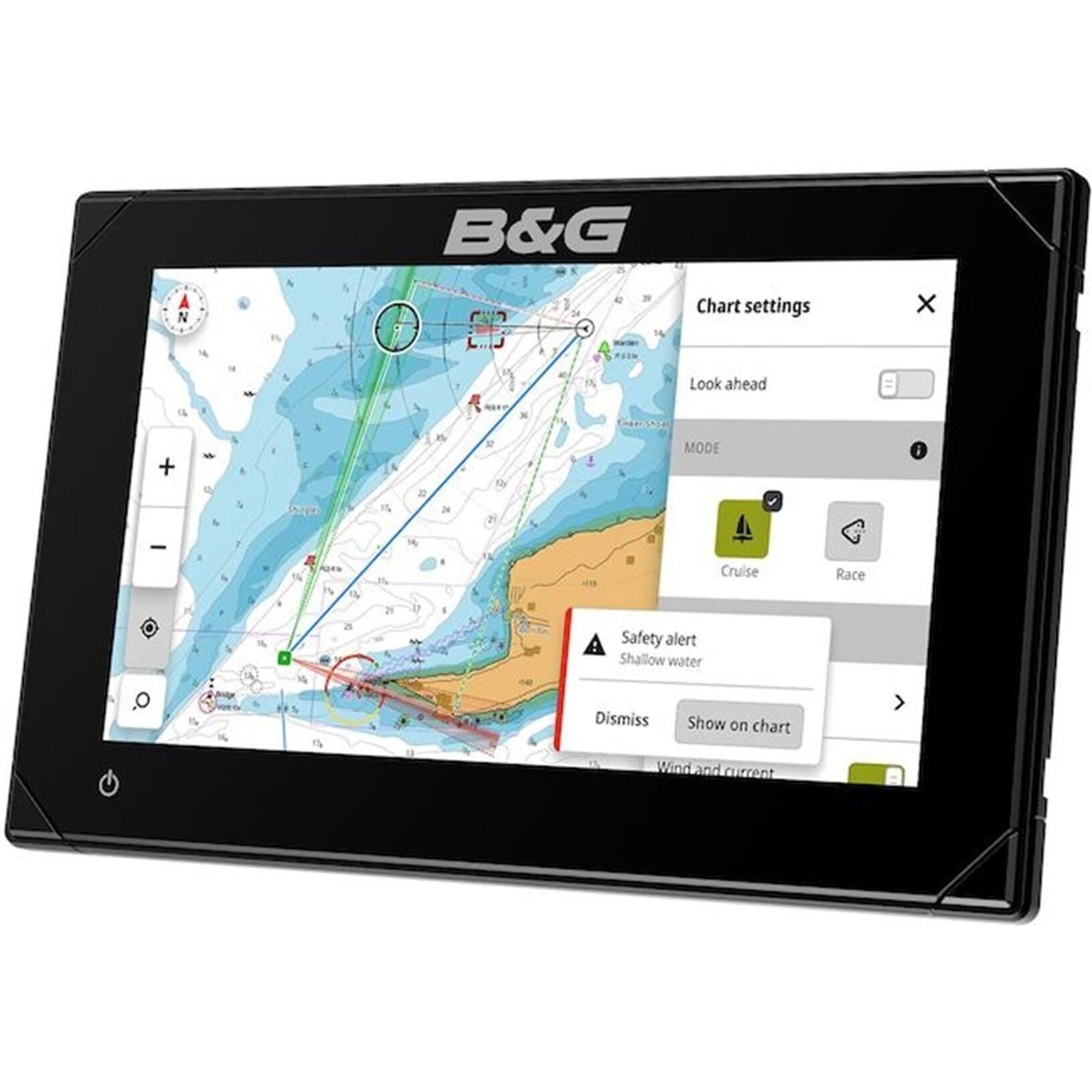

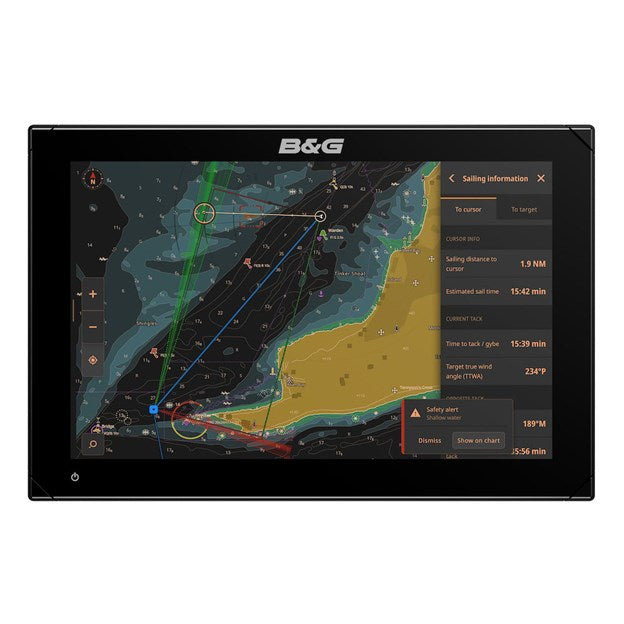

Advanced Sailing Tools Take advantage of B&G’s award-winning sailing features, including updated SailSteer™ , Laylines , StartLine , Routes , and racing tools. Built-in C-MAP Safety Alerts help protect against grounding and hazardous objects.
High-Detail C-MAP Charting Compatible with C-MAP DISCOVER™ X and REVEAL™ X charts, offering highly accurate mapping with clear, easy-to-read presentation. Integrated tide and current projections enhance trip planning and routing, supported by B&G’s fastest-ever autorouting. Enjoy one-touch access to points of interest, tides, channels, and more.
Seamless System Integration Designed to serve as the core of your onboard electronics system, Zeus S integrates easily via NMEA 2000 with autopilots, instruments, radar, sailing processors, audio systems, engines, and more. It also pairs with the B&G App , allowing you to plan routes, review trips, and manage waypoints from home, then sync instantly when onboard.

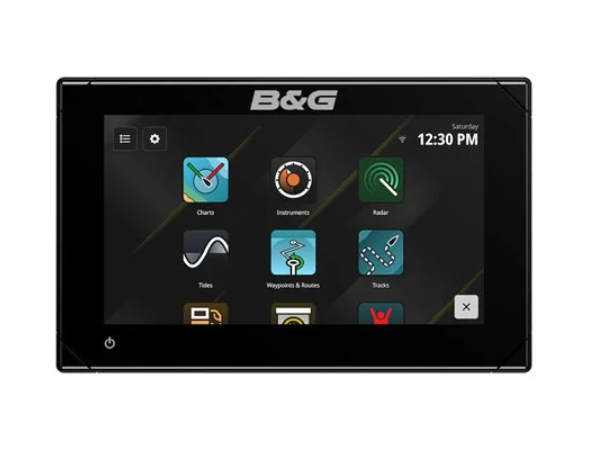

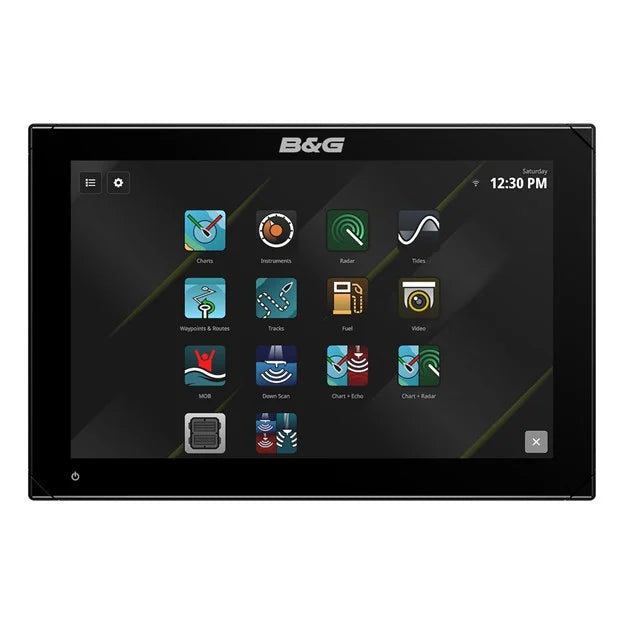

User-Friendly Interface A refined, intuitive interface makes operation feel familiar right away. A built-in Setup Wizard simplifies initial configuration, while helpful on-screen tips guide you through advanced features as you sail.
Technical Specifications
Display Type: SolarMAX™ IPS touchscreen for wide viewing angles, excellent clarity, and sunlight visibility with polarized sunglasses
Resolution: 1024 × 600
Viewing Angles: 85° (top, bottom, left, right)
Screen Brightness: >1200 nits
Backlight Color: White
Dimensions (W × H × D): 9.4" × 5.9" × 3.5" (239 × 150 × 90 mm)
Supply Voltage: 12 V DC (10–17 V DC min–max)
Max Power Consumption:
7" model: 11.5 W (830 mA at 13.8 V)
9" & 12" models: 29.7 W (2150 mA at 13.8 V)
Operating Temperature: −15°C to 55°C (5°F to 131°F)
Storage Temperature: −20°C to 60°C (−4°F to 140°F)
Waterproof Rating: IPX6 & IPX7
Humidity Rating: IEC 60945 Damp Heat, 66°C (150°F) at 95% RH (18 hours)
Shock & Vibration: 100,000 cycles at 20 G

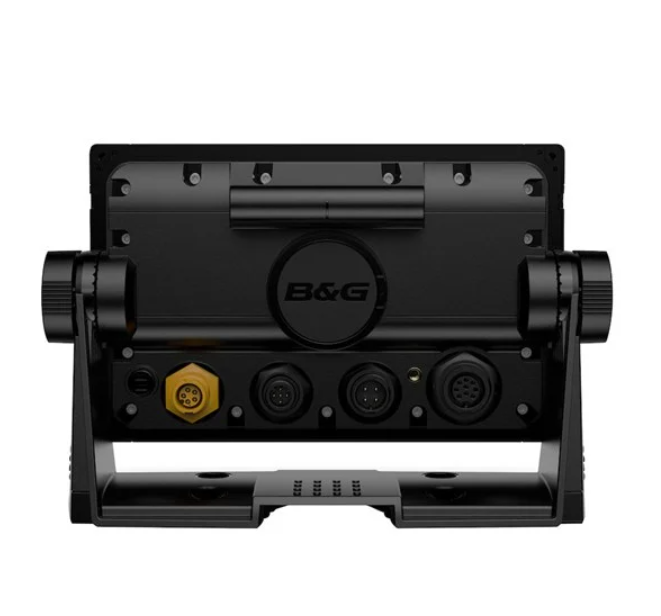

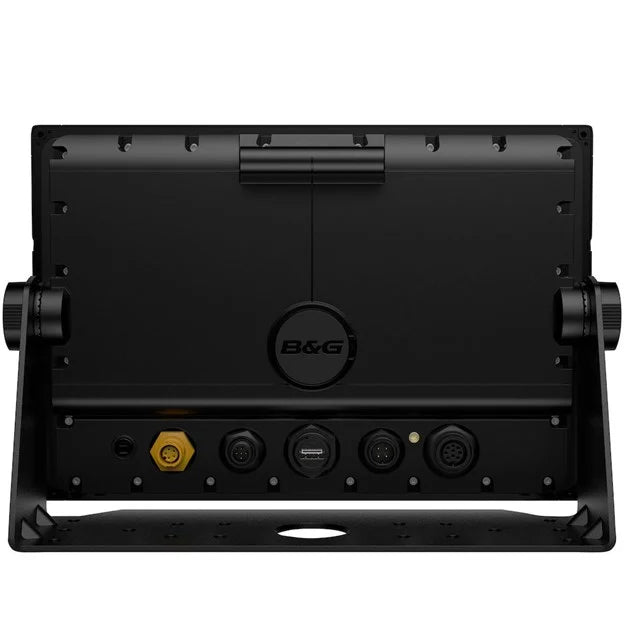

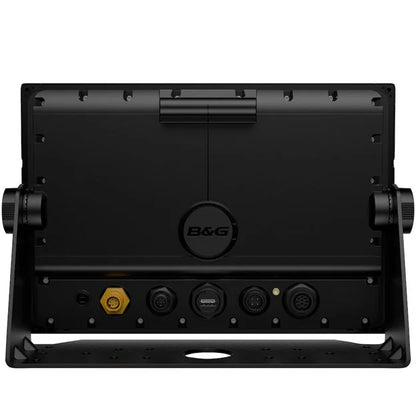

Connectivity & Compatibility
Interface: Multi-touch screen
Sonar Compatibility: 1 × 9-pin Xsonic 1 kW sonar port (single-channel CHIRP, 50/200 kHz, HDI, Active Imaging™)
Ethernet: 1 port (5-pin connector)
NMEA 2000: 1 × Micro-C port (1 LEN)
NMEA 0183: Not supported
USB (9" & 12" models): 1 × USB-A (5 V DC, 1.5 A output)
External Storage: 1 × MicroSD slot, 1 × USB-A port
GPS: Internal 10 Hz GPS with WAAS, MSAS, EGNOS, and GLONASS
GPS Accuracy: Horizontal accuracy up to 3 m (9.8 ft)
GPS Channels: 32
Wireless: Wi-Fi (IEEE 802.11 b/g/n), Bluetooth® 4.0 (Classic supported)
AIS: Receives AIS data via NMEA 2000
Radar Compatibility: B&G HALO™ Dome Radars
Digital Switching: COMMAND DDS, CZone®
Charts Supported: C-MAP DISCOVER™ X, C-MAP REVEAL™ X
