Product Description

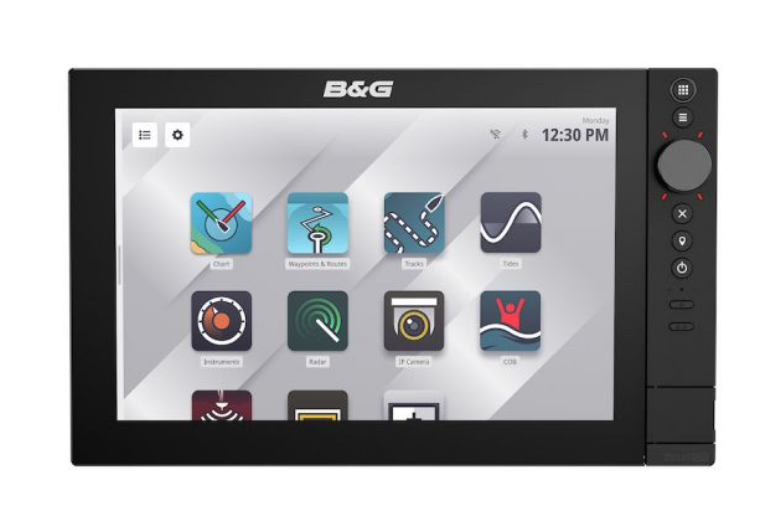

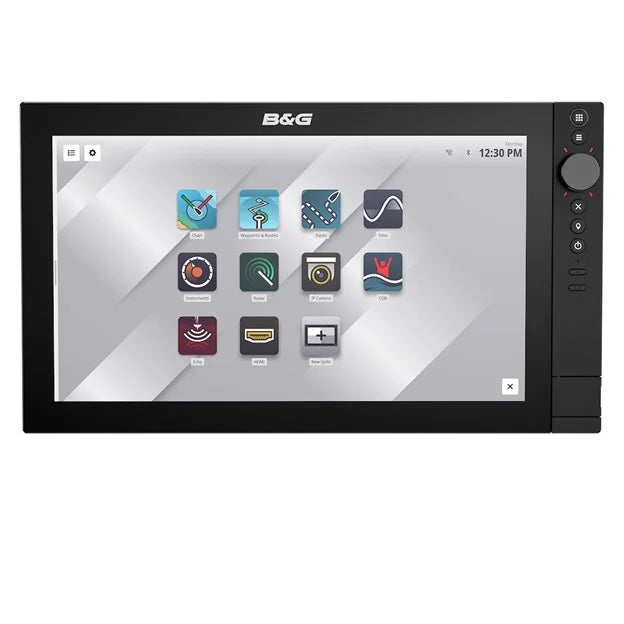

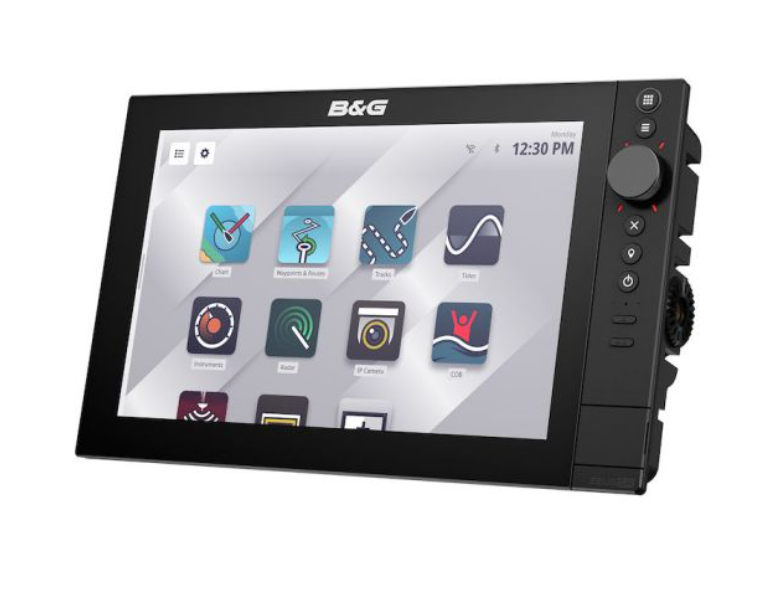

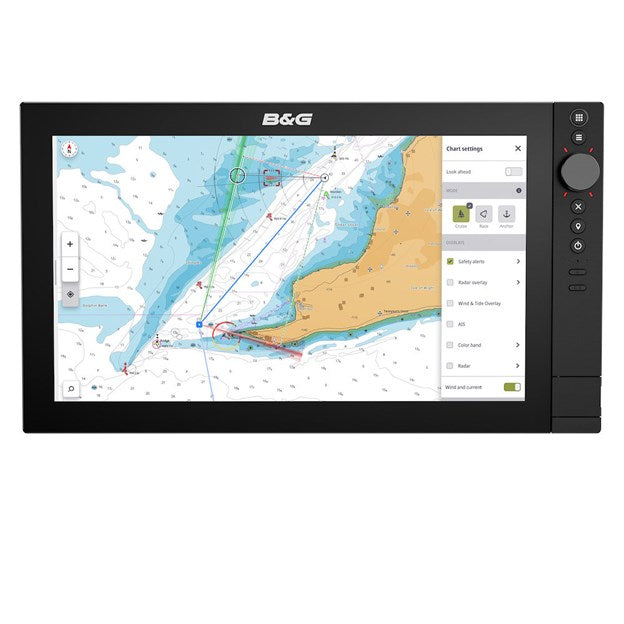

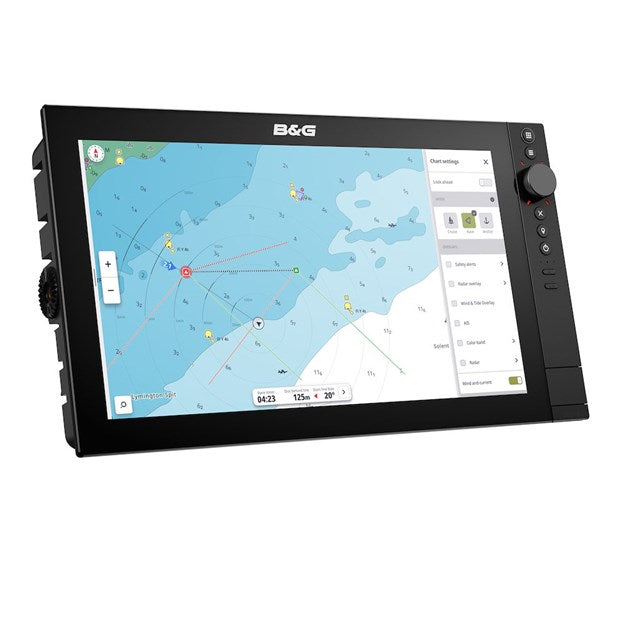

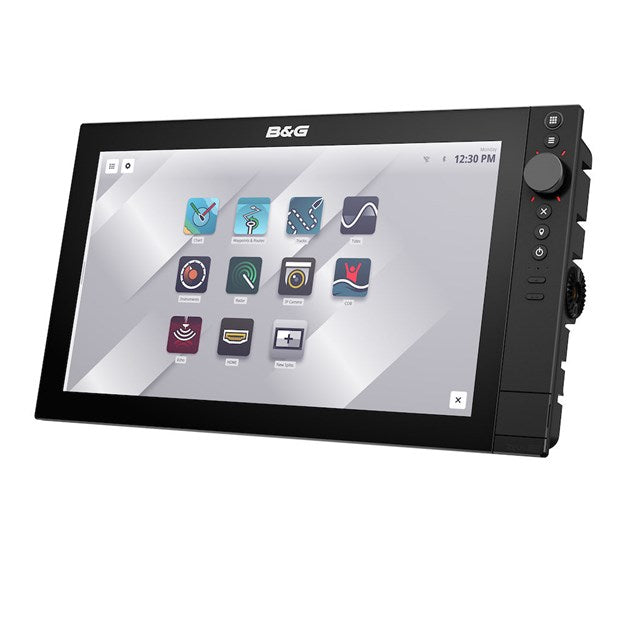

Zeus SR 12″-inch MFD (C-MAP DISCOVER X) – Next-Gen Navigation at the Helm - No Sonar (000-16024-001)
Elevate your marine navigation system with the Zeus® SR 12″ MFD, preloaded with C-MAP DISCOVER X (00016024001) charts for the US and Canada. Designed without built-in sonar, this version is ideal for vessels where sonar functionality is handled externally or via network modules.
With its blazing fast 8-core processor, seamless integration, and advanced charting tools, the Zeus SR 12 delivers a powerful and intuitive onboard experience.
Key Features & Capabilities
- Powerful 8-core processor for smooth performance and responsive charting
- 12" SolarMAX™ IPS glass-to-edge touchscreen display, readable from all angles (even with polarized sunglasses)
- Hybrid user interface combining touchscreen, rotary dial, and keypad controls for versatility in all conditions

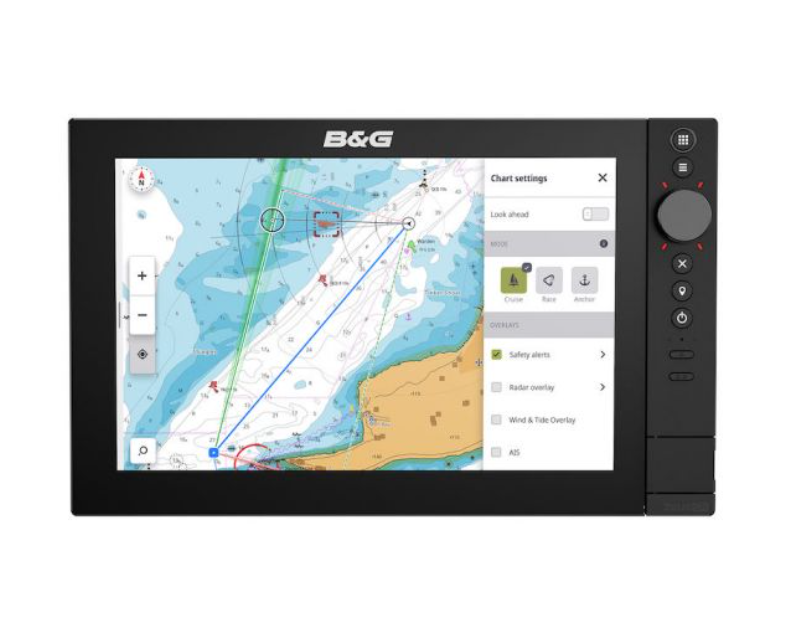

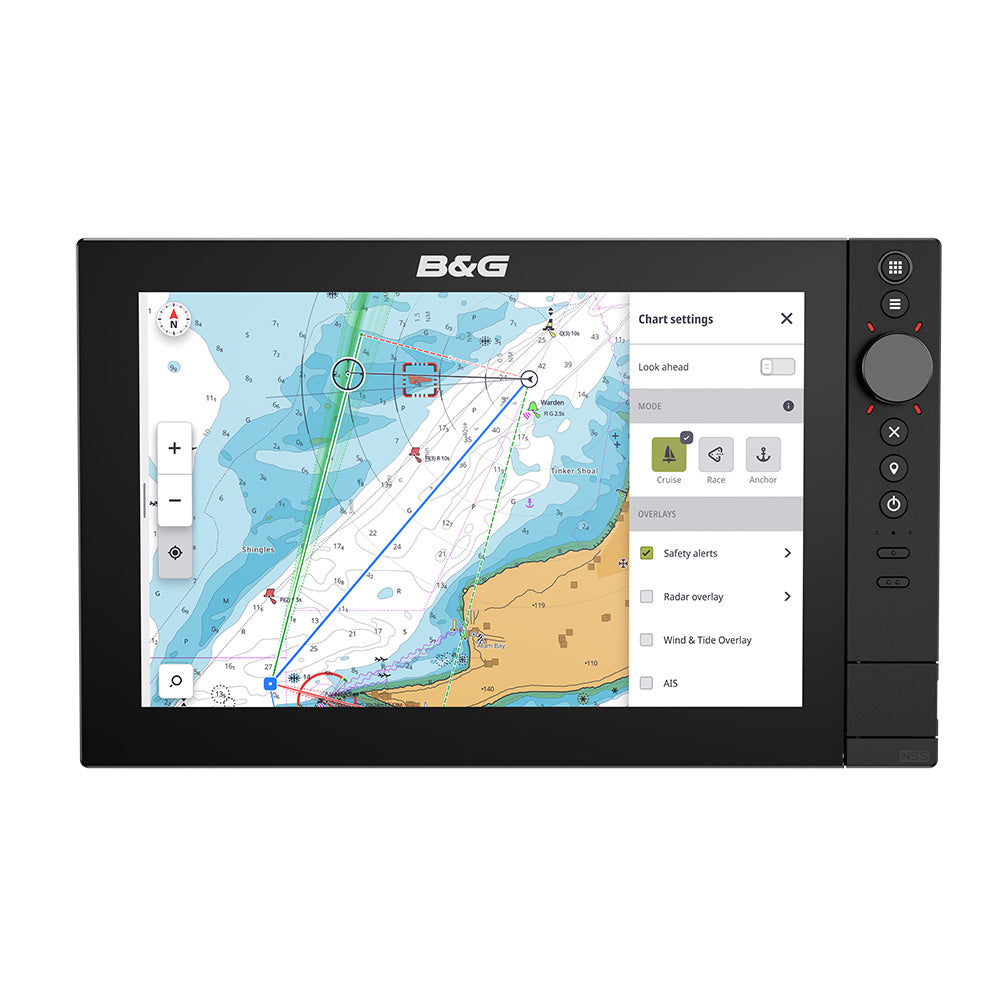

- Preloaded C-MAP DISCOVER X charting for US/Canada (vector charts, high-res bathymetry, tides & currents)

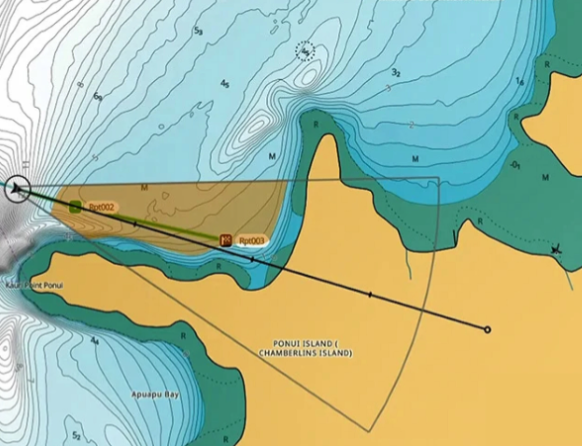

- C-MAP Safety Alerts feature, which issues warnings for hazards like shallow water or buoys
- Built-in X-Chart Manager enables direct chart updates and upgrades from the device, choosing custom download areas

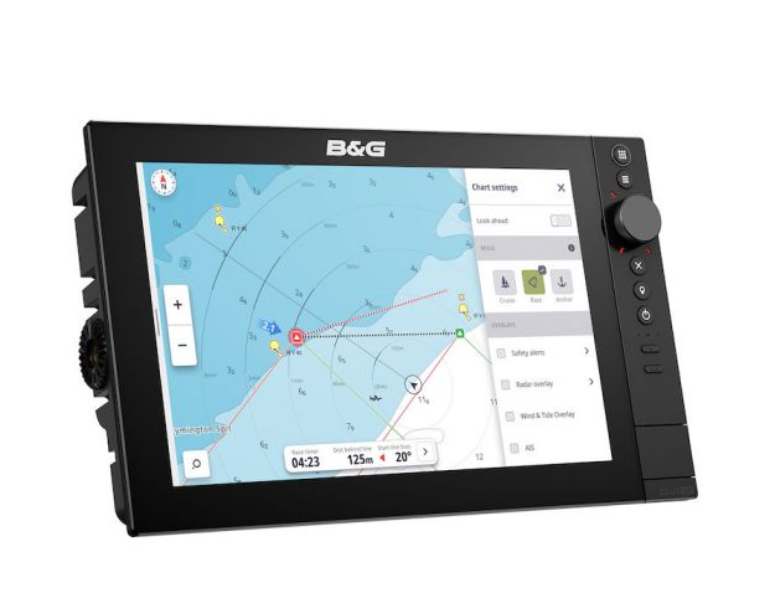

- Multiple usage modes (Cruising, Racing, Anchoring) with tailored dashboards and display layouts
- Integration with B&G/supported marine systems: HALO™ radar, Triton Edge, Hercules sailing processors, B&G instruments & wind sensors
- Networking support: WiFi 5, Gigabit Ethernet, and NMEA 2000 connectivity
- Support for up to 4 IP video cameras, video in/out, and ONVIF/IP camera compatibility
- Setup Wizard for quick installation, and system mirroring/control via B&G App (12 months premium access when registering C-MAP X chart)
- Sleek form factor with bracket and rear-mount options; robust marine-grade build
Ideal Use & Considerations
- Because this version is “No Sonar / No internal sounder”, it’s suited for systems already equipped with networked sonar or external sonar modules; compatible sonar modules (S3100, S5100, etc.) can be added via network connections

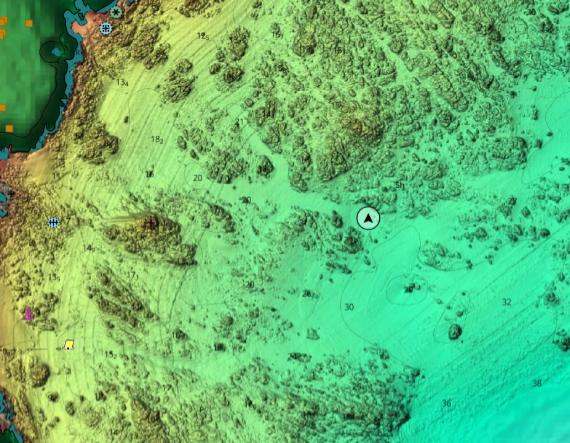

- Upgradable chart compatibility — while it comes with DISCOVER X, you can later upgrade to REVEAL X for shaded relief, satellite overlay, vegetation & bottom hardness layers
- Optimized for sailing and cruising applications, especially for users who want deep integration with marine instrumentation and radar systems
C-MAP® X-Gen charts deliver the cutting-edge of navigation. Explore the stunning DISCOVER® X charts, zooming in and out in an instant. Discover new spots with incredible local detail. And explore after dark with a dedicated night mode. An upgrade to the stunning REVEAL® X adds incredible shaded relief and satellite imagery to your arsenal.
High-definition SolarMAX™ IPS touchscreen, viewable from all angles, even with polarized glasses
Features:
- Separate modes for Cruising, Racing and Anchoring
- Award-winning sailing features like SailSteer™, LayLines, Routes and StartLine
- Compatible with C-MAP® DISCOVER® X and REVEAL® X charts
- C-MAP®-powered Safety Alerts
- Full integration with HALO® radars, B & G Sailing Processors, Autopilots, Triton2 and Nemesis® instruments, wind sensors, and more
- B & G App integration with 12 months premium subscription when registering a C-MAP® X Chart.
- Wi-Fi 5, Gigabit Ethernet & NMEA 2000® networking
- Support for up to four IP video cameras
- Set up Wizard to get you up and running quickly
- NMEA 0183 - No
- NMEA 2000 - 1 x NMEA 2000 Micro-C port, 1 LEN
- PC Connectivity - No
- Video - Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP Camera IP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras
- Ethernet - 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin)
- Charts Supported - C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content)
- Dimensions (W x H x D) - Display only: 338.9 mm x 208.4 mm x 84.8 mm (13.34″ x 8.20″ x 3.34″) With bracket: 367.8 mm x 232.8 mm x 84.8 mm (14.48″ x 9.17″ x 3.34″)
- Mounting Type - Bracket mount (bracket supplied). Rear mount (brackets supplied)
- Weight - 2.8 kg (6.17 lb)
- Warranty Period - 2 Years
Specifications
| Autopilot | |
| Manouevres / Turn Patterns | U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth |
| Steering Modes | Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav |
| Cartography | |
| Chart Format | C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X |
| Charts Supported | C-MAP Discover™ X, C-MAP Reveal™ X. Third party charts CMOR, StikeLines (check with provider for available content) |
| Connectivity | |
| Bluetooth | Bluetooth 4.0 with support for Bluetooth Classic (currently not used) |
| Ethernet | 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin) |
| NMEA 0183 | No |
| NMEA 2000 | 1 x NMEA 2000 Micro-C port, 1 LEN |
| PC Connectivity | No |
| Video | Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP Camera IP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras |
| WiFi | Wi-Fi 5 (IEEE 802.11ax) |
| Display | |
| Backlight Color | White |
| Resolution | 1280 x 800 |
| Screen Brightness | Less than 200 nits |
| Size and Type | 1 inch SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses |
| Viewing Angles | 80° top/bottom, 80° left/right |
| Electrical | |
| Power Consumption, max. | 40 W |
| Recommended Fuse Rating | 5 A |
| Supply Voltage | 12/24 V DC (10 - 31.2 V DC min - max) |
| Humidity | IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) |
| Environment | |
| Operating Temperature Range | -15°C to 55°C (5°F to 131°F) |
| Shock and Vibration | 100,000 cycles of 20 G |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Waterproof rating | IPX6 and IPX7 |
| GPS | |
| Correction | 10 Hz high speed update (internal) |
| GPS Receiver Channels | 32 Channels |
| Position Accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| Update rate | 10Hz |
| MFD | |
| AIS | Receive AIS data over NMEA 2000 |
| Autopilot | NAC-1, NAC-2, NAC3, NAC-D compatible |
| Cartography included | Discover X chart card of North America |
| Cartography supported | C-MAP Discover™ X, C-MAP Reveal™ X. Third party charts CMOR, StikeLines (check with provider for available content) |
| Digital Switching | Czone / DDS |
| External Storage | 2x (microSD®, SDHC®), 1 x USB port |
| GPS | 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS. SBAS (WAAS) |
| Radar (inc. compatibility) | Halo dome radars, Simrad Halo open array radars, 3G/4G, Simrad 10/25 kW HD Radars |
| Sonar (inc. compatibility) | No built-in Echosounder ports. Compaible with Network Sonar modules S3100, S5100, Other MFDs with echosounder ports |
| Weather | Sirius XM via WM4 module (USA only) |
| Waypoints, Routes, Tracks | 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: Zeus3, Zeus3 GH maximums will apply if on the same network |
| Compass Safe Distance - Metric, imperial | 65 cm (2.1 ft) |
| Physical | |
| Dimensions (W x H x D) | Display only: 338.9 mm x 208.4 mm x 84.8 mm (13.34 in x 8.20 in x 3.34 in) With bracket: 367.8 mm x 232.8 mm x 84.8 mm (14.48 in x 9.17 in x 3.34 in) |
| Mounting Type | Bracket mount (bracket supplied). Rear mount (brackets supplied) |
| Weight | 2.8 kg (6.17 lb) |
