Product Description

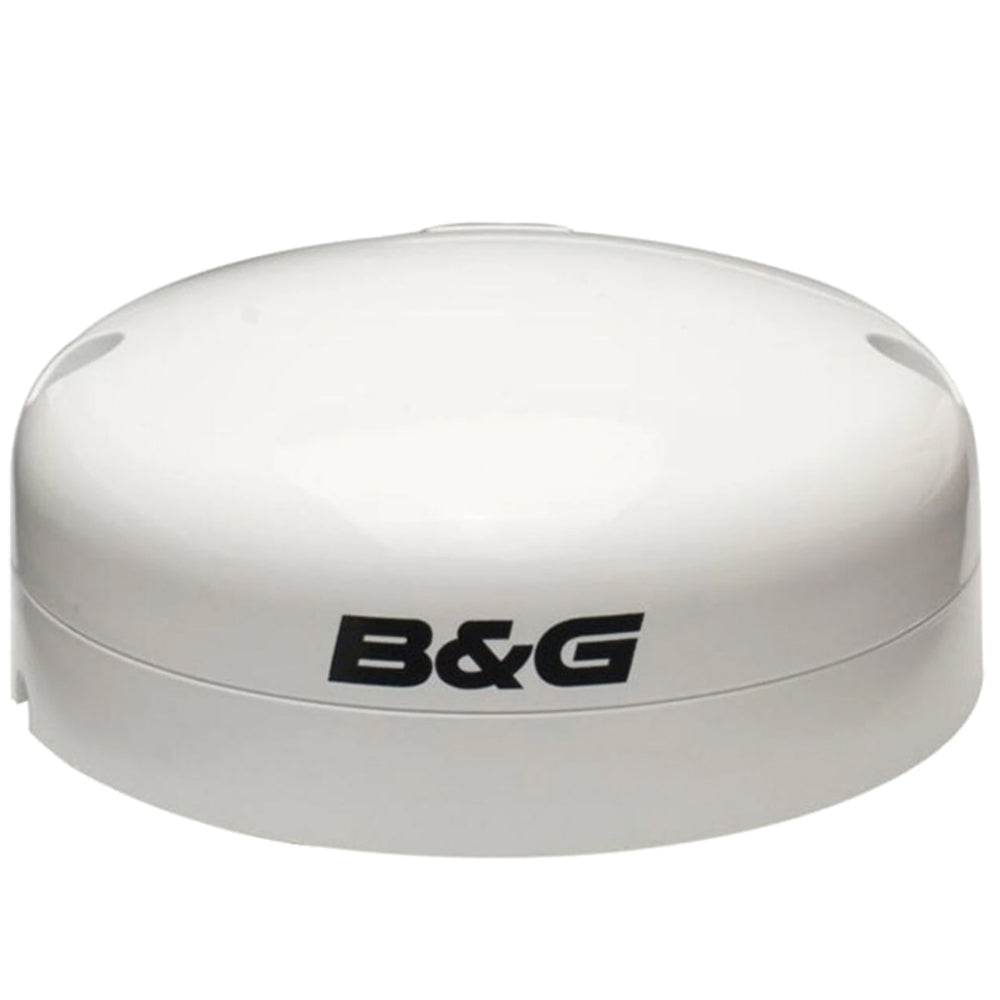

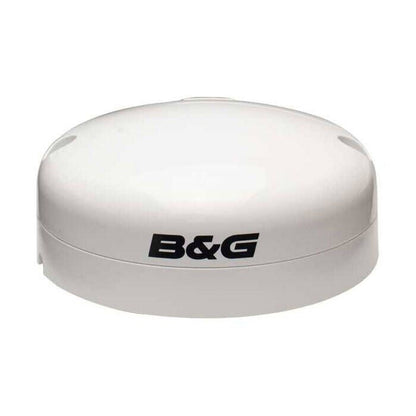

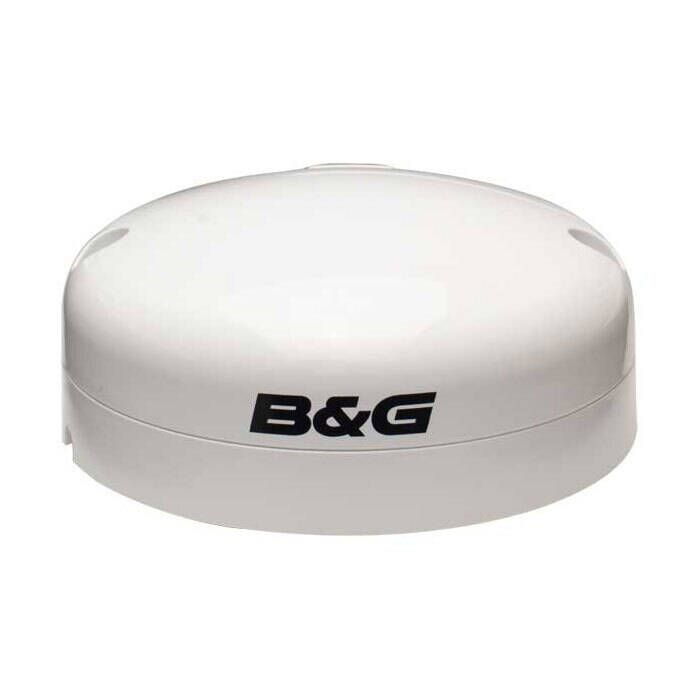

ZG100 GPS Antenna with Compass (000-11048-002)
Take your marine navigation to the next level with the B&G ZG100 GPS Antenna (00011048002) — a high-performance unit combining precision positioning with onboard heading, heel, and trim sensing. Designed especially for sailboats and performance vessels, this antenna delivers real-time data for chartplotters, instrument systems, and NMEA-2000® networks.
The B&G ZG100 is a compact, rugged GPS antenna with a built-in electronic compass and inertial sensors. Its 10 Hz update rate ensures smooth, accurate tracking even during high-speed maneuvers or under acceleration. Because heading is integrated, chart overlays, radar stabilization, and autopilot direction (where supported) benefit from real-time heading data without needing a separate compass unit. Optimized signal acquisition and support for WAAS, EGNOS, MSAS (and more) help maintain stable fixes in challenging conditions.
Key Features & Capabilities
- 10 Hz position update rate for rapid, smooth fixes during maneuvers
- Integrated electronic compass provides heading data for chart stabilization, “Head-Up” mode, and radar overlays
- Heel & trim sensor for sailing load compensation and advanced routing
- Sail-specific COG/SOG filtering for optimized performance under sail
- Support for GPS and augmentation systems like WAAS, EGNOS, MSAS, and compatibility with Galileo & QZSS NMEA-2000 interface (Micro-C) for seamless integration with modern marine networks Low power consumption (< 2 W typical) with 9–18 V DC supply and reverse-polarity protection
- Rugged, weatherproof housing (IPX7 or better) to endure harsh marine environments
- Compact dimensions (≈ 90 mm diameter × 38 mm height) and light weight (~0.14 kg / 0.30 lbs) for flexible installation
- Operating temperature range from –25 °C to +60 °C (–13 °F to ~149 °F) and storage range to –40 °C / +85 °C

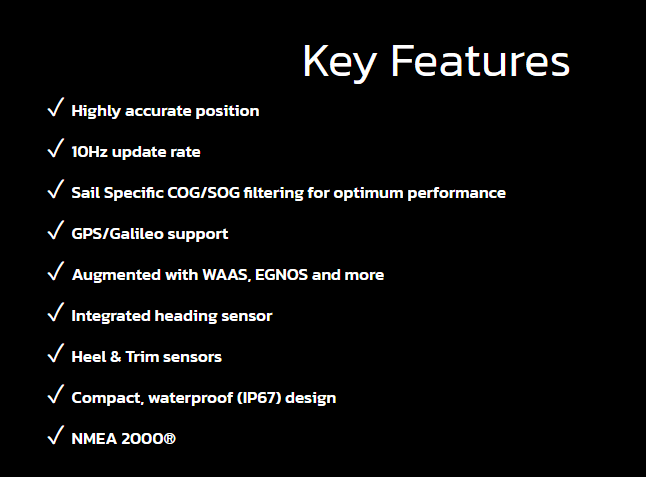

Features:
- Highly accurate position
- 10Hz update rate
- Sail Specific COG/SOG filtering for optimum performance
- GPS/Galileo support
- Augmented with WAAS, EGNOS, and more
- Integrated heading sensor
- Heel & Trim sensors
- Compact, waterproof (IP67) design
- NMEA 2000®
Specifications:
| General | |
| Receiver | Type L1, C/A code, 1.575 GHz Frequency/L2 C/A code, 1.602 GHz Frequency |
| Channels | 32 channels |
| Position Update Rate | Up to 10 Hz (1,5,10) |
| Horizontal Accuracy | 3 m (9.8 ft) |
| Heading Accuracy | +/- 3° |
| Rate of Turn | +/- 3° |
| Pitch / Roll Accuracy | @30 degrees 1 grade error |
| Cold Start | 50 sec |
| Start-Up Time | 3 sec |
| Satellite Reacquisition | 5 sec |
| Environmental | |
| Operating Temperature | -25° C to +60° C |
| Storage Temperature | -40° C to +85° C |
| Splash Proof | IPX7 |
| Humidity | 40° C, 93%RH, operating |
| Electrical | |
| Input Voltage | 9 V DC - 18 V DC |
| Reverse Polarity Protection | Yes |
| Power Consumption | < than 2w |
| Current Consumption | < 100 mA @ 12 V DC |
| Dimensions | 90 mm (diam) x 38mm (height) 3.54" (diam) x 1.50" (height) |
| Weight | 0.14 Kg (0.3 lbs) aprox |
| Power/Data Cable | NMEA 2000 thru NMEA 2000 network |
| Antenna Connector | NMEA 2000 Micro C: Lowrance attached cable with Micro-C connector |
| Mounting | Flush mount / Standard Pole Mount |
| Communications | |
| Data I/O Protocol | NMEA 2000 |

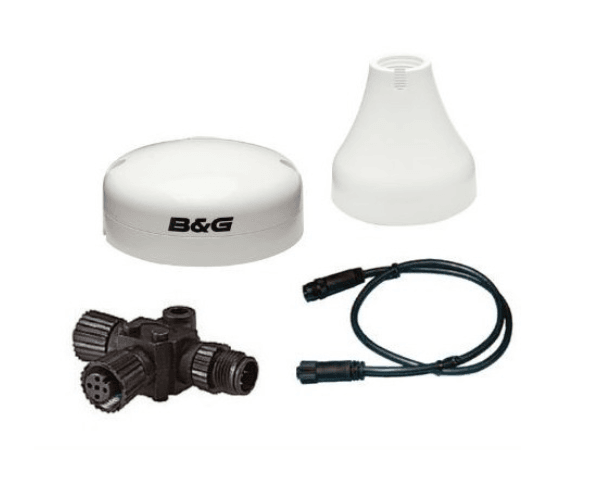

What's in the Box:
- ZG100 GPS Antenna
- N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000® cable
- N2K-T-RD - Micro-C T-connector
- Pole Mount
- Warranty Period: 5 Years
Quick Details:
- Waterproof rating: IPX-7
- Compass Safe: 21.00" (518mm)
- Storage Temperature Range: -22°F to 158°F (-30°C to 70°C)
- Dimensions: W x H x D3.54" (90mm) x 1.50" (38mm)
- Supply Voltage: 9v-18v
- NMEA 0183 Sentences supported: no
- NMEA 2000 Connectivity: Yes
Compatibility & Use Notes
- This model (000-11048-002) is optimized for B&G chartplotters and instrument systems, and works best when connected via NMEA-2000 to other marine electronics (e.g. displays, autopilots, radar)
- Not suitable for use with MARPA or B&G Pilot systems that require a rate compass — those systems need dedicated rate compasses such as the Precision-9 or RC42
- For best performance, mount where the antenna has a clear view of the sky and is away from magnetic interference — avoid nearby wiring, metallic structures, below-deck mounting in some cases
