Overview

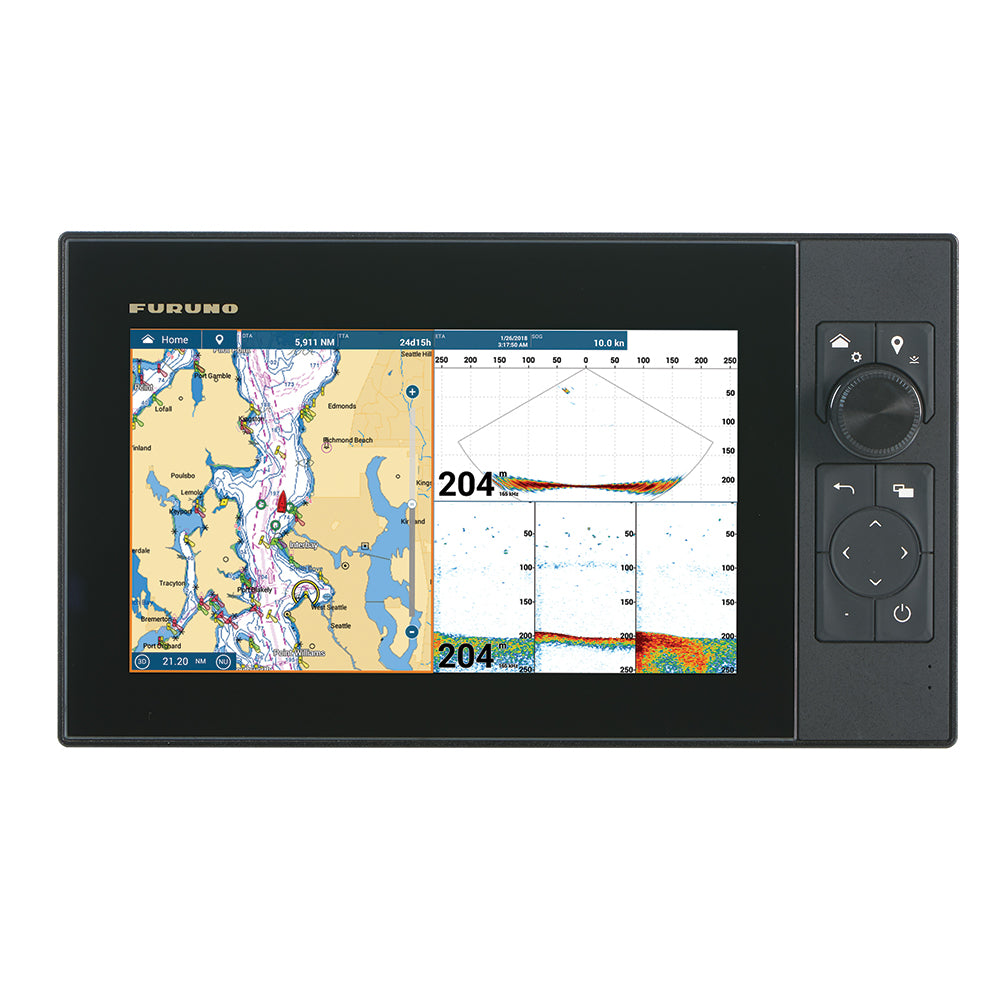

Experience the ultimate marine navigation and fishfinding solution with the Furuno TZT12F 12" Hybrid Control IPS Multifunction Display (MFD) . Engineered for serious offshore anglers, tournament fishermen, and coastal cruisers, the TZT12F combines unmatched TruEcho CHIRP™ performance with lightning-fast chartplotting, radar, and autopilot control.
This all-in-one marine MFD features a quad-core processor, internal GPS receiver, and a built-in 1kW dual-channel TruEcho CHIRP fishfinder, delivering speed, accuracy, and reliability for every voyage.
Whether you’re fishing shallow waters, deep offshore grounds, or navigating coastal routes , the TZT12F MFD delivers precise sonar returns, seamless OneChart™ wireless updates, and intuitive controls through a hybrid interface with touchscreen, RotoKey™ dial, and dedicated buttons.
With an IP56-rated waterproof design, WXGA 12.1" touchscreen, and full NMEA 2000 integration, this MFD ensures visibility, durability, and functionality even in the harshest marine environments.
Key Features & Capabilities
TruEcho CHIRP Fish Finder
Built-in 1kW dual-channel TruEcho CHIRP & CW sonar
Crisp fish targets and detailed bottom composition from shallow to deep water

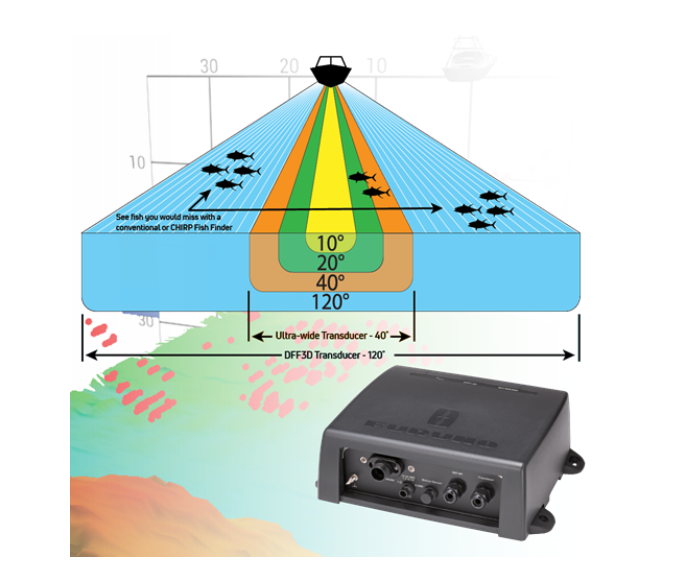

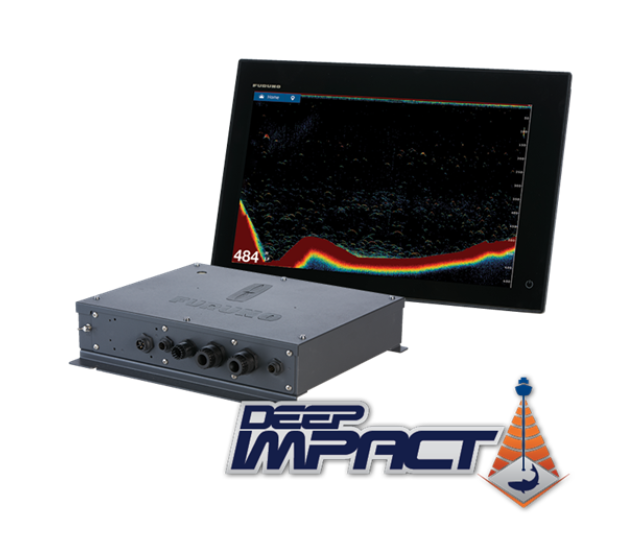

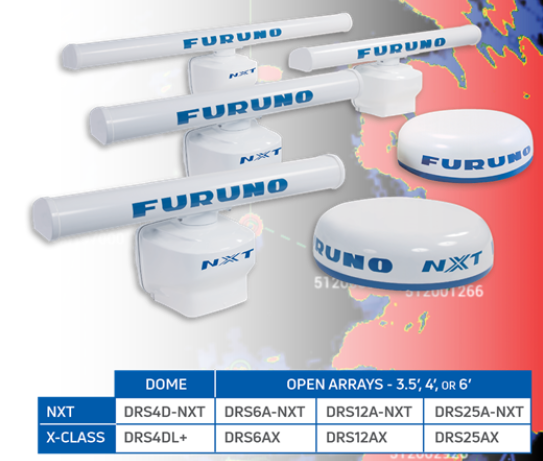

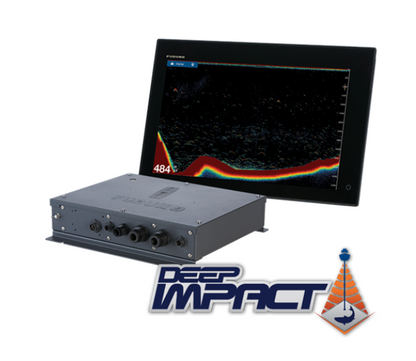

Compatible with optional Deep Impact DI-FFAMP (2kW/3kW) and NXT Solid-State Doppler radar
GPS & Navigation
Internal GPS receiver for fast, reliable positioning

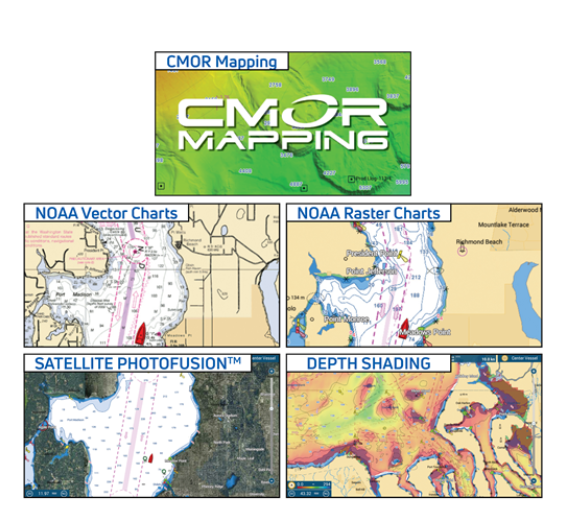

Cloud sync routes and waypoints via TZ Navigator, TZ iBoat app, or web browser
Full autopilot control with NAVpilot-300/711C compatibility
AIS, CZone digital switching, and NMEA 2000 integration
Display & Interface
12.1" WXGA IPS touchscreen with 1280 × 800 resolution
900 cd/m² brightness ensures readability in direct sunlight

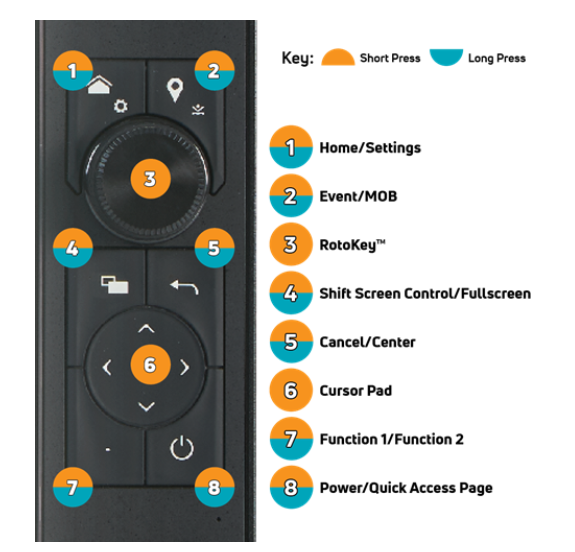

Hybrid controls: touchscreen, RotoKey™ dial, and dedicated buttons

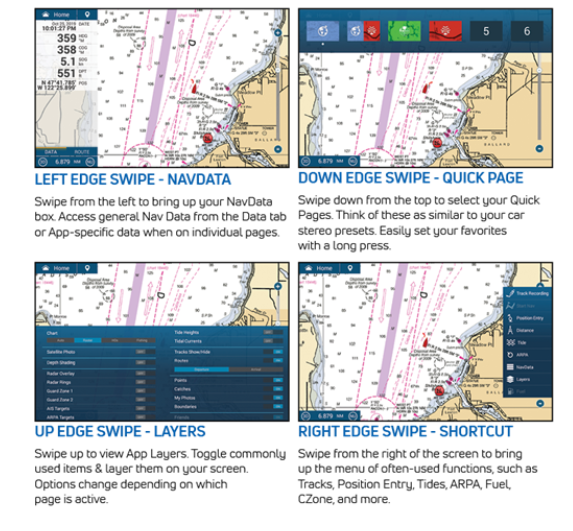

Quad-screen split display for simultaneous chartplotter, sonar, radar, and instrument views
Durability & Security
IP56 waterproof rating and rugged, sealed design
Conformal-coated electronics for added corrosion protection
PIN Code Lock security for data protection
What’s Included in the Box
Furuno TZT12F 12" Multifunction Display
Grey silicone cover
Power cable assembly (2m)
12-pin to 10-pin transducer adapter cable
LCD cleaning cloth
Flush-mount gasket and screws
2-Year limited manufacturer warranty (Furuno USA standard)
Technical Specifications
Display: 12.1" WXGA IPS touchscreen, 1280 × 800 resolution
Sonar: 1kW dual-channel TruEcho CHIRP & CW
GPS: Internal, high-sensitivity
IP Rating: IP56 waterproof
Processor: Quad-core
Compatible: Radar, autopilot, NMEA 2000, AIS, CZone digital switching
Mounting: Flush-mount
Power: Standard 12–24V DC input
Warranty: 2-Year limited manufacturer (Furuno USA)
Application & Benefits
Ideal for offshore fishing, tournament anglers, and coastal cruising
Track fish, structure, and bottom composition with precise sonar readings
Control autopilot and radar seamlessly with one MFD
Cloud sync your charts and waypoints for multi-device access
Built rugged to withstand saltwater, vibration, and UV exposure
This product may not be returned to the original point of purchase. For warranty or service issues, please contact Furuno directly.
