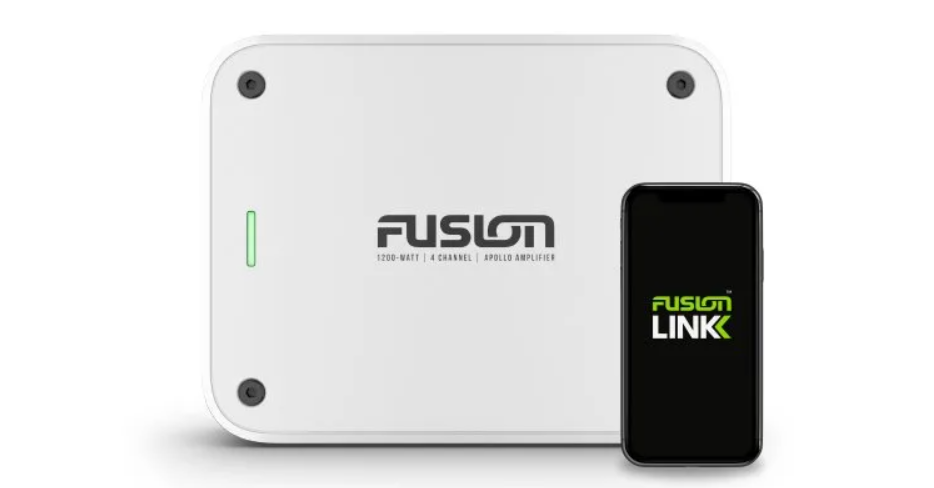

Fusion Apollo Marine Amplifiers 4 Channel Marine Amplifier (150-watt RMS per Channel)

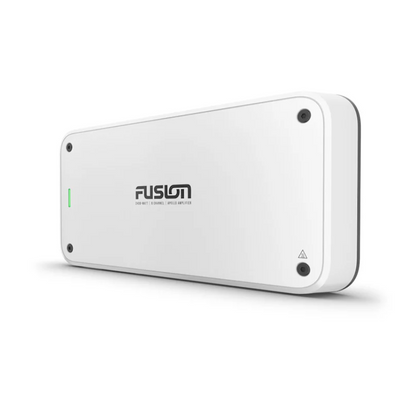

Apollo Marine 4 Channel 1200-Watt Amplifier (010-02284-45)

This 4-channel amplifier with 150-watt RMS per channel can power up to four pairs of speakers or two pairs of speakers and one subwoofer. It includes high-power mode adapters for simple bridging to increase power.

Upgrade your boat audio system with the Fusion Apollo Marine 4-Channel 1200 W Amplifier—built for marine environments and engineered to deliver high-power performance with efficiency.

• Delivers 150 W RMS per channel (4 Ω), ideal for driving up to four pairs of tower or cockpit speakers.
• Features a Class-D design for efficient, low-heat operation—so you get more listening time with less battery drain.
• Comes with high-power bridging adapters, allowing you to reconfigure for more output or drive subwoofers seamlessly.
• Designed specifically for marine audio systems, this amp is optimized for wake tower speakers, cockpit audio setups, and full marine sound systems with corrosion-resistant hardware and weather-sealed construction.
• Compatible with Fusion DSP-enabled head units and systems to enable integrated control and tuning (note: may not be compatible with all third-party components).

Why choose this amplifier?
Whether you're powering JL Audio tower speakers, cockpit speakers, or adding a subwoofer to your marine rig, this 4-channel amplifier delivers clean, distortion-free sound. Its marine-grade build ensures durability in salt, spray, and sun. The flexible bridging options and compatibility with DSP systems make it ideal for advanced setups.

Features:

• Keep the music going for longer without draining your battery as quickly
• No more manual adjustments to your audio settings. The Easy Tune feature does it for you
• A glance at the LED indicators lets you identify if the amplifiers have a short or if they’re overheating
• Less distortion and noise, so you enjoy quality audio
• Mounting brackets are included for simple installation
• Don’t worry about potential overheating damage with our ignition protection design

Power & Efficiency: The Apollo amplifiers are designed to produce impressive power with less drain on your battery. This amp produces 150-watt RMS per channel.

Easy Tune Feature: These amplifiers use the Easy Tune feature, which automatically regulates audio settings. So, users can get the best quality sound without making manual adjustments.

Less Distortion: Some amplifiers distort audio when they add power. Fusions are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes.

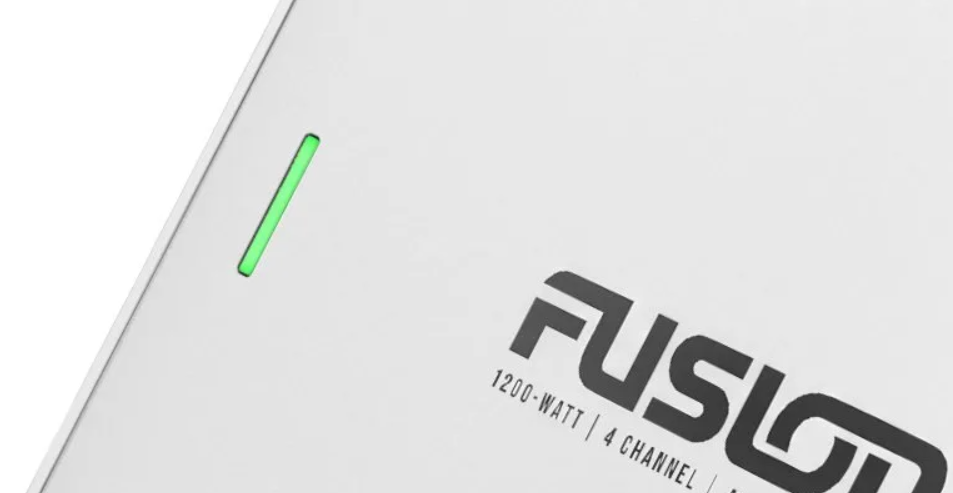

LED Indicators: Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts, as well as temperature.

Mounting Brackets: Easily install the amplifiers on board with the included mounting brackets.

Ignition Protected: The ignition-protected design helps prevent potential damage from overheating.

Conformal-Coated PCBS: The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements.

2 OHM Stable: Connect up to two speakers per channel, increasing setup options.

Fusion True-Marine Design: The amplifier is designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration, and UV.

In the Box:

• One Apollo 4-channel amplifier
• One mounting bracket
• One power connector
• Two speaker connectors with high-power mode adapters
• Four 8-gauge, flat-head self-tapping screws
• Four 8-gauge, pan-head self-tapping screws (for mounting bracket)
• Four screw covers
• Fuse holder
• Mounting template
• Installation instructions
• ISPI
• Warranty: 3 years

Specifications:

• Physical Dimensions without Bracket (L x W x H): 9.25" x 7.06" x 1.75" (235 x 180 x 45 mm)
• Physical Dimensions with Bracket (L x W x H): 9.25" x 7.06" x 2.13" (235 x 180 x 50 mm)
• Weight: 4.85 lb (2.2 kg)
• Water Rating: IPX2
• Amplifier Class: Class-D
• CEA-2006 Power Rating: 150 watt RMS x 4 @ 14.4 V input - 4 ohm < 1% THD
• Total Rated Power Output, 2 Ohm (Watts): 290 watt RMS x 4 @ 14.4 V input - 2 ohm < 1% THD
• Total Rated Power Output, 4 ohm Bridged (watts): 580 watt RMS x 2 @ 14.4 V input - 4 ohm Bridged < 1% THD
• Peak Power (watts): 1200 watts
• Input Sensitivity: 1.6 V RMS
• Input Impedance: 22k ohm
• Operating Voltage: 10.8 V - 16 V DC
• Current Draw, in Standby/off Using Amplifier on Wire: < 5 mA @ 14.4 V input
• Current Draw, On, No Audio: < 1.15 A @ 14.4 V input
• Fuse Rating: 85 A electronic fuse (no replacement necessary)
• Power-Cable Fuse Model and Rating: Bussmann™ BK/AMI-030 30 A fast-acting
• Ignition Safety Protected (SAE J1171): Yes
• Protection Circuits: Reverse voltage, input under/over voltage, over temperature, and output short circuit
• Operating temperature range: 32° to 122° F (0° to 50° C)


Details:

• Bridgeable: Yes
• Channels - Available: 4
• Watts: 1200w
