Fusion Apollo Marine Amplifiers 8 Channel Marine Amplifier (150-watt RMS per Channel)

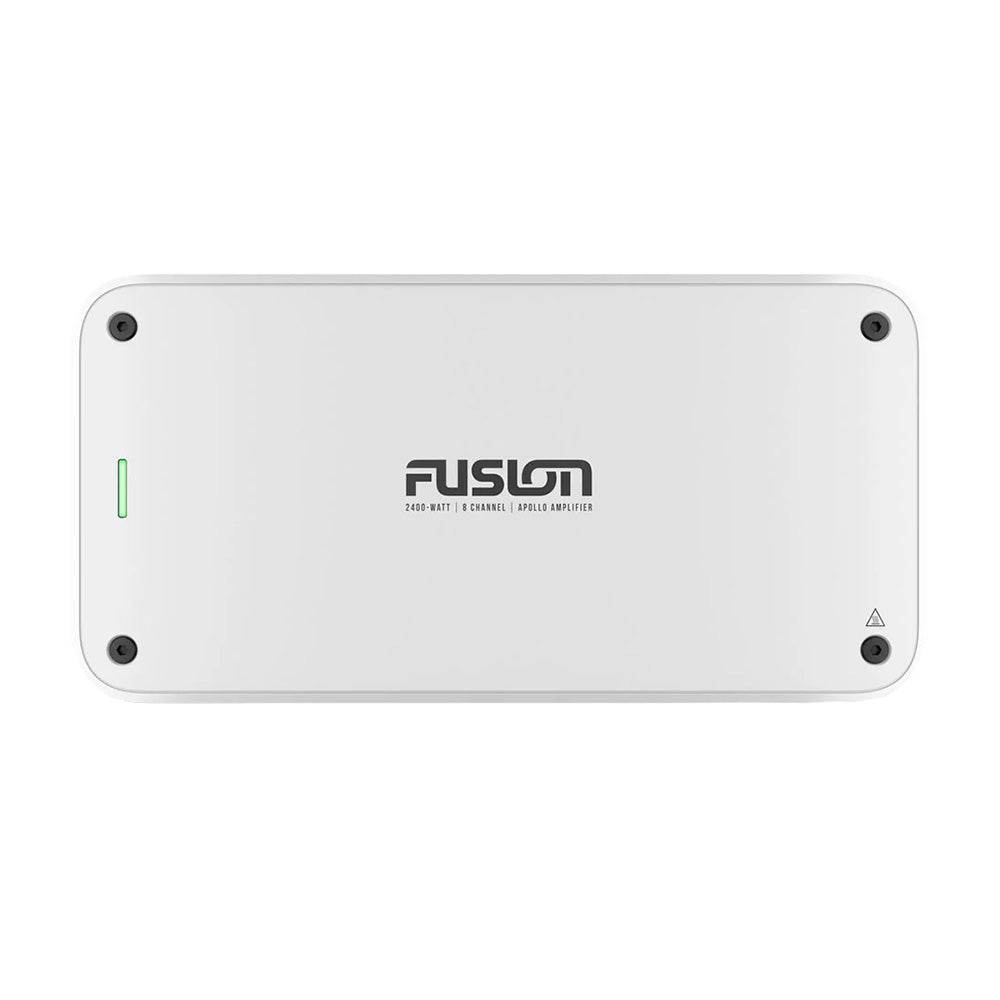

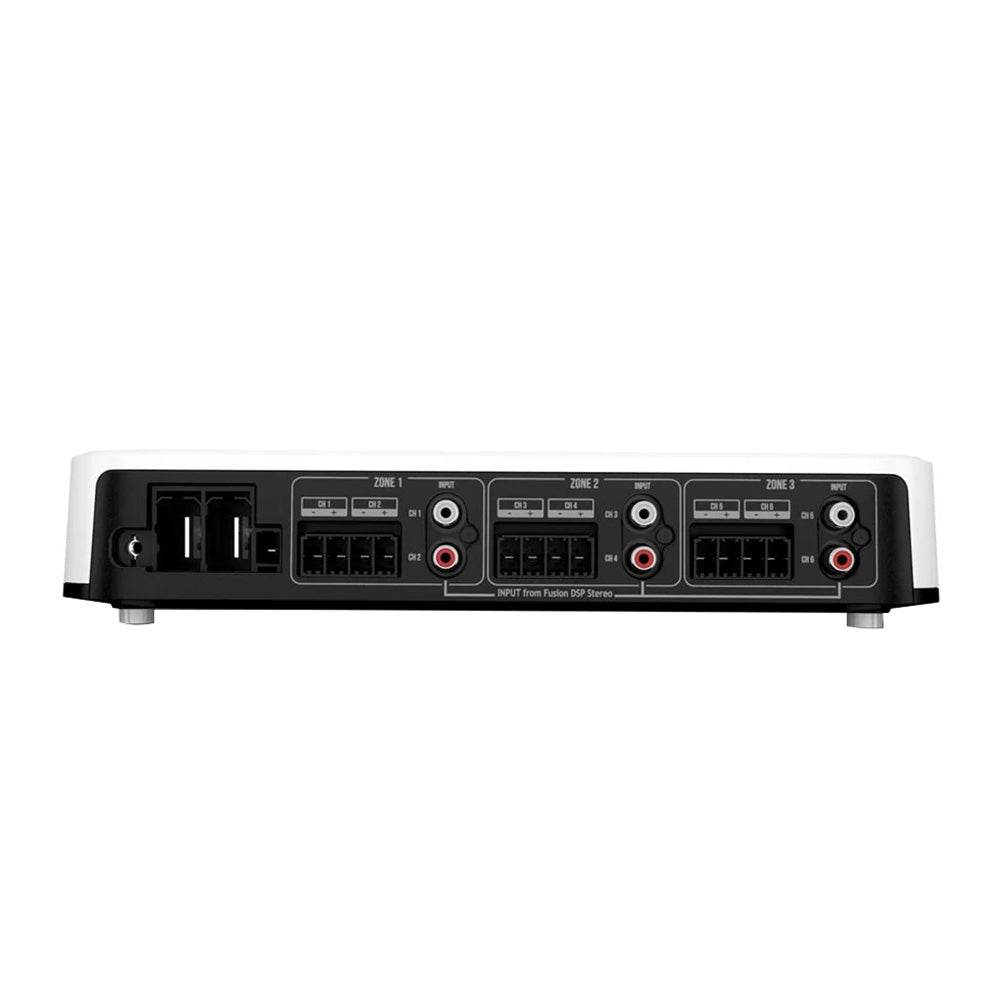

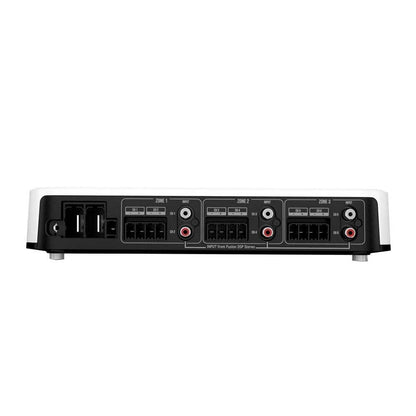

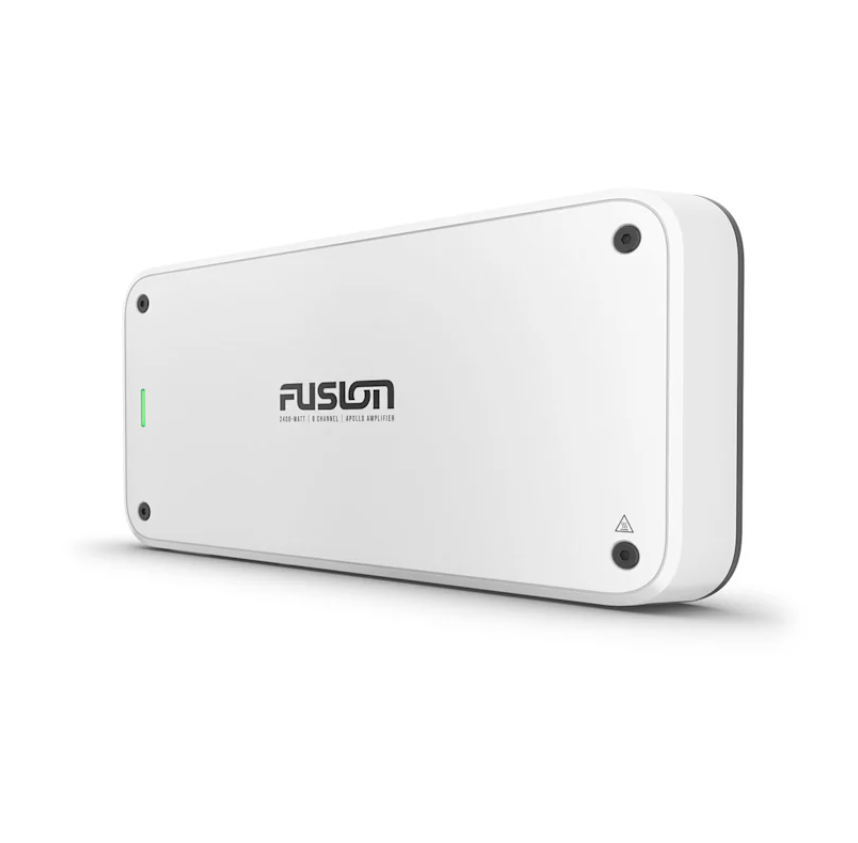

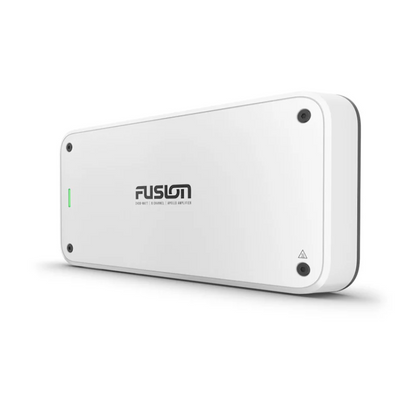

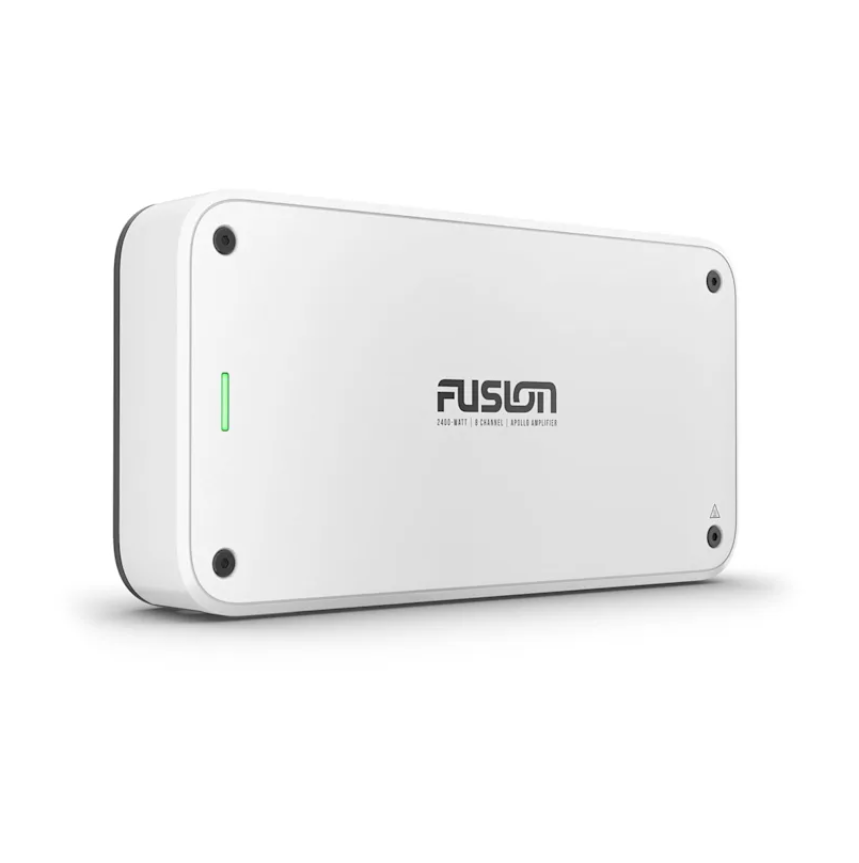

Apollo Marine 8 Channel 2400-Watt Amplifier (010-02284-85)

This 8-channel amplifier with 150-watt RMS per channel can power up to eight pairs of speakers or four pairs of speakers and two subwoofers. It includes high-power mode adapters for simple bridging to increase power.

The Apollo Marine 8-Channel 2400-Watt Amplifier (010-02284-85) is a high-performance Class-D marine amplifier engineered for boaters who demand clean, powerful sound across multiple channels. With 150 W RMS output per channel (at 4 Ω) and a total peak power rating of 2400 W, this versatile amplifier can drive up to eight pairs of speakers—or manage four pairs of speakers plus two subwoofers—for comprehensive marine audio coverage. The GPS Store+4Defender Marine+4Hodges Marine+4

Key Features & Capabilities:

• 8-Channel Output: Delivers 150 W RMS × 8 channels @ 14.4 V, 4 Ω with <1% THD (CEA-2006 standard)
• Class-D Efficiency: Highly efficient power design keeps the amplifier cooler and draws less current—perfect for marine electrical systems
• Marine-Grade Design: Rated for IPX2 (light water spray protection), corrosion-resistant materials, and sealed electronics to stand up to harsh marine environments
• Wide Input Range & Sensitivity: Operates between 10.8 V and 16 V DC, with input sensitivity around 1.3 V RMS and input impedance of 22 kΩ
• Compact & Lightweight: Weighs only ~6.94 lb (3.15 kg), making it easier to mount onboard without adding excessive bulk

Why Choose This Amplifier?

This Apollo Marine unit gives you flexibility and power in a single amplifier. Whether you’re wiring a full tower + cockpit system or just augmenting your onboard speakers, the 8 discrete channels let you tailor output per zone—no compromises. Backed by marine-grade durability and a compact footprint, it’s built to integrate cleanly into your boat’s setup.

Features:

• Keep the music going for longer without draining your battery as quickly
• No more manual adjustments to your audio settings. The Easy Tune feature does it for you
• A glance at the LED indicators lets you identify if the amplifiers have a short or if they’re overheating
• Less distortion and noise, so you enjoy quality audio
• Mounting brackets are included for simple installation
• Don’t worry about potential overheating damage with our ignition protection design

Power & Efficiency: The Apollo amplifiers are designed to produce impressive power with less drain on your battery. This amp produces 150-watt RMS per channel.

Easy Tune Feature: These amplifiers use the Easy Tune feature, which automatically regulates audio settings. So, users can get the best quality sound without making manual adjustments.

Less Distortion: Some amplifiers distort audio when they add power. Fusions are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes.

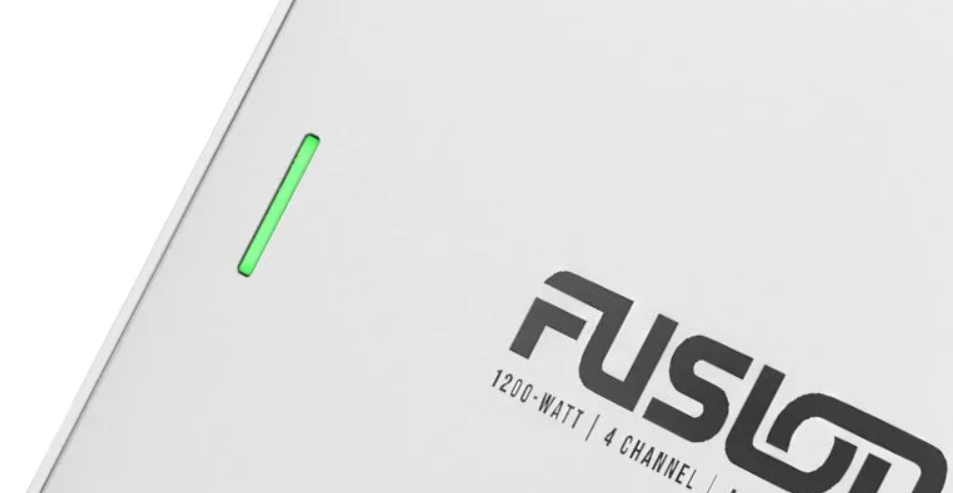

LED Indicators: Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts, as well as temperature.

Mounting Brackets: Easily install the amplifiers on board with the included mounting brackets.

Ignition Protected: The ignition-protected design helps prevent potential damage from overheating.

Conformal-Coated PCBS: The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements.

2 OHM Stable: Connect up to two speakers per channel, increasing setup options.

Fusion True-Marine Design: The amplifier is designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration, and UV.

In the Box:

• One Apollo 8-channel amplifier
• One mounting bracket
• One power connector
• Four speaker connectors with high-power mode adapters
• Four 8-gauge, flat-head self-tapping screws
• Four 8-gauge, pan-head self-tapping screws (for mounting bracket)
• Four screw covers
• Fuse holder
• Mounting template
• Installation instructions
• ISPI
• Warranty: 3 years

Specifications:

• Physical Dimensions without Bracket (L x W x H): 14.13" x 7.06" x 1.75" (359 x 180 x 45 mm)
• Physical Dimensions with Bracket (L x W x H): 14.13" x 7.06" x 2.13" (359 x 180 x 50 mm)
• Weight: 6.94 lb (3.15 kg)
• Water Rating: IPX2
• Amplifier Class: Class-D
• CEA-2006 Power Rating: 150 watt RMS x 8 @ 14.4 V input - 4 ohm < 1% THD
• Total Rated Power Output, 2 Ohm (Watts): 290 watt RMS x 8 @ 14.4 V input - 2 ohm < 1% THD
• Total Rated Power Output, 4 ohm Bridged (watts): 580 watt RMS x 4 @ 14.4 V input - 4 ohm Bridged < 1% THD
• Peak Power (watts): 2400 watts
• Input Sensitivity: 1.6 V RMS
• Input Impedance: 22k ohm
• Operating Voltage: 10.8 V - 16 V DC
• Current Draw, in Standby/off Using Amplifier on Wire: < 5 mA @ 14.4 V input
• Current Draw, On, No Audio: < 1.60 A @ 14.4 V input
• Fuse Rating: 125 A electronic fuse (no replacement necessary)
• Power-Cable Fuse Model and Rating: Bussmann™ BK/AMI-030 30 A fast-acting
• Ignition Safety Protected (SAE J1171): Yes
• Protection Circuits: Reverse voltage, input under/over voltage, over temperature, and output short circuit
• Operating temperature range: 32° to 122° F (0° to 50° C)

Details:

• Bridgeable: Yes
• Channels - Available: 8
• Watts: 2400w
