Fusion Apollo Marine Amplifiers Zone Marine Amplifier (2 Channels)

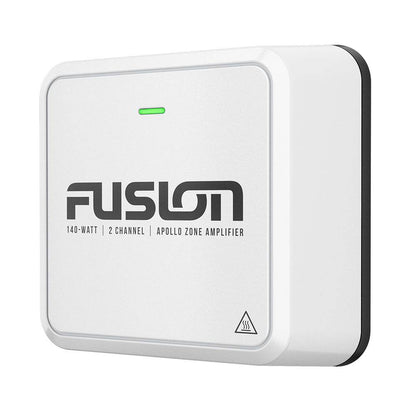

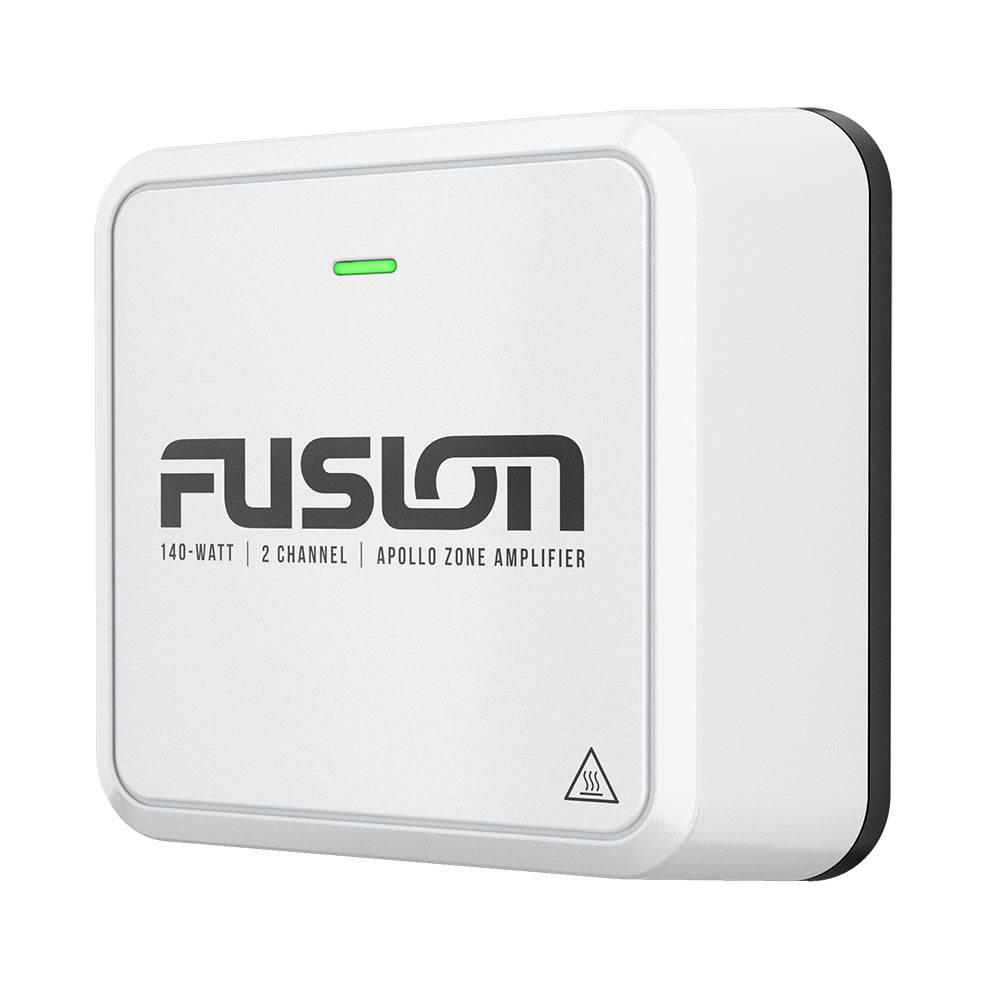

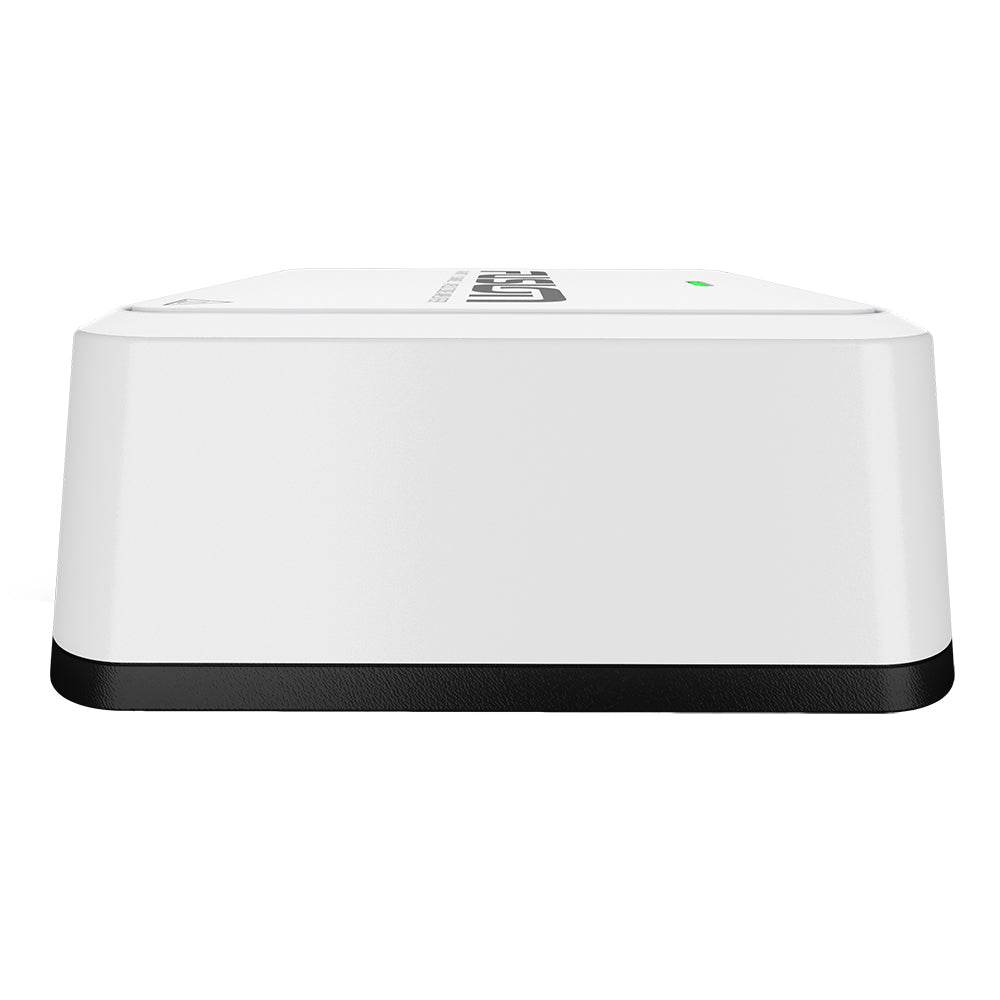

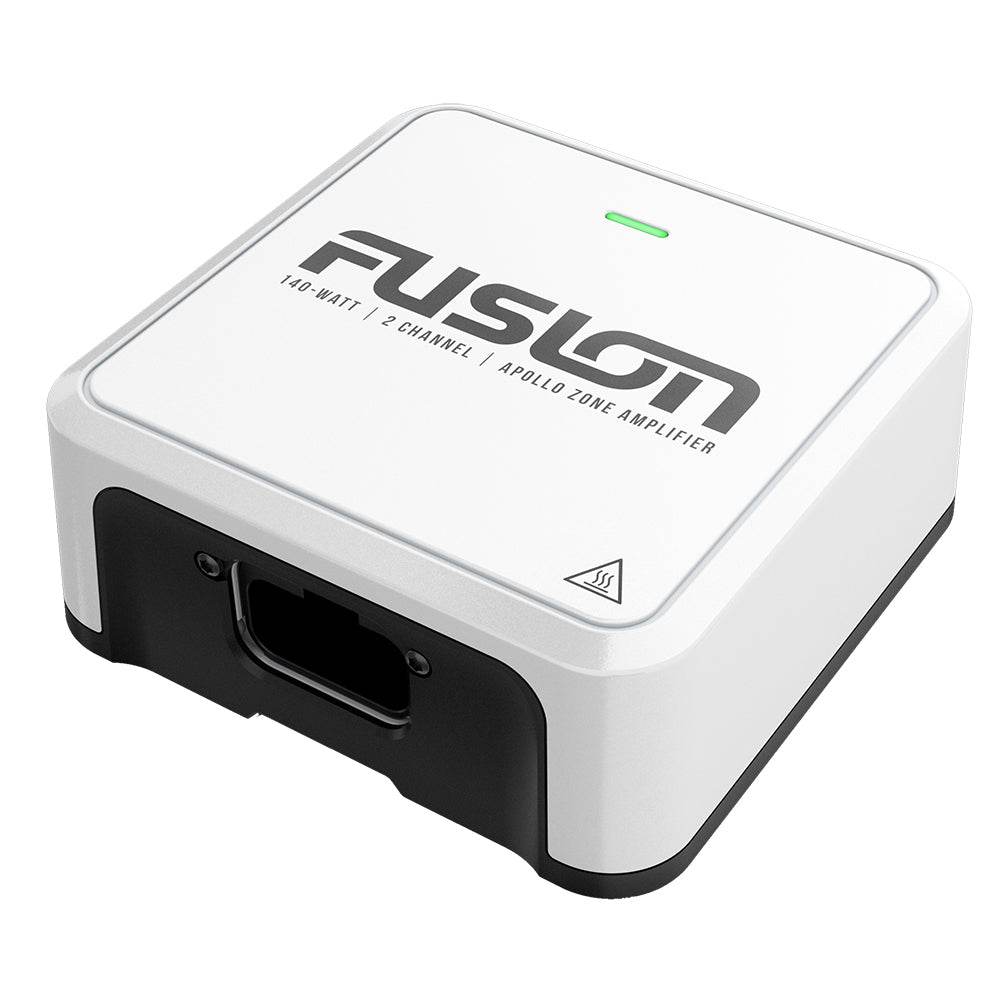

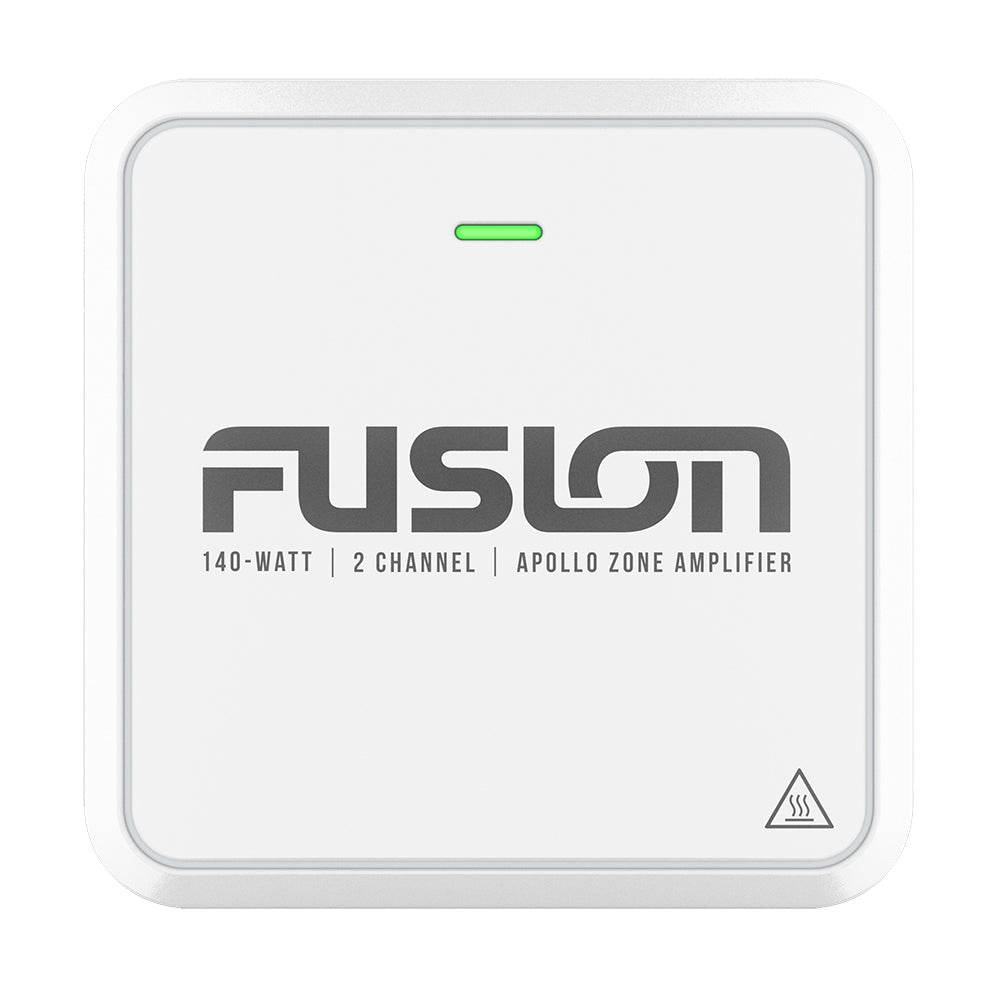

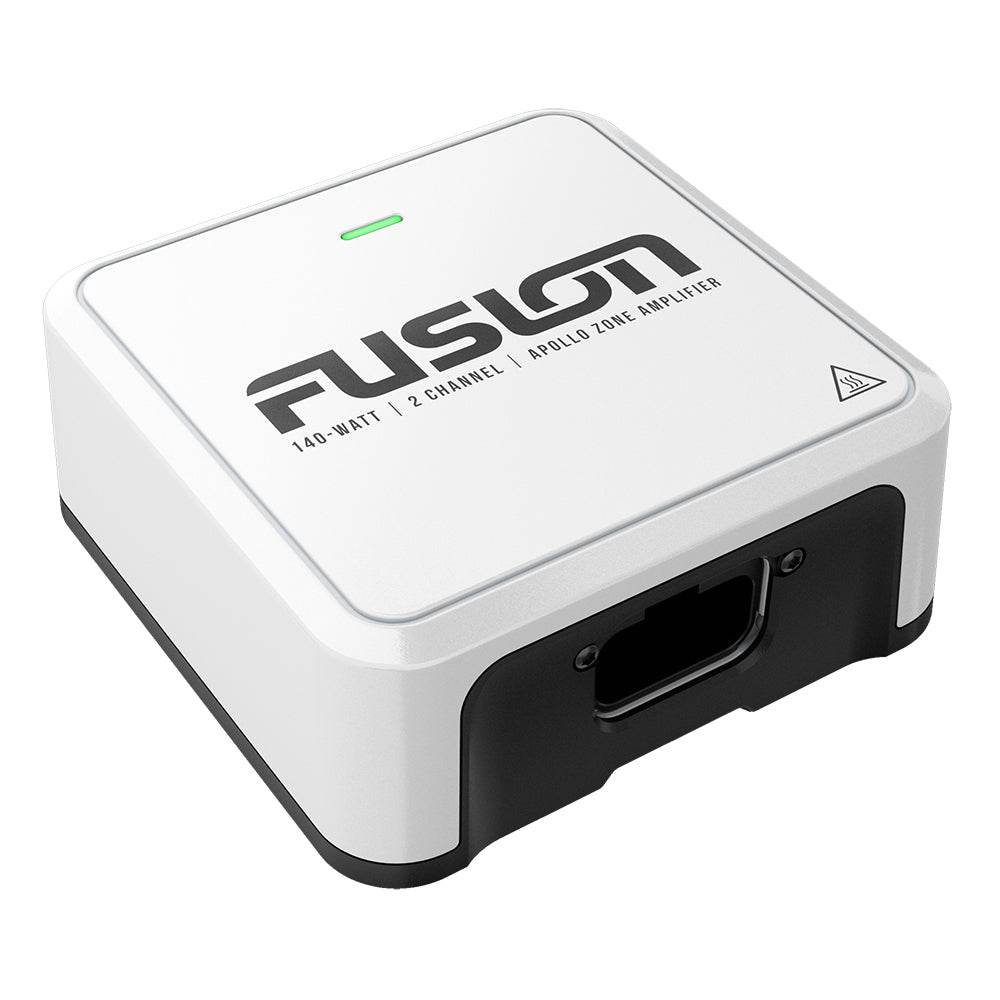

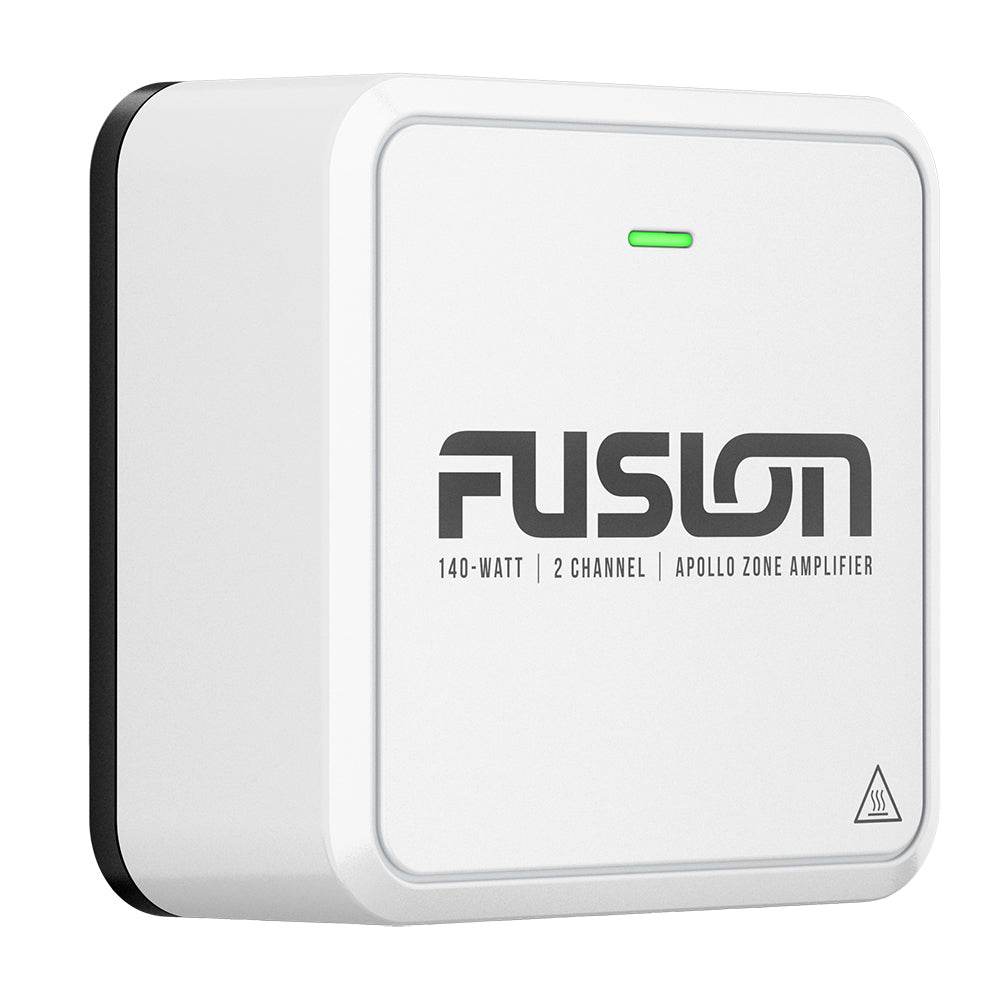

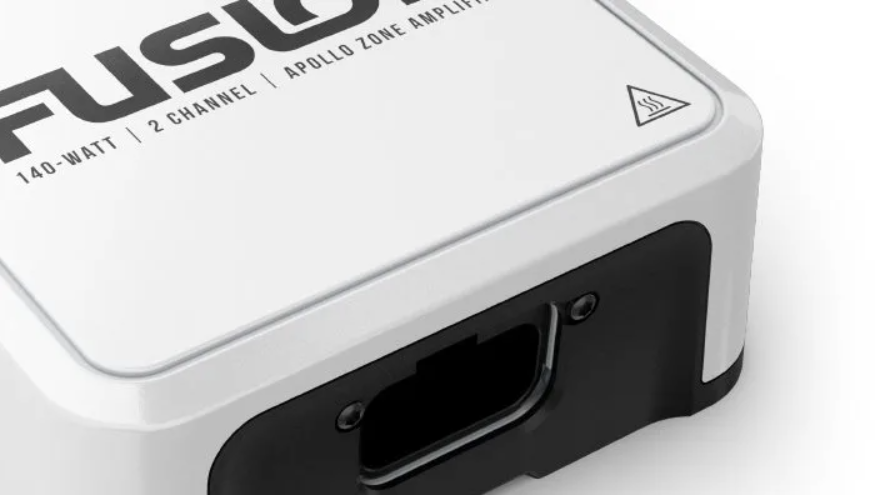

Apollo™ Marine Zone Amplifier - 140W (010-02569-00)

Expand your marine audio reach with the Fusion Apollo™ Marine Zone Amplifier – 140W (010-02569-00). Perfect as a zone amplifier, this compact 2-channel unit extends your system to a new speaker pair while maintaining the rich, clean sound that Fusion is known for. With advanced tuning, marine-grade protection, and seamless integration into your Apollo system, it’s the ideal add-on for any boat audio enthusiast.

Key Features & Capabilities

• 140W Total Output — Delivers ample power to drive an additional speaker pair (up to 70W per channel, depending on impedance and configuration).
• Zone Expansion — Acts as an auxiliary zone amplifier to expand your audio system footprint without replacing your core amplifier.
• Easy Tune Auto-Match — Automatically optimizes crossover, gain, and EQ settings via the Fusion-Link app, ensuring ideal sound with no manual tuning required.
• Marine-Grade Design — Built for harsh marine environments with waterproofing, corrosion-resistant components, and rugged construction for durability on the water.
• Compact & Low-Profile — Slim housing allows flexible mounting options behind panels or inside lockers without sacrificing space.
• Seamless Integration — Works seamlessly with existing Fusion Apollo systems (and compatible Fusion DSP receivers), ensuring consistent user experience across zones.
• High Efficiency & Low Noise — Designed to deliver clean audio output with low distortion and minimal noise, even under load.
• Reliable Protection Circuitry — Over-current, over-temperature, and short-circuit safeguards protect both amplifier and speakers in challenging conditions.
• Wide Compatibility — Supports 4Ω and 2Ω speaker loads, offering flexibility in installation and configuration.

Amplify the moment with an Apollo™ marine amplifier – designed specifically for use with your Fusion DSP-enabled marine stereo and Fusion speakers.

This efficient zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. With 20-watt RMS per channel (at 4 ohms), this 2 channel amplifier allows you to add an extra pair of speakers on board. The Easy Tune feature automatically regulates audio settings for the best sound quality without manual adjustments (Requires setup using the Fusion-Link™ app on a compatible smartphone).

Fusion Apollo AP-DA214

Features:

• RMS Power - 20-watt RMS per channel (at 4 ohms), allowing you to add an extra pair of speakers on board.
• Efficient Class-D Design - Uses less power, so you can listen to music for longer at higher volumes, with less drain on the battery.
• Easy Tune Feature - Automatically adjusts audio settings for the best possible sound quality with no manual adjustments required (Requires setup using the Fusion-Link app on a compatible smartphone).
• Compact Design - The compact size of the zone amplifier makes it a versatile option for mounting on board.

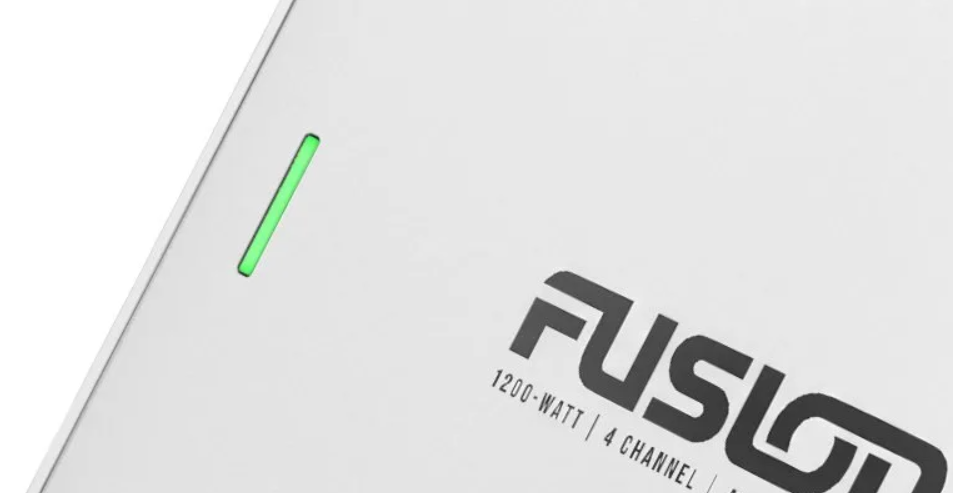

• LED Indicator - Show issues with electrical currents and shorts as well as temperature.
• Less Total Harmonic Distortion - The amplifier is designed with minimal distortion and noise, allowing for better quality audio.
• Ignition Protected - Intelligent electronic fuse prevents damage from over/under current, temperature, output short, and other faults.
• Conformal Coated PCBs - The amplifier circuit board has been specially coated to provide enhanced protection from the marine elements.
• Powder Coated Aluminum Finish - Salt fog, temperature, vibration, and UV tested with a modern aesthetic design to add style to your boat.
• Easy Installation - A mounting bracket is included in the box allowing you to simply clip the amplifier in place for a clean finish.
• 12- and 24-Volt Compatible - The zone amplifier is designed to work with both 12- and 24-volt electrical systems.
• True-Marine™ Design - Designed to withstand the harshest marine environments season after season, the zone amplifier is IPX7 rated and comes with a 3-year warranty.

Technical Specifications:

• Peak Power - 140 Watts
• Power at 4 ohm - 20 Watt RMS
• Power at 2 ohm - 30 Watt RMS
• Operating Voltage - 10.8 to 32 VDC
• Class D Amplifier
• Water Rating - IPX7
• Dimensions with bracket (W x H x D) - 3.94" x 4.53" x 1.89"
• Dimensions without bracket (W x H x D) - 3.94" x 3.94" x 1.57"
• Weight - 1.01 pounds

In the Box:

• One Apollo zone amplifier
• One mounting bracket
• Three 6-gauge, self-tapping screws

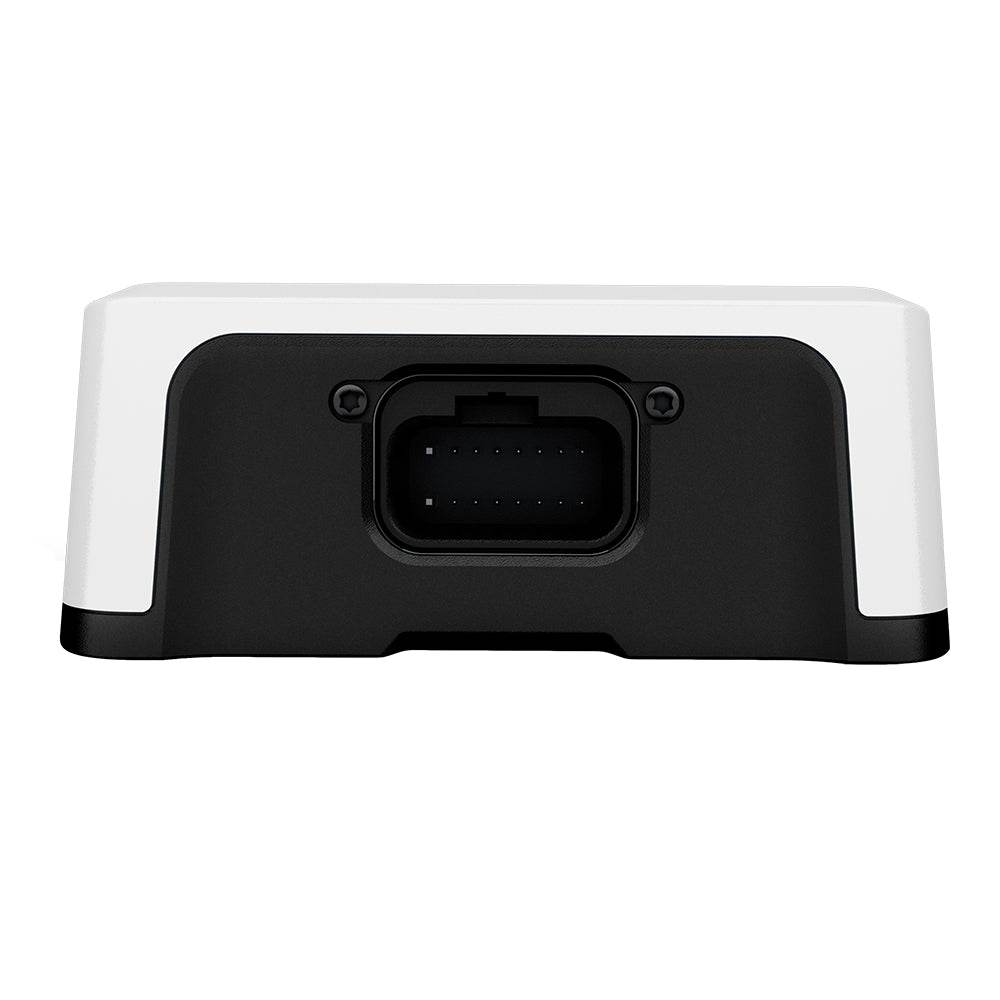

• Wiring loom
• Installation instructions
• Important safety and product information (ISPI)
• Warranty: 3 years

*Sold as an Individual

Specifications:

• Bridgeable: No
• Channels - Available: 2
• Waterproof Rating: Splashproof
• Watts: 140w
