Garmin APK 10 Autopilot Keypad (Horizontal)

APK™ 10 Autopilot Keyboard - Horizontal (010-03197-00)

Take command of your marine autopilot system with the Garmin APK 10 Autopilot Keyboard – Horizontal (0100319700), engineered to give you intuitive, precise control of your helm-station. Designed for seamless integration, compact installation, and rugged marine performance.

• Designed specifically to control the Reactor™ 40 autopilot system, giving you simple, at-a-glance operation of standby, engage, heading changes and more.

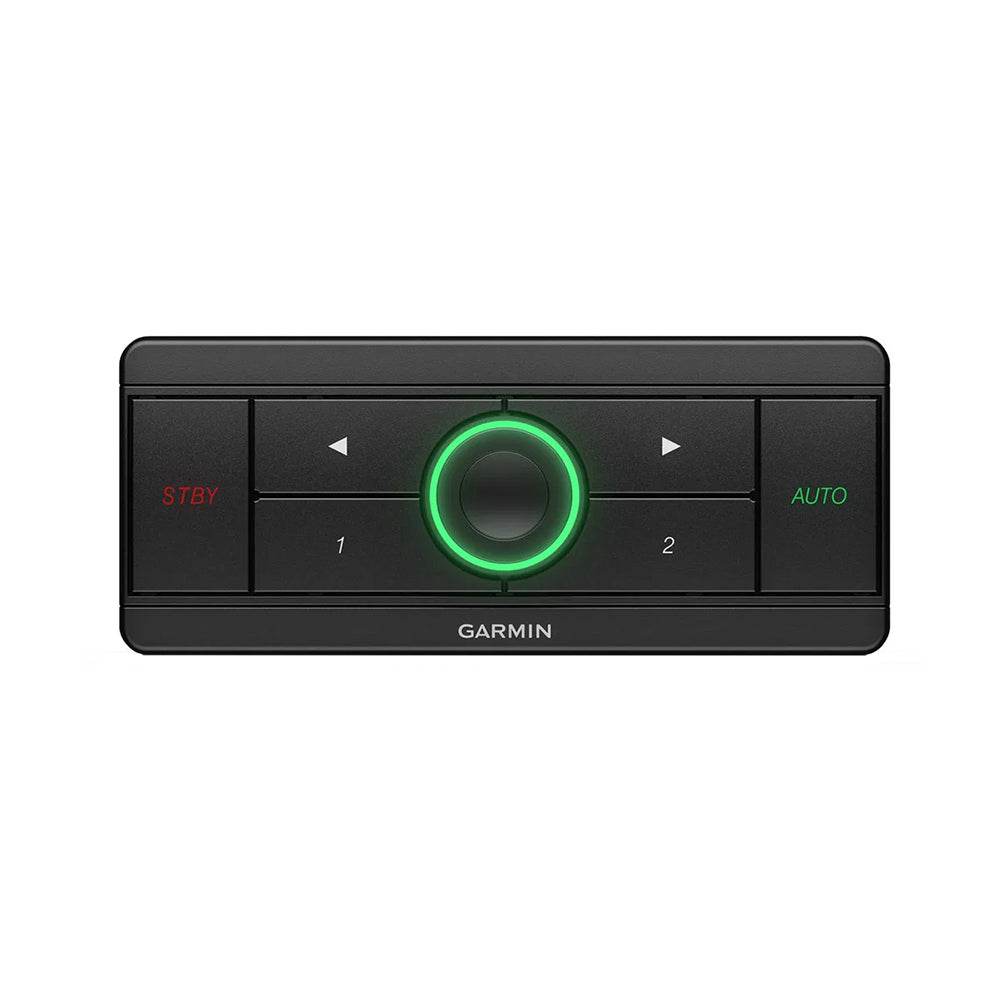

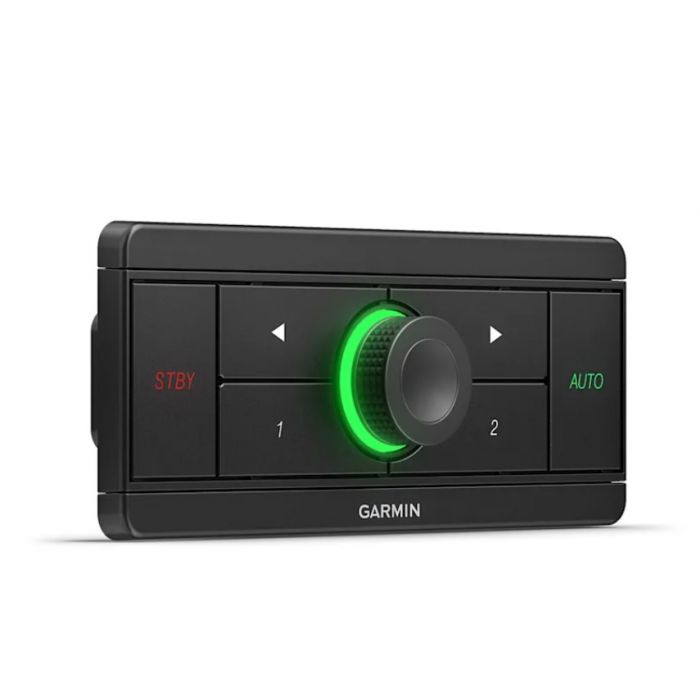

• LED-encircled rotary knob for precision heading control, with color-coded LED ring that gives you quick visual feedback on autopilot status.
• Dedicated Autopilot Buttons (Engage & Standby) plus Multipurpose Buttons that you can configure to suit your vessel type or helm layout—ideal for customizing advanced autopilot tasks.

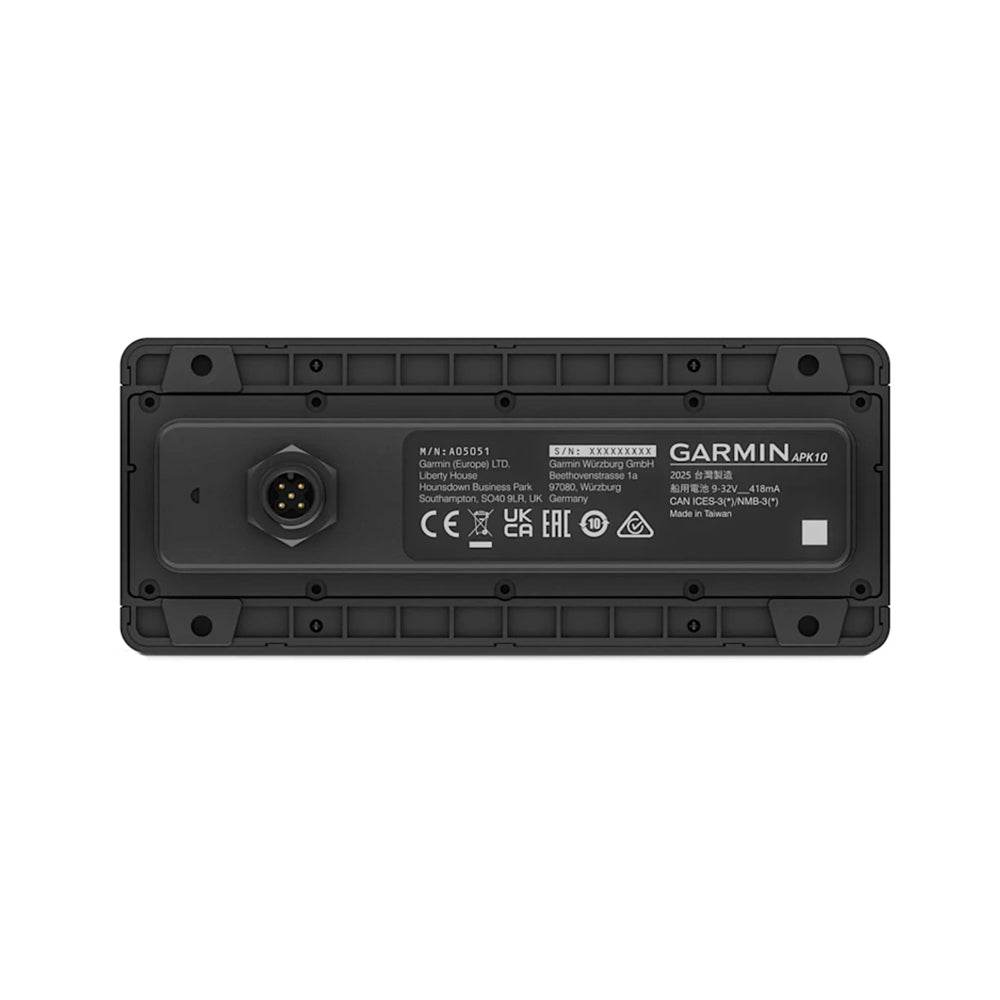

• Effortless integration via the NMEA 2000® network: only a single port & cable required for both control and power, minimizing installation complexity and wiring clutter.
• Low-profile, sleek design built to match the height of your GHC 50 instrument or GPSMAP® chartplotter—available in both horizontal and vertical mounting to suit new or existing helm displays.
• Built for harsh marine environments: Fully-gasketed high-impact plastic housing, IP X7 water resistance for durability in spray or splash conditions, and an operating temperature range from -15 °C to 70 °C (5° to 158 °F).
• Extremely lightweight (4.09 oz / 116 g) in horizontal form, reducing helm panel bulk and simplifying flush or surface mounting options.
• Compass-safe distance of 4.5” (114 mm), ensuring the keypad won’t interfere with sensitive magnetic compasses on board.

In the box: Horizontal keypad unit, 2 m backbone/drop cable and T-connector for NMEA 2000 network, mounting hardware (flush & surface), and documentation—ready for installation.

Why Choose This Autopilot Keypad
Whether you’re upgrading your helm or outfitting a new vessel, the Garmin APK 10 represents a polished, high-quality interface tailored for serious marine navigation.

It gives you tactile control of your autopilot without relying solely on touchscreen menus. By offering dedicated physical controls for engage/standby, heading changes via a rotary knob, and multipurpose buttons for custom functions, the APK 10 improves situational awareness—especially when conditions demand focus and precision.

Its robust build and NMEA 2000 networking compatibility make it a smart solution for professional mariners and informed boating enthusiasts alike.

Installation & Setup Tips

• Ensure your helm’s NMEA 2000 network is powered and has an available drop port before mounting the keypad.
• When selecting mounting location, choose a sturdy panel surface at the same height as your GHC 50 or compatible chartplotter to maintain ergonomic consistency.

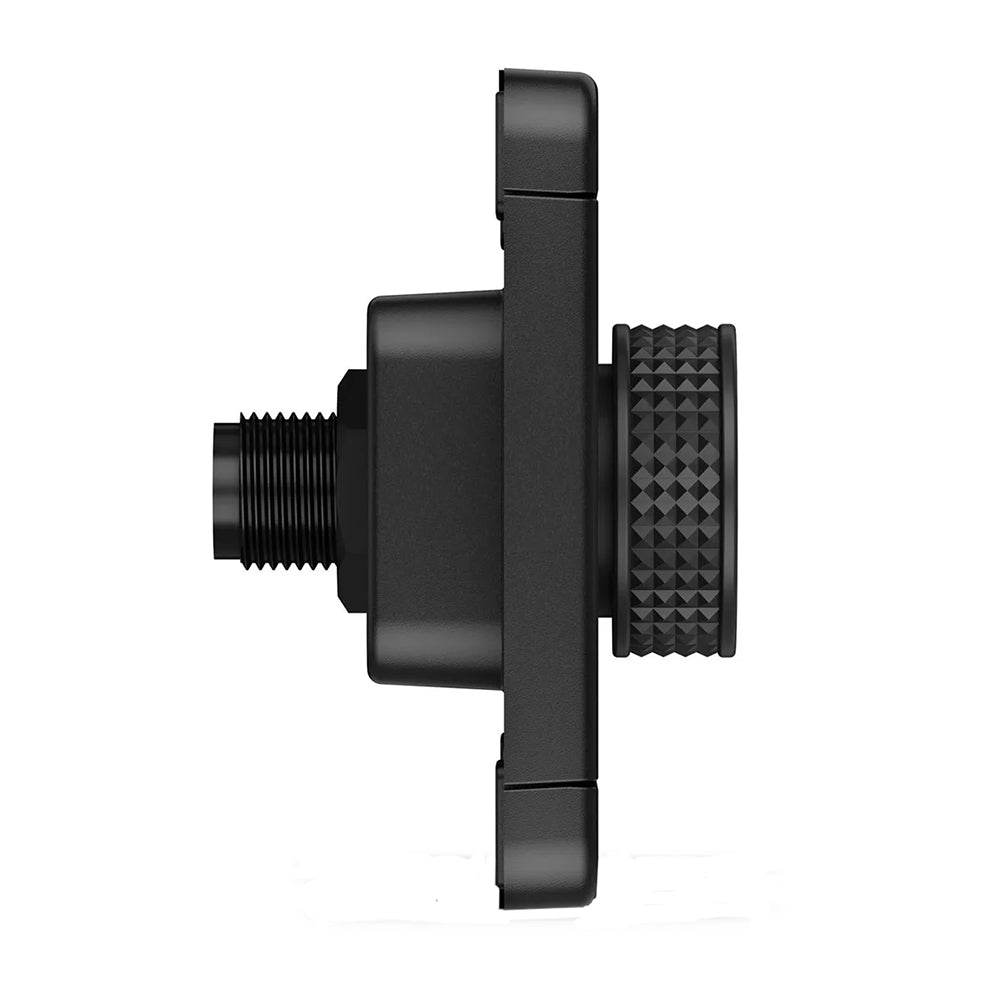

• For flush mounting, allow clearance behind the panel for the 7 mm depth; for surface mounting, depth is 16.4 mm.
• Orient the keypad so the rotary knob is comfortably reachable from your seated helm position—this improves fine heading adjustments under autopilot control.
• Use the NMEA 2000 cable provided and T-connector to integrate with your backbone; no separate power feed is required for this unit.
• After installation, configure the multipurpose buttons in your autopilot system menu to map any additional functions such as “Auto Level”, “Track”, or “Waypoint”.
• Keep the keypad within the compass-safe clearance to avoid interference (minimum 4.5” / 114 mm).

Final Word
If you seek simple, authoritative control over your autopilot system, the Garmin APK 10 Autopilot Keyboard – Horizontal is a standout component. It brings intuitive physical controls, modern network integration, and rugged marine reliability into one compact keypad—perfect for serious boaters who demand performance and ease of use.

Specifications:

• Dimensions (WxHxD): Flush mount: 5.5” x 2.3” x 0.28” (139.7 x 57.4 x 7.0 mm) Surface mount: 5.5” x 2.3” x 0.65” (140.7 x 58.4 x 16.4 mm)
• Weight: Horizontal: 4.09 oz (116 g)
• Temperature range: From 5° to 158°F (from -15° to 70°C)
• Material: Fully-gasketed, high-impact plastic
• Water rating: IPX7
• Compass-safe distance: 4.5” (114 mm)
• Powered input: Powered supplied from the NMEA 2000® network
