Garmin ECHOMAP UHD2 93sv 9" Chartplotter/Fishfinder Combo (US Inland Maps + GT56UHD-TM)

ECHOMAP™ UHD2 93sv 9-inch Chartplotter/Fishfinder Combo with US Inland Maps & GT56UHD-TM (010-02688-01)

KNOW THE WATER BETTER THAN A LOCAL

When it comes to catching more fish, they say, “Talk to a local.” With the ECHOMAP UHD2 chartplotter (0100268801), which offers our best-in-class sonar and mapping and premium touchscreen display with a keyed assist, you’ll know the water even better than they do.

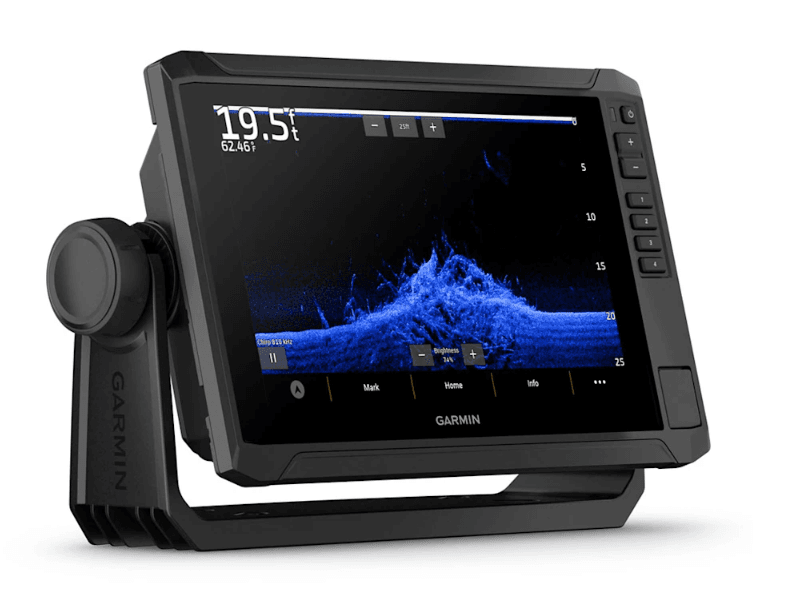

• Bright 9-inch sunlight-readable touchscreen display with keyed assist: easy to navigate even in glare, this 1024 × 600 resolution screen gives crisp visuals of sonar and maps.

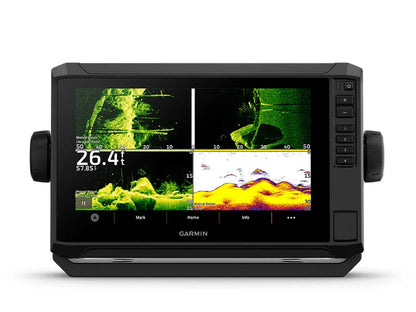

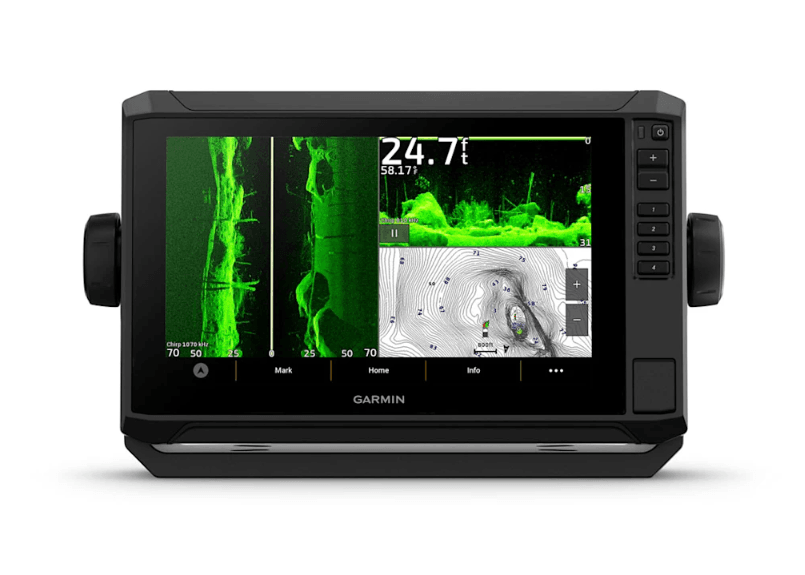

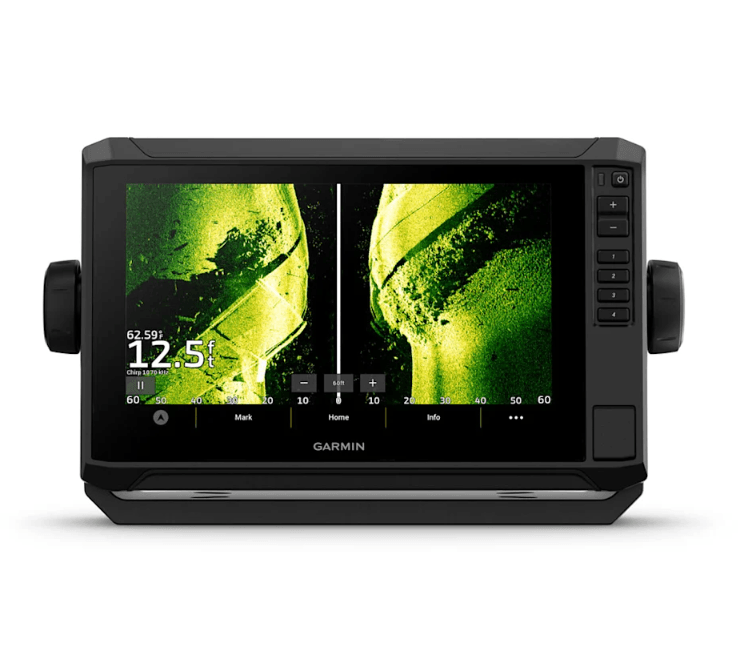

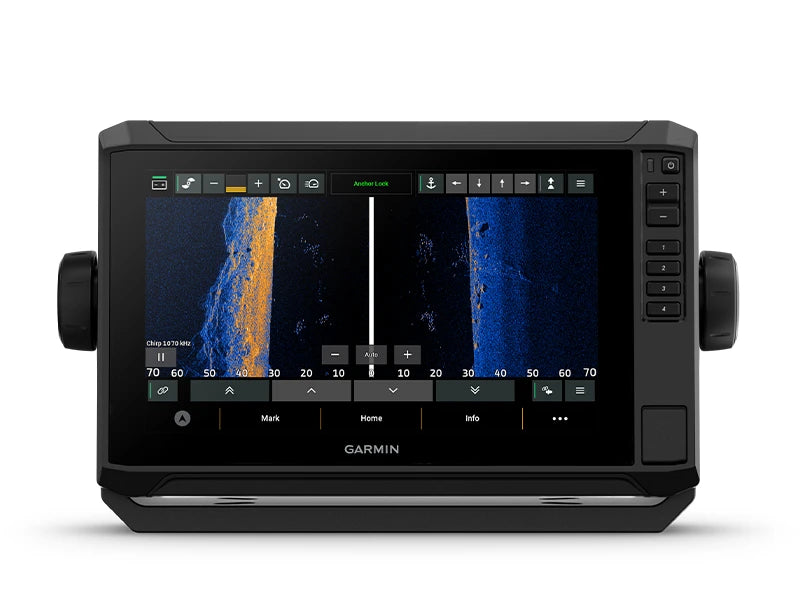

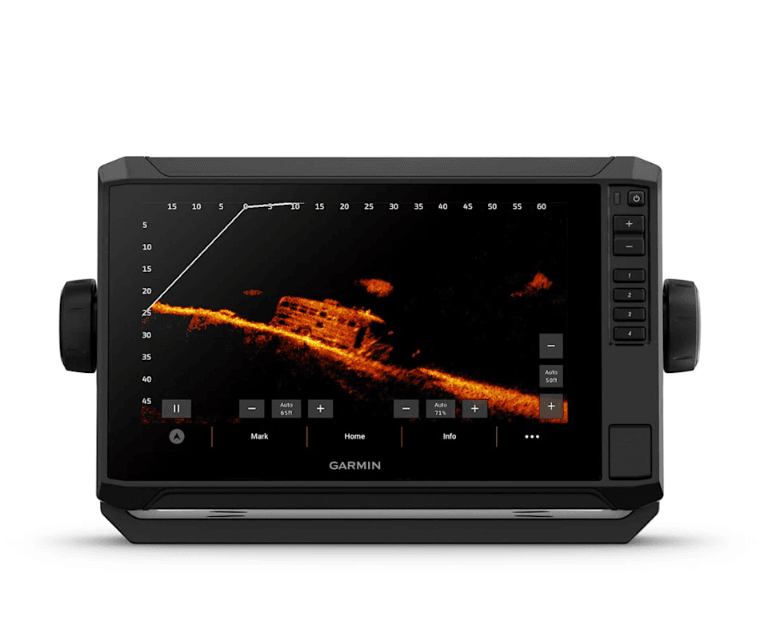

• Triple-sonar support: built-in CHIRP traditional sonar, ClearVü™ scanning sonar, and SideVü™ scanning sonar let you spot fish and structure beneath and beside your boat with remarkable clarity.

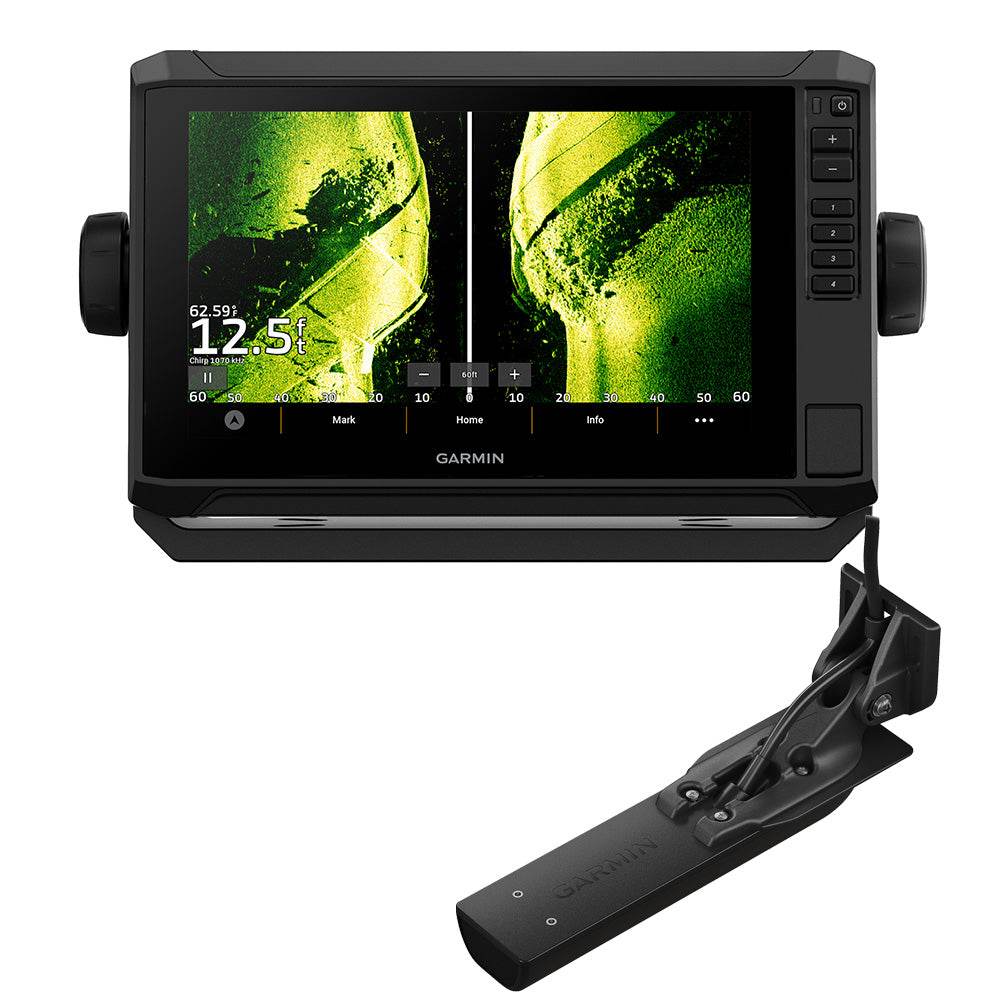

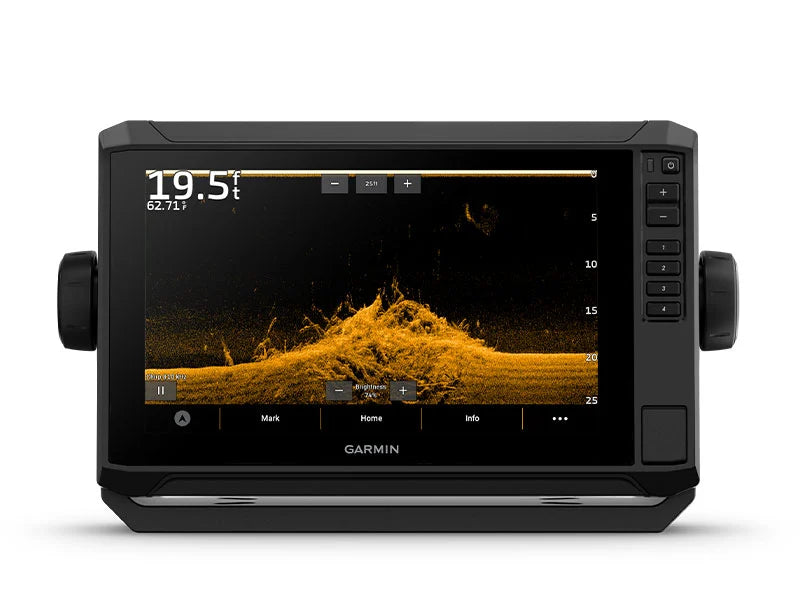

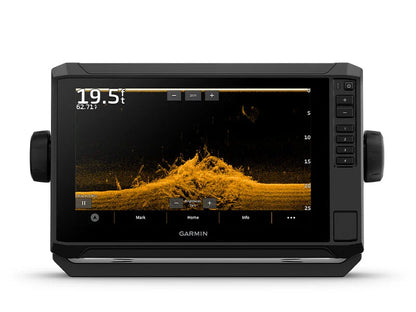

• Ultra-high definition transducer bundled: The GT56UHD-TM transducer delivers premium performance, supporting the scanning sonar modes and offering up to 500 W of CHIRP transmit power (for ClearVü/SideVü) for outstanding target separation.

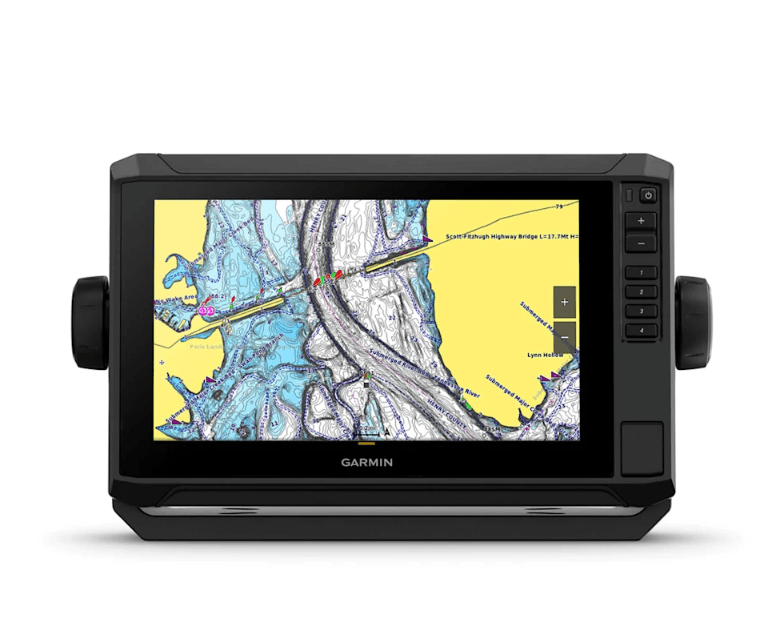

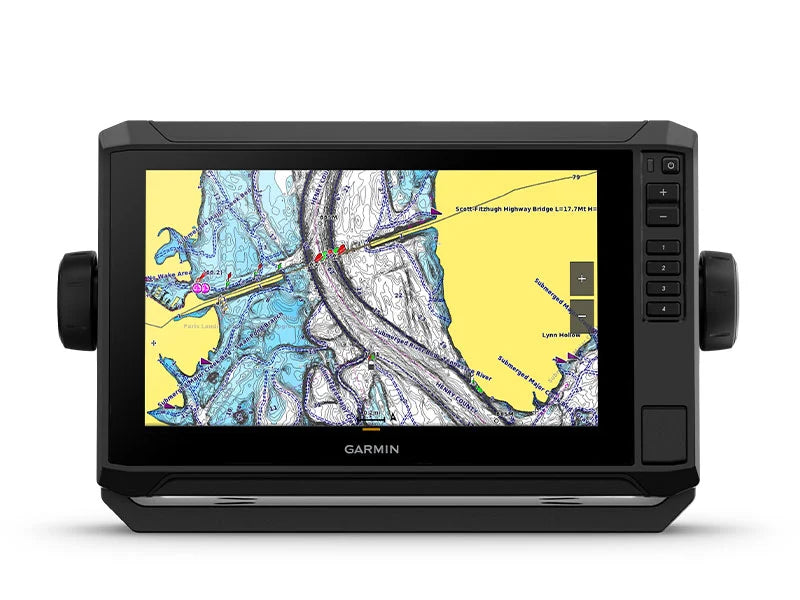

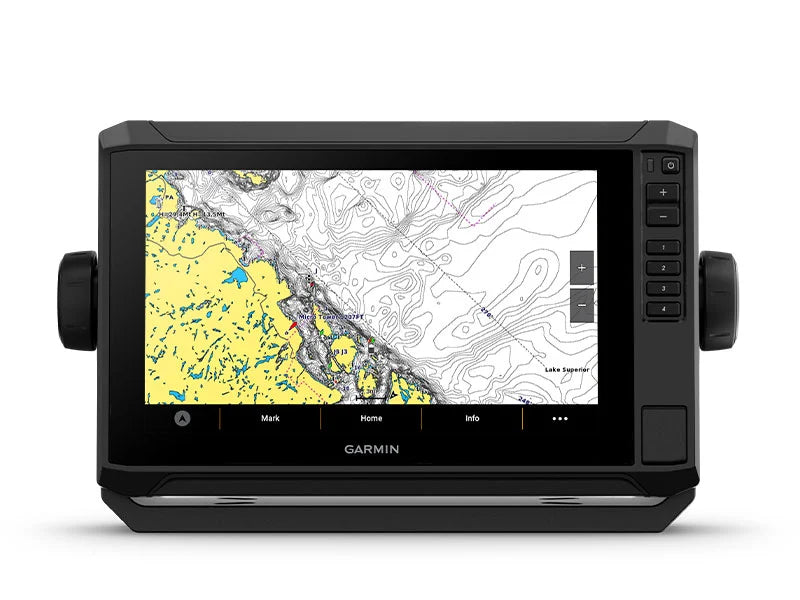

• Preloaded US Inland Maps with upgrade path: Comes loaded with Garmin Navionics+™ inland cartography (covering thousands of lakes) and includes a 1-year update subscription.

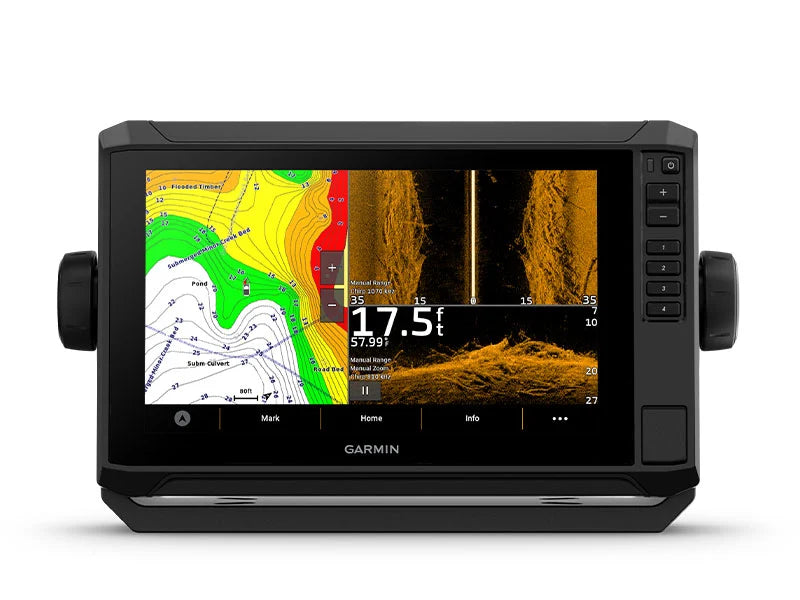

• Wireless networking & app integration: Built-in Wi-Fi for connectivity with the free ActiveCaptain® mobile app allows you to access OneChart™, receive smart notifications, update software, and share waypoints/sonar with other compatible units.

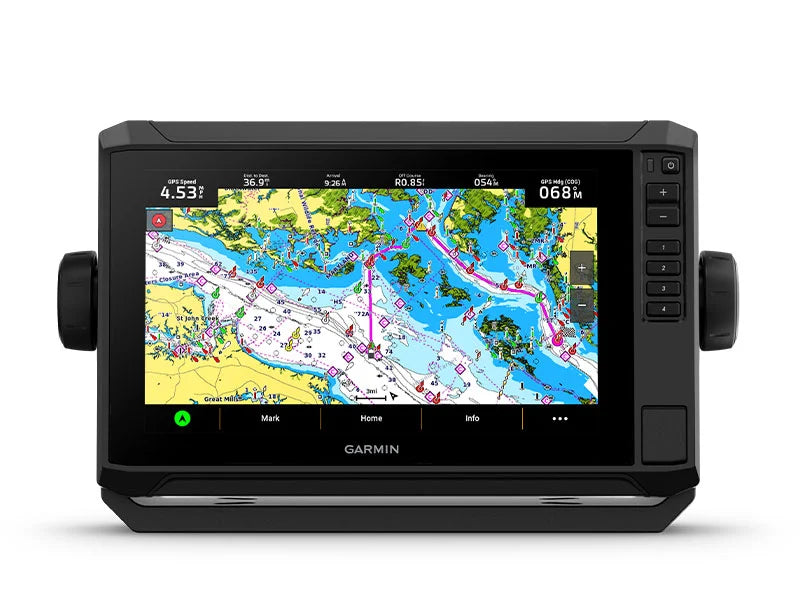

• Auto Guidance+™ routing: With the Navionics+ charts, you can download the Auto Guidance+ feature via the app — plan routes for your boat with ease (note: for planning only, not a substitute for safe navigation).

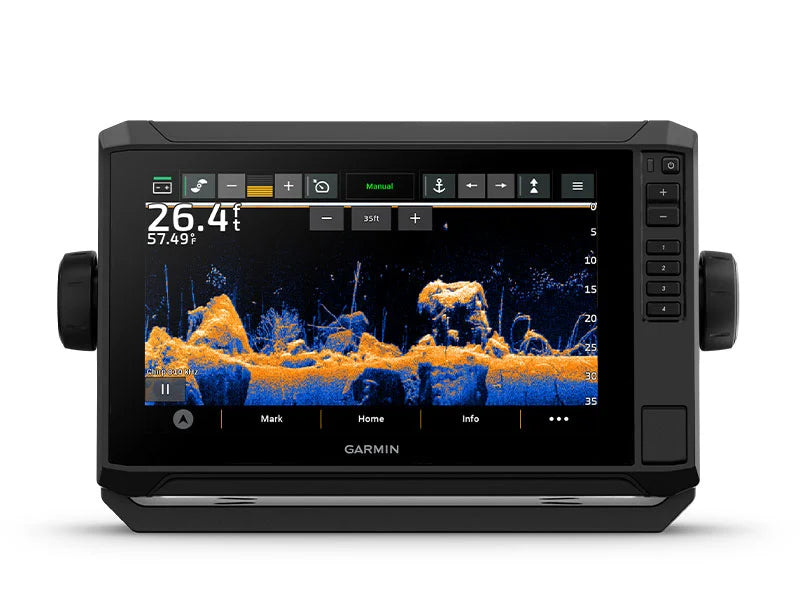

• Multi-band GPS: Enhanced positioning accuracy in tricky signal environments gives you reliable location fixes, even in reflective or weak signal areas.

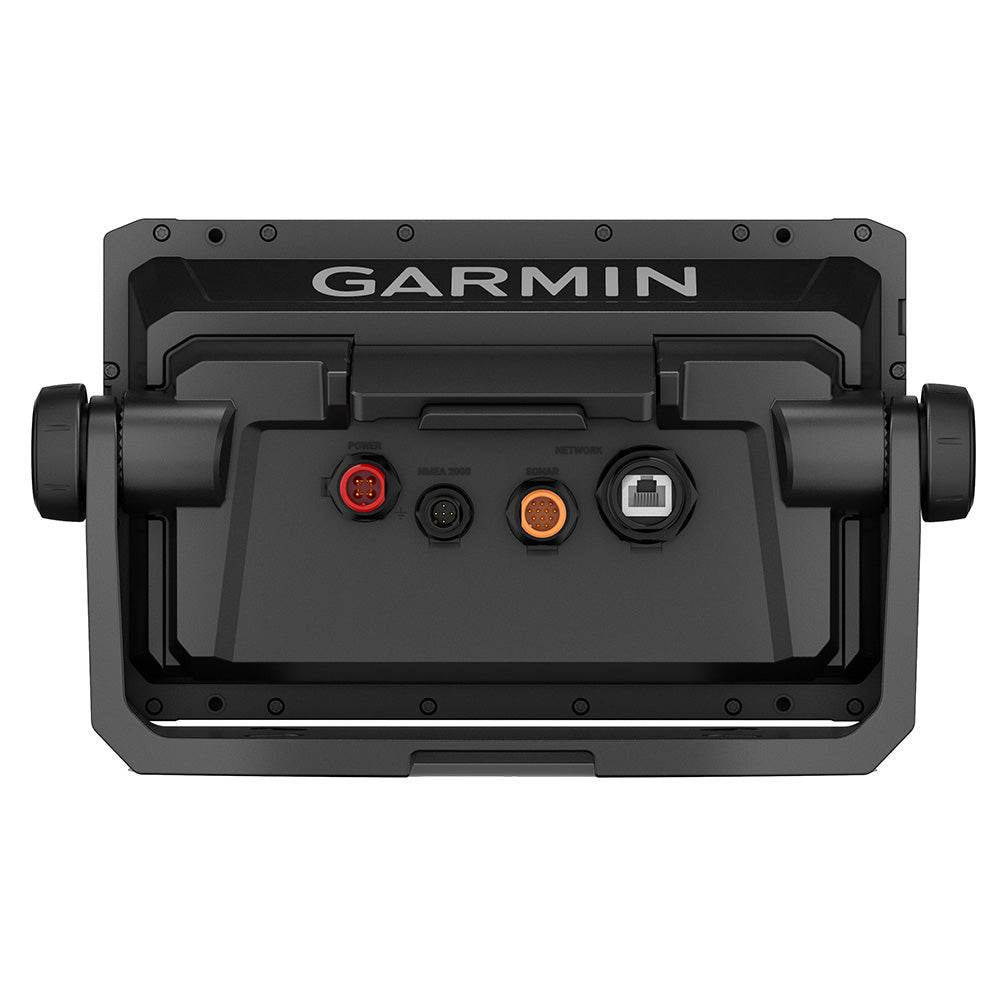

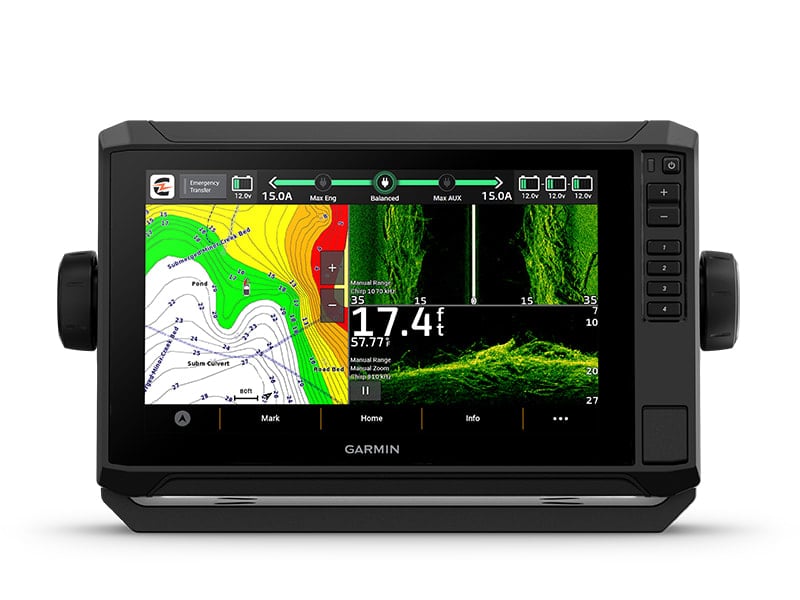

• Expandable and network capable: The unit supports NMEA 2000 and Garmin Marine Network ports, allowing integration with other boat systems (sensors, engine data, heat maps, etc.). Also includes a microSD card slot for chart expansion and Quickdraw™ Contours custom mapping.

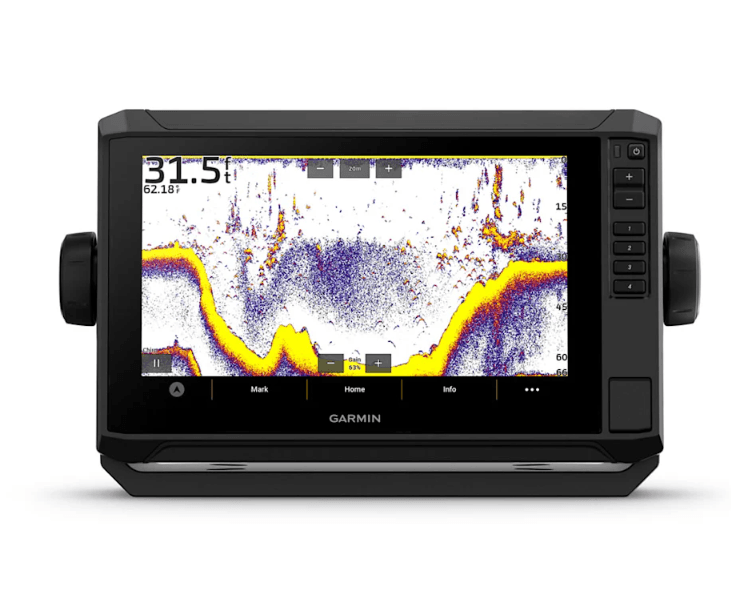

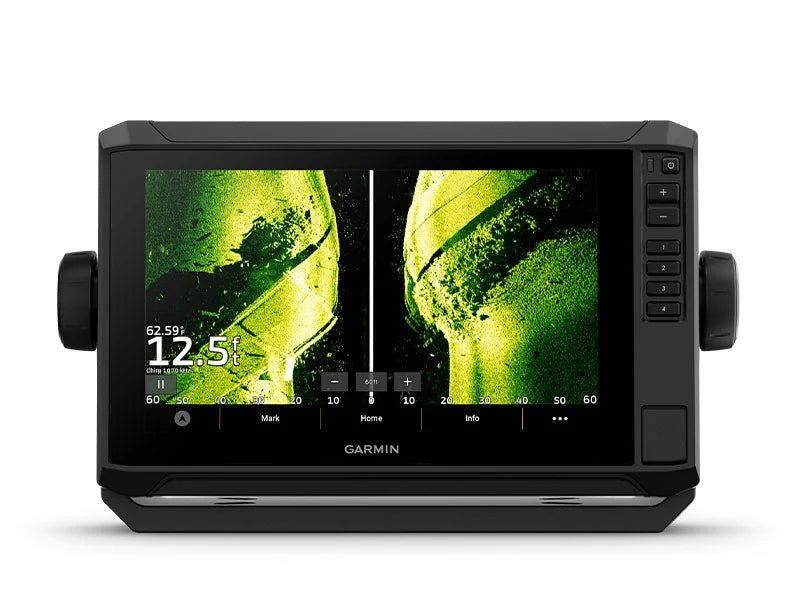

• High-contrast vivid color palettes: The display uses vivid sonar color schemes to make it easier to distinguish fish targets, submerged objects and bottom structure at a glance.
• Rugged, reliable construction: The chartplotter is rated IPX7 (splash proof/up to 1 m for 30 mins), suitable for marine environments, and operates in temperatures from –4 °F to +131 °F (-20 °C to +55 °C).

Why It Stands Out
This combo isn’t just another fishfinder/chartplotter. The UHD2 93sv pairs a large, premium 9″ screen with top-tier sonar technologies (traditional CHIRP + ClearVü + SideVü) and advanced mapping via Navionics+.

That means you’re seeing more of what’s beneath and beside your boat—and navigating with confidence. The wireless sharing, mobile-app integration and ability to network with other devices (even your trolling motor) bring modern connectivity to the water.

Whether you’re chasing fresh-water structures, navigating inland lakes, or tracking schools with side-imaging clarity, this unit delivers pro-level features in a single package.

Ideal For

• Inland lake anglers looking for detailed coverage and superior imaging.
• Boat owners who want to upgrade from basic sonar/fishfinders to a high-performance combo.
• Fishermen using multiple onboard displays and needing wireless sonar/waypoint sharing.
• Anglers who value chart-plotting, route planning and deep integration with smartphone apps.
• Anyone wanting to “know the water better than a local.”

Specifications Snapshot

• Display: 9″ diagonal, 1024 × 600 pixels.
• Dimensions: Approx. 10.4″ × 6.5″ × 3.2″ (264 × 166 × 80 mm) for device only, bail-mount variant ~303 × 182 × 99 mm.
• Weight: ~2.9 lb (1.3 kg) for the 9″ unit.
• Sonar frequencies (dependent on transducer): TRAD CHIRP: 50/77/83/200 kHz; ClearVü & SideVü CHIRP: 260/455/800/1000/1200 kHz.
• Power Requirements: 9-18 V DC input; typical current draw ~1.72 A at 12 V for 9″ model.
• Water Rating: IPX7.

In the Box

• ECHOMAP UHD2 93sv chartplotter/fishfinder display
• GT56UHD-TM transducer bundle
• Power cable with in-line fuse

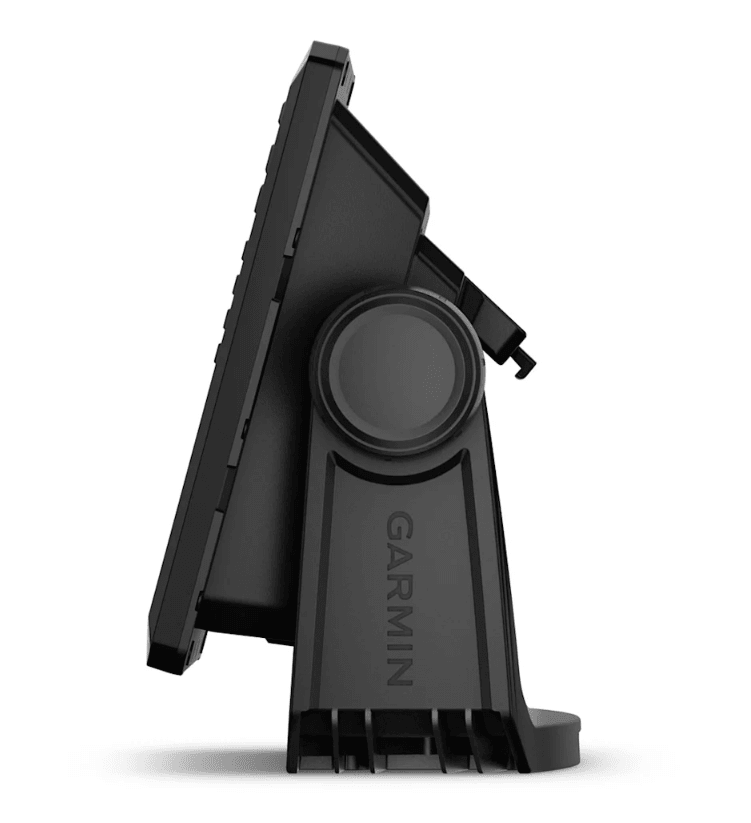

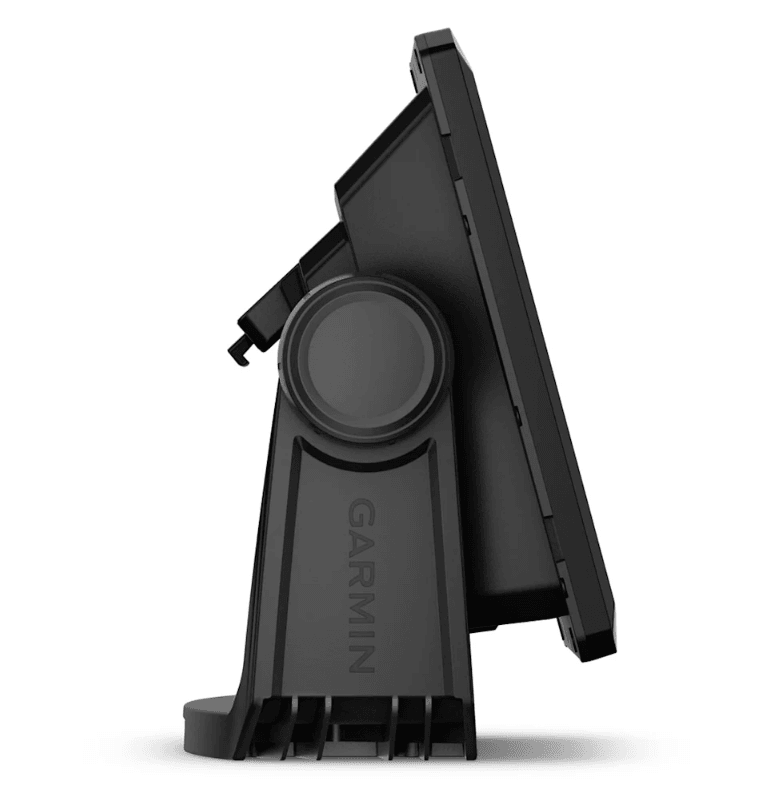

• Tilt mount with quick-release cradle
• Protective cover
• Hardware & documentation
