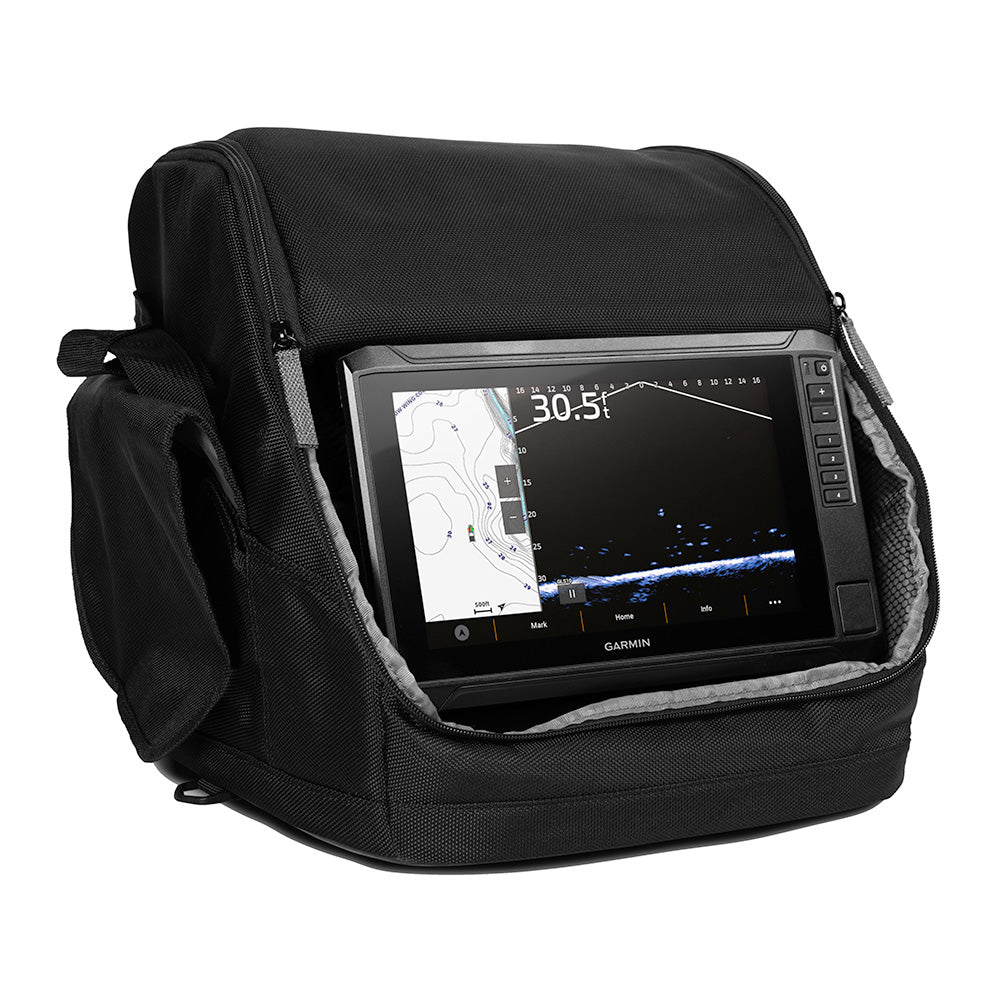

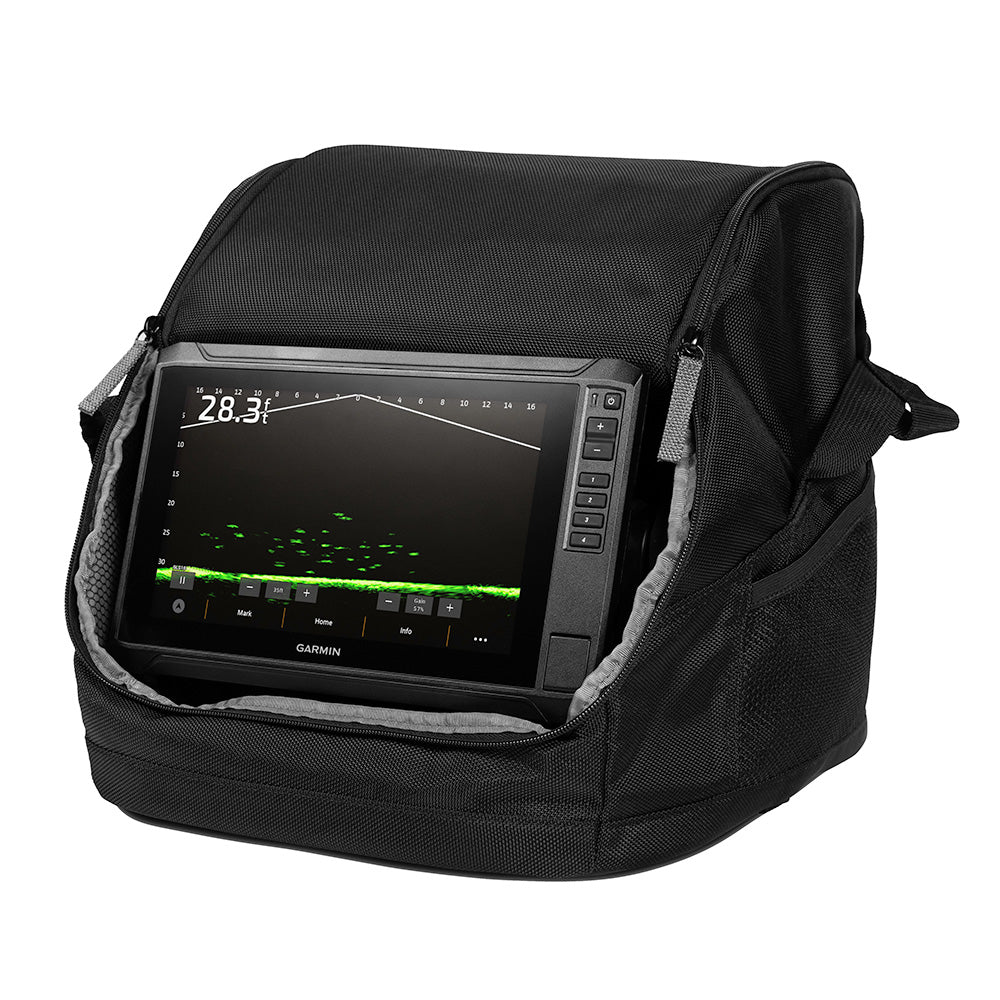

Garmin LiveScope Plus Lithium-ion Ice Fishing Bundle

Includes ECHOMAP™ UHD2 93sv, LiveScope Plus System & Lithium-ion Battery

Part Number: 010-02688-35

The Garmin ECHOMAP™ UHD2 93sv LiveScope™ Plus Ice Fishing Bundle LI delivers real-time sonar clarity, precision mapping, and extended battery life in a rugged, portable ice-ready system. Built around Garmin’s latest LiveScope™ Plus technology and a bright 9” UHD touchscreen display, this bundle lets serious ice anglers locate fish faster, drill smarter, and fish longer—without compromise.

LiveScope™ Plus Ice Fishing Performance

• LiveScope™ Plus delivers improved resolution, reduced noise, and sharper target separation versus previous LiveScope generations
• LiveScope™ Forward Mode scans up to 200 ft in any direction, helping you locate schools of fish and choose where to drill
• LiveScope™ Down Mode shows real-time movement beneath the ice so you can watch fish react to your jig
• LVS34-IF transducer cable remains flexible in freezing conditions for reliable performance on the ice

ECHOMAP™ UHD2 93sv Display & Controls

• Large 9” WVGA IPS touchscreen with keyed assist for gloved operation
• 1024 x 600 resolution delivers crisp sonar, mapping, and flasher views
• Create custom combo pages combining live sonar, flashers, charts, and GPS
• Touchscreen + physical keys provide fast navigation in cold weather

Advanced Mapping & GPS Accuracy

• Preloaded Garmin Navionics+ maps covering 23,000+ U.S. lakes
• Auto Guidance+ (via ActiveCaptain® app) for route planning
• Supports Quickdraw Contours for custom HD lake maps
• Multi-band, multi-constellation GPS with GPS, GLONASS, Galileo, and BeiDou support for precise positioning

Extended Ice Time & Portability

• Includes a lightweight 16.5Ah lithium-ion battery for longer fishing sessions
• Battery provides high output without adding bulk to your sled
• Rugged XL portable carrying case protects gear and makes hole-to-hole transport easy
• Complete ice pole mount and tilt mount included for quick setup

Built-In Sonar Power

• 500 W sonar output
• Traditional CHIRP sonar (50/77/83/200 kHz, L/M/H CHIRP)
• Built-in ClearVü™ and SideVü™ scanning (260–1200 kHz)
• Full Panoptix™ & LiveScope™ compatibility

Connectivity & Integration

• NMEA 2000® compatible
• Garmin Marine Network port
• Bluetooth®, ANT+, and Wi-Fi connectivity
• ActiveCaptain® app support for updates, maps, and data sync

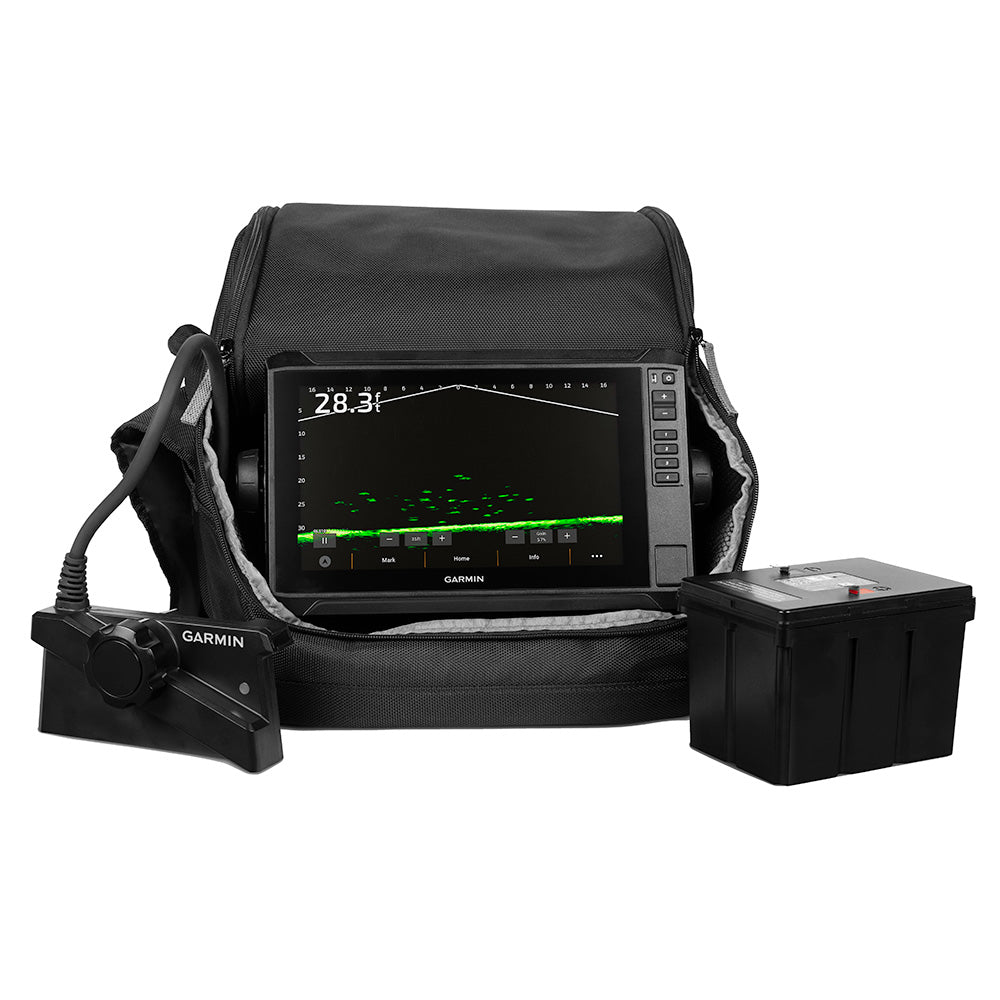

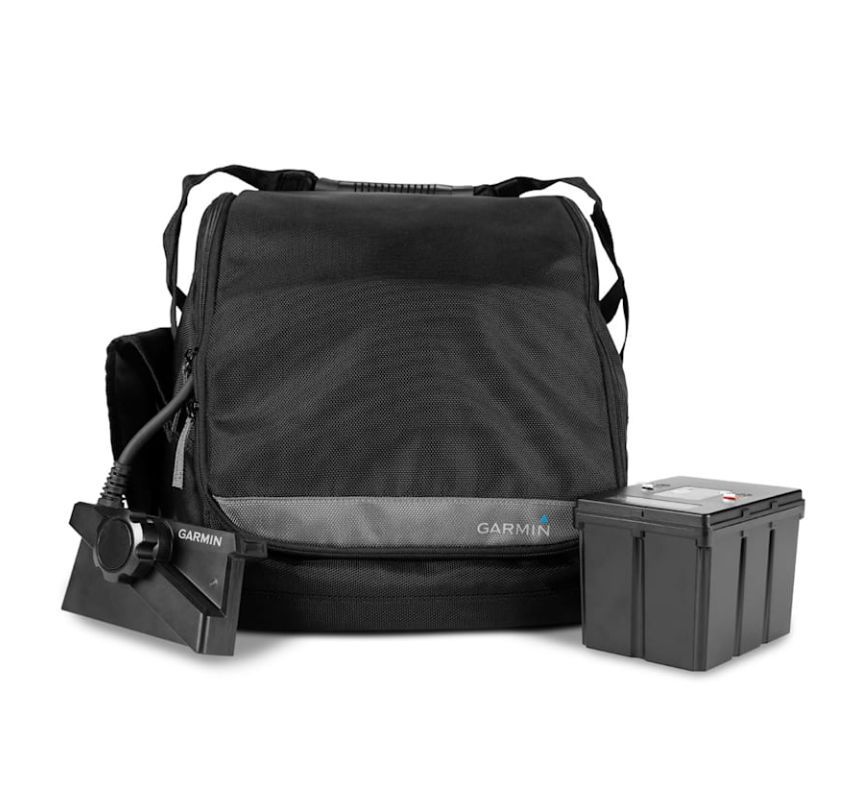

What’s Included in the Box

• Garmin ECHOMAP™ UHD2 93sv chartplotter
• LiveScope™ Plus LVS34-IF transducer
• GLS™ 10 sonar module
• Ice fishing swivel pole mount
• Tilt mount
• Power cable

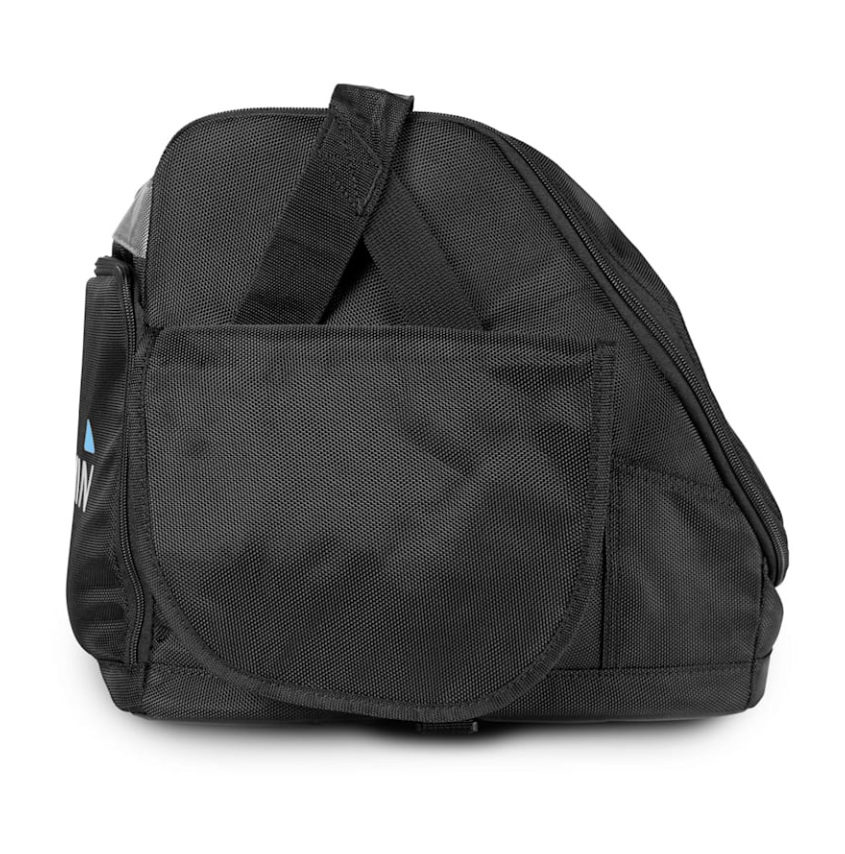

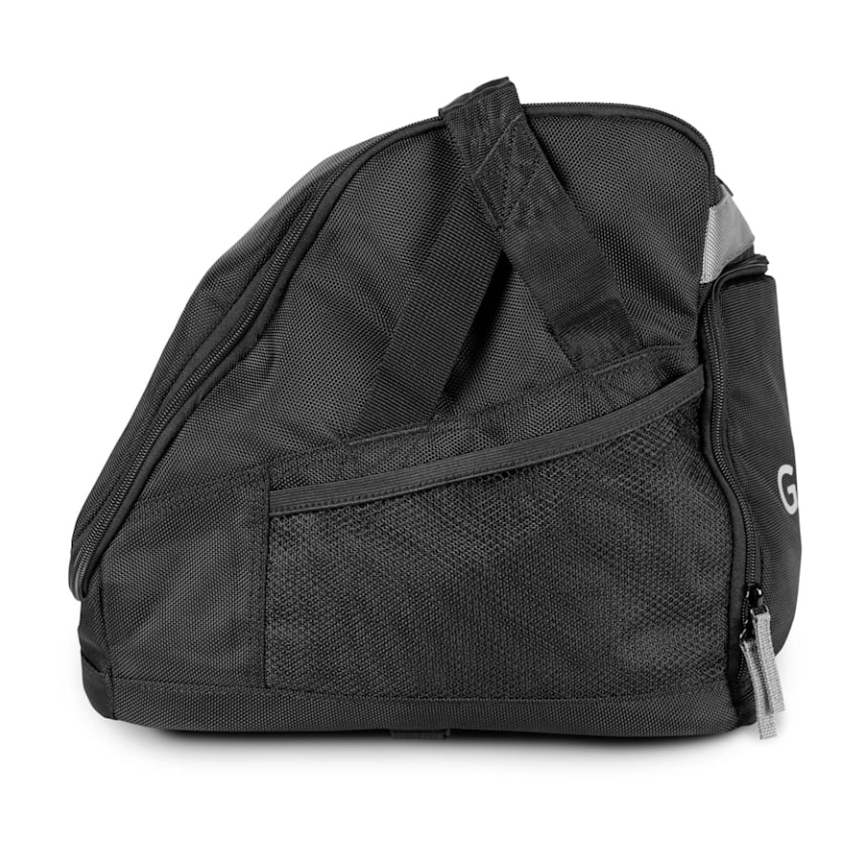

• Extra-large portable ice fishing bag with handle
• 16.5Ah lithium-ion battery
• Battery charger
• Documentation

Key Specifications

• Display Size: 9” (7.8” x 4.5” viewable)
• Resolution: 1024 x 600 pixels
• Display Type: WVGA IPS
• Touchscreen: Yes (with keyed assist)
• Waterproof Rating: IPX7
• Weight: 22.5 lbs
• Dimensions: 13.8” x 12.2” x 13.0”
• Power Input: 9–18 Vdc
• Battery: Lithium-ion, 16.5Ah
• Transducer: LiveScope™ Plus LVS34-IF

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
