Garmin ECU 10 Controller for Reactor 40 Hydraulic Autopilot

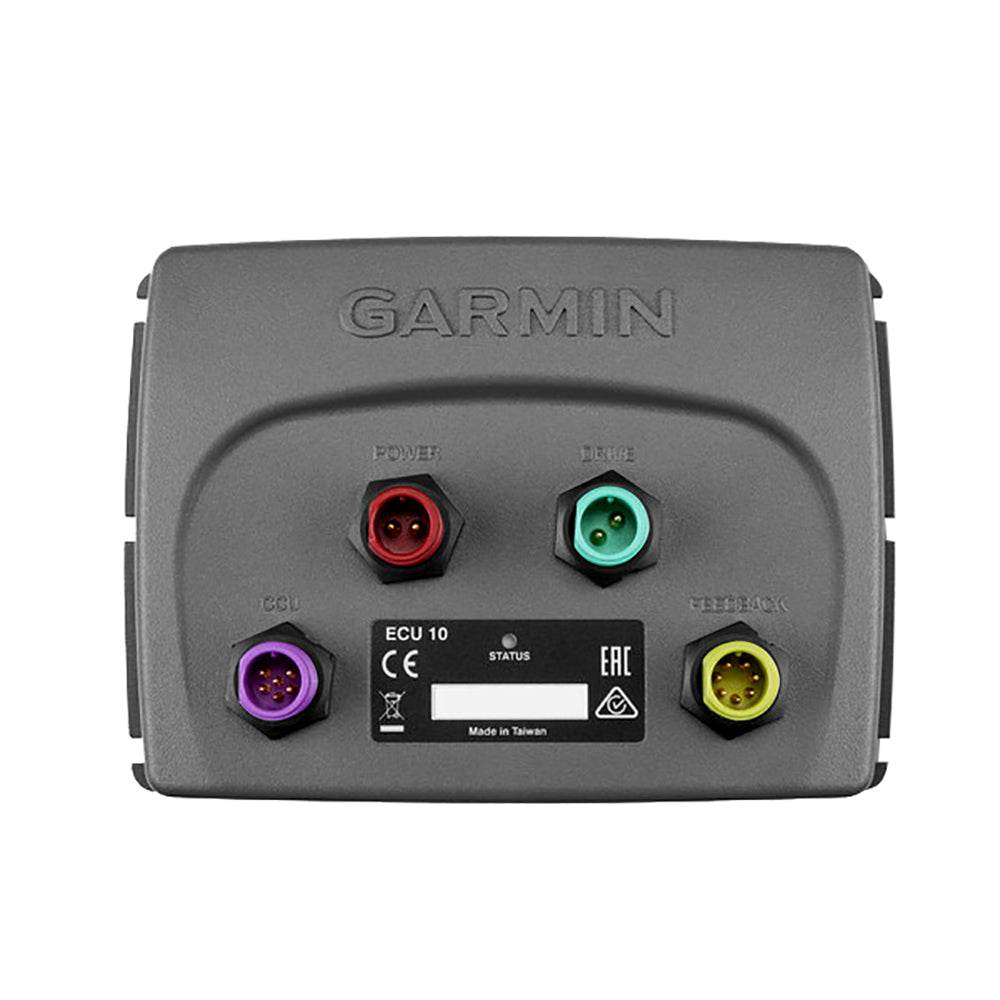

The Garmin ECU 10 Electronic Control Unit (010-11053-02) is a factory‑approved controller for the Reactor 40 Hydraulic Autopilot system, designed to connect and power the Course Computer Unit (CCU) and hydraulic pump using steering commands from your autopilot network.

This ECU accepts a wide input range (11.5–30 Vdc), making it compatible with 12V and 24V boating electrical systems, and features a fully gasketed housing with IPX7 water resistance for dependable performance on the water.

This component is critical for ensuring precise autopilot control and seamless communication between the CCU and hydraulic pump — making your Garmin Reactor 40 autopilot system responsive in diverse marine conditions.

Key Applications & Compatibility

• Designed for Garmin Reactor 40 Hydraulic Autopilot systems
• Works with compatible Garmin CCU and hydraulic pumps in offshore, powerboat, and cruising vessels
• Supports 12V and 24V DC electrical systems
• Used with NMEA 2000® networked helm control units and compatible Garmin chartplotters

Features & Benefits

• Reliable autopilot control: Manages pump commands directly from the Reactor 40 Course Computer Unit
• IPX7 water resistance: Durable against splashes and incidental water exposure for onboard installation
• Wide voltage input: Accepts 11.5–30 Vdc power for versatile marine electrical compatibility
• High‑impact housing: Gasketed aluminum alloy enclosure protects electronics in harsh offshore environments
• Optimized for performance: Works with OEM Reactor 40 autopilot components to maintain steering accuracy
• Compact design: Built for easy integration into autopilot wiring paths without bulky footprint

Technical Specifications

• Model: Garmin ECU 10 (010‑11053‑02)
• Compatibility: Reactor 40 Hydraulic Autopilot
• Input Voltage: 11.5–30 Vdc (12V/24V systems)
• Fuse: 40 A blade‑type required for main power feed
• Power Draw: ~1A (excluding pump load)
• Housing: Fully gasketed aluminum alloy
• Water Resistance: IPX7 rated for marine use
• Operating Temp Range: –15°C to 60°C (5°F to 140°F)
• Dimensions: 168 x 117 x 51 mm (6.6 x 4.6 x 2 in.)
• Weight: ~680 g (24 oz)
• Cable Length: ~9 ft (2.7 m) power cable included

What’s Included in the Box

• Garmin ECU 10 Electronic Control Unit for Reactor 40
• Power cable (~9 ft / 2.7 m)
• Manufacturer documentation
• Installation guidelines
• (Hydraulic pump, CCU, helm control unit, chartplotter, and NMEA 2000 cables sold separately as part of Reactor 40 autopilot kits.)

Installation & Use

1. Install the ECU 10 close to the hydraulic pump and CCU with proper strain relief and routing to reduce chafe and maximize serviceability.
2. It is not a standalone unit; it only functions as part of a complete Reactor 40 autopilot setup.
3. Ensure your vessel’s electrical system supplies correct voltage and that NFMEA 2000 network integration is configured per Garmin installation guidelines for smooth autopilot engagement.

Warranty & Support

Garmin ECU units are backed by Garmin’s manufacturer warranty against defects in materials and workmanship. Refer to Garmin’s official warranty documentation for specific coverage details and support resources.

Why Choose This Garmin Autopilot Component

• OEM‑grade controller used in Garmin’s Reactor 40 series autopilot systems
• IPX7 water‑resistant design built for marine environments
• Maintains communication between reactor autopilot CCU and pump
• Reliable performance trusted by boaters and captains worldwide
