Garmin GNX Wind Marine Instrument [010-01142-30]

Garmin GNX Wind Marine Instrument [010-01142-30]

$374.99
$449.99 $374.99
Sale Sold out
Shipping calculated at checkout.

Common Questions

Can I purchase "Sold Out" or "Out of Stock" items?

If an item is labeled as "Sold Out" or "Out of Stock" it simply means that we do not normally keep this item in stock at our warehouse, but it can be ordered. Here's how...

Reach out to a team member or use the Chat box to see what options we have available for the parts you need!

What is your Shipping Policy?

FREE

  • Standard Shipping on Orders over $99
  • 2-Day Shipping on Orders over $699

Low Cost Options

  • $9.99 Standard Shipping on Orders under $99
  • $19.99 2-Day Shipping on orders under $699

Special Deliveries

  • Truck Freight and Hazardous items vary and may take 5-7 business days.

Tracking

  • Tracking numbers and all other information regarding your order is sent via email automatically once available. (Contact us for specific inquiries)

Read our Shipping Policy

(restrictions may apply to these terms)

What delivery times should I expect?

Handling Times

  • Orders ship within 24 hours of purchase. (Next Day Shipping Available)

Delivery Times

  • All Orders typically take 3-5 business days to arrive. (unless noted otherwise in the Product's Description)
  • Choose 2-Day Shipping at Checkout to receive a Priority Delivery Experience. (available on select orders)
  • "Made-to-order" items, Truck Freight or Hazardous items may take 5-7 business days.
  • Always check with a Team Member if you have questions about a specific delivery time.

See our Shipping Policy for more information.

(restrictions may apply to these terms)

How does Suncoast handle returns and refunds?

  • Suncoast honors a 30-day return policy for unused items in their original packaging with proof of purchase.
  • If your item doesn't meet your expectations, please contact us to initiate a return or exchange.
  • Certain items, like installed products and special orders, cannot be returned.
  • Refunds are processed within 10 business days after approval, payment processing fees are non-refundable.

For more details and restrictions, please read our Refund Policy.

(restrictions may apply to these terms)

How can I check for availability?

Not sure if this item is in stock?

  • Live Chat with the Owner below.
  • Receive a response within a few minutes regarding availability, pricing, product details or questions, etc.

Feel free to Call or Text us or Email us for any cancellation requests, questions or updates on your order or view more Contact Information.

View full details

Product Description

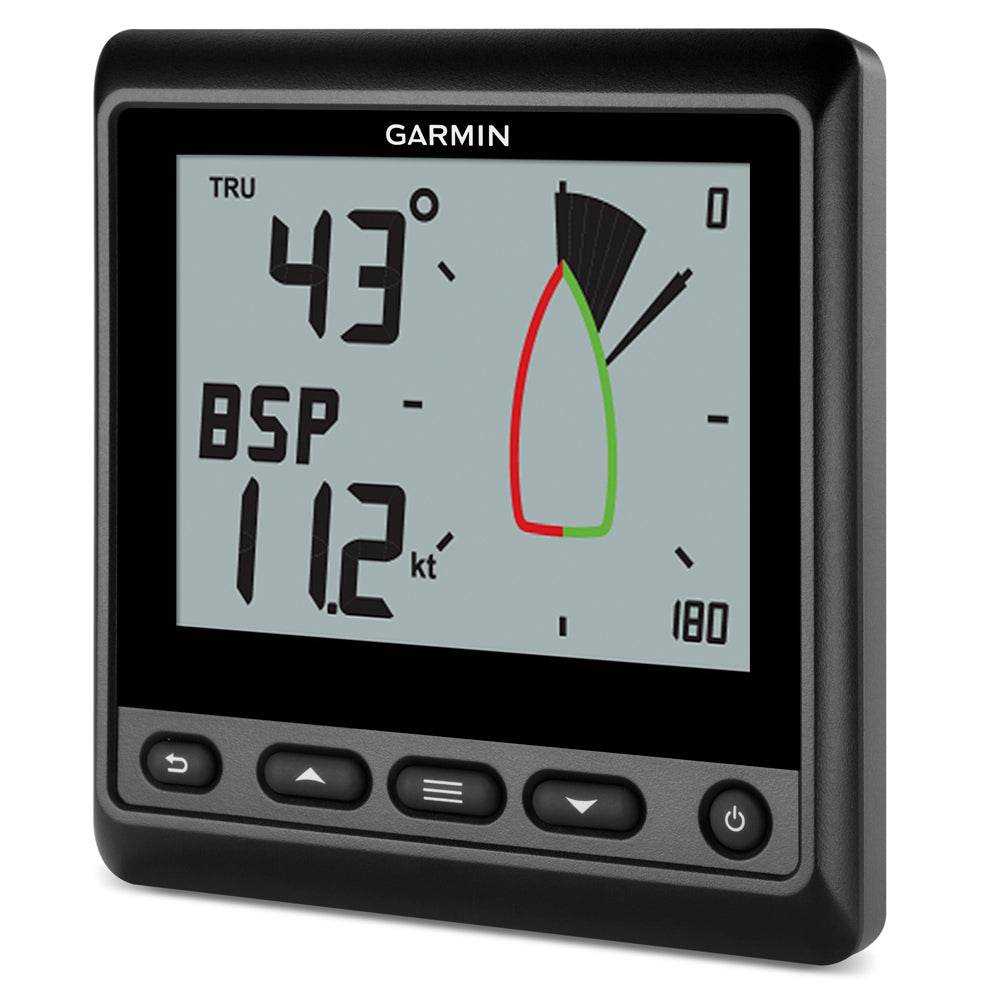

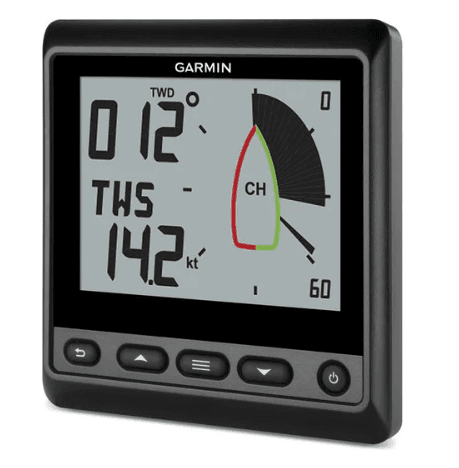

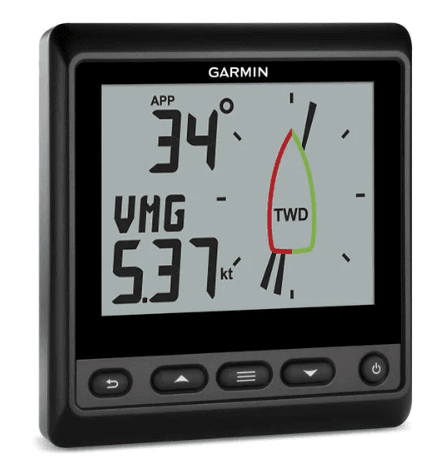

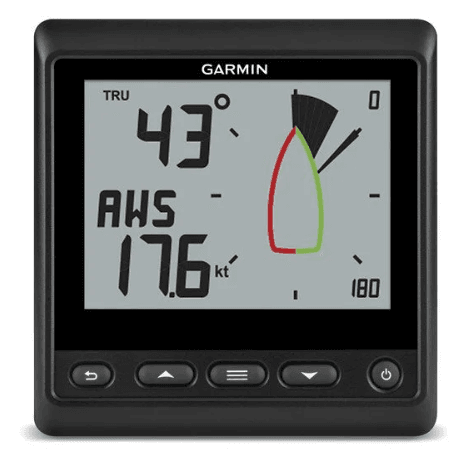

GNX™ Wind Marine Instrument

Affordable, Dedicated Wind Instrument

  • Large, easy-to-read black digits on white or customizable background colors for high contrast and high visibility in all lighting conditions
  • 2 data fields and a digital wind rose simultaneously display true and apparent wind data, Steer Pilot, boat speed and more
  • Displays true and apparent wind speed and wind angles, true wind direction, boat speed, speed over ground, VMG, heading, course over ground and closed haul
  • NMEA 2000® network and ANT technology interfaces

It's Easy to See the Data You Need

If you own a 20- to 40-foot sailboat with no wind system or an older wind system onboard, then GNX Wind marine instrument is an excellent choice to provide the accurate, reliable data you need to make confident decisions.

GNX Wind features a high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors making it easy to see from nearly any angle at a distance. Background colors can be customized to nearly any color preference to provide the contrast and visibility that work best in any lighting condition. It interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, Steer Pilot, boat speed and more. Auto-scroll feature rotates through screens for easy, hands-free operation. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Customizable configurations include more than 15 important marine parameters for wind, speed and navigation. Installs easily, either flush or flat mount. It can even wirelessly connect to a compatible chartplotter or quatix® 3 GPS marine smartwatch to stream wind data directly to your wrist. Also available in a GNX Wired Sail Pack.

In The Box

  • GNX Wind
  • Trim piece snap cover
  • Protective cover
  • Flush mount gasket and hardware
  • NMEA 2000® T-connector
  • NMEA 2000 drop cable
  • Installation instructions
  • Documentation
Specifications:
  • Screen Size: 4"
  • Shape: Square
  • Instrument Function: Wind

Owner's Manual (pdf)
