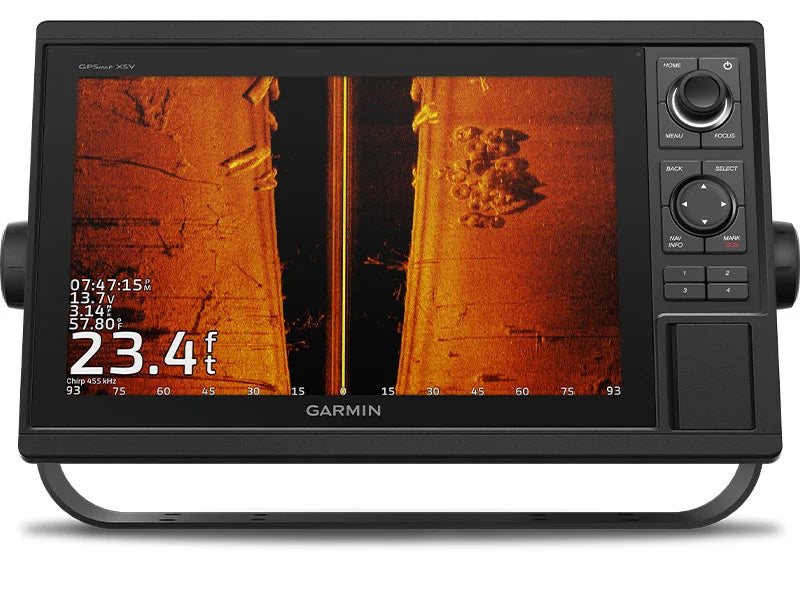

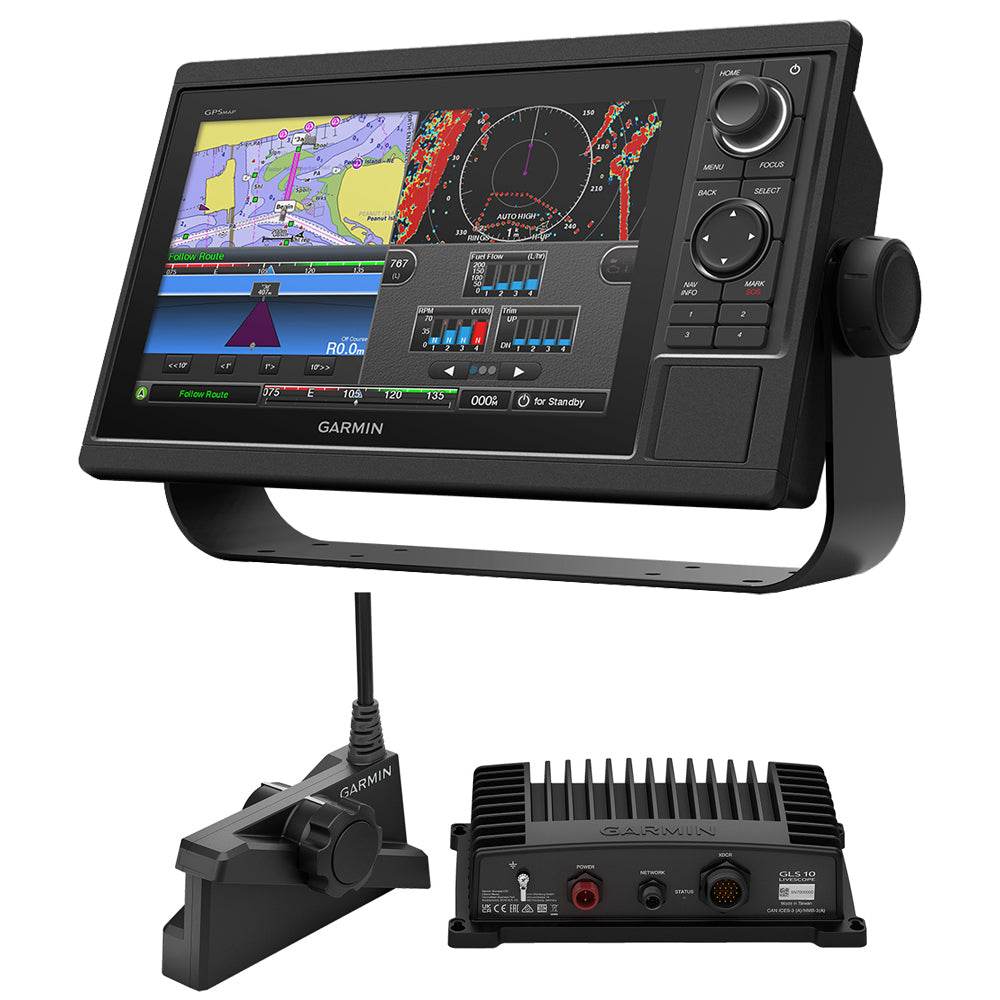

Garmin GPSMAP 1022 10" LiveScope Plus Bundle (No Sonar) (LVS34 Transducer)

GPSMAP® 1022 LiveScope Plus Bundle with LVS34 Transducer & Keyed Networking 10-inch Chartplotter (No Sonar)

(010-01740-00/LVS34)

Experience the ultimate in marine navigation and sonar imaging. This GPSMAP 1022 LiveScope Plus Bundle with LVS34 Transducer pairs Garmin’s advanced 10" keyed chartplotter with the latest LiveScope Plus sonar technology—to deliver unmatched visibility, control, and connectivity on the water.

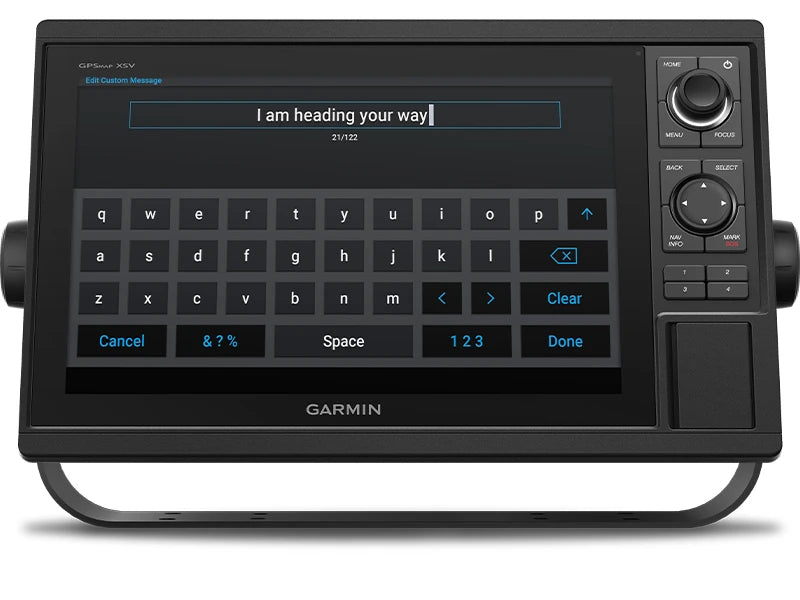

• 10-inch color display with keypad interface and multifunction control knob, designed for intuitive operation and reliable performance in marine conditions

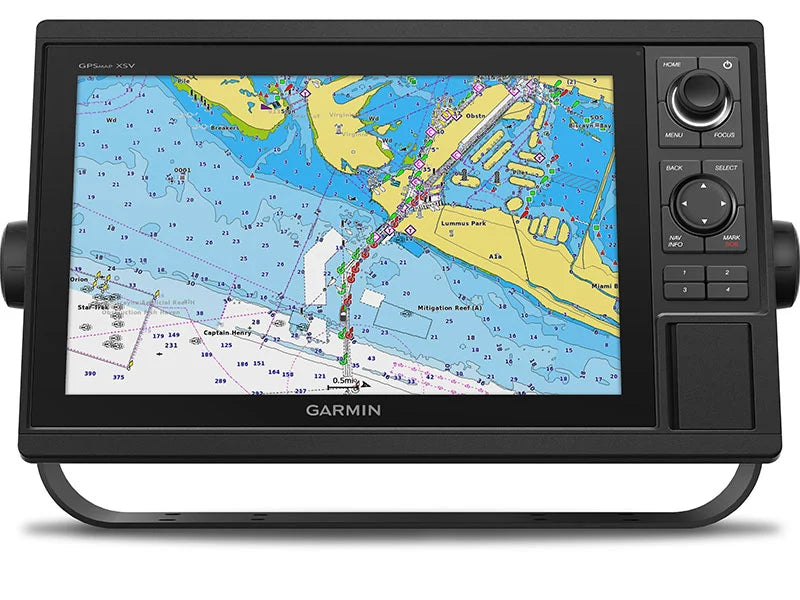

• High-sensitivity internal 10 Hz GPS + GLONASS receiver refreshes heading and position 10 times per second for smooth, accurate on-screen movement

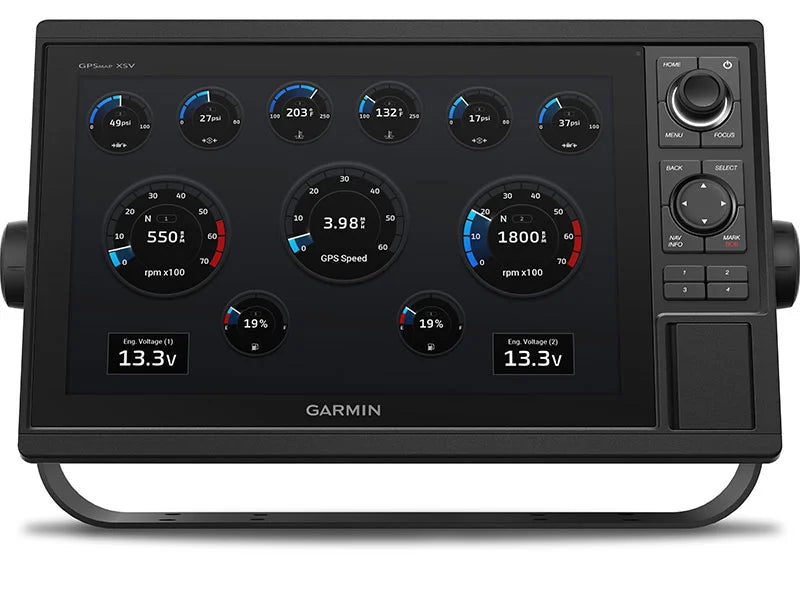

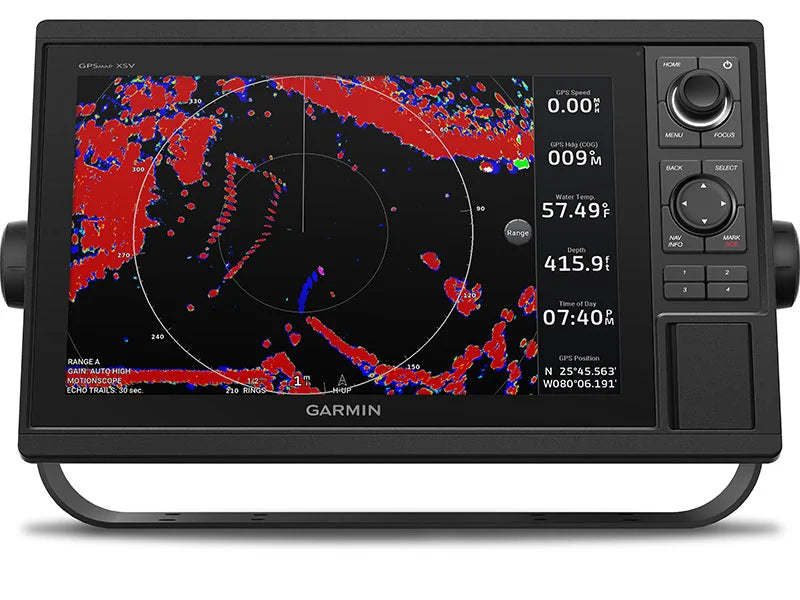

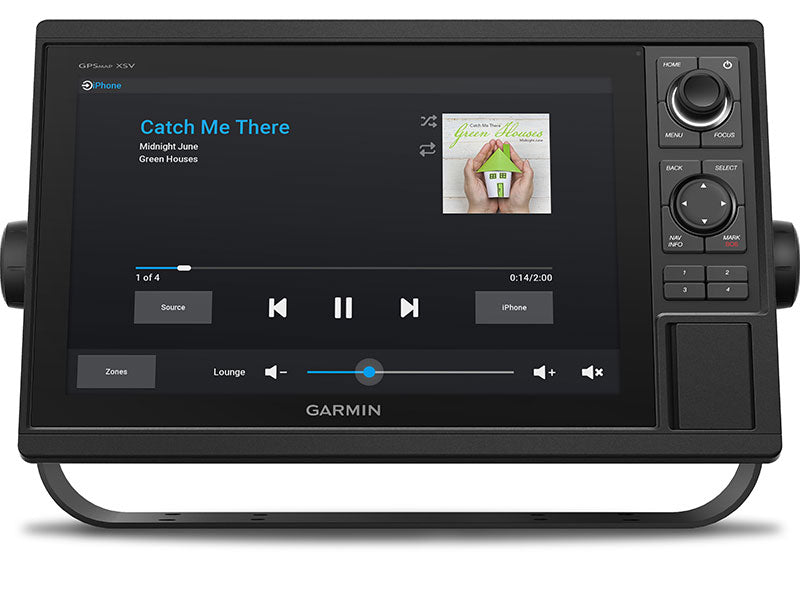

• Fully network-capable: supports Garmin Marine Network, NMEA 2000, and NMEA 0183 so you can share sonar, maps, radar, IP cameras, sensors, and user data across multiple units

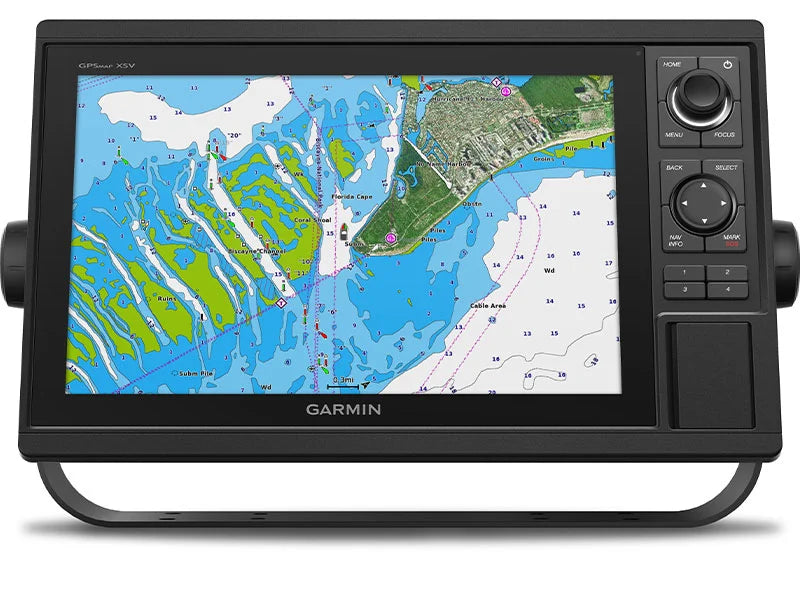

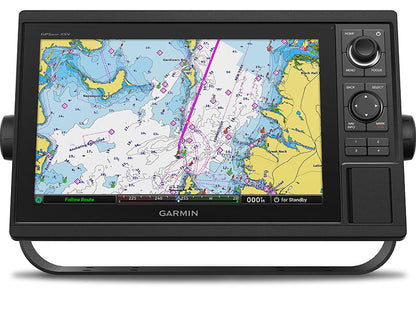

• Expandable mapping options via two SD card slots—compatible with LakeVü HD, LakeVü HD Ultra, BlueChart g2 HD, and BlueChart g2 Vision HD (with Auto Guidance and premium features)

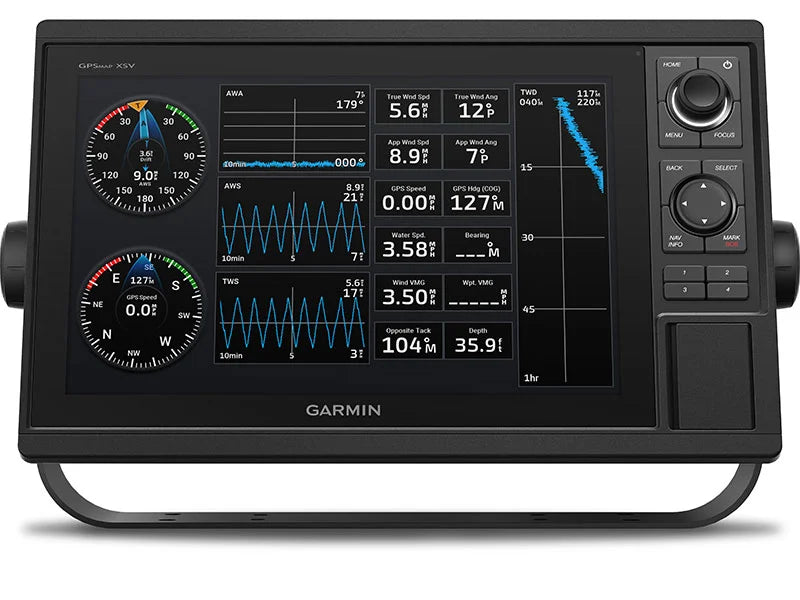

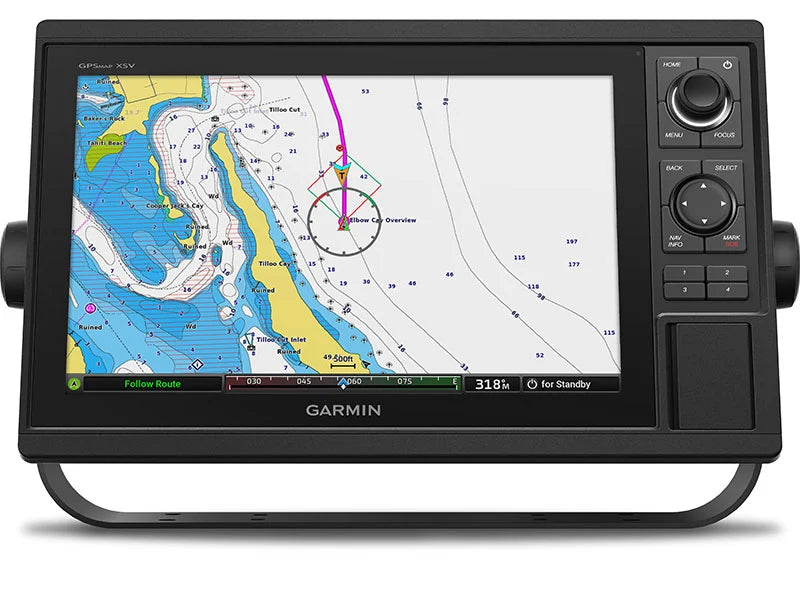

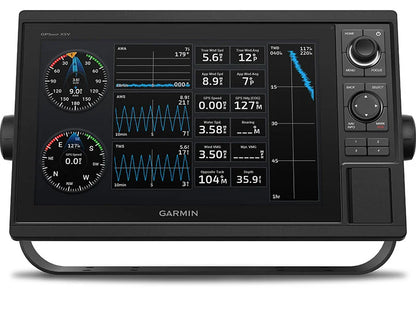

• Built for sailing: includes SailAssist features such as virtual start line, laylines, race timer sync, advanced wind rose, true/apparent wind, set & drift, and course-over-ground lines for competitive edge

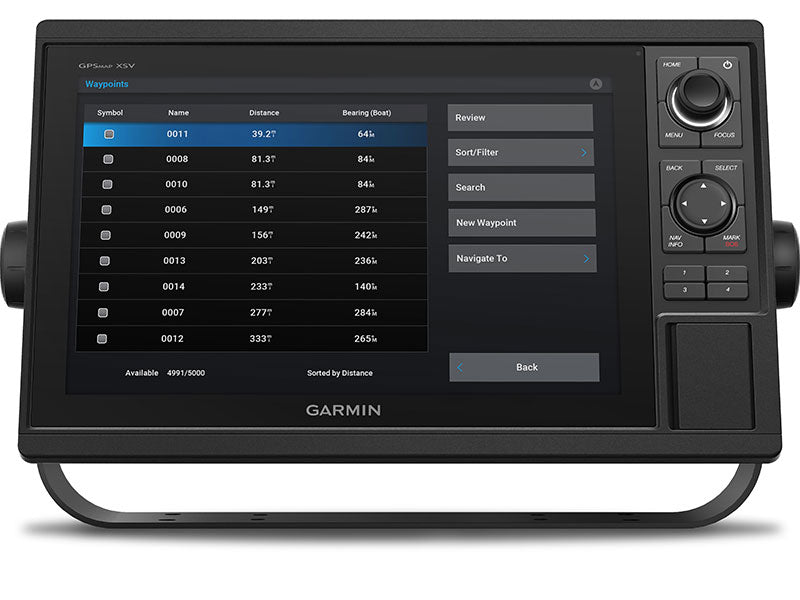

• GPX waypoint/track import: easily transfer navigation data from other GPS or handheld devices using industry-standard GPX format

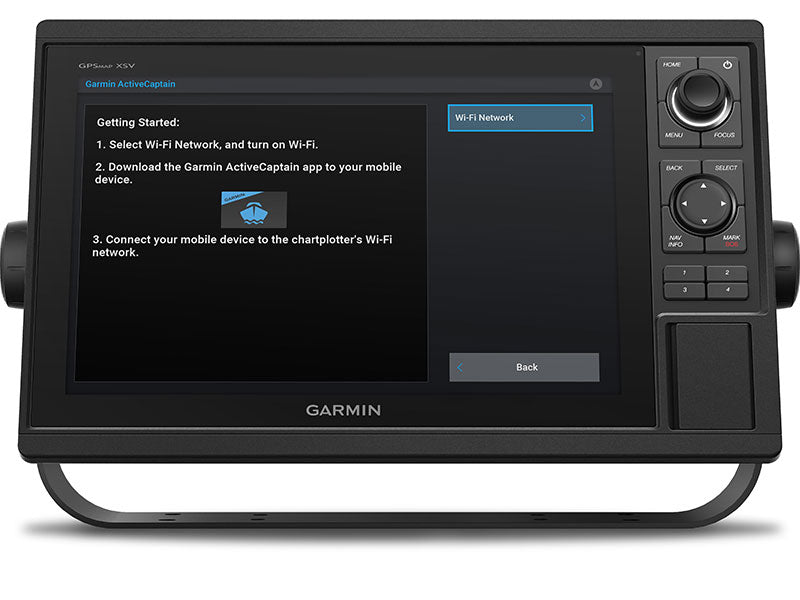

• Built-in Wi-Fi: connect with the free ActiveCaptain™ app to manage charts, mapping purchases, software updates, sync prefished lakes, and receive smart notifications—remote access to your chartplotter from your mobile device

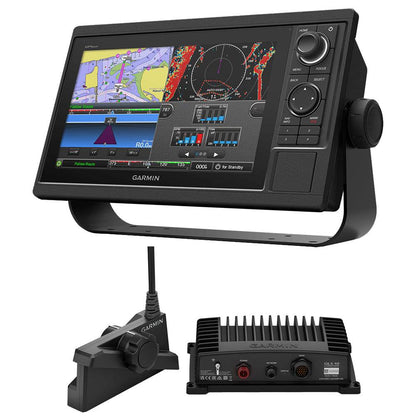

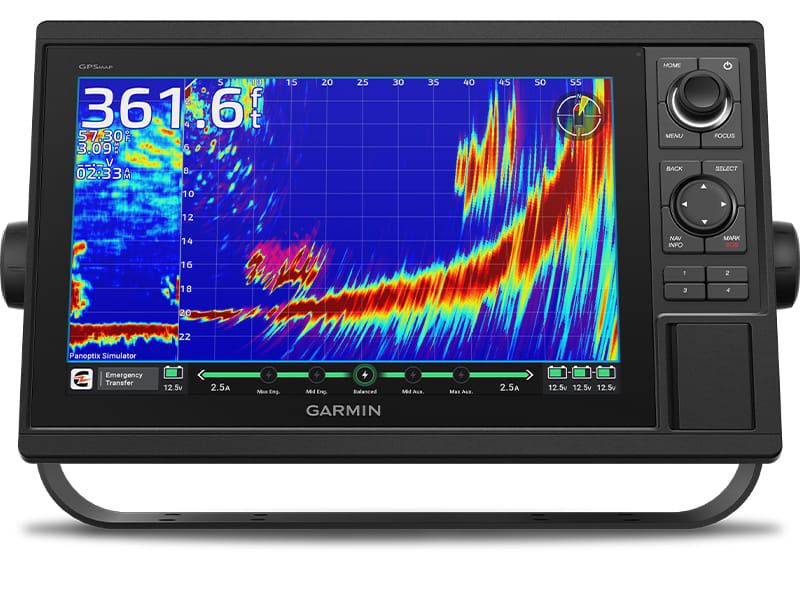

• The LiveScope Plus system (GLS 10 + LVS34 transducer) integrates seamlessly to deliver real-time sonar imaging with higher resolution, reduced noise, and better target separation

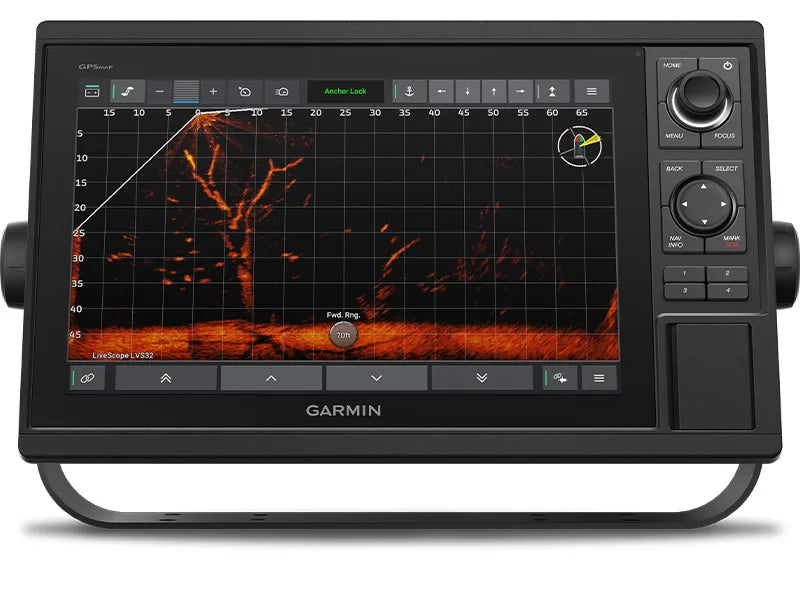

• Supports Forward, Down, and Perspective modes—so you can view what’s ahead, beneath, or in a perspective view from above
• Stabilized image technology keeps sonar imagery steady and clear, even in choppy waters
• Vivid color palette options (seven choices including Aqua, Caribbean, Lava) optimize contrast of structure and fish

In the Box

• GPSMAP 1022 chartplotter unit
• Power/data cable
• NMEA 2000 T-connector + 2 m drop cable
• Bail mount kit with knobs
• Flush-mount kit with gasket
• Protective cover + trim piece snap covers
• LiveScope GLS 10 sonar black box
• Panoptix LVS34 transducer
• Perspective mount, trolling motor barrel mount, shaft mount
• 2 m Garmin Marine Network cable (small connector) & network adapter cable
• Documentation & setup guides

Ports & Connectivity

• Garmin Marine Network: 2 ports
• NMEA 2000: 1
• NMEA 0183 Input: 1
• NMEA 0183 Output: 1
• Video Input (BNC): 1
• Wireless Connectivity (Wi-Fi)
• (No video output port)

Specifications

• Cartography Brand: Garmin Navionics+
• Included Transducer: LVS-34
• Screen Size: 10"
• Touchscreen: No
• Transducer Included: Yes
• Display Resolution: 1024x600 px
