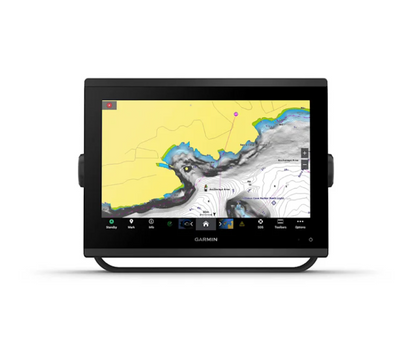

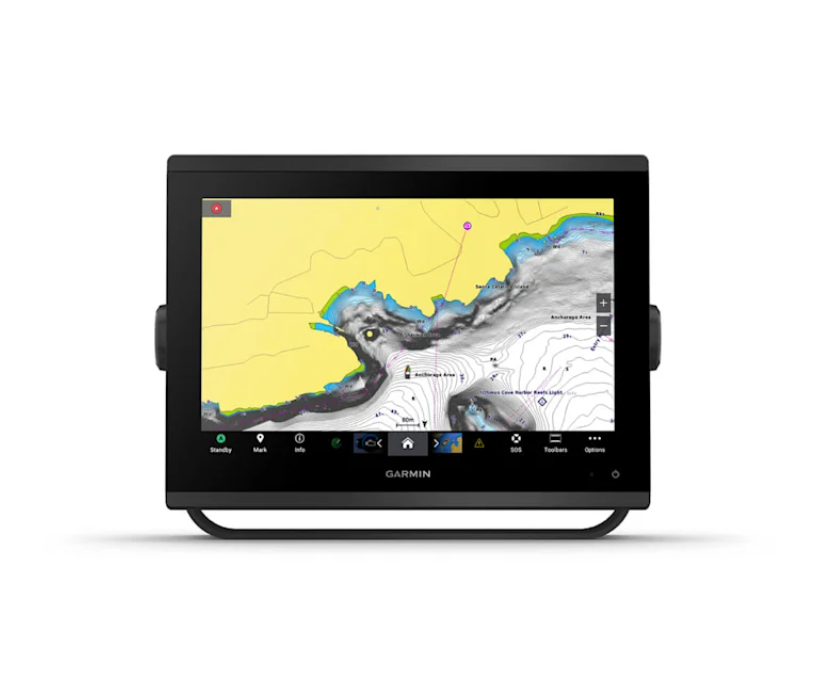

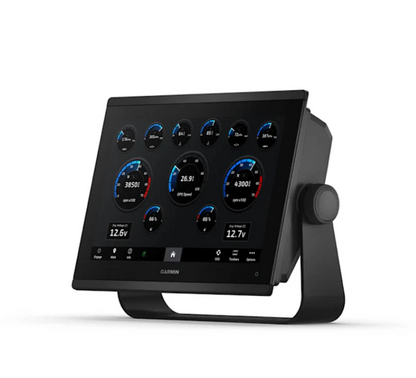

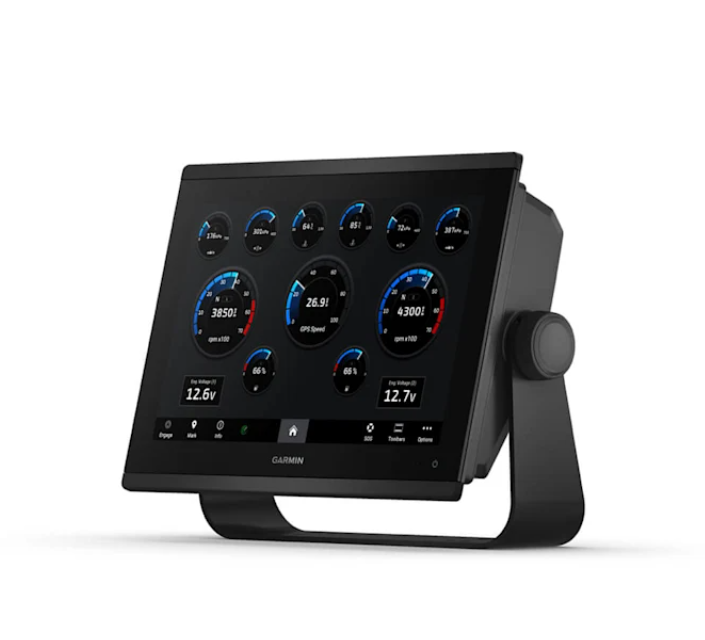

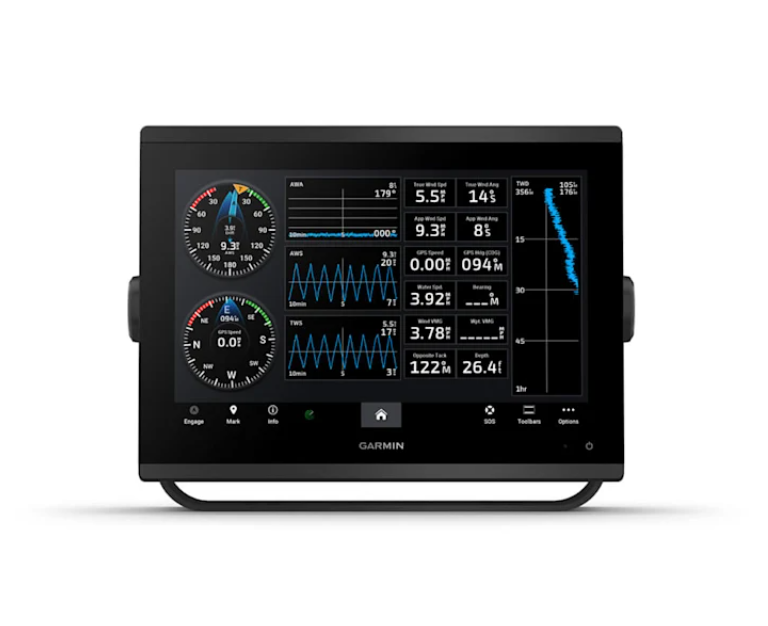

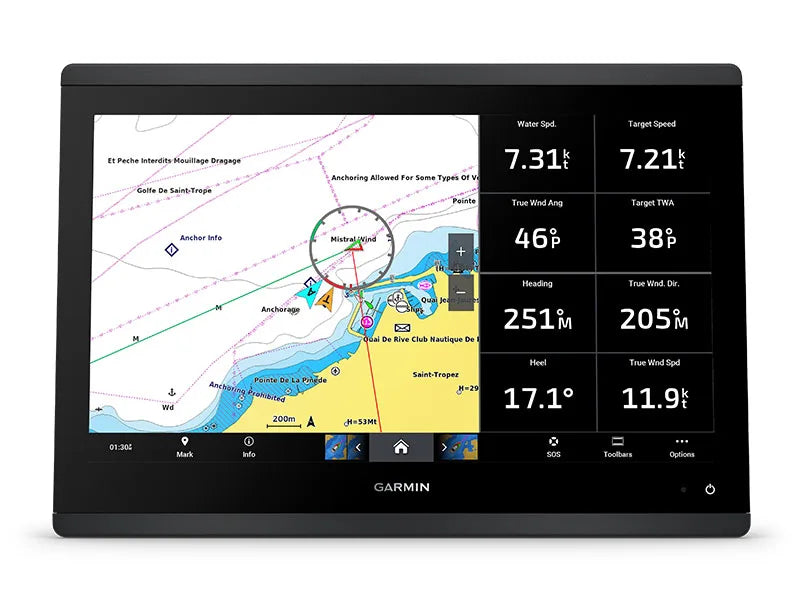

Garmin GPSMAP 1223 12" (No Sonar) (Worldwide Basemap)

GPSMAP® 1223 12-inch Non-Sonar with Worldwide Basemap (010-02367-00)

GET A SHARPER VIEW FROM YOUR CONNECTED HELM

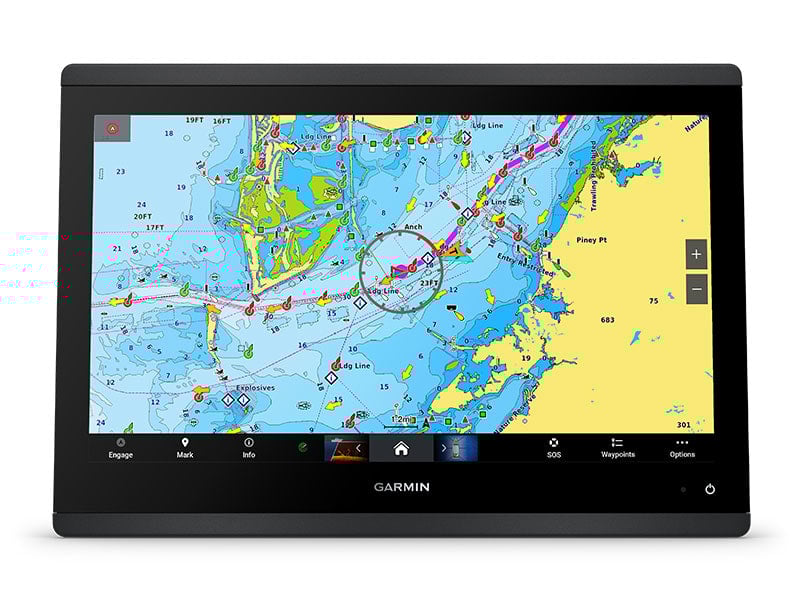

With its sleek design, powerful processing, and upgraded IPS display, this advanced 12” chartplotter integrates seamlessly into your Garmin marine system.

Maximize your marine navigation with the Garmin GPSMAP® 1223 (non-sonar, worldwide basemap)—a sleek, powerful 12″ chartplotter that gives you sharper views, smarter connectivity, and total helm control.

• Elegant slimline design with edge-to-edge glass and reduced footprint makes retrofitting into existing dash layouts seamless

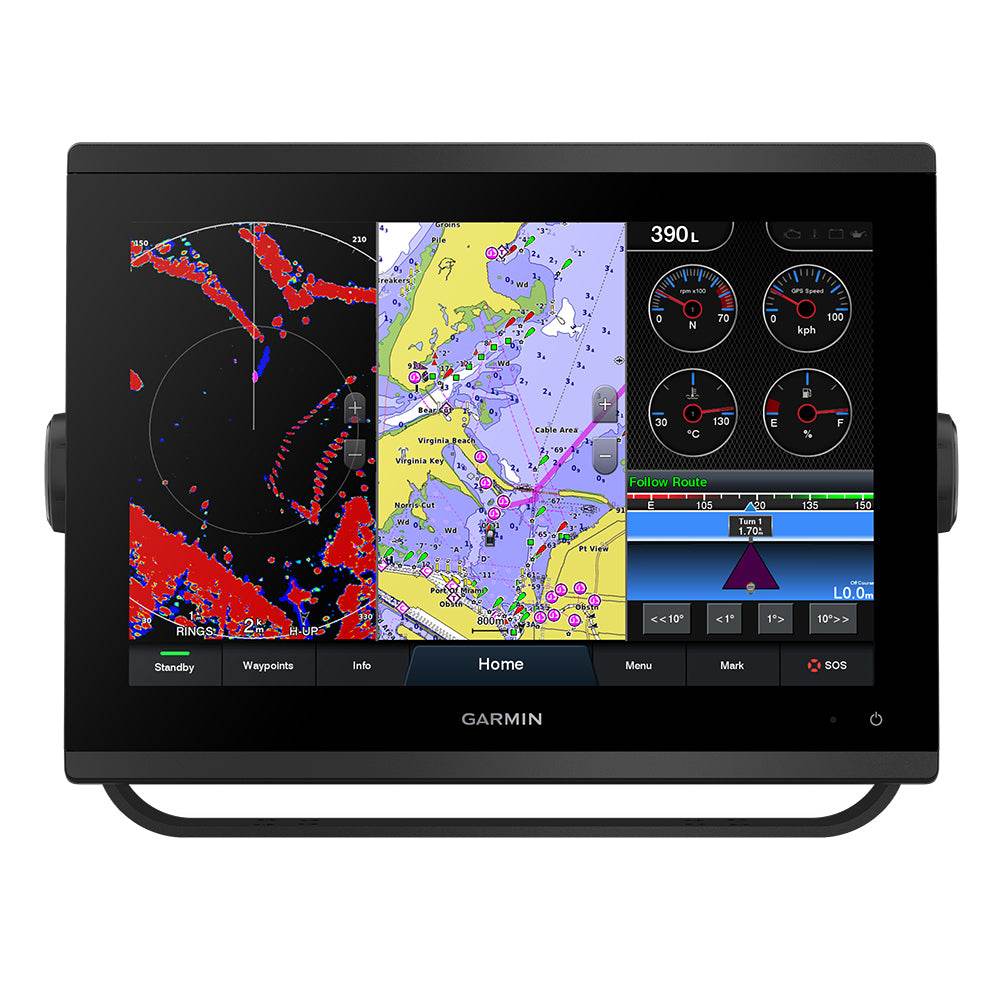

• High-definition 12.1″ WXGA IPS multitouch display (1280 × 800 px) delivers crisp clarity, enhanced sunlight readability, and wide-angle viewing
• Rugged and marine ready — water rating IPX7 and durable construction for real-world conditions

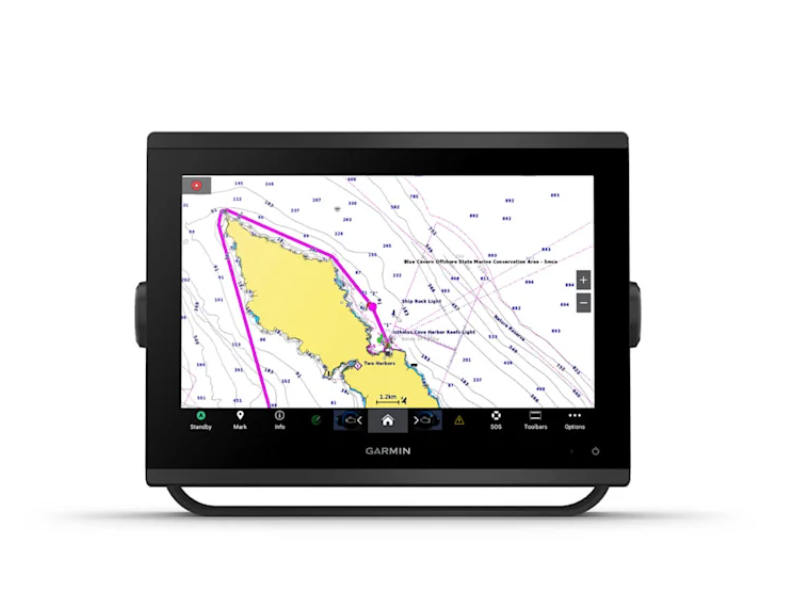

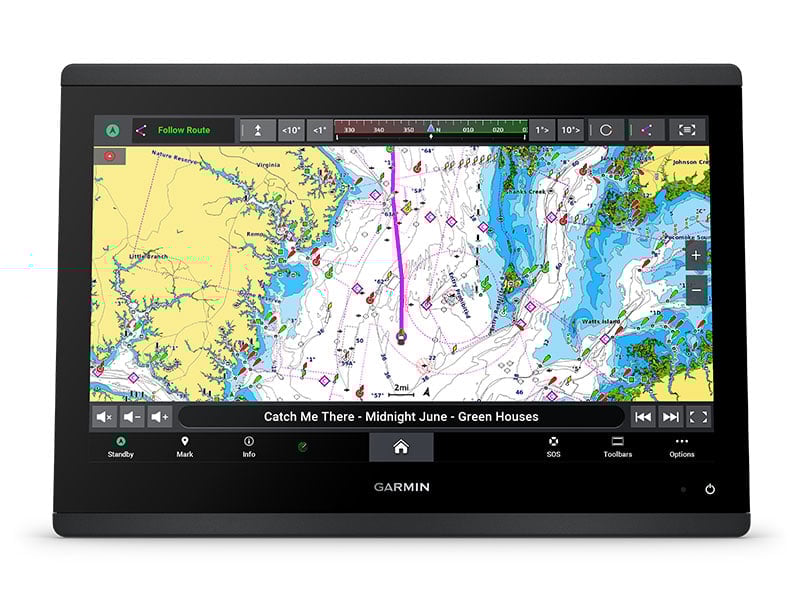

• Preloaded worldwide basemap ensures you have good global coverage from day one
• Fast, high-sensitivity 10 Hz GPS/GLONASS/Galileo receiver for smoother positioning and track updates
• Dual microSD card slots to expand mapping or import/export routes and waypoints
• Store up to 5,000 waypoints, 50 saved tracks, route capacity of 100, and track log of 50,000 points

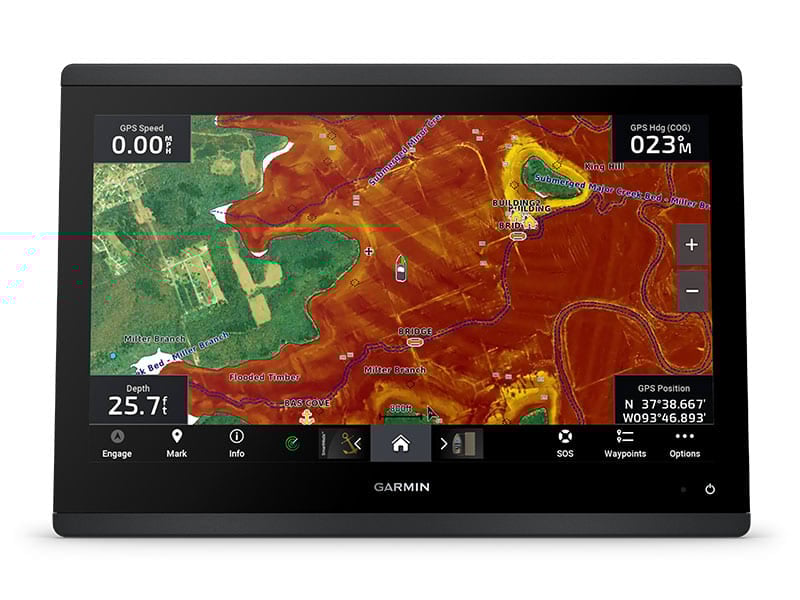

• Full Garmin Marine Network integration lets you share maps, radar, user data, and IP camera streams across your onboard devices

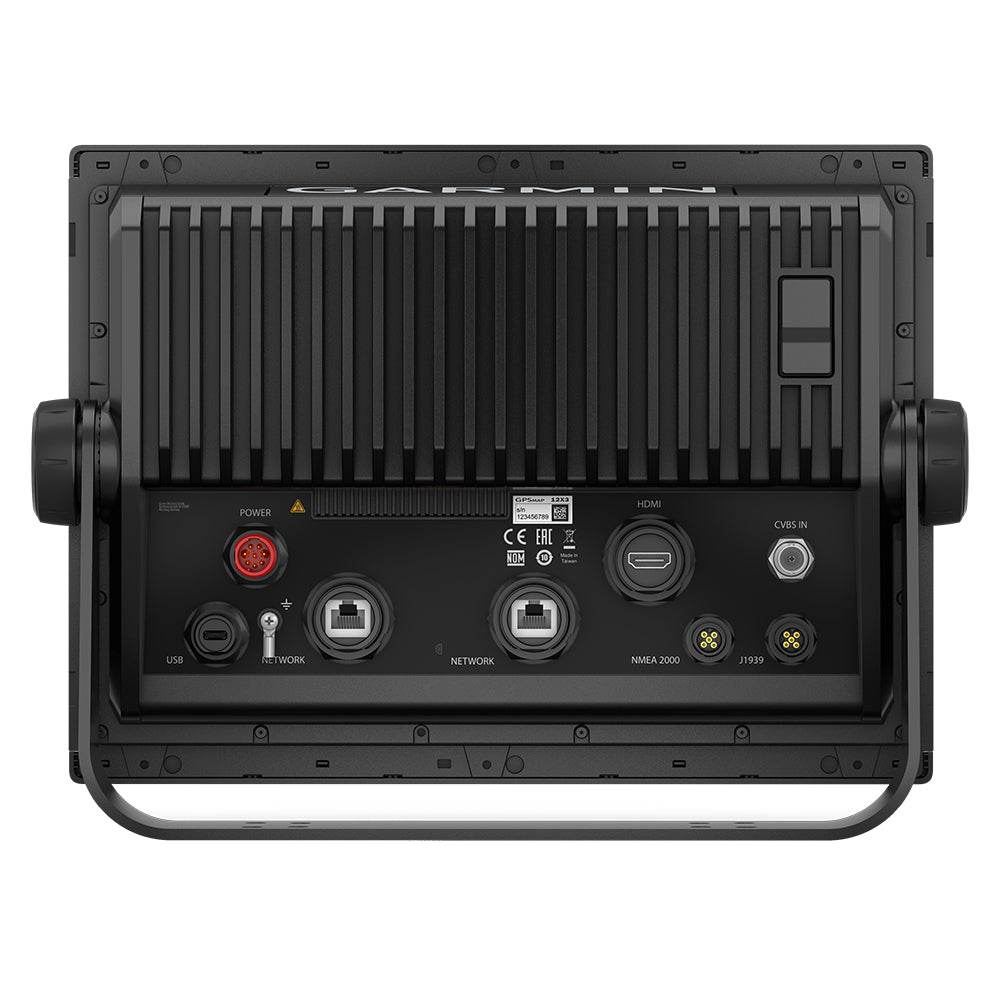

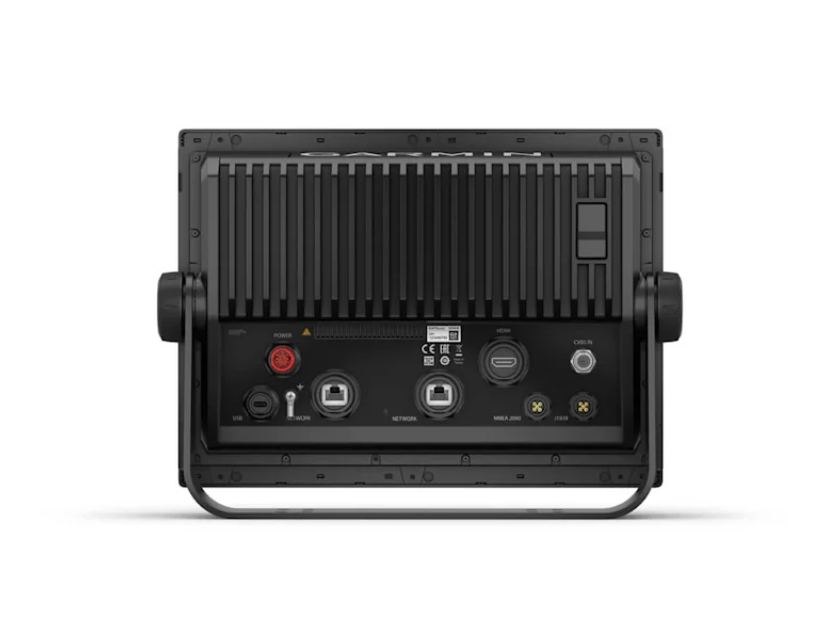

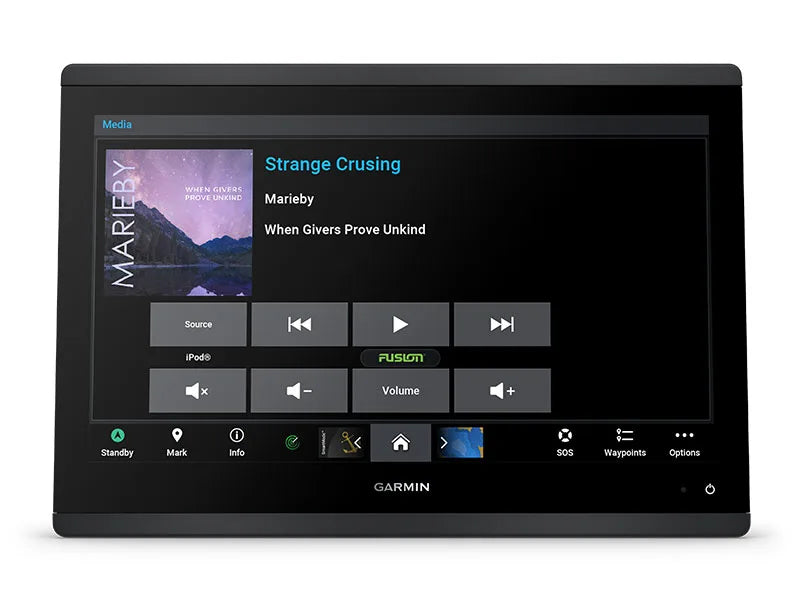

• NMEA 2000® and NMEA 0183 ports allow you to connect autopilots, digital switching, weather sensors, AIS, VHF, Fusion-Link™ audio systems, and more

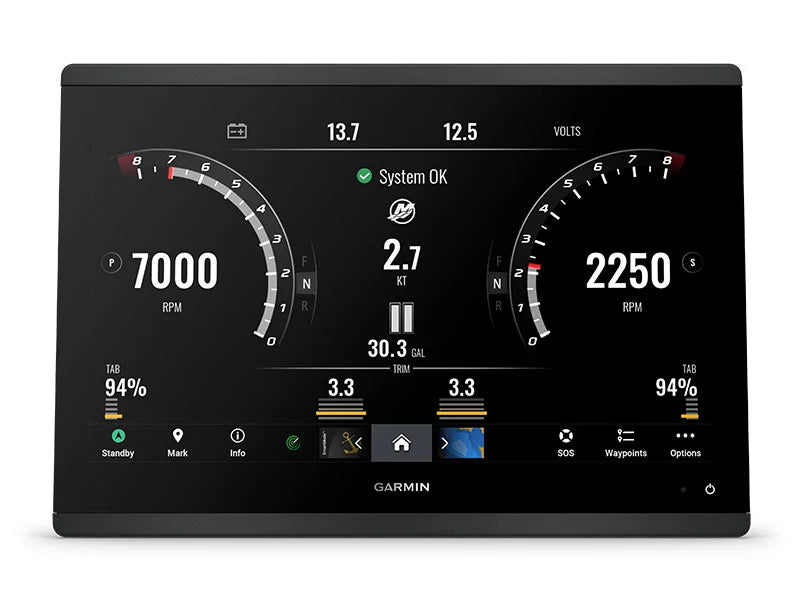

• J1939 engine interface support enables connectivity to modern engines (e.g. select Yamaha engines)

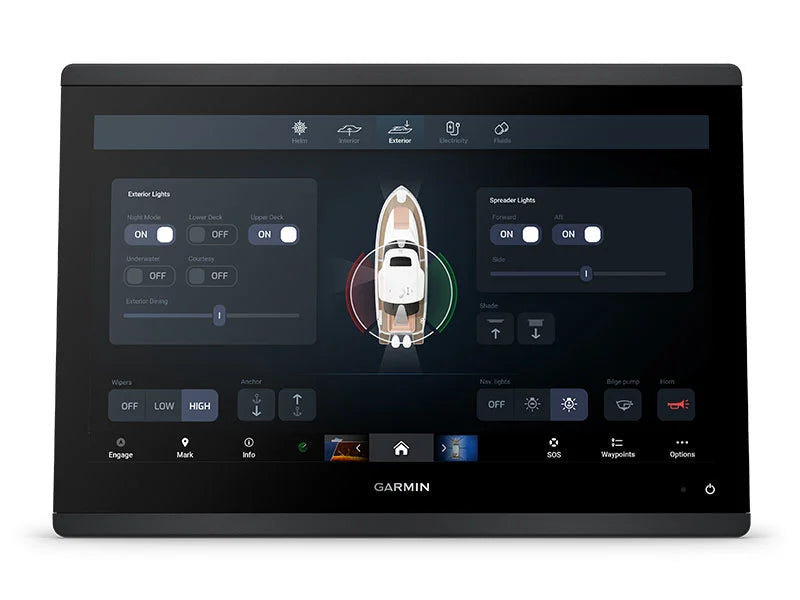

• OneHelm™ digital switching consolidation: control EmpirBus™ or other supported third-party systems together on one screen

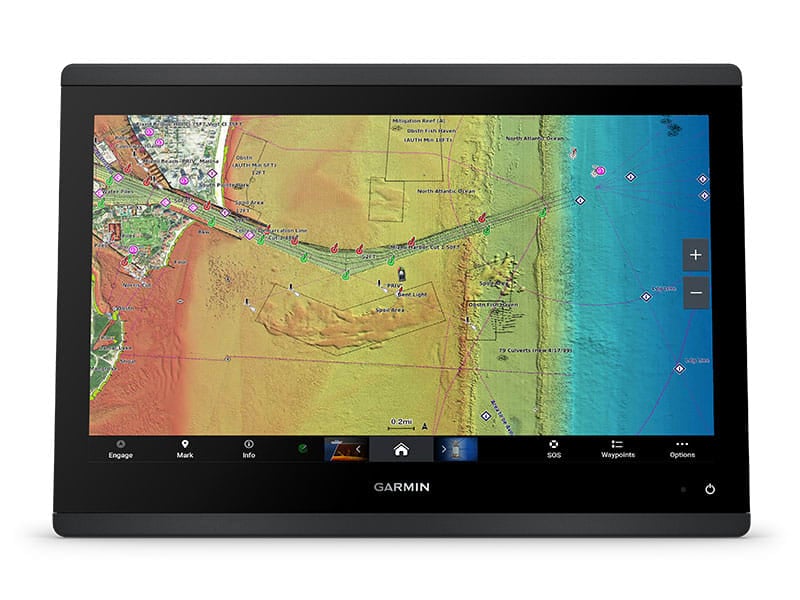

• Compatible with high-end charting add-ons, including BlueChart g3 and BlueChart g3 Vision, bringing premium mapping, Auto Guidance technology, and Navionics® data to your helm

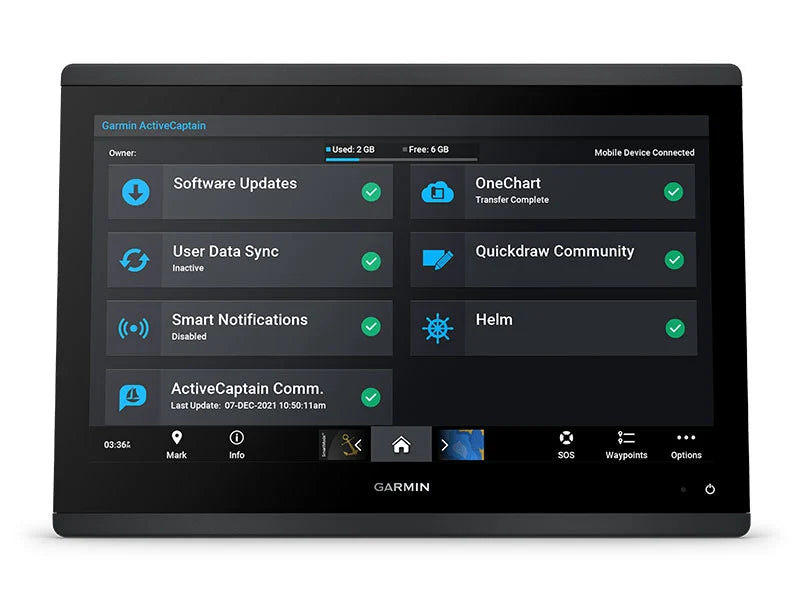

• Pair with the ActiveCaptain® app (via built-in Wi-Fi®) to access OneChart™, smart notifications, software updates, Quickdraw™ Community contours, remote monitoring, and Garmin Helm digital switching

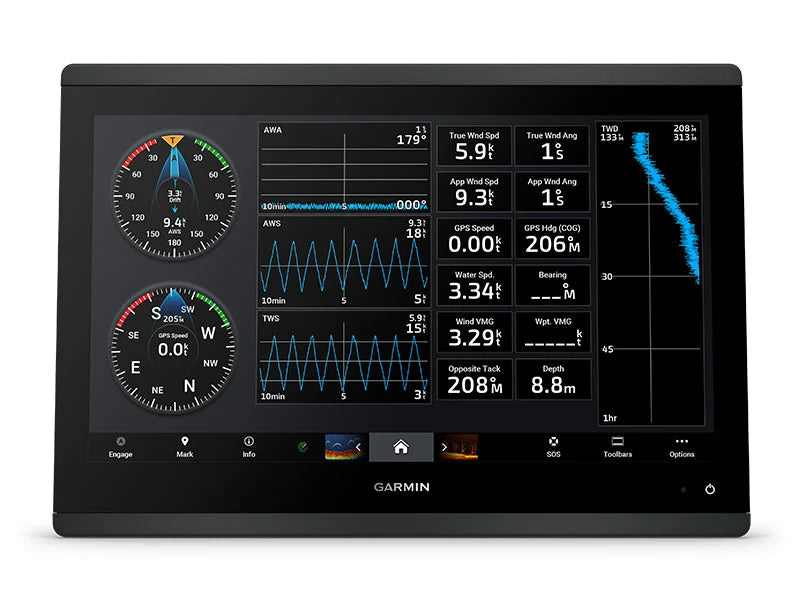

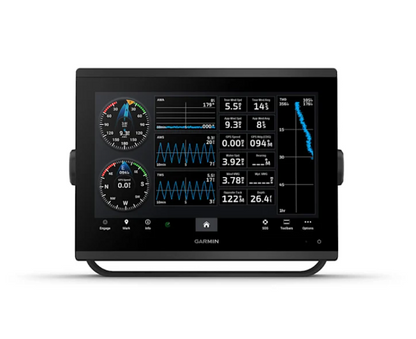

• Integrated ANT® lets the unit link wirelessly to Garmin quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind instruments, and remote controls

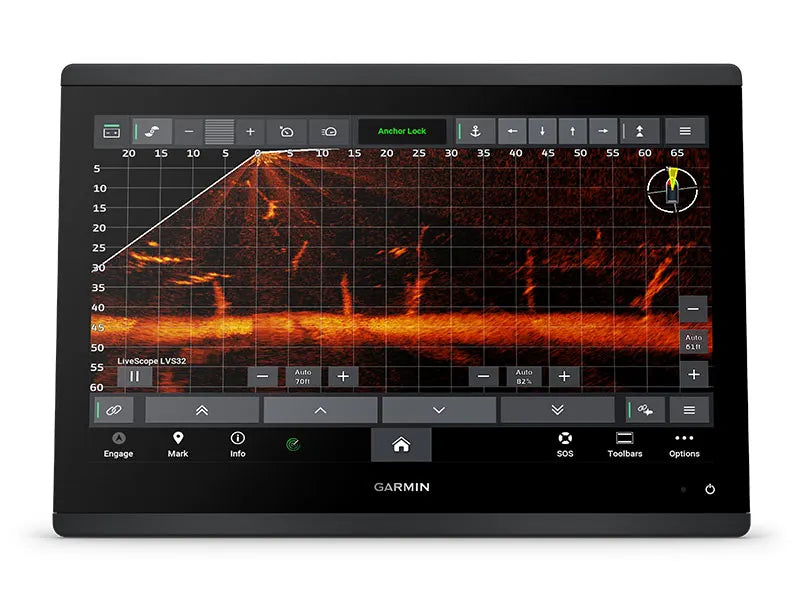

• Expandable sonar options: pair with Panoptix® (e.g. PS51) or LiveScope (transducer sold separately) to monitor front, side, or live scanning views (up to ~300 ft)

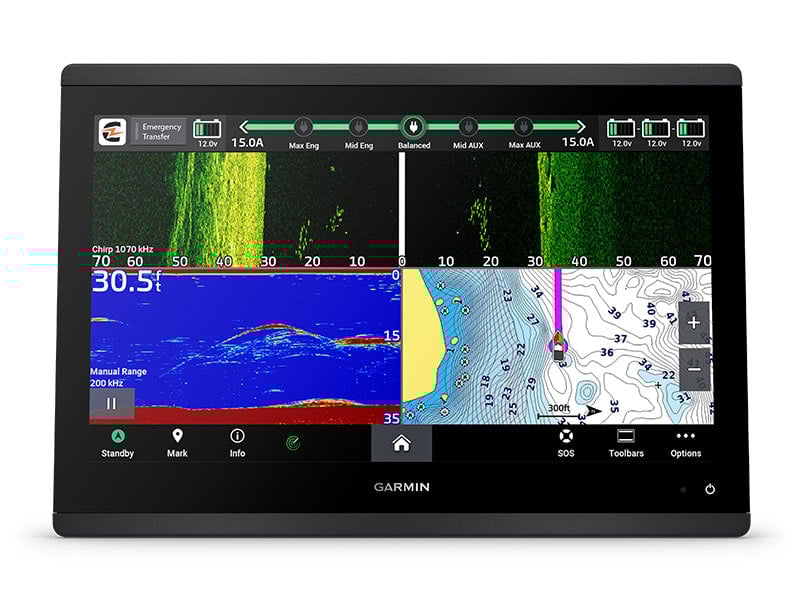

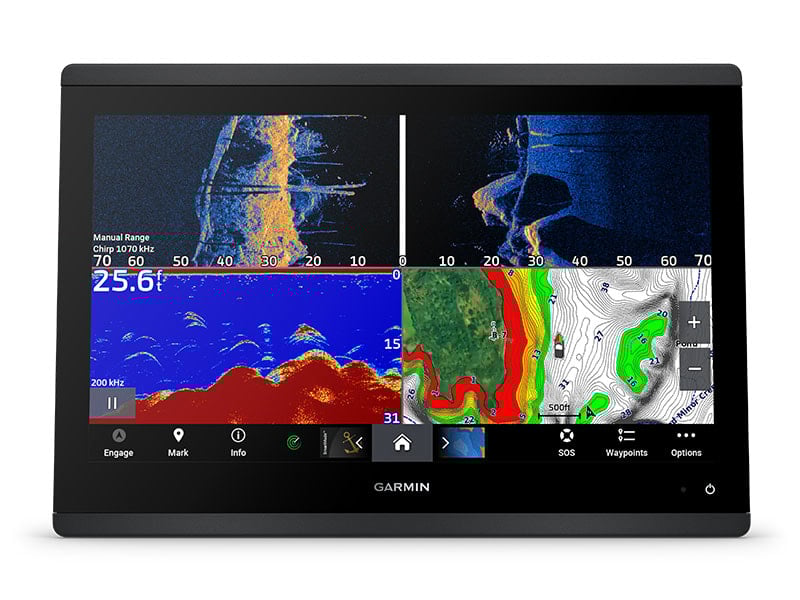

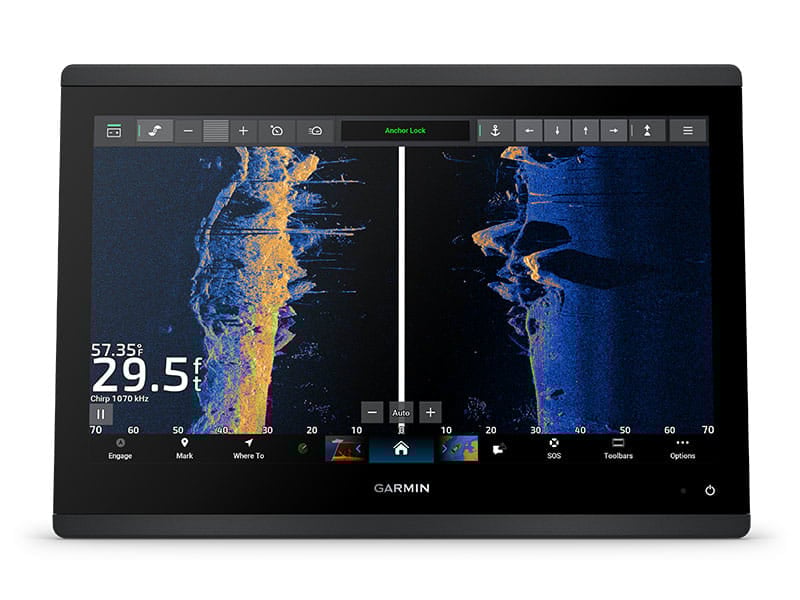

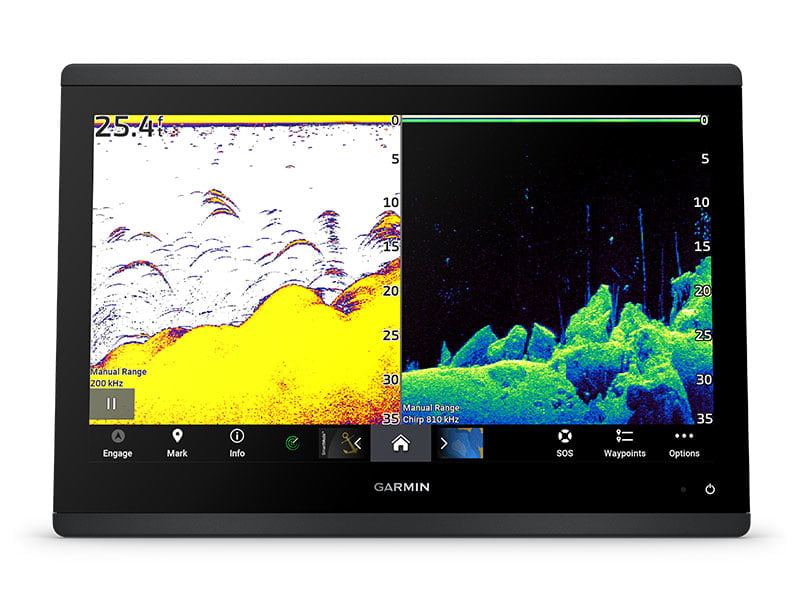

• Supports external sonar via black box systems (GSD™, GCV™), so you can upgrade later without replacing the plotter

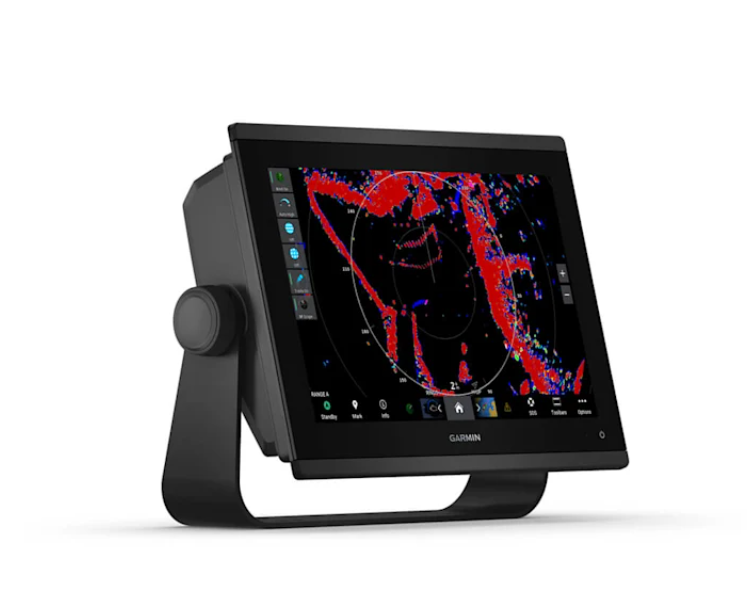

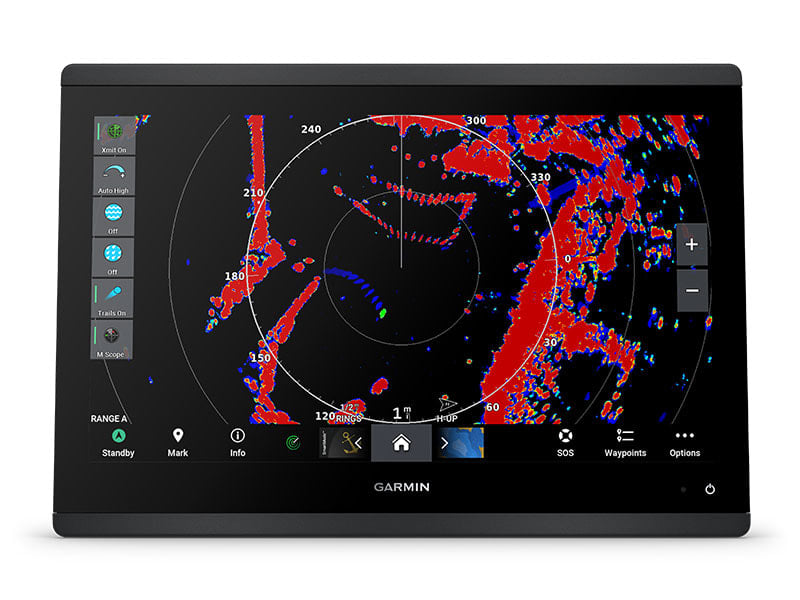

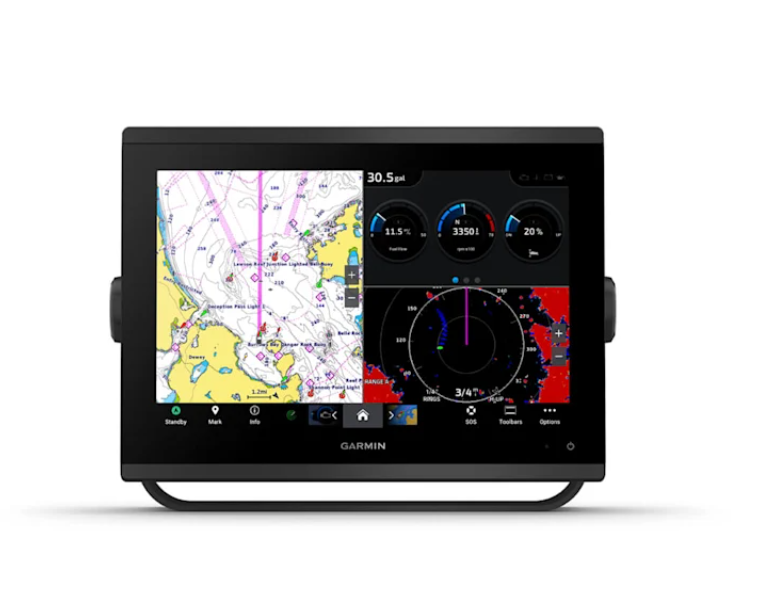

• Compatible with Garmin radar modules and video input/output (HDMI, BNC) to bring vision and situational awareness to your helm
• Operating voltage range: 10–32 V DC, with typical draw ~1.7 A at 12 V, max ~2.2 A (≈ 26.5 W)
• Physical size: 12.1″ × 8.9″ × 3.2″ (30.8 × 22.8 × 8.2 cm), weight ~6.6 lb (3.0 kg)
• Multiple mounting options included: bail mount kit with knobs, flush mount kit with gasket, trim snap covers, protective cover
• Connected-helm convenience: get smart control, networked devices, and charting all in one integrated platform

This GPSMAP 1223 gives boaters, sailors, and marine enthusiasts a next-level chartplotter experience—combining cutting-edge display, connectivity, and expansion potential in a sleek, marine-rated 12″ package.

Specifications:

• Cartography Brand: Garmin
• Internal/External Antenna: Internal
• Screen Size: 12"
• Touchscreen: Yes

What's in the Box:

• GPSMAP 1223 chartplotter
• microSD™ card preinstalled
• Power cable
• NMEA 2000® T-connector
• NMEA 2000 drop cable (2 meters)
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation

Owner's Manual (pdf)
