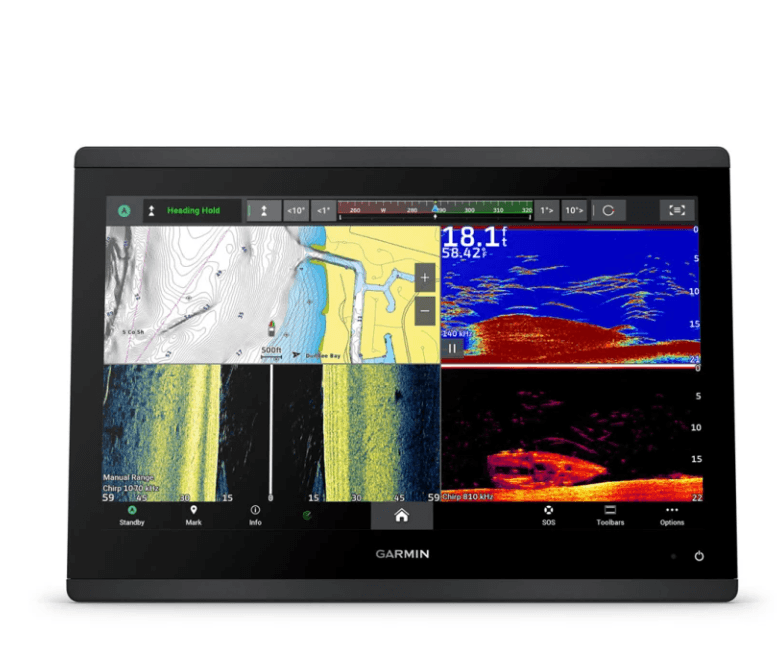

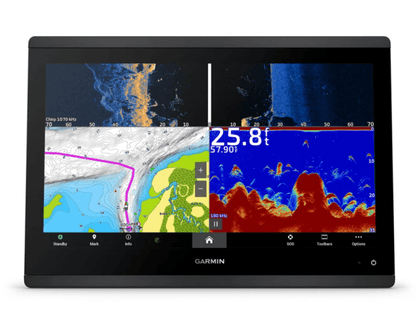

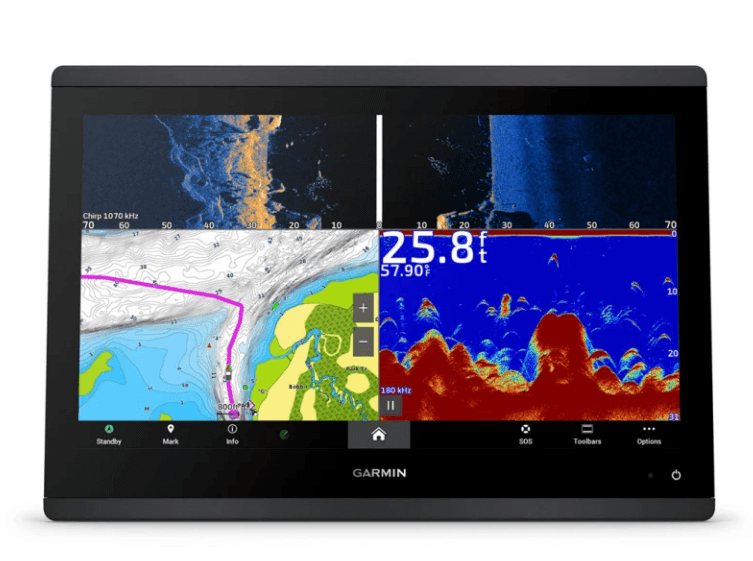

Garmin GPSMAP 1643xsv Combo GPS/Fishfinder GN+ [010-02919-03]

GPSMAP 1643xsv: The Ultimate 16-Inch Marine Command Center for Anglers and Sailors

Elevate your on-water adventures with the Garmin GPSMAP 1643xsv, a powerhouse 16-inch chartplotter that fuses cutting-edge GPS navigation, advanced fishfinding, and seamless system integration into one sleek, helm-ready unit. Designed for the serious mariner, this combo device delivers crystal-clear situational awareness through its upgraded IPS touchscreen display, offering wide viewing angles and vibrant visuals even under direct sunlight—perfect for spotting the next big catch or plotting the ideal course.

Precision Navigation Meets Pro-Grade Sonar Preloaded with Garmin Navionics+ charts covering the U.S. and Canada, the 1643xsv provides detailed coastal and inland mapping, including high-resolution bathymetric data and auto-guidance+ pathfinding to suggest optimal routes while avoiding low bridges and shallow hazards. Built-in Wi-Fi and ANT+ connectivity let you sync with your smartphone for real-time weather overlays, smart notifications, and remote helm control via the Garmin ActiveCaptain app. For anglers, the integrated Ultra High-Definition scanning sonar—featuring SideVü and ClearVü with high-contrast color palettes—reveals fish-holding structures in stunning detail, while 1 kW CHIRP traditional sonar support ensures reliable bottom tracking down to 3,000 feet. Pair it effortlessly with compatible Garmin transducers (not included) or LiveScope sonar for live-action underwater views.

Versatile Integration for Any Vessel This all-in-one fishfinder/chartplotter shines in connected setups: integrate with up to four engines via J1939 protocols for fuel-efficient monitoring, or link to third-party devices like digital switching systems and OneHelm apps for streamlined boat management. Sailors will appreciate Garmin SailAssist tools, including laylines, race countdowns, and virtual start-line guidance, while Force trolling motor compatibility keeps you locked on prime fishing spots. With NMEA 2000 networking, expand your marine ecosystem by adding radars, autopilots, or cameras for a fully unified command experience—all manageable from nearly anywhere with app-based controls.

Built Tough for Real-World Waters IPX7 waterproof and backed by Garmin's legendary durability, the 1643xsv (model 010-02919-03) is ready for salt or freshwater rigors, with a compact flush-mount design that fits modern consoles without clutter. It's an investment in reliability that pays off in every outing, earning praise from users for its responsive interface and game-changing sonar clarity.

Whether you're chasing trophy bass or navigating open bays, the Garmin GPSMAP 1643xsv transforms your boat into a smart, intuitive platform—where every scan, chart, and command puts you ahead of the curve.

• Easily integrate with more engines.
• Connect to compatible third-party devices with digital switching and OneHelm™ integrations.
• Easily build a marine system by using our advanced network connectivity.
• Navigate any waters with preloaded Garmin Navionics+™ charts
• See below a boat with built-in sonar capabilities
• Manage the marine experience from nearly anywhere¹.

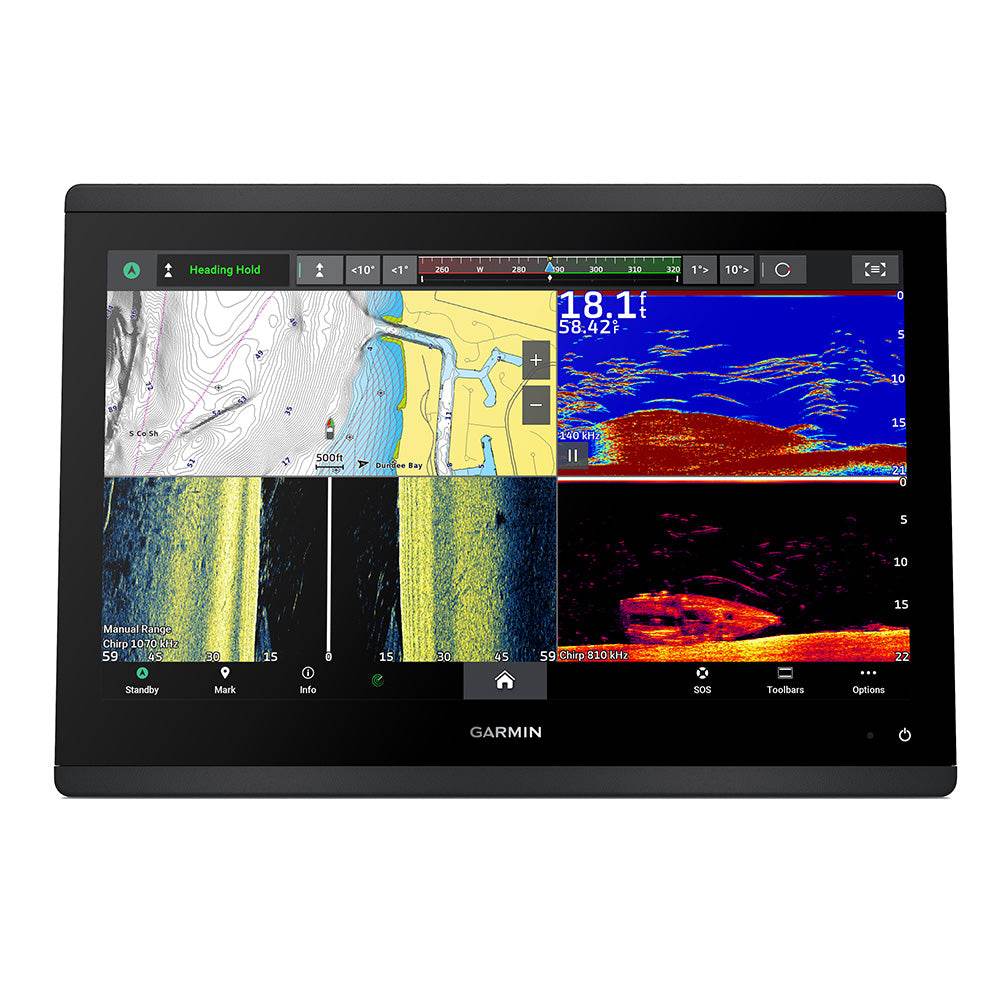

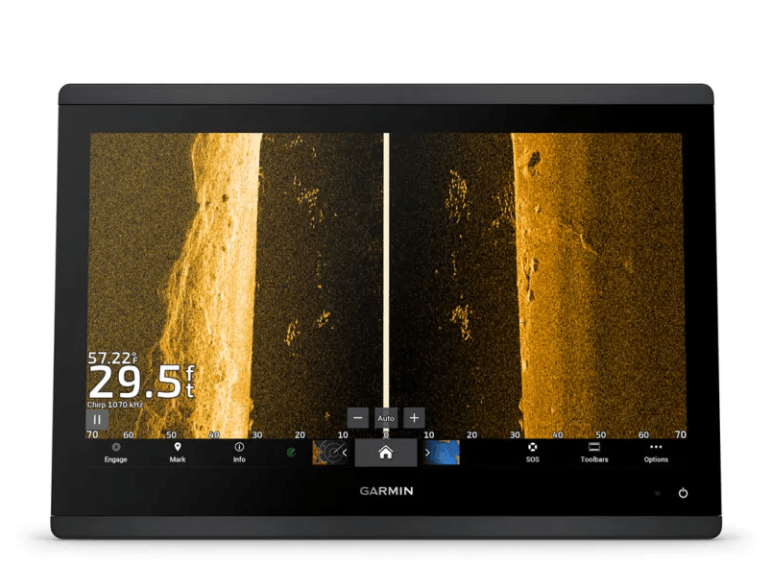

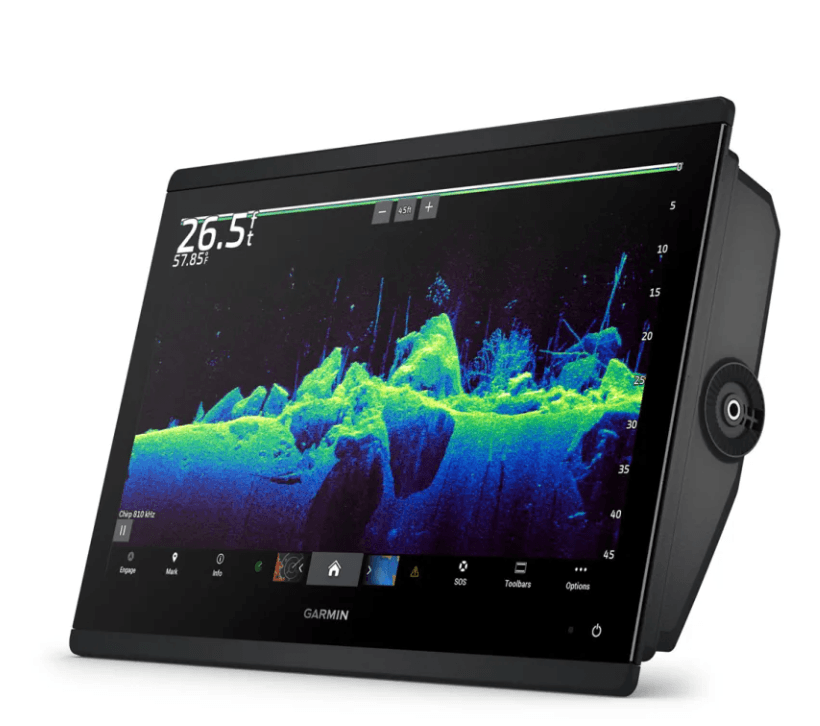

Ultra High-Definition Scanning Sonar

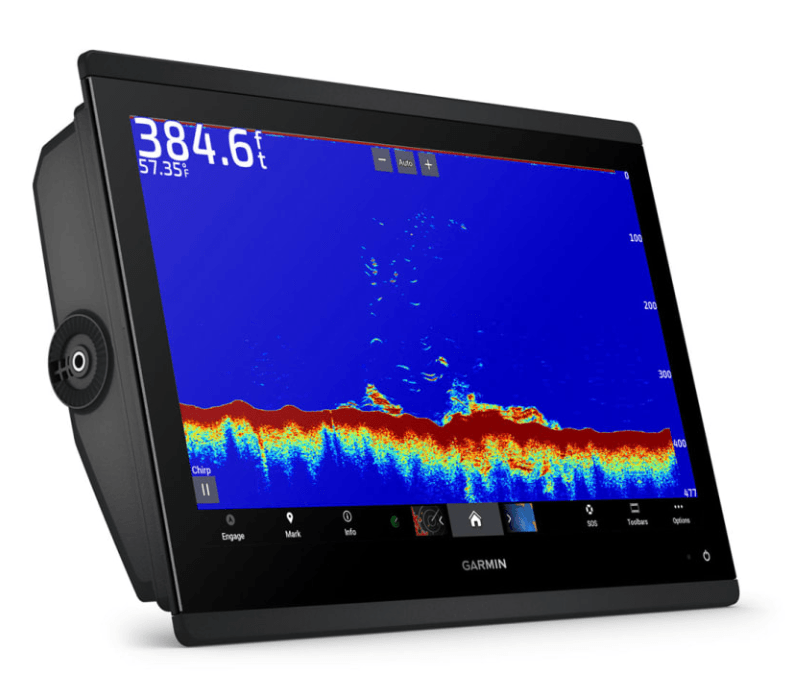

Get built-in Ultra High-Definition SideVü and ClearVü™ scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP® X3 series also supports 1 kW CHIRP traditional sonar capabilities.

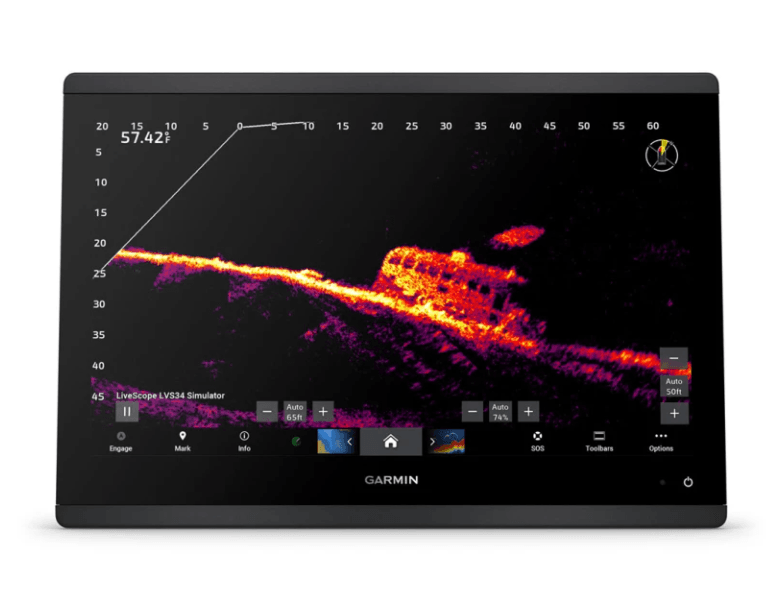

Live Sonar Support

Pair with Panoptix™ or LiveScope™ easy-to-interpret live sonar (transducer required, sold separately) to see all around the boat in real-time.

Faster, Sharper, Smarter

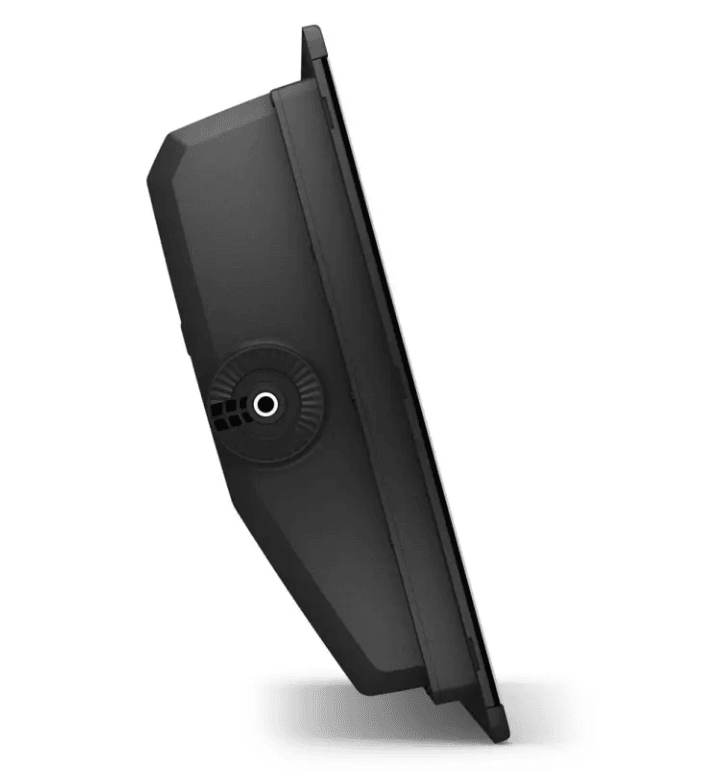

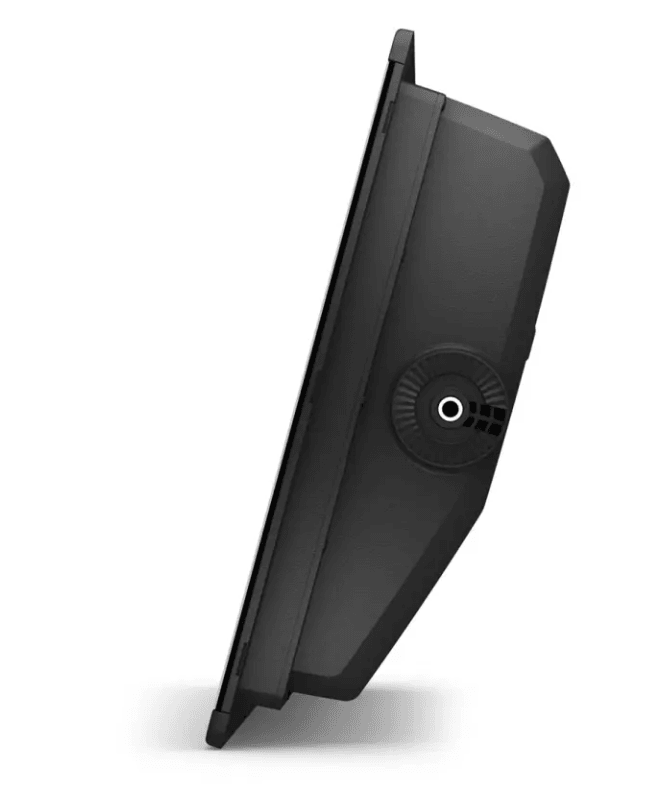

With its added processing power and slimline design featuring edge-to-edge glass, it’s easy to fit this plotter in a wider range of dash configurations.

Bright and Clear Optics

High-resolution IPS display chartplotter offers improved sunlight readability and visibility from any angle.

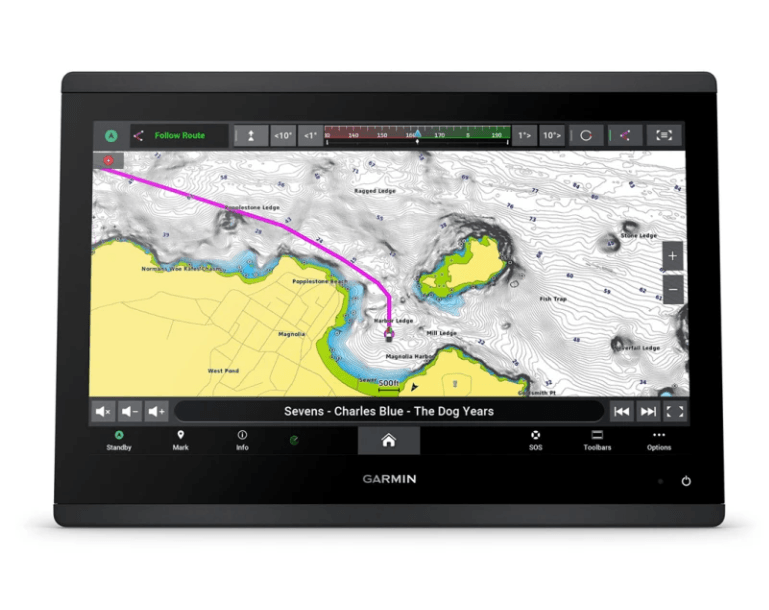

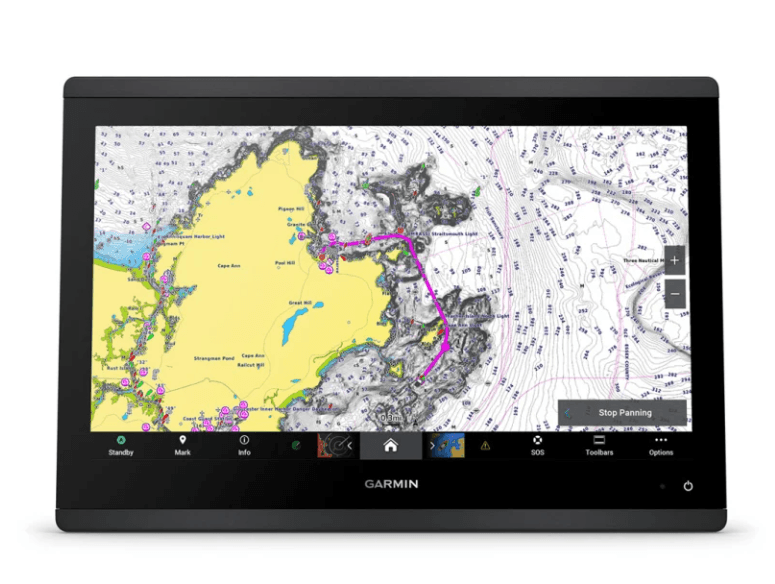

Preloaded Mapping

Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping that includes Auto Guidance+™ technology3 and a 1-year subscription for downloadable daily updates and more on select chartplotters.

Optional Charts and Maps

Bring a fresh new look and feel to the chartplotter with an optional upgrade to a Garmin Navionics Vision+™ premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery, and more.

Power-Pole® Shallow Water Anchor

By networking select Garmin chartplotters with a Force® trolling motor and a compatible Power-Pole shallow water anchoring system, users can access advanced boat control features3 from the plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection, and end-of-route anchoring. Spend more time fishing and less time positioning.

Trolling Motor Integration

Get support and integration for a Force trolling motor (sold separately) to gain complete control while fishing.

Charge Integration From Power-Pole

CHARGE Marine Power Manager from Power-Pole integrates with compatible Garmin chartplotters to help keep battery power going longer and stronger on the water. Users can charge batteries on the run, monitor power use, select where power is allocated, control emergency starts, and even transfer power between battery banks — all from the chartplotter display.

Garmin Sailassist™ Sailing Features

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, and more.

Sailing Polars

Use the polar table to see key data, including how fast users should go at a certain wind angle and speed — so users know whether the sail trim needs to be adjusted.

Garmin Marine Network

If users have multiple compatible Garmin devices on the boat, users can share information — such as maps, user data, radar, and IP camera video — among them.

NMEA 2000® and NMEA 0183 Networks

Connect to compatible autopilots, digital switching, weather, the Fusion audio system, media, VHF, AIS, and more from one screen.

Activecaptian® APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Helm app, Garmin Quickdraw™ Community data, and more1.

Integrated ANT® Technology

Connect with some of the favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments, and wireless remote controls.

Engine Connectivity

Users can connect a chartplotter to different engines, including select Yamaha® engines.

OneHelm Feature

This feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

Send InReach® Device Messages

Pair an inReach satellite communicator4 to the chartplotter, and type custom messages by using the MFD’s on-screen keyboard. Access the contact list, or enter an email, inReach address, or phone number. Users can also group messages by conversation for a texting-like experience.

In the Box:

• Chartplotter
• microSD™ preinstalled
• Power cable
• NMEA 2000® T-connector
• NMEA 2000 drop cable
• Flush mount kit with gasket protective cover
• Trim piece snap covers

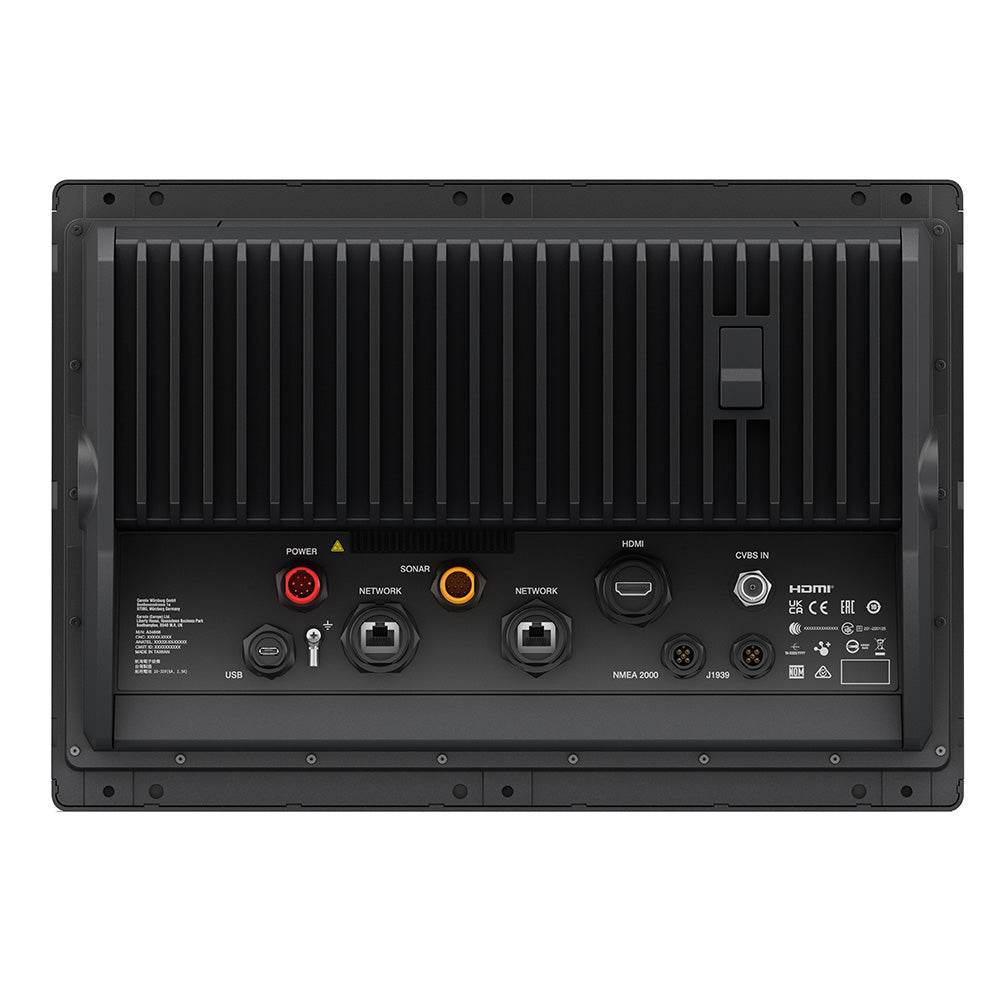

Connections

• NMEA 2000® Ports: 1
• NMEA 0183 Input Ports: 1
• NMEA 1083 Input (TX) Ports: 1
• Video Input Ports: 1 (BNC composite)
• Video Output Ports: 1 HDMI
• J1939 Ports: 1
• Garmin Marine Network Ports: 2
• 12-Pin Transducer Port: 1
• USB Ports: 1
• Bluetooth® Pairing
• ANT+ (Connectivity)
• Garmin Wi-Fi Network (Local Connection)

Specifications:

• Unit Dimensions: 15.1" x 10.3" x 3" (38.4 cm x 26.2 cm x 7.6 cm)
• Unit Weight: 9.7 lbs (4.4 kg)

¹Requires ActiveCaptain app on your compatible smartphone paired to your chartplotter

²Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

³Integration of these features requires the purchase of a C-Monster® GATEWAY through Power-Pole

⁴Active satellite subscription required. Some jurisdictions regulate or prohibit the use of satellite communication devices. It is the responsibility of the user to know and follow all applicable laws in the jurisdictions where the device is intended to be used.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Engineering enhancements are ongoing and may not be reflected in the pictures, videos, and specifications.

Additional Info:

• Cartography Brand: Garmin Navionics+
• Screen Size: 16"
• Touchscreen: Yes
• Transducer Included: No
