Garmin GPSMAP 8612xsv 12" Combo GPS/Fishfinder GN+

GPSMAP® 8612xsv 12-inch Combo GPS/Fishfinder GN+ (010-02092-51)

Elevate your helm with the Garmin GPSMAP 8612xsv Combo, a flagship 12-inch chartplotter and sonar powerhouse designed for serious anglers, cruisers, and sailors. Engineered for clarity, connectivity, and unmatched fishfinding performance, this unit seamlessly blends advanced navigation and sonar features into one sleek package. Below are the standout capabilities and benefits:

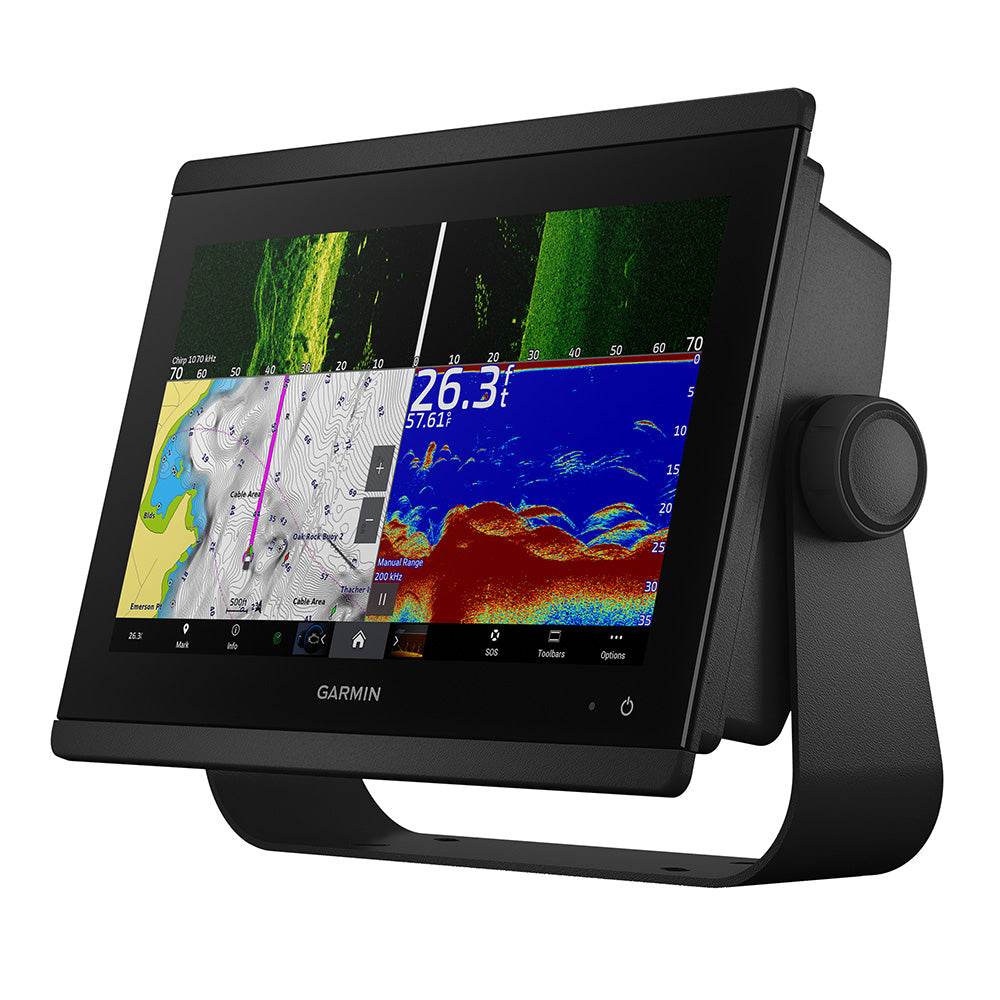

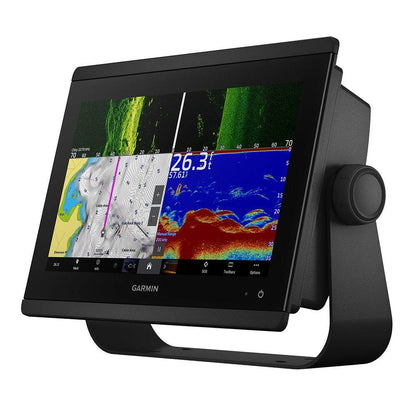

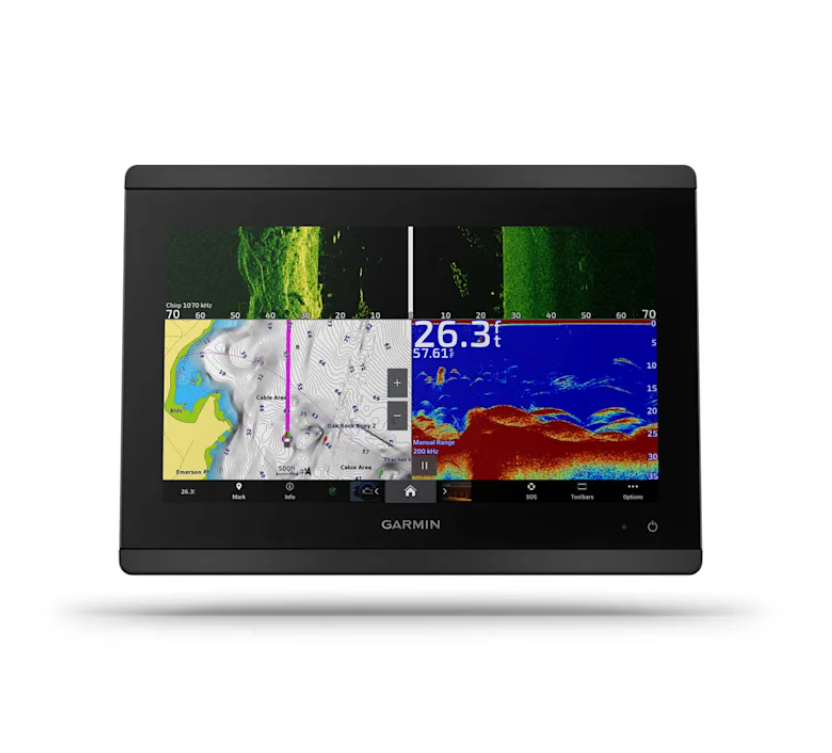

• 12″ Full HD IPS Touchscreen — delivers vivid colors, wide viewing angles, and excellent readability even under bright sunlight or when wearing polarized sunglasses

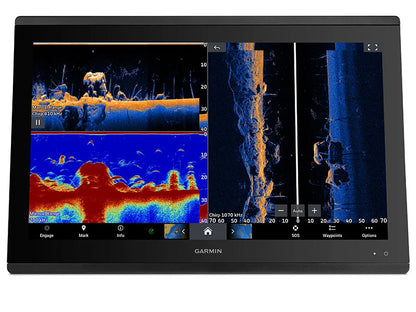

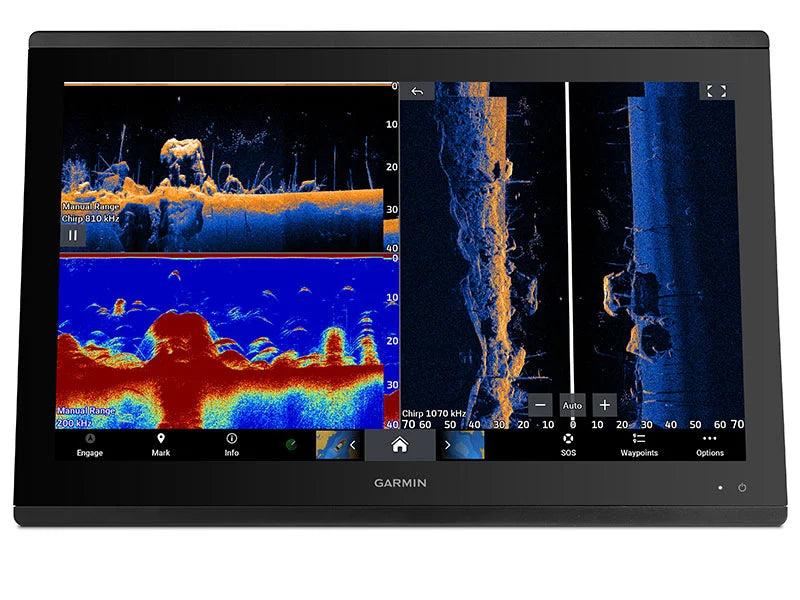

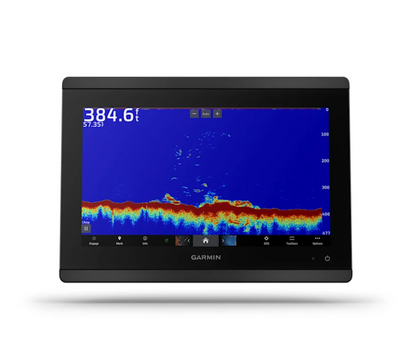

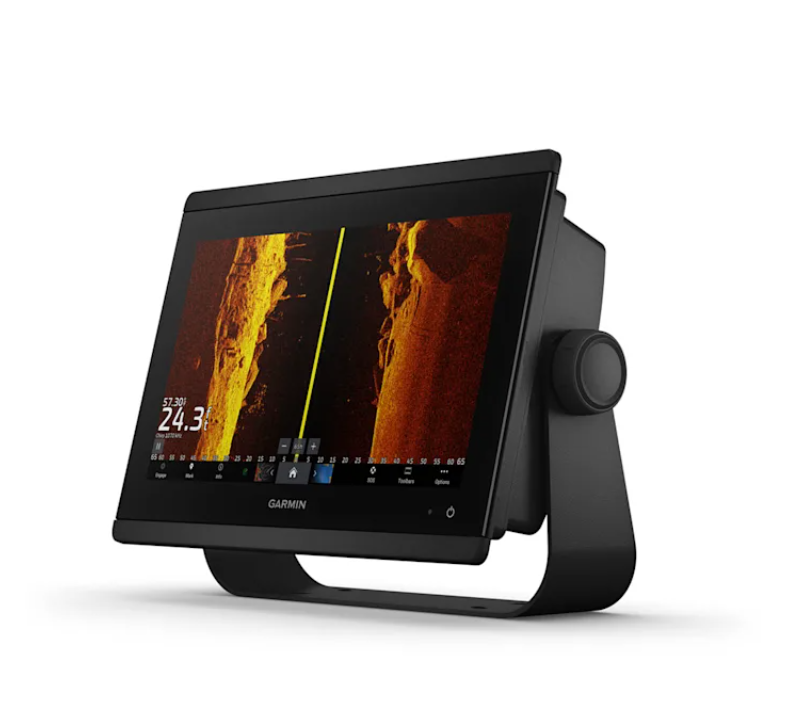

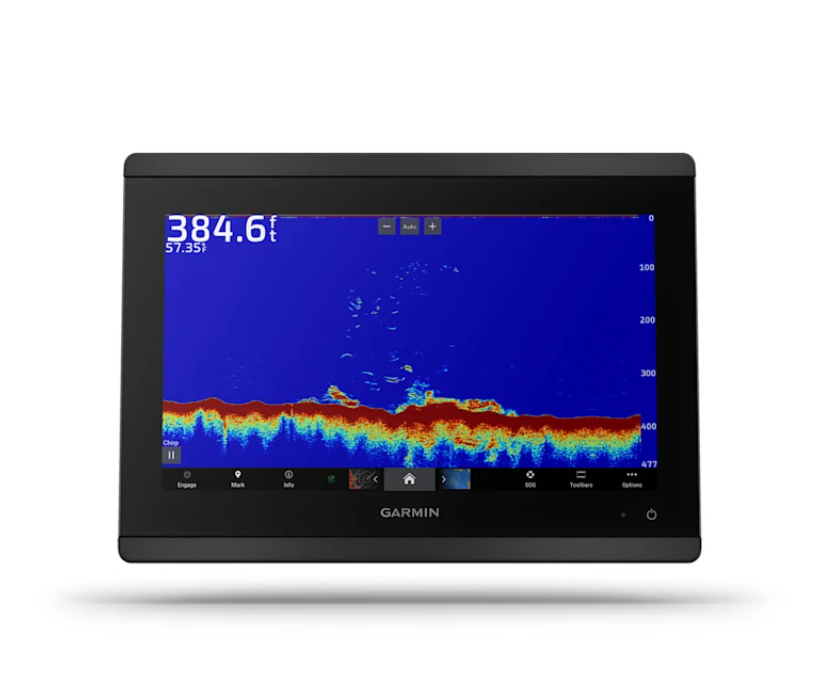

• All-in-One Sonar Support — built-in dual-channel 1 kW traditional CHIRP, CHIRP ClearVü™, CHIRP SideVü™, plus Ultra High-Definition scanning sonar without the need for a black box

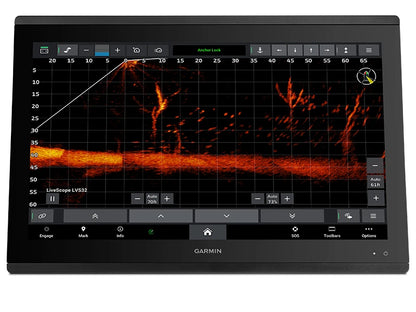

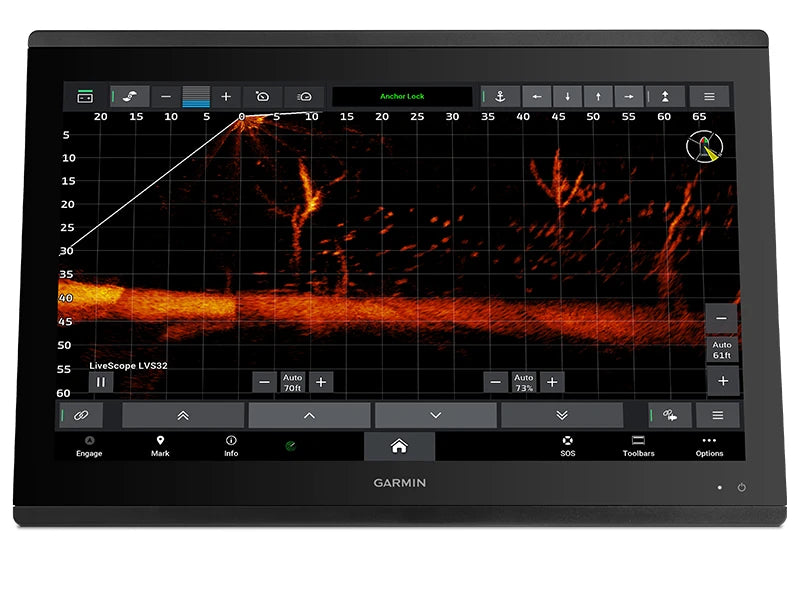

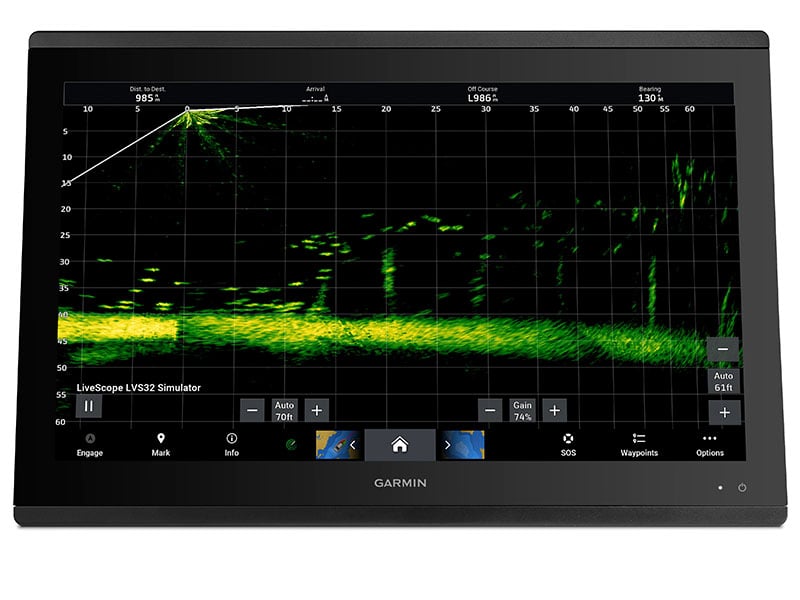

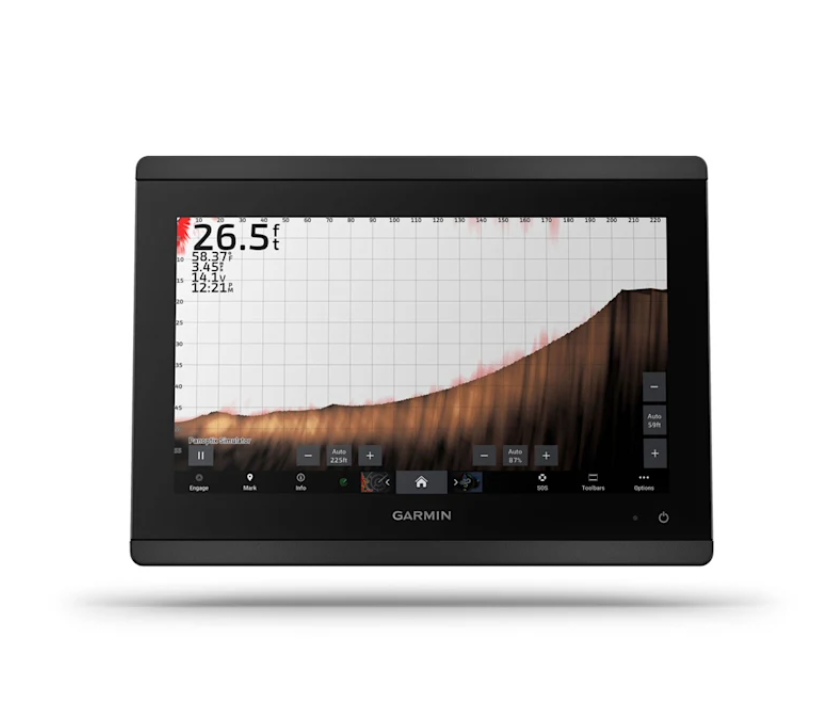

• Live Sonar Ready — supports LiveScope™ and full range of live sonar transducers (sold separately) for real-time underwater visualization

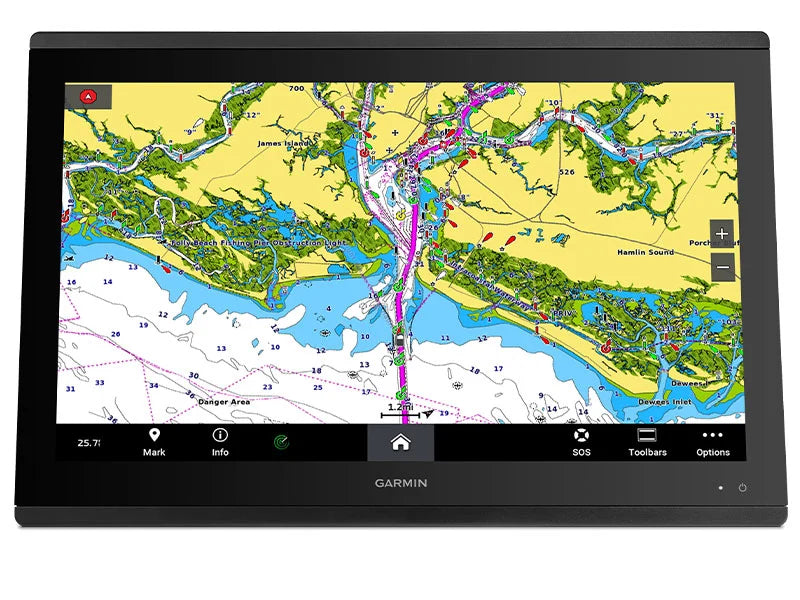

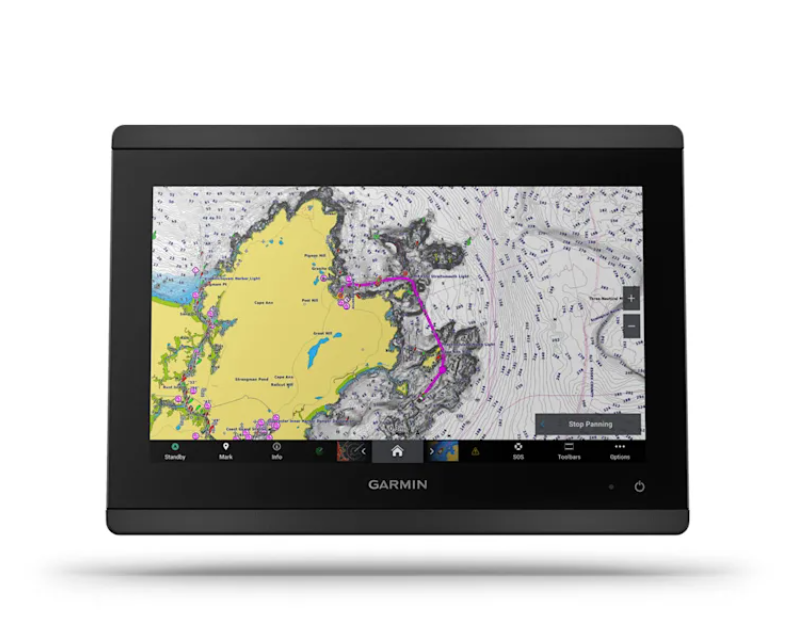

• Preloaded Navigation Charts — includes Garmin Navionics+™ coastal and inland mapping with Auto Guidance+™ routing for planning (not a substitute for safe navigation)

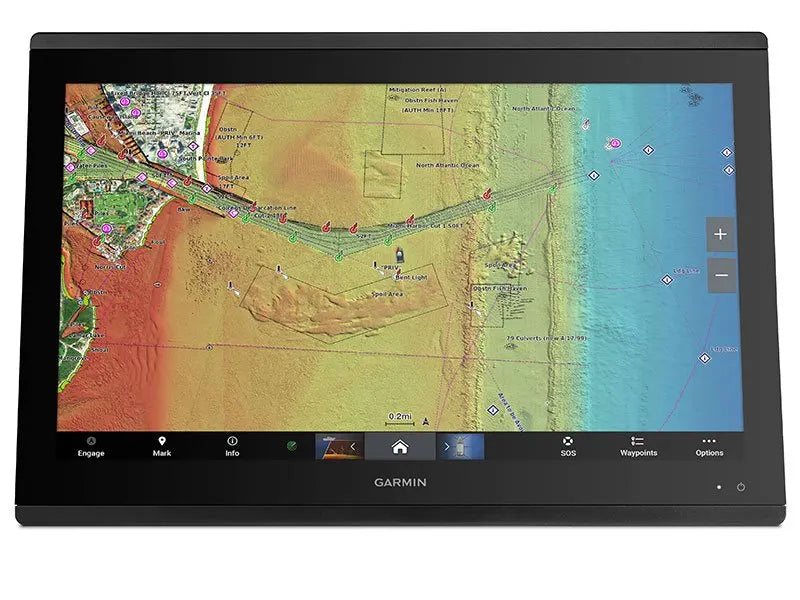

• Expandable Map Options — compatible with premium Garmin Navionics Vision+™ maps for enhanced relief shading, satellite imagery, and sonar overlay

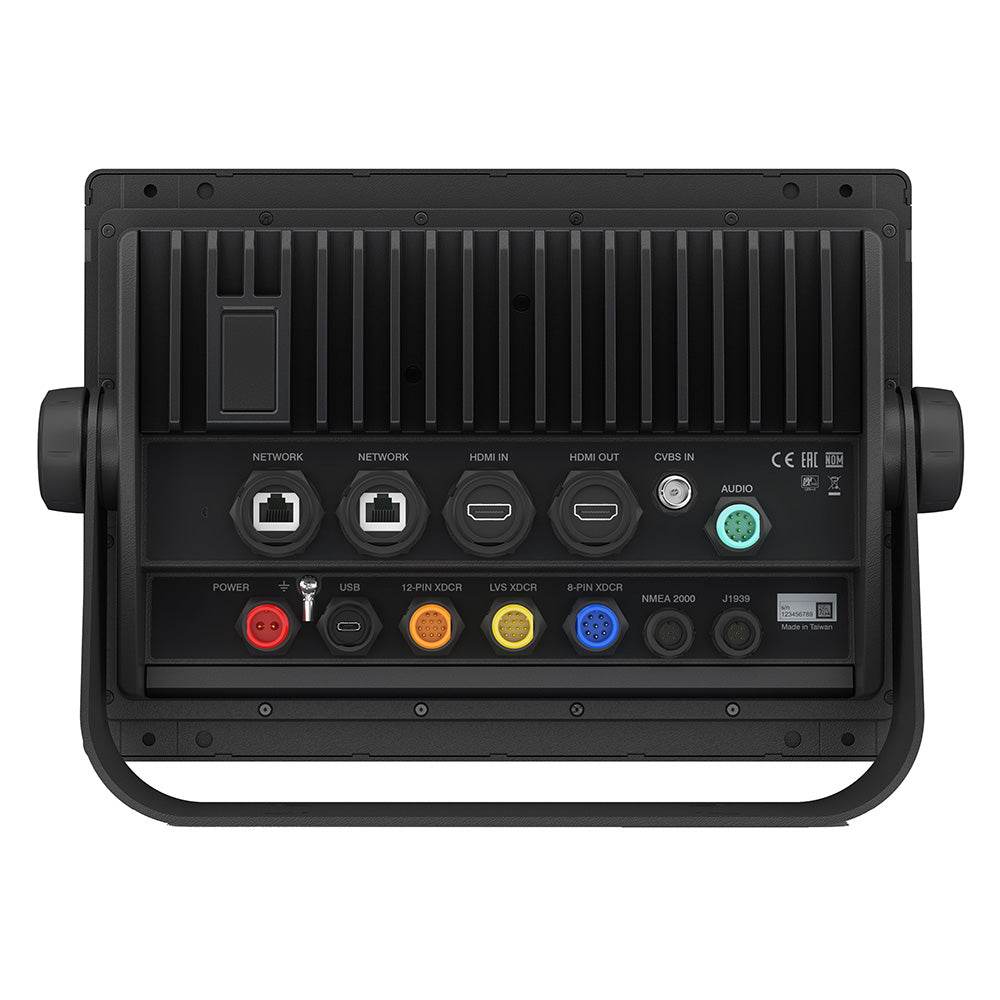

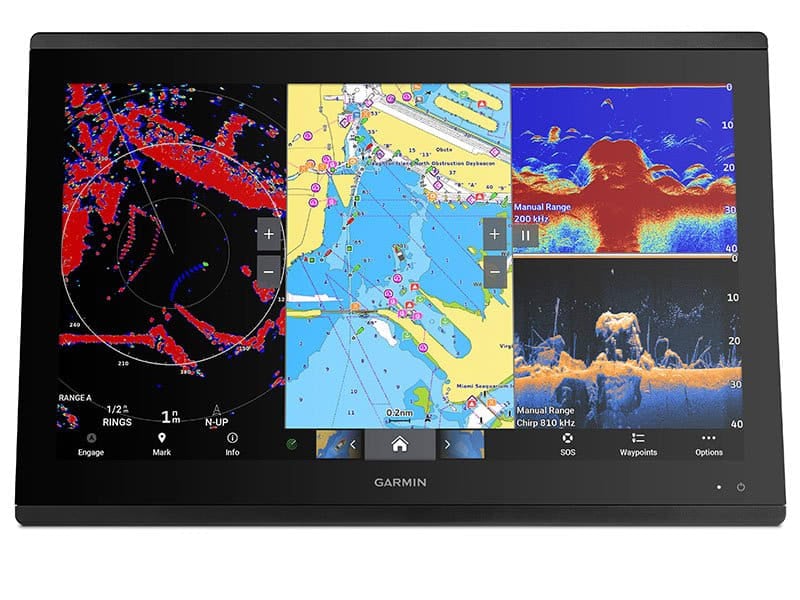

• Robust Networking & Integration — supports NMEA 2000®, Garmin Marine Network™, Two Garmin Network ports, USB, HDMI, and video in to create a fully integrated marine electronics suite

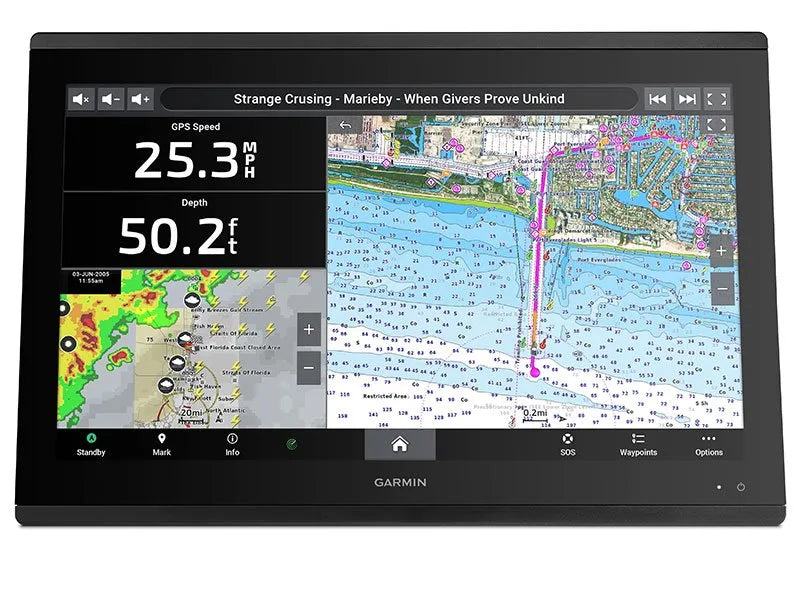

• SmartMode™ Station Control — define presets (docking, fishing, cruising, anchoring) for rapid one-touch access to dedicated displays

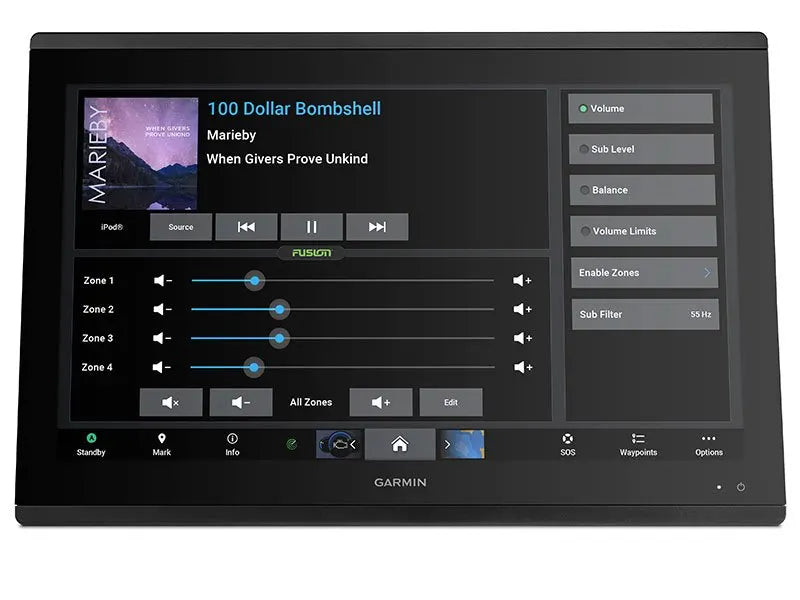

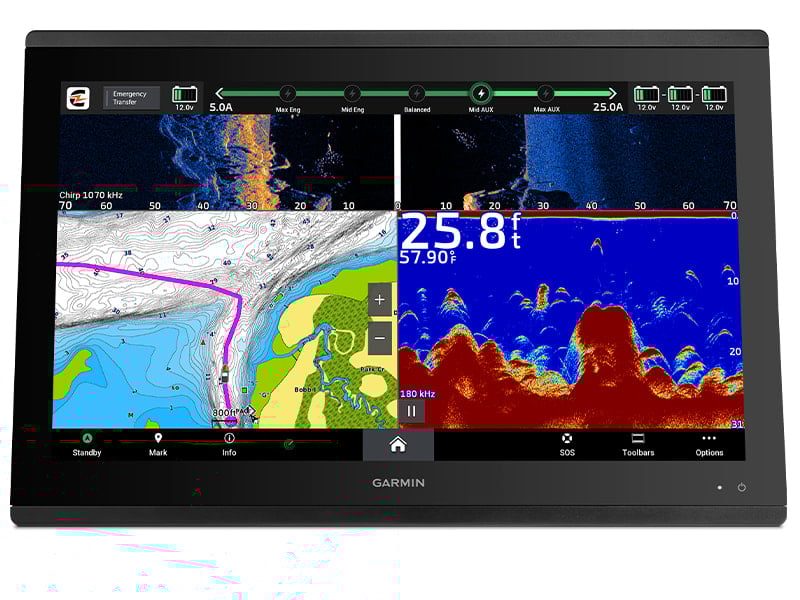

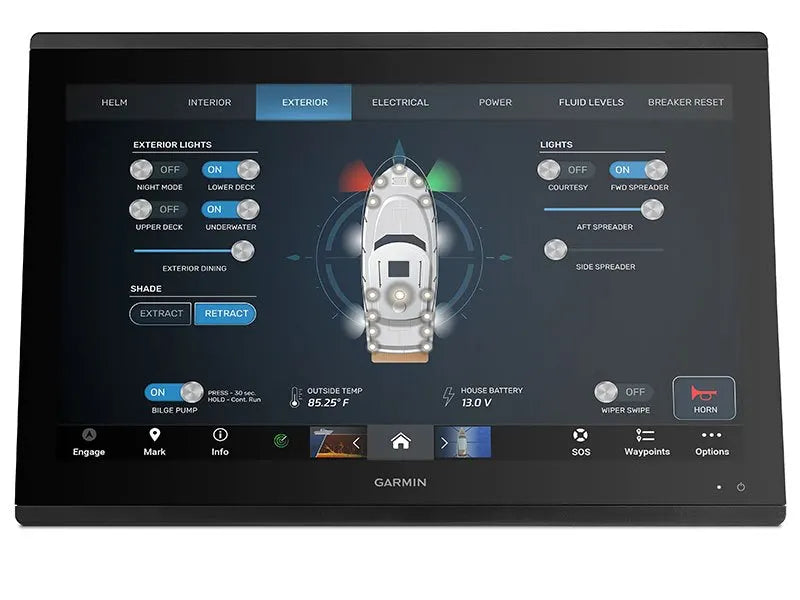

• OneHelm™ Integration — central control over compatible third-party systems (lighting, stabilization, digital switching) from your chartplotter screen

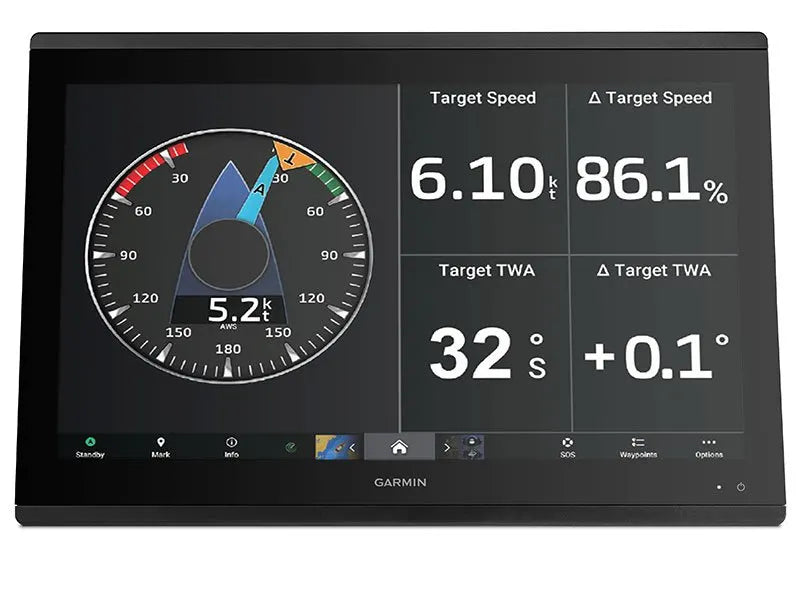

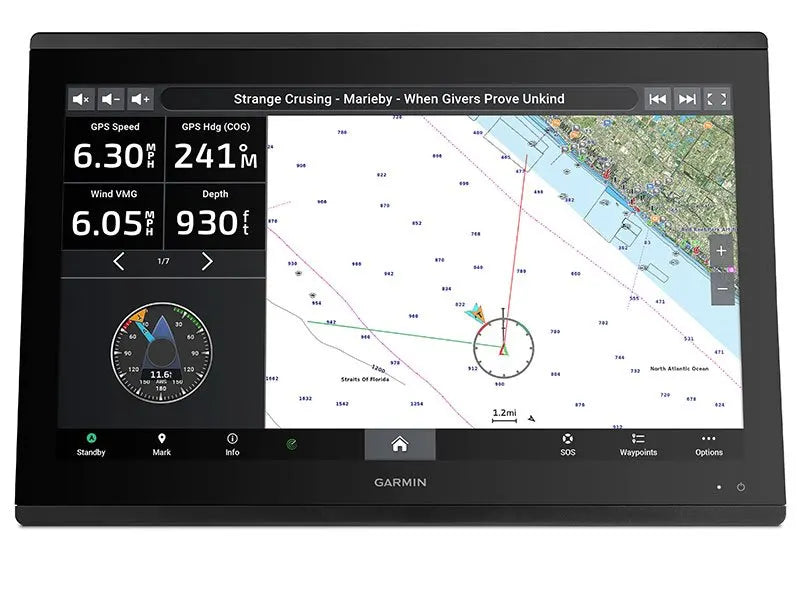

• SailAssist™ Features — built-in sail data, laylines, wind rose, race start guidance, true wind display, polars, and more to support competitive sailing

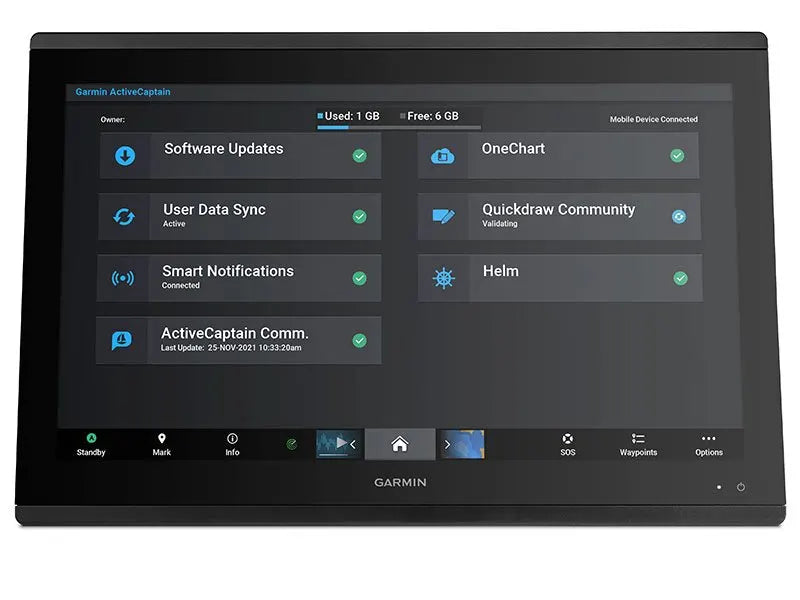

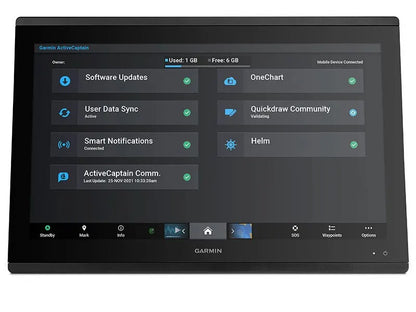

• ActiveCaptain® & Wi-Fi Connectivity — pair via Wi-Fi® to manage trip planning, software updates, OneChart™, smart notifications, and access Garmin Quickdraw™ Community data

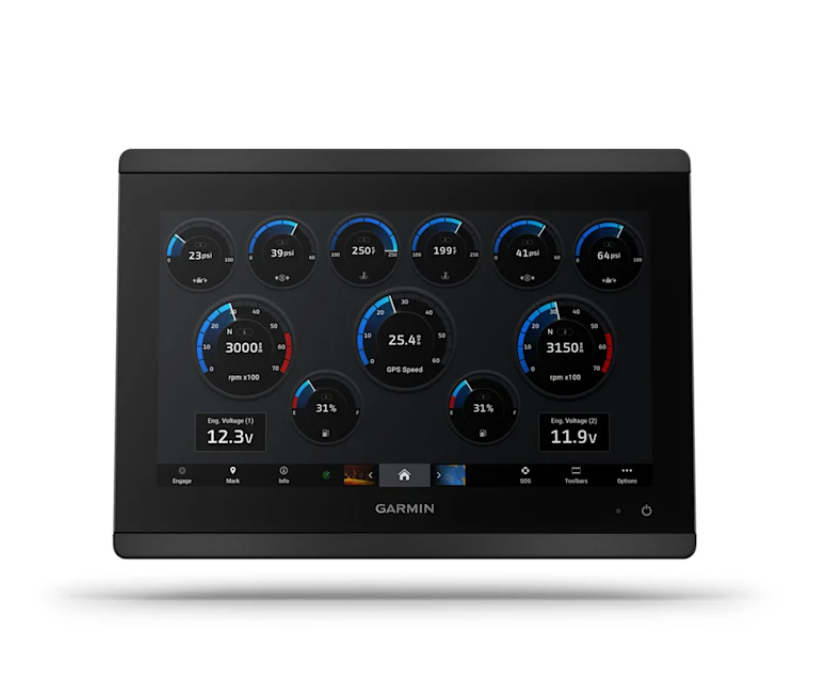

• Engine Data & Diagnostics — via SmartCraft® Connect, view RPMs, fuel flow, trim, temperature, and more for up to four Mercury® engines
• Dual microSD™ Card Slots — conveniently store map data and ActiveCaptain content on two separate microSD cards (max 32 GB each)

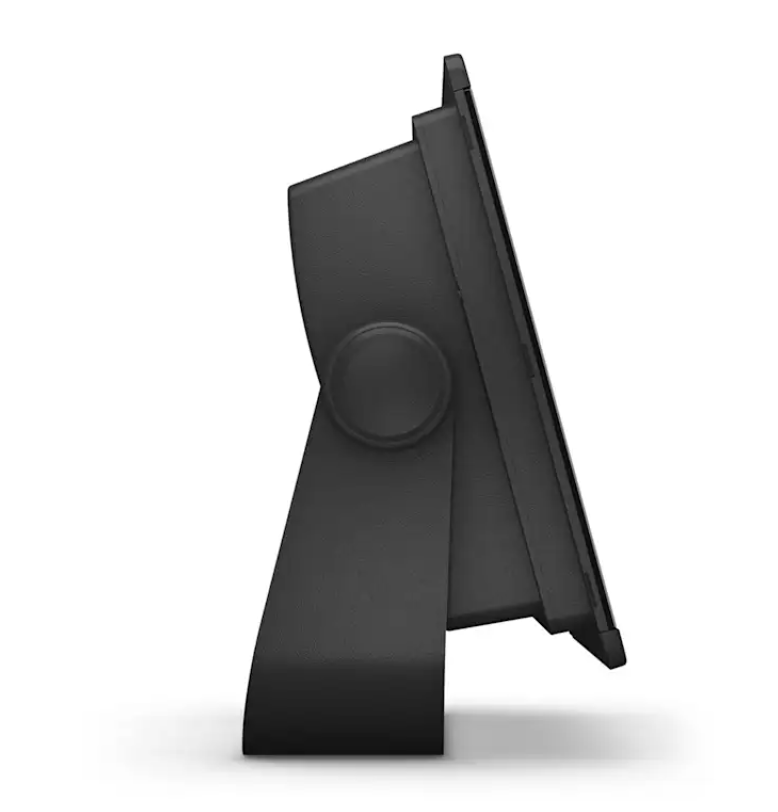

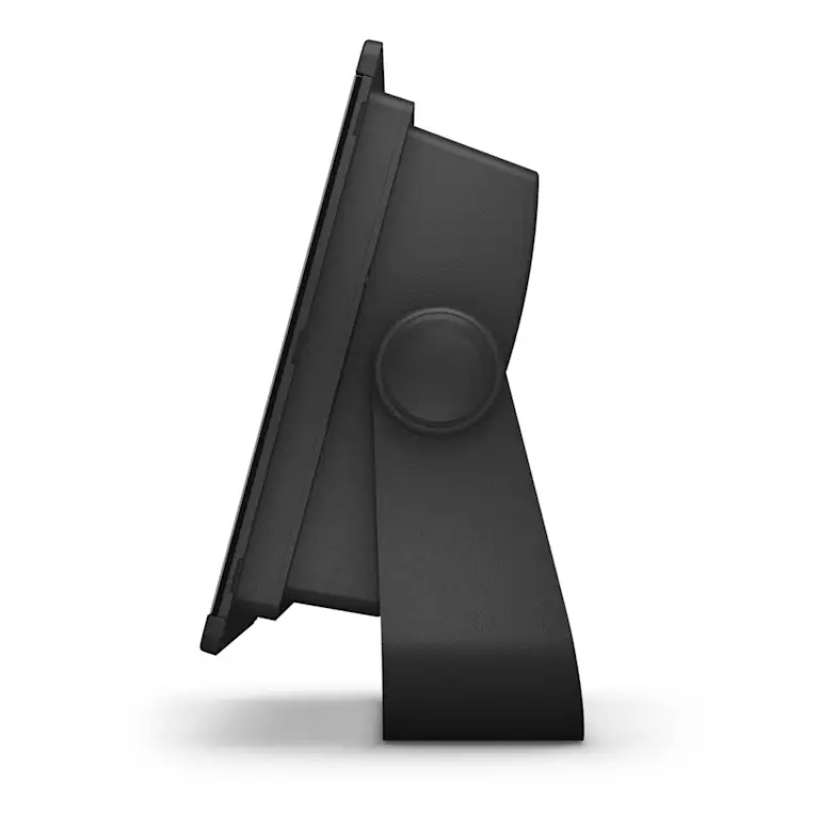

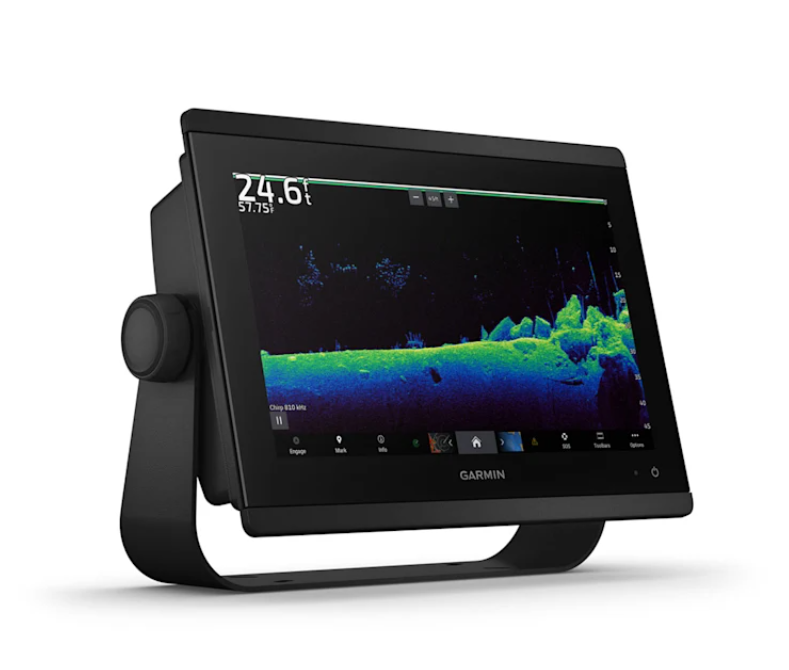

• Durable & Versatile Mounting — mount flush, bail, or flat edge-to-edge to build a sleek glass helm appearance
• Rugged & Reliable — IPX7 water rating, wide operational temperature range (-15 °C to 55 °C)
• Dimensions & Electrical — measures approximately 11.9″ × 8.5″ × 3″ (30.3 × 21.6 × 7.6 cm), draws ~1.3 A typically at 12 V (max ~6 A)

In the Box:
Chartplotter unit, power cable, NMEA 2000 T-connector, drop cable, bail mount with knobs (8610/8612 series), flush mount kit, protective cover, snap-on trim covers, and documentation.

Why This Unit Stands Out

• Elite sonar + chart integration: With full built-in support for all major Garmin sonar modes, plus high-performance mapping, you’re investing in a chartplotter that truly does it all.
• Ultimate display clarity: The IPS panel ensures crisp visuals from extreme angles — a critical advantage in bright sunlight or on fast-moving decks.

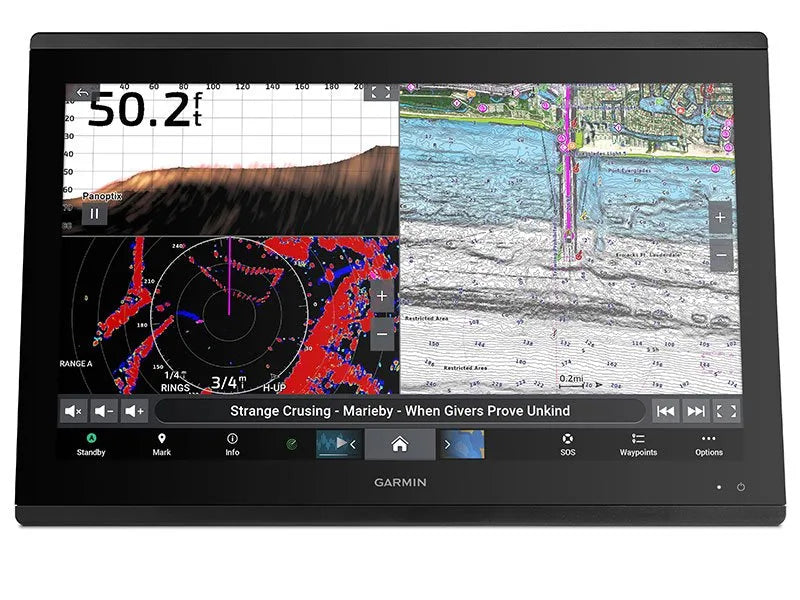

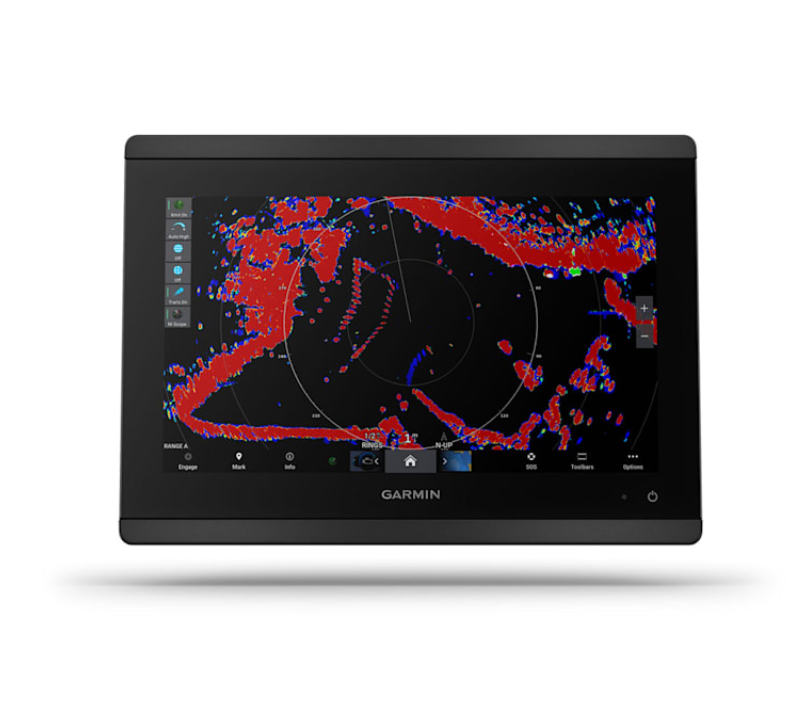

• Seamless connectivity and scaling: Whether you expand with radar, autopilot, cameras, or digital switching, this unit acts as the nerve center of your marine electronics.
• Designed by mariners, for mariners: Every feature — from preset SmartMode to SailAssist to OneHelm — addresses real challenges on the water, empowering confident and informed navigation.

Owner's Manual (pdf)
