Garmin GPSMAP 8616xsv 16" Combo GPS/Fishfinder GN+

GPSMAP® 8616xsv 16 inch Combo GPS/Fishfinder GN+ (010-02093-51)

SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT

Take your marine navigation and fishing performance to the next level with the Garmin GPSMAP 8616xsv Combo GPS/Fishfinder GN+. Built for serious anglers, cruisers, sail racers, and boaters, this multifunction display (MFD) brings premium chartplotter and sonar power in a sleek, integrated package.

• Stunning 16-inch Full HD IPS touchscreen with wide viewing angles, superior clarity, and excellent sunlight readability—even with polarized sunglasses

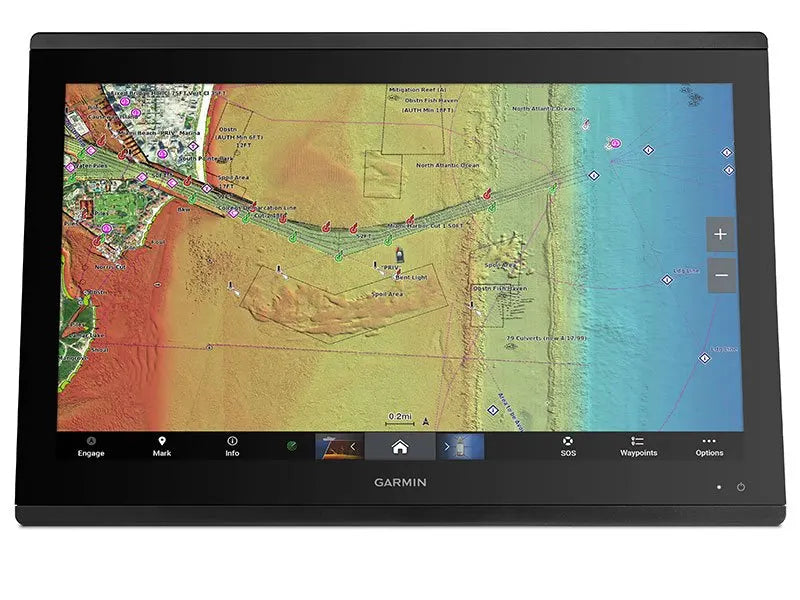

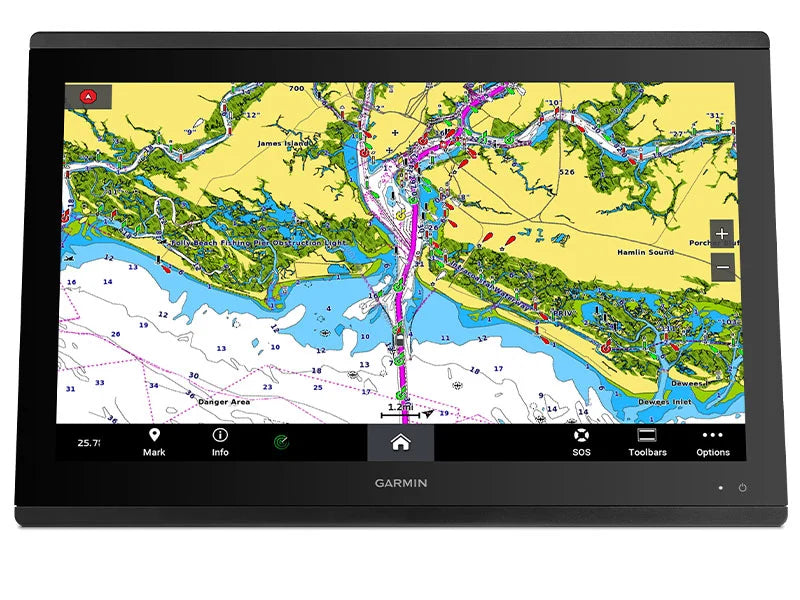

• Preloaded with Garmin Navionics+™ coastal and inland charts, including Auto Guidance+™ technology and a 1-year update subscription for inland/coastal coverage

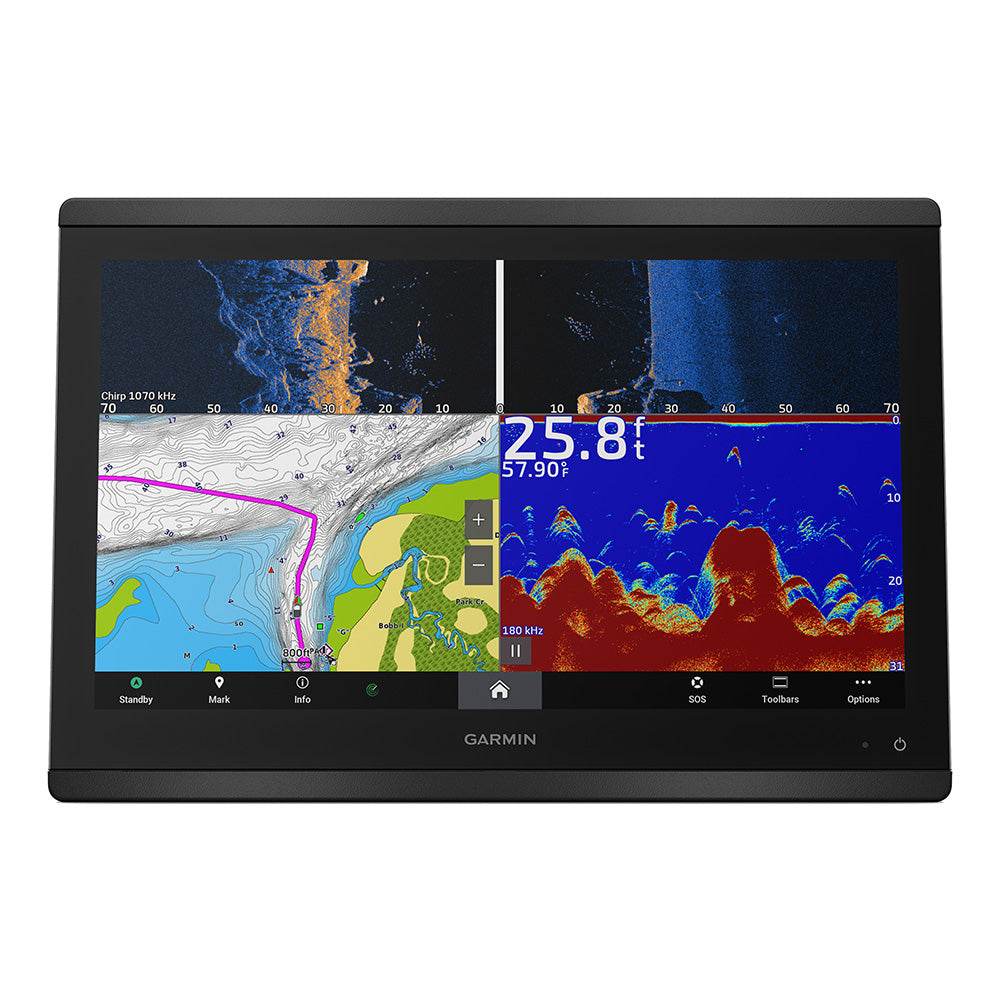

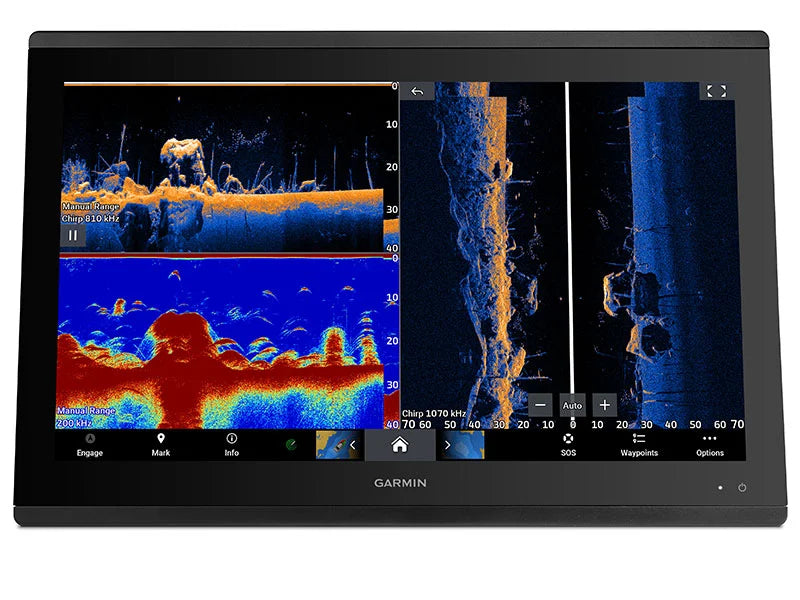

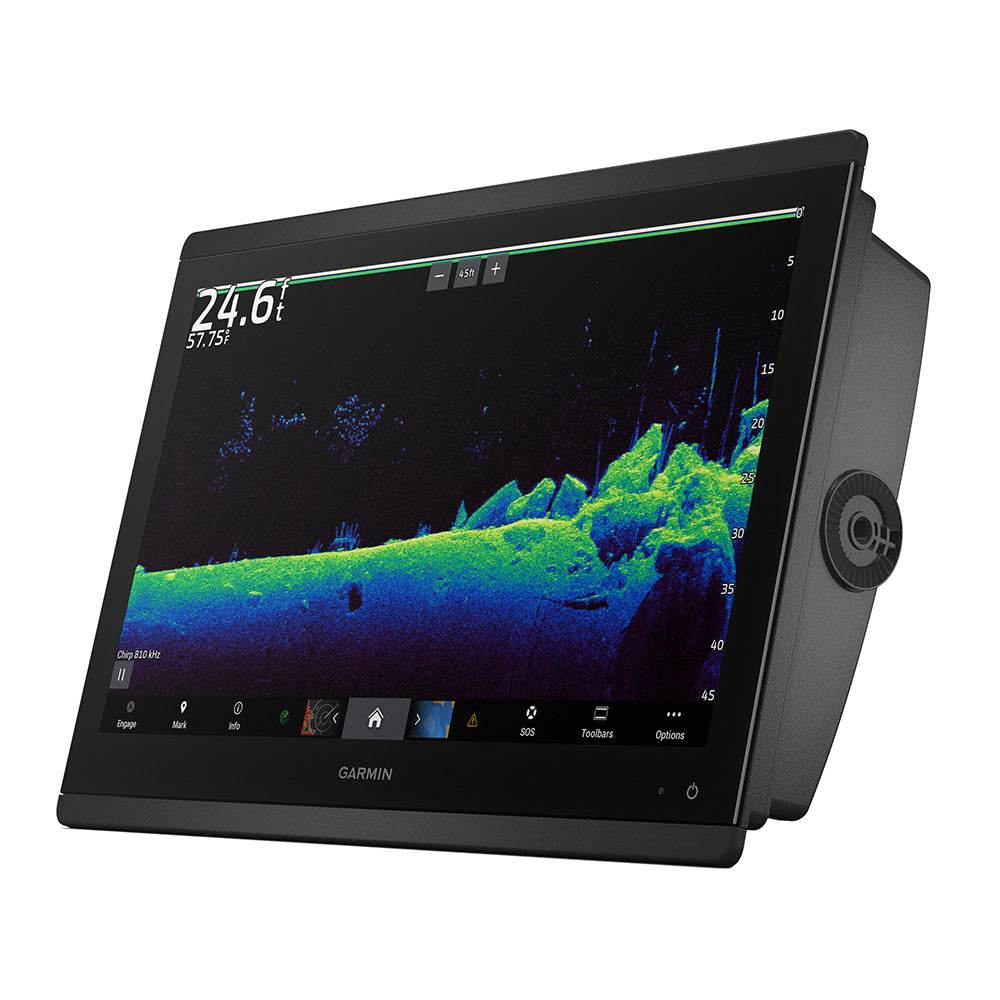

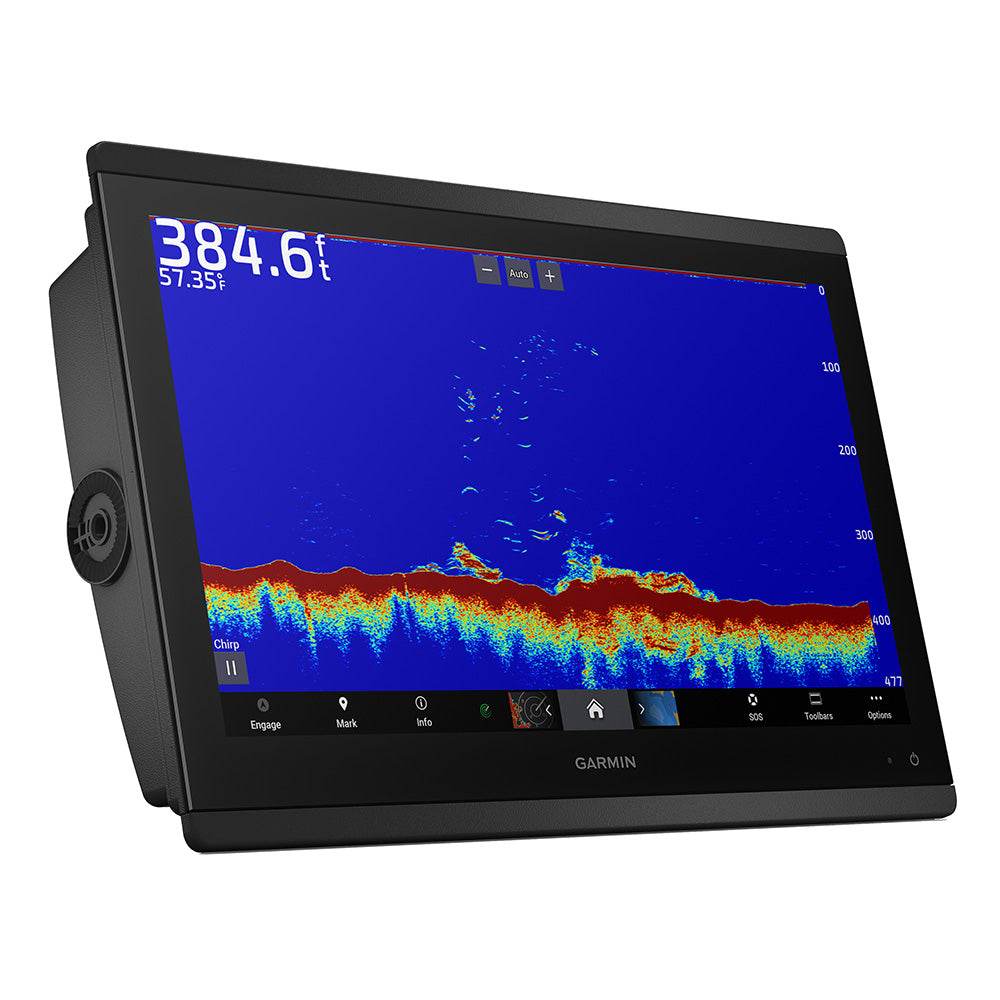

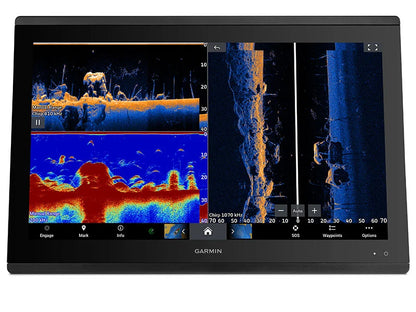

• Advanced sonar support built in: dual-channel 1 kW traditional CHIRP, CHIRP ClearVü and SideVü scanning sonar, plus Ultra High-Definition scanning sonar (no black box required)

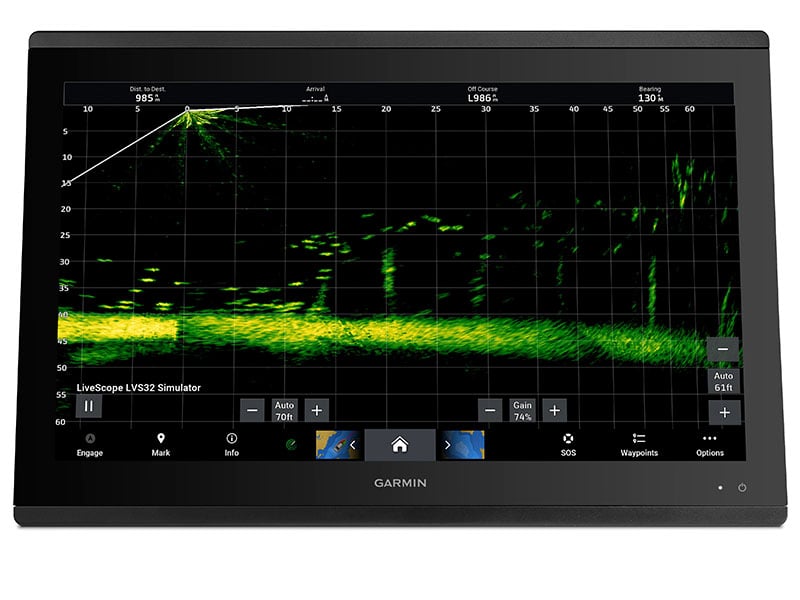

• Compatibility with live sonar systems such as LiveScope™ to view fish and structure in real time (transducers sold separately)
• Configure multiple display units flat-mounted edge-to-edge for a sleek glass helm or mount flush — for a streamlined, modern helm layout
• Support for GRID™ 20 remote control, giving intuitive remote access across your system

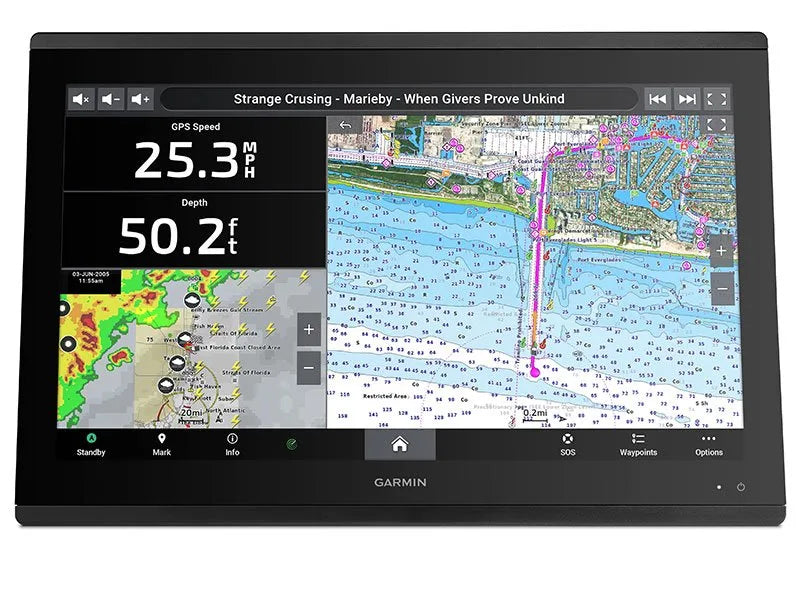

• SmartMode™ station controls let you define presets (e.g. docking, cruising, fishing, anchoring) to bring up relevant data with one touch

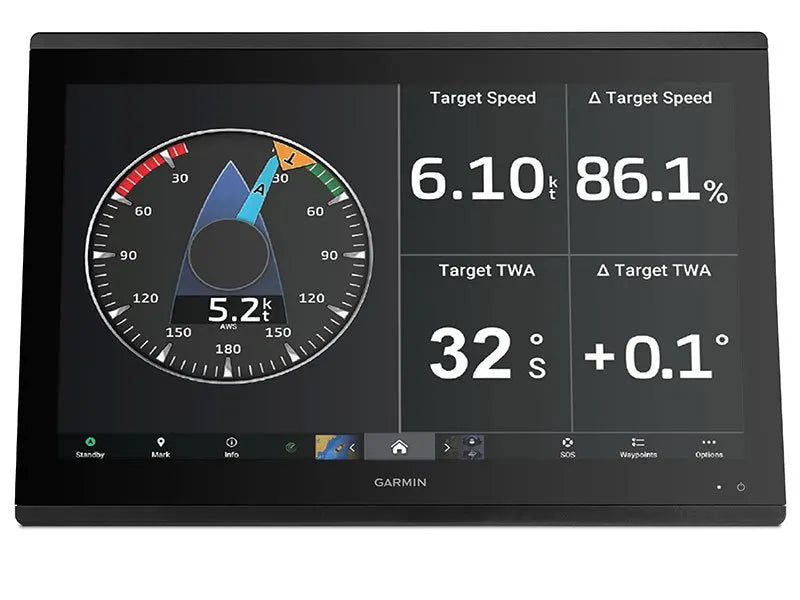

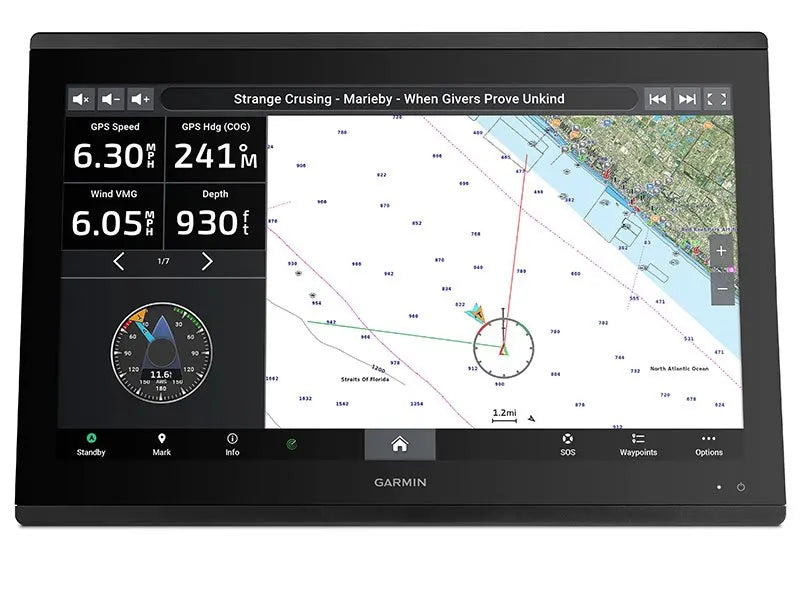

• Sailing-specific tools via SailAssist™: laylines, race-start guidance, enhanced wind rose, true wind, polars, drift, set & current/tide sliders, and more

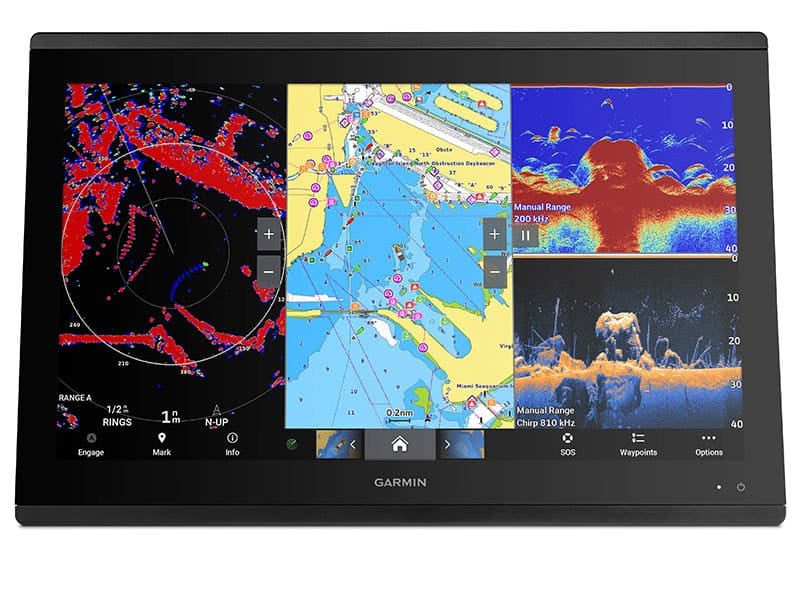

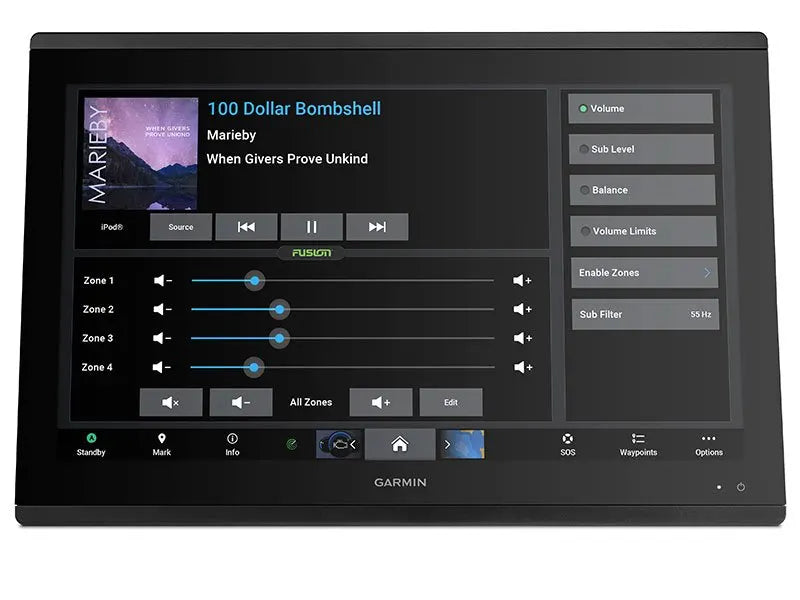

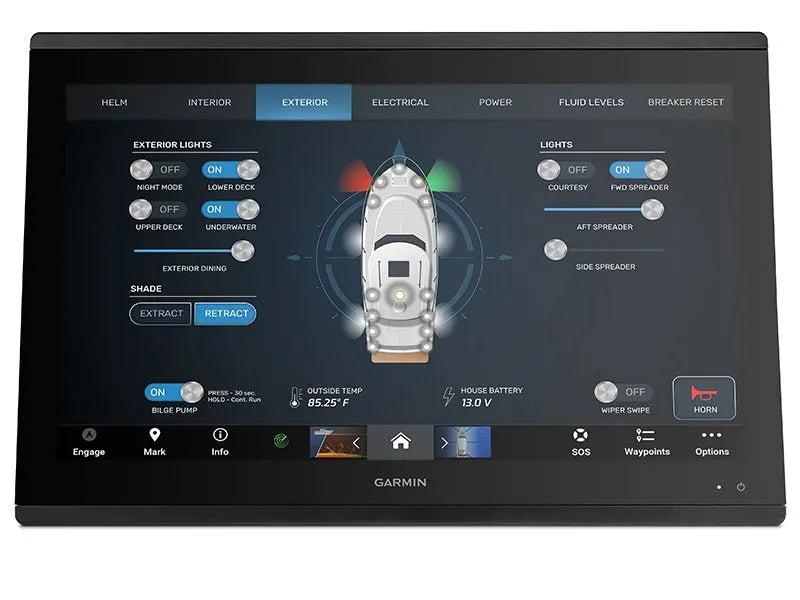

• Full network connectivity: Garmin Marine Network, NMEA 2000® & NMEA 0183 for radar, autopilot, AIS, VHF, camera integration, and digital switching (OneHelm™ support)

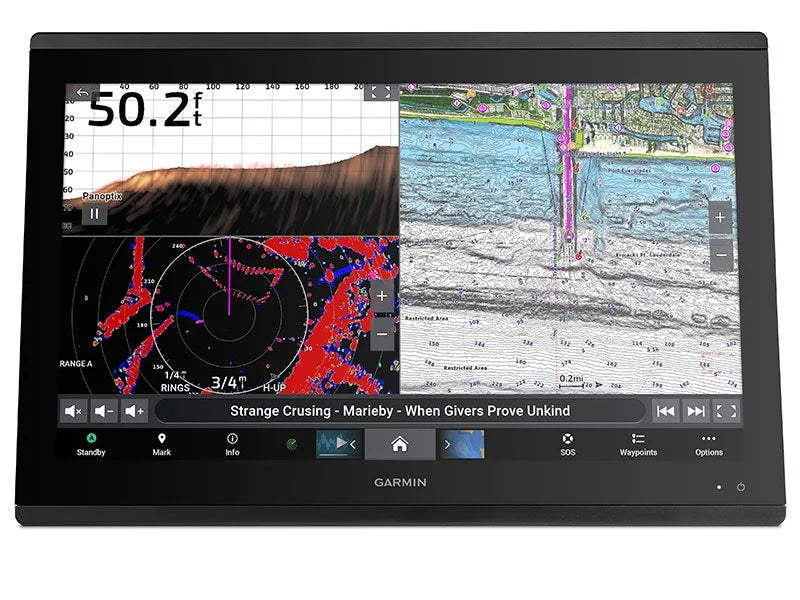

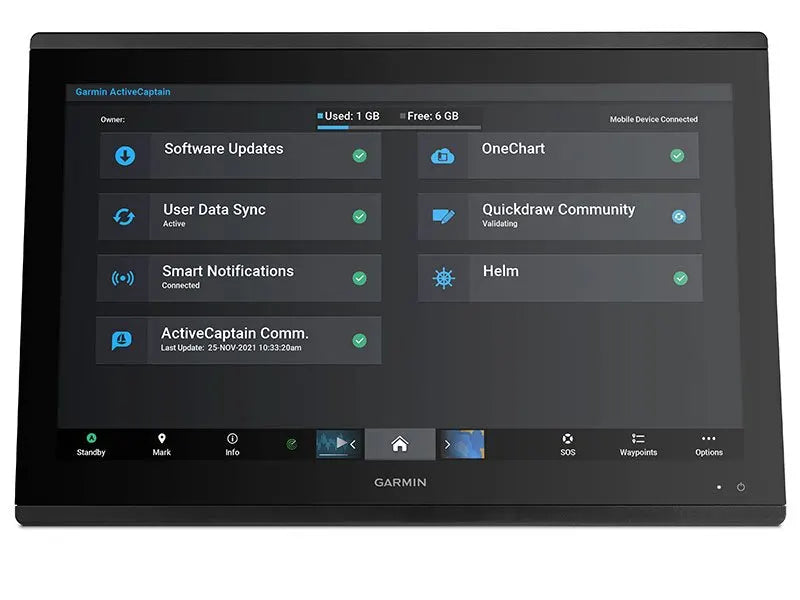

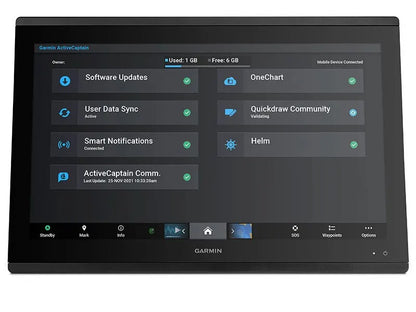

• Wireless features: built-in Wi-Fi pairs with the ActiveCaptain® app (OneChart™, smart notifications, software updates, trip planning), plus Bluetooth® and ANT+ for connectivity to devices like quatix® watches, gWind™ sensors, GNX wind instruments and wireless remotes

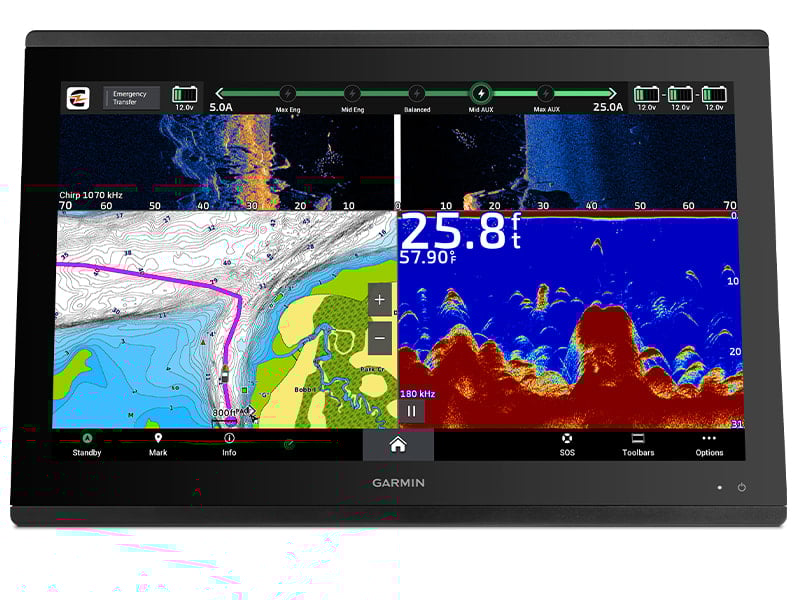

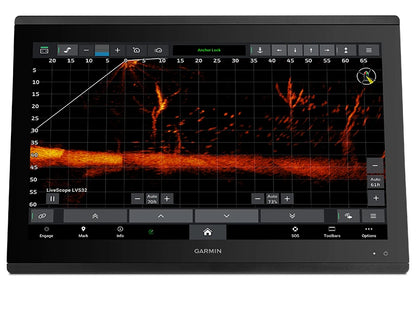

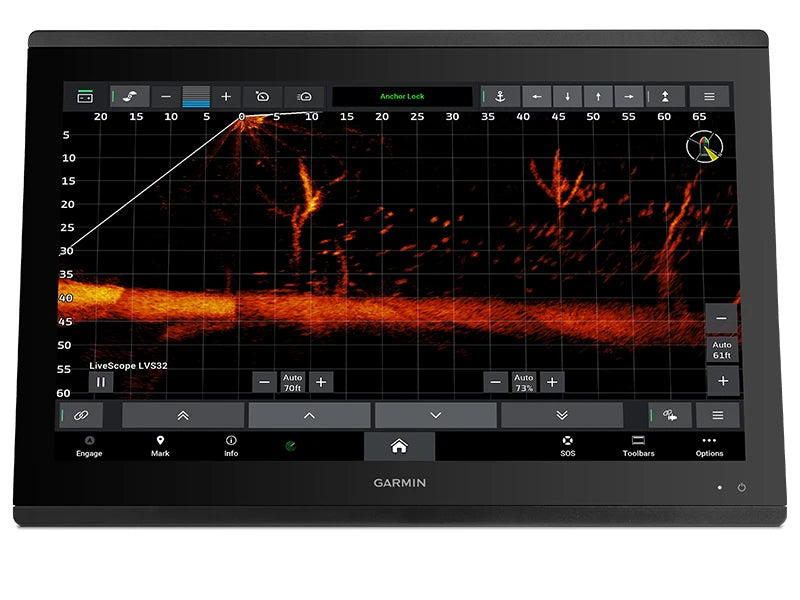

• Power-Pole shallow water anchor integration: smart anchor deployment, jog, auto stow, drag detection and end-of-route anchoring when networked with your Garmin plotter and Power-Pole system

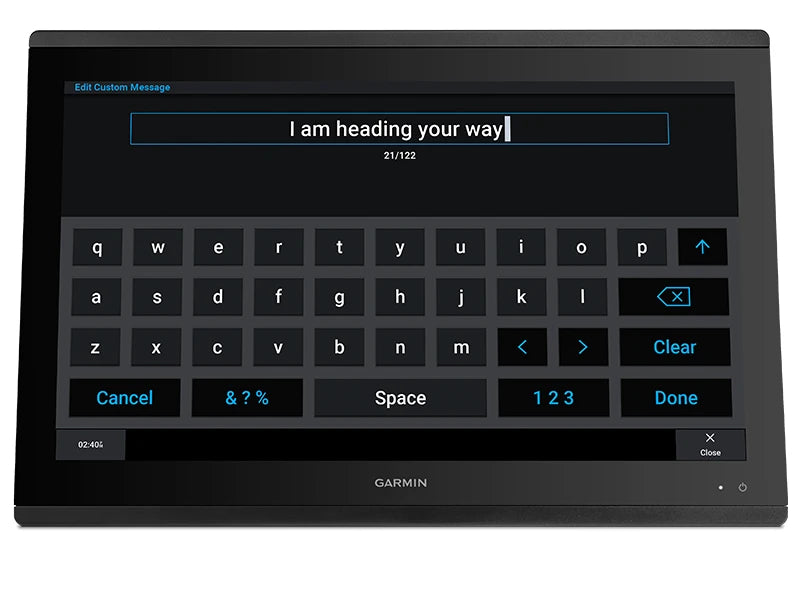

• InReach® message pairing: send and receive messages using your chartplotter’s keyboard; manage conversations and contacts via screen interface (with satellite subscription)

In the Box
GPSMAP 8616xsv unit, power cable, NMEA 2000 drop cable, NMEA 2000 T-connector, flush mount kit, sun cover, trim piece snap covers, and documentation.

Technical Highlights & Connections

• Screen: 16″ diagonal, 13.6″ × 7.7″ active area, 1920 × 1080 resolution, IPS touchscreen
• Physical size: 15.1″ × 10.3″ × 3.0″ (38.5 × 26.3 × 7.6 cm), weight ~9.6 lb (4.4 kg)
• Water resistance: rated to IPX7 (resists immersion)

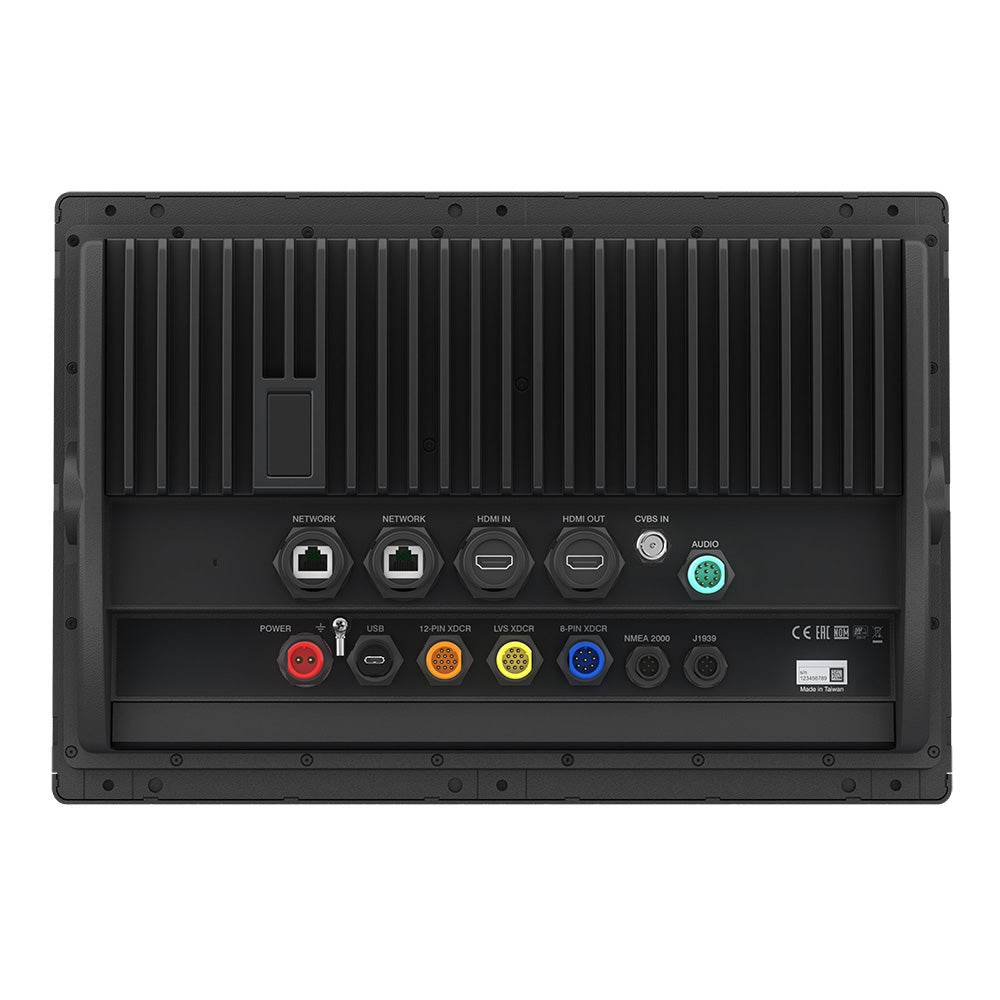

• Connectivity: 2 Garmin Marine Network ports, NMEA 2000 port, NMEA 0183 ports (in & out), BNC composite video input, HDMI in/out, J1939, USB, Bluetooth, ANT+
• Sonar transducer ports: 8-pin, 12-pin, and LVS support (for live sonar)
• Charts & memory: preloaded BlueChart® g3 & LakeVü g3 (Navionics) with Auto Guidance+, expandable via microSD cards (2 slots)
• Route & data capacity: supports up to 5,000 waypoints, 100 routes (each up to 250 waypoints), track log of 50,000 points with 50 saved tracks

Whether you’re charting a course, tracking fish, managing camera and radar systems, or competing in a sail race, the Garmin GPSMAP 8616xsv provides a powerful, connected, and versatile marine electronics platform.

Owner's Manual (pdf)
