Garmin GPSMAP 943xsv 9" GPS/Fishfinder Combo GN+ (GT23-TM)

GPSMAP® 943xsv 9-inch Combo GPS/Fishfinder GN+ with GT23-TM Transducer (010-02366-61/GT23M)

GET A SHARPER VIEW FROM YOUR CONNECTED HELM

With its sleek design, powerful processing and upgraded IPS display, this advanced 9” chartplotter integrates seamlessly into your Garmin marine system.

Discover pristine clarity and total system integration at your helm with the GPSMAP 943xsv Combo (010-02366-61 / GT23M). Built for serious anglers and boaters, this advanced multifunction display offers:

• Crisp 9-inch WXGA IPS touchscreen with 1280×720 resolution — 50% more pixels than earlier models for sharper maps and sonar returns

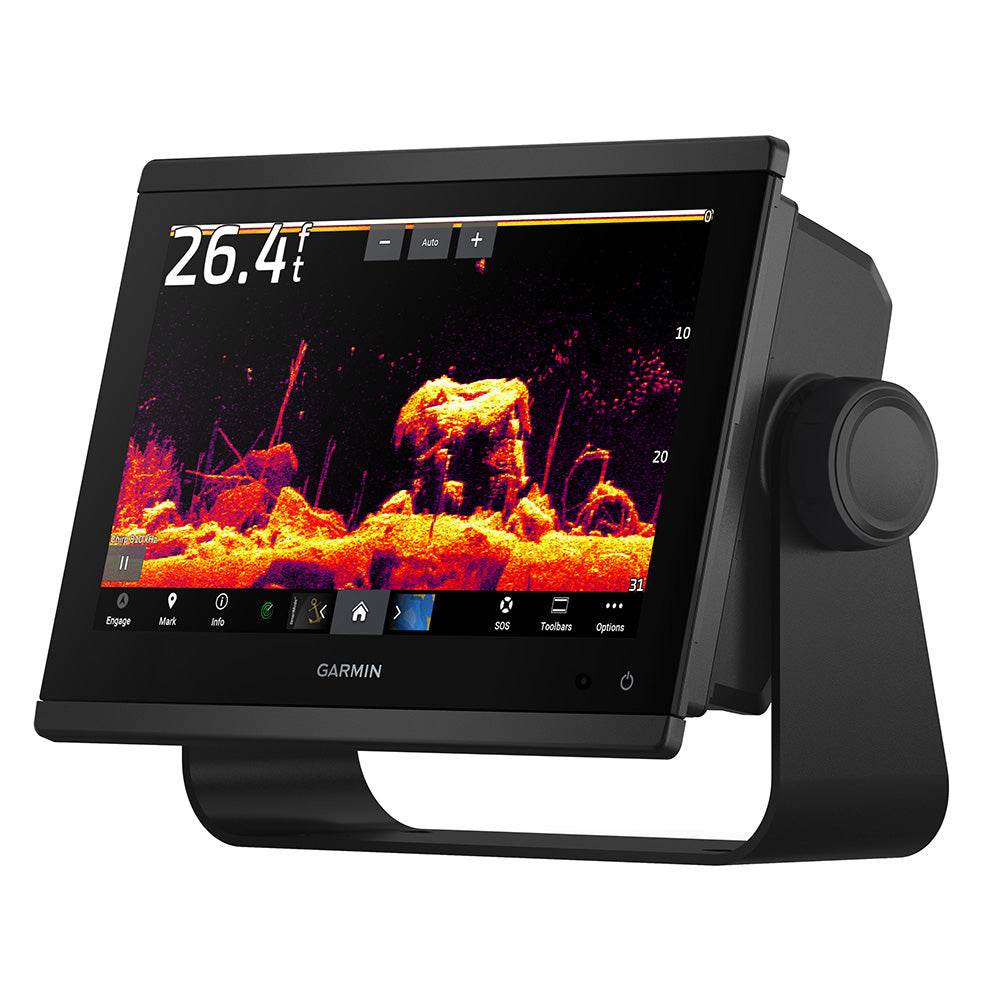

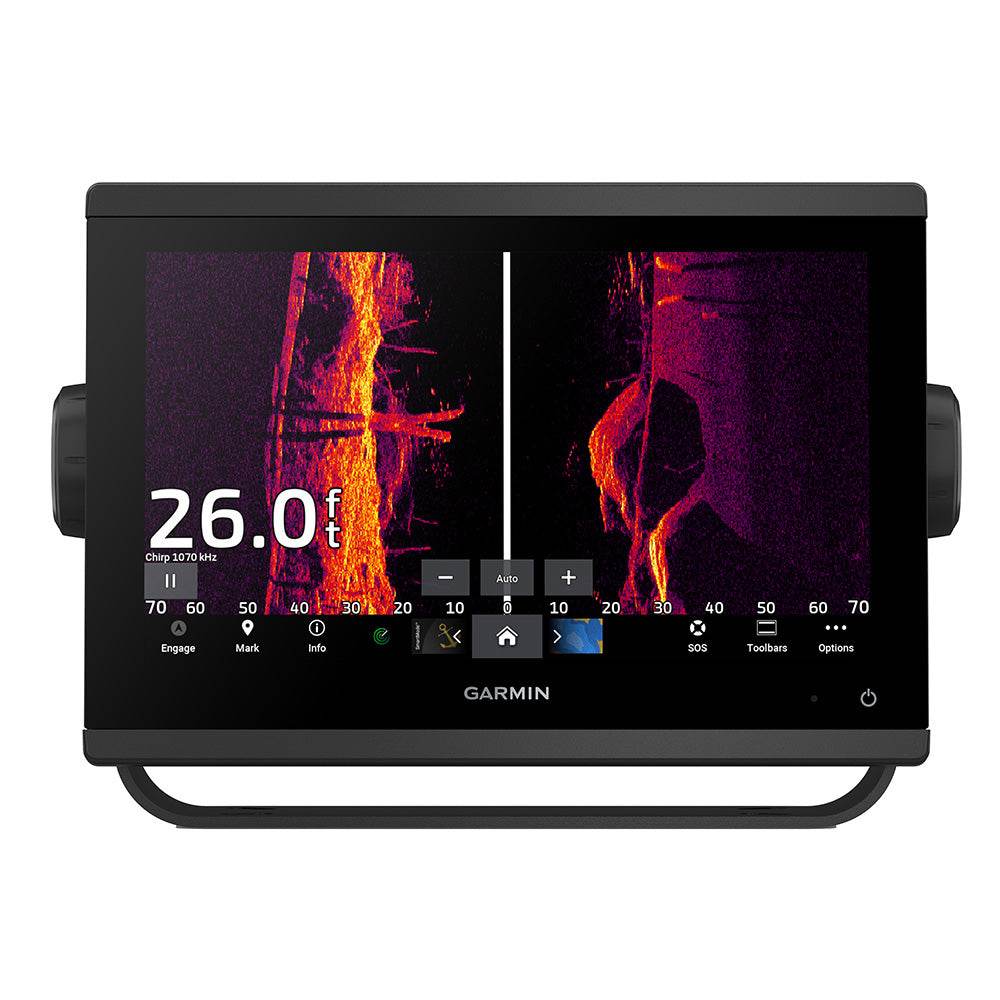

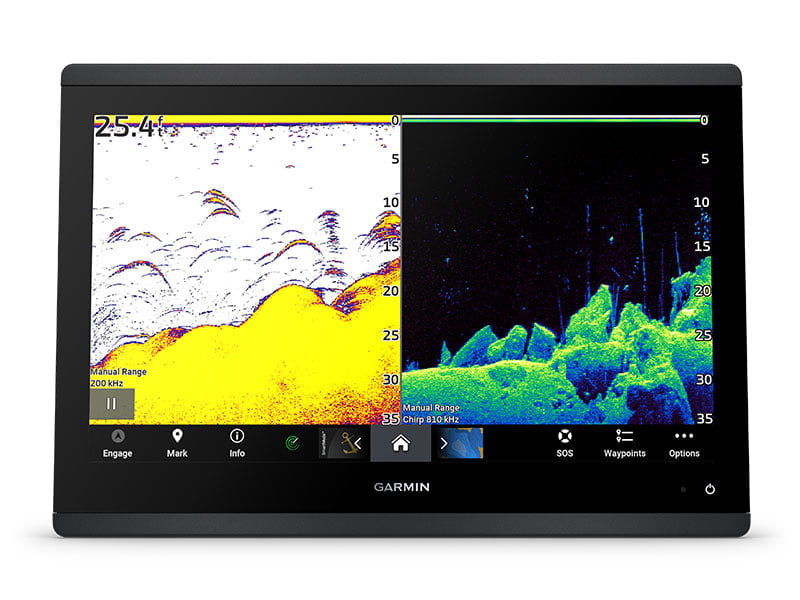

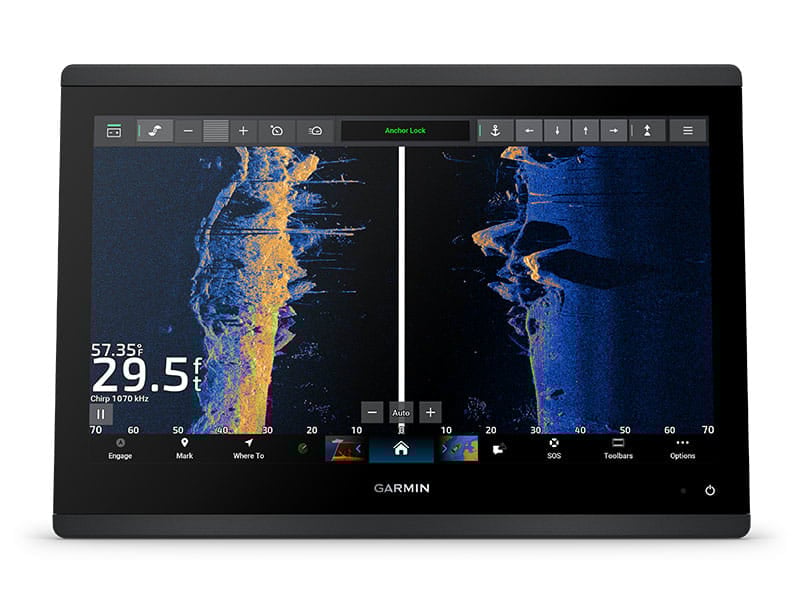

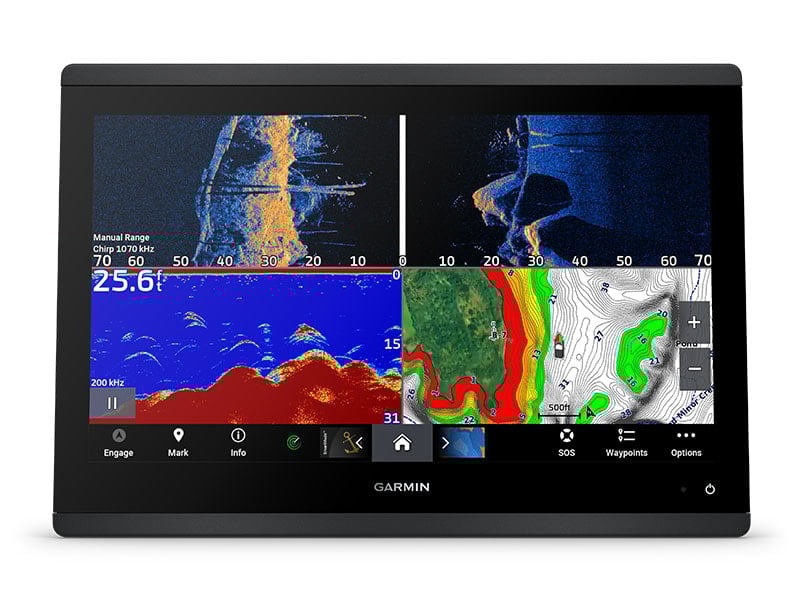

• Built-in Ultra High-Definition SideVü™ and ClearVü™ scanning sonar with vivid, high-contrast color palettes to help you discern fish from structure

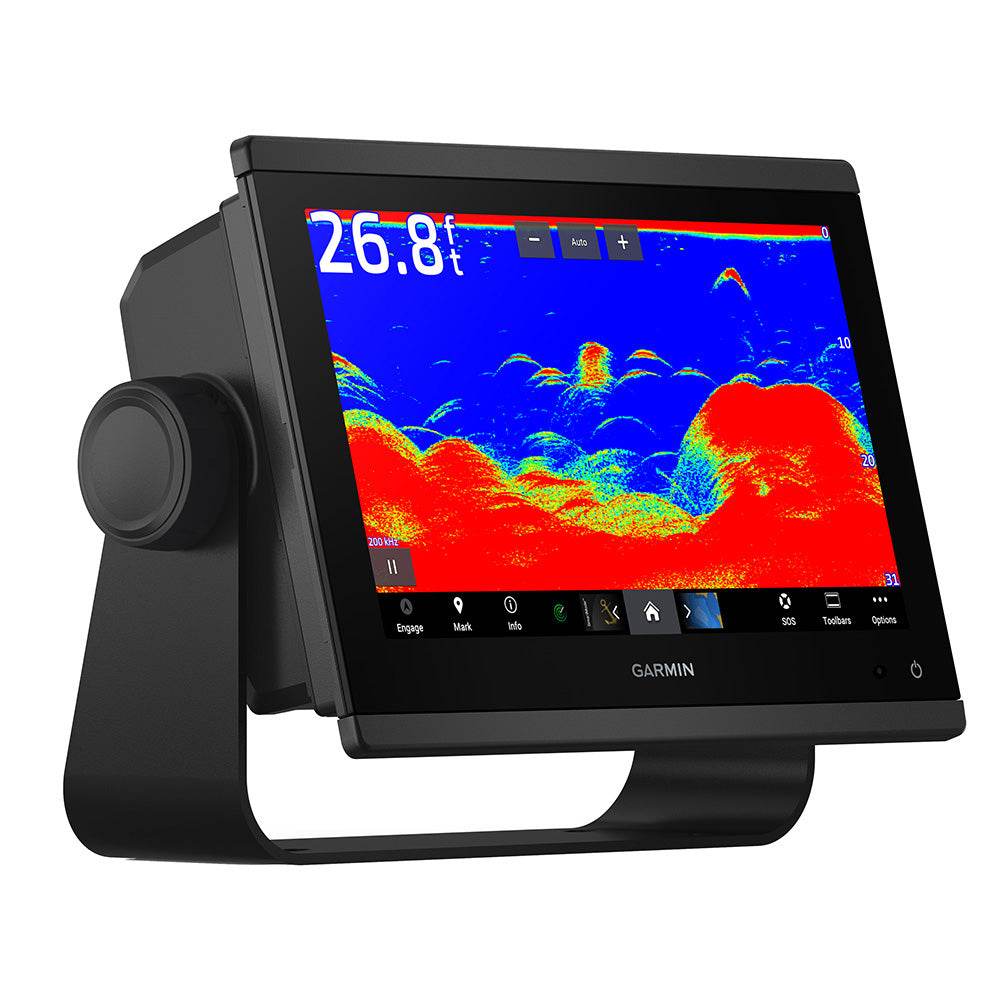

• Support for 1 kW CHIRP traditional sonar, enabling deep-water return precision and layering sonar types in one display

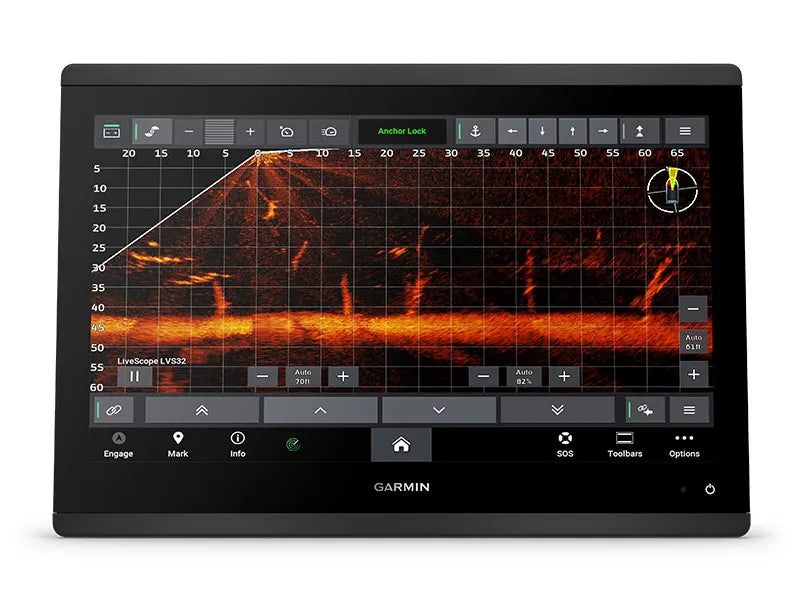

• Panoptix™ / LiveScope™ readiness (transducer sold separately) for real-time, 360° sonar imaging around your boat
• Double the processing power over previous X2 models, with slimline design and edge-to-edge glass for easier retrofit in many dash spaces

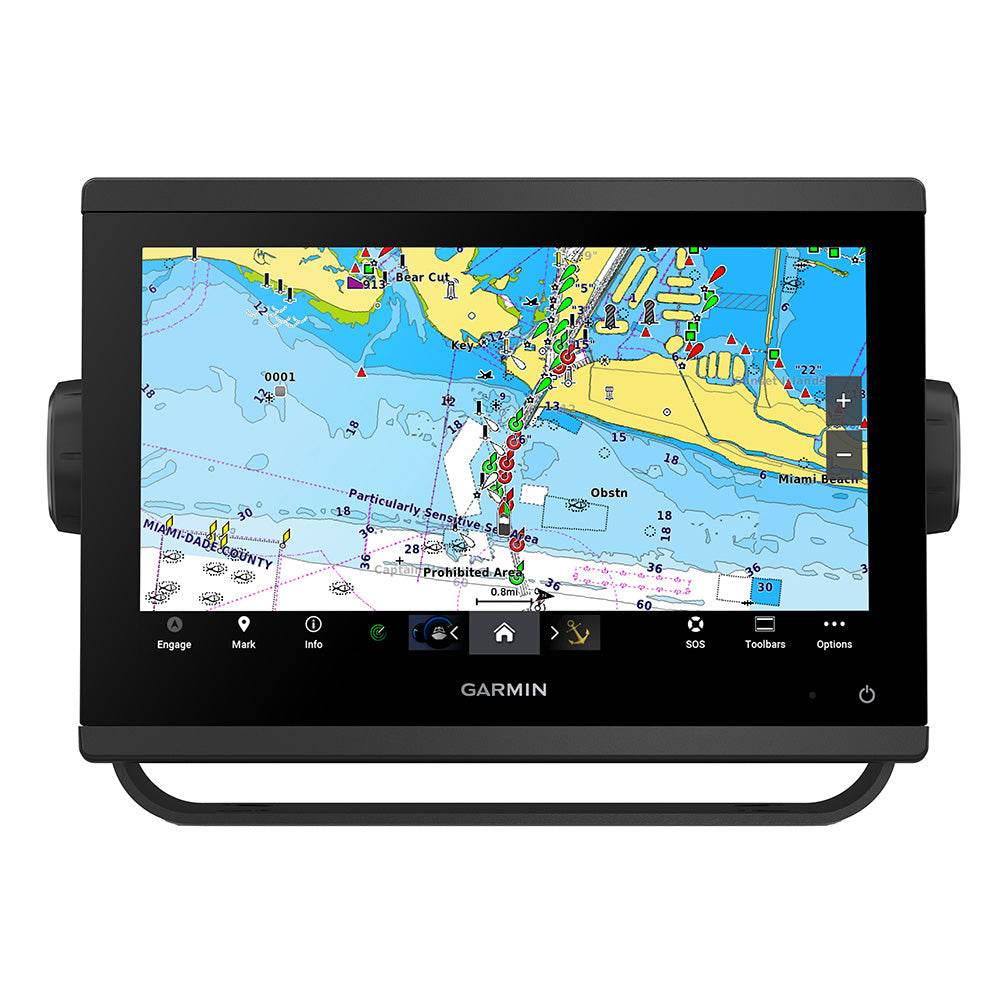

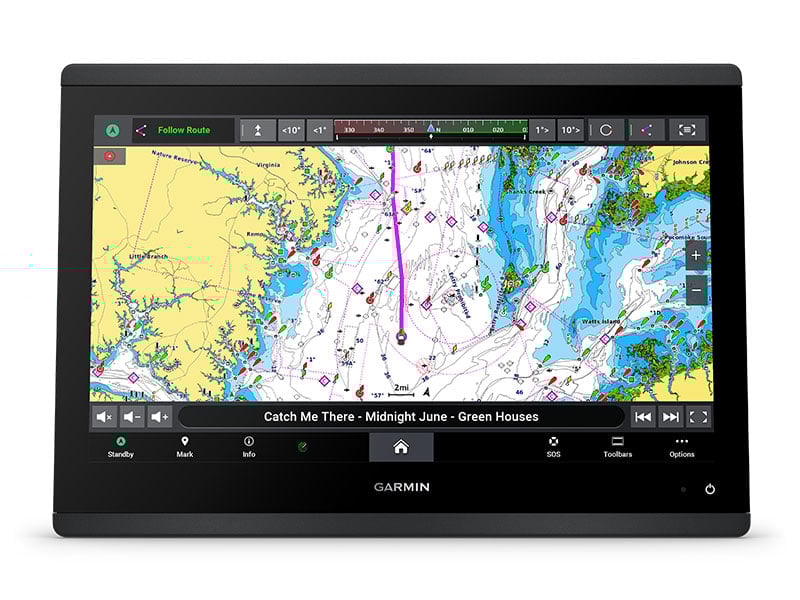

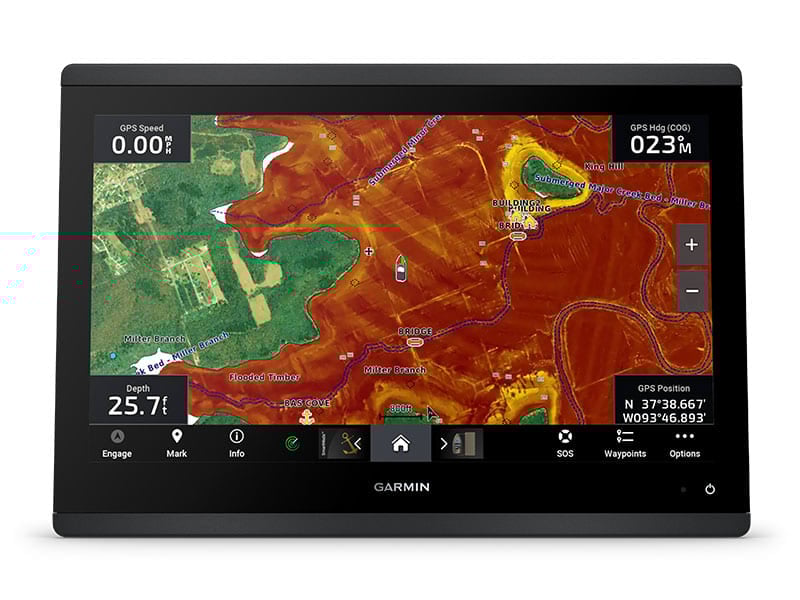

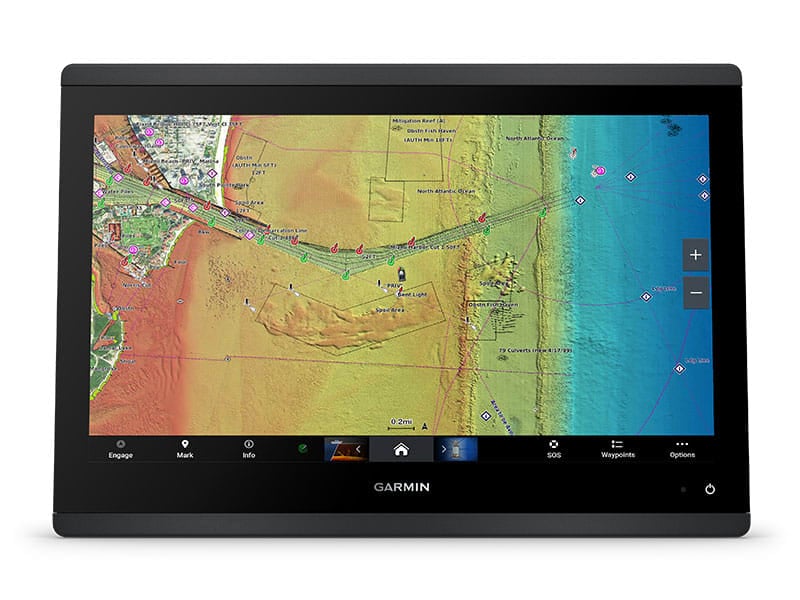

• Preloaded Garmin Navionics+™ charts (coastal, inland, and Auto Guidance+™ support) plus one year of daily map updates
• Optional upgrade to Navionics Vision+™ premium content — high-res relief shading, satellite and sonar overlays, and enhanced cartography

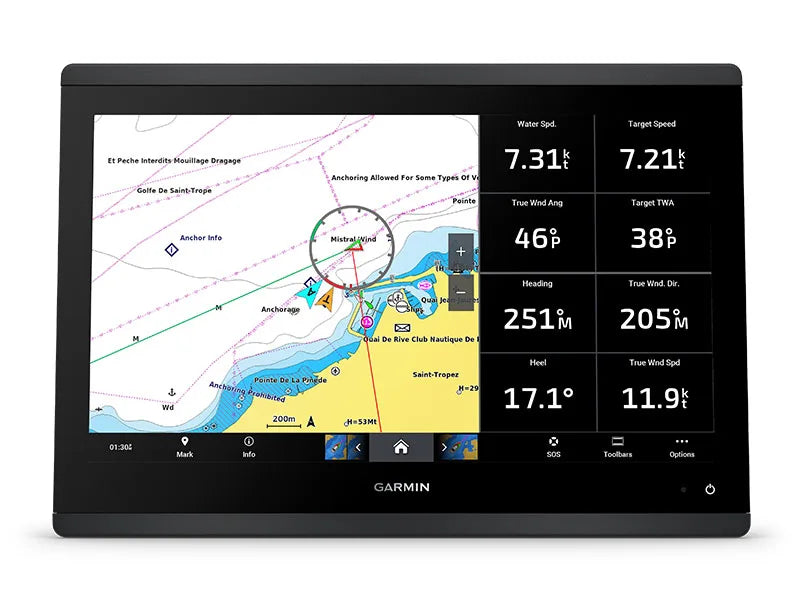

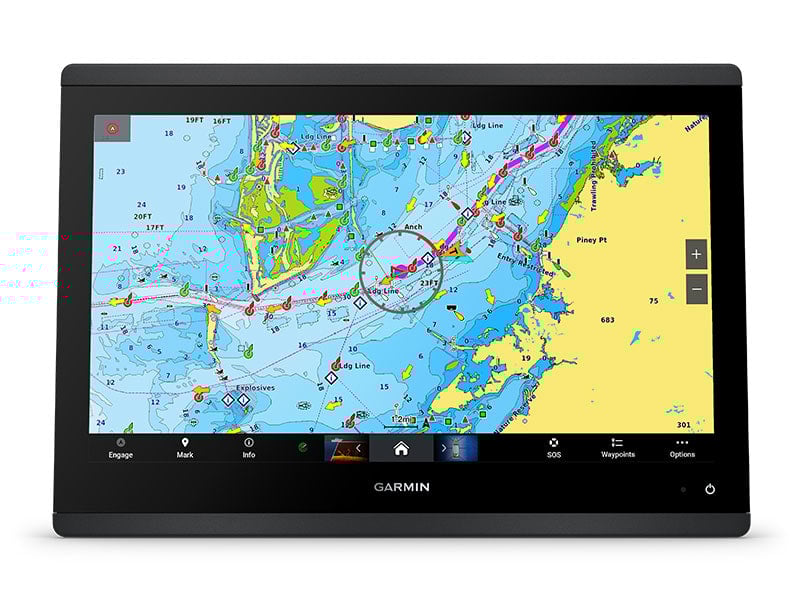

• Dedicated sailing tools with Garmin SailAssist™ features — laylines, start line guidance, wind rose, true wind data, polars, drift & set mode, tide/current slider

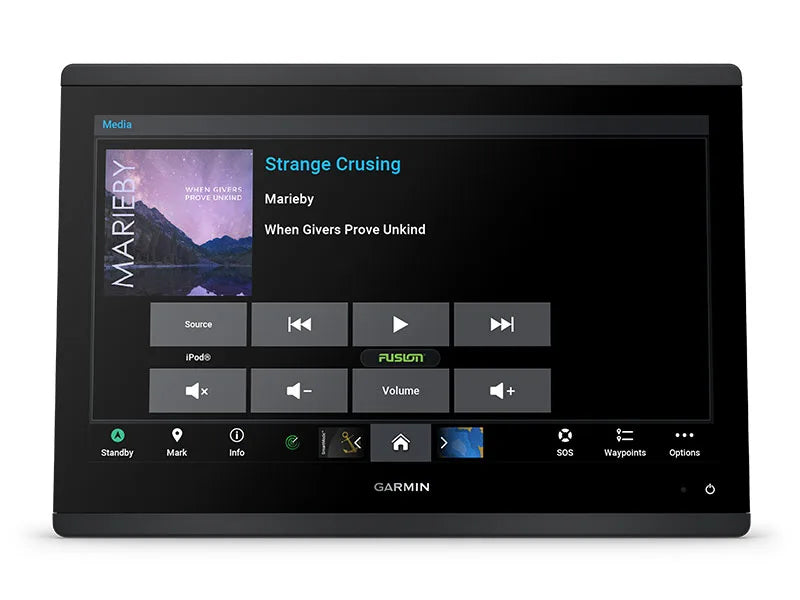

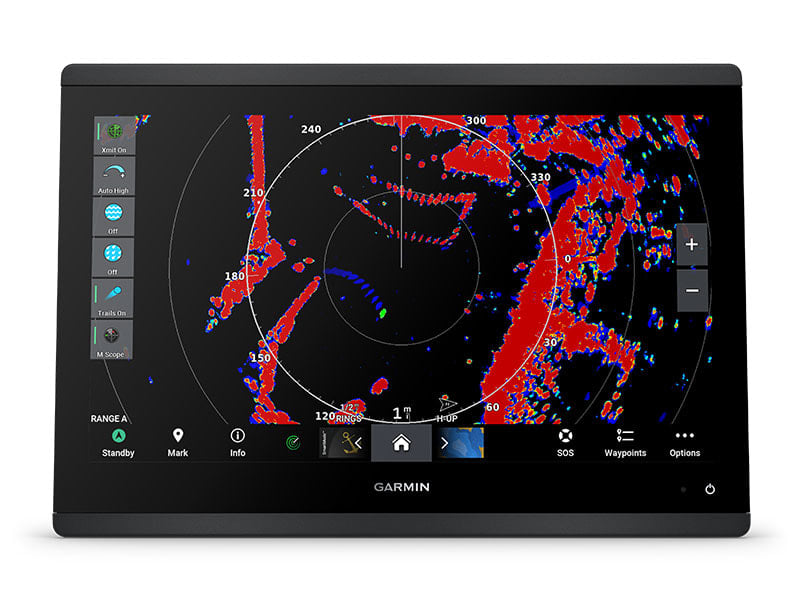

• Full Garmin Marine Network, NMEA 2000® / NMEA 0183, and J1939 engine interface support for seamless data sharing with radar, autopilots, AIS, weather, engine gauges, cameras, audio systems, digital switching, and more

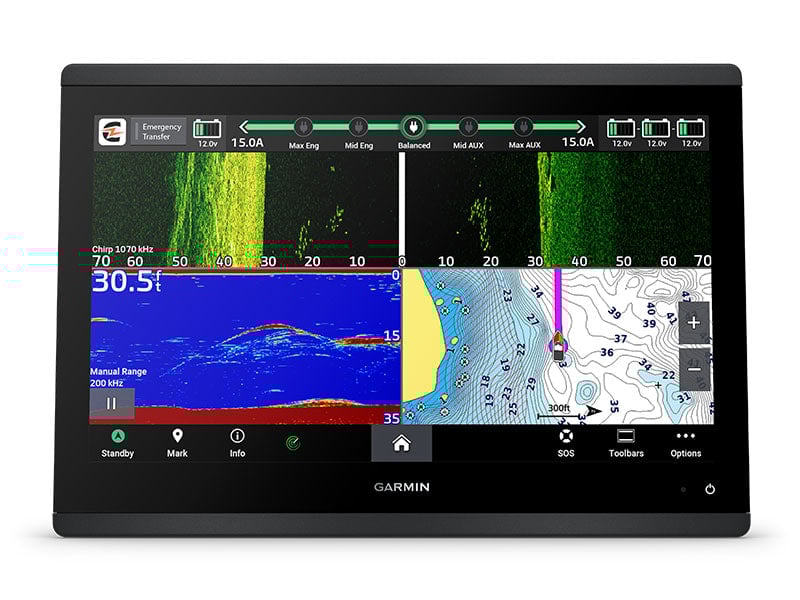

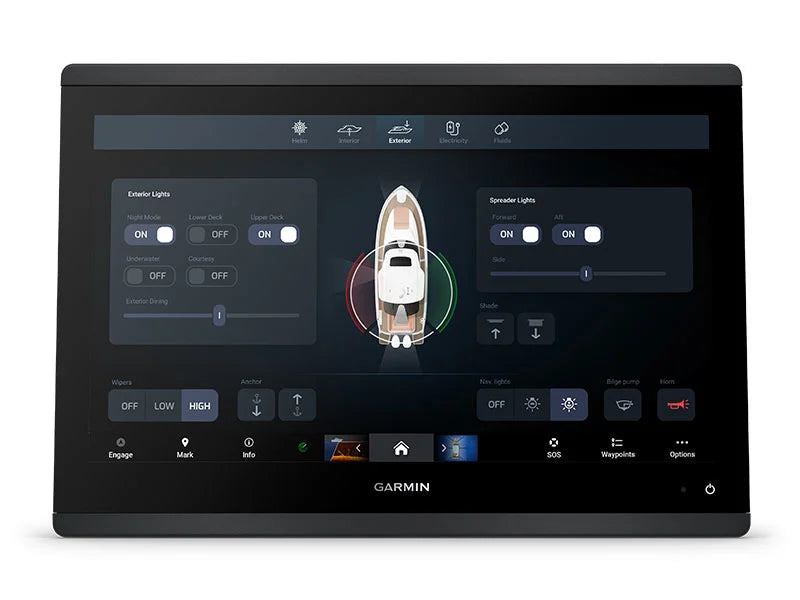

• OneHelm™ digital switching integration — control EmpirBus™ and other third-party systems (lighting, pumps, etc.) from one screen

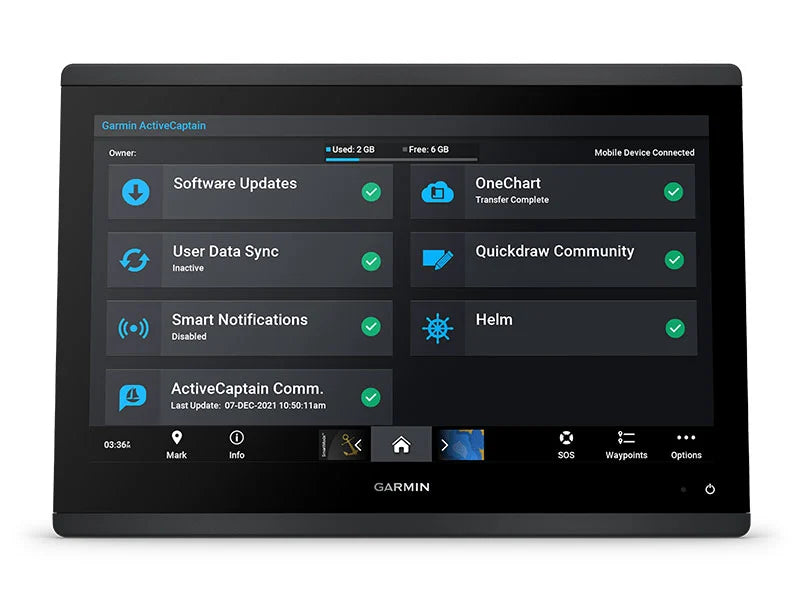

• ActiveCaptain® app / Wi-Fi® pairing enables remote system control, chart updates, smart notifications, OneChart™, Quickdraw, and more

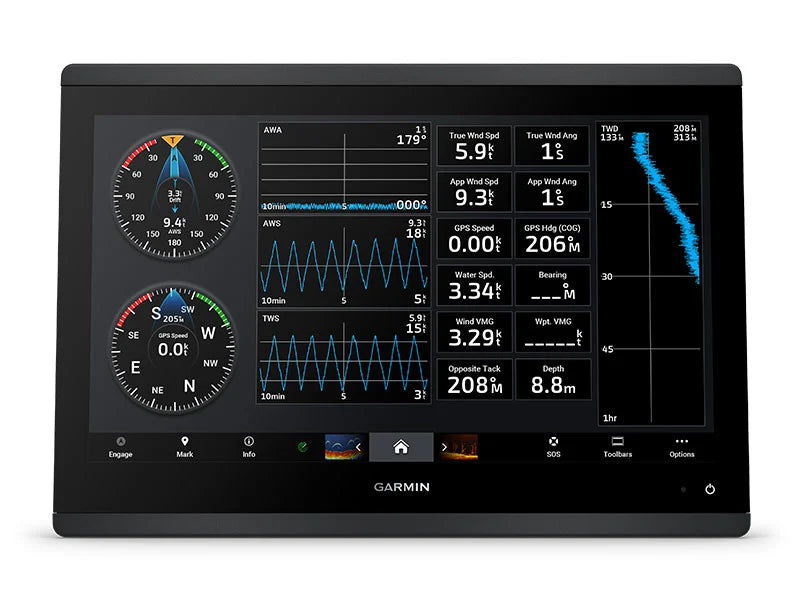

• ANT+ integration for pairing with Garmin watches, gWind™ Wireless 2 sensors, GNX™ marine instruments, and wireless remotes

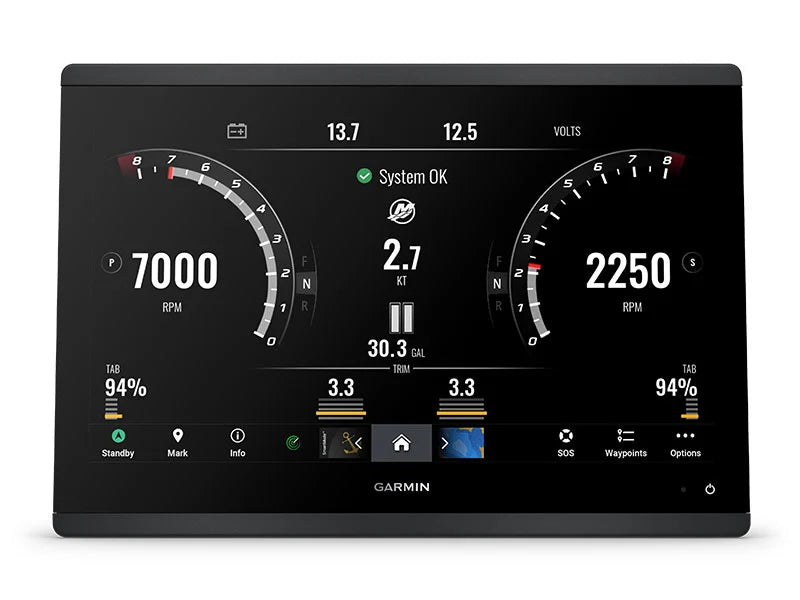

• Engine connectivity, including support for select Yamaha engines (via J1939 to NMEA bridging)

Technical Highlights & Packaging

• Dimensions: 9.2″ × 6.4″ × 3.0″ (23.3 × 16.2 × 7.6 cm)
• Weight: approx. 3.6 lbs (1.6 kg)
• Water rating: IPX7 for splash and wash resistance

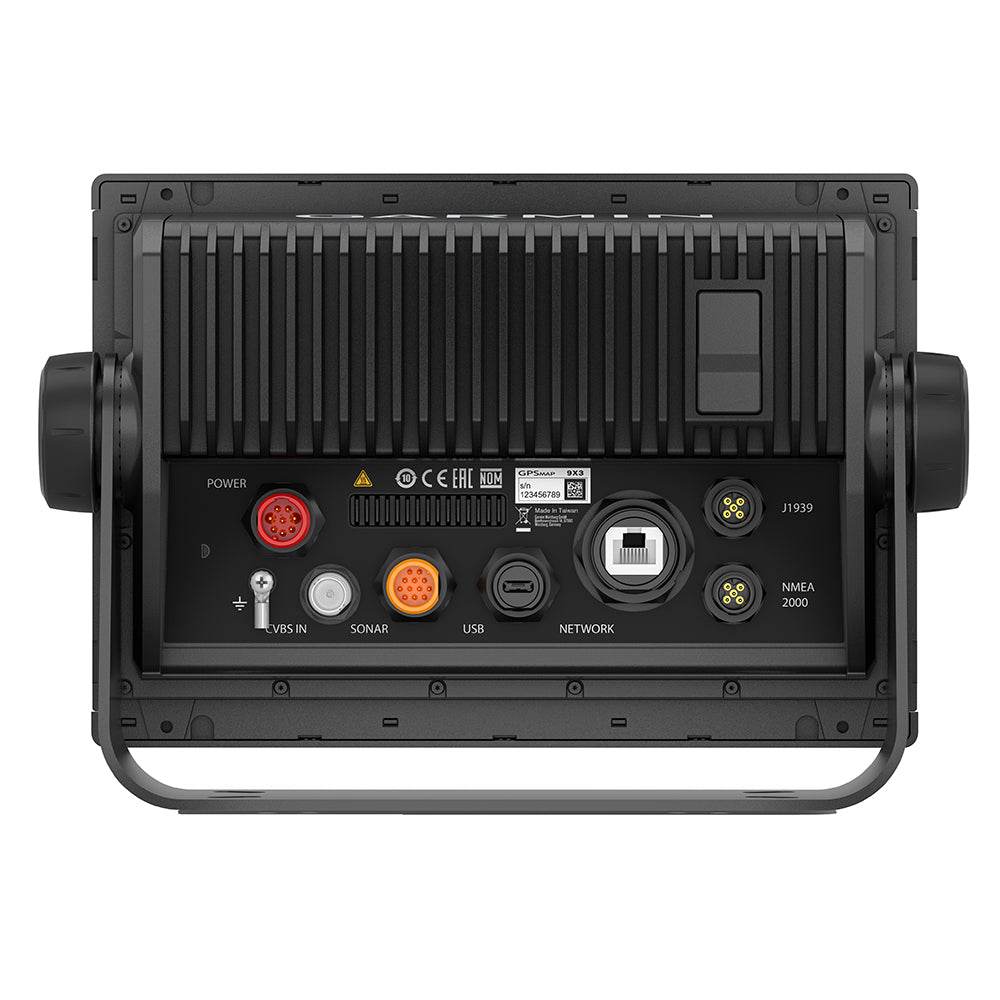

• Connectors: one NMEA 2000 port, one NMEA 0183 input, one NMEA 0183 TX, BNC video input, J1939 port, Garmin Marine Network port, 12-pin transducer port, USB, external GPS port, Bluetooth®, ANT+
• Dual microSD™ slots (one preloaded) for charts, sonar logging, Quickdraw Contours, and data transfer
• Package includes: chartplotter, power cable, NMEA 2000 T-connector & drop cable, bail mount with knobs, flush mount kit, protective cover, trim pieces, gasket, and documentation (plus microSD)

Why Choose the GPSMAP 943xsv Combo with GT23-TM?

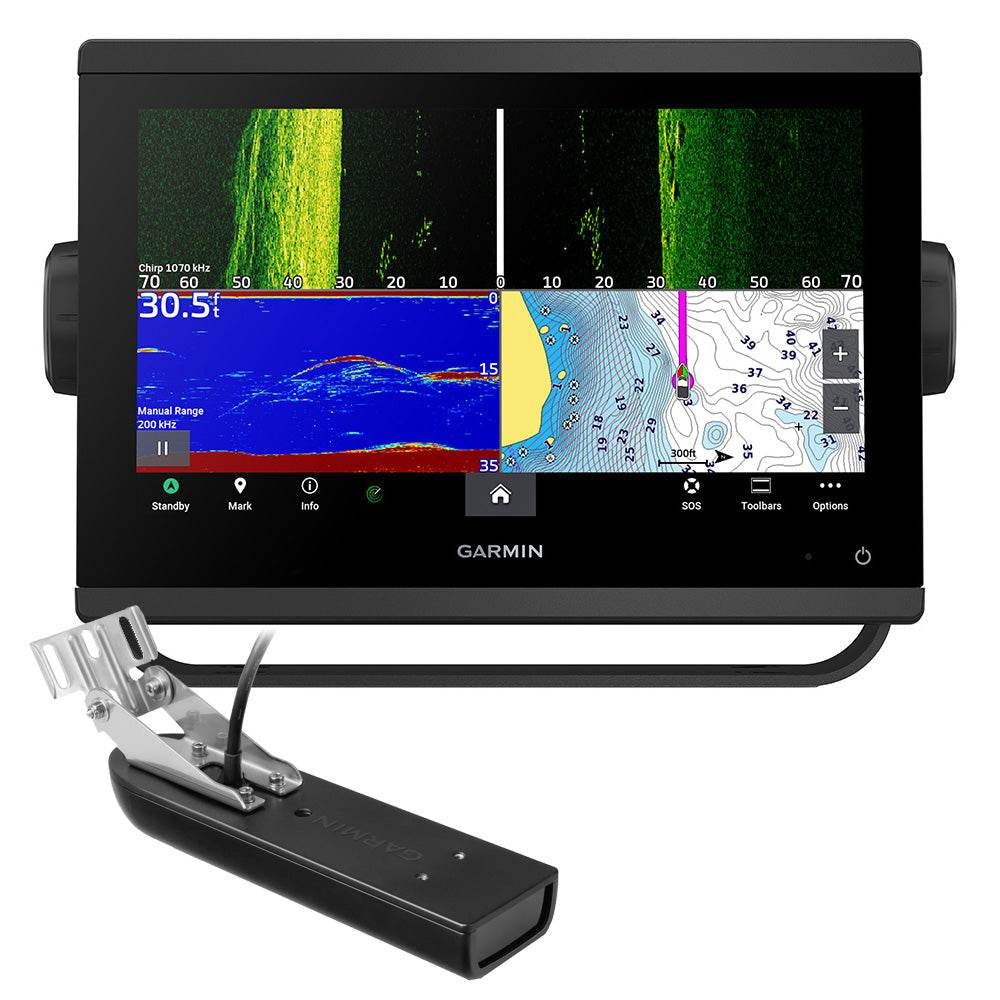

This combo offers a complete plug-and-play sonar + chartplotter setup with the trusted GT23-TM transducer, giving you high-frequency ClearVü and SideVü returns immediately. The complete feature set rivals higher-tier models but in a compact 9″ footprint — perfect for mid-size vessels or secondary helm stations. Enthusiasts praise its balance of power and price, calling it an excellent “bang for buck” option with full support for radar, LiveScope, and networked features.

Equip your helm with the GPSMAP 943xsv Combo to confidently navigate, fish, and control your marine electronics — all from one sleek, high-performance unit.

Specifications:

• Cartography Brand: Garmin Navionics+
• Included Transducer: GT-23M
• Screen Size: 9"
• Touchscreen: Yes
• Transducer Included: Yes
• 0100236661GT23M

Owner's Manual (pdf)
