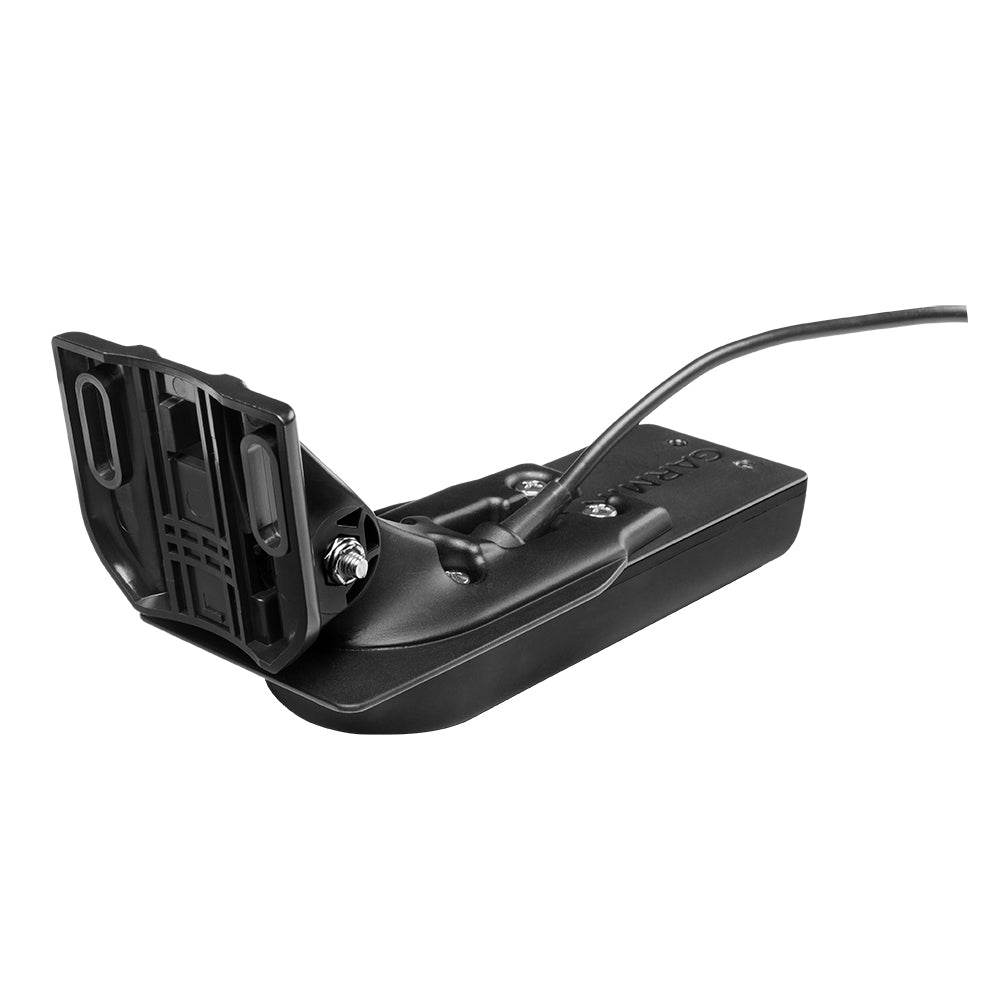

The Garmin GT54UHD-TM All-In-One Transducer (010-12909-00) delivers Ultra High-Definition ClearVü and SideVü scanning sonar with High Wide CHIRP traditional sonar in one compact, easy-install transducer.
Designed for Garmin GPSMAP® 8400xsv and 8600xsv chartplotter/sonar combos, this 12-pin transom-mount transducer provides 800 kHz ClearVü imaging down to 200 ft and 455/1200 kHz SideVü scanning up to 500 ft.
Ideal for bass boats, bay boats, freshwater and inshore fishing applications, the GT54UHD-TM gives anglers razor-sharp fish separation, structure detail, and wide sonar coverage in a single all-in-one design.
Ultra High-Definition ClearVü & SideVü Scanning Sonar
Experience the highest-resolution ClearVü and SideVü sonar images available from Garmin. The GT54UHD-TM produces incredibly detailed returns, allowing you to clearly distinguish fish from brush, rocks, submerged timber, docks, and structure. You can even see fish positioned within bait balls or suspended near cover.
• 800 kHz ClearVü sonar delivers ultra-sharp detail up to 200 ft below your boat
• Dual SideVü frequencies (455 kHz and 1200 kHz) provide extended range scanning up to 500 ft
• Ultra High-Definition imaging enhances structure clarity and fish identification
• Standard, Down, and Side imaging capabilities in one unit
High Wide CHIRP Traditional Sonar
In addition to UHD scanning, the GT54UHD-TM features High Wide CHIRP traditional sonar for exceptional target separation and clear fish arches.
• High Wide CHIRP provides remarkable clarity and definition
• Wider cone angle improves bottom coverage
• Excellent fish separation in shallow and mid-depth water
• Integrated temperature sensor included
• Speed sensor not included
All-In-One Compact Design
Eliminate the need for multiple transducers. The GT54UHD-TM combines UHD ClearVü, UHD SideVü, and High Wide CHIRP sonar into a single streamlined housing.
• All-in-one design reduces drag and installation complexity
• Transom mounting style
• 20-foot cable length
• 12-pin connector
• Compatible with select Garmin GPSMAP® xsv series units¹
Easy Installation & Versatile Mounting
Spend less time rigging and more time fishing.
• Includes transom mount hardware
• Includes trolling motor mount
• Compact form factor for clean installation
• Designed for freshwater and coastal marine use
What’s Included in the Box
• Garmin GT54UHD-TM transducer
• Transom mount hardware
• Trolling motor mount hardware
• Installation instructions
Technical Specifications
• Part Number: 010-12909-00
• Mounting Style: Transom
• Cable Length: 20 feet
• Pins: 12
• Imaging: Standard / Down / Side
• CHIRP: High Wide
• ClearVü Frequency: 800 kHz
• SideVü Frequencies: 455 kHz / 1200 kHz
• ClearVü Depth: Up to 200 ft
• SideVü Range: Up to 500 ft
• Temperature Sensor: Yes
• Speed Sensor: No
¹For use with GPSMAP® 8400xsv / 8600xsv chartplotter/sonar combos.
