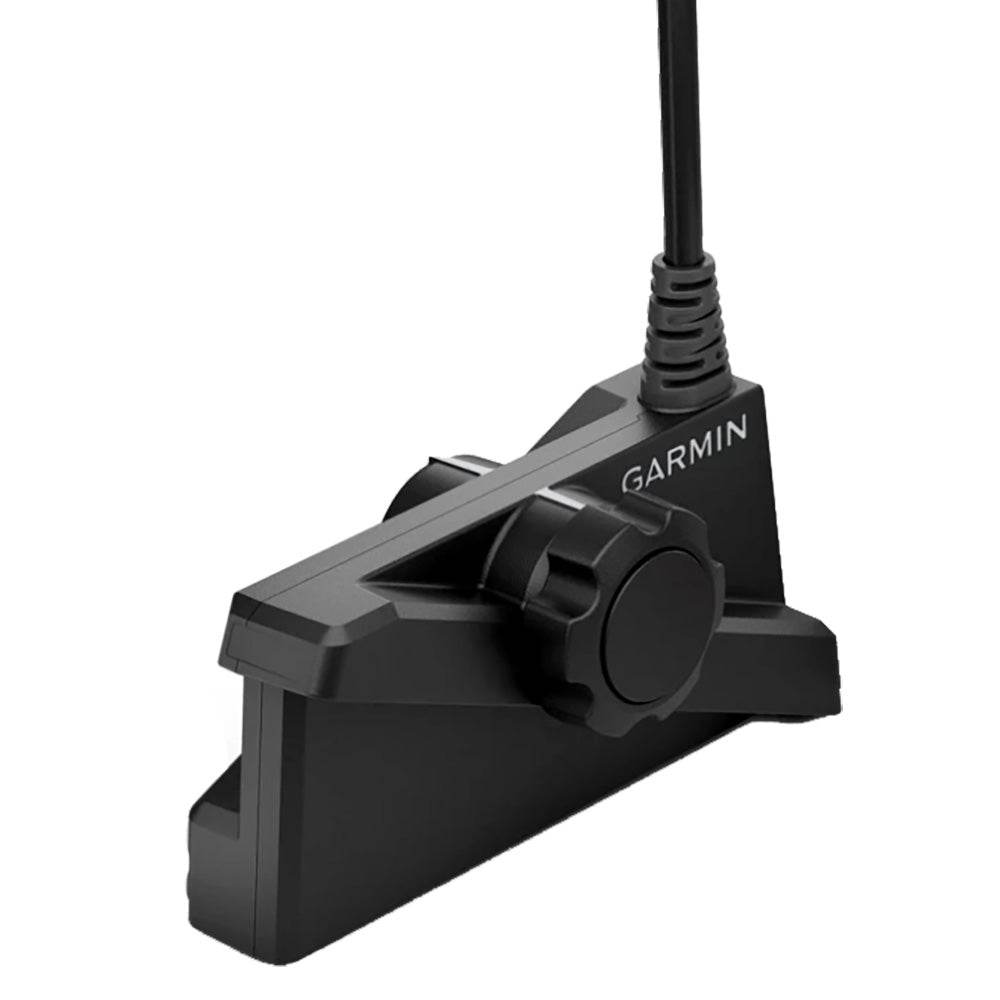

The Garmin LiveScope™ Plus LVS34-IF Ice Fishing Transducer (010-02706-20) is a high-definition real-time live sonar transducer engineered specifically for ice fishing and extreme cold environments.
Designed to pair with the GLS™ 10 sonar black box and compatible Garmin chartplotters, this enhanced LiveScope Plus system delivers clearer images, improved target separation, reduced noise, and superior image stability.
Ideal for serious ice anglers targeting crappie, walleye, perch, lake trout, and suspended baitfish, the LVS34-IF provides LiveScope Forward, Down, and Perspective modes with up to 200 ft depth capability.
Built for frozen lakes and subzero conditions, the LVS34-IF features a durable cold-weather cable, integrated AHRS stabilization for steady sonar returns, and a wide sonar beam for broader coverage under the ice.
Key Features & Performance Advantages
Enhanced LiveScope™ Plus Sonar Imaging
- Improved resolution and reduced noise compared to previous LiveScope systems
- Up to 35% better target separation (detect targets approximately 14 inches apart at 100 ft)
- Crisp, high-definition real-time sonar returns
- Optimized color palettes for clearer fish and structure identification
Multiple Viewing Modes for Ice Fishing
- LiveScope Forward mode for scouting fish ahead of your hole
- LiveScope Down mode for vertical jigging precision
- Perspective mode support (requires compatible mounting setup)
- Maximum depth capability: 200 ft (61 m) in Forward and Down modes (water conditions dependent)
Wide Coverage & High Frequency Performance
- Beam angle: 20° side-to-side × 135° front-to-back
- Operating frequency range: 530 kHz to 1,100 kHz
- Broad coverage area with minimal blind spots
- Excellent for suspended fish, structure edges, and tight schooling fish
Built-In Image Stabilization
- Integrated AHRS (Attitude Heading Reference System)
- Maintains steady sonar image even in rough ice conditions or shelter movement
- Reduces screen distortion and sonar drift
Built for Extreme Cold Conditions
- Flexible, durable cold-weather transducer cable
- Operating temperature range: –10 °C to 40 °C (14 °F to 104 °F)
- Storage temperature range: –40 °C to 85 °C
- Designed specifically for ice fishing use
Technical Specifications
- Model: LVS34-IF
- Part Number: 010-02706-20
- Sonar Type: LiveScope™ Plus Real-Time Scanning Sonar
- Beam Angle: 20° × 135°
- Frequency Range: 530–1,100 kHz
- Maximum Depth: 200 ft (61 m)
- Stabilization: Integrated AHRS
- Dimensions: 161.7 × 77.5 × 47.8 mm
- Weight: Approximately 1,018 g
- Compatible Module: GLS™ 10 Sonar Black Box
- Compatible Displays: Select Garmin chartplotters with LiveScope support
(Display resolution is determined by the connected compatible Garmin chartplotter.)
What’s Included in the Box
- LiveScope™ Plus LVS34-IF Ice Fishing Transducer
- 0° LiveScope pole mount (vertical orientation for ice fishing)
- Documentation (installation guide and user manual)
Why Serious Ice Anglers Choose the LVS34-IF
The LiveScope Plus LVS34-IF allows you to watch fish react to your lure in real time, adjust jig cadence instantly, and distinguish between game fish and baitfish with greater precision. Its enhanced clarity and improved target separation provide a measurable advantage when fishing pressured lakes or deep suspended structure.
For anglers upgrading from earlier LiveScope systems, this next-generation transducer offers sharper returns, less interference, and smoother imaging — making it one of the most advanced ice fishing sonar solutions available today.
Whether you’re hole-hopping or staying mobile in a shelter, this ice fishing live sonar transducer gives you real-time fish movement and structure detail with unmatched clarity.
Warranty & Confidence
- Manufacturer Warranty: 1-Year Limited Warranty from Garmin
- Built to Garmin marine electronics standards for reliability and durability
