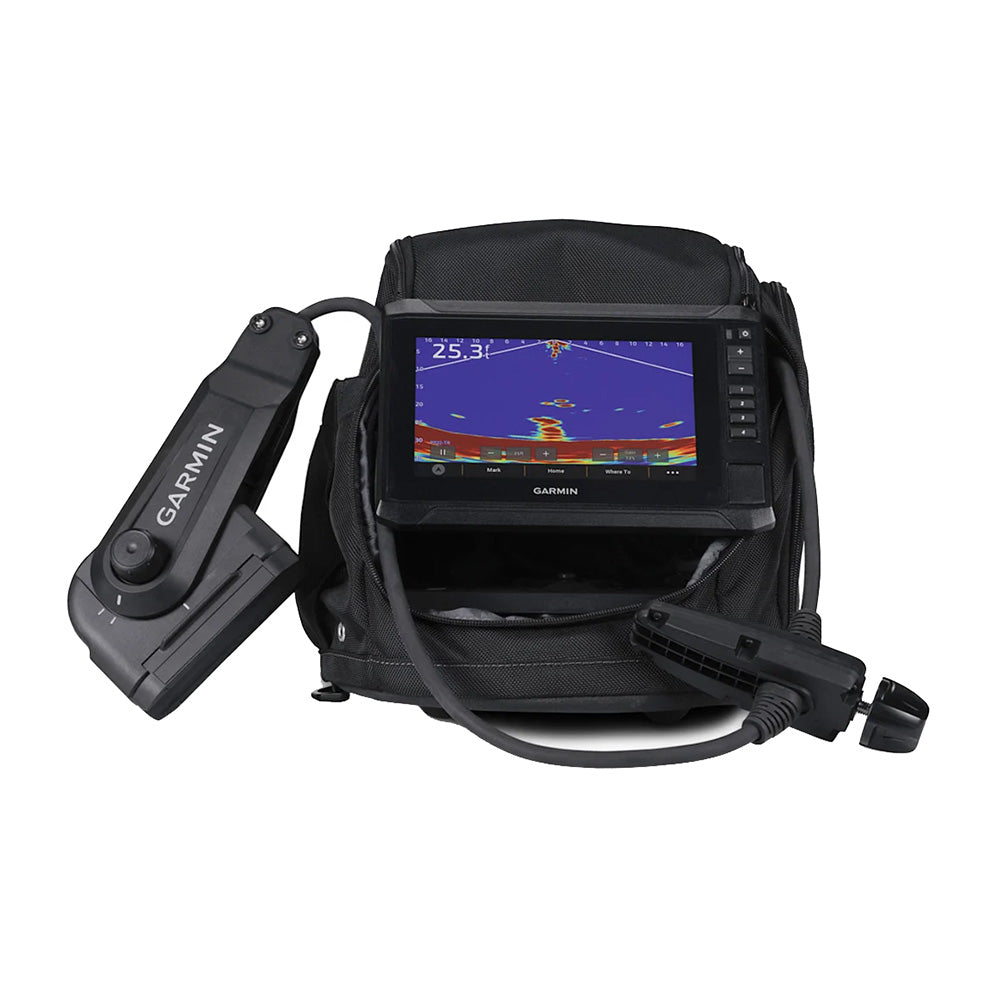

Includes ECHOMAP™ UHD2 73sv, Panoptix PS22-IF Transducer and Pole-free Transducer Rotation System
Part Number: 010-02684-30
HOP FASTER BETWEEN HOLES
The ultraportable Panoptix PS22-IF ice fishing kit provides two live sonar modes and a pole mount-free design, so you can move faster between holes to find more fish.

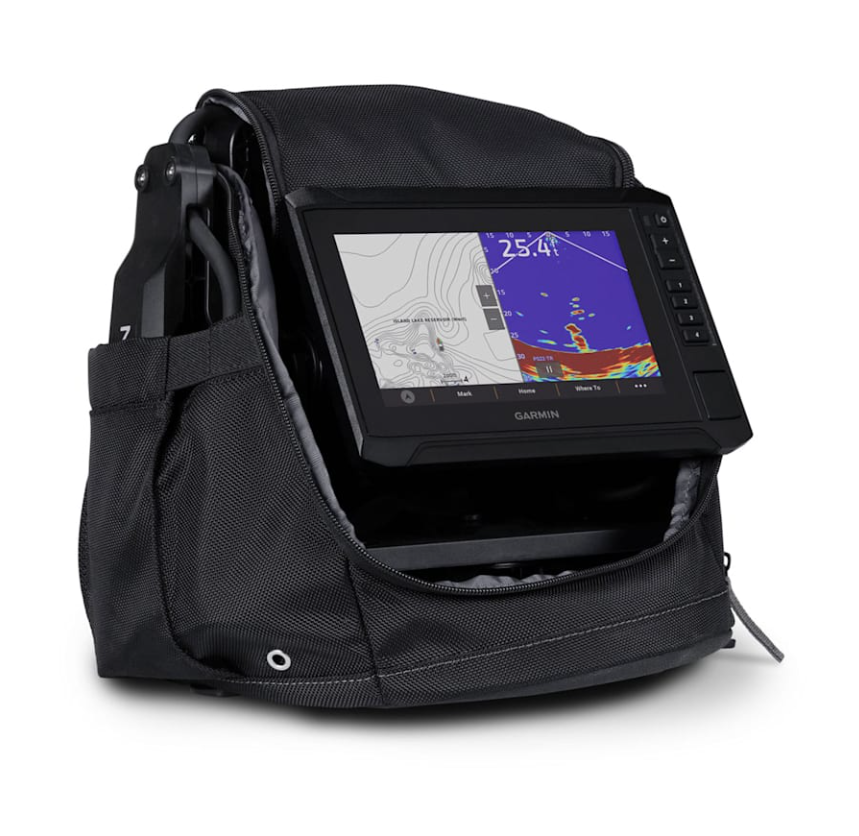

ECHOMAP UHD2 CHARTPLOTTER
The bundle includes a 7” ECHOMAP UHD2 chartplotter with touchscreen, keyed assist, and two types of sonar: LiveVü™ Forward and LiveVü™ Down modes.
ICE FISHING TRANSDUCER
The Panoptix PS22-IF transducer doesn’t require a pole mount. The bracket design allows for easy Forward and Down mode adjustments, while the rotator controls direction and depth.
GARMIN NAVIONICS+ MAPS
Get exceptional detail on more than 23,000 U.S. lakes with an included 1-year subscription to access daily map updates.
CUSTOM COMBOS
Easily create custom pages that combine sonar and mapping on your display.
TRANSDUCER LENS
Easily change between wide and narrow beams to focus on areas of interest with the removable transducer lens.

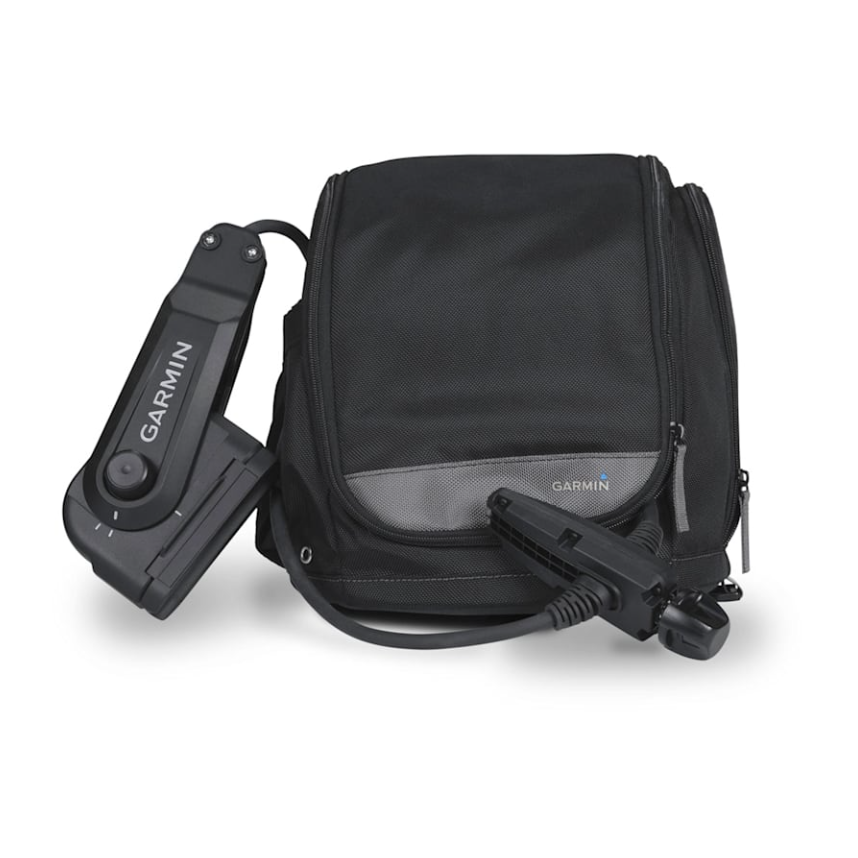

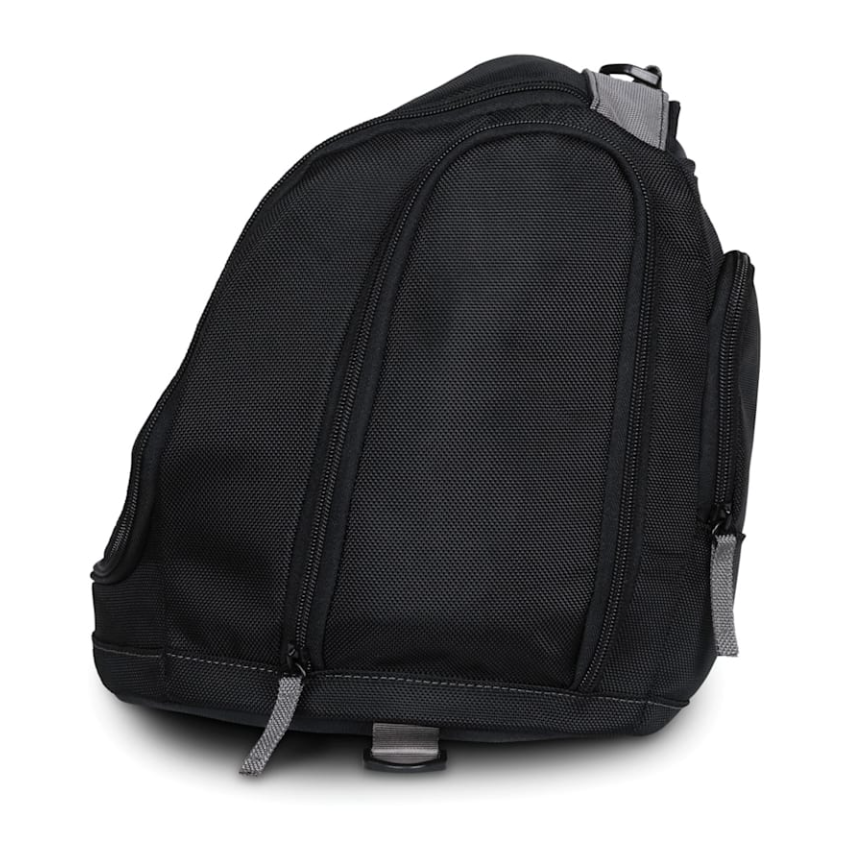

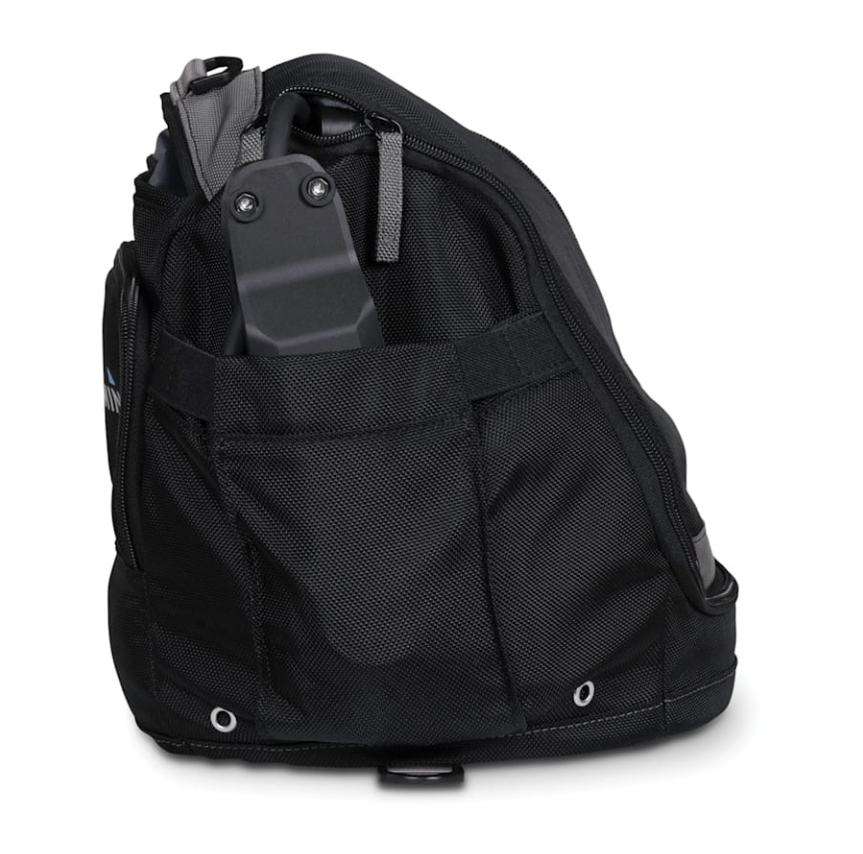

CARRYING CASE
The rugged, glove-friendly carrying case lets you easily transport your entire bundle from hole to hole.
Features:
- ECHOMAP™ UHD2 7 inch Touchscreen with Keyed Assist
- Panoptix Sonar with 2 modes
- Pole Mount-Free design
- Garmin Navionics+™ U.S. Inland Mapping on 23,000+ lakes
- Glove-friendly portable bag
Specifications:
- Dimensions: 10.5" × 9.5" × 10.5" (26.7 × 22.9 × 26.7 cm)
- Weight: 12.2 lbs (5.5 kg)
- Water rating: IPX7
- Touchscreen: Yes
- Display Type: WVGA, TN
- Display Size: 6.1" x 3.4", 7.0" (15.5 x 8.7, 17.8 cm)
- Display Resolution: 800 x 480 pixels
- Input: Touchscreen with Keyed Assist
What's In The Box?
- ECHOMAP UHD2 73sv or 75sv touchscreen with keyed assist chartplotter (depending on version selected)
- Mapping: Garmin Navionics+ for U.S. inland or Canada inland and coastal (depending on version selected)
- Panoptix PS22-IF transducer
- Transducer rotator
- Transducer bracket
- PS22-IF removable lens
- Rechargeable battery
- Charger
- Small bag, base, and handle
- Power cable
- Foam float
- Hardware
- Documentation
