Garmin TD 50 Touchscreen Display

TD 50 Touchscreen Display (010-02139-10)

Add powerful remote control and monitoring to your vessel with the Garmin TD 50 Touchscreen Display (010-02139-10). This compact, marine-rated touchscreen integrates seamlessly with your boat’s sensor, switch, and network ecosystems for real-time control and data access—anywhere aboard.

Key Features & Benefits

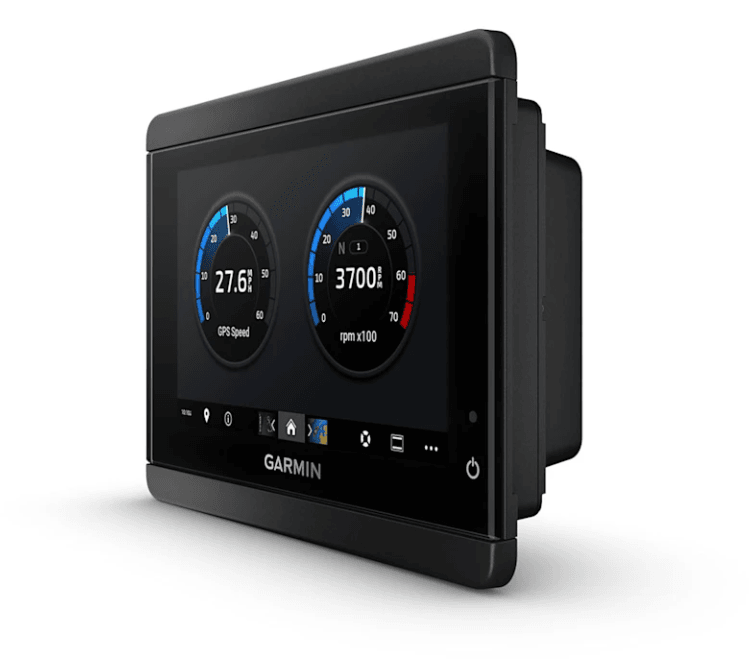

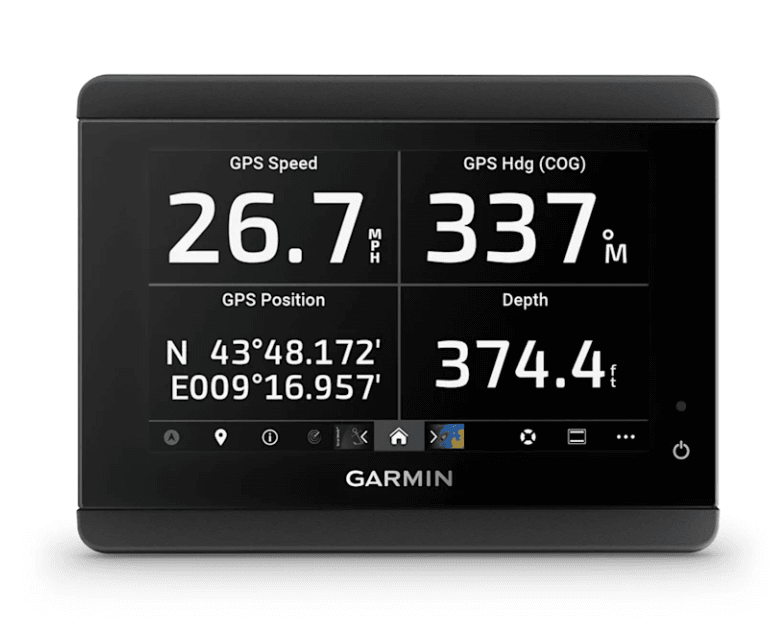

• Sleek 5" edge-to-edge glass touchscreen display with high brightness (1200 cd/m²) for crisp daylight visibility

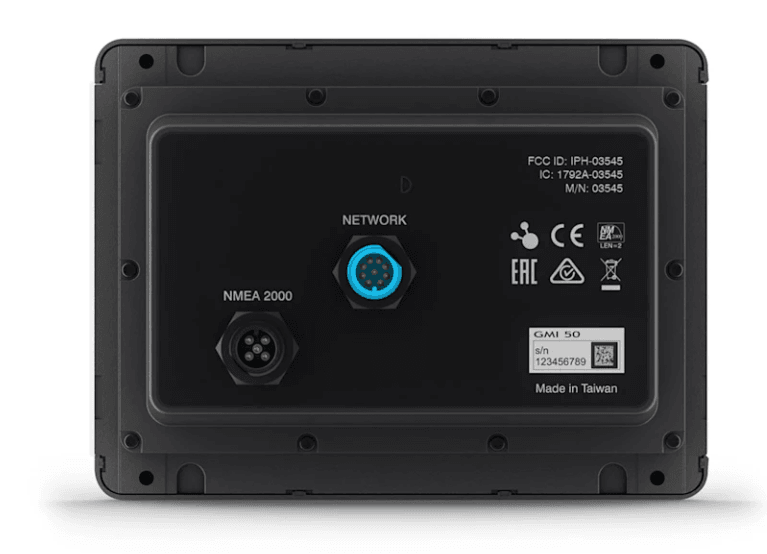

• Full compatibility with NMEA 2000®, EmpirBus™, and Garmin Marine Network systems for effortless integration
• Minimal footprint — installs nearly anywhere on your boat without cluttering space
• Aesthetic design that matches GPSMAP® series chartplotters, preserving a clean helm look
• Easy plug-and-play network installation—connectors are standard in marine electronics

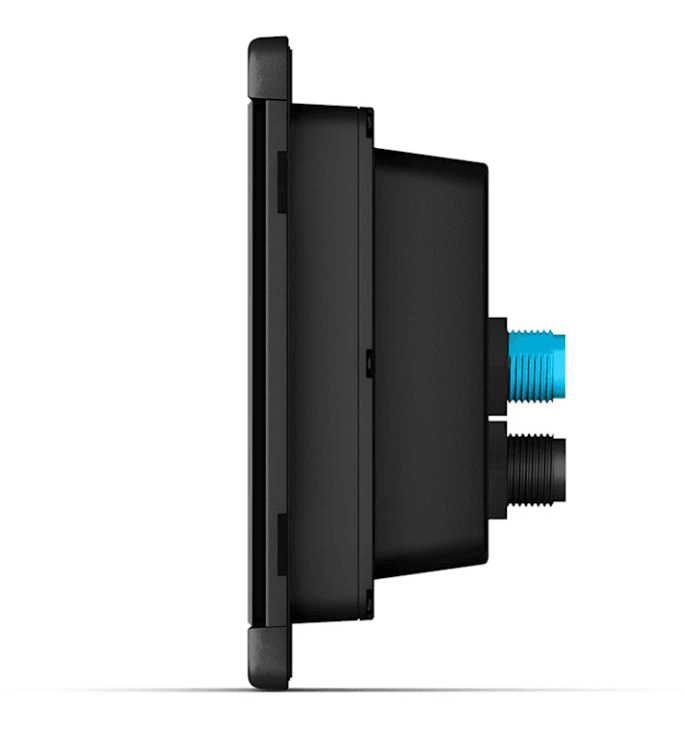

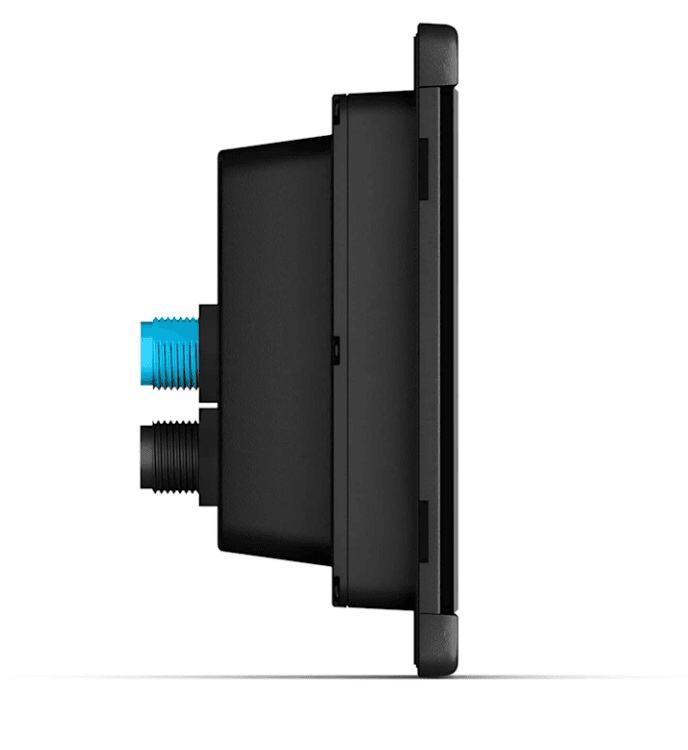

• Mounting flexibility: supports both flush-mount and flat-mount configurations for versatile placement

Operational Control & Scalability

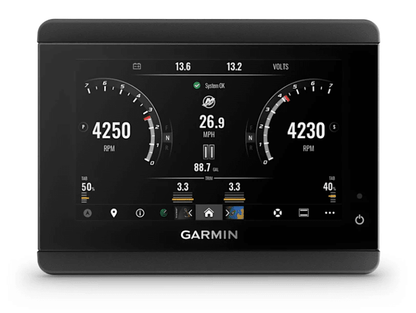

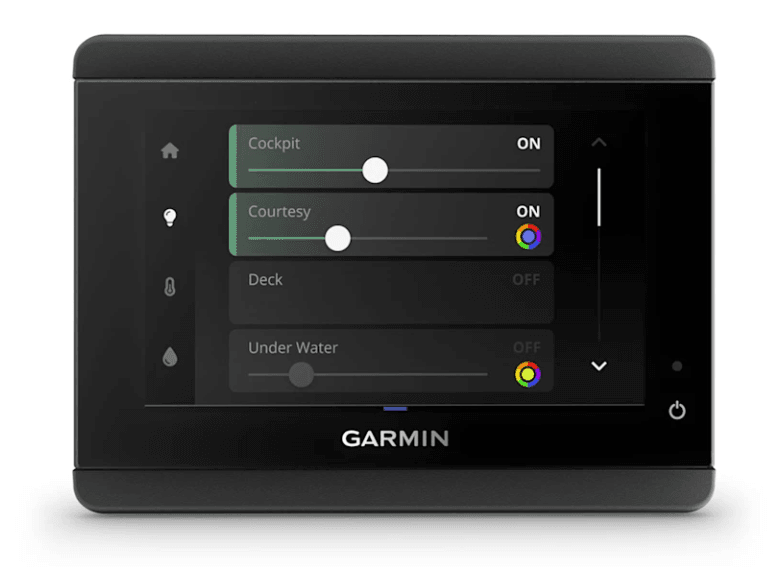

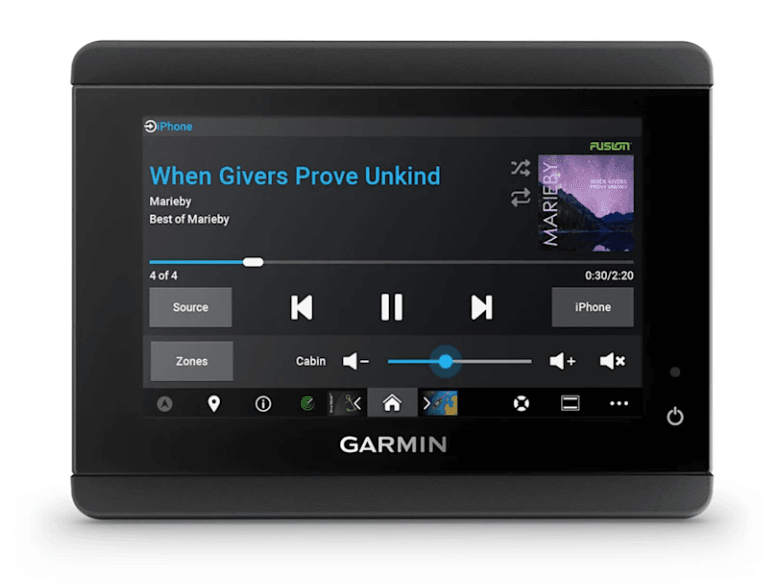

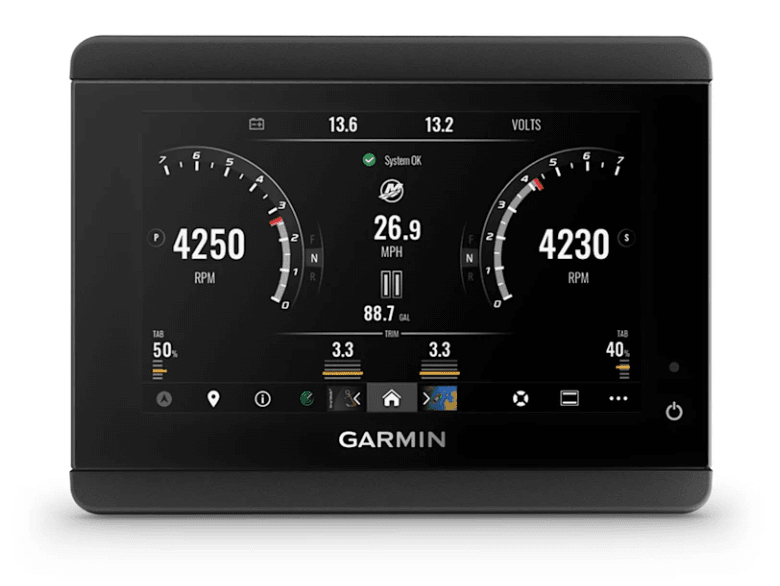

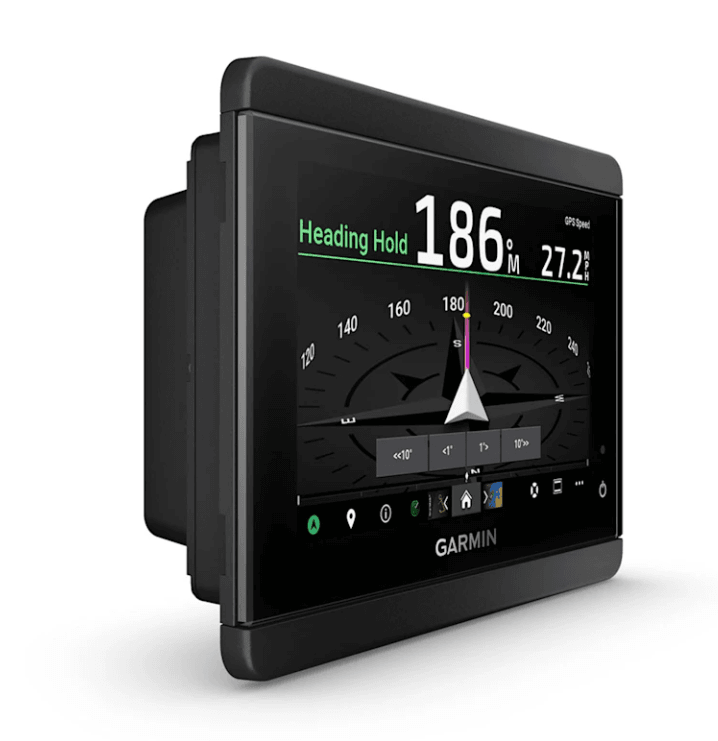

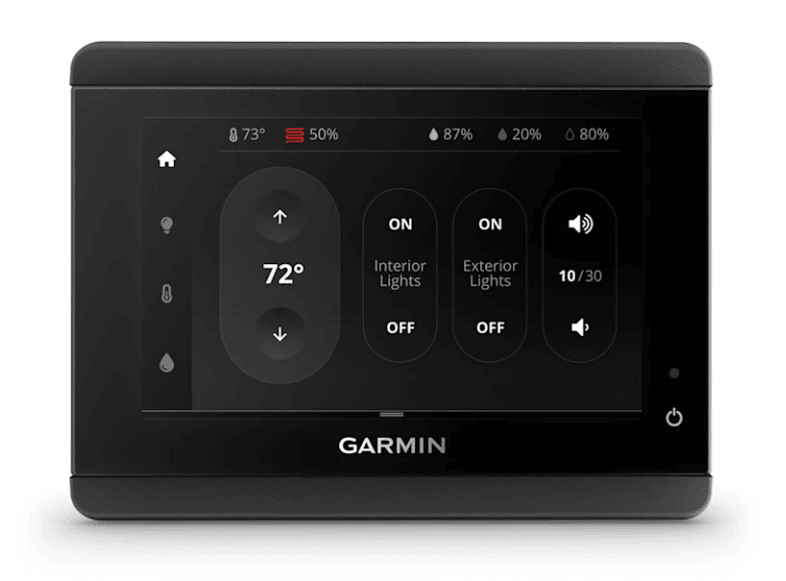

• Gain auxiliary control at key zones onboard—view engine data, toggle lighting, manage climate, control entertainment systems, monitor security sensors, or interface with autopilots
• Serve as a remote display or extension of your helm station, enabling redundant or distributed control
• Designed to scale with your network—add multiple TD 50 units to expand reach across the vessel

Robust and Marine-Grade Design

• Built for harsh marine environments with IPX7 water rating for splash and immersion resistance
• Operating temperature range: 5 °F to 131 °F (−15 °C to 55 °C) for durability in extreme conditions
• Rugged, fully gasketed polycarbonate case with glass lens featuring anti-glare and anti-fingerprint coatings
• Low power draw — 5.9 W max ensures minimal electrical load
• Compass-safe distance: 7.9 in (20 cm) ensures minimal interference with heading sensors

Detailed Specifications

• Dimensions (without sun cover): 4.1 × 4.5 × 2.0 in (10.5 × 14.0 × 5.1 cm)
• Dimensions (with sun cover): 4.5 × 5.7 × 2.2 in (11.3 × 14.4 × 5.6 cm)
• Weight (without sun cover): 11.6 oz (328 g)
• Weight (with sun cover): 13.2 oz (375 g)
• Input voltage (NMEA 2000): 9–16 V dc
• NMEA 2000 load equivalence number (LEN) at 9 V: 13 (650 mA)
