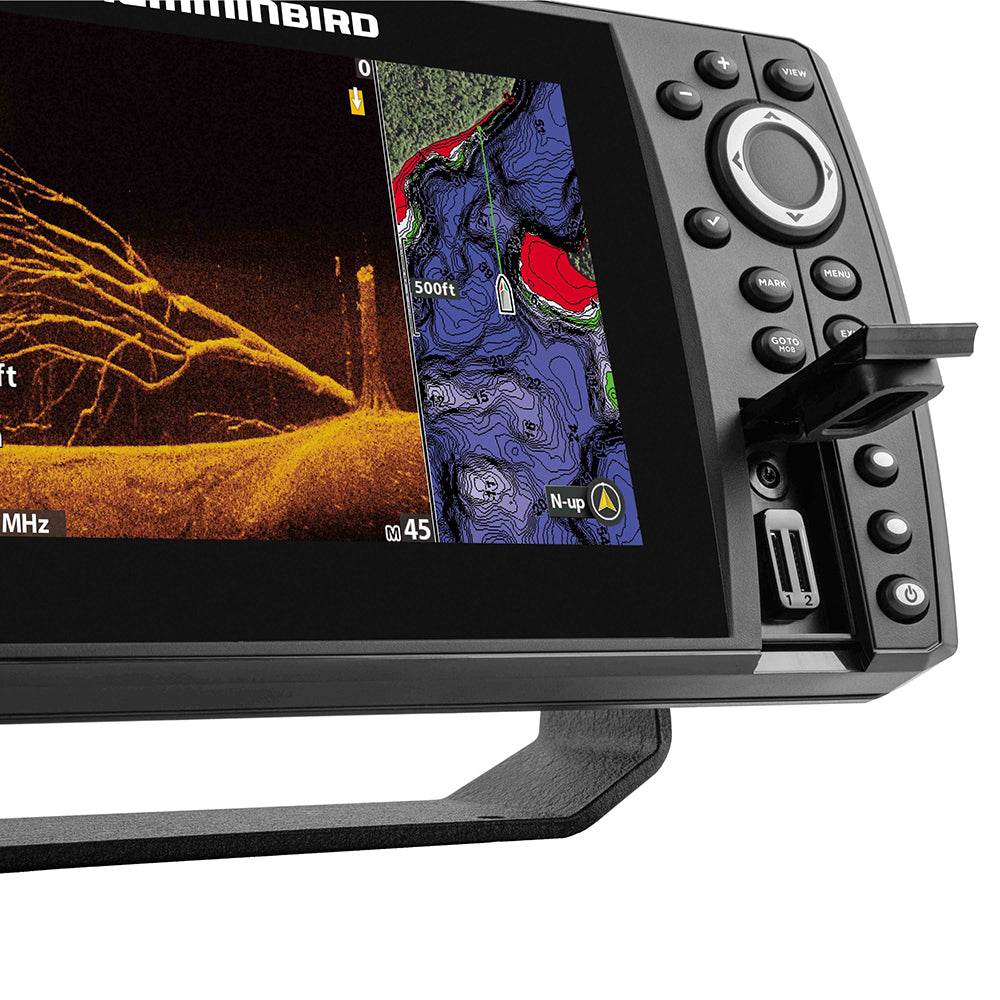

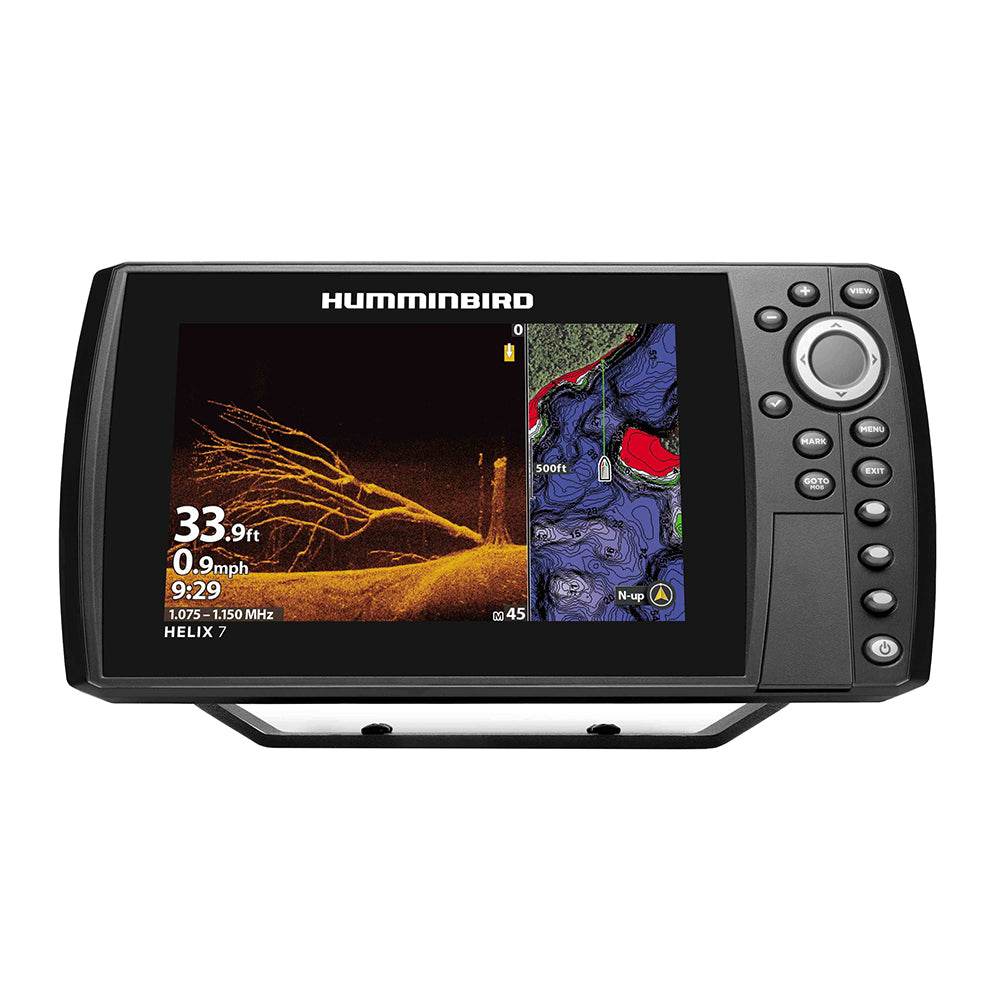

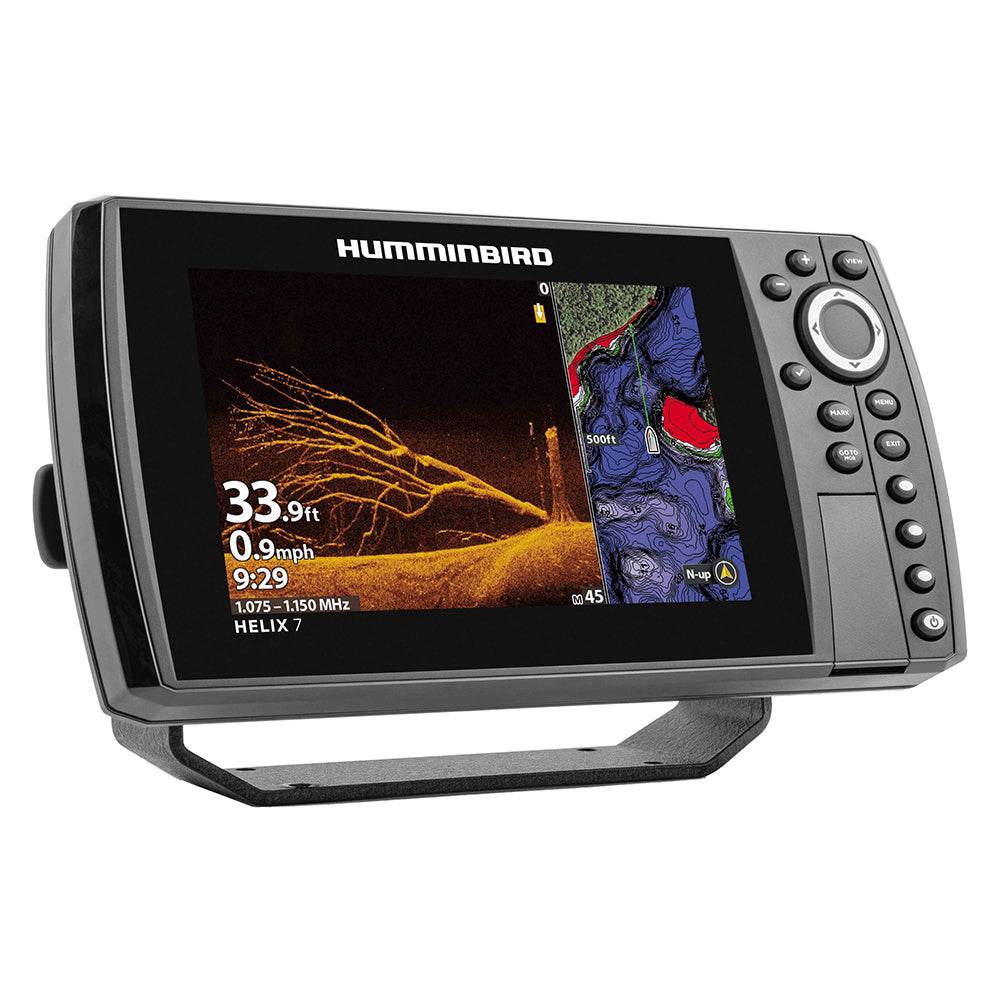

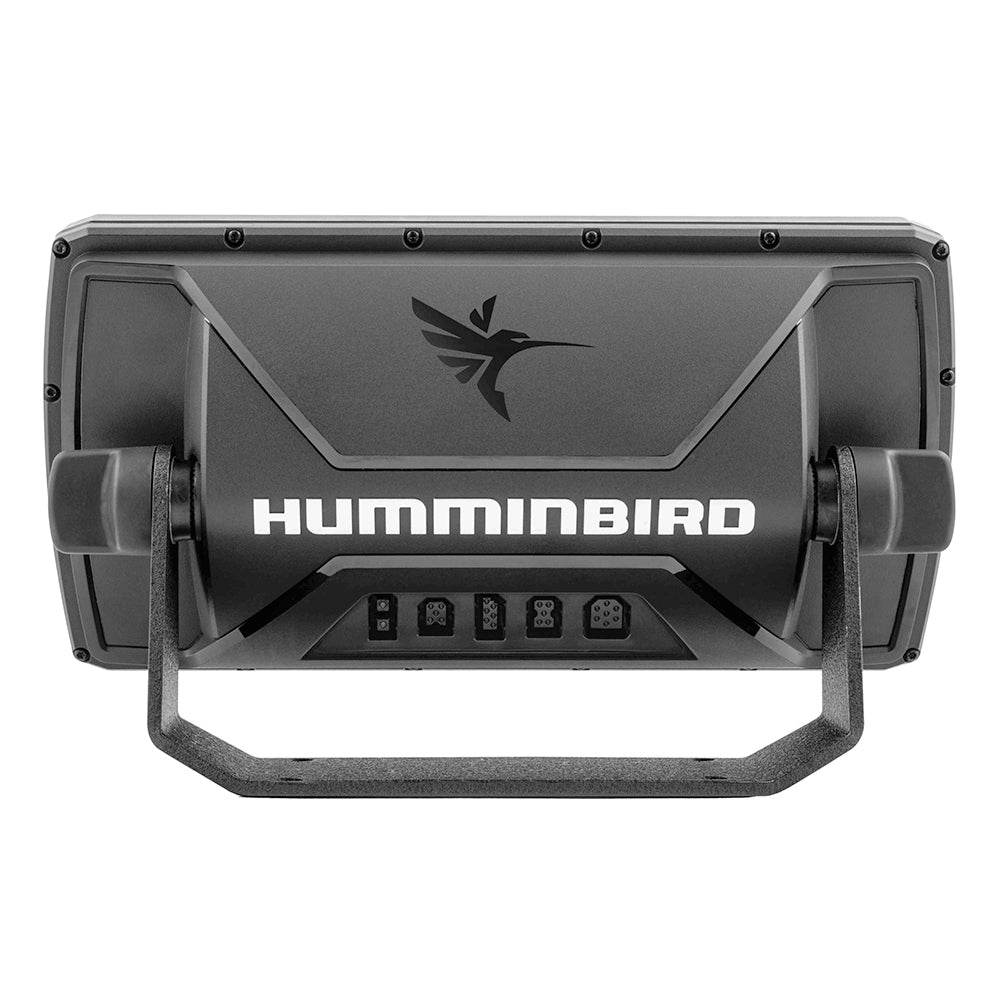

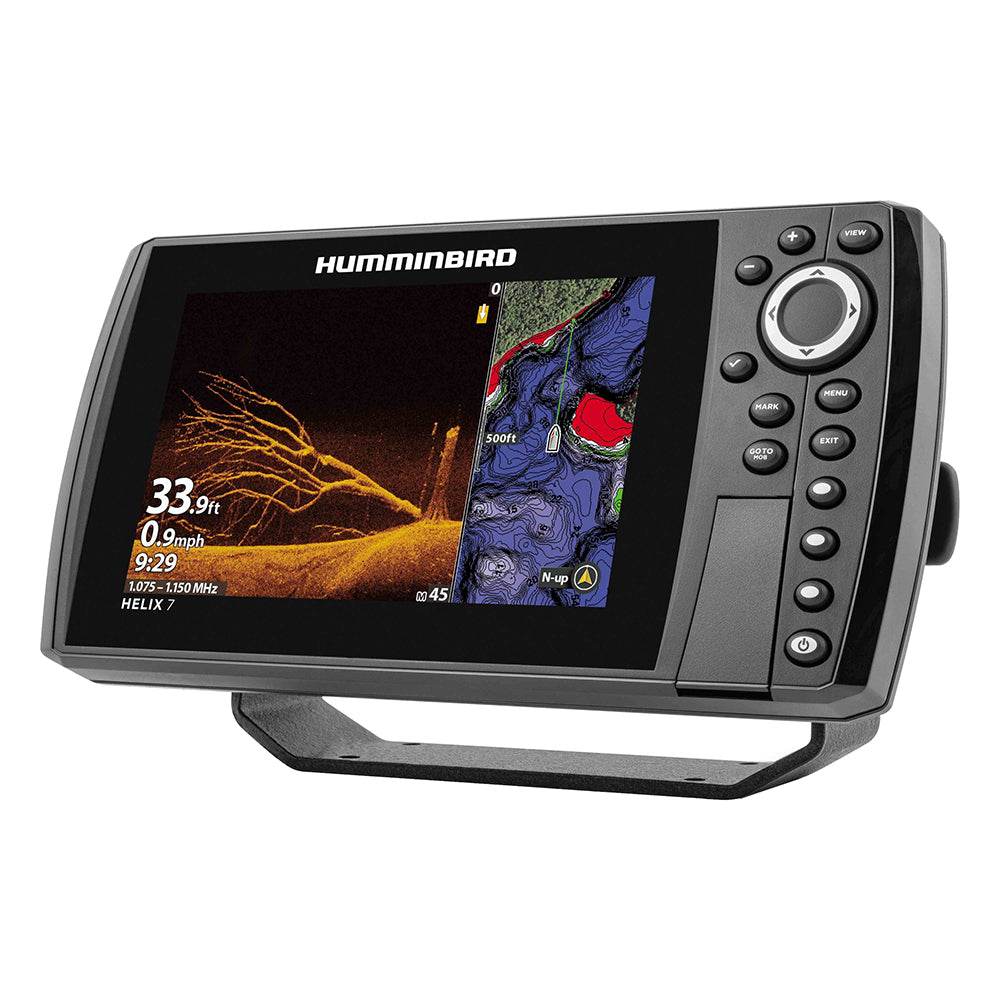

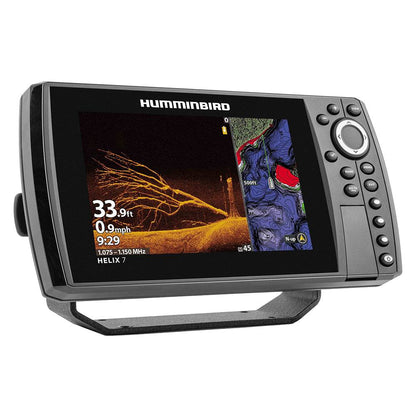

Upgrade your marine navigation and fishing experience with the Humminbird HELIX 7 CHIRP MEGA DI GPS G4N (411640-1).
Featuring a high-definition 7" color display (1024H x 600V), MEGA Down Imaging, Dual Spectrum CHIRP sonar, internal GPS, and built-in Humminbird Basemap, this fish finder delivers precision, reliability, and clarity on the water.
Perfect for freshwater or saltwater fishing, this unit is compatible with Minn Kota i-Pilot Link, Talon/Raptor anchors, AutoPilot, AIS, NMEA 2000, CHIRP radar, and the One-Boat Network™, making it a central hub for your boat’s electronic systems.
Enhanced Bluetooth, Wi-Fi, and Ethernet connectivity allow integration with other Humminbird devices and accessories, giving you full control from your fingertips.
7 inch MEGA Fishfinder Features
- Master HELIX with user-friendly softkey controls and pre-loaded screen views.
-
MEGA Down Imaging: Covers up to 125 ft below the boat with up to 3X more detail than standard sonar.
-
Dual Spectrum CHIRP Sonar: Wide Mode for coverage, Narrow Mode for precision. Supports highly detailed fish arches and structure detection.
-
Internal GPS and Humminbird Basemap: Includes 10,000+ lakes, coastal coverage, buoys, hazards, day markers, and contours.
-
Premium Chart Compatible: LakeMaster®, CoastMaster™, and Navionics® Platinum/Gold charts supported.
-
AutoChart Live: Real-time mapping of fishing areas, bottom hardness, vegetation, and depth contours with 8 hours built-in recording; compatible with Zero Line SD cards for extended mapping.
-
One-Boat Network™: Seamless integration with other Humminbird and Minn Kota electronics.
-
Ethernet Networking: High-speed connections for multi-device setups, Minn Kota i-Pilot Link, and Humminbird CHIRP Radar.
-
Bluetooth: Wireless control of Talon/Raptor shallow water anchors, smartphone notifications, and wireless software updates.
-
NMEA 2000 networking built-in for advanced boat data integration.
Built for Marine Environments
-
True-Marine™ certified: Salt fog, vibration, UV, and temperature-tested for harsh marine conditions.
-
IPX2 Water-resistant design protects against moisture and splashing.
-
Includes conformal-coated PCB for additional corrosion resistance.
Specifications
- Display Size: 7" diagonal, 1024H x 600V TFT color display
-
Touchscreen: No; keypad control interface
- Depth: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
- Sonar: Dual Spectrum CHIRP, MEGA Down Imaging
- Coverage: 20°, 42°, 60°, two 86° @ -10dB
- Optional Sonar: 50/83/200 kHz
- Frequencies: 50/83/200/455/800 kHz, MEGA DI 1075-1150 kHz
- CHIRP Imaging: Narrow (180-240 kHz), Wide (140-200 kHz), Full (150-220 kHz), optional 28–250 kHz
- Power Input: 10.8–20 VDC; Power Draw: 800 mA; Power Output RMS: 500 W; Peak-to-Peak: 4000 W
- Mount: Gimbal; Optional In-Dash Mount Kit
- Weight: 2.1 lb (0.95 kg)
Included in the Box
- HELIX 7 CHIRP MEGA DI GPS G4N Control Head
- Transom-mount transducer (XNT-9-HW-MDI-75-T)
- Power cable
- Gimbal mounting bracket and hardware
- Dual micro SD memory support
- Screen snapshot and sonar recording features
- 1-Year Limited Manufacturer Warranty
Freshwater and Saltwater Application Notes
- For both Freshwater and saltwater fishing
- Boat, wake tower, or pontoon installations
- Integration with Minn Kota i-Pilot Link, Talon/Raptor anchors, and AutoPilot
- Professional-grade boat network setups using One-Boat Network™, NMEA 2000, Ethernet, and Bluetooth
- Real-time mapping and fishing analytics with AutoChart Live
Why Choose the HELIX 7 MEGA DI GPS G4N
Experience unparalleled underwater clarity, reliable marine navigation, and premium fish-finding technology all in one device.
Humminbird HELIX 7 CHIRP MEGA DI GPS G4N delivers the ultimate combination of power, precision, and connectivity, perfect for serious anglers seeking professional results on every outing.
