Humminbird MEGA Transom Transducer w/Temp XM-14-HW-MSI-T

Upgrade your Humminbird SOLIX system with the XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP Transducer (710292-1).

Designed for serious anglers, this transducer provides crystal-clear MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP 2D sonar with a full CHIRP frequency range of 150–220 kHz.

Built with a rugged composite body, all-metal bracket, and 20’ cable, it includes a built-in temperature sensor for precise water readings. Ideal for SOLIX 10, 12, and 15 CHIRP MEGA SI+ GPS G2/G3 units.

This transducer delivers unmatched underwater clarity for side-to-side and down imaging, helping you locate fish, structure, and cover with pinpoint accuracy. Perfect for freshwater or saltwater applications.

Transom Transducer Features

• Dual Spectrum CHIRP sonar: Full 150–220 kHz, Narrow 180–240 kHz, Wide 140–200 kHz
• MEGA Side Imaging+: 1075–1150 kHz – 400ft max range (122m)
• MEGA Down Imaging+: 1075–1150 kHz – 200ft max depth (61m)
• 455kHz Side Imaging: 440–500 kHz – 800ft max range (244m)
• 800kHz Side Imaging: 790–850 kHz – 250ft max range (76m)
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• Built-in temperature sensor for accurate water temperature readings

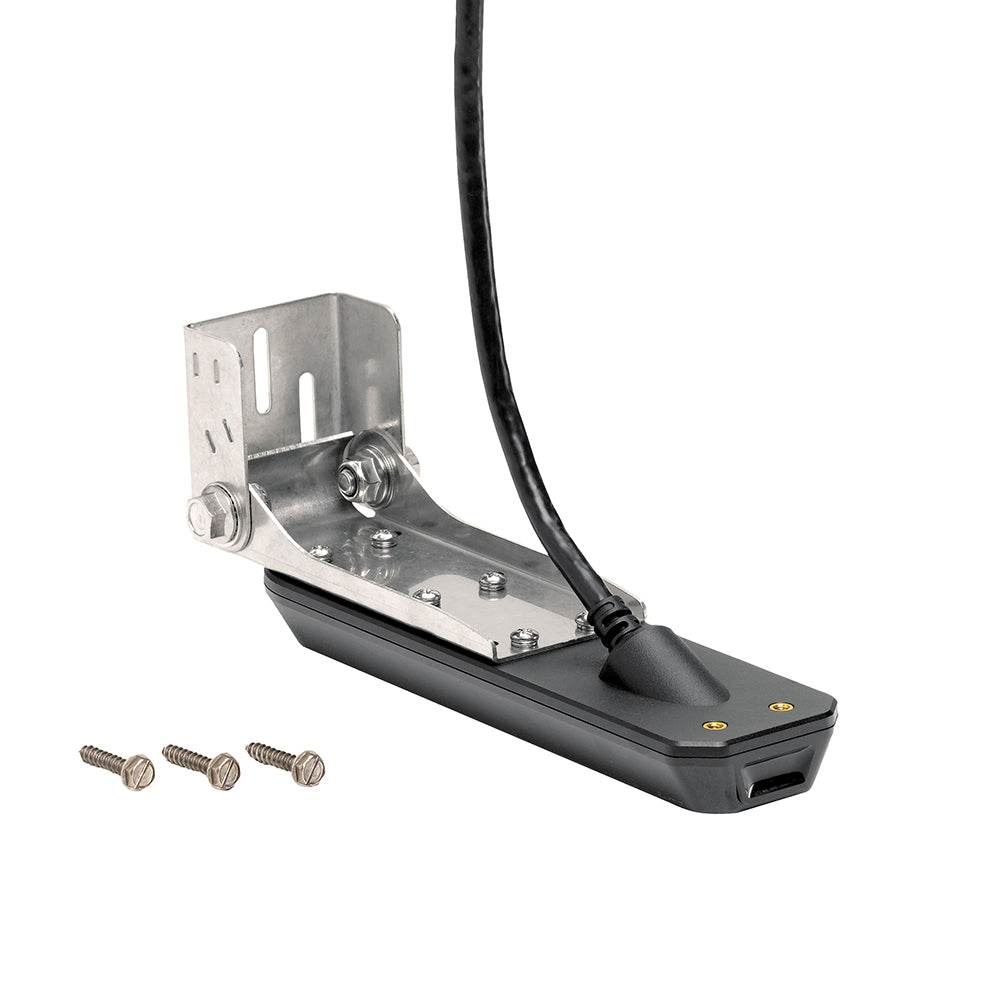

• Rugged composite housing with corrosion-resistant all-metal bracket

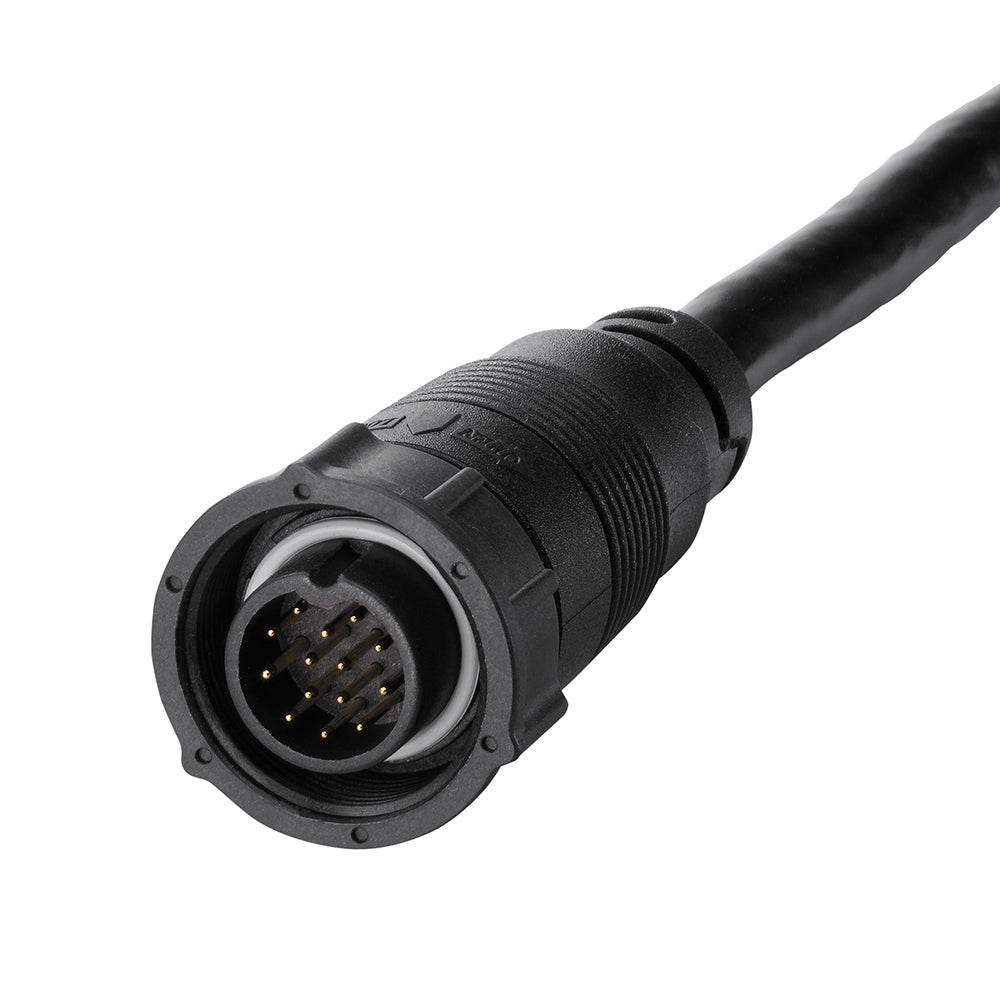

• 20’ cable with 14-pin connector for reliable installation
• Compatible with XPLORE, APEX, and SOLIX MEGA SI+ G2/G3 models

Technical Specifications

• Mounting Style: Transom
• Cable Length: 20ft (6.1m)
• Temperature Sensor: Yes
• Speed Sensor Included: No
• Pins: 14
• Imaging: Standard/Down/Side
• CHIRP Type: High Wide
• Max Side Imaging Depth: 455kHz – 800ft / 800kHz – 250ft / MEGA SI+ – 400ft
• Max Down Imaging Depth: 455kHz – 400ft / 800kHz – 250ft / MEGA DI+ – 200ft
• Warranty: 1-Year Limited

What’s Included

• Humminbird XM-14-HW-MSI-T MEGA SI+/DI+ Transom Mount Transducer with built-in temperature sensor
• 20’ cable with 14-pin connector
• Mounting hardware
• Installation instructions

Freshwater and Saltwater Benefits & Applications

• Locate fish and structure with unmatched clarity using MEGA Side Imaging+
• Pinpoint fish in deep or shallow water with Dual Spectrum CHIRP 2D sonar
• Ideal for freshwater and saltwater fishing on lakes, rivers, or coastal waters
• Works seamlessly with SOLIX 10, 12, and 15 CHIRP MEGA SI+ GPS G2/G3 units
• Rugged and reliable for harsh marine environments

Owner's Manual (pdf)
