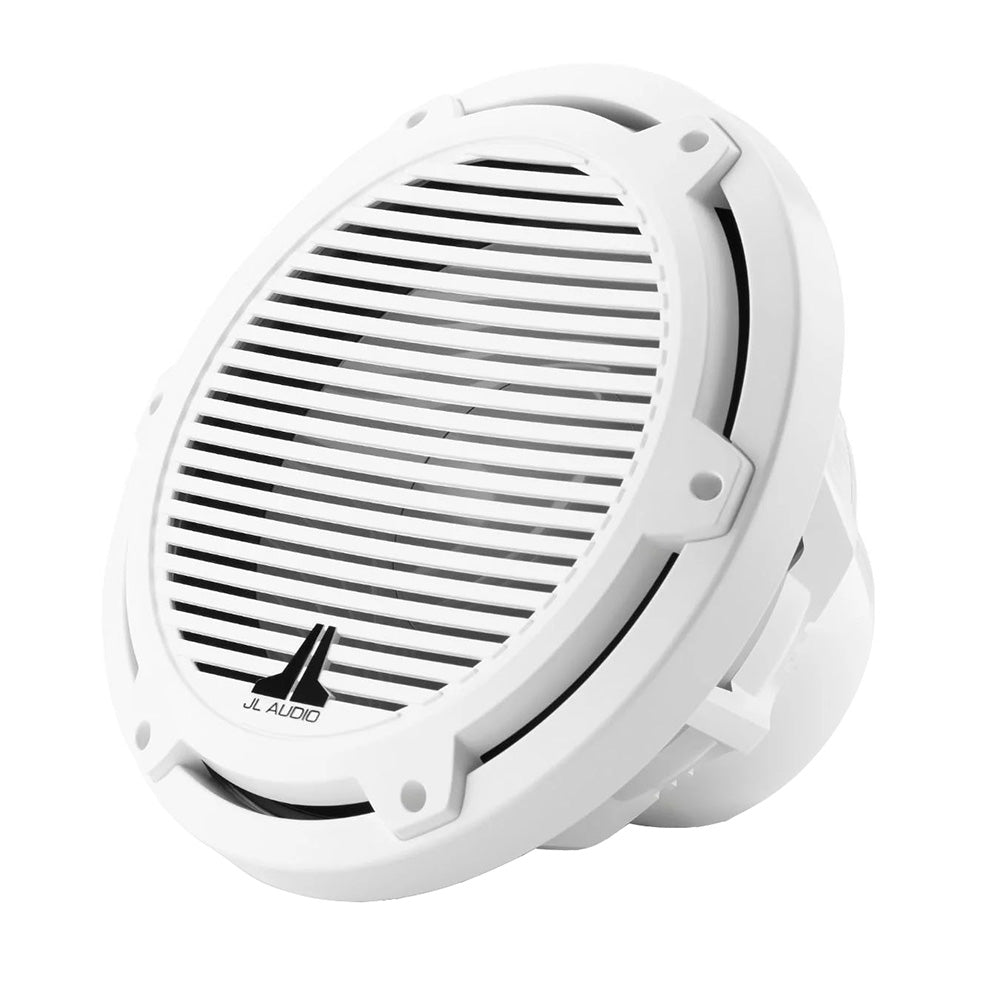

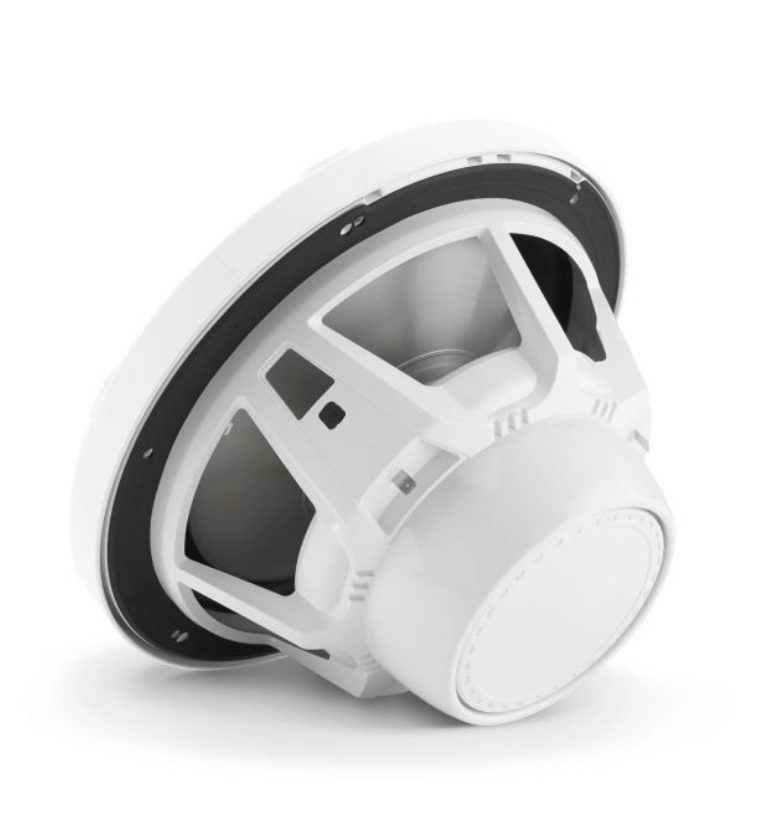

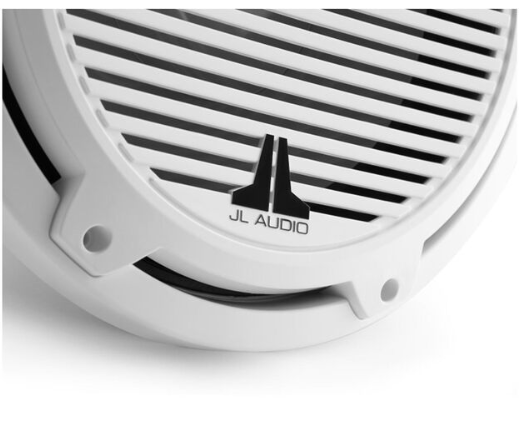

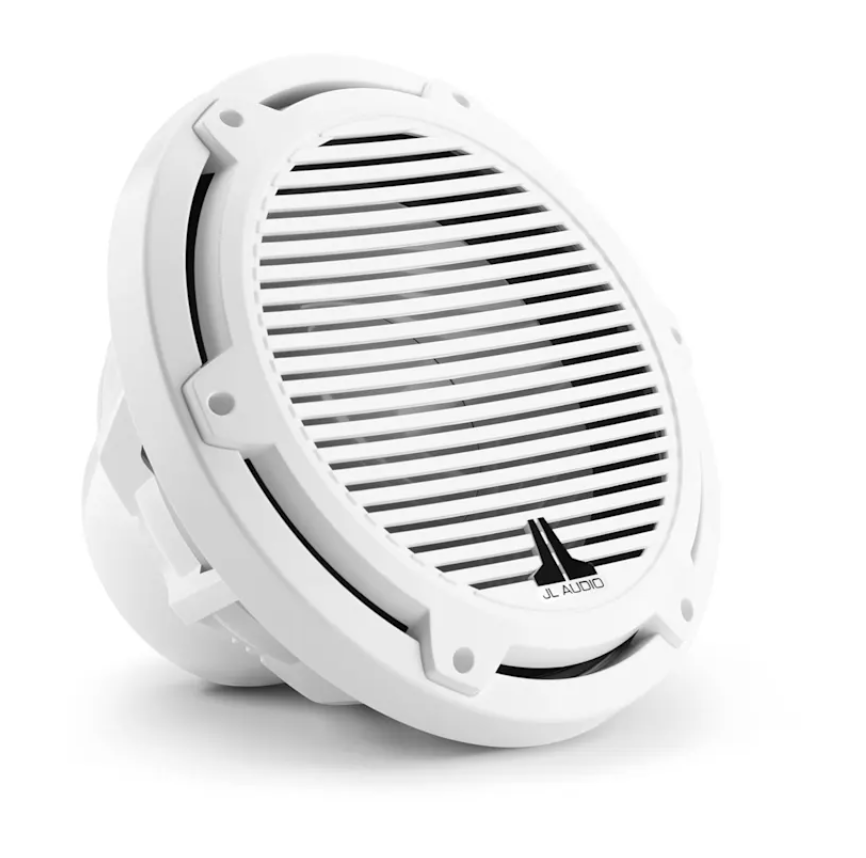

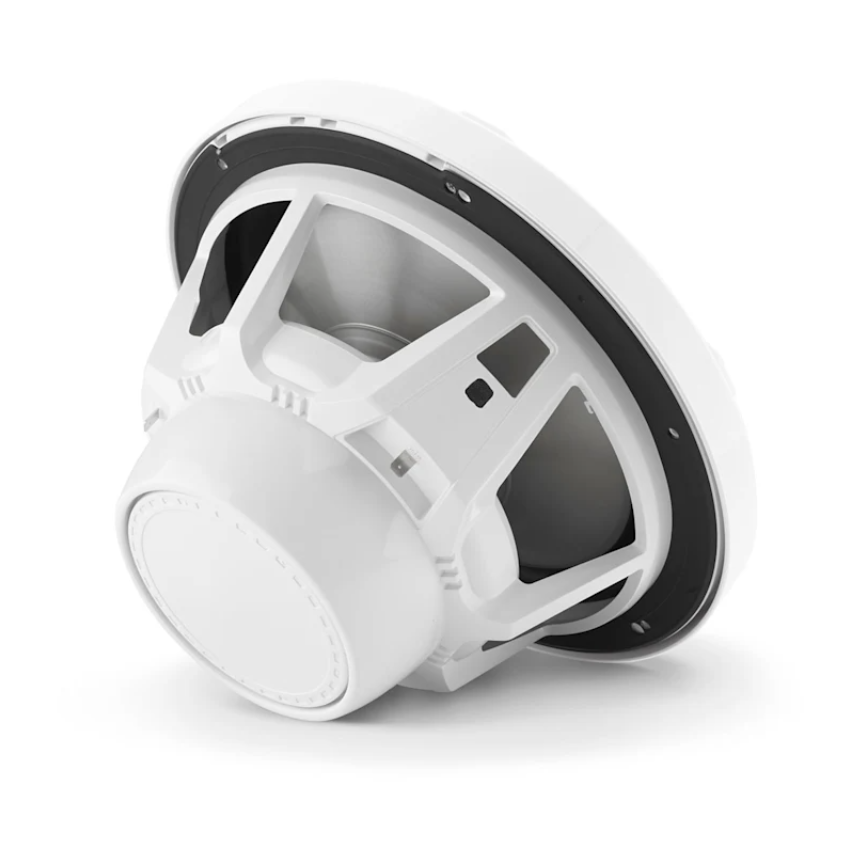

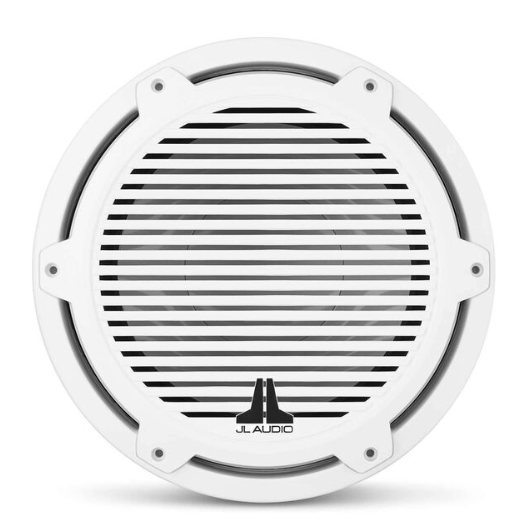

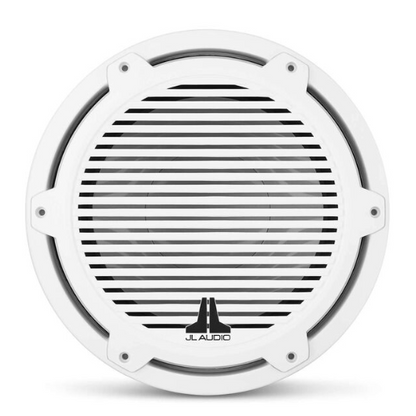

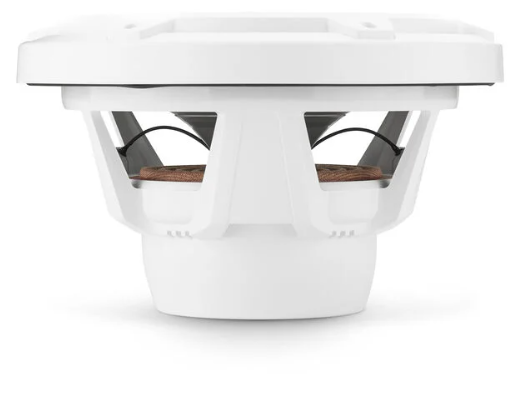

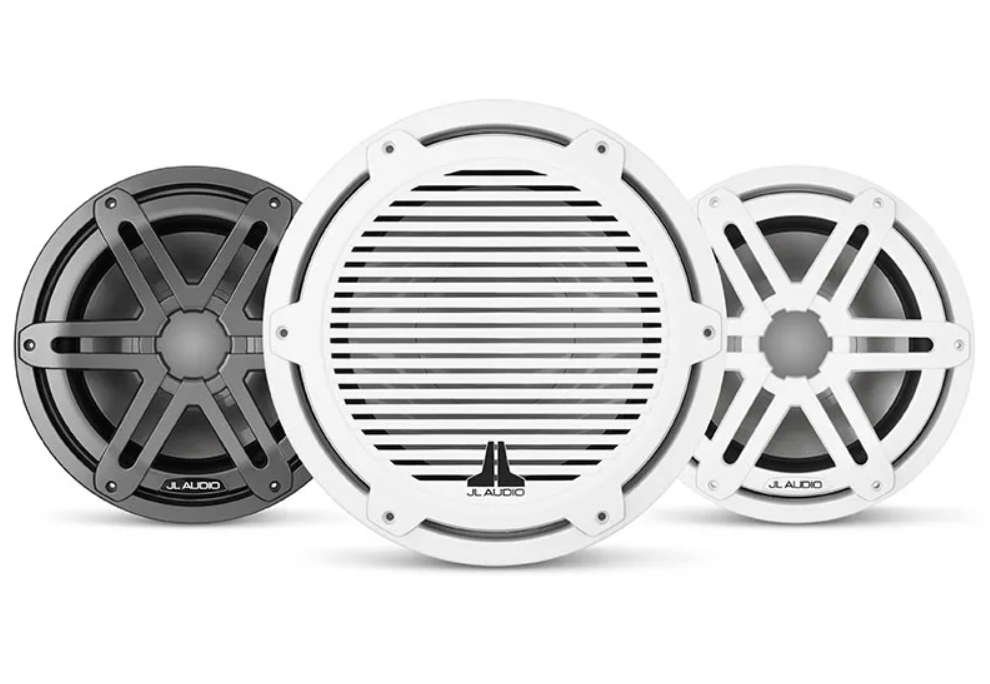

JL Audio M3-10IB-C-Gw-4 10" Marine Subwoofer M3 Series with White Classic Grille

M3 Series 10" Marine Subwoofer with Gloss White Classic Grille (M3-10IB-C-Gw-4) (010-03070-00)

PLAY BETTER

M3 marine subwoofers are purpose-built to deliver incredible sub-bass performance in moderate power applications.

Also available in:

• Gloss White Sport Grille non-LED
• Gloss White Sport Grille RGB LED Lighting
• Grey Metallic Sport Grille non-LED
• Grey Metallic Sport Grille RGB LED Lighting

Features:

• Produces amazing bass in open-air applications
• Engineered for use without a dedicated enclosure
• Exceeds international standards for salt fog and UV exposure
• 3-Year Warranty

Outstanding Sound Quality: This is bass that will impress you, not only with its sheer level, but even more with its smoothness, balance and precision.

Infinite Baffle Design: M3 marine subwoofers are purpose-engineered to operate without a dedicated enclosure, needing only a moderate amount of air behind it.

Power Versatility: These subwoofers are designed to benefit from operation with quality amplification .

DMA-Optimized Woofers: Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

Real Marine Duty: For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

Compatible Products:

• JL Audio® M3 Enclosed Tower Speakers
• JL Audio VeX™ Enclosed Speaker System
• JL Audio® XDM Car and Marine Amplifier

In The Box

• One marine subwoofer
• One grille
• Six stainless steel mounting screws
• Six stainless steel washers

Specifications

• Sizes: 10"
• Color: White Classic
• Physical Dimensions (Diameter): 10.75"
• Physical Dimensions (Depth): 6.50"
• Weight: 6.5 lbs
• Speaker Type: Infinite Baffle Subwoofer
• Continuous Power Handling (RMS): 175w
• Sensitivity (SPL @ 1w/1m): 87.23 dB
• Nominal Impedance: 4 ohm
• Recommended Amplifier Power (RMS): 50-175w
• LED Lighting: No
• Cone Material: Injection-molded, mica-filled polypropylene
• Warranty: 3-Year

Connections

• Speaker Connections: Spade Connectors

Mounting Dimensions

• Mounting Depth Clearance: 5"
• Frontal Grille Protrusion: 1.5"
• Mounting Hole: 8.875"
• Bolt Hole Circle: 9.71"

Specifications:

• Cutout Size: 8.875"
• Mounting Style: Surface
• QTY: Single
• Watts RMS: 175w
• Size: 10"

(M310IBCGw4) (0100307000)
Owner's Manual (pdf)
