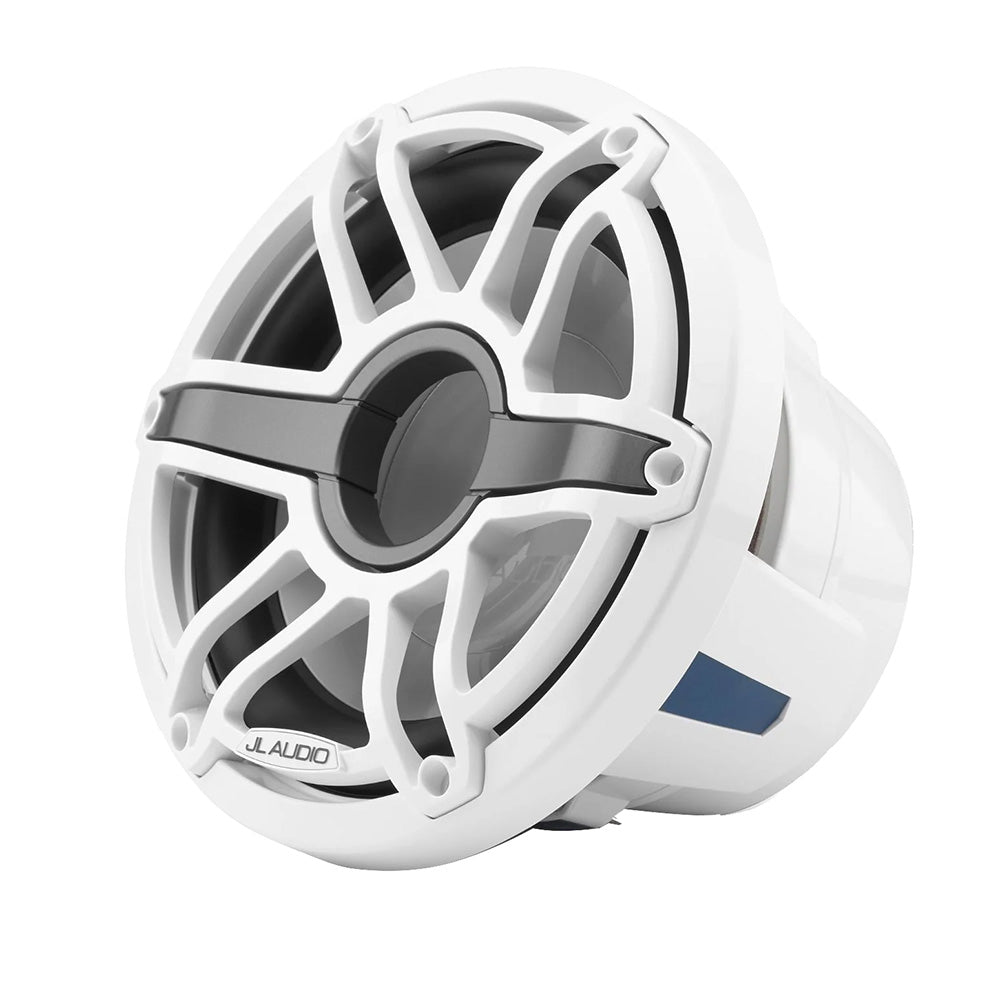

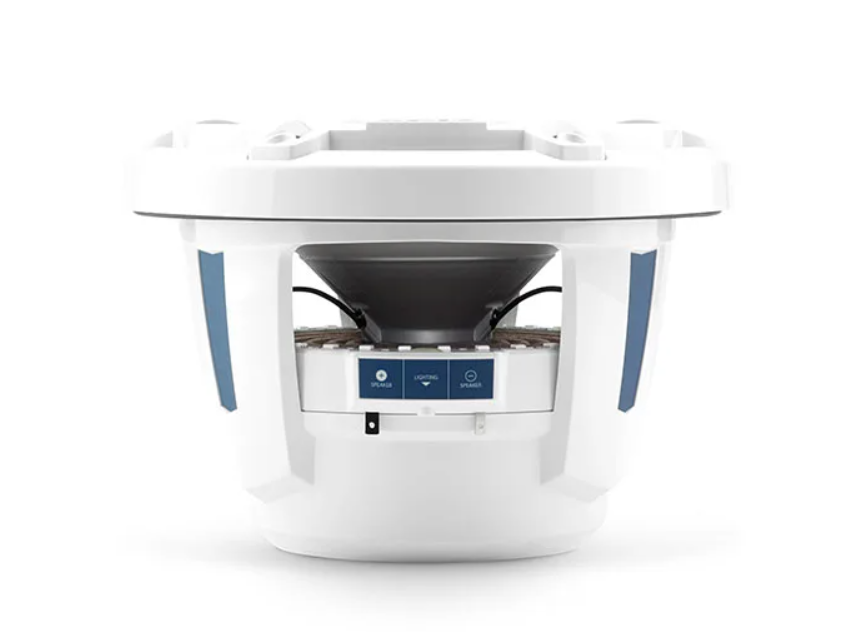

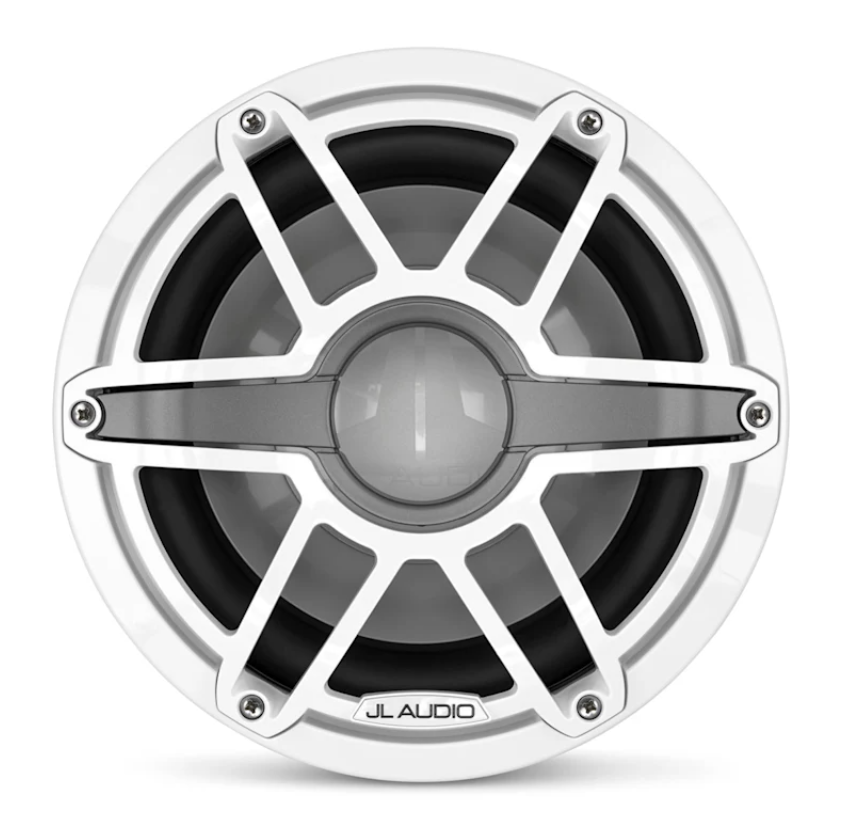

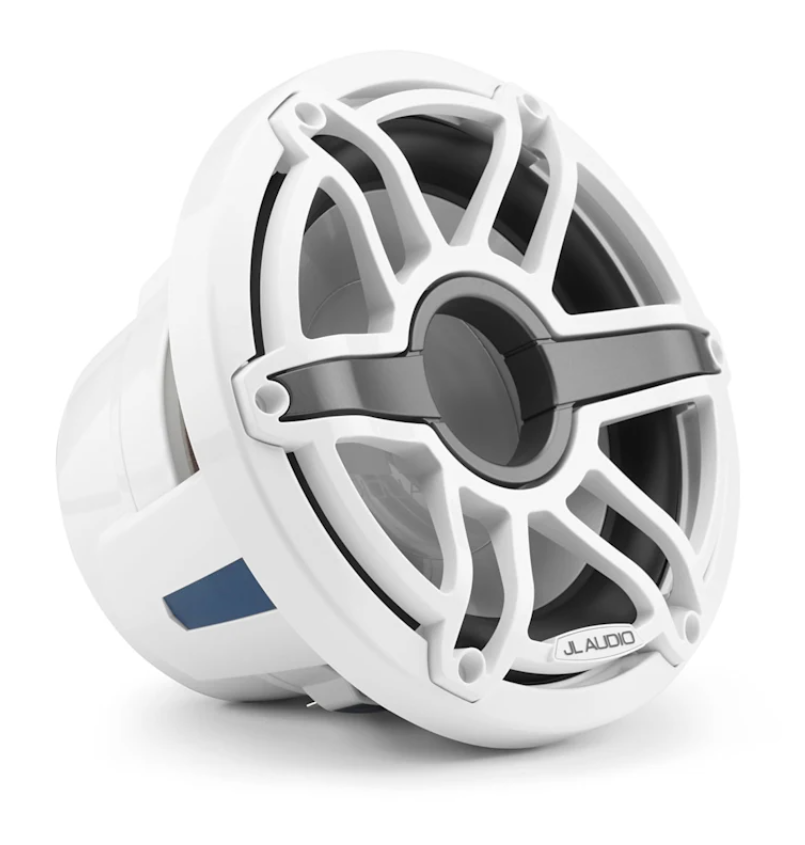

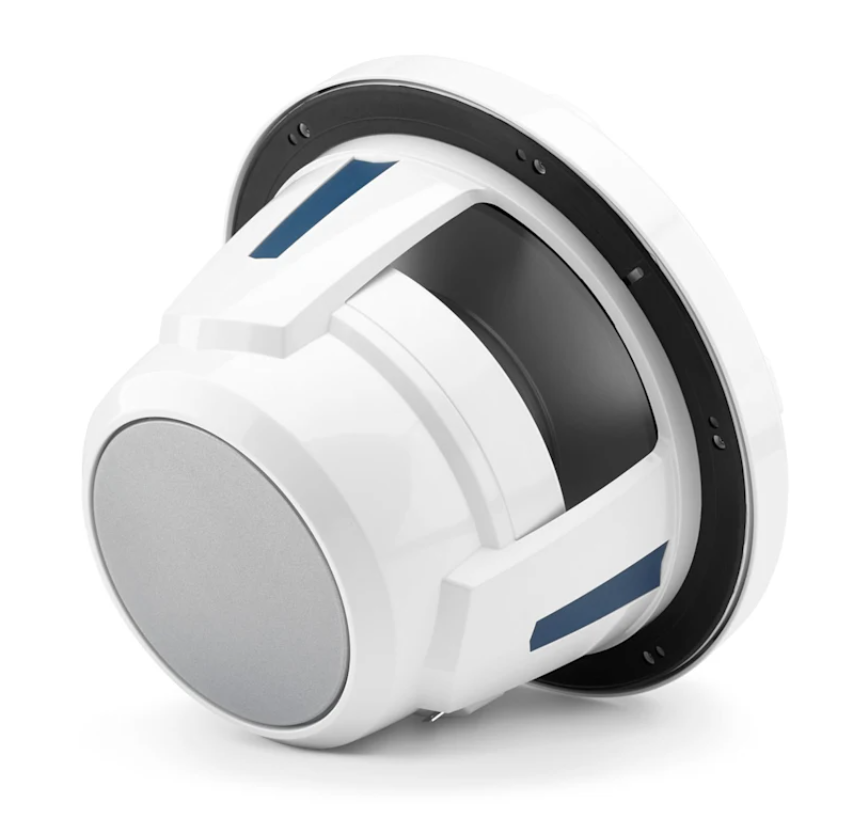

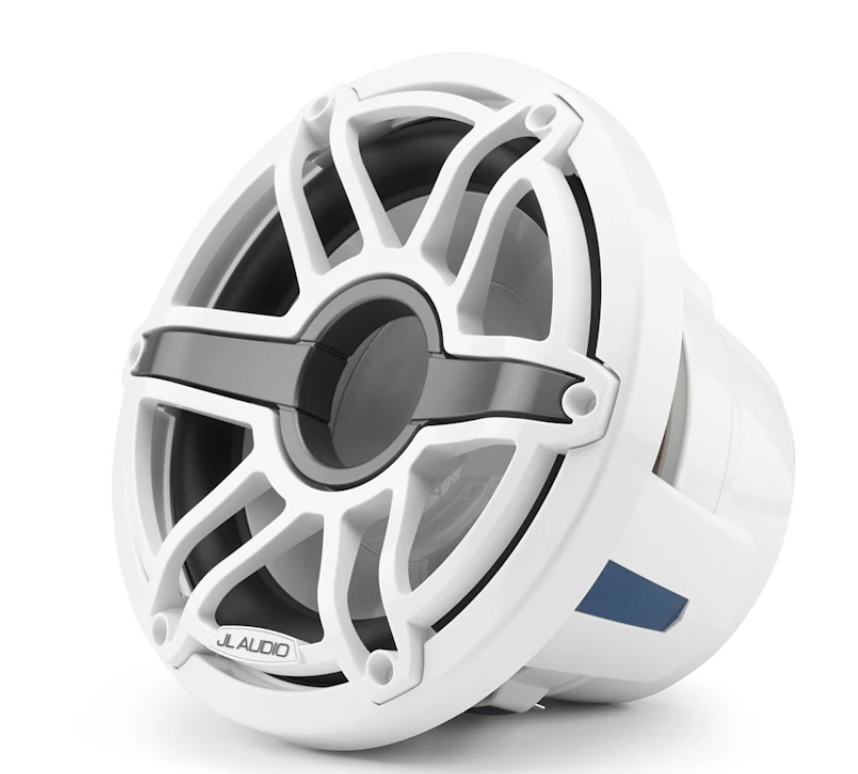

JL Audio M6-10W-S-GwGw-4 10" Marine Subwoofer M6 Series with White Sport Grille

M6 Series 10" Marine Subwoofer with Gloss White Sport Grille (M6-10W-S-GwGw-4) (010-03488-00)

MAXIMUM PERFORMANCE

Optimized for high-powered operation, M6 marine subwoofers can be installed in various applications and are built to withstand the rigors of marine use.

Also available in:

• White Classic Grille non-LED
• Gloss White Sport Grille with LED Lighting
• Titanium Sport Grille non-LED
• Titanium Sport Grille with LED Lighting

Features

• Delivers powerful deep bass in open-air applications
• Grille and trim ring are easily removable for painting
• Exceeds international standards for salt fog and UV exposure
• 3-Year Warranty

World-Class Performance

This bass will impress you, not only with its sheer level but even more with its smoothness, balance and precision.

Model Specific

Optimized to perform in compact enclosures

Powerfully Efficient

M6 marine subwoofers are designed to benefit from operation with quality amplification.

DMA-Optimized Woofers

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

Real Marine Duty

For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

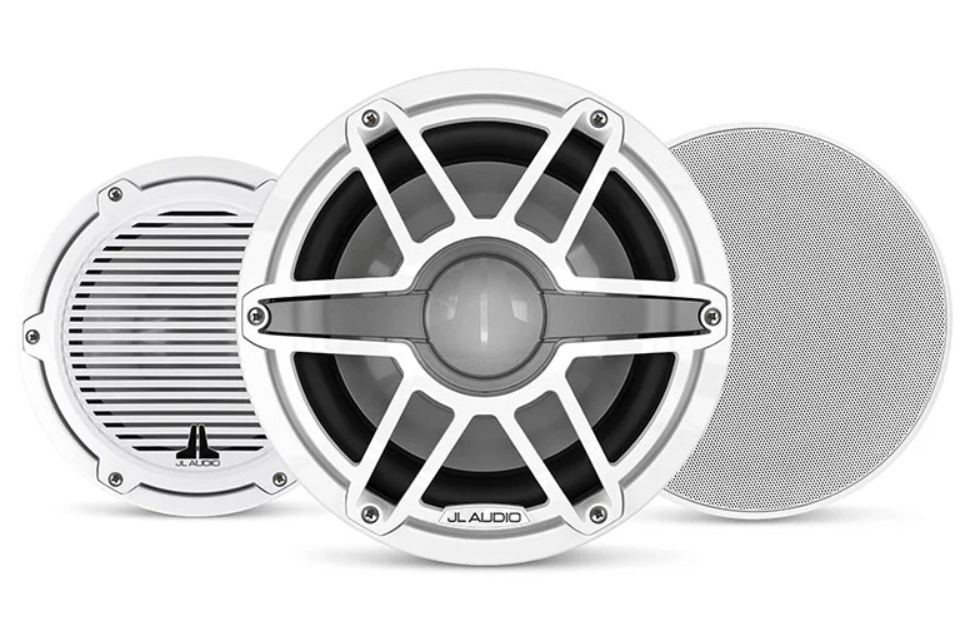

Compatible Products:

• JL Audio® M6 Marine Speakers
• JL Audio VeX™ Enclosed Speaker System
• JL Audio® MVi Marine Amplifier

In The Box

• One marine subwoofer
• One grille
• Six stainless steel mounting screws
• Six stainless steel washers

Specifications

• Size: 10"
• Color: White Sport
• Physical Dimensions (Diameter): 10.75"
• Physical Dimensions (Depth): 7.56"
• Weight: 12.60 lbs
• Speaker Type: Enclosed-use Subwoofer
• Continuous Power Handling (RMS): 250w
• Sensitivity (SPL @ 1w/1m): 86.1 dB
• Nominal Impedance: 4 Ohm
• Recommended Amplifier Power (RMS): 75-250 w
• LED Lighting: No
• Cone Material: Injection-molded, mica-filled polypropylene
• Warranty: 3-Year

Connections

• Speaker Connections: Spade Connectors

Mounting Dimensions

• Mounting Depth Clearance: 5.90"
• Frontal Grille Protrusion: 1.66"
• Mounting Hole: 8.875"
• Bolt Hole Circle: 9.70"

Specifications:

• Cutout Size: 8.875"
• QTY: Single
• Watts RMS: 250w
• Size: 10"

(M610WSGwGw4) (0100348800)
Owner's Manual (pdf)
