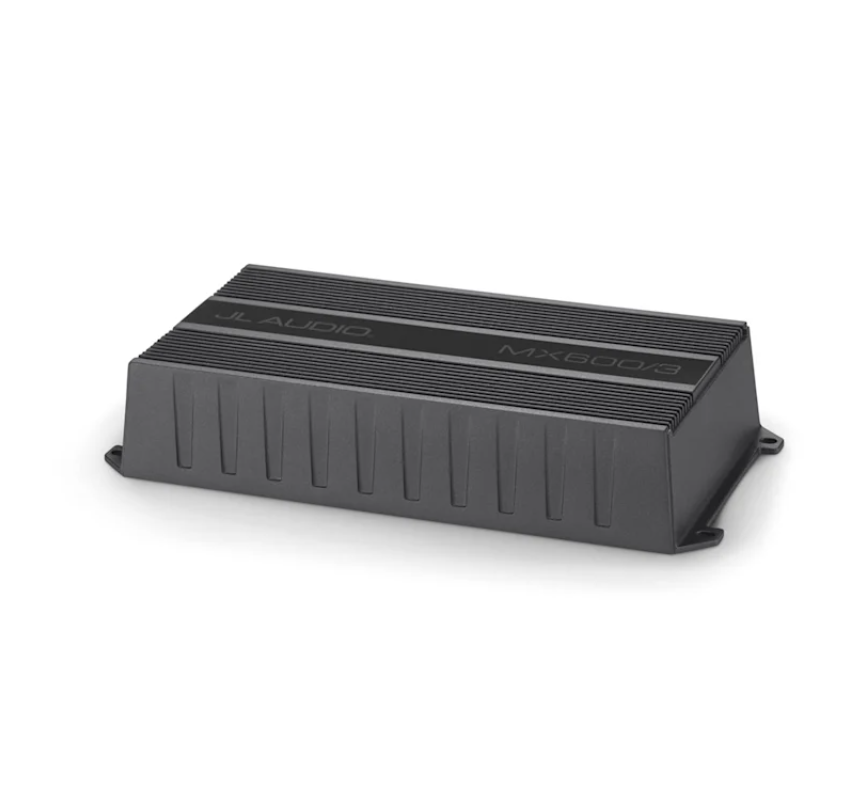

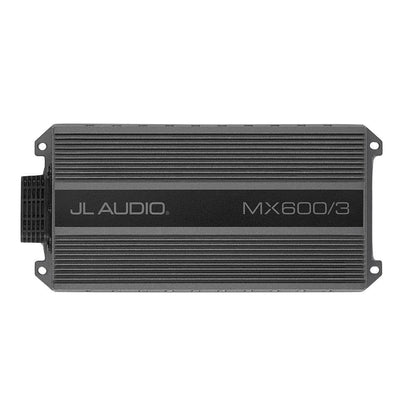

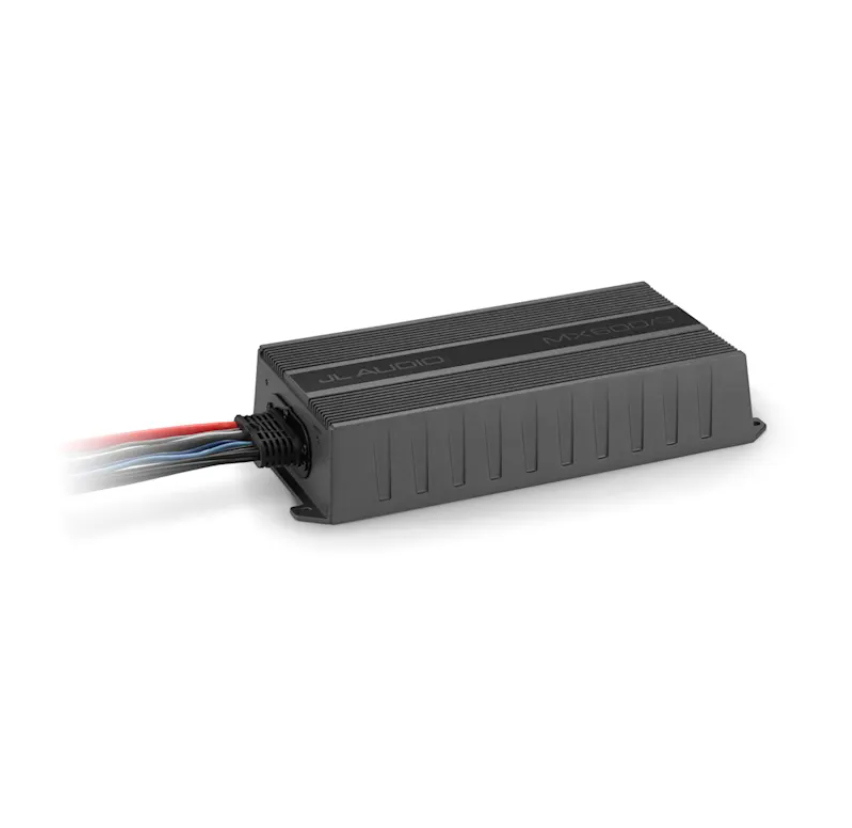

The JL Audio MX600/3 (010-03326-00) is a 600-watt 3-channel marine and powersports amplifier engineered for motorcycles, boats, ATVs, UTVs, and utility vehicles.
Featuring NexD™ high-speed Class-D switching technology, this ultra-compact, IPX7 waterproof amplifier delivers 75W x 2 + 250W x 1 at 4 ohms or 100W x 2 + 400W x 1 at 2 ohms (14.4V), making it the perfect all-in-one solution for powering full-range speakers and a subwoofer from a single chassis.
Built with a corrosion-resistant cast aluminum housing, powder-coated finish, gasketed control cover, and stainless steel hardware, the MX600/3 is designed for harsh marine and off-road environments.
Class-D 3-Channel Marine & Powersports Amplifier
• 600 watts total system power
• 75W x 2 + 250W x 1 @ 4Ω (14.4V)
• 100W x 2 + 400W x 1 @ 2Ω (14.4V)
• NexD™ high-speed switching Class-D design for high efficiency and low current draw
• Ideal for boats, wake towers, motorcycles, ATVs, UTVs, and compact audio builds
• All-in-one amplifier design powers speakers and subwoofer from one chassis
IPX7 Waterproof & Built for Harsh Environments
• IPX7 water-resistance rating (protected against temporary immersion)
• Corrosion-resistant cast aluminum chassis
• Rugged powder-coated finish
• Gasketed top cover protects controls from moisture
• Stainless steel hardware for marine durability
• Compact footprint for tight installation spaces
Perfect for saltwater marine environments, exposed motorcycle installs, and off-road powersports applications.

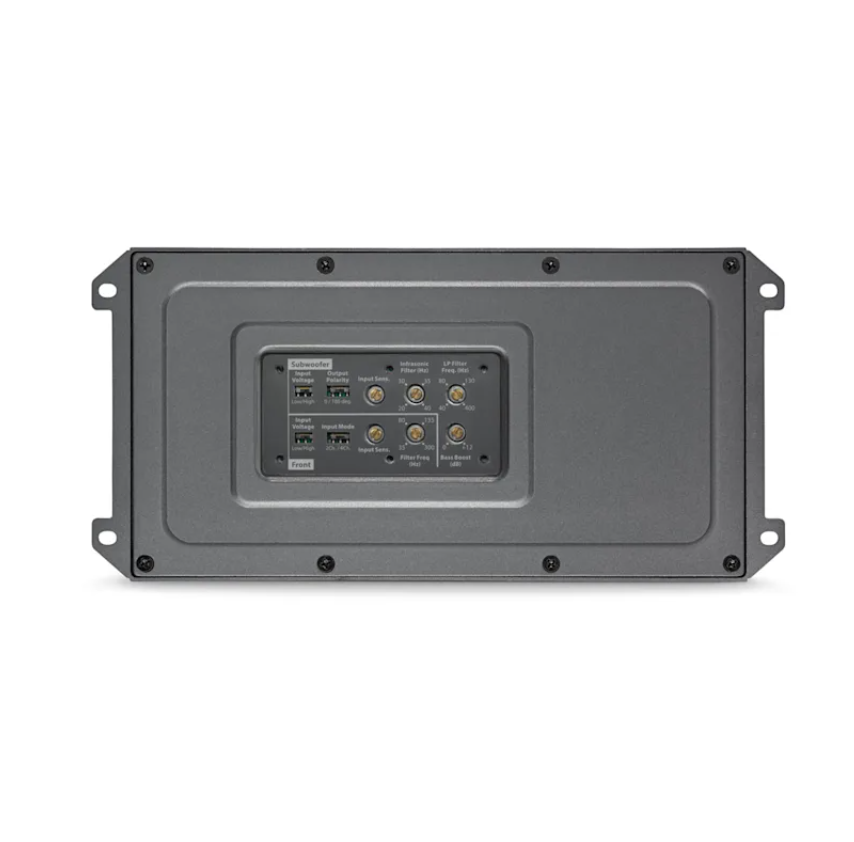

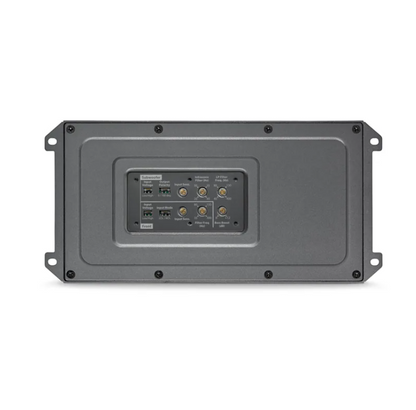

Advanced Audio Control & Tuning Features
• 12 dB / octave high-pass crossover for main channels
• 24 dB / octave low-pass crossover for subwoofer channel
• Variable infrasonic filter for subwoofer protection
• Bass Boost EQ for enhanced low-frequency output
• Subwoofer output polarity switch
• Dual-range differential-balanced inputs accept line-level or high-power speaker-level signals
This flexible tuning system allows seamless integration with factory radios or aftermarket head units.
Efficient Power Without Straining Charging Systems
The MX600/3 is engineered specifically for small electrical systems commonly found in motorcycles and powersports vehicles. JL Audio’s NexD™ switching technology maximizes output while minimizing heat and current draw, reducing strain on batteries and charging systems.
Compact All-In-One Audio Solution
Generate powerful full-range sound and deep bass from a single amplifier. The MX600/3 eliminates the need for multiple amps in small installs, making it ideal for:
• Motorcycle fairing speaker systems
• Boat cockpit speaker + subwoofer setups
• UTV / side-by-side audio systems
• Compact marine audio upgrades
Technical Specifications
• Total Power Output: 600 watts
• Power @ 4Ω: 75W x 2 + 250W x 1 (14.4V)
• Power @ 2Ω: 100W x 2 + 400W x 1 (14.4V)
• Amplifier Design: NexD™ Class-D
• Channels: 3
• Water Resistance Rating: IPX7
• Crossover Slopes: 12 dB / octave (HP), 24 dB / octave (LP)
• Input Compatibility: Line-level & high-power speaker-level
• Finish: Powder-coated
• Hardware: Stainless steel
What’s Included in the Box
• JL Audio MX600/3 3-channel amplifier
• Mounting hardware
• Owner’s manual / documentation
Warranty & Installation
• Manufacturer Warranty: 2-Year Limited Warranty (when purchased from an authorized retailer)
• Designed for professional or experienced DIY installation
• Ideal for 12V electrical systems
Owner's Manual (pdf)
