JL Audio® Weatherproof Receiver with Bluetooth Technology (MBT-RXv2)

Water-Resistant Audio Receiver with BLUETOOTH® Wireless Technology (MBT-RXv2) (010-03377-00)

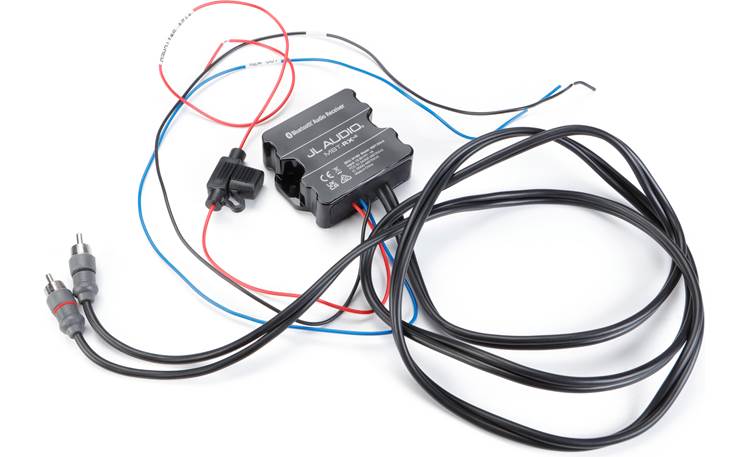

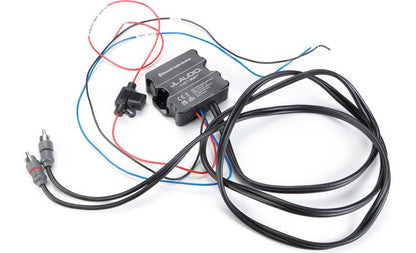

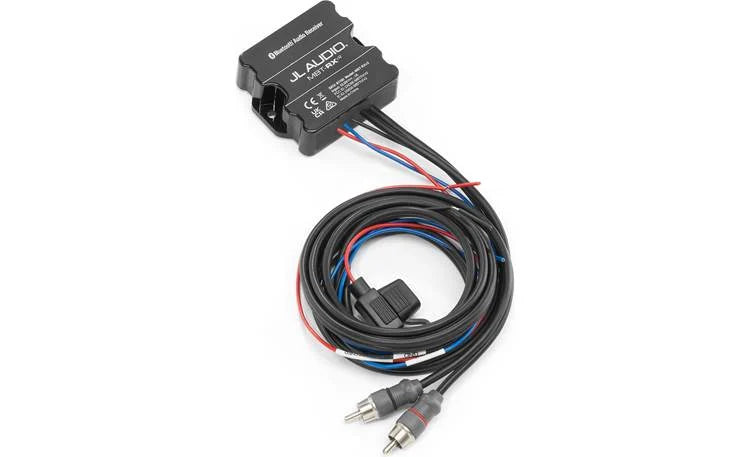

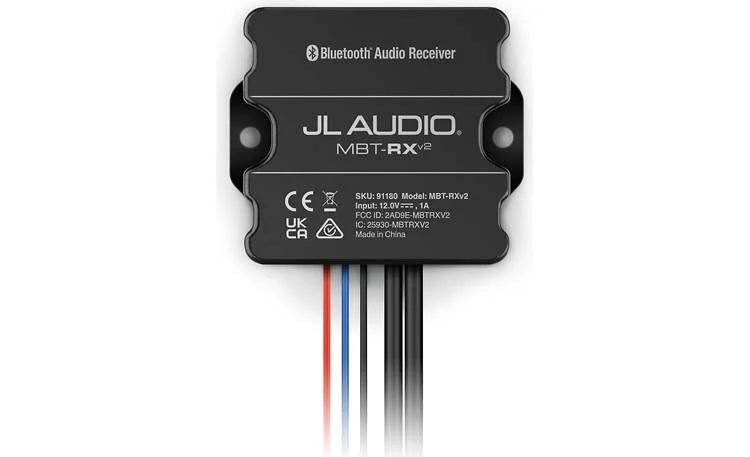

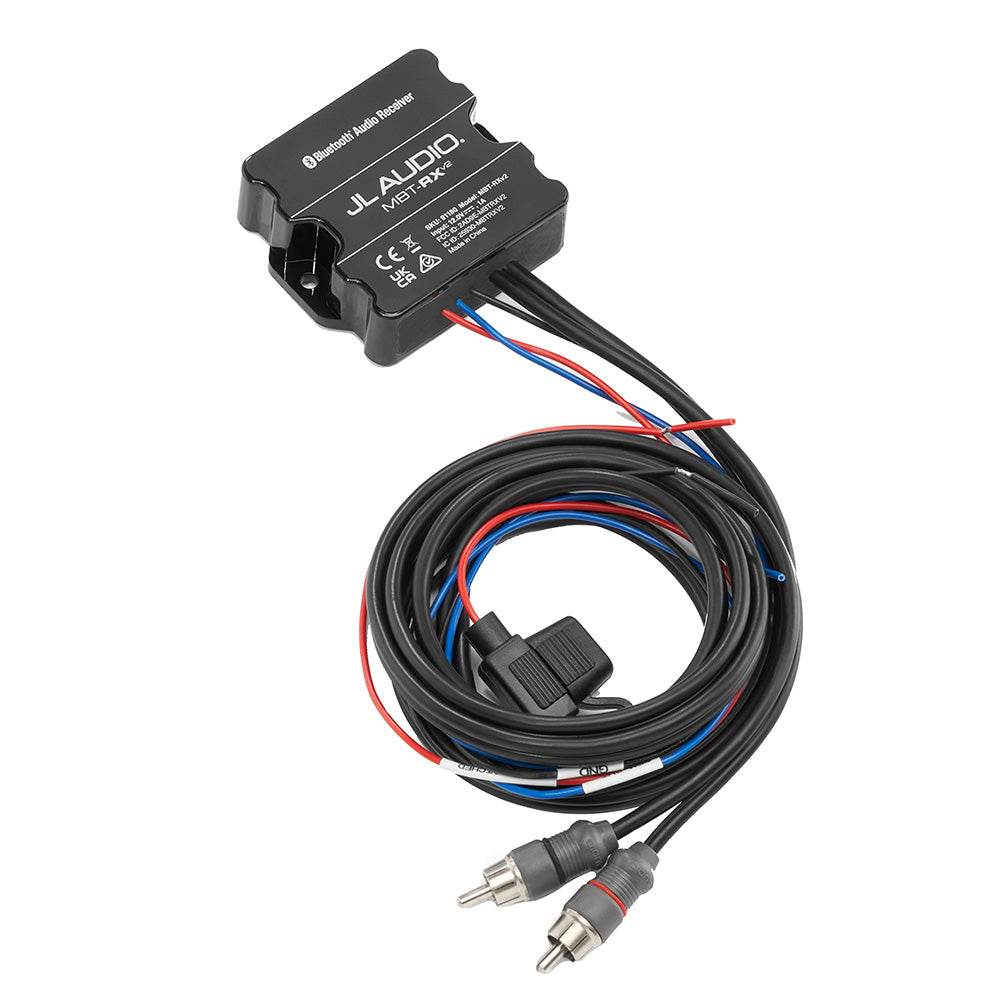

The MBT-RXv2 wireless receiver is designed to easily add high-quality streaming audio capability to virtually any sound system.

Equipped with BLUETOOTH wireless technology and the Qualcomm® aptX™ HD audio codec, the MBT-RXv2 wireless receiver sends top-quality sound directly to any amplifier or source unit with line-level inputs via a pair of crystal-clear preamp outputs (4-volt RMS).

Housed in a sealed and water-resistant (IPX7-rated) chassis, this premium audio receiver is ideally suited for challenging outdoor applications, its tiny design can easily fit in almost any installation location. A simple procedure is all it takes to pair MBT-RXv2 to your device, with automatic reconnection afterward. All playback, including volume and media selection, is controlled by using your compatible streaming device from up to 35’ (11 meters) away.

Features:

• Marine-rated Bluetooth adapter
• Add Bluetooth audio streaming capability to almost any audio system
• IPX6 water-resistant
• Includes 5-foot RCA cable
• Ideal for boats and powersports vehicles
• Warranty: 2 years

What's in the box:

• Marine Bluetooth Receiver: Designed for marine and powersports applications, the JL Audio MBT-RX (V2) Bluetooth Receiver lets you wirelessly connect your Bluetooth-enable source devices, such as your smartphone or tablet to your motorcycle, ATV, golf-cart or boat's audio system.
• Bluetooth Music Streaming: The JL Audio MBT-RX (V2) Bluetooth Receiver is Bluetooth version 5.0 certified and supports Bluetooth profile A2DP for wireless music streaming. With the MBT-RX (V2) Bluetooth Receiver you'll be able to stream stored music, music apps, and other audio content from your Bluetooth-enabled source device to your audio system. Music navigation and song/artist information will still be handled by your Bluetooth-enabled device. The unit has a wireless Bluetooth operating range of approximately 35'.
• Qualcomm aptX HD: In addition to support for Bluetooth's standard SBC audio codec, the JL Audio MBT-RX (V2) offers support of Qualcomm's aptX HD codec for 24-bit high resolution audio streaming from select Android smartphone and tablet devices (*Apple iPhone and iPad devices do not support aptX HD). Qualcomm aptX HD audio coding technology provides 24-bit wireless HD audio with higher signal-to-noise ratio (SNR) and lower total-harmonic distortion (THD) for better sound.
• Multi-Device Pairing: Multiple Bluetooth-enabled source devices can be paired with the MBT-RX (V2) Bluetooth Receiver, but only one can be connected and used for playback at a time.
• Note: The JL Audio MBT-RX (V2) Bluetooth Audio Receiver does not support wireless hands-free phone communication for making or answering phone calls.
• IPX7 Waterproof: With an IPX7-rating, the JL Audio MBT-RX (V2) Bluetooth Audio Receiver is engineered to be waterproof. The IPX7-rating ensures that the unit can be submerged in water up to 1 meter for 30 minutes without any damage.
• Stereo RCA Outputs: Use the JL Audio MBT-RX (V2) Bluetooth Audio Receiver's stereo RCA outputs to connect to any amplifier or source unit with line-level or auxiliary inputs. The attached stereo RCA output cable is 5' in length. If your amplifier or source unit features stereo 3.5mm minijack connectors, you'll also need a stereo minijack-to-RCA adapter (sold separately).
• Power/Ground Requirements: The MBT-RX (V2) Bluetooth Receiver will require a hard-wired power, remote turn-on, and ground connection. The attached power (red), remote turn-on (blue), and ground (black) wires are 2' in length. There is 2A in-line fuse installed on the red power wire.
• Mounting Options: The MBT-RX (V2) Bluetooth Receiver includes a self-adhesive backing to mount the device or you can use two screws (not included) to mount the unit. The unit measures 2.6875" (w) x 0.875" (h) x 2.3125" (d).

Owner's Manual (pdf)
