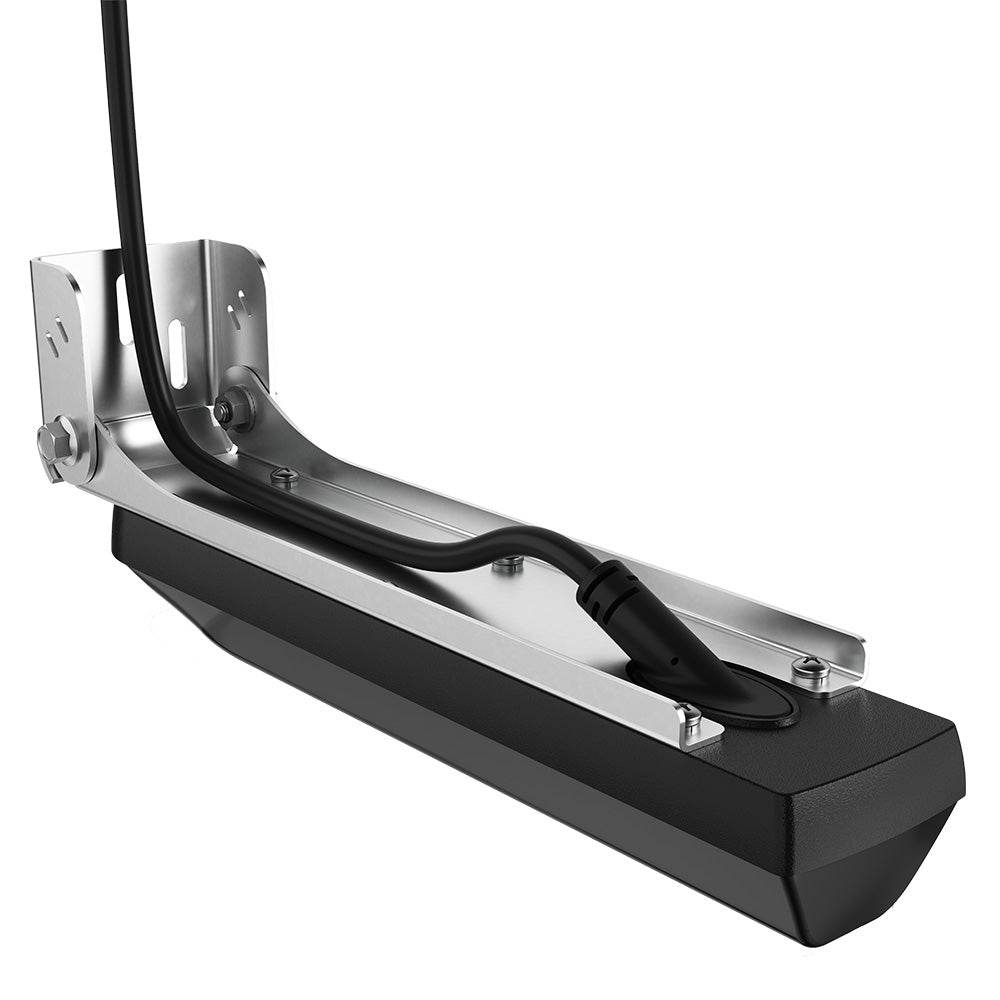

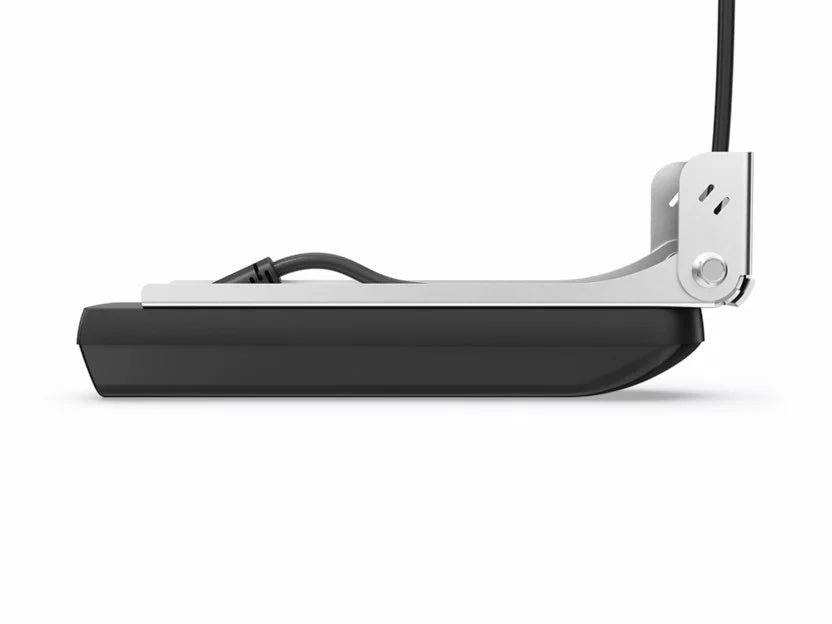

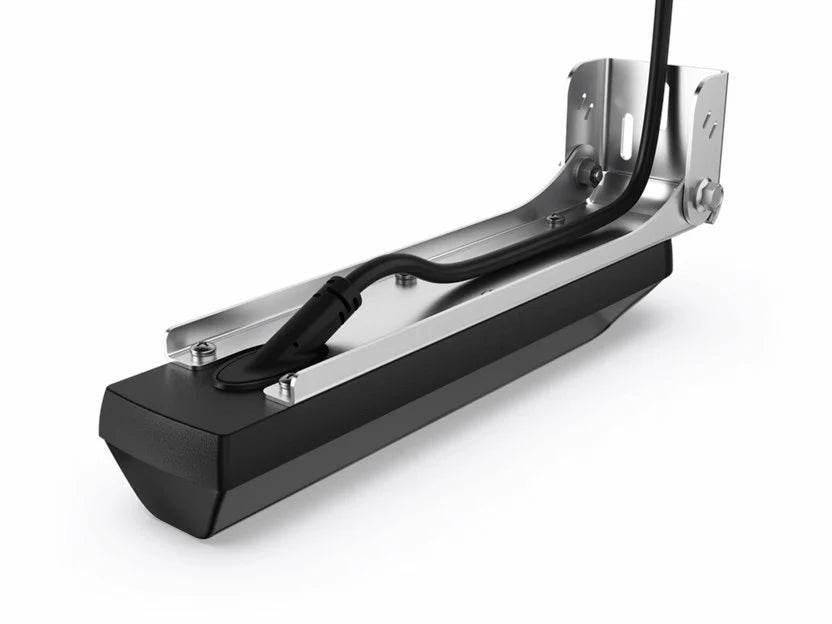

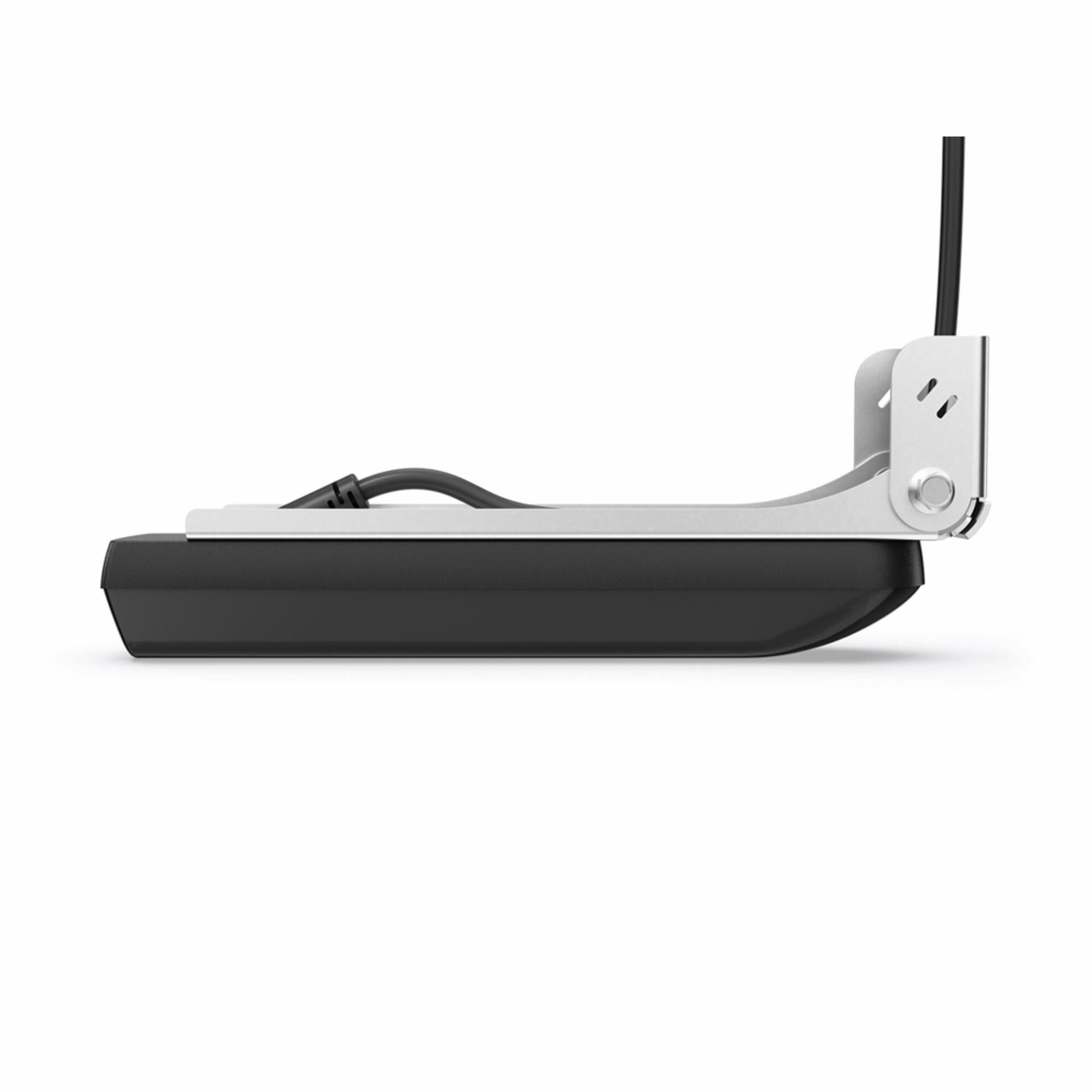

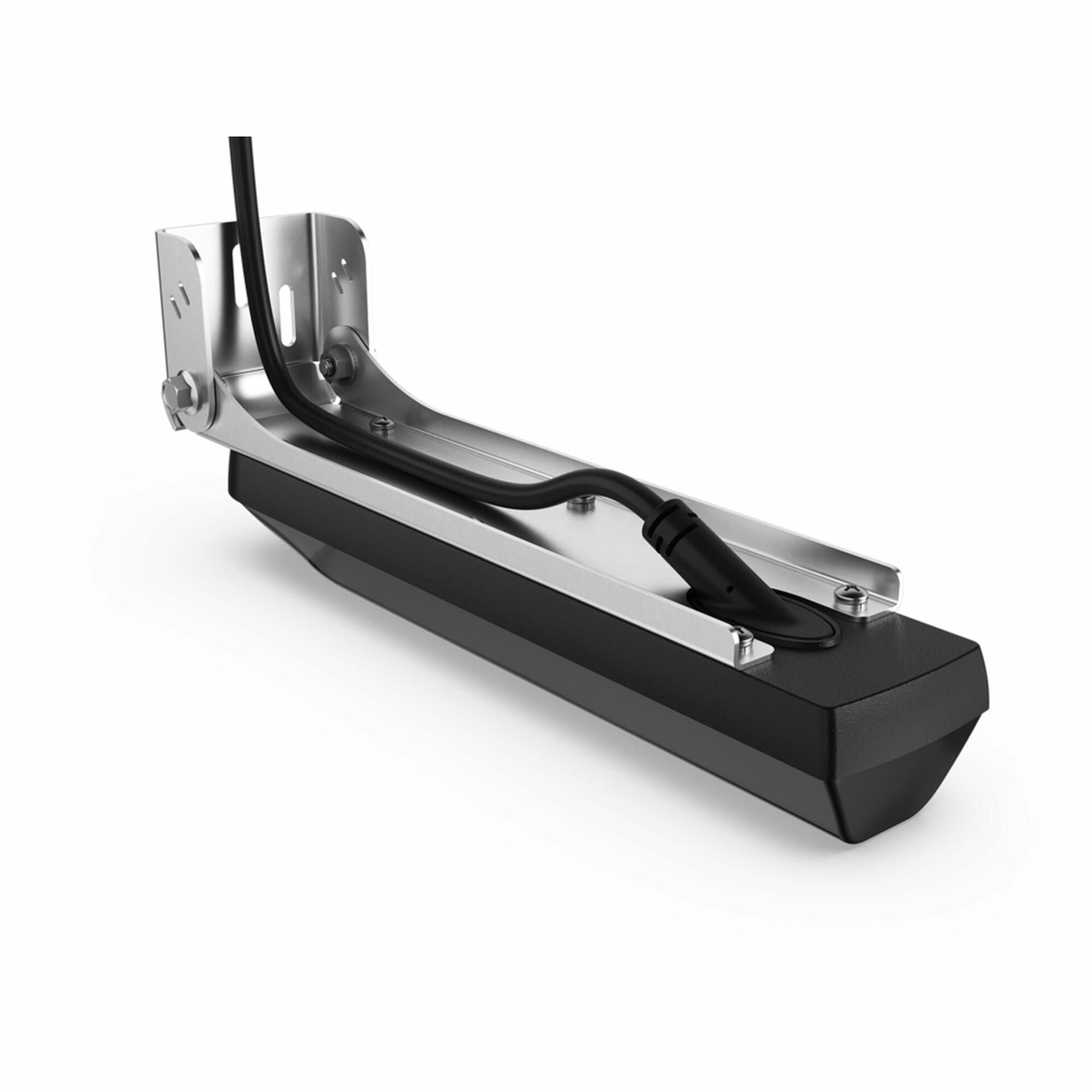

Active Imaging HD™ 3-in-1 Transducer (000-16062-001)

Unlock the next level of sonar clarity and underwater detail with the Lowrance Active Imaging HD™ 3-in-1 Transducer (00016062001) — the ultimate upgrade for serious anglers who demand precision, power, and unmatched definition. Designed to deliver crystal-clear images of fish, structure, and bottom composition, this all-in-one transducer combines advanced CHIRP sonar, SideScan, and DownScan Imaging™ in one smart, compact unit.

Perfect for both shallow and deep-water fishing, the Active Imaging HD 3-in-1 enhances your ability to find and identify fish faster — giving you a competitive edge every time you’re on the water.

⚙️ Key Features & Benefits:

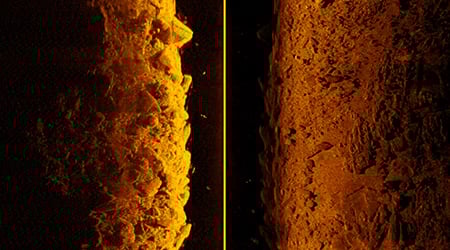

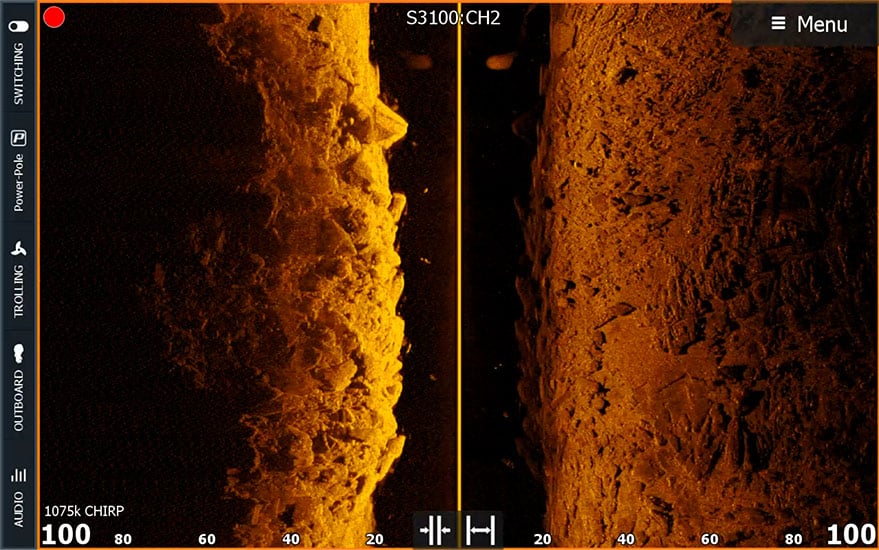

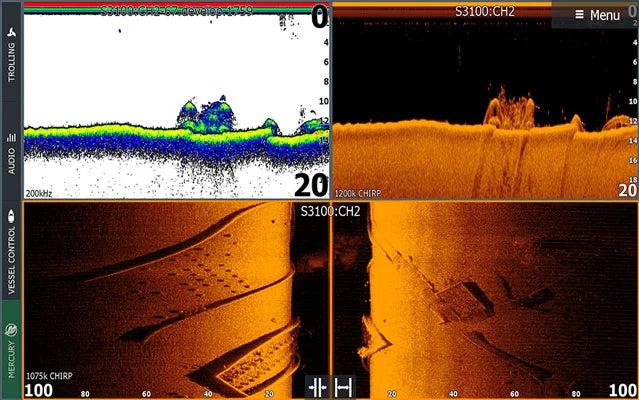

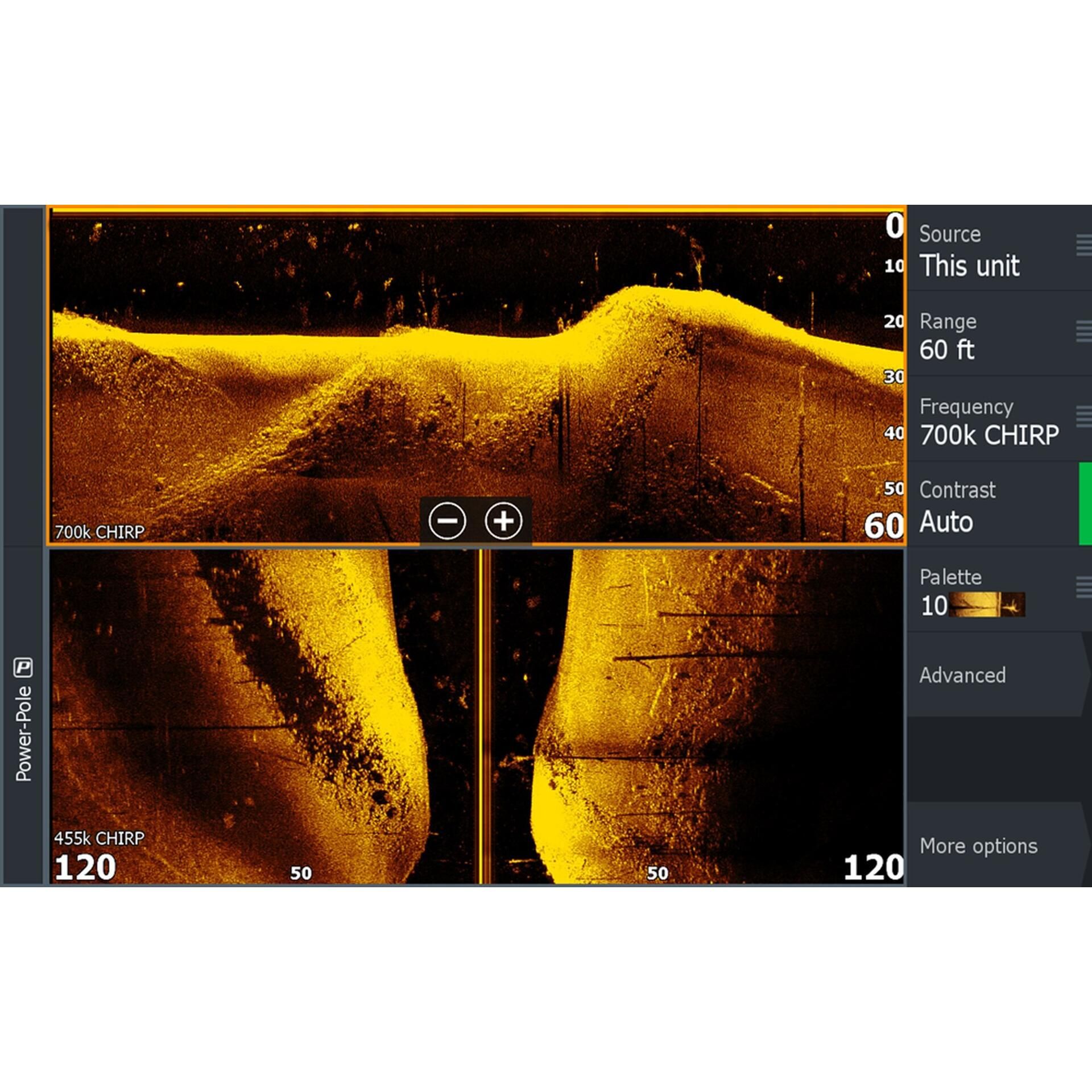

• Ultra High-Definition Sonar Imaging – See fish and structure in lifelike detail with high-frequency SideScan and DownScan Imaging™ up to 1.2 MHz for unmatched clarity.

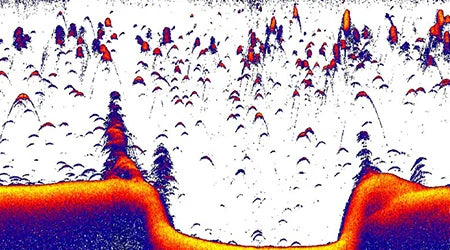

• Lowrance® CHIRP Sonar – Enjoy sharper target separation and superior contrast that makes it easier to distinguish individual fish and bait schools.

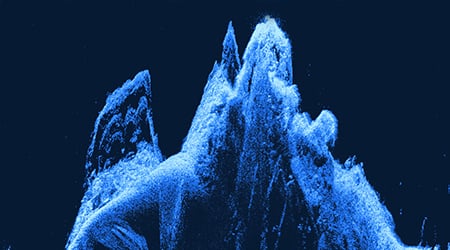

• FishReveal™ DownScan View – Combines the best of CHIRP sonar and DownScan Imaging™ for clearer, more intuitive fish identification directly beneath your boat.
• Versatile Frequency Support – Operates across Medium/High CHIRP (83/200 kHz) and 455/800 kHz or 455/1.2 MHz for optimized performance in any water depth or condition.

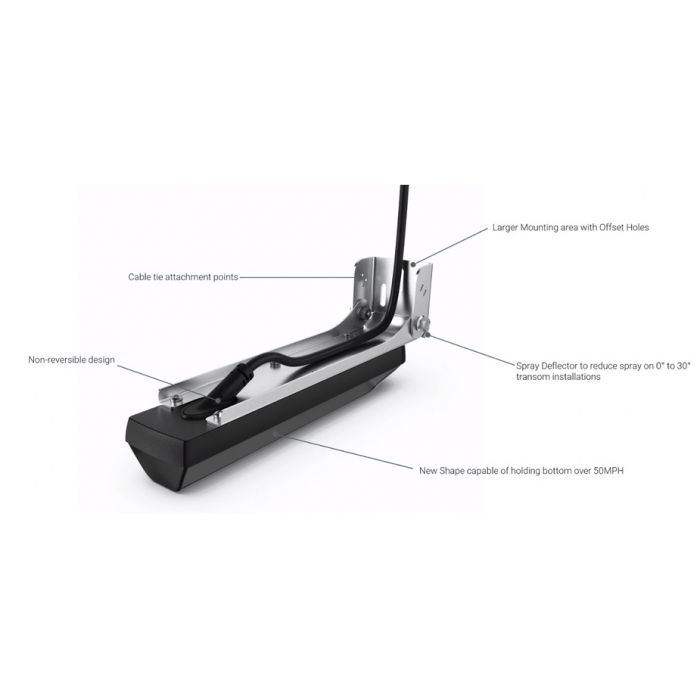

• Smart Transducer Design – Built for enhanced signal clarity, stronger target returns, and reliable operation even at higher speeds.
• Plug-and-Play Compatibility – Connects directly to Lowrance® HDS PRO units or integrates with an S3100 sonar module for HDS LIVE, HDS Carbon, and Elite FS displays.
• Ideal for Every Angler – Whether trolling, casting, or structure-scanning, Active Imaging HD gives you the precision you need to pinpoint fish-holding cover faster than ever.

Additional Info:

• Humidity: 60°C, 95% relative humidity (RH) for 18 hours
• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
• Shock Vibration:100,000 cycles of 20 G
• Storage Temperature Range: -22°F to 158°F (-30°C to 70°C )

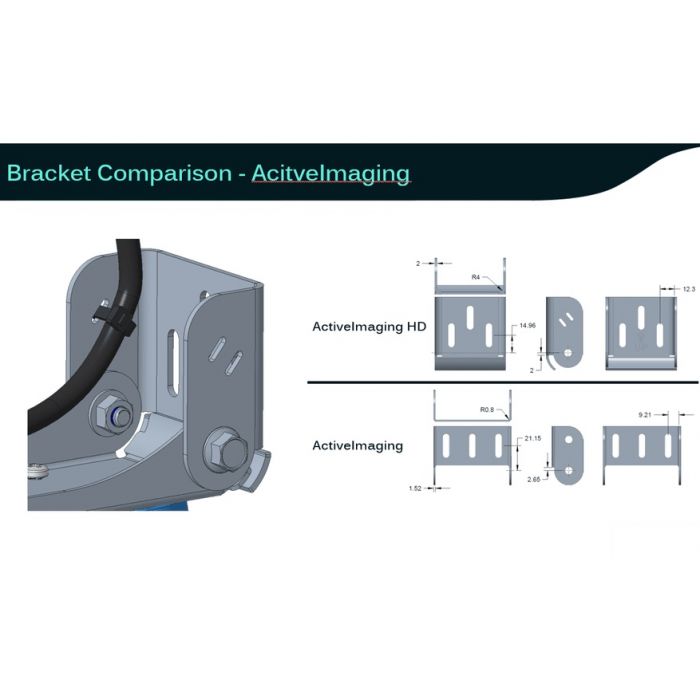

• Mounting Type: Bracket Mount
• Waterproof rating: IP67

💡 Why Upgrade to Active Imaging HD™ 3-in-1?

The Active Imaging HD 3-in-1 takes sonar technology beyond standard imaging. With high-definition performance, multi-frequency support, and FishReveal™ enhancements, it allows anglers to visualize what’s beneath and beside the boat with remarkable detail — making it easier to locate productive areas, identify species, and fine-tune your presentation for more bites.

Built to perform in the harshest marine environments, this transducer is your key to clearer, more confident fishing with Lowrance’s latest generation of fishfinder displays.

Warranty Period: 1 Year + 4 additional years of upgrade options. Totaling 5 years
