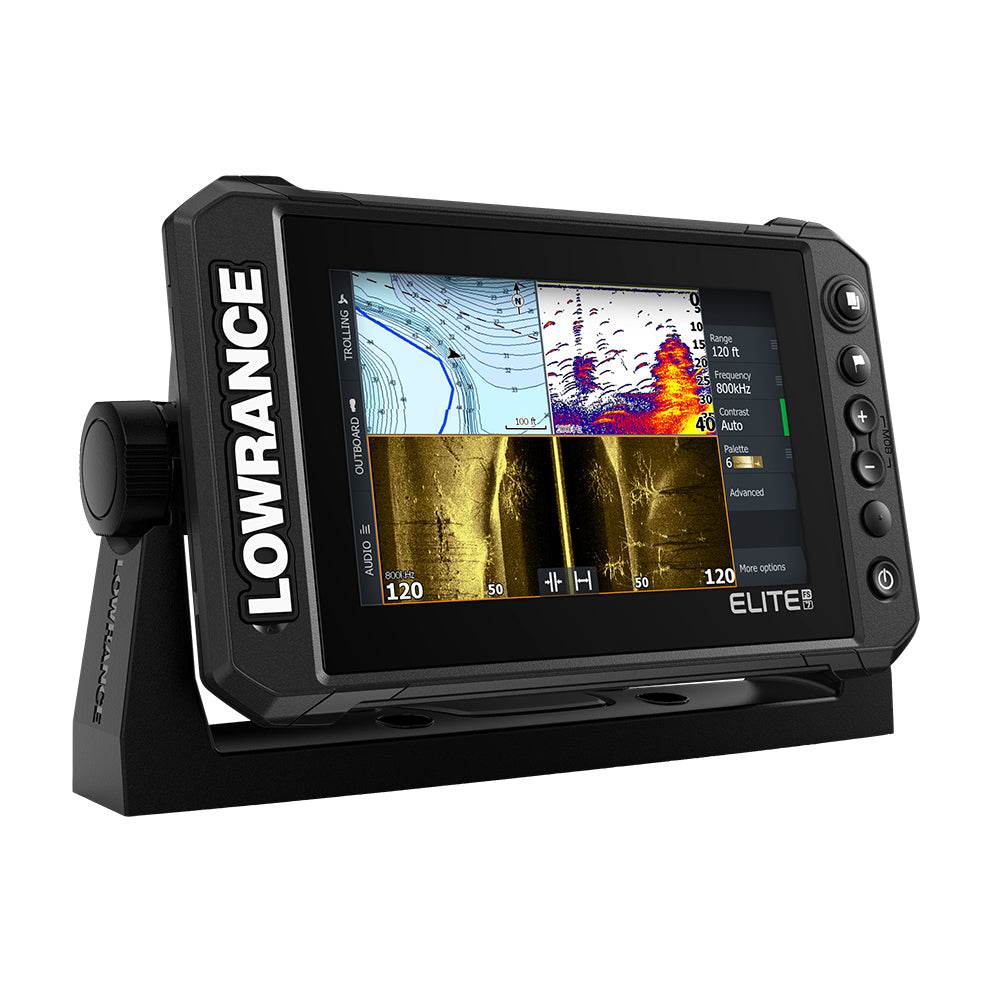

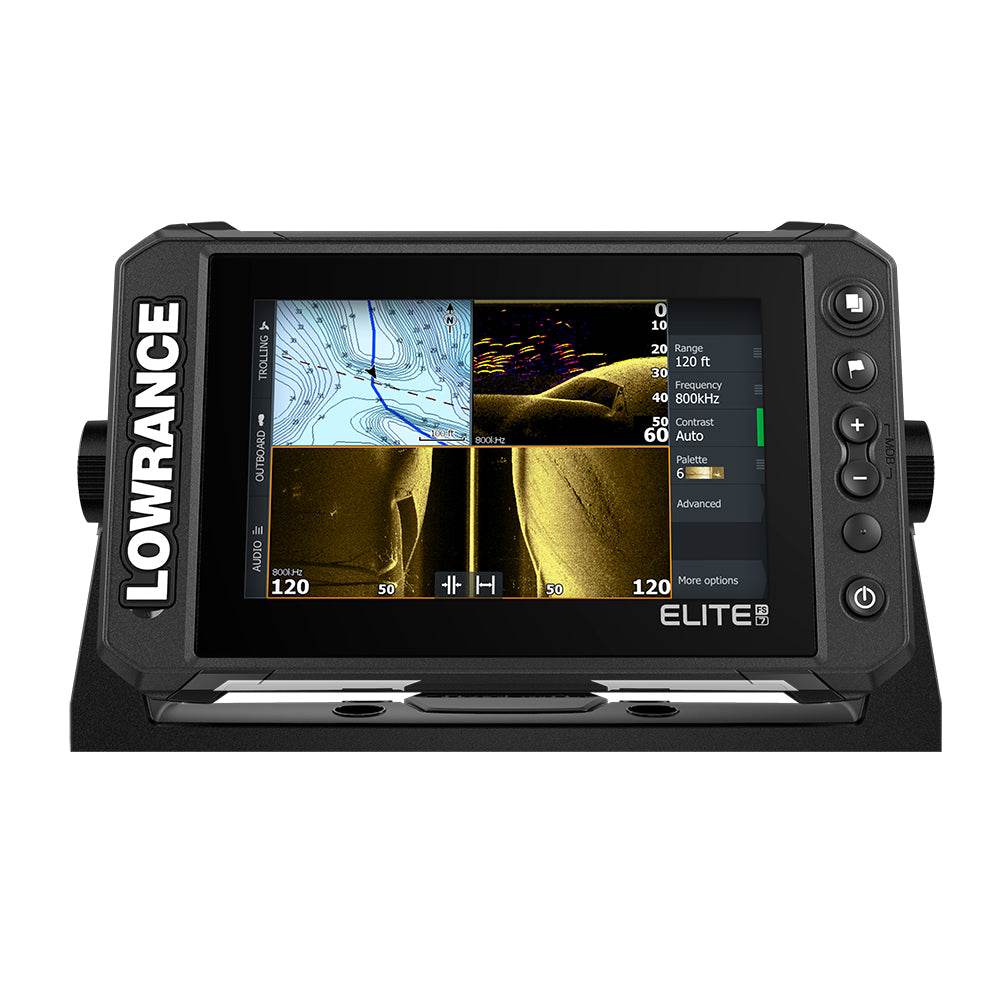

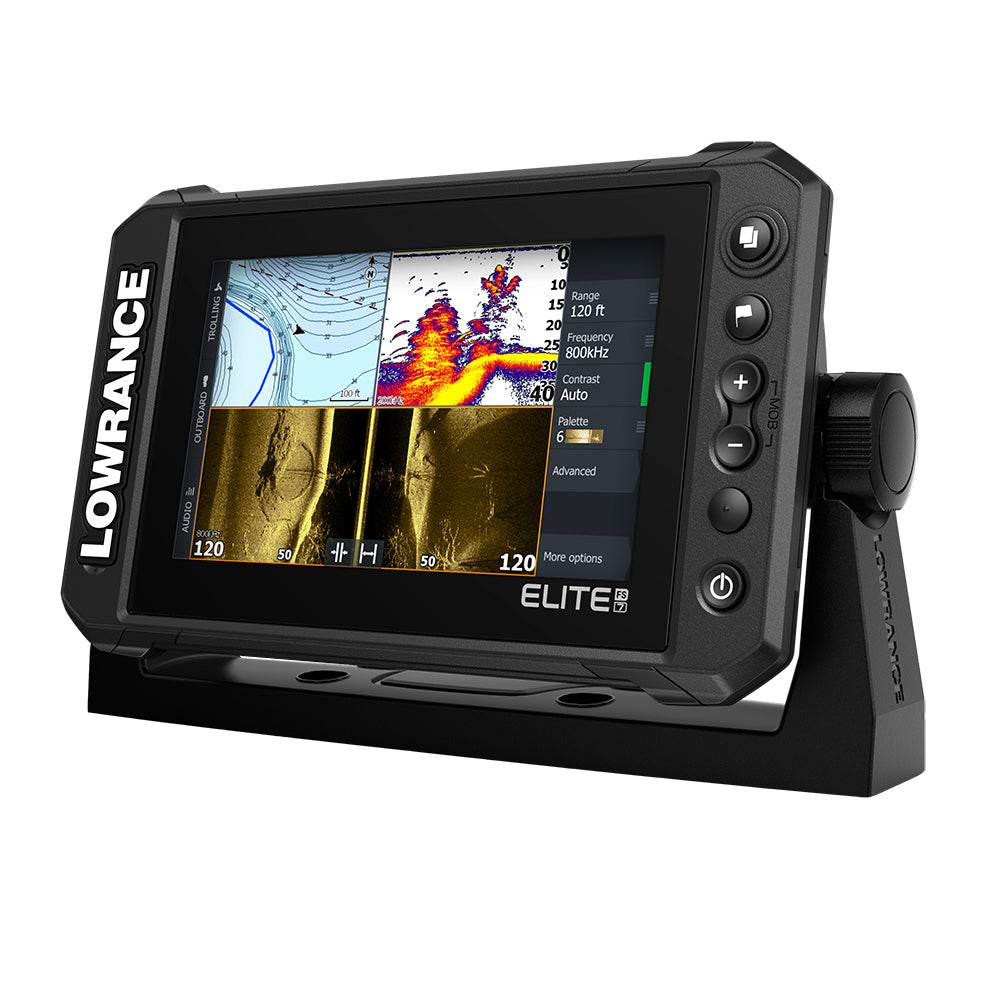

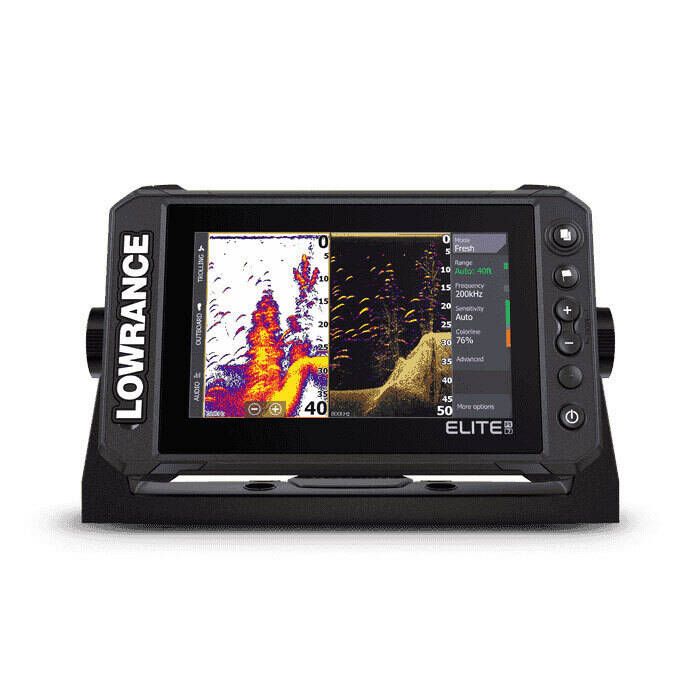

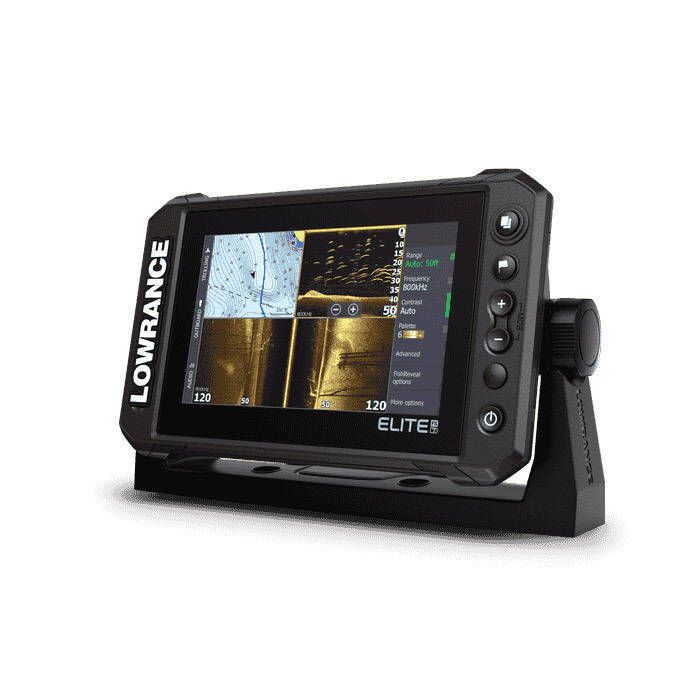

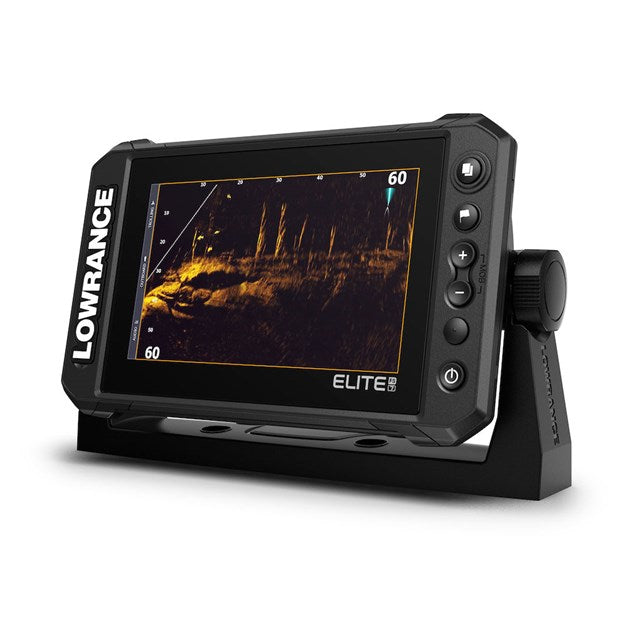

Lowrance 7" Elite FS 7 Chartplotter/Fishfinder with HDI

Elite FS 7 Chartplotter/Fishfinder Overview

The Lowrance Elite FS 7 Chartplotter/Fishfinder (000-15696-001) delivers tournament-level sonar performance and advanced mapping in a compact 7" touchscreen.

Designed for serious anglers, this unit combines CHIRP sonar, DownScan Imaging™, and preloaded C-MAP® Contour+ charts for precise navigation and fish-finding capabilities.

Built on the trusted Elite FS platform, the Elite FS 7 provides pro-level performance without the high price of premium HDS units.

Key Features & Benefits

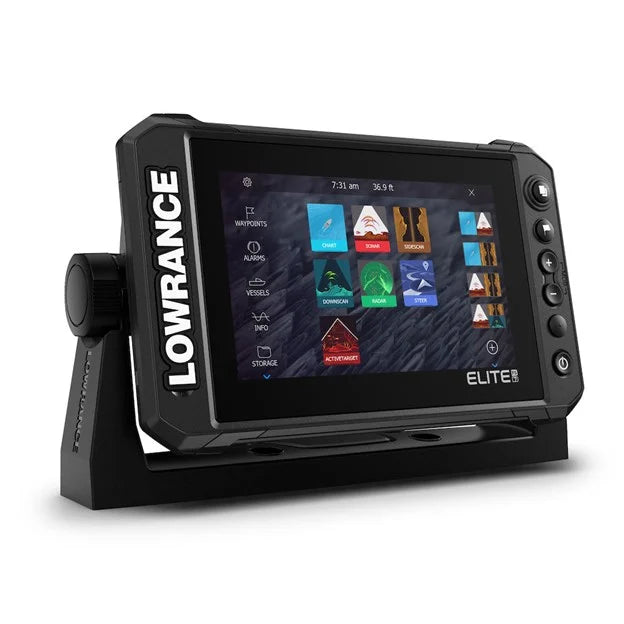

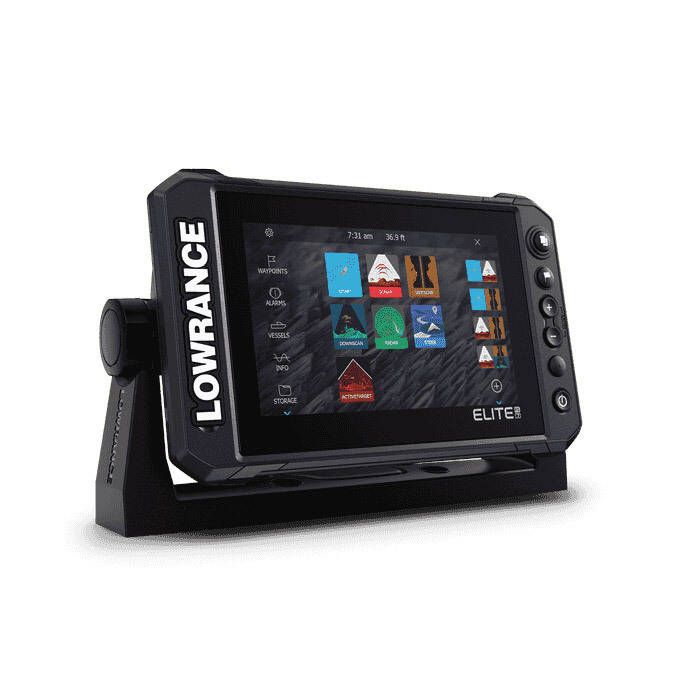

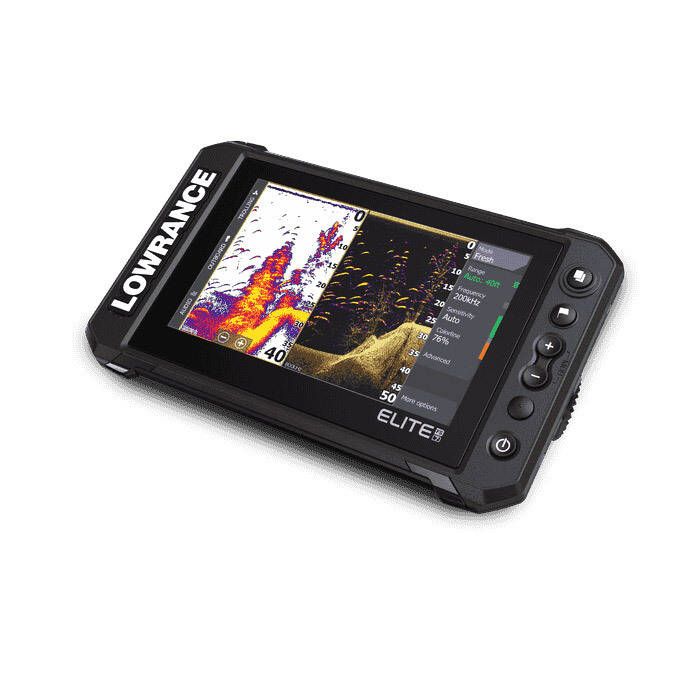

• 7" SolarMAX™ high-resolution touchscreen: bright, intuitive display visible even in direct sunlight and through polarized sunglasses

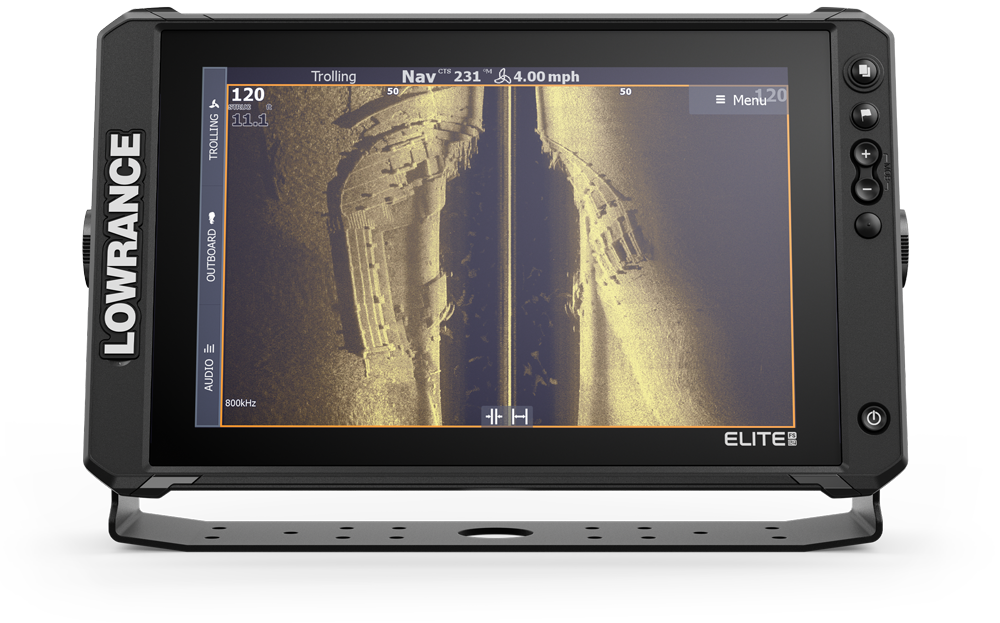

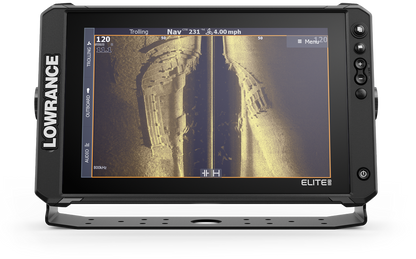

• HDI Transducer included: integrates CHIRP Sonar with DownScan Imaging™ for clear, photo-like views of fish and structure

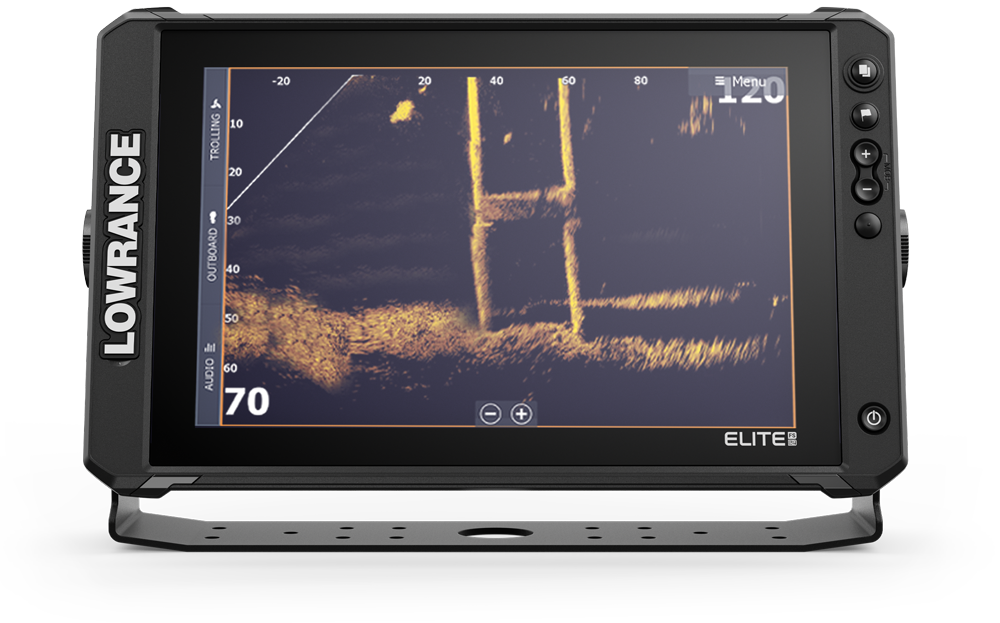

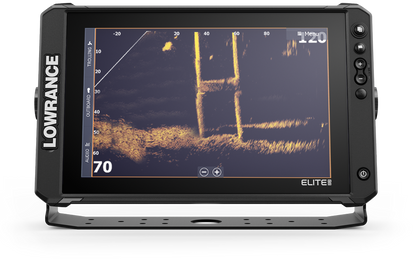

• ActiveTarget™ Live Sonar ready (transducer sold separately) for real-time fish tracking

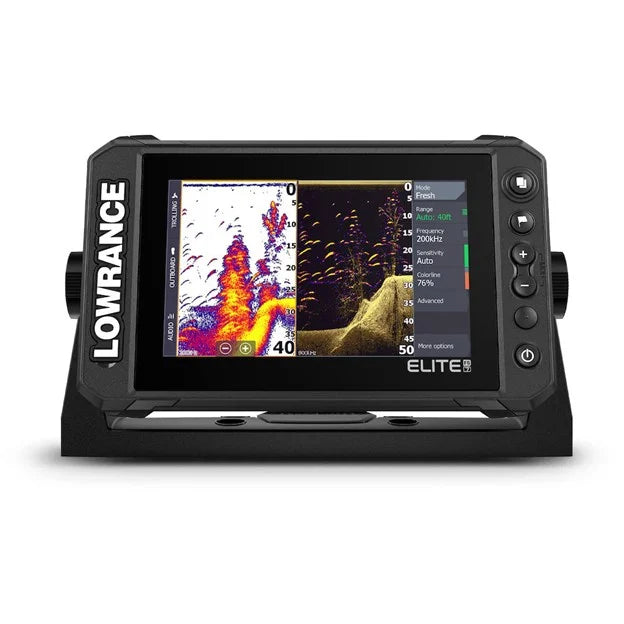

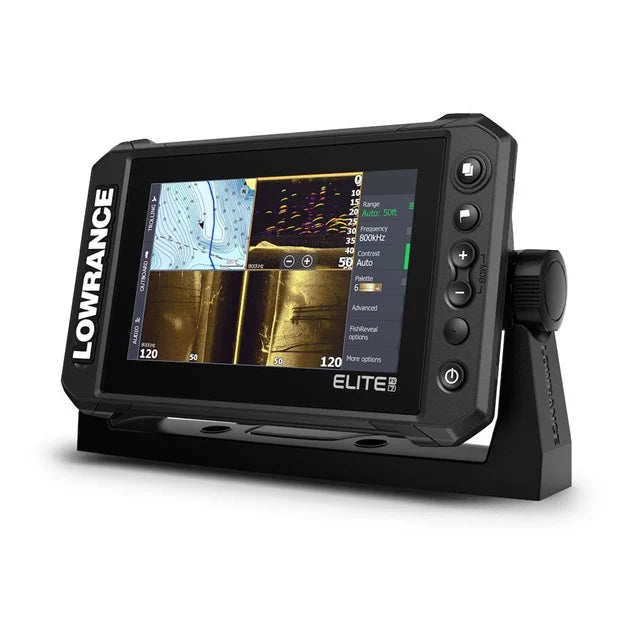

• FishReveal™ Smart Target View: combines CHIRP and DownScan data to highlight fish on structure and cover

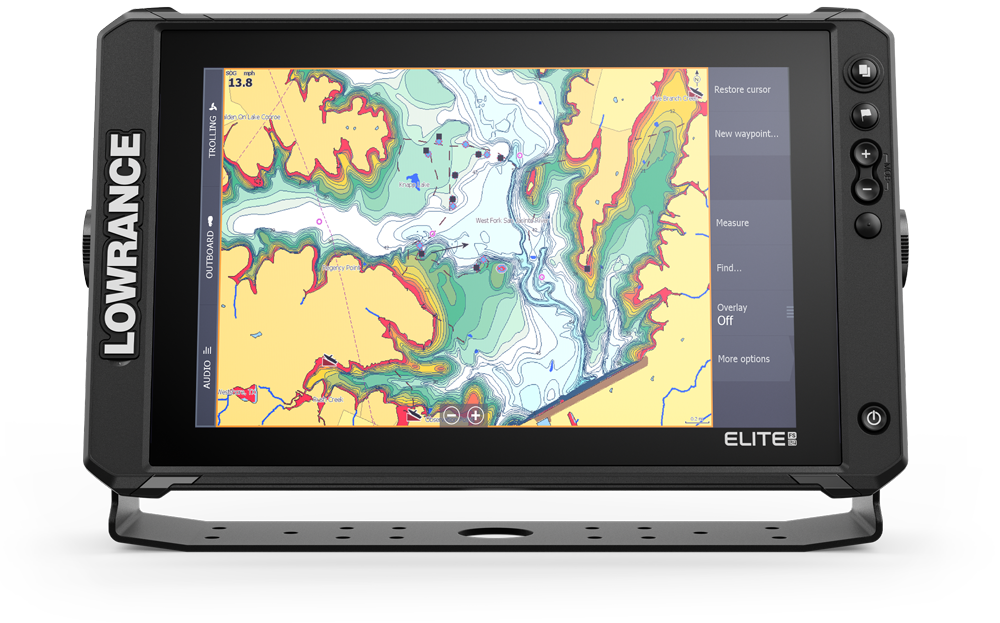

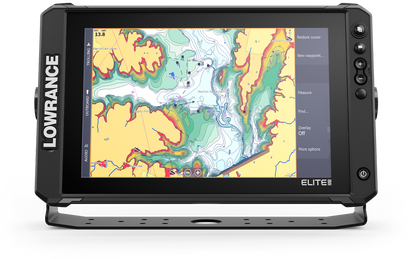

• Preloaded C-MAP® Contour+ Charts: 8,900 U.S. lakes with 1-ft contours, depth shading, and fishing POIs
• Easy routing and navigation: C-MAP® Autorouting and Navionics® Genesis Live mapping for real-time map creation without subscriptions
• Full system control: integrates with Power-Pole® anchors and Ghost® trolling motors
• Advanced connectivity: built-in Wi-Fi, NMEA 2000®, and Ethernet networking for seamless integration with other marine electronics
• IPX7 waterproof rating (with card door closed) ensures durability in harsh marine environments
• Multiple mounting options: gimbal bracket or dash flush mount for flexible installation

Performance & Application

• Display resolution: 800x480 with >1200 nits brightness
• Viewing angles: 50° top, 60° bottom, 70° left/right
• Ideal for freshwater and saltwater fishing: bass, walleye, and offshore species
• Provides precision sonar, mapping, and route planning for tournaments, recreational fishing, and guided trips
• Upgradeable with additional sonar options to expand functionality as needed

Connectivity & Compatibility

• Compatible with Lowrance HDS, Elite, Hook, and Mark series
• NMEA 2000®, Wi-Fi, and Ethernet ready
• Power-Pole® and Ghost® trolling motor integration for total system control
• Expandable with ActiveTarget™ Live Sonar (sold separately)

What’s Included in the Box

• Lowrance Elite FS 7 Chartplotter/Fishfinder

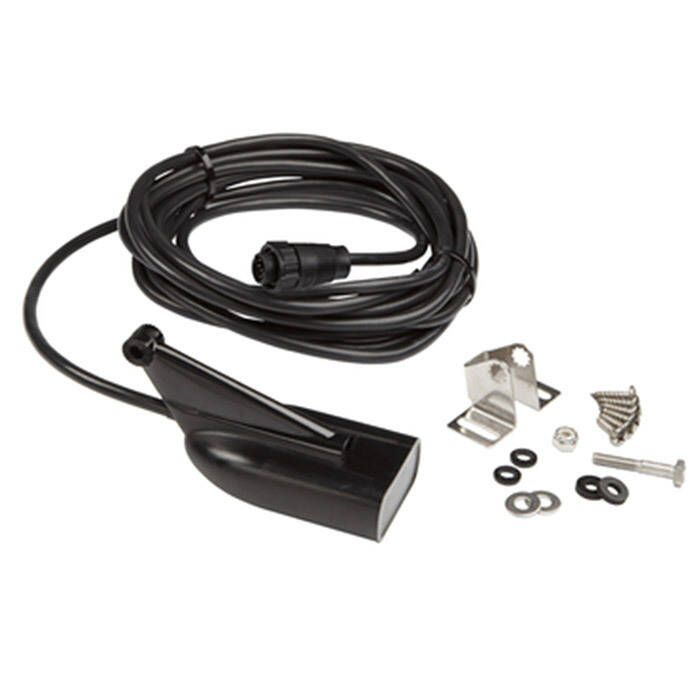

• HDI Skimmer Transducer (Med/High 455/800 9-Pin)
• Power-only cable with fuse and fuse holder
• Gimbal bracket for mounting
• Suncover for display protection
• Instruction manuals and setup guides

Warranty & Support

• Standard 2-year manufacturer warranty
• Optional 3-year extended upgrade for a total of 5 years
• Backed by Lowrance support for hardware, software, and network integration

Why Choose the Elite FS 7

The Elite FS 7 delivers pro-level sonar, advanced mapping, and unmatched clarity in a compact 7" touchscreen.

Its included HDI transducer, preloaded charts, and full connectivity make it the ultimate value in marine electronics for anglers seeking tournament-level results without premium pricing.
