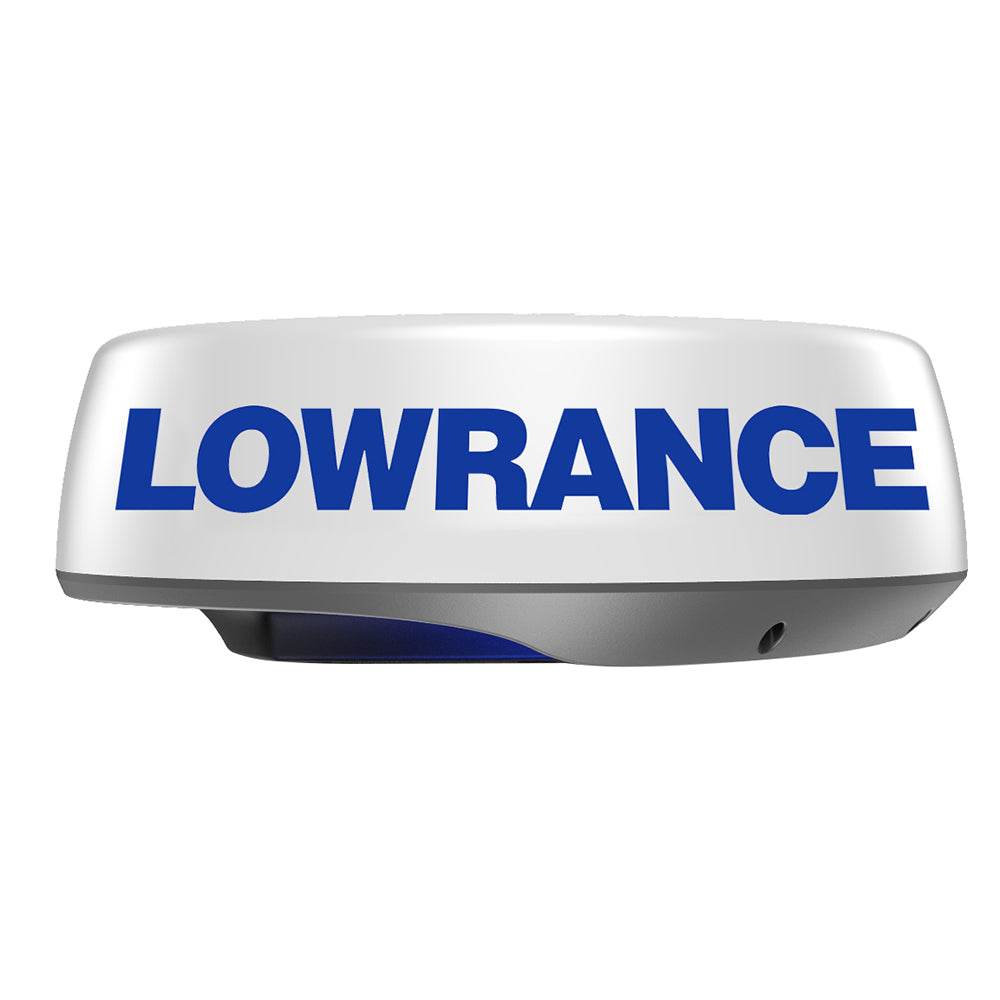

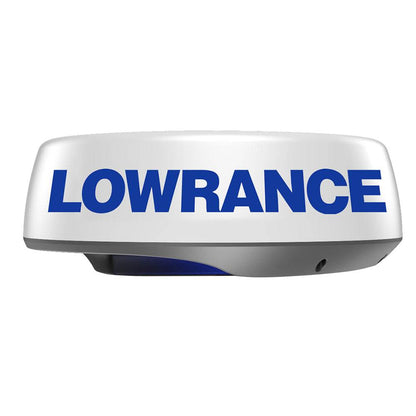

Lowrance HALO24 Radar Dome w/Doppler Technology [000-14541-001]

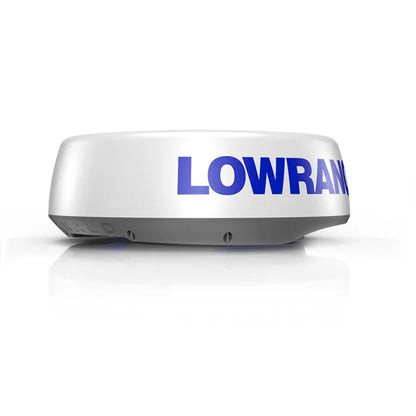

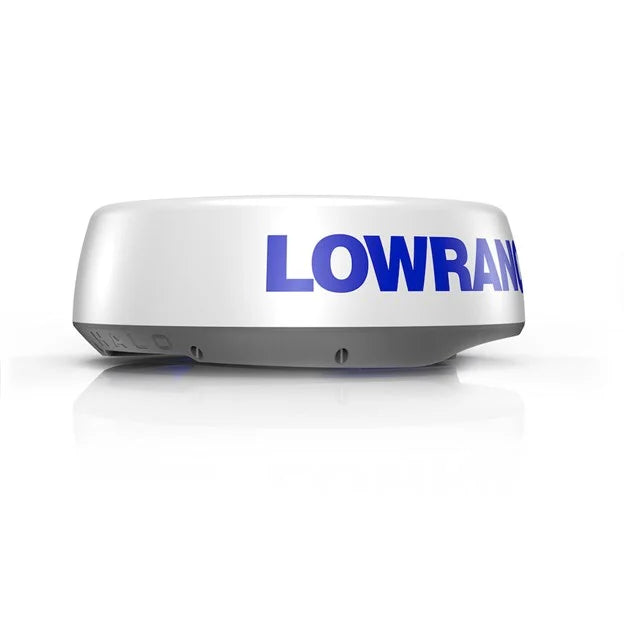

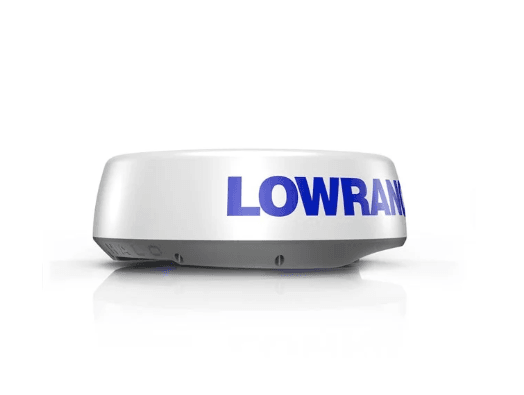

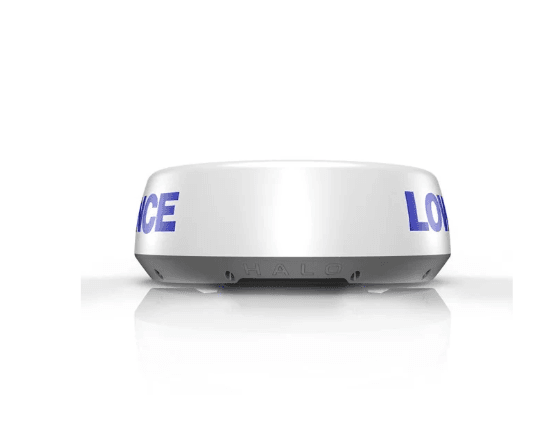

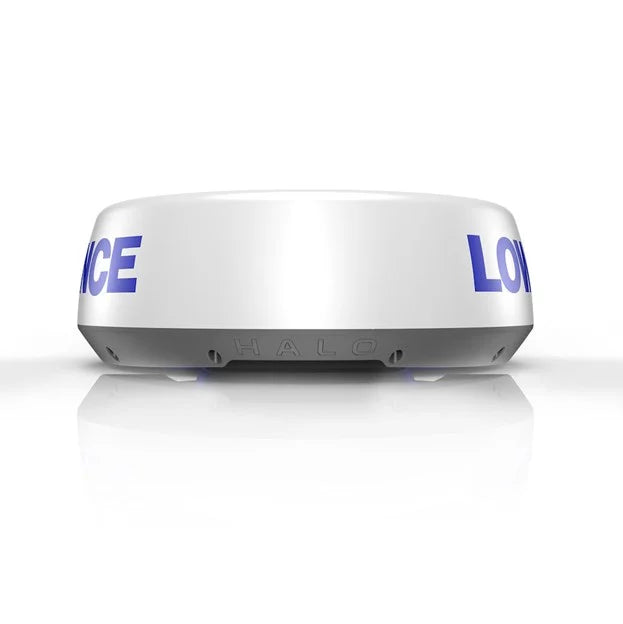

HALO24 Radar Dome with Doppler Technology

Elevate your marine navigation with the Lowrance HALO24 Radar Dome, a compact yet powerful radar system built for both recreational and serious boaters. Featuring integrated VelocityTrack™ Doppler technology and simultaneous short- and long-range operation, this dome radar gives you enhanced situational awareness, collision avoidance, and storm detection—all in one low-profile package.

Key Features & Capabilities

• Up to 48 Nautical Mile Range — Detect objects and weather patterns far beyond the horizon from a compact 24-inch dome.
• VelocityTrack™ Doppler Technology — Automatically color-codes moving targets based on their relative motion (approaching or moving away) to help you identify collision risks instantly.
• Simultaneous Dual Range Operation — View both near-range and long-range targets at the same time without sacrificing clarity or performance.
• Ultra-Fast Update Rate (60 RPM at Close Range) — Experience almost real-time scanning with full 360° sweeps per second in close range mode, ideal for tight navigation zones or heavy traffic areas.
• Advanced Pulse Compression & Beam Sharpening — Maintain excellent target resolution and separation even in cluttered environments.
• Built to Withstand Harsh Environments — Rugged, low-profile 24″ dome with integrated LED indicator lights. Waterproof and built to meet marine standards.Quick “Instant-On” Startup — From standby to full operational mode in seconds, saving you from waiting for warm-up.
• MARPA Target Tracking — Track up to 10 targets (20 in dual-range mode) to monitor movement of surrounding vessels and hazards.

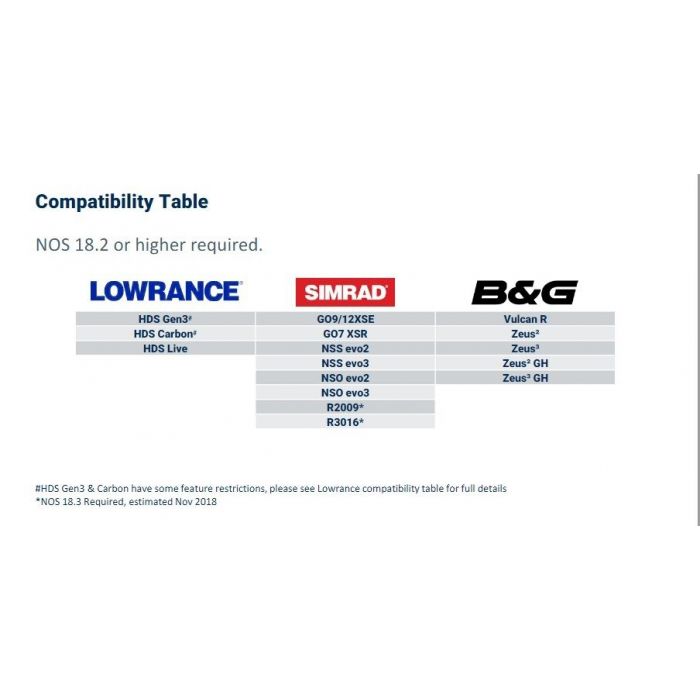

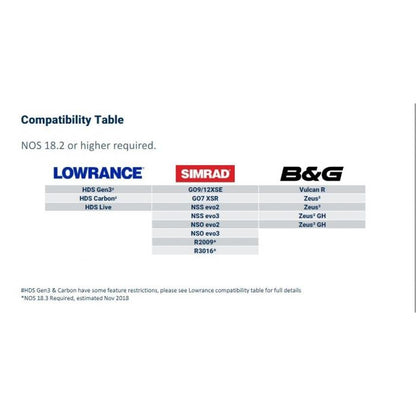

• Flexible Compatibility — Integrates with Lowrance multifunction displays (MFDs) via Ethernet and supports standard marine system wiring.

Why Choose HALO24 Radar?

Whether you’re cruising along coastal routes, fishing offshore, or navigating through congested waterways, the HALO24 radar gives you a powerful edge in awareness and safety. Its compact form factor doesn’t compromise performance—delivering long-range detection and Doppler-based motion tracking within a dome that blends seamlessly into your vessel’s profile.

Key Features:

• 48 nm range from a compact 24" dome
• Advanced pulse compression technology with beam sharpening
• Simultaneous Dual Range operation sees both near and far
• Ultra-fast 60 RPM operation at ranges up to 2nm
• VelocityTrack™ Doppler technology for collision avoidance
• Easy operation with harbour, offshore, weather, and bird modes
• MARPA target tracking (up to 10 targets, 20 in dual range).
• Ready instantly from standby
• Lightweight, low profile dome design, with integrated LED lights
• 5m Radar Cable

Specifications:

Environmental

• Operating Temperature: -25° to +55°C (-13° to +130°F)
• Relative humidity: +35° C (95° F), 95% RH
• Waterproof: IPX6
• Max relative wind velocity: 51 m/sec (100 Knots)
• Compliance: CE, FCC (ID:RAY3G4G), IC: 4697A-3G4G, IEC60945 : 2002

Power & Dimensions

• Power consumption (with 10M cable): Operating: 14.5 to 27W at 13.8 V
• Standby: 3.9 W (Typ.) at 13.8 V DC 170 mA
• DC input (at end of radar cable): 9 V to 31.2 V DC (12/24 V systems)
• Reverse polarity protection: Yes
• Minimum startup voltage: 10.75 V DC
• Transmitter source (pre-heating time): No magnetron – Instant On

Physical

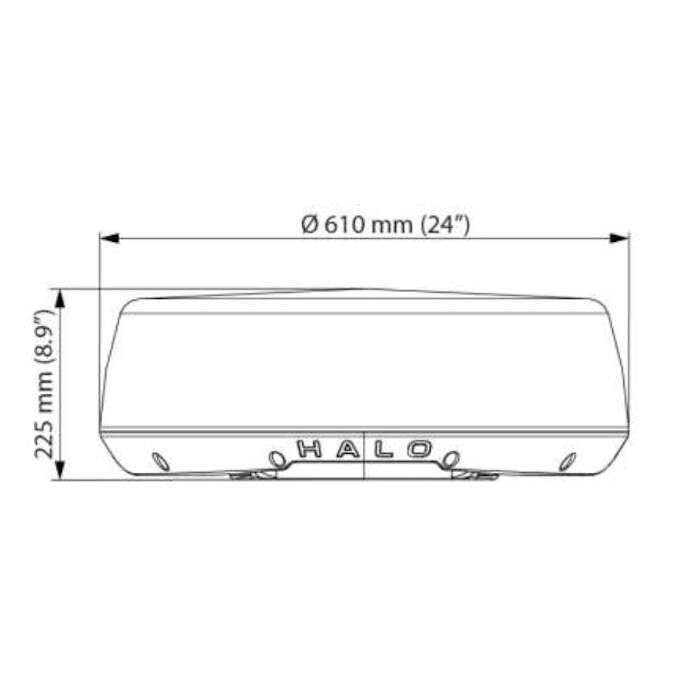

• Outside dimensions: Ø Diameter 610 mm (24”), Height 225 mm (8.9”)
• Scanner weight (no cable): 6.75kg (14.9 lbs)

Radar and Antenna Parameters

• Radar ranges: 100M (328 ft) to 48nm with 18 range settings, (nm/sm/km)
• Rotation (mode dependent): 20 - 60 rpm (mode and MFD dependent)
• Transmitter frequency: X-band - 9.4 to 9.5 Ghz
• Transmitter source (warm-up time): No Magnetron – all solid state. Instant On™
• Plane of polarization: Horizontal Polarization
• Transmitter peak power output: 25W
• Minimum range: 6M (19.7')
• Sweep repetition frequency: 700-2400 Hz (mode dependent)
• Pulse length: 0.04 - 64 usec
• Sweep bandwidth: 48 MHz max
• Horizontal beam width (Tx and Rx antenna): 3.9° nominal (-3 dB width)
• Target Seperation Control: OFF: 3.9°+/-10% (-3 dB width nominal), LOW: 3.4°+/-10% (-3 dB width nominal), MED: 2.5°+/-10% (-3 dB width nominal), HIGH: 2.0°+/-10% (-3 dB width nominal)
• Vertical beam width (Tx and Rx antenna): 22° (-3B width nominal)
• Side lobe level (Tx and Rx antenna): Below -18 dB (within ±10°);Below -24 dB (outside ±10°)
• Noise figure: Less than 5 dB nominal

Communications/Cabling

• Protocol: Ethernet 100 Base T
• Maximum inter connecting cable length: 30M (98.5') – available as option, use NEP-2 for longer cable runs

Specifications:

• Range - Max (Miles): 48nm
• Array Size (Inches): 24"
