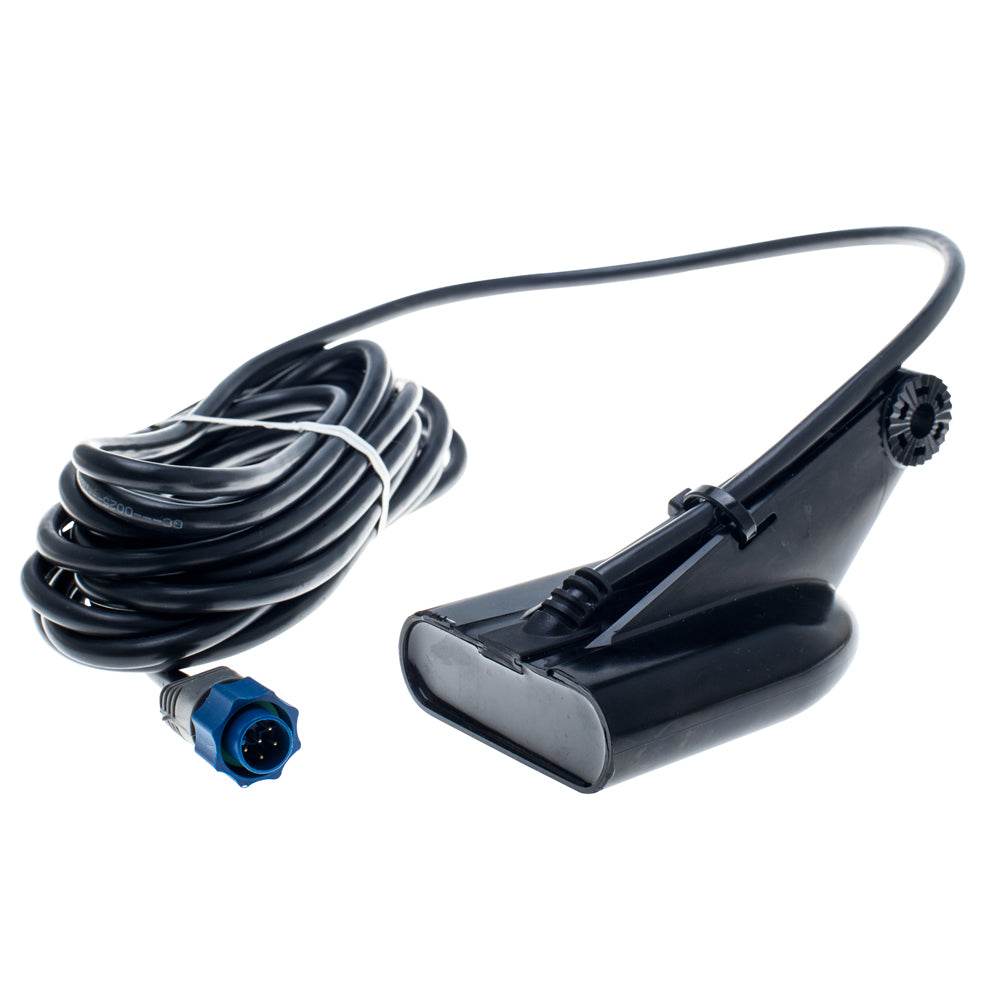

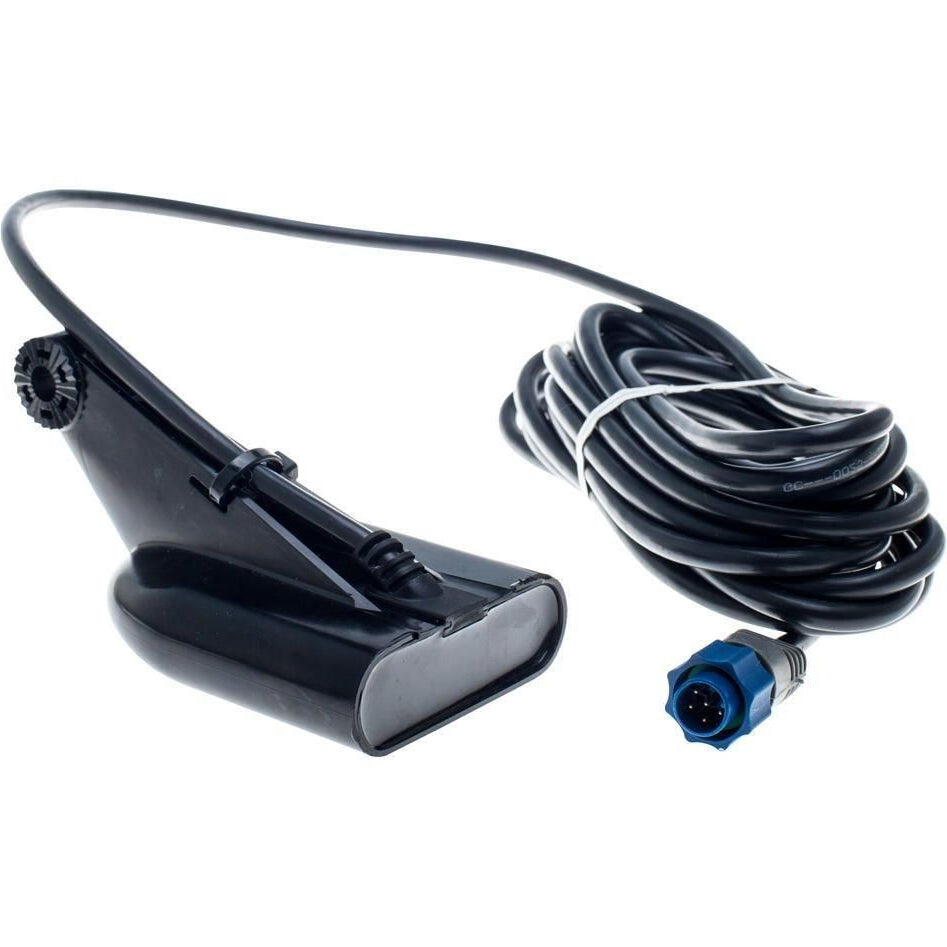

HDI 50/200 455/800 Skimmer Transducer (000-10977-001)

Works w/Elite 7 HDI, HDS Gen2 Touch, Hybrid Dual Imaging 50 kHz XDCR

• Rugged, dual-technology transducer for anglers who want the best of both worlds: Broadband (50/200 kHz) sonar plus DownScan/DownImaging (455 / 800 kHz) for crisp fish/structure separation and detailed bottom imaging.
• Built for transom mounting on small to mid-sized craft — ideal for outboards and I/O boats up to ~25 ft (8 m). Perfect match for anglers who run a center console, bass boat or bow-mounted fishing rig.
• Integrated temperature sensor gives you real-time water temp data (no separate temp probe required). Great for finding thermoclines and tracking seasonal fish behavior.
• Broad depth performance: Broadband 50/200 kHz delivers long-range sounder depth performance (reports up to ~2,500 ft under ideal conditions), while 455/800 kHz DownScan gives high-resolution imaging down to several hundred feet — use the high-frequency band for structure detail and the lower band for deep-water coverage.
• Simple transom-mount installation — comes with mounting bracket and hardware so you’re ready to fit to your hull. Cable length is commonly supplied around 6 m (≈20 ft); connector type is Lowrance HDI/Marine push-fit.
• Compatible with a wide range of Lowrance displays and Hybrid Dual Imaging systems — specifically listed for Elite 7 HDI and HDS Gen2 Touch families and other HDI systems (check your unit’s connector), making it an easy upgrade or replacement transducer.
• Marine-grade construction — built to withstand transom mounting and everyday use on the water. Designed to work with DownScan/HDI technology built into Lowrance/Simrad displays for maximum image clarity.

Key specs

• Manufacturer part number: 000-10977-001.
• Frequencies: 50 / 200 kHz (Broadband Sounder) and 455 / 800 kHz (DownScan/DownImaging).
• Temperature sensor: Yes.
• Speed sensor: No.
• Pins / Connector: 7-pin / HDI style (confirm with your head unit).
• Mounting: Transom mount.

What’s in the box

• HDI Skimmer transducer (00010977001)
• Transom mounting bracket and fasteners/hardware
• Pre-attached cable (commonly ~6 m / 20 ft) with Lowrance HDI connector

Waterproofing & durability

• Designed for transom/marine service — marine-grade, sealed construction suitable for everyday use on boats. (Transducers are built to be immersed and operate under the hull.)
