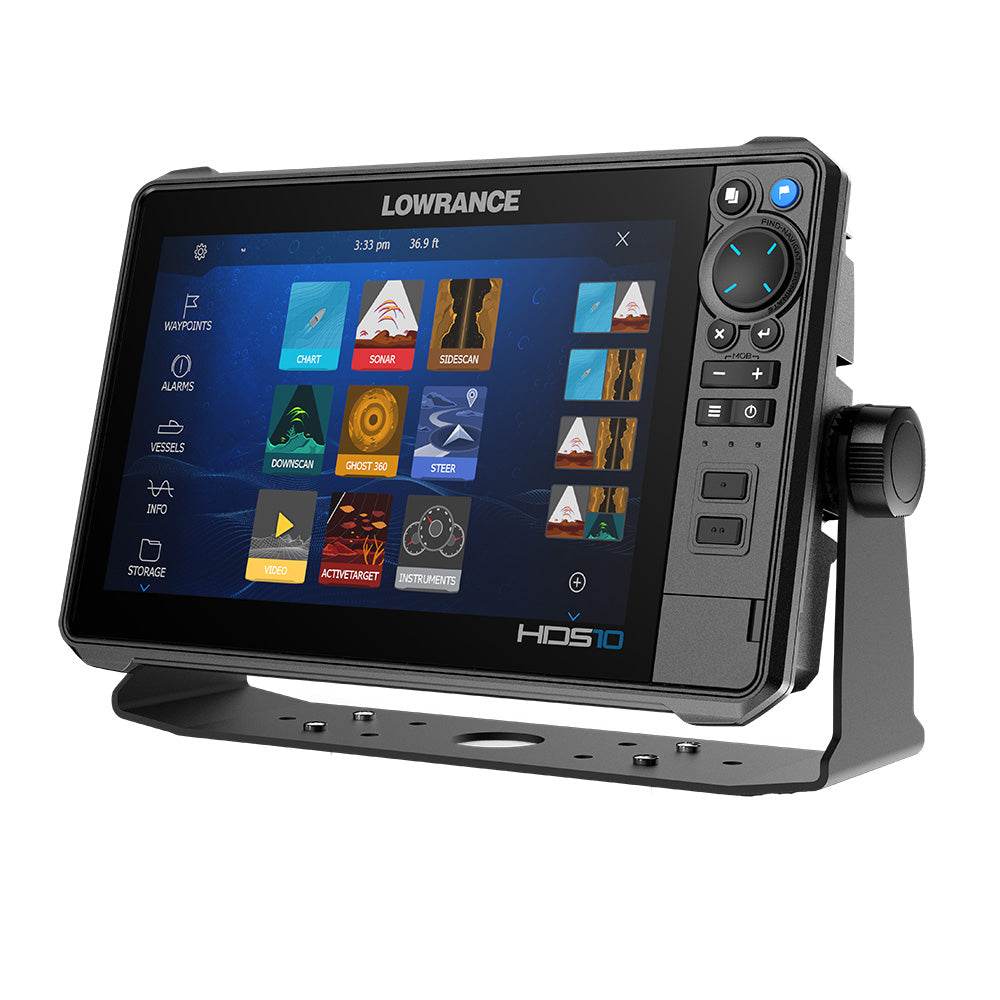

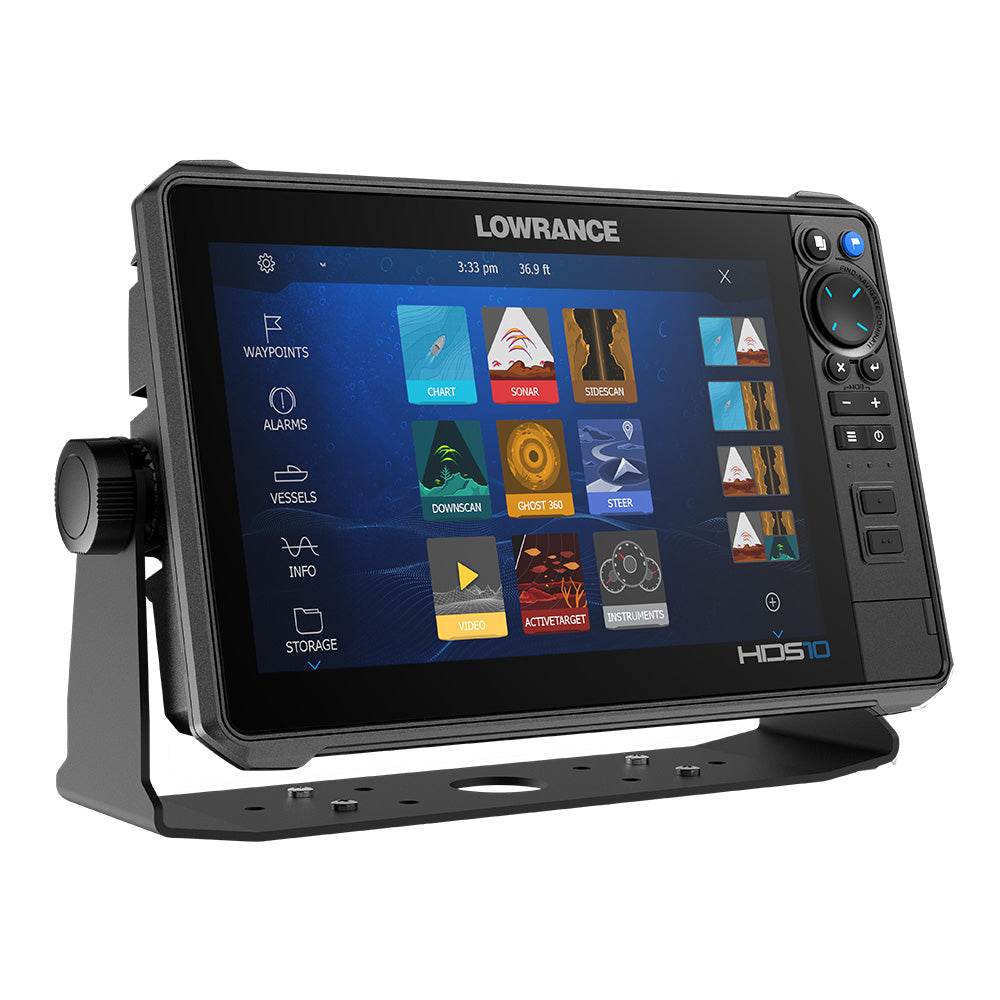

Professional 10 inch Marine Fishfinder & Chartplotter

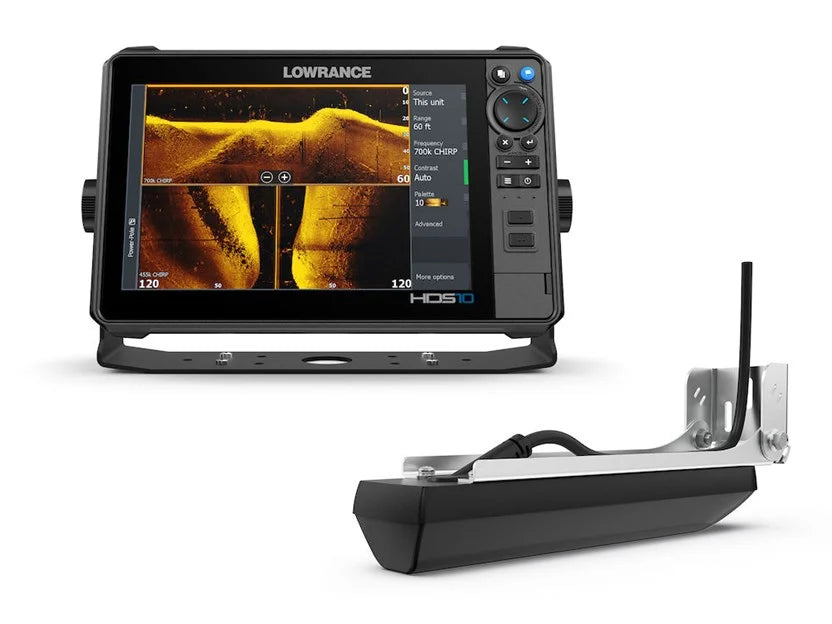

The Lowrance HDS PRO 10 (000-15984-001) delivers unmatched sonar clarity and navigation for tournament anglers, offshore adventurers, and weekend boaters.
Featuring a 10" SolarMAX™ HD touchscreen, preloaded C-MAP DISCOVER OnBoard charts, Active Imaging™ HD 3-in-1 transducer (CHIRP, SideScan, DownScan), and ActiveTarget® 2 Live Sonar compatibility, this system allows precision fishfinding, real-time target tracking, and full boat control.
Compatible with Power-Pole®, Ghost® Trolling Motors, autopilot systems, and Lowrance Outboard Pilot.
Key Features
Crystal-clear 10" SolarMAX™ HD touchscreen, sunlight-viewable, wide angles, >1200 nits brightness

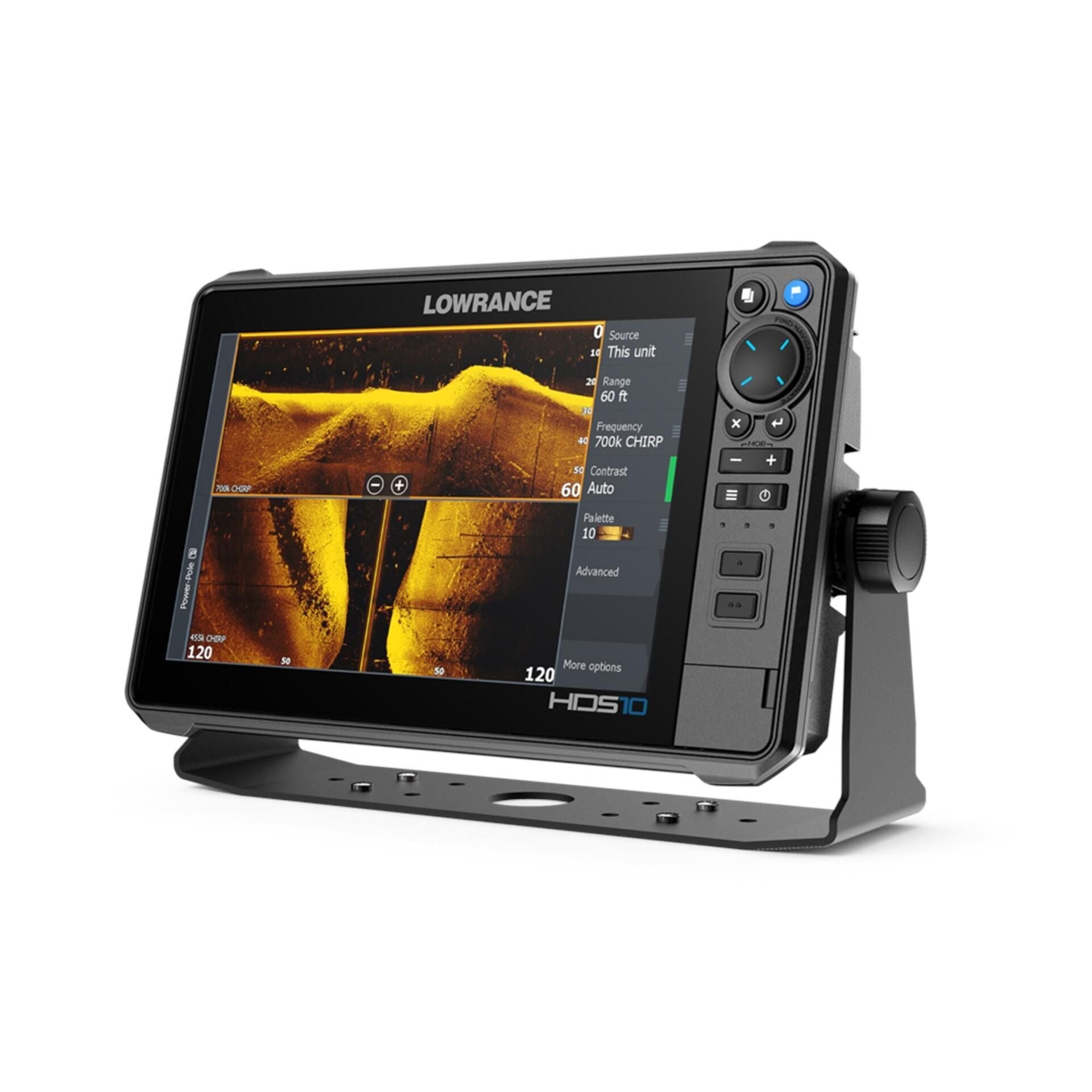

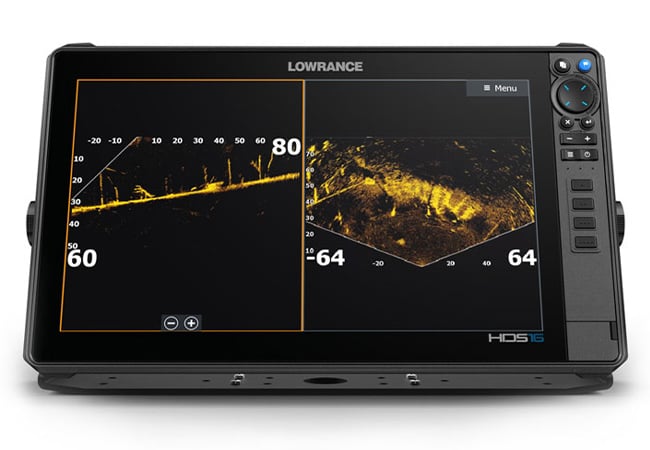

Active Imaging™ HD 3-in-1 Transducer: CHIRP, SideScan, DownScan Imaging
FishReveal™ DownScan: Easily identifies fish against cover and structure

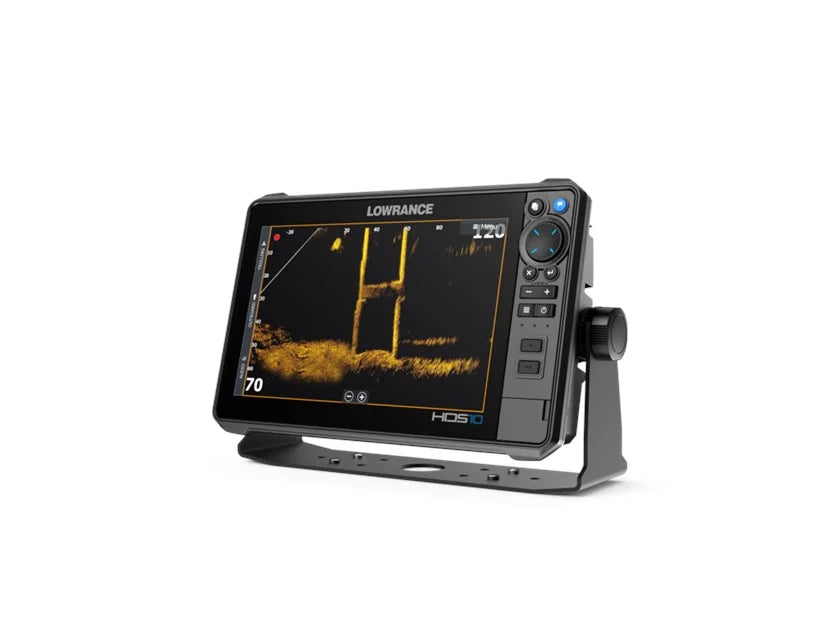

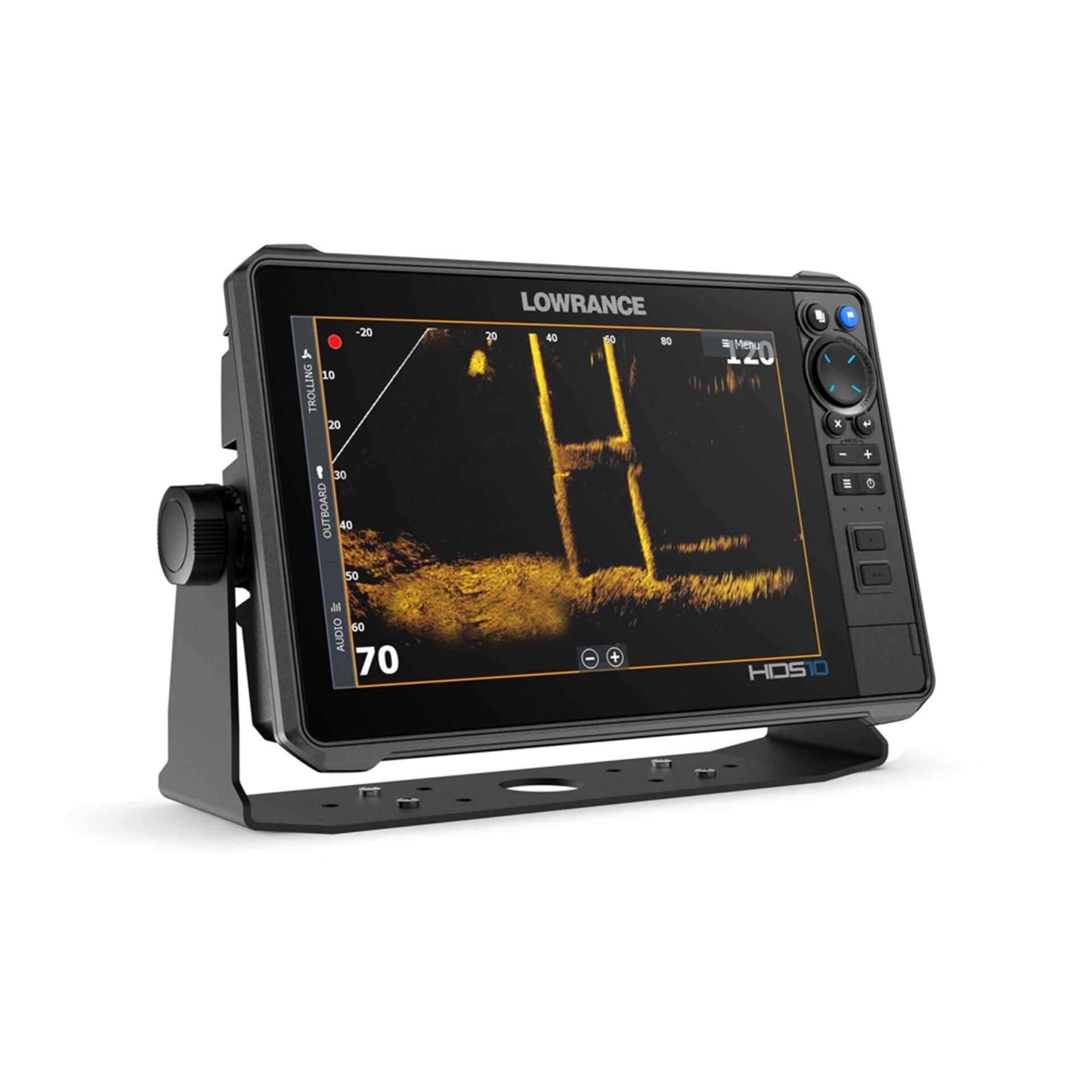

ActiveTarget® 2 Live Sonar ready: Observe fish behavior in real time
Preloaded C-MAP® DISCOVER OnBoard: 19,000+ U.S. lakes, 9,400+ Canadian lakes, Genesis Live real-time mapping

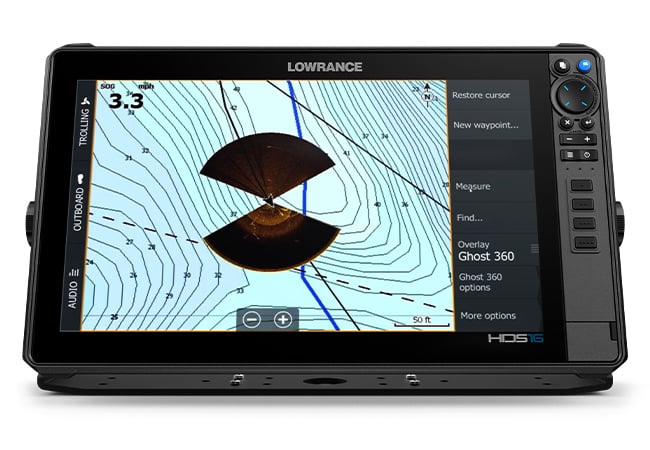

Integrated boat control: Power-Pole®, Ghost® Trolling Motor, autopilot, Outboard Pilot
Seamless connectivity: NMEA 2000®, Wi-Fi, Bluetooth®, Ethernet
Built for marine conditions: Operates 5°F to 131°F (-15°C to 55°C), IPX7 waterproof with card door closed
Technical Specifications

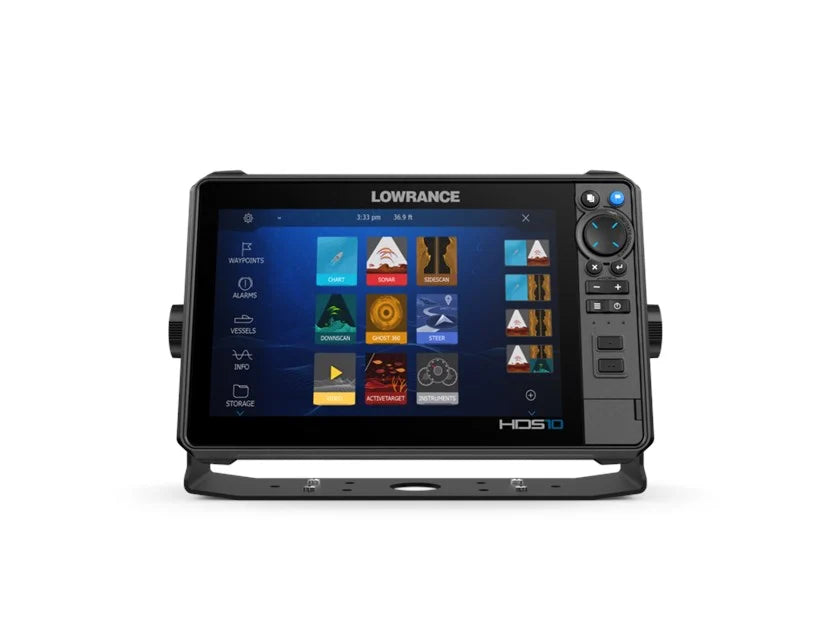

Display: 10" SolarMAX™ HD, 1280 x 720 HD
GPS: 16-channel, 10 Hz update rate
Storage: 8GB internal + dual microSD slots up to 32GB each
Voltage: 10.8–17VDC | Power Draw: 2.0–2.9A @ 13VDC
Sonar: Dual-channel CHIRP Broadband, ActiveTarget 2, Active Imaging HD DownScan & SideScan

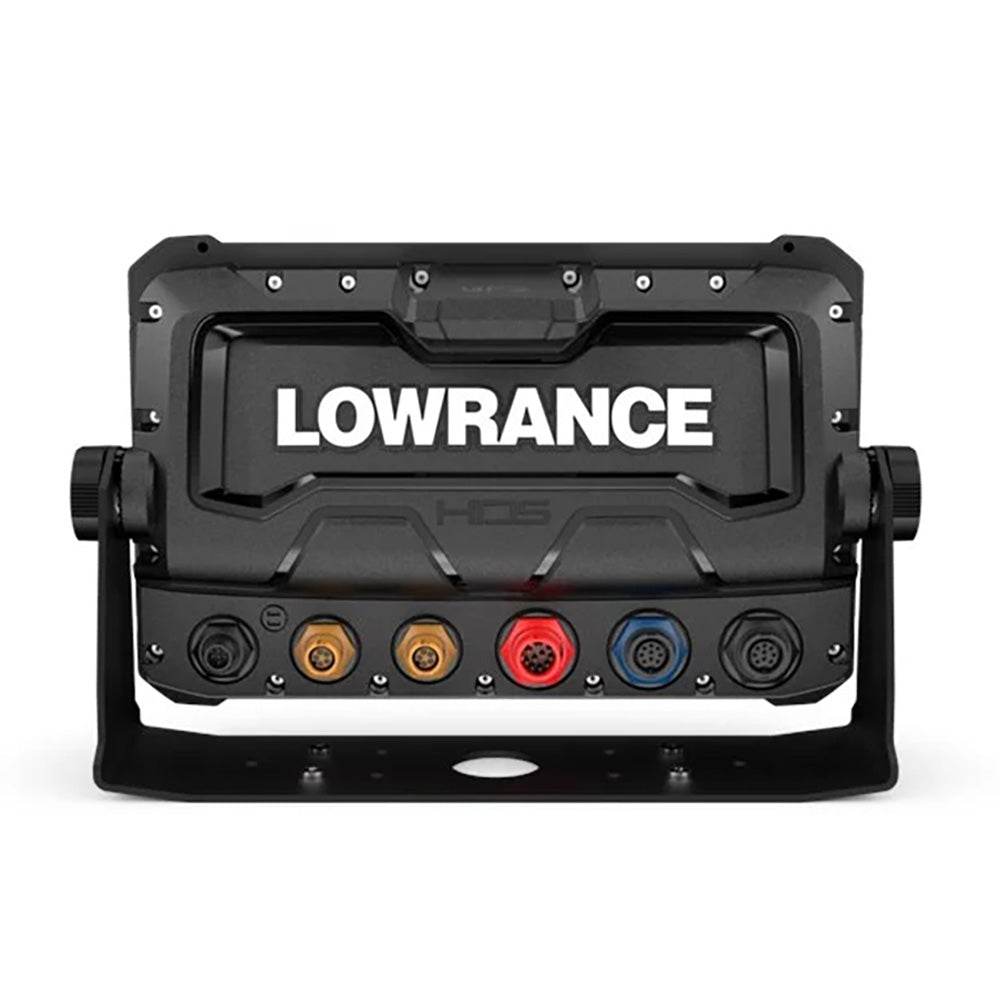

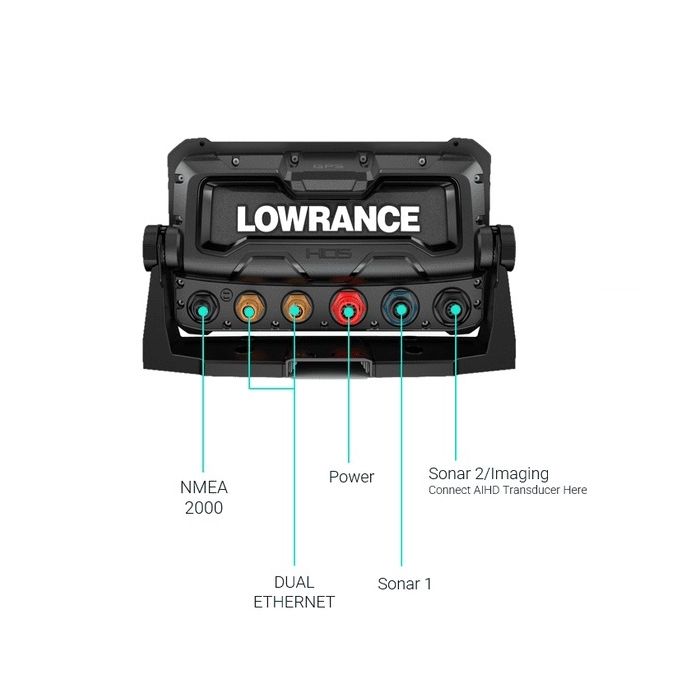

Networking: Dual Ethernet, Wi-Fi, Bluetooth, supports up to 6 networked MFDs
Mounting: Panel or bracket mount
Waterproof: IPX7 (card door closed)
Operating Temperature: 5°F to 131°F (-15°C to 55°C)
Warranty: 2-Year + optional 3-Year upgrade for total 5 years
In the Box
HDS-10 PRO unit

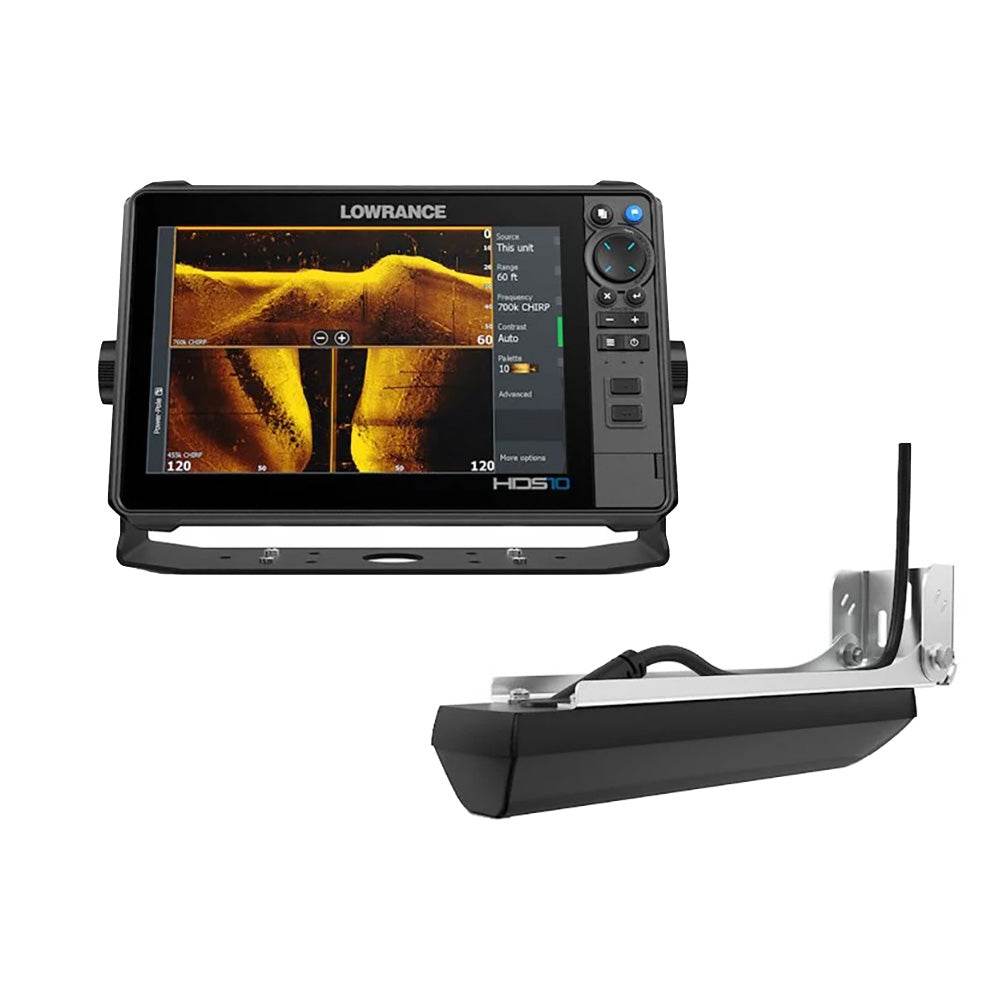

Active Imaging™ HD 3-in-1 Transducer
Gimbal Bracket with Knobs
Lowrance Power/NMEA 0183 Cable
DISCOVER North America Charts
Perfect Applications
Bass and freshwater anglers
Offshore saltwater fishing
Trolling and drifting applications
Boaters who need integrated sonar, charting, and boat control
Why Choose HDS PRO 10
Tournament-grade sonar performance for all freshwater and saltwater environments
Intuitive touchscreen and keypad navigation
Optimized for both shallow bass waters and offshore structure fishing
Compatible with all major Lowrance marine electronics and third-party NMEA 2000 devices
Built for Real Marine Conditions
Saltwater, UV, vibration, and temperature-resistant design
Reliable, long-term performance in all boating environments
Lowrance HDS PRO 10 Fishfinder Chartplotter (000-15984-001) with Active Imaging HD 3-in-1 Transducer, SolarMAX™ 10" touchscreen, ActiveTarget® 2 Live Sonar, preloaded C-MAP DISCOVER OnBoard charts, NMEA 2000, Wi-Fi, Bluetooth, and IPX7 waterproof rating.
Perfect for tournament anglers, offshore fishing, freshwater lakes, and saltwater adventures.
VIDEO Quick Guide (pdf) Owner's Manual (pdf)
