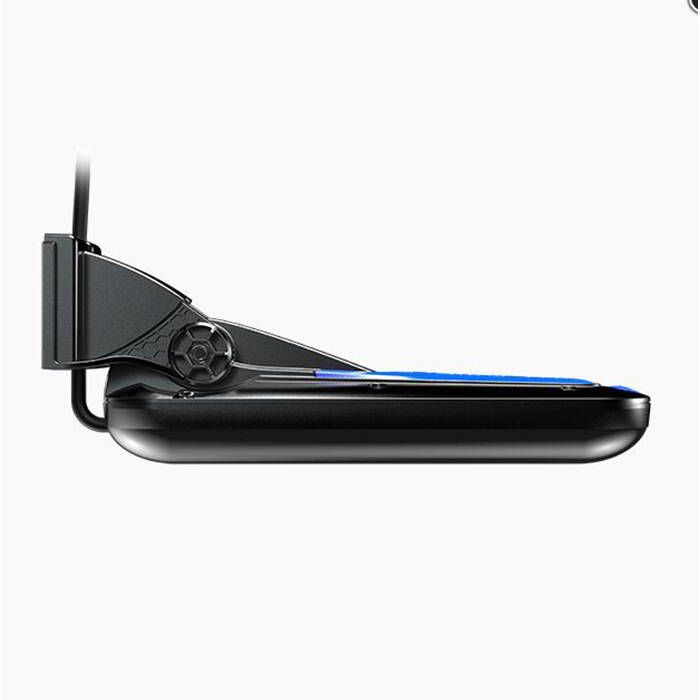

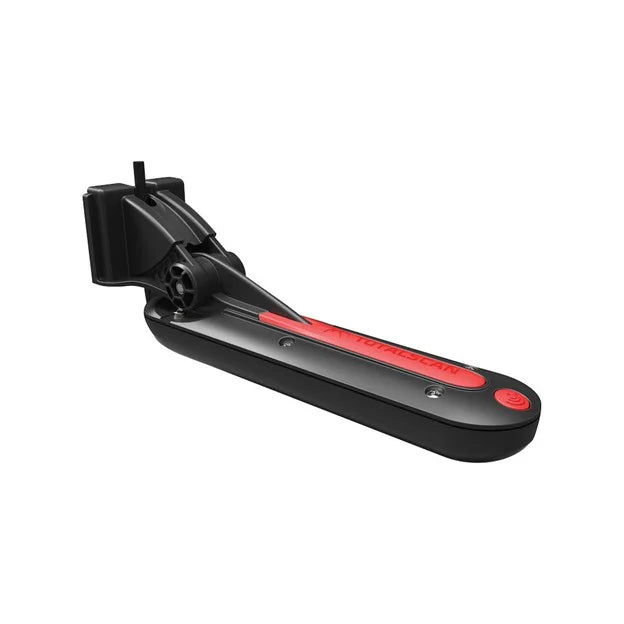

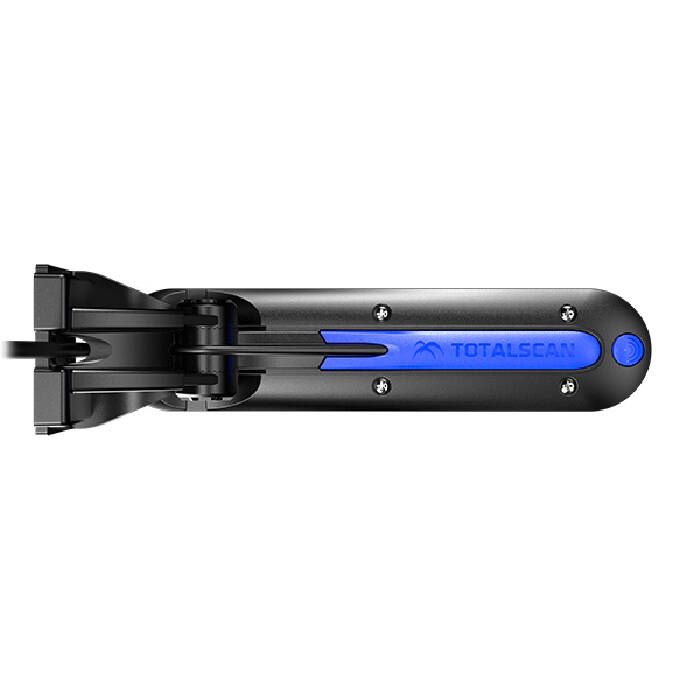

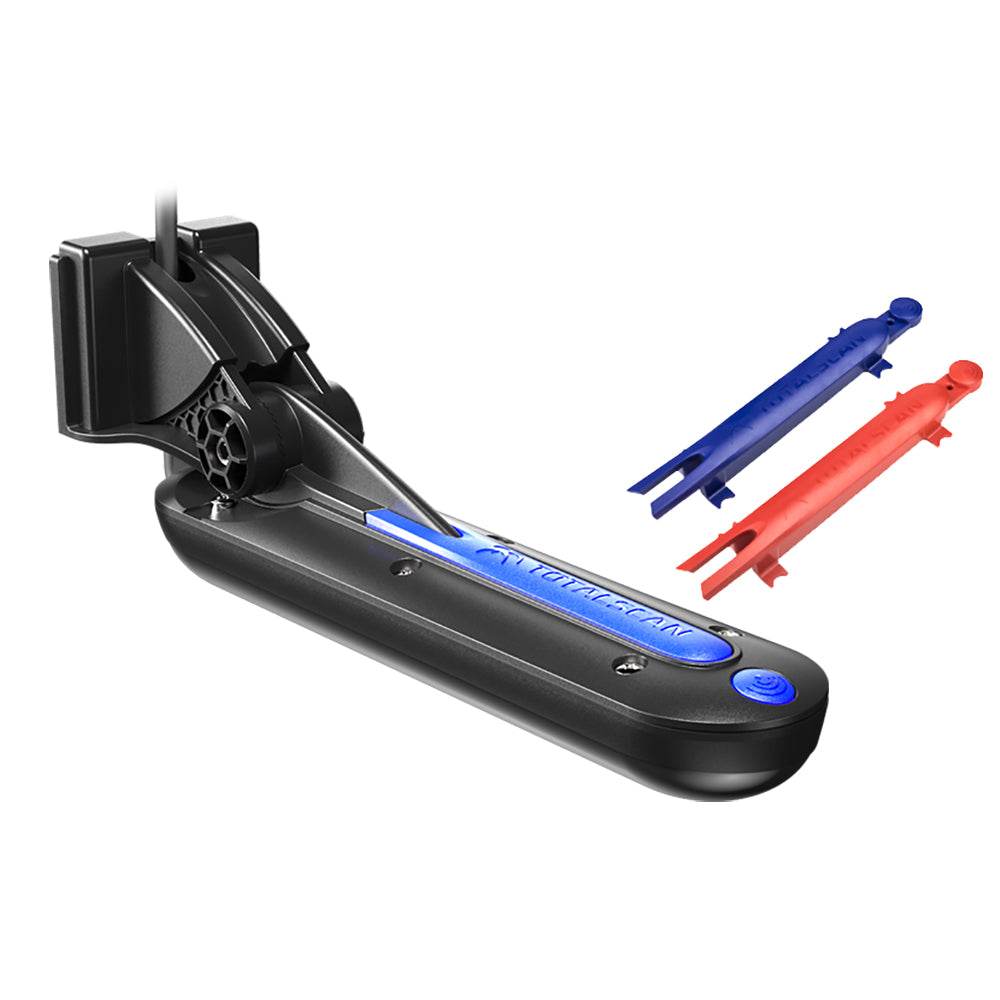

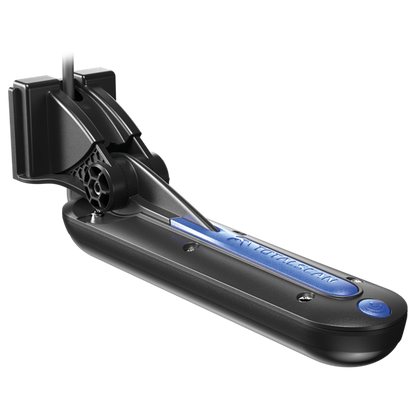

Lowrance TotalScan Transom Mount Sonar & StructureScan HD

Maximum Performance All-in-One Sonar Solution

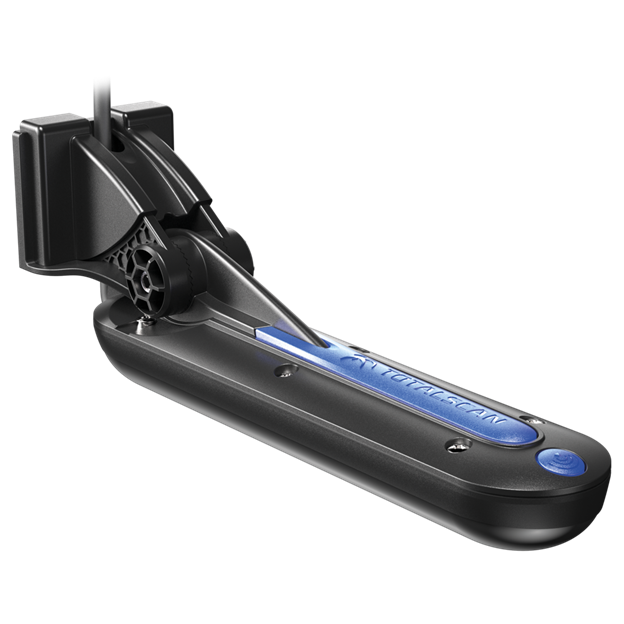

Upgrade your fishing setup with the Lowrance TotalScan Transom Mount Transducer (000-12568-001), engineered for anglers seeking precision, clarity, and simplicity.

Compatible with Lowrance HDS Gen3, Elite-7 Ti, Elite-5 Ti, Simrad NSS evo2, and NSO evo2 systems, this single transducer combines advanced CHIRP sonar, StructureScan® HD, and DownScan Imaging™ to deliver professional-grade underwater imaging in one compact device.

Key Features & Capabilities

• All-in-One Design: CHIRP sonar + StructureScan HD + DownScan Imaging™ in a single transducer
• Superior Target Clarity: CHIRP sonar provides sharper fish arches and accurate bottom tracking
• Structure & Detail in HD: Ultra-sharp StructureScan® HD identifies rocks, logs, vegetation, and fish-holding structures
• Multi-Frequency Support:
• CHIRP Sonar: Medium / High
• Broadband: 83 / 200 kHz
• StructureScan HD: 455 / 800 kHz
• Built-In Temperature Sensor: Monitor water temperature to find active fish zones faster
• xSonic 9-Pin Connector: 24-ft cable with durable black connector for reliable signal
• Rugged & Waterproof: Fully sealed IPX7-rated design withstands harsh marine conditions
• Versatile Mounting: Transom mount design for easy, secure installation on most boats
• Legacy Support: Connects to older 7-pin (blue) displays with optional adapter (side-scan not supported)

Technical Specifications

• Mounting Style: Transom
• Imaging: Standard / Down / Side
• Speed Sensor: Not included
• Power Supply: 12V DC compatible
• Waterproof Rating: IPX7
• Warranty: 1-Year Limited Warranty via Lowrance

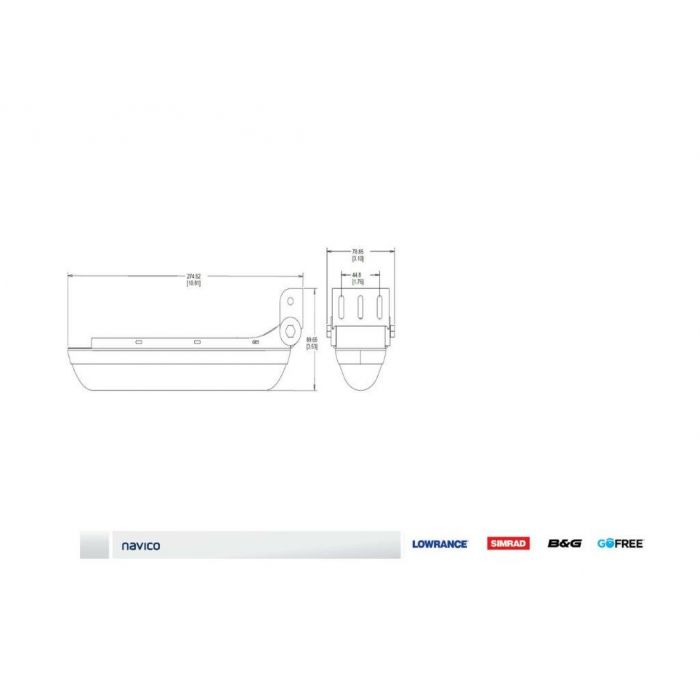

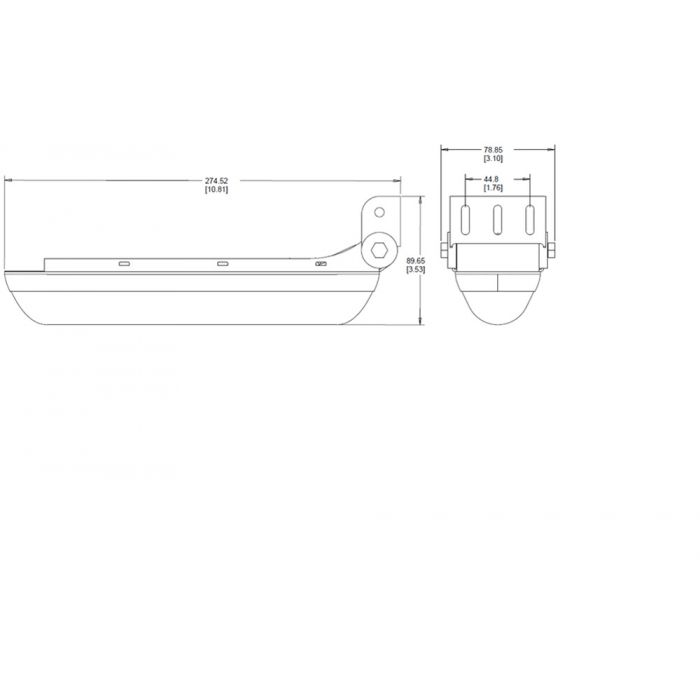

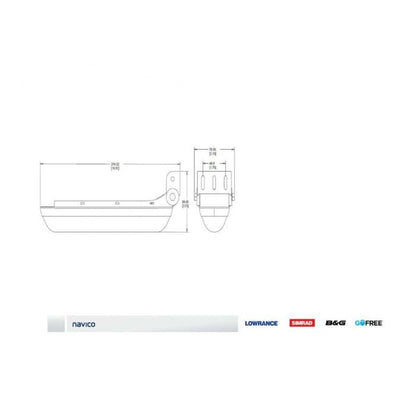

• Dimensions & Weight: Compact, easy to install (see installation guide)

Why Choose the TotalScan Transducer?

• Perfect for pros and weekend anglers seeking professional sonar without multiple units
• Saves space while delivering crystal-clear target separation across wide frequency ranges
• Ensures faster, smarter fishing with precise structure and fish detection

Engineered for Long-Term Marine Duty

• Tested for saltwater, vibration, UV, and temperature extremes
• Built to provide years of reliable, high-performance sonar and structure imaging

What’s Included in the Box

• TotalScan Transom Mount Transducer (000-12568-001)
• 24 ft (7.3 m) xSonic 9-pin cable
• Mounting hardware and installation guide
